NonLin2

EENNGGLLIISSHH

TABLE OF CONTENTS

Contact & Support Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Table Of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

NonLin2 Stereo Effects Reverb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Global Plug-In Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

The Plug-In Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Preset Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Converting NonLin2 Presets from System 6000 and Reverb 4000 . . . . . . . . . . . . . .14

Compare settings with A/B Mem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Locking Parameter values using the Parameter Lock . . . . . . . . . . . . . . . . . . . . . . . 16

EENNGGLLIISSHH

NonLin2

NONLIN2 STEREO EFFECTS REVERB

Congratulations with the purchase of your new Effects Reverb plug-in for PowerCore.

The NonLin2 Stereo Effects Reverb for PowerCore is another world class reverb direct-

ly ported from the System 6000. NonLin2 is an effect reverb, which differs from the

traditional natural sounding TC reverbs.

NonLin2 is capable of generating compact vocal ambience, percussive and dramatic

drum sounds, reverse reverbs and completely new “twisted” effects. Featuring an

amplitude envelope that is capable of rendering an untriggered gated reverb and a

‘twist’ parameter, which can radically alter the sound, this plug-in delivers a serious

advantage over other gated reverbs.

The NonLin2 plug-in runs on all available PowerCore at the common sample rates

from 32 kHz to 96 kHz.

The plug-in can be inserted in any VST or Audio Unit compatible host application as

Stereo-to-Stereo Effect or as Mono-To-Stereo Effect (depending on the host application

and the individual track settings).

The NonLin Stereo Effects Reverb algorithm occupies*:

Enjoy!

The TC Electronic Team

Sample Rate PowerCore PCI / Element PowerCore Compact / FireWire / MKII

44.1 kHz 67% DSP Load and 58% DSP Load and

75% Memory (of 1 DSP) 18% Memory (of 1 DSP)

48.0 kHz 69% DSP Load and 64% DSP Load and

75% Memory (of 1 DSP) 18% Memory (of 1 DSP)

88.2 kHz 91% DSP Load and 87% DSP Load and

75% Memory (of 1 DSP) 18% Memory (of 1 DSP)

96.0 kHz 100% DSP Load and 95% DSP Load and

75% Memory (of 1 DSP) 18% Memory (of 1 DSP)

* All values subject to change

GLOBAL PLUG-IN CONTROLS

KEYBOARD COMMANDS

In most host applications, the NonLin2 Reverb supports keyboard commands for certain

functions. The following key commands are available for all plug-in parameters:

Key Commands in Mac OS X:

Fine Adjust = Apple key + mouse movement

Reset To Default = Alt key + mouse click

Key Commands in Windows:

Fine Adjust = Alt + mouse movement

Reset To Default = Shift + Control + mouse click

User Assignable Key Commands:

Depending on your host application, you have the ability to add your own keyboard

shortcuts to certain buttons. The supported buttons in NonLin2 are: Mem., A/B, the

previous/next preset buttons and the 2 page buttons: Main and Modify.

A right mouse click on the button will open a pop-up menu. Here you can select to

assign a new keyboard shortcut or to remove a previously assigned shortcut.

Note: The ability to use the assignable key commands highly depends on the host

application. Some applications do not pass key commands on to the plug-in.

SCROLL WHEEL SUPPORT

If you are using a host application that supports this feature, all of the NonLin2 knobs

and faders support scrolling on both Windows XP and Mac OS X. Simply roll your

mouse over a knob or slider and use the Scroll Wheel to increment / decrement the

associated parameter.

USER INTERFACE DISABLED

Should your PowerCore be fully loaded and there is not enough free processing on

your DSPs, the plug-in will come up in a “disabled” state. Should this occur, it is

advised to remove the plug-in from the mix.

Note: In case any PowerCore plug-in gets disabled either while loading a session or

during your work (e.g. you forgot to switch on PowerCore prior to loading a session),

you can always save your session without losing any of the plug-in settings. The last

setting of the plug-in will always be saved, even when it is in “disabled” state! This

also applies to saving presets.

NonLin2

EENNGGLLIISSHH

NonLin2

FOCUS FIELDS

You can place your own set of parameters in the 6 focus fields at the bottom of the

plug-in. Making use of the focus fields can give you a better workflow, since you will

not have to switch pages all the time to find the parameters that you work with. You

can assign any parameter to the focus fields, and the focus fields are stored with the

session as well as when you save your presets.

To change the assignment:

• Press the Assign button. The Assign button as well as one of the Focus Fields

will be highlighted.

• Select the Focus Field you wish to link a parameter to, by clicking on that field.

• Click on the parameter you wish to link to the selected Focus Field.

• To get an unassigned (empty) Focus Field, click again on the selected parameter.

• Once you have finished the assignments, click again on the Assign button to

leave the assign mode.

OVERLOAD INDICATION (O/L)

The two LEDs in the metering section, between the input and output meters, will light

up in case internal DSP overloads are detected. You should lower the input level to

avoid these overloads. To reset the indication, click on the O/L LED.

NonLin2

EENNGGLLIISSHH

THE PLUG-IN PARAMETERS

The plug-in parameters are spread amongst 2 User Interface pages – the Main page

and the Modify page:

MAIN PAGE

On the NonLin2 Main page, we have grouped the I/O and Envelope parameters of the

NonLin2. Also, on this page you can find the plug-ins preset handling. More about the

preset handling can be found in the section “Preset Handling” later in this manual.

LEVELS

Input Level

Range: Off to 0dB

Sets the Input Level for the algorithm. Reduce the input level in case you experience

overloads (O/L).

Output Level

Range: Off to 0dB

The overall Output level of the Reverb. Use this parameter to adjust the output level

to fit for following effects in your host application.

EENNGGLLIISSHH

NonLin2

Dry Level

Range: Off to 0dB

Adjusts the dry signal level passed through the algorithm. For a typical send/return

configuration, leave dry level off.

Wet Level

Range: Off – 0dB

Adjusts the wet (reverb) output level.

ENVELOPE

The envelope determines the shape of the reverb. Due to the envelope control, you

can create the typical “gate reverb” effect without the use of any noise gate or similar.

The triggering is done automatically for you, just by feeding the plug-in with audio.

Pre Delay

Range: 0 – 500ms

Pre Delay offsets the Output and timing of the Envelope Generator. It is typically used

to obtain depth and definition in a mix, or align the effect with a musical beat. Delays

in the 10-40 ms range can be considered for percussive sounds, while dense vocal

slap effects could use 70-150 ms of Pre Delay.

Attack

Range: 0 – 500ms

Sets the Attack time (= build up) of the Reverb Envelope. The build up time is the

time the reverb tail needs to get to the maximum level.

Max. range for this parameter depends on the Hold and Release settings: The total

time for Attack, Hold and Release can not be higher than 500ms.

Hold

Range: 0 – 500ms

Sets the Hold time (= fully open time) of the Reverb Envelope. The “fully open” time

is the time the reverb tail maintains its maximum level. For a typical eighties style

response, Hold should be set at 60-120 ms.

Max. range for this parameter depends on the Attack and Release settings.

NonLin2

EENNGGLLIISSHH

Release

Range: 0 – 500ms

Sets the Hold time (= Decay) of the Reverb Envelope. This is the time the reverb tail

needs to disappear and is causeing the “gated” effect. For a typical eighties style

response, Release should be set at 0-100 ms. The most gated and unnatural effect is

obtained at short Release settings.

Max. range for this parameter depends on the Attack and Hold settings.

Envelope Display

ENVELOPE DISPLAY

The Envelope display is a graphical representation of the 4 envelope parameters and

the wet level. The 4 dotted lines represent the 4 envelope parameters and their posi-

tion in time. Take a vertical line at the handle and move it to the left to decrease the

time for that parameter or to the right to increase the parameter. Moving the horizon-

tal line of the envelope curve up and down changes the wet level of the reverb from

0dB (fully up) to off (fully down).

Note: The total time for Attack, Hold and Release can not exceed 500ms!

EENNGGLLIISSHH

10 /

NonLin2

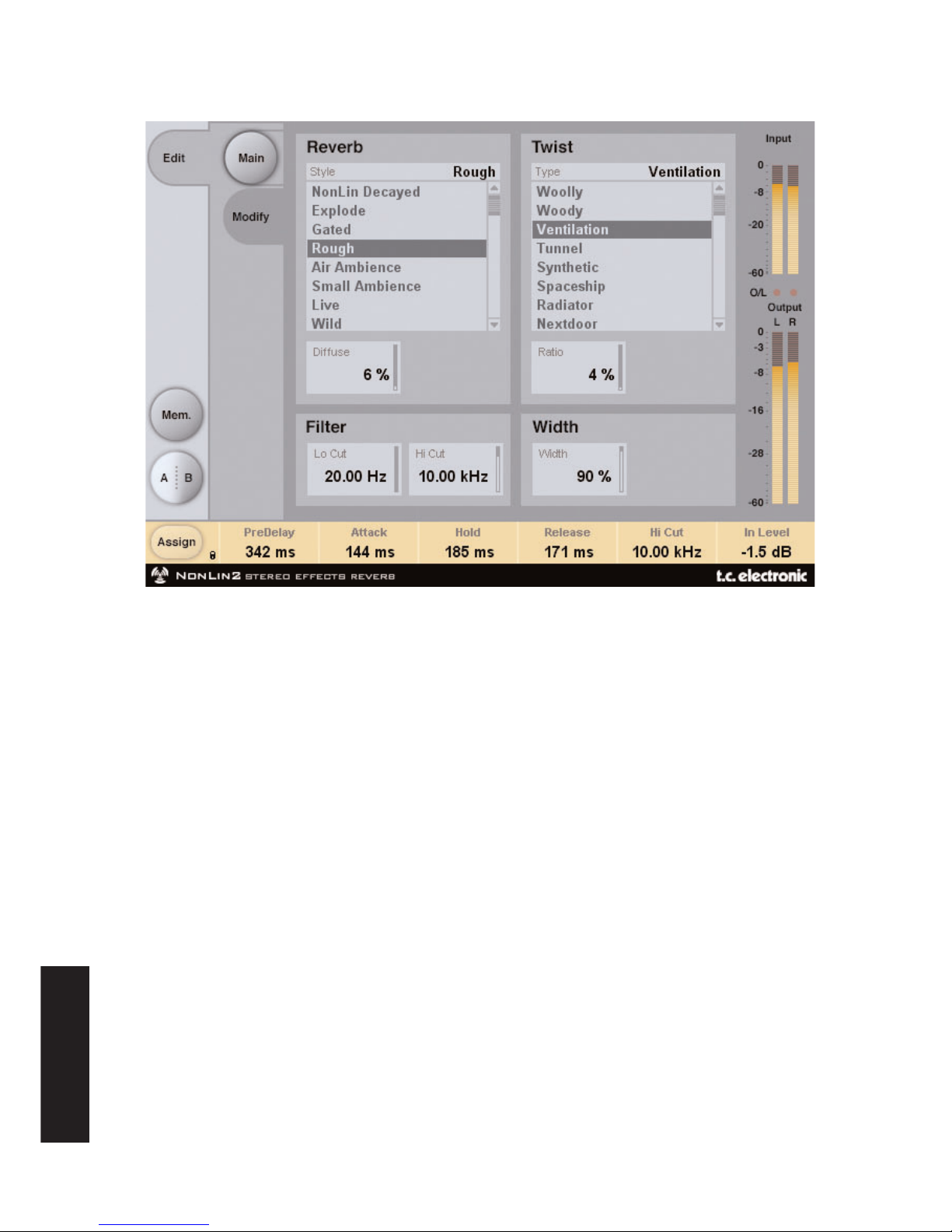

MODIFY PAGE

REVERB STYLE

Style

Selects the basic Reverb Style subjected to the Envelope and Twist modifications. The

Style parameter should be seen as an algorithm selection inside the algorith. Different

Styles have different features with regards to density, diffusion type, spectral

response, stereo image etc. Choose one that suits your program material.

Note: Differences are more pronounced with low Diffuse settings and Twist Ratios.

Diffuse

Range: 0 – 100%

Sets the amount of diffusion applied to the Reverb Style selected.

Note: For high Diffuse ratios, the Attack and Decay times of the reverb Envelope may

be slightly affected.

Andere Handbücher für NonLin2

Inhaltsverzeichnis

Andere TC Electronic Software Handbücher

TC Electronic

TC Electronic Dynamic EQ Bedienungsanleitung

TC Electronic

TC Electronic Master X5 Bedienungsanleitung

TC Electronic

TC Electronic Intelligent Vocal Harmony Harmony4 Bedienungsanleitung

TC Electronic

TC Electronic RESTORATION SUITE Bedienungsanleitung

TC Electronic

TC Electronic PowerCore 01 Bedienungsanleitung

TC Electronic

TC Electronic 24/7-C Bedienungsanleitung

TC Electronic

TC Electronic NonLin2 Bedienungsanleitung

TC Electronic

TC Electronic PowerCore Master X3 Bedienungsanleitung

TC Electronic

TC Electronic VSS3 Bedienungsanleitung

TC Electronic

TC Electronic PowerCore CL Bedienungsanleitung

TC Electronic

TC Electronic Loudness Radar Meter LM5 Bedienungsanleitung

TC Electronic

TC Electronic Tube-Tech CL 1B Bedienungsanleitung

TC Electronic

TC Electronic ASSIMILATOR KONNEKT Bedienungsanleitung

TC Electronic

TC Electronic V-STATION Bedienungsanleitung

TC Electronic

TC Electronic Tap Factory Multi-Tap Delay Bedienungsanleitung

TC Electronic

TC Electronic TonePrint Editor Bedienungsanleitung

TC Electronic

TC Electronic MegaReverb Bedienungsanleitung

TC Electronic

TC Electronic Filtroid Bedienungsanleitung

TC Electronic

TC Electronic Digital Vintage Reverb DVR2 Bedienungsanleitung

TC Electronic

TC Electronic UnWrap Home Stereo System Bedienungsanleitung

TC Electronic

TC Electronic TC Chorus-Delay Bedienungsanleitung

TC Electronic

TC Electronic VoiceStrip Bedienungsanleitung

Beliebte Software Handbücher anderer Marken

COMPRO

COMPRO COMPROFM Bedienungsanleitung

Muratec

Muratec OFFICEBRIDGE ONLINE Bedienungsanleitung

Oracle

Oracle Contact Center Anywhere 8.1 Bedienungsanleitung

Adobe

Adobe 65007312 - Photoshop Lightroom Handbuch

Avaya

Avaya NULL One-X for RIM Blackberry Bedienungsanleitung

HP ProLiant BL420c Bedienungsanleitung

PS Audio

PS Audio PowerPlay Betriebsanleitung

Brady

Brady LOCKOUT PRO 3.0 Service-Handbuch

Avaya

Avaya Interaction Center Bedienungsanleitung

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Handbuch

Novell

Novell GROUPWISE 8 - INTERNET AGENT Bedienungsanleitung

Oracle

Oracle Application 9i Bedienungsanleitung

Acer

Acer RDM Bedienungsanleitung

Canon

Canon Vixia HF21 Bedienungsanleitung

Canon

Canon ZR950 Bedienungsanleitung

Samsung

Samsung Auto Backup Bedienungsanleitung

Polycom

Polycom Vortex EF2201 Montage- und Bedienungsanleitung

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Bedienungsanleitung
