WIFI MANUAL

AC12000E

12,000 BTU PORTABLE AIR CONDITIONER

With WIFI Smart App

Thank you for choosing TCL.

Please read this user manual before using this innovative Air Conditioner and

keep it safe for future reference.

Page 2of 12

BEFORE YOU START

•Ensure your router provides a standard 2.4ghz connection.

•If your router is dual band ensure that both networks have different network names

(SSID). The provider of your router / ISP will be able to provide advice specific to

your router.

•Place the dehumidifier as close as possible to the router during setup.

•Once the app has been installed on your phone, turn off the data connection, and

ensure your phone is connected to your router via wifi.

DOWNLOAD THE APP TO YOUR PHONE

Ensure whilst setting up the WIFI on your air conditioner, that it is close to your router, as

the unit requires a good signal during the setup process. Your air conditioner is designed to

be connected to a 2.4ghz network, and the connection is set up using the TCL “SMART

LIFE” app. We would advise on using the QR codes below to ensure the correct app is

downloaded.

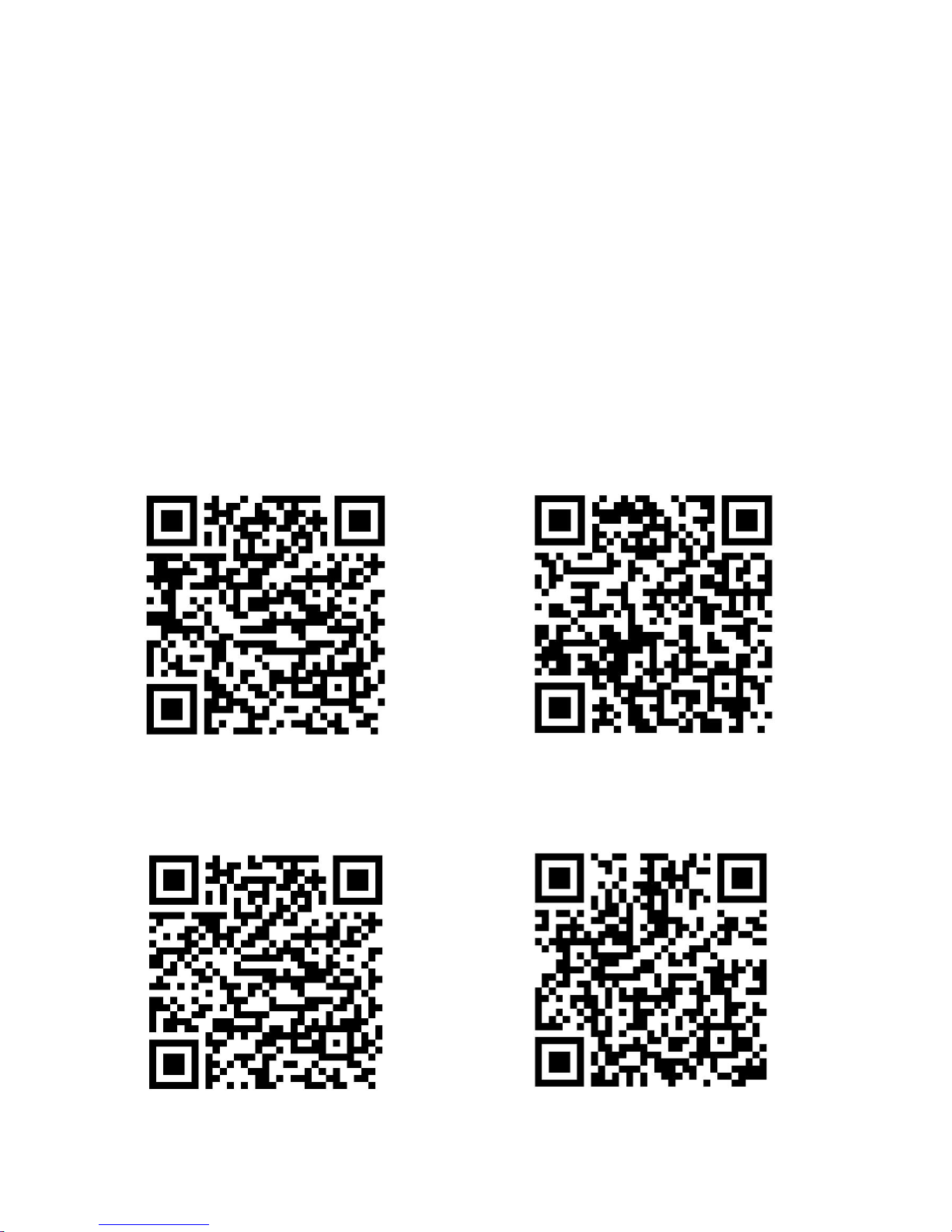

Android IOS

The unit can also be controlled using the “Smart Life” app by TUYA which is also available

in the app stores. We would advise on using the version above which is optimised for use

with your air conditioner as we cannot guarantee the correct functionality of all features with

the TUYA app. If you would prefer to use the TUYA app, please use the QR codes below

Android IOS

Page 3of 12

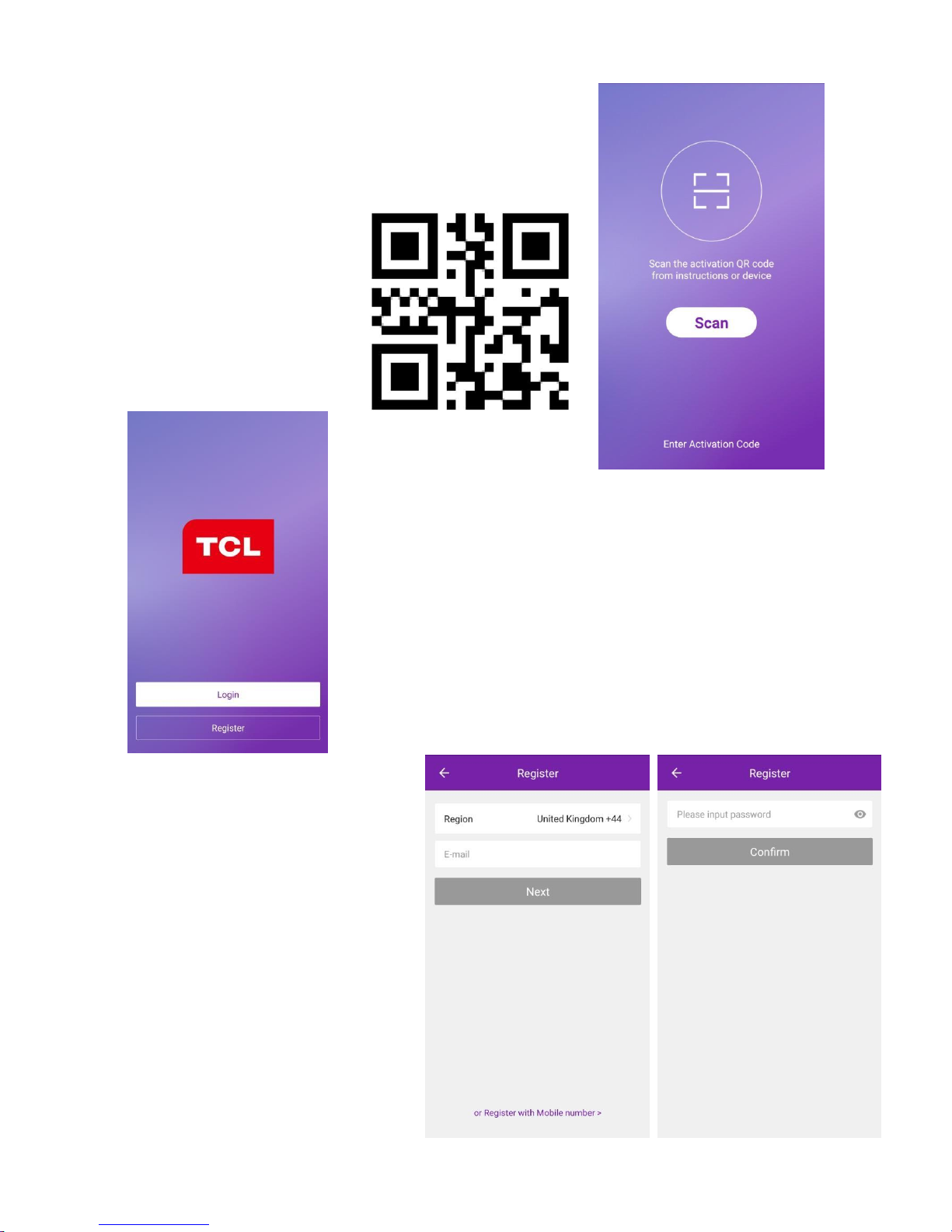

ACTIVATING THE APP

The first time the app is used, it will need activating. To do

this, either press the scan button, and scan the QR code

below, or press “Enter Activation Code” and enter the

activation code: TCL

Upon the first use of the app, an account will need to be

registered. Click on the “Register” button to enter the

registration screen. The account can be created by using either

the default option of an email address, or alternatively by SMS

message using the “Register with mobile number” option.

EMAIL REGISTRATION

Enter your email address, and Press

next. In the password box create a

new password for your account,

before pressing confirm.

This should be at least 6 characters

and include letters and numbers.

Page 4of 12

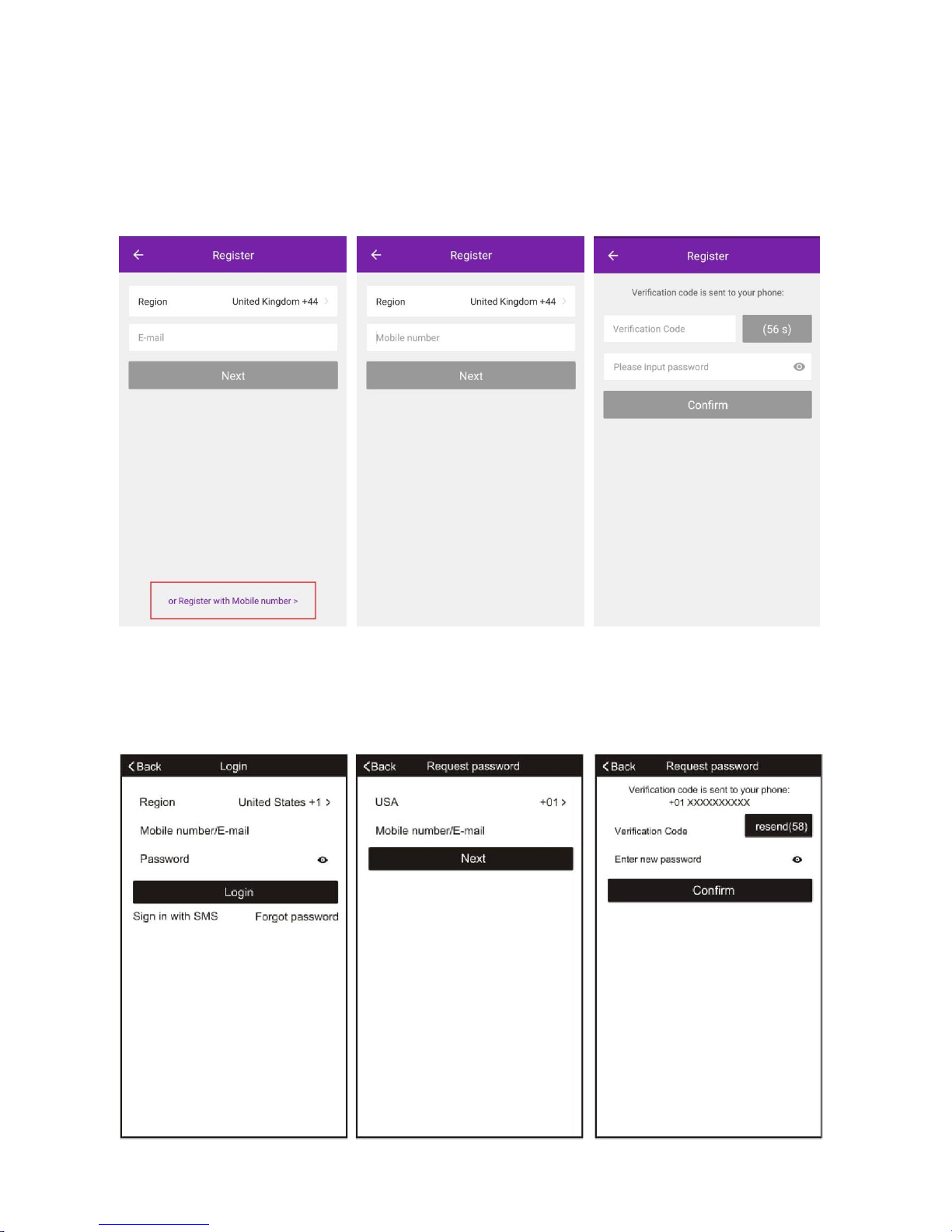

SMS REGISTRATION

Press on the option at the bottom of the screen to choose the option for registering with a

mobile number. You will receive an activation code via SMS. Enter the activation code into

the verification code box, before entering your new password in the box below.

Please note the password should be at least 6 characters and include letters and numbers.

Then press the confirm button to log in.

FORGOTTEN PASSWORD

Should the password for your account be forgotten, it is possible to use the “Forgot

Password” option which will allow you to enter the email address or telephone number used

to register the account, and a verification code will be sent to you via the method chosen.

Page 5of 12

CONNECTION METHODS AVAILABLE FOR SETUP

The smart devices have two different setup modes, CF (Quick Connection) and AP (Access

Point). The CF mode is a quick and simple way to set the unit up. The AP connection uses

a direct local wifi connection between your phone and the air conditioner to upload the

network details.

Before starting the setup, please ensure that your air conditioner is in the correct standby

mode for the connection type you are attempting, the display on the air conditioner will

confirm the current connection mode during setup.

CHANGING BETWEEN CONNECTION TYPES

To change the unit between the two connection types, quickly press the fan button on the

air conditioner 6 times, and wait approx. 10 seconds until the new connection mode is

displayed on the screen.

ADDING A DEVICE

1. Press the “Add device” button, which will bring up a screen to choose the device type.

2. Select “Portable Air Conditioner” from the Device Type List.

3. The app will default to quick connection mode, and this can be changed by pressing

the button labelled AP Mode in the top right of the screen.

4. After ensuring that the air conditioner is also in the correct connection mode, follow

the relevant connection guide on the following pages.

Page 6of 12

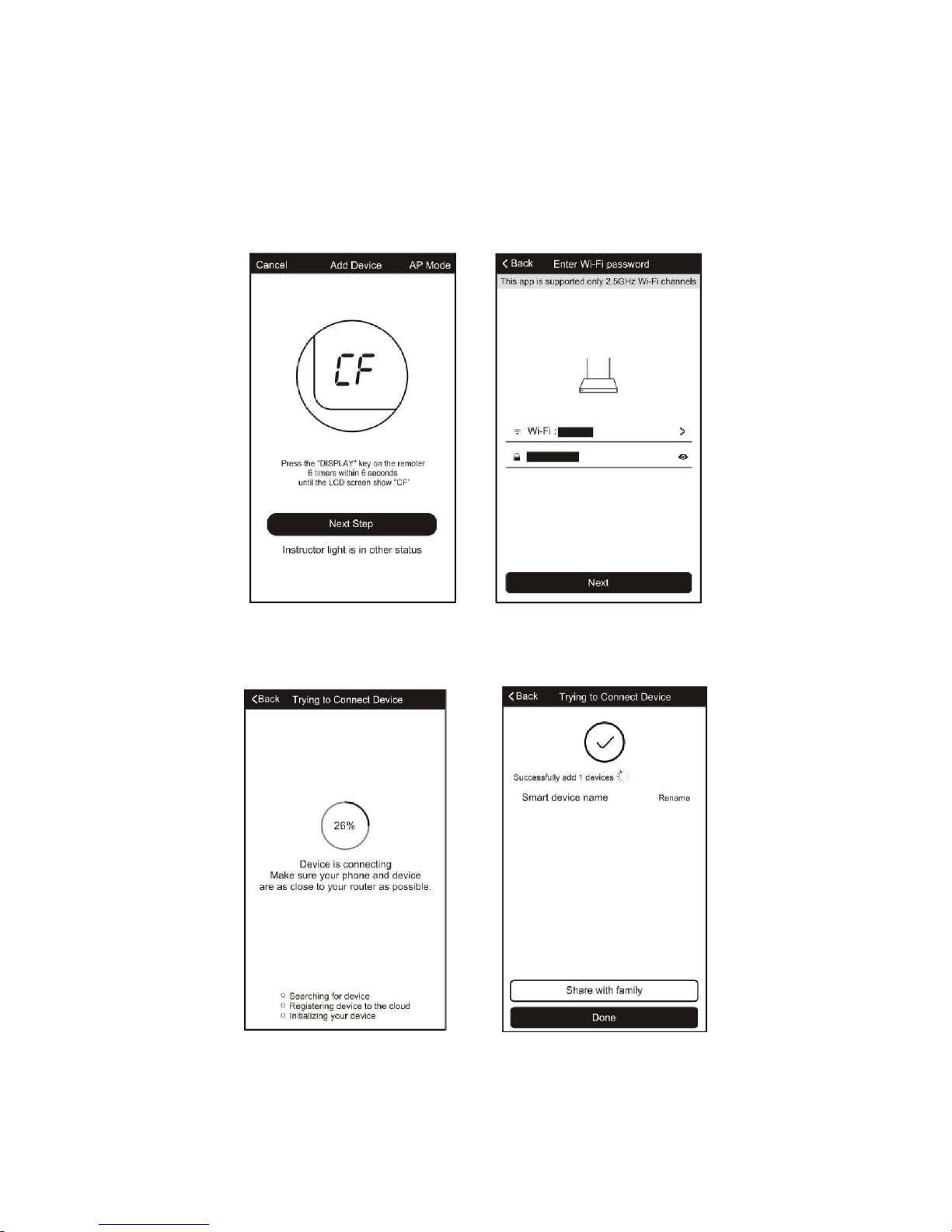

CONNECTING USING CF MODE (QUICK CONNECTION)

1. Ensure that the display on the air conditioner is displaying CF before pressing “Next

Step” (otherwise to change the connection mode: Quickly press the fan button on the

air conditioner 6 times and wait 10 seconds until CF is displayed)

2. Select your Wifi router from the drop down list and enter the password (Please note

the password is case sensitive) before pressing next.

The app will automatically upload the connection information to the air conditioner, once the

connection is completed, a message will be displayed to confirm. On this page there is the

option to rename the air conditioner to something more relevant.

If the connection fails, please retry the connection, failing this try connecting using the AP

mode connection.

Page 7of 12

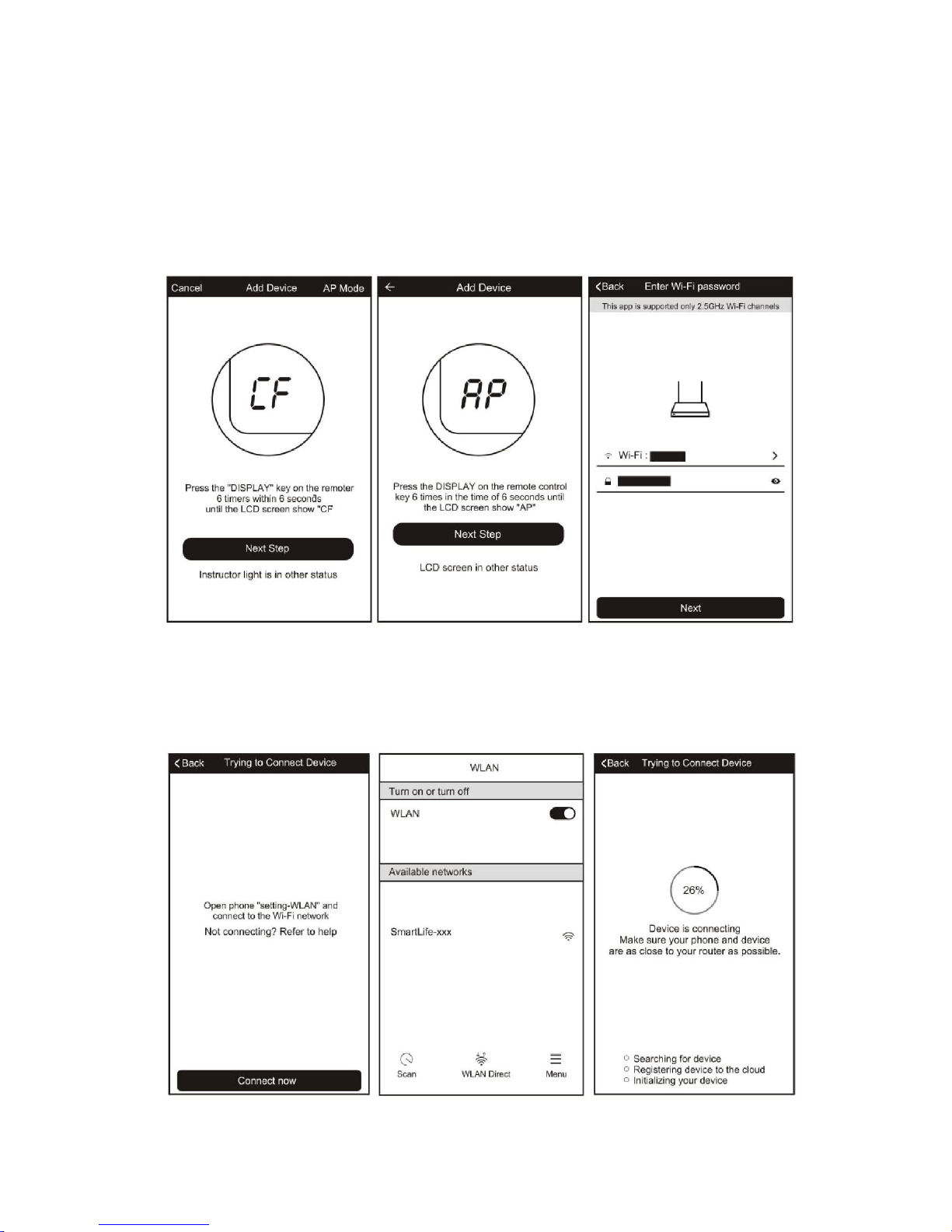

CONNECTING USING AP MODE (ALTERNATIVE METHOD)

1. Ensure that the screen on the air conditioner is displaying AP (otherwise to change

the connection mode: Quickly press the fan button on the air conditioner 6 times and

wait 10 seconds until AP is displayed)

2. Press on the AP Mode button in the top right of the screen to change the app to AP

mode connection.

3. Select your Wifi router from the drop down list and enter the password (Please note

the password is case sensitive) before pressing next.

4. Connect your phone to the wifi network by leaving the app, and connecting to the

Wifi network created by the air conditioner “Smartlife-XXX”

5. Reopen the app and click on the “Connect now” button,

Page 8of 12

The app will automatically upload the connection information to the air conditioner, once the

connection is completed, a message will be displayed to confirm. On this page there is the

option to rename the air conditioner to something more relevant.

If the connection fails, please retry the connection, failing this try connecting using the CF

mode connection.

Page 9of 12

CONTROLLING YOUR DEVICE THROUGH THE APP

Now that your air conditioner is linked up to your network, you can control it from your phone.

Select your device in the device list to gain access to the controls for the device.

Use the + and –buttons to increase and decrease the desired temperature. The tabs on the

bottom of the screen should be used to change other settings.

Mode: Allows the operating mode to be changed between Auto, Heat, Dry, Cool and Fan.

Speed: Allows the fan speed to be changed between Auto, Low, Medium and High.

Function: Allows the Sleep function to be activated (See main manual for description of the

operation) and for the temperature measurement unit to be changed between Fahrenheit and

Celsius.

Page 10 of 12

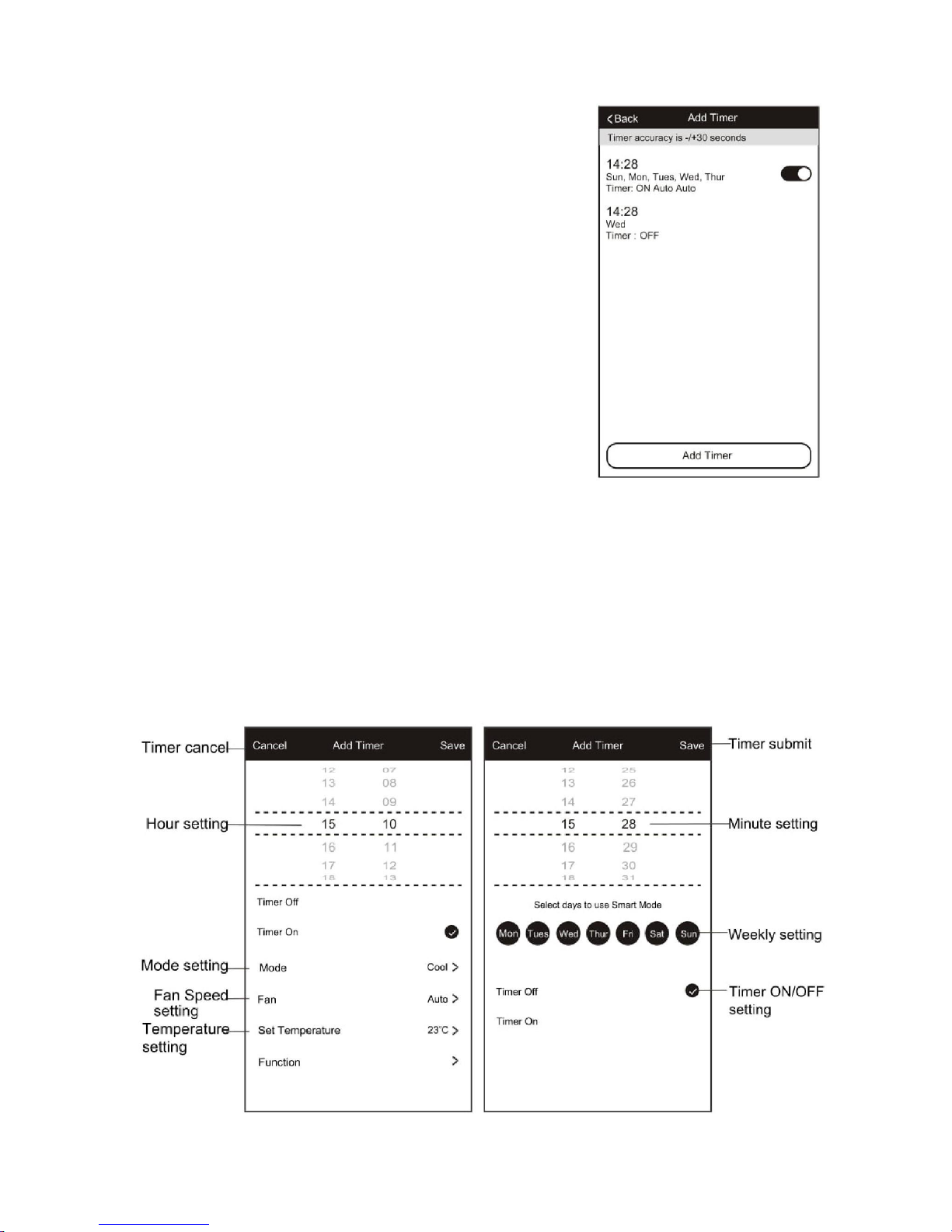

USING THE TIMER FUNCTION

The timer can be used to either set a time for the air conditioner

to turn on (and specify the settings it will run with), or a time for

the unit to turn off. Multiple timers can be used together to

build a schedule with on and off times.

1. Press the Timer button at the bottom right of the

screen.

2. To set a new timer, press the “Add Timer” button at the

bottom of the screen. If there is a timer already

programmed that you would like to amend, press and

hold the timer which requires amendment.

OFF TIMER:

1. Select Timer Off

2. Set the time the air conditioner should turn off 3. Select

which days the timer should operate

4. Press Save in the top right corner.

ON TIMER:

1. Select Timer On

2. Set the time the air conditioner should turn on

3. Select which days the unit should run on the auto timer.

4. Set the Mode, fan speed, desired temperature and function that the air conditioner

should run with.

5. Press Save in the top right corner.
