Training Material of
MS901K-AP Chassis
Contents Page
MS901K-AP Series…………………………..………………………………….…….1
Main Preinstall Function……….………….……………………………….…….4
Interface Introduction……..….………………….……….……….….….……8
Module Introduction……..….……………….…………………….….….……10
Block Diagram……..….………….………………………….….…….….….…13
Key Components Introduction….………………………….………….…………17
Key Components List…..………………………………………………………..…18
Key Test Point ....…………………………………………………………….………....21
Unit Circuit Analysis and Testing…..……………………………………….……31
Accessories Introduction...……………………………………….……….…….38
3D TV Introduction ...……….……………………………………….……….…….42
Trouble Shooting .……………………………………………………………...…45
System Reset & Enter Factory Menu…..……………………...…..…...…...…..50
Software Update From USB.…………………………………………………….....53
MS901K-AP Series
---- Main Chip Introduction
The MSD6A901IV is MStar’s most up-to-date system-on-chip solution for flat
panel integrated digital television products. Building on the success of MStar’s
current solutions, the MSD6A901IV hosts the most advanced picture processing
engine, MStarACE-PRO2UC, for all the Experts in various TV video quality tuning
fields to develop the state-of-the-art TV and TV system.
-1-
FEATURES
Single chip iDTV solution that
supports dual 8/10bit LVDS
output, channel decoding,
MPEG decoding, 3D formatter,
security OS, andmedia-center
functionality enabled by a high
performance AV CODEC, CPU,
and security engine.
Key features includes,
1. DVB-C Front-End Demodulator
2. 3D Formatter Engine
3. A Multi-Standard A/V Format Decoder
4. The MACE-PRO2UC Video Processor
5. Home Theater Sound Processor
6. Internet and Variety of Connectivity Support
7. Advanced dual Core CPU and four Core GPU
8. Peripheral and Power Management
9. Robust and efficient security engine
MS901K-AP Series
---- Menu Display
-2-
◆Homepage(1) ◆Homepage(2)
◆All Apps ◆3D Games
MS901K-AP Series
---- Menu Display
-3-
◆Menu ◆Picture Setting
◆Source ◆Settings
Main Preinstall Function
Weather: Provides weather forecast for cities, and lets you know real-time weather.
TCL Voice: Use voice to control the Smart TV. By speaking towards the mic of a smart
phone with Android system or an RCU with 2.4G function, we can let the TV perform the
related tasks(including changing channels, opening app and power off, etc.) For details, refer
to relevant introductions about this app on the screen.
[Note: This application is also included in nScreen. So before using it by phone, you should
enter the nScreen first.]
Face Recognition: Detect the face via the camera if there’s person watching TV. It can
automatically shut down the TV screen for energy-saving when you’re out of the camera’s
view. And it will turn on again when you’re back. Press “Left/Right” to switch among the menu
items. Press “OK” to enter the menu corresponding to the selected item. Press “Back” to exit,
and return to the previous menu. The specific operation can be carried out in accordance
with Help information in the menu.
[Note: To use this function, the TV must be connected with a camera.]
Gesture Control: Control the TV by simple hand movement. Just operate in accordance with
the prompts from the wizard, then you can experience TV control like changing channels,
turning pages, selecting an object and returning from an app or menu, etc.
[Note: To use this function, the TV must be connected with a camera.]
-4-
Main Preinstall Function
Smart Pen: A function jointly developed by well-known educational institutes.
It contains various stories, fairies and fables, etc which make learning quite interesting
and never bored. Children can hear the sound, and see the vivid animation which they are
interested in by click the contents with the Smart Pen. Detailed steps:
1) When the TV is in startup status, open books equipped with Smart Pen and find the
contents you are interested in.
2) Use Smart pen to click the contents of this book.
3) The exciting contents are presented.
nScreen: Centering around the Smart TV as the core, it achieves the interconnectivity and
interoperability among TV, mobilephone and Pad, also the interactivity of multimedia, remote
control, and other functions. Please download and installl the client software of TCL nScreen
to your smart phone or Pad with Android system first, then open the client software and
operate according to the prompt on the smart phone and the screen of TV. After they are
connected with TV via wireless network, you can experience the Remote Control, Media
Sharing, Interactive Games, TV Postback, Voice Assistant and Help.
Remote Control: Smart phone can be used as a remote control unit to operate TV.
Media Sharing: Video or music files can be sent to TV and played on it.
Interactive Games: Make the Phone as controller to play games
TV Postback: The image on TV screen can be sent to smart phone.
Voice Assistant: Control the TV by voice.
Help: Brief introduction about the features and usage of functions under nScreen.
-5-
Main Preinstall Function
-6-
TV Guard: System management application including TV Checkup, One Key Install, System
Information, Startup Optimizer, Memory Manager, Network Manager, Software Manager,
Security Protection, File Manager and Settings.
TV Checkup: Detect the tasks and apps, optimize system.
One Key Install: Select and install app.
System Information: Display the system status, SW version etc.
Startup Optimizer: Optimize startup speed.
Memory Manager: Memory space management and settings.
Network Manager: Internet related applications management.
Software Manager: App backup, upgrading,move etc.
Security Protection: Enable or disable apps.
File Manager: Browse files.
Settings: Change the settings of TV Guard.
App Store: Intelligent classification of application that provide many useful and amusing apps.
After entering, you can see the recommended excellent apps. Press “Left/Right” to select,
press “OK” to enter. You can see the menu of App Store including Categories, My Apps,
Installation Required, Search, User center on the top, and New app, Hot, All playing in the
middle.
Main Preinstall Function
Browser: A TV browser specially developed for Smart TV . After click the icon and enter the
browser, you can input URL to browse a webpage, and add your favorite websites on the
homepage, etc.
TV Tube: The largest video sharing site in the world. After you click the icon and enter the app,
you can view a variety of videos.
Frequency: A web video discovery application. It can provide users with many useful channels,
including Facebook, Twitter. You can enter the app, and find the videos you are interested in.
TV Tweets: A social networking and micro-blogging service provider. Via TV Twitter client, Users
can browse, communicate with friends, post and update web contents.
Facebook: A TV client of Facebook social application. After click the icon and enter the
application, users can browse contents and communicate online via the TV.
Vimeo: A video-centric networking site. You can search and watch the Vimeo video online
through the TV. After successfully associating your TV with your Vimo account, you will enjoy
more function.
-7-

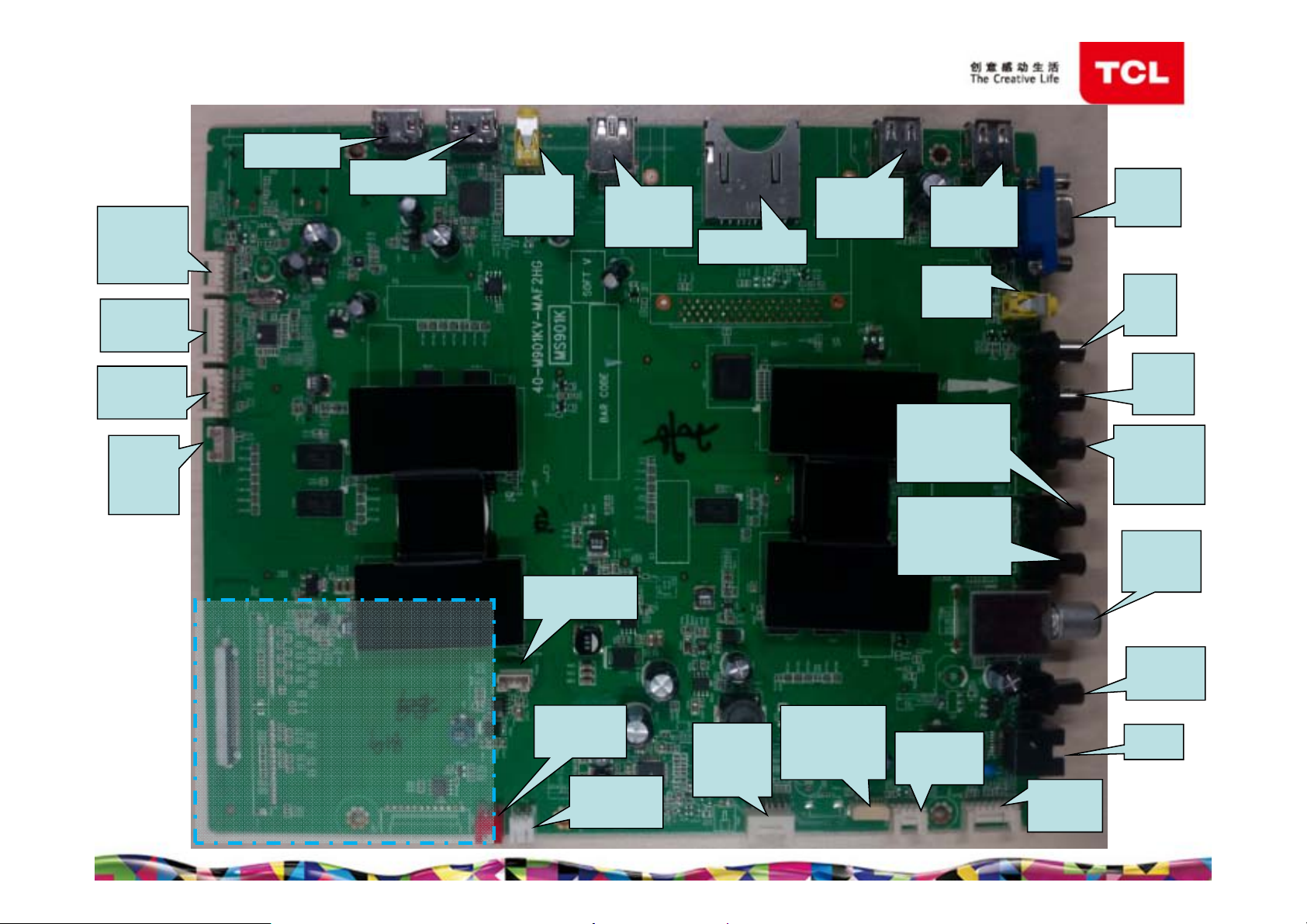

USB2
(2.0)
SD Card
HDMI2
HDMI1
Power
Supply
Socke
tTo IR
Board
To KEY
Board
VGA
IN
LAN
SPDIF
OUT
Pb
IN
Pr &
Video of
AV2 IN
Audio L IN
of (YPbPr
&AV2&VGA)
Y
IN
Tuner
(RF IN)
AV
OUT
To Right
Speaker
To Left
Speaker
To 3D
Bluetooth
Dongle
Debug Port
-8-
AV1
IN USB1
(3.0)
USB3
(2.0)
Audio R IN
of (YPbPr
&AV2&VGA)
To WIFI
Dongle
To 2.4G
Dongle
To
Camera
Dongle
Debug
Display
In this area of the
MS901K mainboards,
there’re different
types of interface
matching with
various panels.
(see next page)
Interface Introduction
