TCL LCD-27VSE Bedienungsanleitung

27’’ LCD TV Color Monitor TCLLCD-27VSE

Service

Horizontal Frequency

31.5-60kHz

TABLE OF CONTENTS

Description Page Description Page

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE

CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

8.1 Main Board.……….......................................60

8.2 Tuner Board……………………………………..62

8.3 Power Board……..……..............................64

8.4 Key Board…...................................67

8.5 IR Board …................….......................67

8.6 DC-DC Board....…………...............................68

8.7 Earphone Board..…….....…..........................69

9. Block Diagram.…….........................................70

9.1 Main Board.………………………………..….70

9.2 Power Board…..…....………………….......71

9.3 Exploded View..……….....................…..72

10. Schematic Diagram………………………...73

10.1 Main Board………..………………………..73

10.2 Power Board.....…...................................85

10.3 Tuner Board...…….......................................87

10.4 Key Board……………….………………….90

10.5 Ear

hone Board...…….................................91

Table Of Contents.......……..............................…........1

Revision List.…........................................……......2

1. Monitor Specification..............................………........3

2. Operating Instructions…………………….……….......4

2.1 The Use Of Remote Control..……………...................4

2.2 The Use Of Teletext……..........…...........…...........5

2.3 Front Panel Control Knobs.…............……...............6

2.4 OSD Operations.………........................…............7

2.5 How To Connect ……..............……………............14

3 Input/Output Specification…………..........................17

3.1 Input Signal Connector……..........................17

3.2 RGB Input Signal Timing.....……......................18

4. Mechanical Instructions…………………..................19

5. Repair Flow Chart.……………………………….....24

6. White Balance Luminance Adjustment….…........28

7.BOM List..…………………………....….…….....32

8. PCB Layout.………………………………....….......60

27’’ LCD TV Color Monitor TCLLCD-27VSE

Revision List

Version Release Date Revision Instructions TPV Model

A00 Jul.-3-2006 Initial Release E276MTNBD1TL2P

27’’ LCD TV Color Monitor TCLLCD-27VSE

1. Monitor Specifications

Items Specification

Panel Type 27” CMO V270B1-L01 panel

Driver Element a-si TFT active matrix

Aspect Ratio 16: 9

Pixel Number 1366 x 768

Active Display Area H x V 596.259mmx335.232mm

Pixel Pitch 0. 4365mm(H) x 0.4365mm(V)

Contrast Ratio 1000:1 (type)

Brightness 550:1 (type)

Response Time 8ms

View Angle (CR≥20) H: 176/V: 176

Display colors 16.7 million

Lamp Type/Life 60000 hr (type)

LCD Panel

Color Temperature Cool / Warm

Video Inputs AV、S-VIDEO, Component, Scart(RGB + Composite),HDMI

Audio Output Audio Output: L / R Headphone Mini-jack for stereo (3.5ø)

OSD language (default) English

Table Stand Included

Wall Mount VESA 100 x 100 mm

Power Supply AC100V~240V, 50/60Hz

Power Power Consumption <150W

Panel Tilt Forwards/Backwards/Rotation -4°/ +18° / ± 35°

Operating Tem. + 0 °C ~ + 40 °C

Storage Tem. - 25 °C ~ + 60 °C

Operating humidity 10% ~ 85%

Environment

Storage humidity 5% ~ 85%

27’’ LCD TV Color Monitor TCLLCD-27VSE

2. Operations Instructions

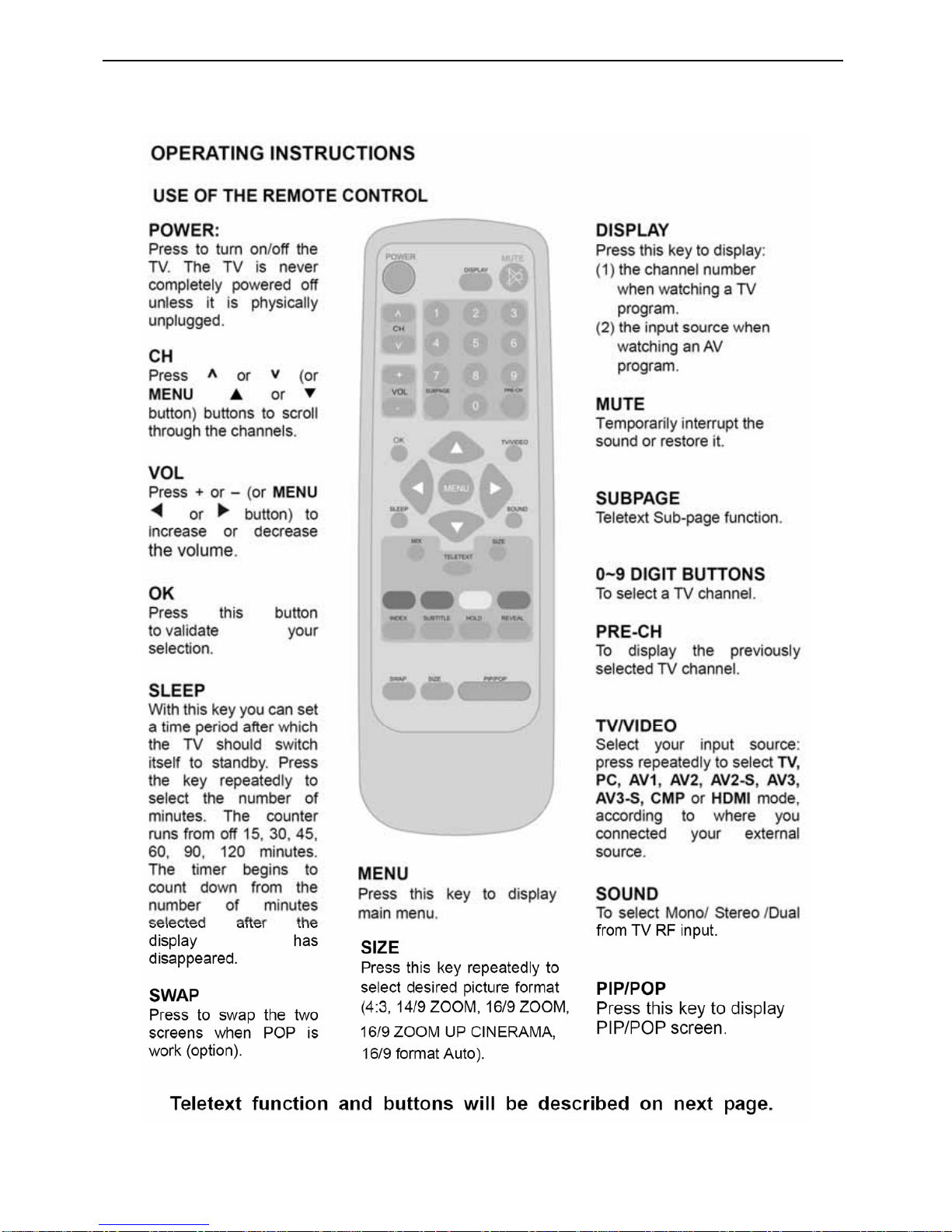

2.1 The Use Of Remote Control

27’’ LCD TV Color Monitor TCLLCD-27VSE

2.2 The Use Of Teletext

27’’ LCD TV Color Monitor TCLLCD-27VSE

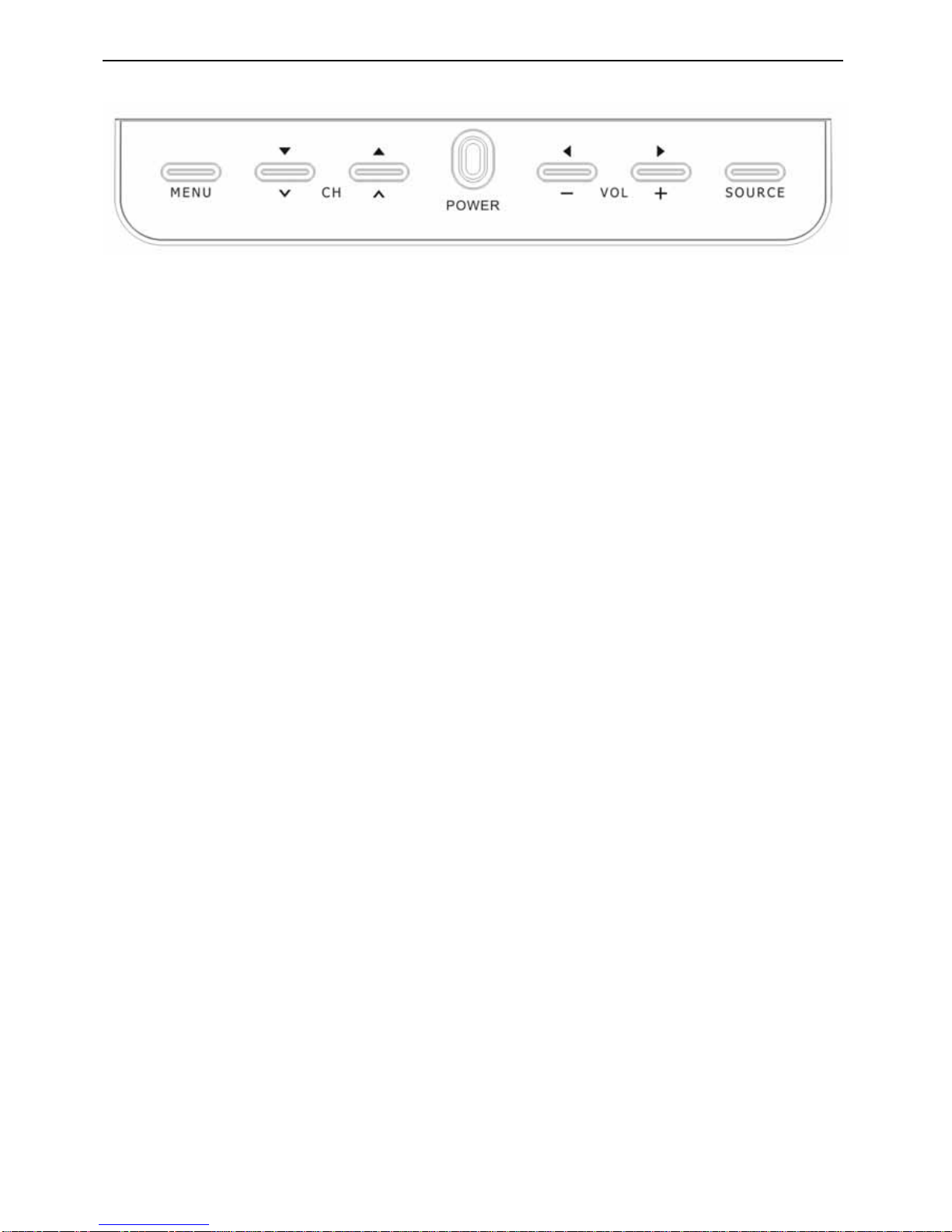

2.3 Front Panel Control Knobs

Power Key : Press to turn on or off the TV.

MENU Key : Press to show the OSD menu and exit OSD menu at the TV.

Down / Up Key : Press to perform select function and channel.

-/ + Key : Press to confirm your function selection and adjustment.

Source Key : Press to select your input source.

There is a wide range of video and audio equipment that can be connected to your TV. The following connection

diagrams show you how to connect them.

27’’ LCD TV Color Monitor TCLLCD-27VSE

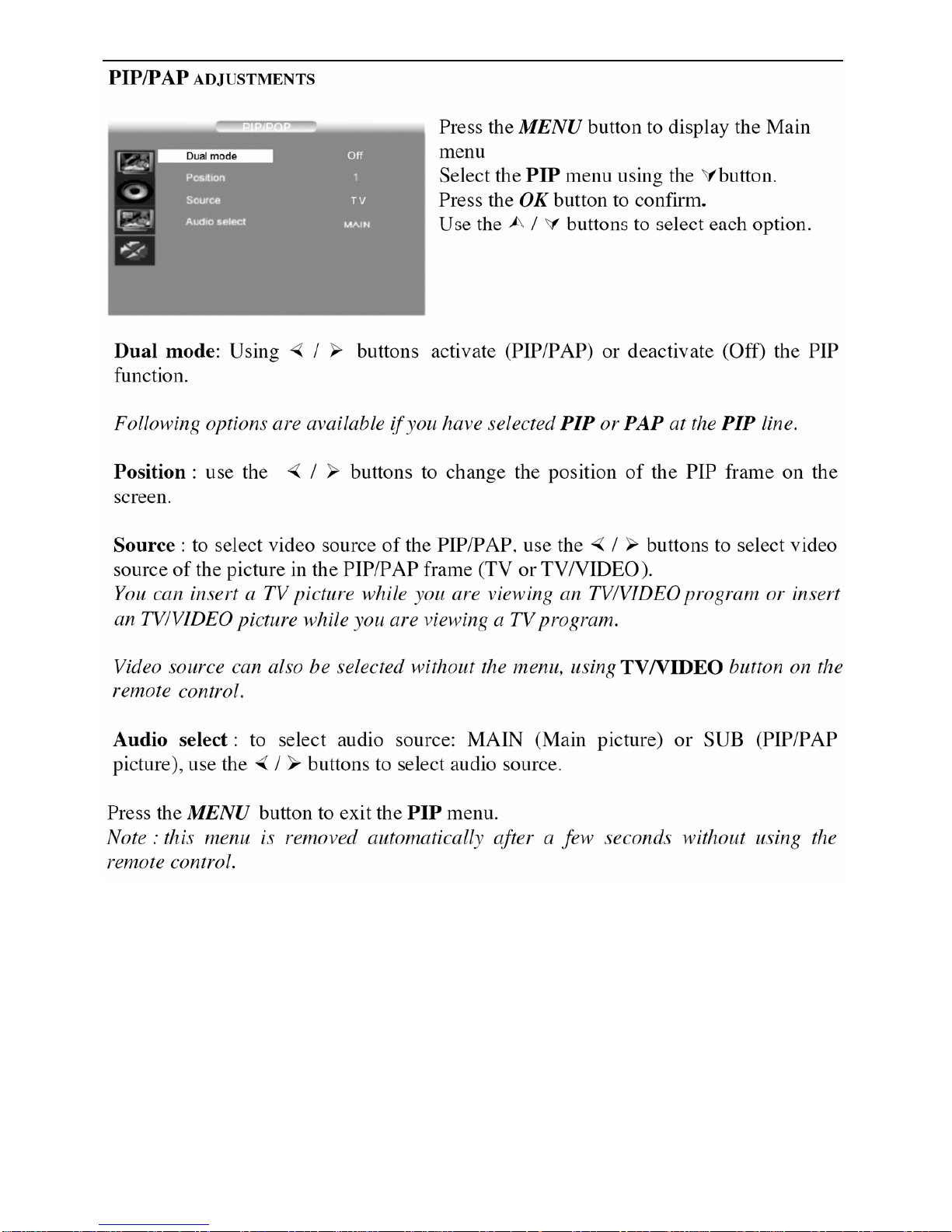

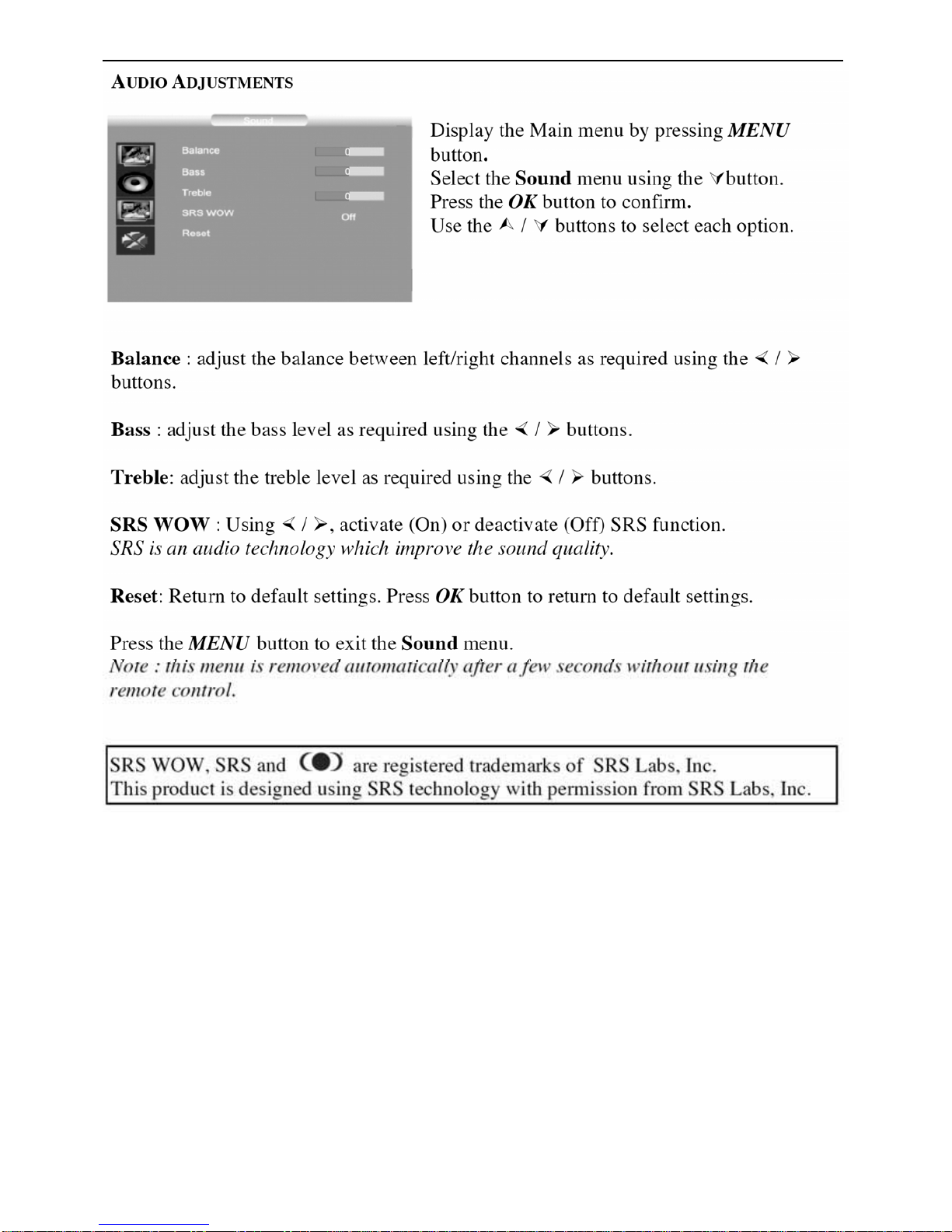

2.4 OSD Operations

27’’ LCD TV Color Monitor TCLLCD-27VSE
