TCL RF318BSF0 Bedienungsanleitung

RF318BSF0

1.This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.Children should be supervised to ensure that they do not play with the appliance.

2.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualiﬁed persons in order to avoid a hazard.

3.This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

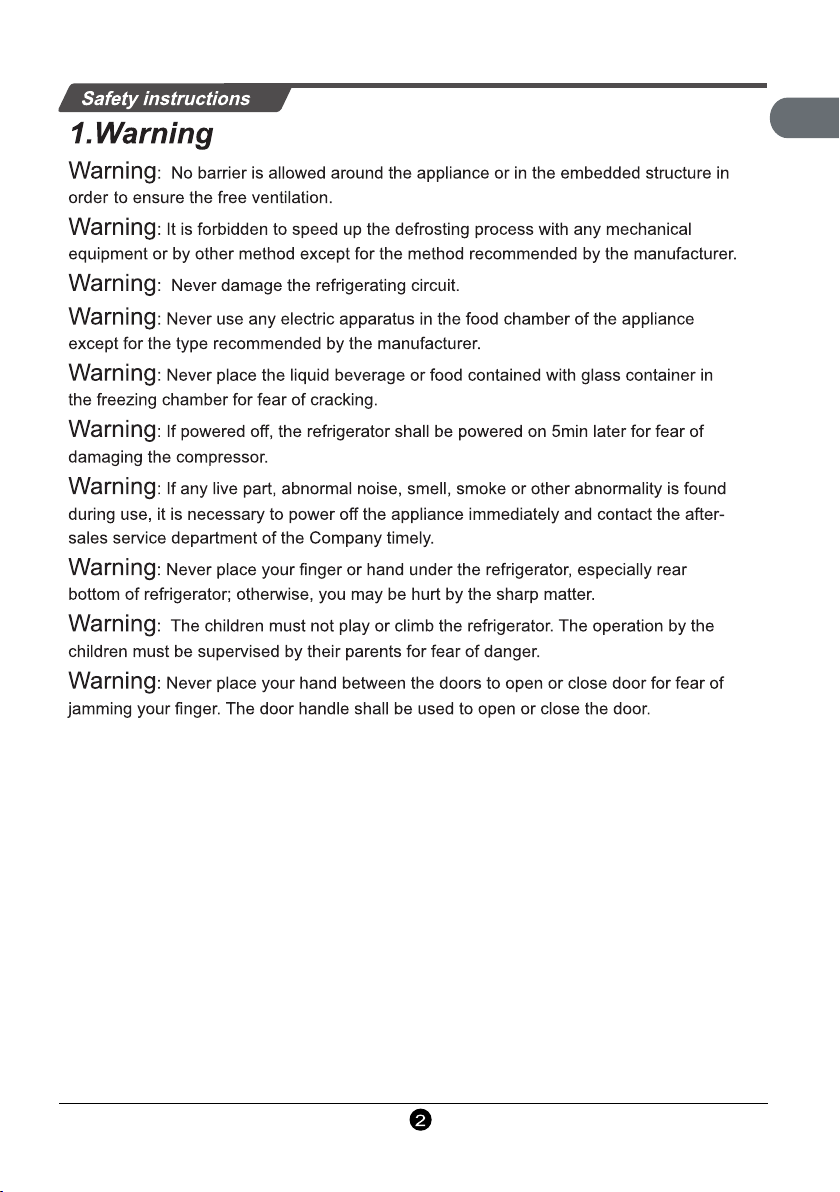

4.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,clear of obstruction.

5.WARNING: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

6.WARNING: Do not damage the refrigerant circuit.

7.WARNING: Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

8.Do not store explosive substances such as aerosol cans with a ﬂammable propellant in thisappliance.

9.This appliance is intended to be used in household and similar applications such as

— Staﬀ kitchen areas in shops, ofﬁces and other working environments;

— Farm houses and by clients in hotels, motels and other residential type environments;

— Bed and breakfast type environments;

— Catering and similar non-retail applications.

10.This product contains a light source of energy efficiency class F for light source ERP,

test with(without) light cover.

P10

P11

P12

P13

Safe recovery instructions

Description of climate types P13

Warning: Under the climate types N, ST and T, the operating ambient range of the

appliance is 16℃~43℃. If the appliance operates outside the rated climate type (ambient

temperature range), the appliance may not maintain the satisfying interior temperature.

Safety instructions

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances

Opening the door for long periods can cause a signiﬁcant increase of the temperature in the

compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems.

Clean water tanks if they have not been used for 48 h; ﬂush the water system connected to a

water supply if water has not been drawn for 5 days.

Store raw meat and ﬁsh in suitable containers in the refrigerator, so that it is not in contact

with or drip onto other food.

Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or

making ice-cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food.

If the refrigerating appliance is left empty for long periods, switch oﬀ, defrost, clean, dry,

and leave the door open to prevent mould developing within the appliance.

Warning: When positioning the appliance, ensure the supply cord is not trapped or

damaged.

Warning Risk of ﬁre / ﬂammable materials:

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the

rear of the appliance.

2. Cautions

Cautions: The power supply of this product must be uniform with the power supply

mentioned on the nameplate, and the standard independent 3-hole socket shall be used

(above 10A, and reliably grounded). One socket must not be shared by more than one

appliance; otherwise, ﬁre may be caused due to overheat.

Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the

power connector from the socket to disconnect the power supply. The power wire or

connector must not be touched by the wet hand for fear of electric shock.

Cautions: The power wire must not be squeezed by the refrigerator or any heavy

load, and the power wire shall not be bent extremely. The damage or peeling of power

wire may result in ﬁre or electric shock. If the power wire is broken or cut, please contact

the after-sales service department immediately.

Cautions: No ﬂammable or explosive matter or corrosive acid or alkaline matter is

allowed in the refrigerator.

Safety instructions

Cautions: The refrigerator must not be used in the rain or under the sunshine.

Cautions: It is forbidden to place the container with ﬂuid on the refrigerator because

the breakage or turnover of the container may aﬀect the electrical insulation of

refrigerator and result in electric shock or ﬁre.

Cautions: The refrigerator must not be disassembled or modiﬁed without

permission. The repair of refrigerator must be performed by the specialist.

Cautions: In case of leakage of any ﬂammable gas such as coal gas, it is necessary

to close the leaking valve ﬁrst and then open the window for ventilation, and forbidden to

unplug the refrigerator connector immediately for fear of ﬁre or explosion due to electric

spark.

Cautions: Refrigerating appliances – in particular a refrigerator-freezer Type I –

might not operate consistently (possibility of defrosting of contents or temperature

becoming too warm in the frozen food compartment) when sited for an extended period

of time below the cold end of the range of temperatures for which the refrigerating

appliance is designed;

Cautions: The fact that eﬀervescent drinks should not be stored in food freezer

compartments or cabinets or in low-temperature compartments or cabinets, and that

some products such as water ices should not be consumed too cold.

Cautions: The need to not exceed the storage time(s) recommended by the food

manufacturers for any kind of food.

Cautions: The precautions necessary to prevent an undue rise in the temperature of

the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen

food in several layers of newspaper.

Cautions: The fact that a rise in temperature of the frozen food during manual

defrosting, maintenance or cleaning could shorten the storage life.

Cautions: The care required with regard to frozen food in storage in the event of an

extended non-running of the refrigerating appliance (interruption of power supply or

failure of the refrigerating system).

Cautions: The action to be taken when the refrigerating appliance is switched oﬀ

and taken out of service temporarily or for an extended period (e.g. emptied, cleaned

and dried, and the door(s) or lid(s) propped ajar).

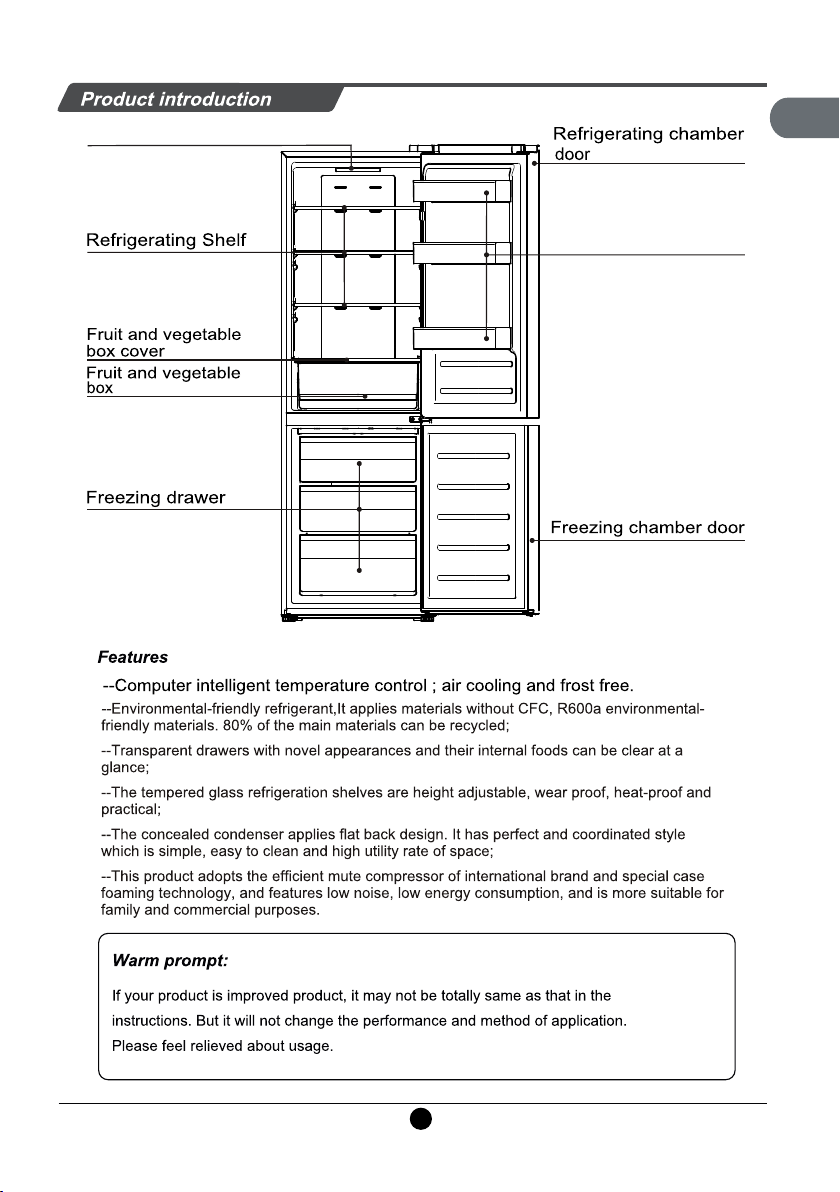

The pictures are for reference only. Please refer to the object

Refrigerating door bottle

bracket

lamp

Handling and placement

During handling, the door

side of the refrigerator shall

not contact with the

handling tools

Removing the foam base is

beneﬁcial for bottom heat

dissipation and can avoid

ﬁre.

The refrigerator shall be

placed in an environment

which is dry, has good

ventilation, far from direct

sunshine and heat source.

The refrigerator shall be

placed on the ﬂat and ﬁrm

surface. If the ground is not

ﬂat, adjust the adjusting leg

to keep it level.

Never place the refrigerator

into a too cold environment

that may get frozen.

Warm prompt:

--When handling the refrigerator, at least two persons are required – one lifts the top of

rear part, the other one handles the bottom (if one part is clamped, it is quite

dangerous and may cause accident).

--When moving the refrigerator, the lower runner may damage and scratch the ﬂoor. If you

need to move the refrigerator for a long distance, the internal accessories shall be ﬁxed

using adhesive tape. Otherwise, the accessories may get damaged due to crashing each

other.

--Please place the refrigerator in the position with small vibration or little exposed to

vibration. For users in the area where earthquake often occurs, please ﬁx the refrigerator

against the wall or pole. Otherwise, the falling of refrigerator will cause accident.

--Suﬃcient clearance shall be left around. If the clearance is too small or place goods on the

top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be

aﬀected, and thus to cause unnecessary electric energy waste as well as burn out of the wall

and other goods; the contact between the back and wall will cause vibration and noise;

--Adjust the front part and adjusting leg of the refrigerator to level it. Unlevel of the

refrigerator will cause vibration and noise.

Certain space shall be left

around the refrigerator,

shown in the ﬁgure.

>30cm

>10cm >10cm

Preparations prior to use

1. Remove all packing assemblies such as case ﬁxing tape etc., especially the foam base.

2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can

be added in warm water).

3. After leveling and cleaning the refrigerator, stand it for about 5 hours before plugging the power

plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.

Remove ﬁxing tape1. 2. Connect to power Store food after 3.

connecting to power

for 2-3 hours

Wipe with

warm and

wet cloth

In hot summer, 24 hours are

needed to fully freeze the food.

Check the refrigerating condition

on the second day.

Do not open the

doors frequently

to save electricity.

The plastics deodorant will disappear

automatically after freezing for a while.

The appliance should be located in the coolest area of the room, away from heat producing appliances or

heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the

compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down

on frost build-up inside the appliance.

Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with

cold air circulation, making the appliance less efﬁcient.

Organize and label food to reduce door openings and extended searches. Remove as many items as needed

at one time, and close the door as soon as possible.

630mm

595mm

730mm

795mm

1390mm

1025mm

This refrigerating appliance is not intended to be used as a built-in appliance

Please refer to the product introduction picture on page 5 for the placement of accessories.

The above is the computer control board of the product

Gear adjustment

Repeatedly pressing the "‹ "key or" ›" key, the refrigerator position will cycle between "02"

→ "04" → "05" → "06" → "08" → "02", select the appropriate position to stop the operation and

Wait for 5 seconds and the gear is conﬁrmed.

Power-off memory

When the power is cut oﬀ, the instantaneous state of the power cut is locked.After the incoming

call, it still works according to the settings before the power cut.

When the temperature in the box varies with the opening and closing of the refrigerator, the

ambient temperature, and the place where it is placed, etc.

Refrigerator temperature adjustment

When the damper adjustment blade is adjusted to the "cold" side, the amount of cold air

blowing to the refrigerating compartment can be increased to achieve a better refrigerating

compartment cooling eﬀect.

Freezer temperature adjustment

When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing

to the refrigerating compartment is reduced, which will extend the compressor operating time

and enhance the refrigeration eﬀect of the freezing compartment.

Damper adjustment paddle

damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we

recommend using it in the mid-range.

Power on for the ﬁrst time

The ﬁrst time the power is turned on, the refrigerator runs under 5℃.

Andere Handbücher für RF318BSF0

Inhaltsverzeichnis

Sprachen:

Andere TCL Kühlschrank Handbücher

TCL

TCL TRF-275W Bedienungsanleitung

TCL

TCL RP470CXE0 Bedienungsanleitung

TCL

TCL TRF-545W Bedienungsanleitung

TCL

TCL RB275GM1110 Bedienungsanleitung

TCL

TCL RP470CSF0 Bedienungsanleitung

TCL

TCL MR422S Bedienungsanleitung

TCL

TCL RB275GM1110 Bedienungsanleitung

TCL

TCL RP505SXF1UK Bedienungsanleitung

TCL

TCL P425TMW Bedienungsanleitung

TCL

TCL RF436GM1110UK Bedienungsanleitung

TCL

TCL TRF-275W Montageanleitung

TCL

TCL TRF-210 Montageanleitung

TCL

TCL RP503SXE0 Bedienungsanleitung

TCL

TCL RF436GM1110 Bedienungsanleitung

TCL

TCL F210TMW Bedienungsanleitung

TCL

TCL P525SBC Bedienungsanleitung

TCL

TCL RP466CXF0 Bedienungsanleitung

TCL

TCL RP470CXE0CZ Bedienungsanleitung

TCL

TCL TRF-460WEXDA+ Bedienungsanleitung

TCL

TCL RS520GM2120 Bedienungsanleitung

TCL

TCL RB315GM1210RS Bedienungsanleitung

TCL

TCL C440BFB Bedienungsanleitung

TCL

TCL RT210WM2110 Bedienungsanleitung

TCL

TCL RP505SXF0 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
