www.flash-butrym.pl

Universal Wall Light

FL-2500

Universal Wall Light

User Manual

Page 1

www.flash-butrym.pl Page 2

●Introduction

Thank you for selecting our products FL-2500 Universal Wall Light. In the sake of your

safety and better use of this product, please read this user’s manual carefully and note the

rulet strictly before you use this product.

It adopts advanced design and processing technics and has trim appearance. It use high

quality glass & CMY system and DMX512, that make it can change color quickly or get

unlimited color. It can work according to the program solidified itself. It use HMI 2500W

lamp, suitable for outdoor view of supermarket and Disco, theme park, Historic sites,

castles, hotels, skyscrapers, holiday, village and stage background.

●Specification

Voltage: AC220V 50 Hz

Power: 2800W (HMI2500 Gas Lamp)

Lamp: (OSRAM) HMI 2500W/GS

Highest voltage: 1,5 kV (Split secondo Orly)

Isolated resistance: >2MΩ

Tunnel: 6 Channel

Control Model: DMX512 single/ contro ller/ main-follower

Color effected: 3 color + white can changed to be unlimited color

Adjust beam function: 19% - 100%

Angel of beam function: level 60º, aplomb 15º

Size: 68 mm x 45 mm x 71 mm

Net weight: 51kg

Others: function of inspecting itself and working according to the program

●Safety command

Repaired by regular maintenance only.

Please disconnect power supply before equip parts or moving.

Please choose correct voltage and lamp size.

The lamp will be very hot when lighting working, do not put flammability or exploder around

it.

Do not touch the lamp with your hand directly.

Make sure that it is 1m between light and object.

Don’t see the lamp directly when it works.

●Affix

2500W garnet curtain

XLR control Line

User Manual

www.flash-butrym.pl Page 3

●Fixing instruction

This product can Works outdoor Or indoor. air temperature must be under 35*C.

Please read this user’s manual carefully before fixing, operation or maintain.

Please confirm if the product has been shatted during shipment.

Please confirm that the power supply is disconnected and the lamp is cool before you

change lamp.

The side has bleb is up, do not touch the lamp with key and digital display.

Put the light at breezy and confirm fans is ok.

Put the yellow/ green 2 color wire on the ground.

2500W garnet curtain use 20A/ 500V fuse.

●Operation

2500W garnet curtain control and design the tunnel with key and digital display.

It adopts DMX512 single or main – follower control model is ok, you can control several

light by design tunnel.

Connecting output of controller with input of no 1 light, then contact the output of no 1 light

with input of no 2 light. The rest maybe deduced by analogy as the following photo.

Warning

2500W garnet curtain light use 3 core XLR plug, please change 5 core to be 3 core if your

controller use 5 core plug please note the follow photo.

It takes about 20 minutes for the lamp to cool, and the you re-start it again.

The light will inspect itself when it begin to work, it can be operated after finish inspecting.

Please do not use this product tingle.

www.flash-butrym.pl Page 4

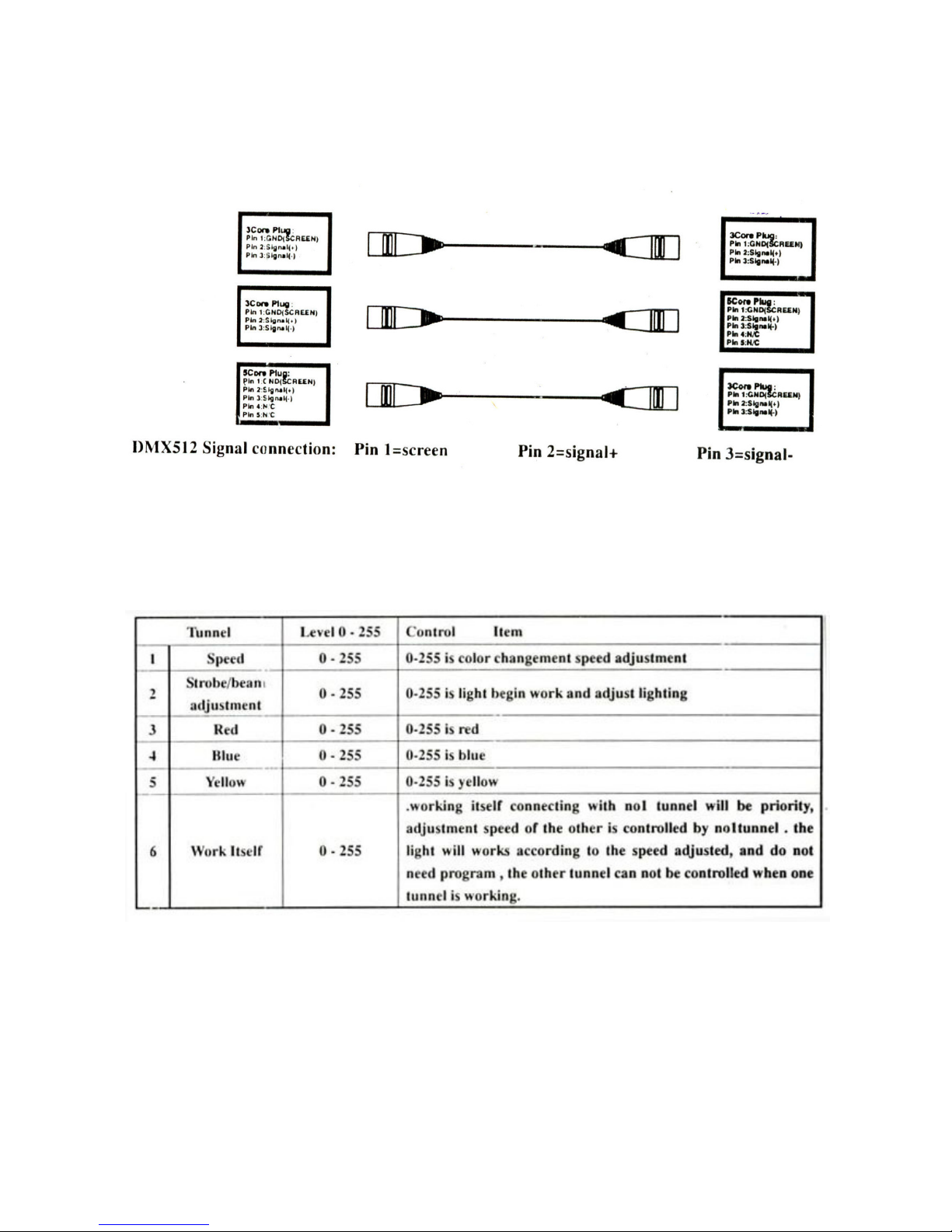

Addenda 2:

Changement from 5 core to 3 core plug.

Control tunnel

2500W garnet curtain light adopts DMX512, is has 6 tunnel as following:

www.flash-butrym.pl Page 5

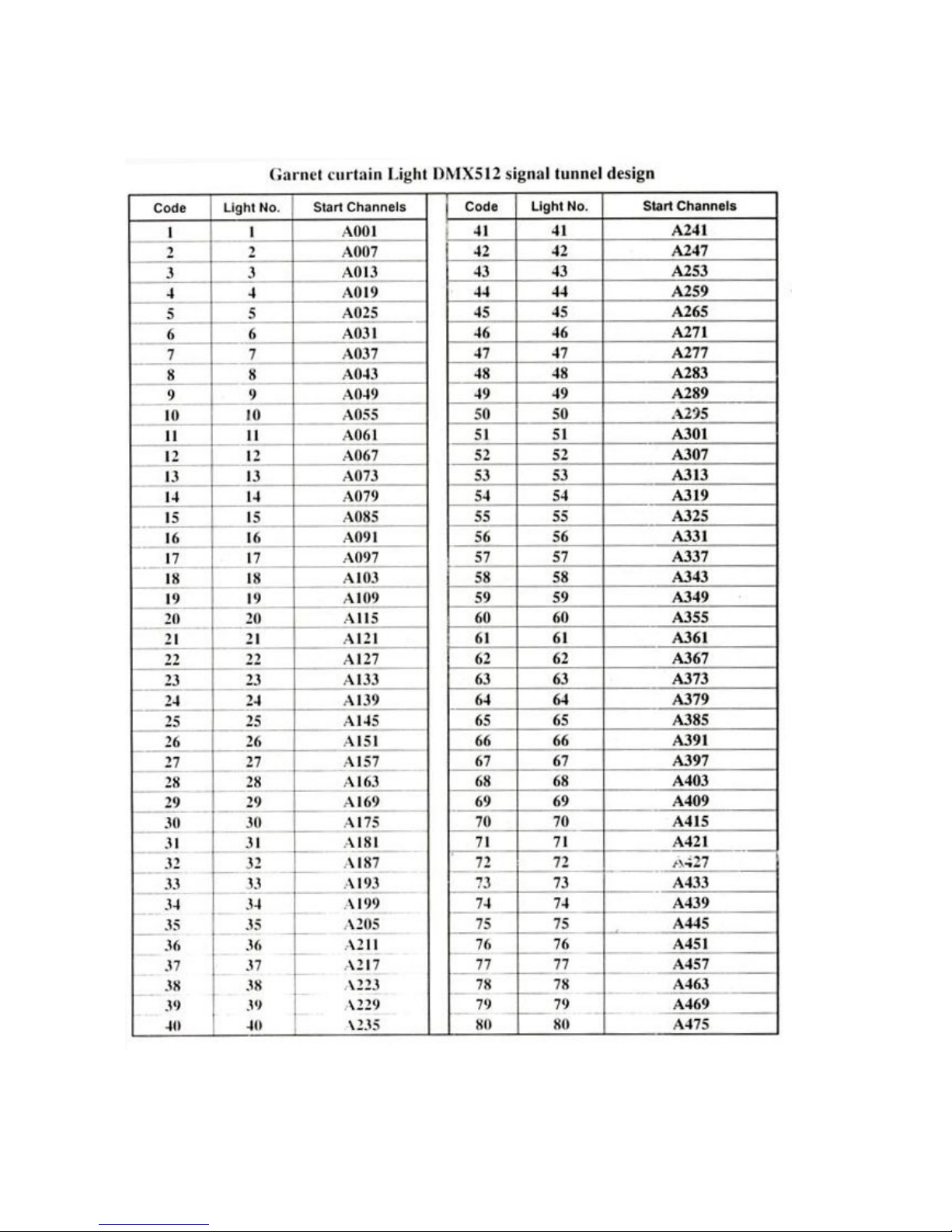

6 tunnel control

www.flash-butrym.pl Page 6

Control skill

1. Please set auto function to be off so that the light can works by controller when it

works according to DMX512. DMX512 can control 85 set lights, each connect will

signal core in series. Set address-mark for each light-then it can be controlled by

controller.

2. Make no1 tunnel and no6 tunnel in series when the light works under DMX512 and

set all of auto function to be off, other tunnel can not work when no6 tunnel works.

The no1 tunnel adjust speed, no6 tunnel control working time and color effective,

the speed of change color can be changed through no1 and no6.

3. The light will itself when it’s function setted to be mainframe, it does not need

controller, setting the light function as AUTO MAST, the speed is mixture color

as following 12-27 the color changment speed is from slow to fast from 2 second to

2 minute per time. 3 minute to 1,5 second per time mainframe is welcome by the

www.flash-butrym.pl Page 7

user for its expedience and no need controller, it cav works after the user adjust its

speed.

4. When you want make several light working and do not want to use controller, you

can set them to be main-follower, connected them with signal core and set one of

the light as mainframe, the speed is controlled by GAME of mainframe, adjustment

is as same single.
