TECHLIGHTING Element CMH MR16 Bedienungsanleitung

Installation Instructions for 920E3HBC-ACP

Round or Square Type Chicago Plenum Adjustable Housing

with CMH Electronic Ballast for Flangeless Trims

E3_L_-C_AC_ 1.0

CMH MR16 - ROUND/SQUARE FLANGELESS

Install the Housing with Adjustable Bars

Slide the inner adjustable bar completely through the

three housing clasps. Make sure the attached nail is on top.

Slide and push the outer adjustable bar completely onto

the inner adjustable bar so that the tab clicks into place

behind the stop point.This will prevent the adjustable bars

from coming apart.

Repeat steps 1 & 2 for the other side of the housing.

HOUSING CLASP

HOUSING

1A INNER ADJUSTABLE BAR

OUTER ADJUSTABLE BAR

TAB

STOP POINT

NOTE: If using the butterfly brackets, skip these

steps and refer to "Install the Housing with

Butterfly Brackets" on page 2.

NAIL

Align the adjustable bars so that the trim holder is exposed

below the joists just enough to match with the drywall

thickness.

Level the adjustable bars and hammer the nails completely

into the joists to secure the adjustable bars in place.

TRIM HOLDER

NAIL

JOIST

NAIL

NOTE: The adjustable bars can be mounted to

joists that are spaced 16" - 24" apart.

NOTE: The trim holder is 3/4”deep.When

installing the adjustable bars to joists, make sure

the bottom of the trim holder matches with

bottom of the drywall.

CAUTION - RISK OF FIRE

This product requires installation by a qualified

electrician. Before installing be sure to read all

instructions and TURN OFF POWER TO THE

ELECTRICAL BOX.

GENERAL PRODUCT INFORMATION:

This product is suitable for indoor locations.

This instruction shows a typical installation.

LENS LOCK

Adjust the trim holder position (horizontal position) by

sliding the housing on adjustable bars.

When the desired location is achieved, tighten the two #6

self tapping screws to lock the housing onto the adjustable

bars.

NOTCH

#6 SELF TAPPING SCREW

HOUSING

TRIM HOLDER

Install the Housing with Butterfly

Brackets

Slightly loosen the wing nut to slide the butterfly bracket

up or down.

After achieving the proper location, tighten the wing nut

to secure the butterfly bracket in place.

Repeat steps 1 and 2 on for the other butterfly bracket.

Utilize the butterfly brackets to install the housing in

accordance with local electrical codes.

BUTTERFLY

BRACKET

TRIM HOLDER

WING NUT

NOTCH

NOTE: Skip to page 3 if installing the housing

with adjustable bars.

TIP: Notches in trim holder can be used to

align multiple housings using a laser or string.

TIP: Notches in trim holder can be used to align

multiple housings using a laser or string.

HOUSING

ADJUSTABLE BAR

TRIM HOLDER

NOTCH

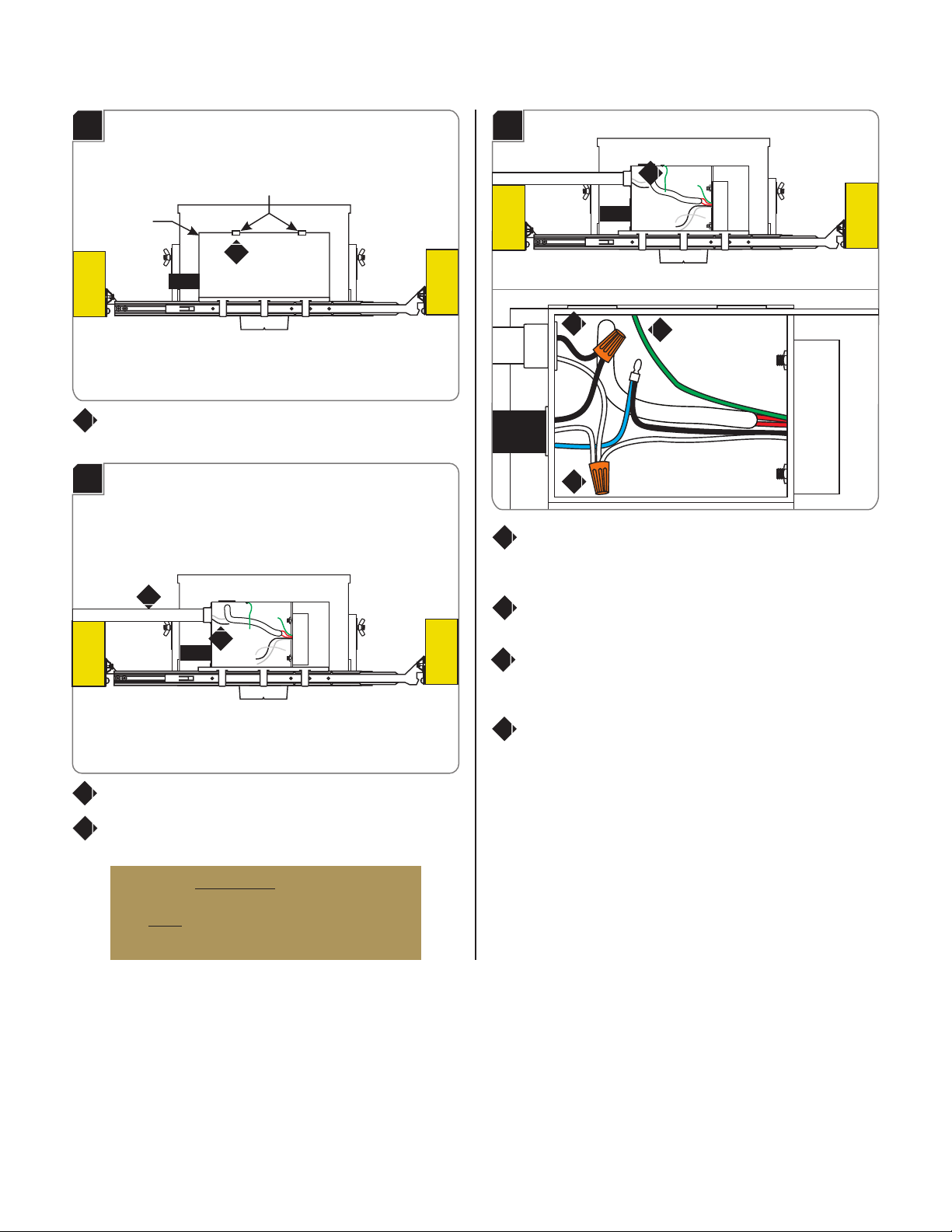

Install the conduit to the housing electrical box.

Run the power line wires into the housing electrical box.

WARNING: RISK OF FIRE: When using the

housing electrical box for power feed through,

use 4 - #12 AWG, or 6 - #14 AWG branch

circuit wires.

MAX

Connect the neutral power line wire to the white

transformer wire and the white thermal protector wire with

a wire nut.

Connect the hot power line wire to the black thermal

protector wire with a wire nut.

Connect the fixture ground wire and the green transformer

wire to a suitable ground according to local electrical

codes.

Replace the electrical box cover. Make sure that the top

edge of the cover snaps under the tabs.

Push up on the tabs on the electrical box and remove the

electrical box cover.

Connect Power to the Housing

TABS

ELECTRICAL

BOX COVER

LENS LOCK

Install the Lamp & Lens Accessories

LAMP CARTRIDGE ASSEMBLY

Pull the snoot to remove the lamp cartridge assembly.

Unscrew the snoot from the lamp cartridge.

SNOOT

LAMP CARTRIDGE

Place a maximum of three accessories (optional) into the

lamp cartridge.

LAMP CARTRIDGE

Replace and tighten the snoot completely to the lamp

cartridge.

SNOOT

DIFFUSER LENS

COLOR LENS

HEXCELL LOUVER

LAMP CARTRIDGE

LAMP

SOCKET

Pull out the socket from the lamp housing.

Push the lamp pins into the large portion of the socket

slots and rotate the lamp clockwise to lock it in place

securely.

Use Volt, GX10 Base

MR16 Ceramic Metal Halide lamp with

models E3RLB-C20AC_, E3RLF-C20AC_,

E3SLB-C20AC_, E3SLF-C20AC_.

ONLY 20 Watt120

Use Volt, GX10 Base

MR16 Ceramic Metal Halide lamp with

models E3RLB-C39AC_, E3RLF-C39AC_,

E3SLB-C39AC_, E3SLF-C39AC_.

ONLY 39 Watt120

LENS LOCK

4G SOCKET WIRE SLEEVE

LAMP CARTRIDGE ASSEMBLY

CUT OUT

SECTION OF

LAMP HOUSING

Feed the socket wire sleeve back into the lamp housing.

Align the arrow indicator on the lamp cartridge assembly

with the cut out section of the lamp housing. Push to snap

the lamp cartridge assembly into the lamp housing.

Install Drywall and Plaster Ring

LENS LOCK

3-7/8" 3-7/8"

For housings with round trim holder, mark a 3-7/8"

diameter circle on drywall. Cut out the marked section.

For housings with square trim holder, mark a 3-7/8" square

on drywall. Cut out the marked section.

ROUND TRIM HOLDER SQUARE TRIM HOLDER

1a 1b

LAMP HOLDER

SPRING

EDGE OF

THE LAMP

Slide the lamp holder spring completely onto back of the

MR16 lamp so that the edge of the lamp snaps into the

lamp cartridge assembly.

Align the cut out section of drywall with the trim holder

and install drywall.

DRYWALL TRIM HOLDER JOIST

WARNING: The housing is not

intended to be in contact with or covered with

combustible materials and insulation. Do not

install insulation within 3 inches of the housing

sides or above in such a manner to entrap heat.

Risk of Fire:

TIP: Before installing ceiling, power up and run

the Element fixture(s) for 10 minutes to make

sure all electrical connections are tight.

LENS LOCK

TAB

CUT OUT

Line up the two tabs in back of the plaster ring with the

two cut out sections of the trim holder inside edge.

Push the plaster ring tabs into the cut out sections of the

trim holder edge.

ROUND PLASTER RING SQUARE PLASTER RING

CUT OUT

TAB

3 3

LENS LOCK

#8-32 SCREW #8-32 SCREW

Secure the plaster ring in place with the two provided flat

head #8-32 screws. Make sure that the screws penetrate

through the drywall into the housing screw holes.

LENS LOCK

Plug the trim holder with the provided dust shield.

Properly plaster onto the plaster ring and drywall.

Finish around the trim to match drywall.

NOTE: Do not overtighten the screws!

Overtightening may bend the plaster ring,

causing the plaster surface to come away from

the drywall.

LENS LOCK

Adjust the Lamp Housing

1Rotate the lamp cartridge assembly to desired position

(angle). Lock the lamp cartridge assembly by tightening

the lens lock screw.

NOTE: Lamp cartridge assembly can rotate 180°

horizontally. Lines on lamp housing are 5° apart.

LENS LOCK

SCREW

ARROW

INDICATOR

LAMP CARTRIDGE

ASSEMBLY

LENS LOCK

6B TILT ADJUSTMENT SCREW

2To tilt the lamp housing vertically, rotate the tilt adjustment

screw until the desired angle is reached.

NOTE: Lamp housing can tilt 40° vertically. Lines

on lamp housing are 5° apart.

INDICATOR

3Pull the rotation lock down to unlock the lamp housing.

Rotate the lamp housing horizontally.When the desired

position is achieved push the rotation lock up to lock the

lamp housing in place.

To install the flangeless trim, refer to the instruction

provided with the trim.

ROTATION LOCK

NOTE: Lamp housing can rotate 361° horizontally.

SAVE THESE INSTRUCTIONS!

7400 Linder Ave, Skokie, IL 60077

847.410.4400

www.element-lighting.com

is a registered trademark of Element. Element reserves the right to

change specifications for product improvements without notification.

A Generation Brands Company

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, exposure to excessive

UV radiation, or injury to person:

– Use this fixture indoors only.

– Do not look directly at the lighted lamp.

– Do not remain in light if skin feels warm.

– Risk of fire: Use only the type of lamp and maximum wattage

indicated in this instruction manual.

– Never cover the Ceramic Metal Halide lamp with anything

other than an Element Lighting lens and never place

flammable material close to your fixture.

– Never turn the fixture on and off by connecting and

disconnecting the CMH lamp.

– Do not touch the fixture shades or lamp shield while the

fixture is on.These surfaces may be HOT.

– Relamp fixtures at or before the end of rated life. Beyond rated

life, light output diminishes while energy consumption and

risk of rupture increases.

CMH Lamp General Information

– A new CMH lamp is a discharge lamp and requires some time

to start and come to full brightness after a power interruption.

A Tip For Prolonging CMH Lamp Life

– Do not operate the lamps continuously for extended periods,

turn the lamp off once per week for at least 15 minutes.This

will reduce the risk of rupture.
