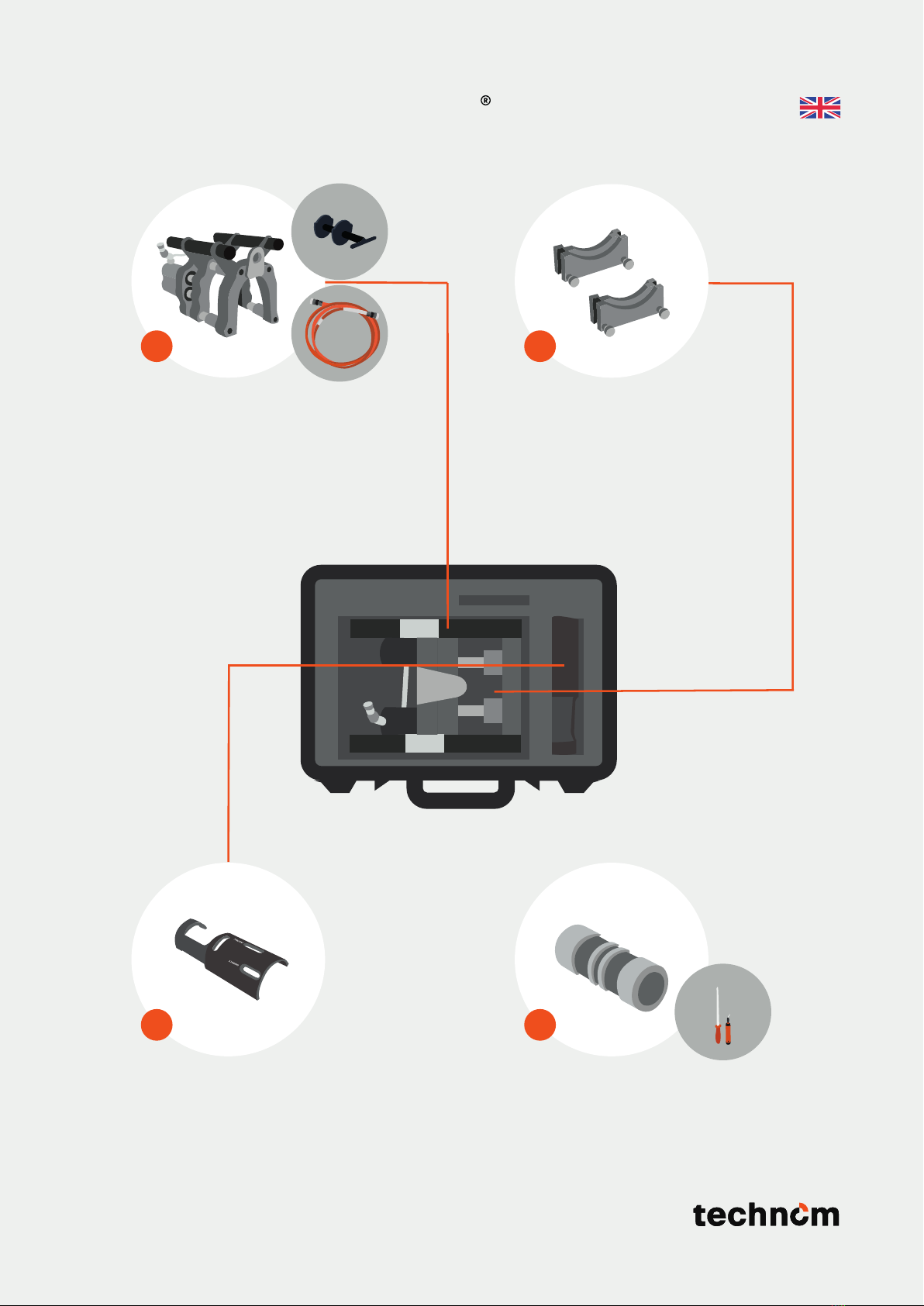

instruction card Lokring MTK400
01
1.3
• 1x 4" GO-NOGO gage
1.4
• 1x hacksaw
• 1x file or deburring tool
• 1x low grade sandpaper (80-120 grade)
• 1x high grade sandpaper (180-400 grade)
not deliverd as standard
1.2
• 2x 4" insert blocks
1.1
• 1x foam-lined plastic case
• 1x IT-400 Lokring toolhead
• 1x hydraulic pump
• 1x hydraulic hose
• 1x Jaw Retraction Tool (JRT)
• 1x marker pen
• 1x instruction card
delivered as standard
Check that everything is in the case before starting assembly
questions? +31 343 492 090 • technom.com
Sand the pipe, first grade 80-120 and
then finely grade 180-400)
2. access the pipe
Make sure that the pipe meets the
following criteria:
• no corrosion or pitting;
• no lettering or engraving;
• no lenghtwise scratches or grooves
2.3
Check the external diameter of the pipe
with the gage
3.1
Cut the pipe as squarely as possible
(< 5 degrees)
3. prepare the pipe
Deburr the end of the pipe
3.3
Use the Go-NoGo gauge to check the
squareness of the cut. The bevel angle
of the pipe must fall within the 5° tolerance
02 questions? +31 343 492 090 • technom.com

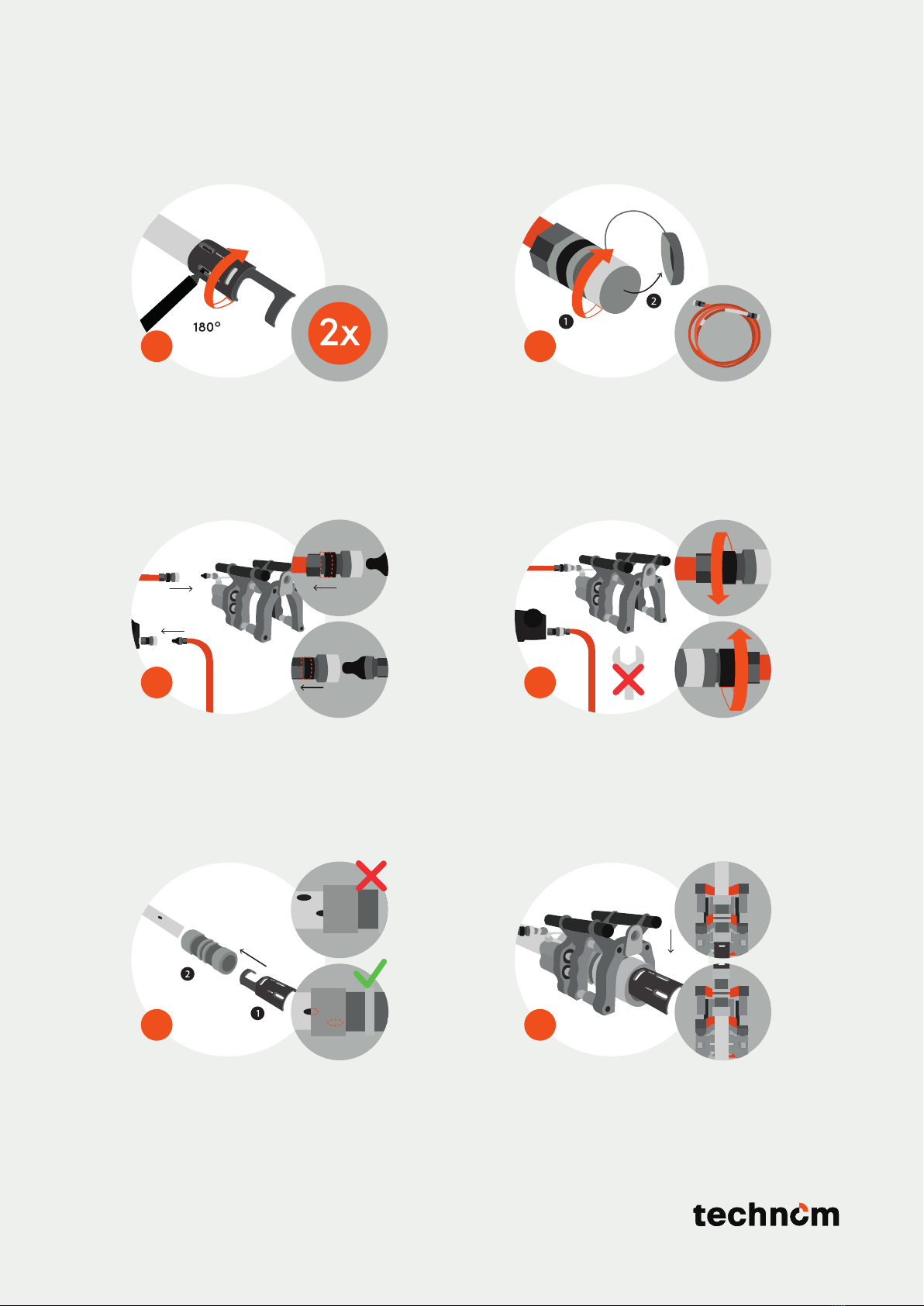

2.12.2
3.2
keep out of the line of fire at all times
installation
4.1
Mark the "inspect" and "install" areas
on both sides of the pipe
4. mark the pipe
5.1
Twist and remove the protective caps
of the hydraulic hose
5. prepare the Lokring tool
5.2
Connect the hydraulic hose to the
pump and the Lokring tool
5.3
Tighten the retainer rings manually
Slide the Lokring fitting over the pipe.
Check the "install" mark
6. put the Lokring fitting in place
7.1
Place the Lokring tool over the Lokring
fitting
7. install the Lokring fitting
03 questions? +31 343 492 090 • technom.com
6.1
installation

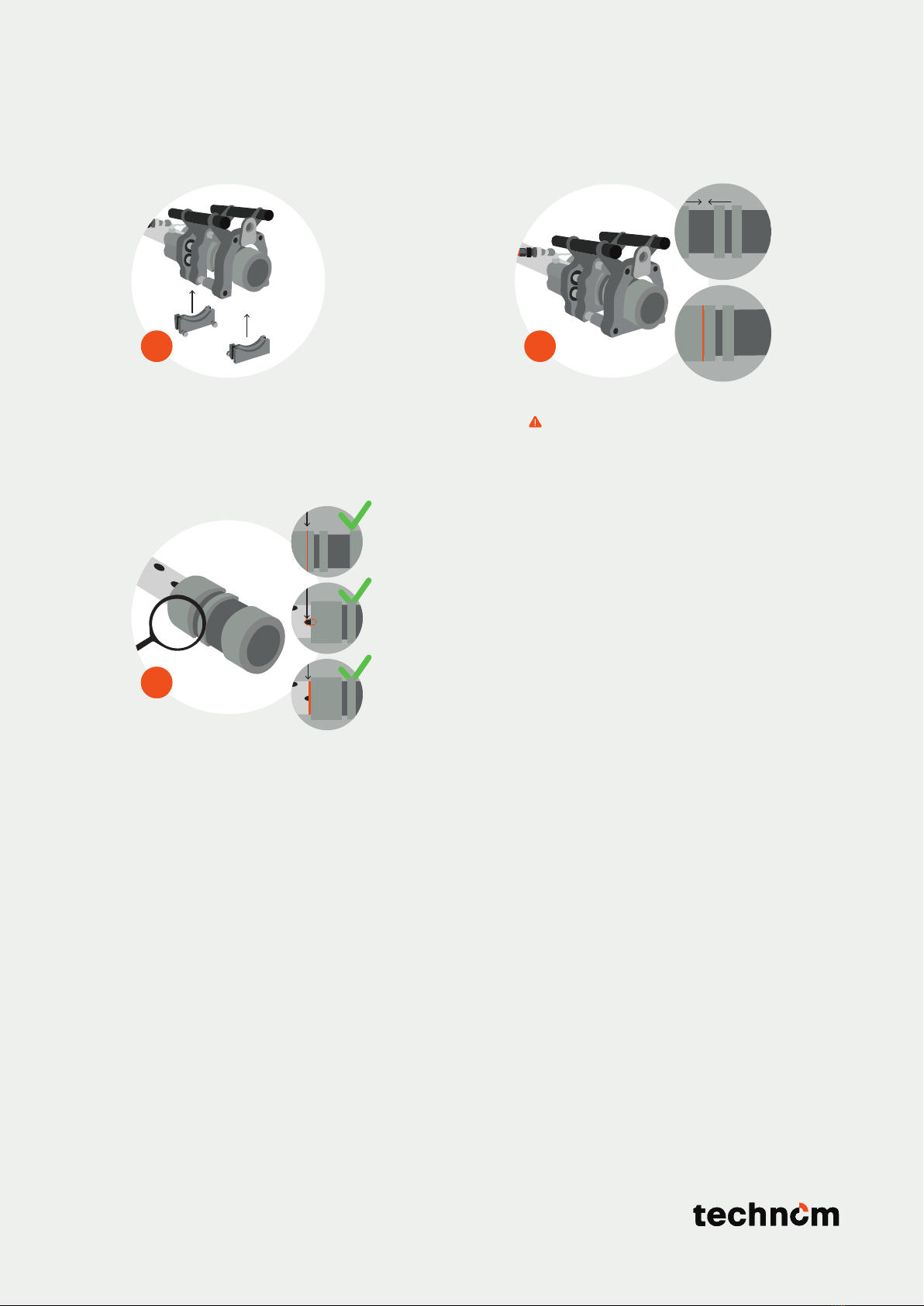

Check that the assembly has met the
following criteria:
• the driver is completely up against the
body of the fitting;
• the Lokring fitting is at the "inspect"
mark;
• the end of the Lokring fitting's body
protrudes from underneath the drive
7.2
Place the insert blocks in the Lokring
tool and fix them in position
7.3
Note: keep out of the line of fire!
Pump until the driver of the Lokring
fitting touches the body
8.1
04 questions? +31 343 492 090 • technom.com
8.1
8. check the assembly
installation

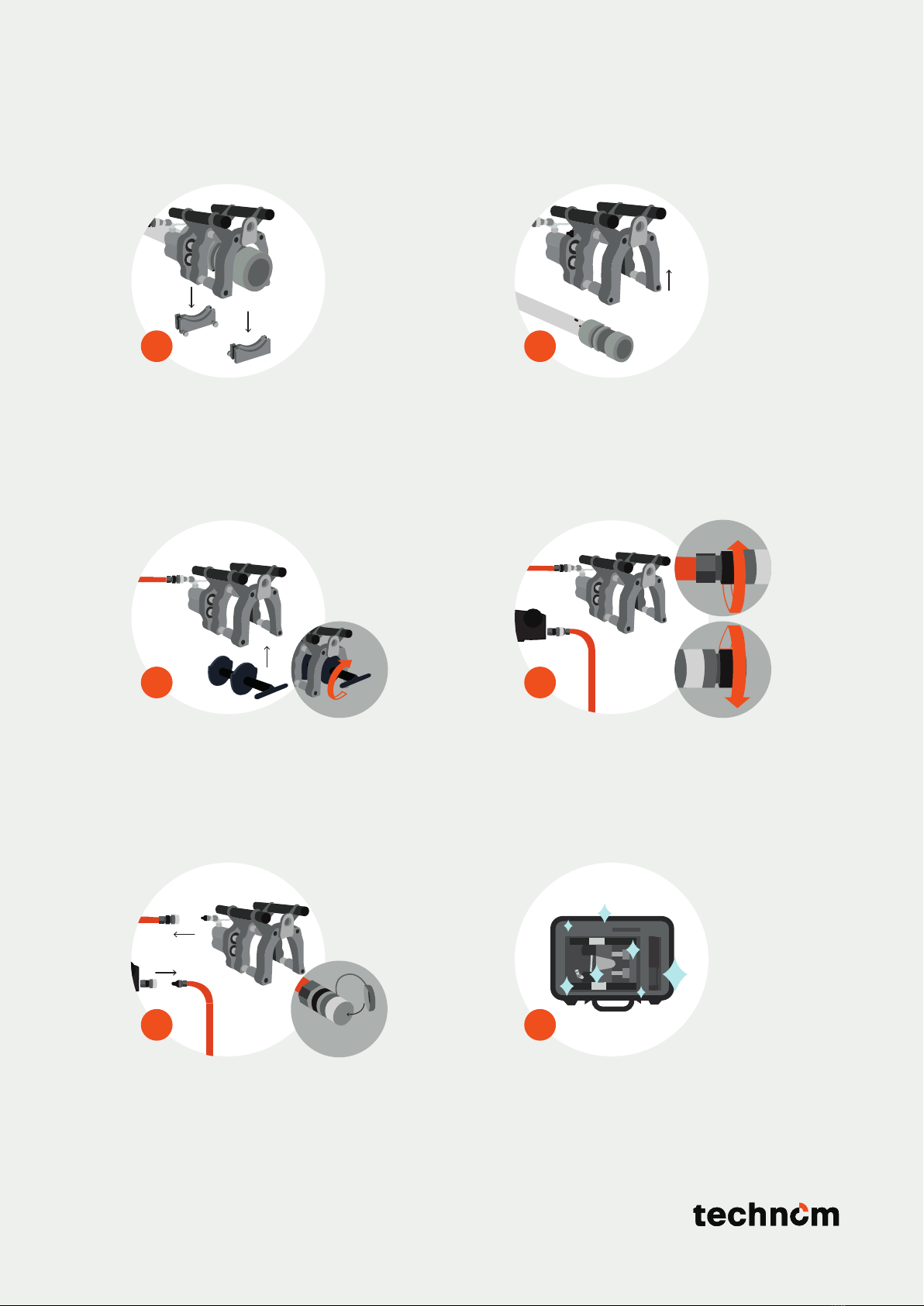

disassembly
9.1
Release the pressure from the Lokring tool
and remove it until the jaws have retracted
to the original position. Remove the insert
blocks
9. dismantle the Lokring tool
9.2
Remove the Lokring tool
9.3
Use the JRT if necessary to push the jaws
back to the original position
10.1
Undo the retaining rings
10. disconnect the hydraulic hose
10.2
Disconnect the hydraulic hose from the
Lokring tool and the hydraulic pump.
Press the protective caps firmly in place
11.1
Clean the Lokring tool if necessary
and stow all the part back in the case
11. stow the Lokring tool
back in the case
05 questions? +31 343 492 090 • technom.com • TIK00104-2B
