SAFETY PRECAUTIONS
SPINJET 6200 is intended for use on the Designjet Z6200 and Z6100
HP large format printer models (referred to as the Printer) only. The
instructions for installation and operation of both Printer and SPINJET
6200 must be followed.
SPINJET 6200 is intended for permanent installation on the Printer.
Normal single-sided printing is possible without removing or tilting
down the SPINJET 6200.
SPINJET 6200 is intended for operation with all covers installed. Do
not remove the screws of any cover or any other installed screw of
the product. In particular:
Removal of the screws of the attachment arms may allow the
Front Unit to slide off, fall down and cause personal injury.
Removal of the screws of the cover of the Control Box will give
access to electrical shock hazards.
Do not block, or in other ways disable the safety switch in the right
side of the SPINJET 6200.
Only specially trained personnel should carry out tasks for test or
service purposes, requiring operation with any of the covers
removed. The instructions for inspection and replacement of wear
and spare parts must be followed.
Connect SPINJET 6200 to earthed mains outlet only, rated 100-
120VAC or 200-240VAC, 50/60Hz, one phase. Apply a power cord
according to local voltages and plugs. A UL listed power cord rated
minimum 10A, 125V is provided with SPINJET 6200 in areas
where this apply. SPINJET 6200 is rated to 1.4-0.7A maximum.
_______________________________________________________
Transportation of SPINJET
When transporting the SPINJET 6200 it must always be
dismounted from the Printer.
_______________________________________________________
IMPORTANT: The Printer may not be moved once the horizontal
and vertical adjustment of the Front Unit is done. Moving the Printer
might necessitate a new adjustment to be carried out.
_______________________________________________________
-OPERATORS MANUAL
Page
2
Table of Contents:
Number Content Page
1. General description ........................................................ 2
2. Tilting the Front Unit up and down............................... 11
2.1 Mounting spacer blocks .......................................... 11
3. Media ........................................................................... 12
3.1 Loading Media ....................................................... 12
3.2 Trim Waste Strips .................................................. 13
4. Operation ..................................................................... 14
4.1 Printer Set Up ....................................................... 14
4.2 Operation Modes ................................................... 14
5. Job Requirements......................................................... 16
5.1 SPINFLOW ............................................................ 16
5.2 OEM RIP integration ............................................... 16
6. Troubleshooting ........................................................... 16
7. Specifications............................................................... 19
7.1 Technical Specifications .......................................... 20
7.2 Safety Specifications .............................................. 20
7.3 EMC Specifications................................................. 21
7.4 EU Declaration of Conformity .................................. 22
1. General description
Figure 1
SPINJET 6200 is intended for use on the Designjet Z6200 and Z6100
HP large format printer models (referred to as the Printer) only. The
instructions for installation and operation of both Printer and SPINJET
6200 must be followed.
SPINJET 6200 is intended for permanent installation on the above-
mentioned printer models. Normal single-sided printing is possible
without removing or tilting down the SPINJET 6200.
-OPERATORS MANUAL
Page
3
The system comprises two major assemblies: The Front Unit and the
Control Box, the latter being located on the rear of the Printer.
The basic functions of the system are:
Receive a sheet, which is printed from the Roll by the Printer.
Feed the sheet back into the Printer for reverse side printing.
Manage the Media from the Roll while carrying out reverse side
printing.
The following cartoon explains how this handling is taking place:
Figure 2
Figure 3

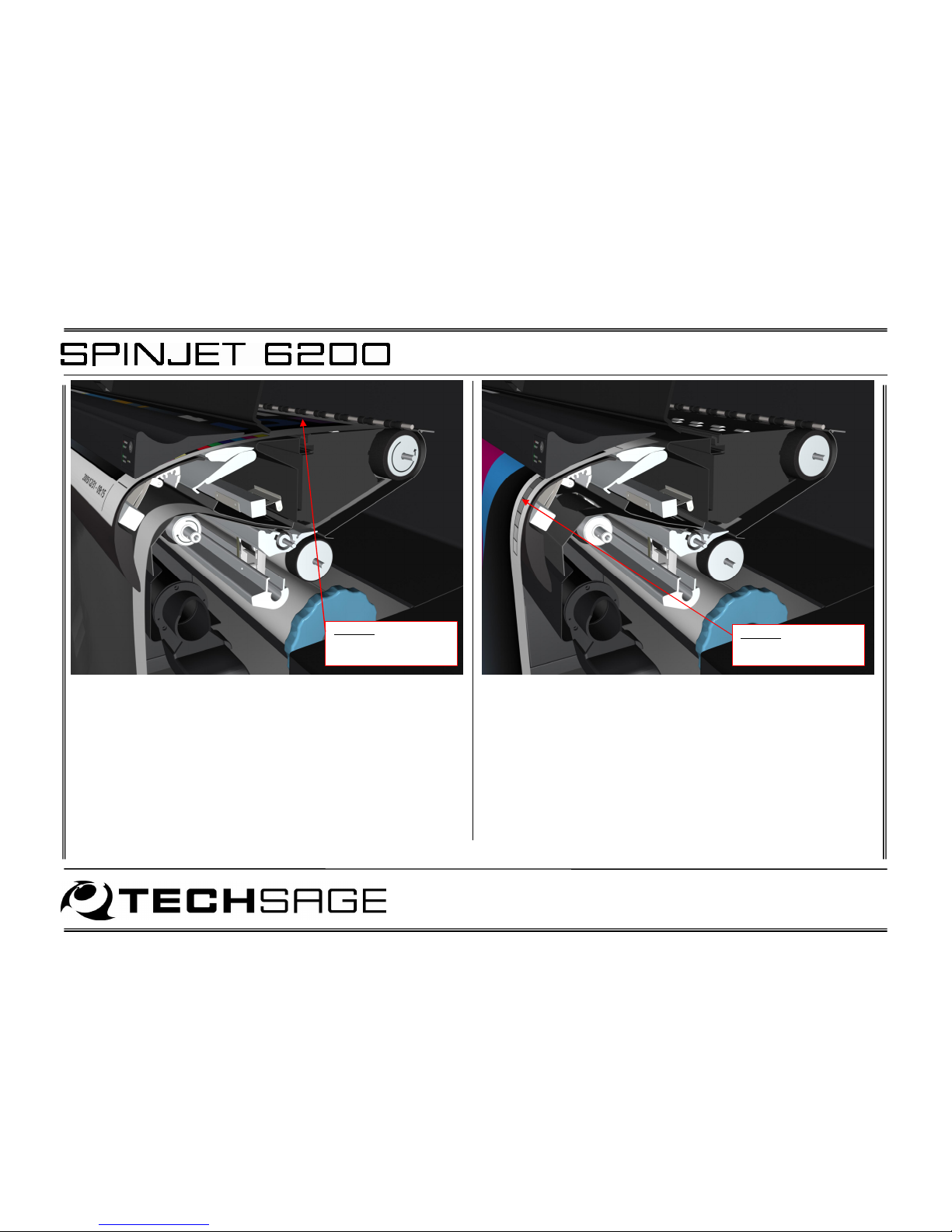

Step 2
The Gate flips up
when receiving a
double-sided job.
Step 1
Printer is ready to
print on roll media.
-OPERATORS MANUAL
Page
4
Figure 4
Figure 5
Step 3
Printer feeds media
into the SPINJET
while printing front
page.
Step 4
Front page is finished.
-OPERATORS MANUAL
Page
5
Figure 6
Figure 7
Step 5
SPINJET grabs
media.
Step 6
The Printer cuts
media into a sheet.
-OPERATORS MANUAL
Page
6
Figure 8
Figure 9
Step 7
Front edge of sheet is
retracted into the
SPINJET.
Step 8
Sheet 1 is held
until the printer is
ready to receive
sheet for reverse
side printing.
-OPERATORS MANUAL
Page
7
Figure 10
Figure 11
Step 9
SPINJET grabs roll
media and unloads it
from printer.
Step 10
Printer is ready to
receive sheet from
SPINJET.
-OPERATORS MANUAL
Page
8
Figure 12
Figure 13
Step 11
SPINJET loads sheet to
printer.
Step 12
SPINJET releases the
grip of sheet.
-OPERATORS MANUAL
Page
9
Figure 14
Figure 15
Step 13
Back side of double-
sided job is printed.
Step 14
Back side is finished.
-OPERATORS MANUAL
Page
10
Figure 16
Figure 17
Step 15
SPINJET loads roll to
printer.
Step 16
SPINJET lets go of roll
media and has finished
double-sided job.
