IP5815 Door Phone
User Manual
V1.0
2015/10/15
2
Index
1. Gift box content............................................................................................3
2. Operation guidelines ....................................................................................4
3. Product Overview.........................................................................................5
3.1 Product intended use..........................................................................5
3.2 Functions of the system......................................................................5
3.3 IP5815 Video door phone features .....................................................5
3.4 Video Door Phone Specification .........................................................6
3.5 eGateway Specification ......................................................................6
3.6 System architecture ............................................................................7
3.7 System components identification ......................................................8
3.8 Description of functions.......................................................................8
3.9 LED colors indication ........................................................................10
4. Installation.................................................................................................. 11
4.1 Selecting a location for Video Door Phone ....................................... 11
4.2 Installing Video Door Phone .............................................................12
4.3 Preparation for wiring........................................................................13
4.4 Connecting Video Door Phone and eGateway .................................16
4.5 Wiring of the electric strike/lock ........................................................16
5. Setting WiFi router and eGateway .............................................................18
5.1 Recommended characteristics for the WiFi router ............................18
5.2 Recommended characteristics for the Android device ......................18
5.3 Recommended characteristics for the iOS device ............................18
5.4 Connection diagram..........................................................................19
5.5 Internet/WAN Connection Setting .....................................................19
5.6 LAN Connection Setting ...................................................................21
5.7 e-Gateway Setting ............................................................................22
6. Mobile device pairing and setting...............................................................24
6.1 Mobile device paring with eGateway.................................................24
6.2 Setting Android device to work with Mobile2Door .............................26
3
1. Gift box content
1 x Video Door Phone IP5815 unit
1 x Power adapter for Video Door Phone
1 x eGateway IP5858
1 x 14 pin connector for Video Door Phone IP5815 unit
1 x mounting bracket Video Door Phone IP5815 unit
1x mounting kit
4
Thank you for selecting Smart Bell for your communication and security needs. .
Please read this manual carefully before installation and keep it in a safe place for
future reference
2. Operation guidelines
1. The unit is damaged if dropped. Handle with care.
2. If the unit does not operate properly, unplug the power supply.
3. Due to the environmental sound around the unit, it may hinder smooth
communication, but this is not a malfunction.
4. When outside temperature lowers sharply after rainfall, etc, the inside of the
camera may fog up slightly, causing blurry picture, but this is not a malfunction.
Normal operation will be restored when moisture evaporates.
5. If moving the unit from a warm to cold environment, or vise versa, please allow
30 minutes before use.
6. As to other manufacturer’s device (such as door releases) used with this system,
comply with the Specifications and Warranty conditions that the manufacturers
or vendors present.
5
3. Product Overview
3.1 Product intended use
The product that you are about to use is a video intercom system especially
designed for applications in single houses, apartments, and such facilities as office
buildings, factories, schools, hospitals, etc
It provides end users with the ability to answer their door using smartphones, see
live video of who is at their door and have a two-way conversation with the guest
even if the owner is not at home.
Installed separately from the general-purpose internal communications systems,
the system can be used as:
a video door entry system,
emergency announcement system,
rescue assistance system, urgent call system,
public announcement system, and access control system.
NOTE: You can design the system to any scale depending on your needs. Please
contact our support team for more information
3.2 Functions of the system
IP enabled doorphone: follows industry standard. Based on SIP (session
initiation protocol)
Mobile access: uses mobile App to connect with Android and iOS
smartphones/tablets
Multiple remote Users: registers up to 8 mobile devices
Quality video and Full Duplex Audio
Access control: inbuilt RFID card reader
Remote door release: works with electronic locks that can be released via
mobile App
3.3 IP5815 Video door phone features
IP addressable video door station
Monitoring of view of the front (rear) door or a visitor at any time of day and
night
High-performance HD video camera providing WXGA (1280 x 800) at 30fps
or 720p HD format with high sensitivity
6
2-Way audio
DI / DO dry control for door release
Taking snapshots of the visitor automatically once the call button is pressed
Night vision
Built-in RFID sensor module
3.4 Video Door Phone Specification
Camera 1M pixel CMOS sensor
Night Light 2 x LED
HW Specific 1 * ISO14443 Card Reader, support RFID card
1 * Door Lock port for power lock
Speaker(8Ω/1W) x1, Microphone(-62±2dB) x1
1 * Ethernet Interface
Power supply: external 12V power supply
Support H.264 720P
Support protocol
SIP 2.0 (RFC 3261)/TCP/IP/UDP, RTP, ARP, ICMP, DHCP,
DNS, NTP
Audio codec: G.711 (A/u-law) , G.729
Audio quality: packet loss concealment, echo suppressor
Video codec: H.264 baseline real-time video codec
Automatic firmware and configuration update via TFTP
3.5 eGateway Specification
FE 1 x FE/fast Ethernet for WAN
4 x FE/fast Ethernet for LAN
USB Host 2.0 Support Z-wave Dongle plug in
Digital Input & output
8 x DI ; 4 x DO
RS-485
1 X RS-485,
For connecting access control/alarm device & digital
input/output device extension
Dimension 170 mm * 115 mm * 37mm (L x W x H)
Support protocol SIP 2.0 (RFC 3261)/TCP/IP/UDP
, RTP, HTTP, ARP, ICMP,
DHCP, DNS, TFTP, NTP
Power 12V-24V,2A-1A
7
3.6 System architecture
8
3.7 System components identification
Door phone unit
3.8 Description of functions
The figure below illustrates the front view of the IP5815. Follow the point
numbers to find the description of the door phone components’ functions
9
Front view of the IP5815 Video door phone
Part name Description of functions
Card reader RFID card reader control
White LED Night vision to make sure that the user gets
clear image
Camera Seeing the video of the visitor once the door
bell button is pressed
Monitoring of the front door
Speaker Ring tone
Talking
LED Status indicator
Red LED light is used to indicate registration
status or reset to default status
Green LED is sued to indicate that the call is
connected or upgrade process is finished
Calling button Used for calling the door, upgrade, reset to
default
Microphone Voice communication
10

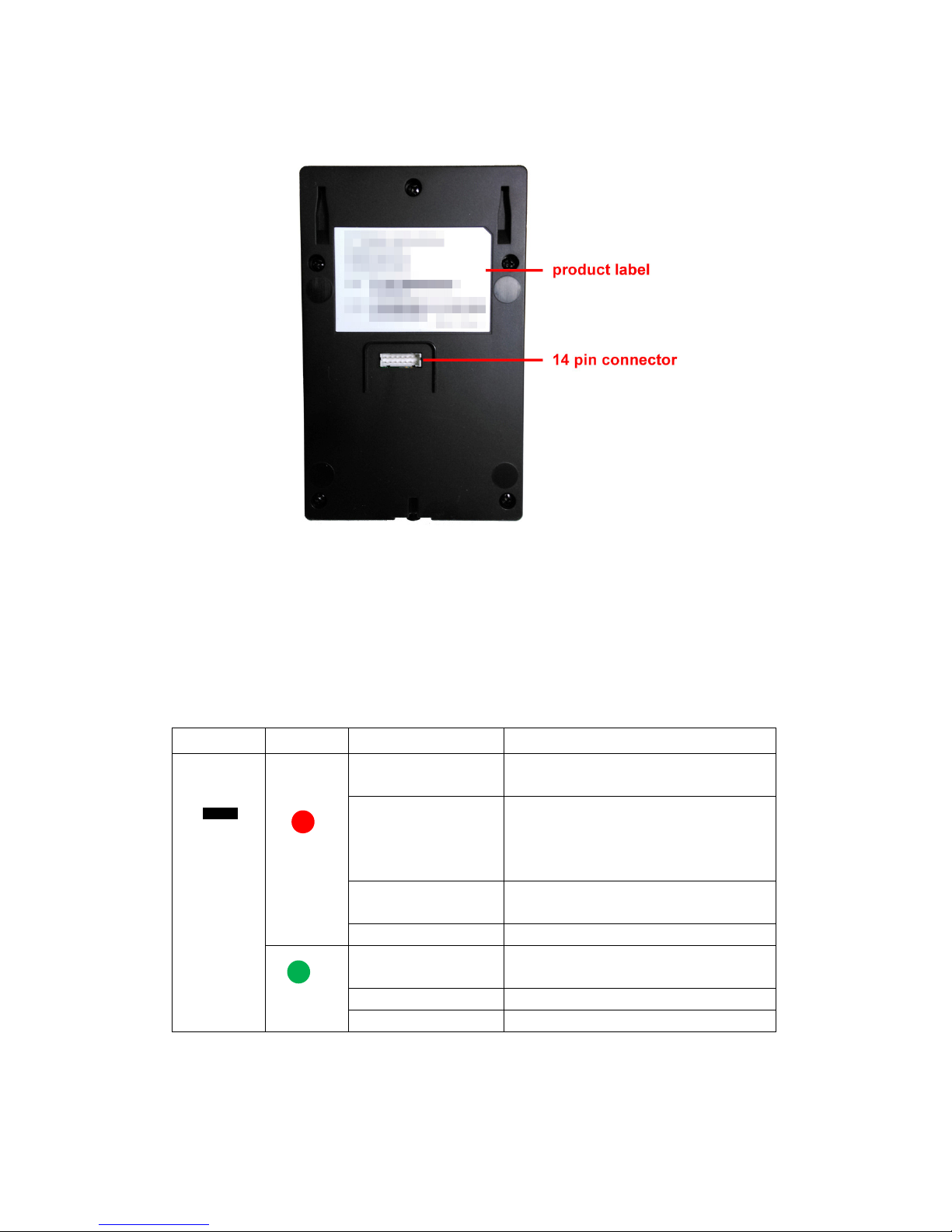

Back view of the IP5815 Video door phone
3.9 LED colors indication
LED colors are associated with the door phone button and follow this
guideline:
LED Color Status Description
Steady Choose to emergency upgrade or reset
default when you see this LED status.
Blinking Rapidly Choose to emergency upgrade or reset
default after push Calling Button, or all
used lines cannot register to the SIP
register servers.
Blinking Slowly Emergency upgrade or register process
is underway.
Red
Off Idle status or voice is not connected.
Steady Voice is connected or the emergency
upgrade process is finished.
Blinking Slowly The process of reset default is finished.
LED
Green
Off Idle status or voice is not connected.
