Tegam 840A Bedienungsanleitung

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • [email protected]

840A, 845, 850, 855

Digital Temperature Calibrator - Thermometer

MODEL 840A, 845, 850, 855

This owner’s manual was as current as possible when this product was manufactured. However,

products are constantly being updated and improved. Because of this, some differences may occur

between the description in this manual and the product you received.

Instruction Manual

PN# 840A-901-01CD

Publication Date: November 2019

REV. M

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • sales@tegam.com

TABLE OF CONTENTS

General Information

Common Specifications ...................................................................... .................... 1

Unique Specifications .............................................................................................. 4

Features ............................................................................................................... 5

Manual Addenda .................................................................................................... 5

Unpacking and Inspection ....................................................................................... 6

Safety Information ................................................................................................. 6

Safety Precautions ................................................................................................. 6

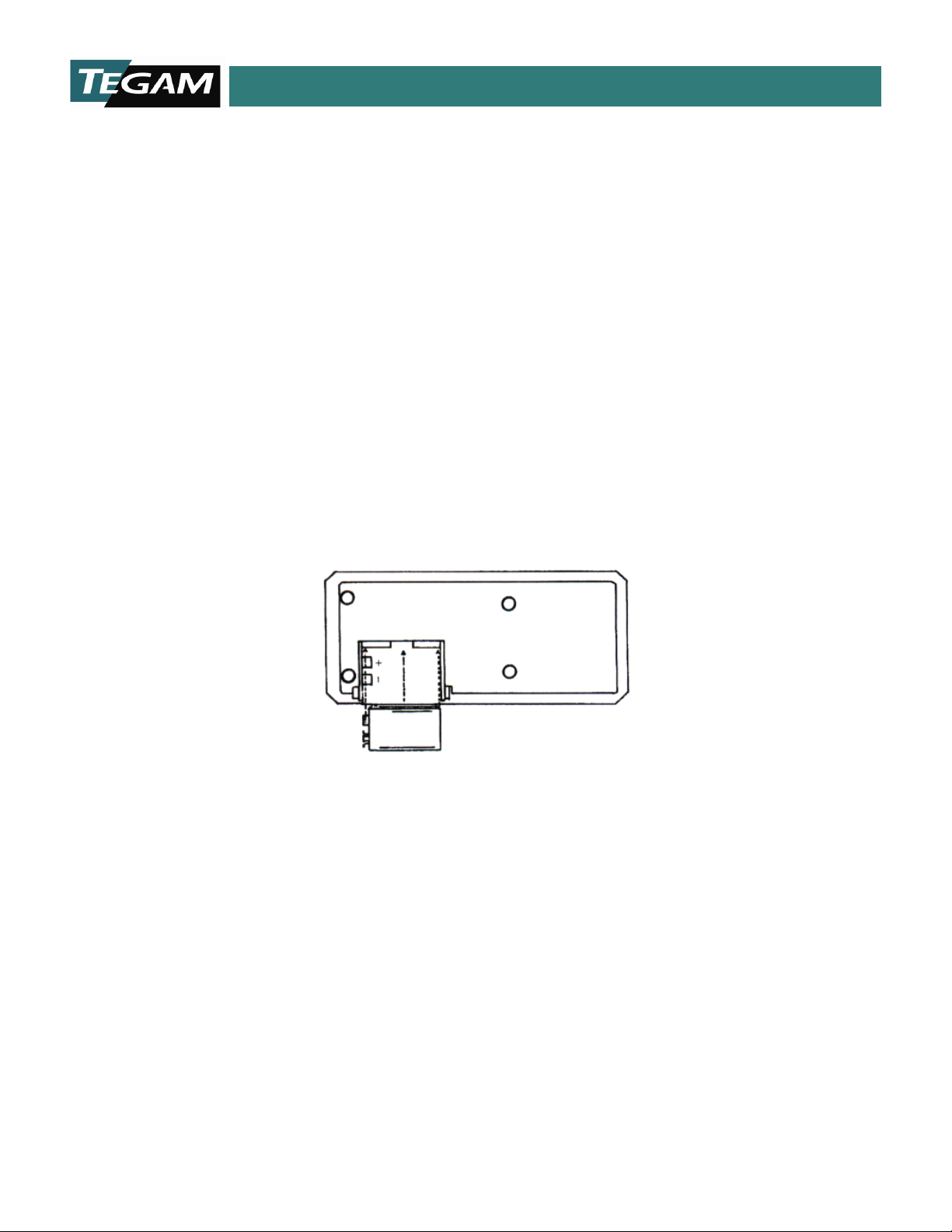

Battery Installation/Replacement ..............................................................................8

Memory Backup .................................................................................................... 9

Operation with Rechargeable Battery....................................................................... 9

Operating Instructions ............................................................................................ 9

1. Diagnostics and Error Messages .................................................................... 9

2. Initial Turn On .......................................................................................... 11

3. Meter Mode Operation (Thermocouple) ........................................................ 12

4. Meter Mode Operation (RTD, Thermistor, Ohms) ........................................... 12

5. Data Logging & Recall ............................................................................... 14

6. Calibrator Mode Operation (Thermocouples) ................................................. 16

7. Calibrator Mode Operation (RTD, Thermistor, Ohms) ...................................... 17

8. Storage and Recall of Calibrator Settings ..................................................... 19

9. Step Function ........................................................................................... 20

10. Ramp Function ........................................................................................ 20

Service Information

1. Calibration Procedures ............................................................................... 21

A. Thermocouple Calibration ...................................................................21

B. Resistance Calibration ........................................................................26

2. Calibration Verification ............................................................................... 30

3. Mechanical Parts Diagram .......................................................... ............. .. 36

Warranty................................................................. .......................................... 37

Limitation of Warranty.......................................................................................... 37

Statement of Calibration .......................................................................... .............37

MAINT

NCE

INST

RUCT

IONS

HIS

ANUA

Y QUA

IED

RVICE

RSO

MPT ANY

OTH

THAN THAT

NTAIN

ATI

INST

RUC

IONS

UNLE

ARE

QUALIFIE

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • sales@tegam.com

GENERAL INFORMATION

This manual provides operating instructions and maintenance information for four temperature

instruments. These instruments are high performance calibrator-thermometers capable of

simulating and measuring a wide-variety of sensors. In addition, features such as data storage

and ramping further enhance their versatility.

It is recommended that you read this manual thoroughly, especially the sections on safety, prior

to operating these instruments.

COMMON SPECIFICATIONS

THERMOMETER INPUTS: THERMOCOUPLE; Miniature TC jack. RTD, OHMS, THERMISTOR; T-

series instrumentation connector.

CALIBRATOR OUTPUTS: THERMOCOUPLE; Miniature TC jack. RTD, OHMS, THERMISTOR; T-

series instrumentation connector.

THERMOCOUPLE TYPES: K, J, T, E, N, B, R, S, G, C, D.

RTD TYPES: 100Ωplatinum (α= 0.00385)

1000Ωplatinum (α= 0.00385)

THERMISTOR TYPE: 2252Ω(YSI Series 400).

RANGES: K; -200°C to 1372°C, -328°F to 2502°F

J; -210°C to 760°C, -346°F to 1400°F

T; -200°C to 400°C, -328°F to 752°F

E; -230°C to 1000°C, -382°F to 1832°F N; -200°C to 1300°C, -328°F to 2372°F

B; 500°C to 1820°C, 932°F to 3308°F R; 0°C to 1768°C, 32°F to 3214°F

S; 0°C to 1768°C, 32°F to 3214°F

G; 300°C to 2316°C, 572°F to 4201 °F C; 0°C to 2316°C, 32°F to 4201 °F

D; 0°C to 2316°C, 32°F to 4201 °F RTD; -200°C to 850°C, -328°F to 1562°F

THERMISTOR; -40°C to 150°C, -40°F to 302°F

OHMS; 0-999.99

0-9,999.9

0-99,999

ACCURACY: All stated accuracies are exclusive of sensor errors and lead resistance induced

errors. Refer to 'UNIQUE SPECIFICATIONS' for detail accuracy specs.

RESOLUTION: TEMPERATURE; 0.1 °/1° F/C

OHMS; 0.01Ω/0.1Ω/1Ω

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • sales@tegam.com

GENERAL INFORMATION

REPEATABILITY (1 week at constant ambient temperature):

K, J, T, E, N; ±0.2°F typ.

B, R, S, G, C, D; ±1.0°F typ.

RTD, THERMISTOR; ±0.1 °F typ.

OHMS; ±0.01 % rdg typ.

METER-MODE INPUT-CURRENT (THERMOCOUPLES): 50nA typ.

METER-MODE READING-RATE: 1 reading/second typ.

METER-MODE EXCITATION-CURRENTS:

100ΩRTD; <2mA

1000ΩRTD; <200

999.99Ω; <2mA

9999.9Ω; <200

99999Ω; <50

THERMISTOR; T ≤113°F <50

T> 113°F, <2mA

CALIBRATOR MODE OUTPUT LOAD (THERMOCOUPLES): 500Ωmin.

CALIBRATOR-MODE EXCITATION-CURRENTS:

100ΩRTD; 0.5 - 1mA (0.1 - 2mA typ.)

1000ΩRTD; 50 - 100μA (10-200μA typ.)

999.99Ω; Same as 100ΩRTD

9999.9Ω; Same as 1000ΩRTD

99999Ω; 10 - 20μA (1 - 20μA typ.)

THERMISTOR; T ≤113°F, 10 - 20

T> 113°F, 0.5- 1mA

MAXIMUM COMMON MODE VOLTAGE: 42V peak to earth.

KEYPAD: 12 momentary switches with tactile feedback select;

• On/Off

• Change/Enter

• Clear/-0

• Sensor Select/1

• °F/°C/2

• Resolution/3

• Operate/4

• Store/5

• Recall/6

• Calibrator/Meter/Up Ramp/7

• Calibrator Step/Down Ramp/8

• Calibrator Ramp/Meter Hold/9

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • sales@tegam.com

GENERAL INFORMATION

DISPLAY: 5 digit LCD, 0.4" height, polarity indication and decimal point. Annunciators;

• Loaded Memory Locations (10 for data storage, 4 for ramp parameters)

• Low Battery (BAT)

• Number Change Mode (NUM)

• Calibrator Mode (CALIB)

• Meter Mode (METER)

• Operate Mode (OPR)

• Store Mode (STO)

• Recall Mode (RCL)

• Meter Hold (HOLD)

• Scale (°F/°C)

• Sensor Type

POWER OFF CONFIGURATION RETENTION: Instrument retains last selected;

• Sensor Type

• °F/°C Scale

• 0.1°/1° Resolution

• Calibrator/Meter Mode

• Memory Contents (data storage and ramp parameters).

DIAGNOSTICS: Display codes indicate following conditions;

• 'BAT': Low Battery

• 'OPEN': Open Input Thermocouple, RTD or Thermistor.

• 'E-1' (momentary): Invalid Keypad Entry

• 'E-2' (momentary): Ramp Function Not Installed

• 'HI': Temperature Reading or Keypad Entry Exceeds Rating

• 'LO': Temperature Reading or Keypad Entry Too Low For Accuracy

• LCD Test: During power-up, all segments and annunciators enabled momentarily

ENVIRONMENTAL LIMITS FOR OPERATING: 0°C to 50°C, less than 90% relative humidity

(R.H.) up to 35°C; reduce R.H. limit by 3%/°C from 35°C to 50°C.

ENVIRONMENTAL LIMITS FOR STORAGE: -35°C to 60°C, less than 95% relative humidity

(R.H.) up to 35°C; reduce R.H. limit by 3%/°C from 35°C to 60°C.

POWER: 9 volt alkaline battery (NEDA 1604A).

BATTERY LIFE, CONTINUOUS: 10 hrs. typical, alkaline; 3 hrs typical, Ni-Cd (rechargeable).

BATTERY INDICATOR: Display indicates BAT when less than 10% of life remains.

DIMENSIONS, WEIGHT: 7.0" x 2.9 x 1.1". Net weight 12 oz.

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • sales@tegam.com

GENERAL INFORMATION

UNIQUE SPECIFICATIONS

NOTE: The specifications below are specific to the model(s) as identified by

model number. The difference specifications are in addition to the

'COMMON SPECIFICATIONS' found on pages 2-4.

• MODEL 840A:

SENSOR SELECTION: K, J, T Thermocouples

ACCURACY: (18°C to 28°C ambient, 2 years):

K, J, T; ±0.5°F (rdg ≥-50°F).

±0.04% rdg (rdg > 1250°F)

±1.0°F (rdg < -50°F)

TEMPERATURE COEFFICIENT: From 0°C to 18°C, and 28°C to 50°C;

less than ±(0.006% rdg +0.03°C)/°C.

RAMP FUNCTION: Not Included.

BATTERY LIFE, CONTINUOUS: 16 hrs typical, alkaline; 4 hrs typical, Ni-Cd (rechargeable).

• MODEL 845:

SENSOR SELECTION: K, J, T, E, N, B, R, S, G, C, D Thermocouples

ACCURACY: (18°C to 28°C ambient, 2 years):

K, J, T, E, N; ±0.5°F (rdg ≥-50°F)

±1.0°F (rdg < -50°F)

B, R, S, G, C, D; ±1.7°F

TEMPERATURE COEFFICIENT: From 0°C to 18°C, and 28°C to 50°C;

K, J, T, E, N; ±(0.002% rdg + 0.03°C)/°C

B, R, S, G, C, D; ±(0.002% rdg + 0.1°C)/°C

RAMP FUNCTION: Included.

BATTERY LIFE, CONTINUOUS: 16 hrs typical, alkaline; 4 hrs typical, Ni-Cd (rechargeable).

• MODEL 850:

SENSOR SELECTION: K, J, T, E Thermocouples

100ΩPlatinum RTD

2252ΩThermistor

1,000Ω/100,000ΩResistance

ACCURACY: (18°C to 28°C ambient, 2 years):

K, J, T, E; ±0.5 °F (rdg ≥-50°F).

±0.04% rdg (rdg > 1250°F)

±1.0°F (rdg <-50°F)

OHMS; ±0.04% range

RTD; ±0.2°F (rdg≥- 50°F) (Calibrator mode)

±0.5°F (rdg < - 50°F) (Calibrator mode)

±0.2°F ±0.04% rdg (rdg ≥ -50°F) (meter mode)

±0.5°F±0.04% rdg (rdg < -50°F) (meter mode)

Thermistor; ±0.5°F

TEMPERATURE COEFFICIENT: From 0°C to 18°C, and 28°C to 50°C;

K, J, T, E; ±(0.006% rdg + 0.03°C)/°C

RTD, THERMISTOR, OHMS; ±(0.006% rdg +0.012% rng)/°C

RAMP FUNCTION: Not Included.

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • sales@tegam.com

GENERAL INFORMATION

• MODEL 855:

SENSOR SELECTION: K, J, T, E, N, B, R, S, G, C, D Thermocouples

100Ω/1000ΩPlatinum RTD

1,000Ω/10,000ΩResistance

ACCURACY: (18°C to 28°C ambient, 2 years):

K, J, T, E, N; ± 0.5°F (rdg ≥-50°F)

±1.0°F (rdg < -50°F)

B, R, S, G, C, D; ±1.7°F

RTD; ±0.2°F (rdg ≥- 50°F) (Calibrator Mode)

±0.5°F (rdg < - 50°F) (Calibrator Mode)

±0.2°F ±0.04% rdg (rdg ≥ -50°F) (meter mode)

±0.5°F ±0.04% rdg (rdg < -50°F) (meter mode)

OHMS; ±0.02% range

TEMPERATURE COEFFICIENT: From 0°C to 18°C, and 28°C to 50°C;

K, J, T, E, N; ±(0.002% rdg + 0.03°C)/°C

B, R, S, G, C, D; ±(0.002% rdg + 0.1°C)/°C

RTD, OHMS; ±(0.002% rdg + 0.004% rng)/°C

RAMP FUNCTION: Included.

FEATURES

•Combination calibrator, thermometer and datalogger.

•Function selection and numeric data entered via 12 keyswitch color coded keypad.

•Keyswitches have tactile feedback.

•5 digit LCD includes annunciators for operating modes.

•Up to 11 thermocouple types, 2 RTD types, and thermistor.

•1° or 0.1° resolution over temperature range of each sensor.

•°F and °C scales.

•Reading hold mode.

•10 memory locations for saving meter readings and/or calibrator outputs.

•Step mode for quick sequential recall of calibrator outputs from memory.

•Manual/automatic ramping for testing controller setpoints.

•Conforms to ITS-90 thermocouple & RTD tables. Refer to 'Service Information' (page 23) for

more information.

•Dust proof, splash proof, drop proof construction.

•Built-in tilt stand/hanger for bench use or hands free field measurements.

•User friendly programming.

•Retains data and programming, even when turned off.

•Performs diagnostic tests and indicates fault conditions.

•Low battery and open sensor indications.

MANUAL ADDENDA

Improvements or changes to this manual will be explained on an addendum included with the

instrument. All change information should be incorporated immediately into the appropriate

places in the manual.

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • sales@tegam.com

GENERAL INFORMATION

UNPACKING AND INSPECTION

Each instrument is inspected both mechanically and electrically before shipment. Upon receiving

your instrument unpack all items from the shipping container and check for any obvious damage

that may have occurred during transit. Report any damage to the shipping agent. Retain and use

the original packing materials if reshipment is necessary.

SAFETY INFORMATION

SAFETY SYMBOLS AND TERMS

The symbol on the instrument denotes that the user should refer to the operating

instructions.

The WARNING used in this manual explains dangers that could result in personal injury or

death.

The CAUTION used in this manual explains hazards that could damage the instrument.

SAFETY PRECAUTIONS

WARNING

These instruments are intended for use by qualified

personnel trained in the safe operation of electronic testing

equipment. Read the instruction manual thoroughly before

using, to become familiar with the instrument's operations

and capabilities.

WARNING

Do not touch a temperature probe sheath when measuring

excessively high or low temperatures, or toxic substances.

WARNING

Do not attempt to measure temperatures beyond the range

of the probe being used. Probe damage or personal injury

could result from exceeding a probe's maximum

temperature rating.

WARNING

Do not substitute a metal part for the nylon screw in the rear

case. Doing so will degrade electrical isolation of the case.

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • sales@tegam.com

GENERAL INFORMATION

WARNING

The American National Standards Institute (ANSI) states that

a shock hazard exists when probes or sensors are exposed

to voltage levels greater than 42VDC or 42V peak AC. Do

not use this instrument where voltages at the measurement

surface exceed these levels.

WARNING

The battery is accessible through a cover on the back of the

instrument. To avoid electrical shock hazard, disconnect all

temperature probes and sensors and turn the unit off before

removing the cover.

WARNING

Never use this instrument or any probe or sensor inside a

microwave oven.

CAUTION

Avoid making sharp bends in probe or sensor lead wires.

Bending lead wires at a sharp angle can damage the wire

causing probe failure.

CAUTION

Keep inputs electrically isolated from outputs. Do not

connect an external voltage source between the two

connectors, and avoid any external electrical pathways

between input and output (T2 & T1).

Failure to do so will disturb meter readings and calibrator

output levels. Damage to the instrument is also possible.

Where the meter and calibrator connectors are

simultaneously wired into a system lacking the above

isolation, it is necessary to use an "ungrounded" (i.e.

electrically isolated) probe at the thermometer input.

10 TEGAM WAY • GENEVA, OHIO 44041 • 440-466-6100 • FAX 440-466-6110 • sales@tegam.com

GENERAL INFORMATION

BATTERY INSTALLATION/REPLACEMENT

A 9V alkaline battery is supplied with the instrument but not installed. Read the following

installation instructions before attempting to install or remove the battery. Replacement batteries

should also be alkaline types.

WARNING

Turn the unit off and disconnect any input/output

connections before replacing the battery. Put the cover

back into place on the battery compartment before

resuming use of the instrument.

1. Remove the cover from the battery compartment by sliding it off in the direction of the

arrow located on the battery cover.

2. Remove the old battery.

3. Place the new battery in the battery compartment. Be sure to observe proper polarity.

4. Re-install the battery cover before resuming use of the instrument.

Figure 1. Battery Installation

NOTES:

• Less than 10% of battery life remains when the BAT annunciator turns

on.

• When the battery is excessively discharged, the display is blanked.

• If the instrument is going to be stored for a long period of time or in a

high temperature environment, remove the battery to prevent leakage

damage.

• After a new battery is installed, allow approximately 5 seconds

for display turn-on the first time the unit is turned on. During

this period, microcomputer initialization is performed.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Tegam Thermometer Handbücher

Tegam

Tegam 819A Bedienungsanleitung

Tegam

Tegam 940A Bedienungsanleitung

Tegam

Tegam 921B Bedienungsanleitung

Tegam

Tegam 911A Bedienungsanleitung

Tegam

Tegam 921B Bedienungsanleitung

Tegam

Tegam WG311 v3 Bedienungsanleitung

Tegam

Tegam 911A Bedienungsanleitung

Tegam

Tegam 911A Bedienungsanleitung

Tegam

Tegam Budget 874F Bedienungsanleitung

Tegam

Tegam 931A Bedienungsanleitung

Tegam

Tegam 932A Bedienungsanleitung

Tegam

Tegam 940A Bedienungsanleitung

Tegam

Tegam 865 Bedienungsanleitung

Tegam

Tegam 911B Bedienungsanleitung

Tegam

Tegam 932A Bedienungsanleitung

Tegam

Tegam 868 Bedienungsanleitung

Beliebte Thermometer Handbücher anderer Marken

Delton

Delton 981A Bedienungsanleitung

Baker

Baker MM2P Bedienungsanleitung

Tarmo

Tarmo 320281 Bedienungsanleitung

Citizen

Citizen CTD 504 Bedienungsanleitung

TFA

TFA 14.1500 Bedienungsanleitung

Vive

Vive DMD1010 Bedienungsanleitung

Gotemp

Gotemp THB4002 Bedienungsanleitung

GREISINGER

GREISINGER G 1202 Bedienungsanleitung

Amprobe

Amprobe TMD-53W Bedienungsanleitung

Trotec

Trotec BP10 Bedienungsanleitung

Radiance instruments

Radiance instruments RT616 Series Bedienungsanleitung

Eurolec

Eurolec IR151 Bedienungsanleitung

Scaneo

Scaneo TS42B Bedienungsanleitung

Sper scientific

Sper scientific 800043 Bedienungsanleitung

Microlife

Microlife NC 200 Bedienungsanleitung

Motorola

Motorola MBP69SN Konfigurationshandbuch

The MeatStick

The MeatStick The MeatStick Bedienungsanleitung

Hama

Hama TH35-A Bedienungsanleitung
