Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

CImportant information or useful usage tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

authorities.

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

Recycling

1 Your refrigerator 3

2 Important Safety

Warnings 4

Intended use .....................................4

For products with a water dispenser;.6

Child safety........................................6

HCA Warning ....................................7

Things to be done for energy saving..7

3 Installation 8

Preparation........................................8

Points to be considered when re-

transporting your refrigerator .............8

Before operating your refrigerator ......8

Electric connection ............................9

Disposing of the packaging ...............9

Disposing of your old refrigerator .......9

Placing and Installation ....................10

Floor balance adjustment ................10

Adjusting the gap between the upper

door ................................................11

4 Preparation 13

5 Using your refrigerator 14

Indicator Panel.................................14

Sliding Body Shelves .......................17

Egg tray...........................................17

Crisper ...........................................17

Chiller compartment ........................17

Rotating Middle Section ..................18

Multi Zone Storage Compartment ..18

Door Open Alarm: ..........................19

Dual cooling system: .......................19

Freezing fresh food..........................19

Recommendations for preservation of

frozen food ......................................20

Placing the food ..............................20

Deep-freeze information ..................21

6 Cleaning and care 22

Protection of plastic surfaces ..........22

7 Troubleshooting 23

CONTENTS

CFigures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

B C

1Your refrigerator

A- Fridge compartment

B- Freezer compartment

C- Multi Zone

1- Fridge compartment door shelves

2- Fridge compartment adjustable cabi-

net shelves

3- Diffuser cover

4- Illumination lens

5- Rotating middle section

6- Chiller compartment

7- Crisper

8- Bottle shelf

9- Icematic

10- Icebox

11- Frozen food storage compartments

12- Butter & Cheese shelf cover

13- Butter & Cheese shelf

14- Bottle holder

15- Multi Zone compartment shelves

16- Multi Zone compartment

2Important Safety Warnings

Pleasereviewthefollowinginformation.

Failure to observe this information may

cause injuries or material damage.

Otherwise, all warranty and reliability

commitments will become invalid.

The usage life of the unit you

purchased is 10 years. This is the period

for keeping the spare parts required for

the unit to operate as described.

Intended use

This product is intended to be used

– indoors and in closed areas such as

homes;

– in closed working environments such

as stores and offices;

– in closed accommodation areas such

as farm houses, hotels, pensions.

• This product should not be used

outdoors.

General safety

• When you want to dispose/scrap

the product, we recommend you to

consult the authorized service in order

to learn the required information and

authorized bodies.

• Consult your authorized service for

all your questions and problems

related to the refrigerator. Do not

intervene or let someone intervene to

the refrigerator without notifying the

authorised services.

• For products with a freezer

compartment; Do not eat cone ice

cream and ice cubes immediately

after you take them out of the freezer

compartment! (This may cause

frostbite in your mouth.)

• For products with a freezer

compartment; Do not put bottled and

canned liquid beverages in the freezer

compartment. Otherwise, these may

burst.

• Do not touch frozen food by hand;

they may stick to your hand.

• Unplug your refrigerator before

cleaning or defrosting.

• Vapor and vaporized cleaning

materials should never be used in

cleaning and defrosting processes of

your refrigerator. In such cases, the

vapor may get in contact with the

electrical parts and cause short circuit

or electric shock.

• Never use the parts on your

refrigerator such as the door as a

means of support or step.

• Do not use electrical devices inside

the refrigerator.

• Do not damage the parts, where

the refrigerant is circulating, with

drilling or cutting tools. The refrigerant

that might blow out when the gas

channels of the evaporator, pipe

extensions or surface coatings are

punctured causes skin irritations and

eye injuries.

• Do not cover or block the ventilation

holes on your refrigerator with any

material.

• Electrical devices must be repaired

by only authorised persons. Repairs

performed by incompetent persons

create a risk for the user.

• In case of any failure or during

a maintenance or repair work,

disconnect your refrigerator’s mains

supply by either turning off the

relevant fuse or unplugging your

appliance.

• Do not pull by the cable when pulling

off the plug.

• Place the beverage with higher proofs

tightly closed and vertically.

• Never store spray cans containing

flammable and explosive substances

in the refrigerator.

• Do not use mechanical devices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• This product is not intended to be

used by persons with physical,

sensory or mental disorders or

unlearned or inexperienced people

(including children) unless they are

attended by a person who will be

responsible for their safety or who will

instruct them accordingly for use of

the product

• Do not operate a damaged

refrigerator. Consult with the service

agent if you have any concerns.

• Electrical safety of your refrigerator

shall be guaranteed only if the earth

system in your house complies with

standards.

• Exposing the product to rain, snow,

sun and wind is dangerous with

respect to electrical safety.

• Contact authorized service when

there is a power cable damage to

avoid danger.

• Never plug the refrigerator into

the wall outlet during installation.

Otherwise, risk of death or serious

injury may arise.

• This refrigerator is intended for only

storing food items. It must not be

used for any other purpose.

• Label of technical specifications is

located on the left wall inside the

refrigerator.

• Never connect your refrigerator to

electricity-saving systems; they may

damage the refrigerator.

• If there is a blue light on the

refrigerator, do not look at the blue

light with optical tools.

• For manually controlled refrigerators,

wait for at least 5 minutes to start the

refrigerator after power failure.

• This operation manual should be

handed in to the new owner of the

product when it is given to others.

• Avoid causing damage on power

cable when transporting the

refrigerator. Bending cable may cause

fire. Never place heavy objects on

power cable. Do not touch the plug

with wet hands when plugging the

product.

• Do not plug the refrigerator if the wall

outlet is loose.

• Water should not be sprayed directly

on inner or outer parts of the product

for safety purposes.

• Do not spray substances containing

inflammable gases such as propane

gas near the refrigerator to avoid fire

and explosion risk.

• Never place containers filled with

water on top of the refrigerator,

otherwise this may cause electric

shock or fire.

• Do not overload your refrigerator

with excessive amounts of food. If

overloaded, the food items may fall

down and hurt you and damage

refrigerator when you open the

door. Never place objects on top

of the refrigerator; otherwise, these

objects may fall down when you

open or close the refrigerator's door.

• As they require a precise temperature,

vaccines, heat-sensitive medicine and

scientific materials and etc. should not

be kept in the refrigerator.

• If not to be used for a long time,

refrigerator should be unplugged. A

possible problem in power cable may

cause fire.

• The plug's tip should be regularly

cleaned; otherwise, it may cause fire.

• Refrigerator may move if adjustable

legs are not properly secured on the

floor. Properly securing adjustable

legs on the floor can prevent the

refrigerator to move.

• When carrying the refrigerator, do not

hold it from door handle. Otherwise, it

may be snapped.

• When you have to place your product

next to another refrigerator or freezer,

the distance between devices should

be at least 8cm. Otherwise, adjacent

side walls may be humidified.

For products with a water

dispenser;

Pressure of water mains should be

minimum 1 bar. Pressure of water

mains should be maximum 8 bars.

• Use only potable water.

Child safety

• If the door has a lock, the key should

be kept away from reach of children.

• Children must be supervised to

prevent them from tampering with the

product.

HCA Warning

If your product's cooling system

contains R600a:

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage and

transportation. In the event of damage,

keep your product away from potential

fire sources that can cause the product

catch a fire and ventilate the room in

which the unit is placed.

Ignore this warning if your

product's cooling system contains

R134a.

Type of gas used in the product is

stated in the type plate which is on the

left wall inside the refrigerator.

Never throw the product in fire for

disposal.

Things to be done for energy

saving

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

refrigerator.

• Do not overload your refrigerator so

that the air circulation inside of it is not

prevented.

• Do not install your refrigerator

under direct sunlight or near heat

emitting appliances such as ovens,

dishwashers or radiators.

• Pay attention to keep your food in

closed containers.

• For products with a freezer

compartment; You can store

maximum amount of food items in

the freezer when you remove the

shelf or drawer of the freezer. Energy

consumption value stated for your

refrigerator has been determined

by removing freezer shelf or drawer

and under maximum load. There

is no harm to use a shelf or drawer

according to the shapes and size of

food to be frozen.

• Thawing frozen food in fridge

compartment will both provide energy

saving and preserve the food quality.

3Installation

BPlease remember that the

manufacturer shall not be held liable if

the information given in the instruction

manual is not observed.

Preparation

• Your refrigerator should be installed at

least 30 cm away from heat sources

such as hobs, ovens, central heater

and stoves and at least 5 cm away

from electrical ovens and should not

be located under direct sunlight.

• The ambient temperature of

the room where you install your

refrigerator should at least be 10°C.

Operating your refrigerator under

cooler conditions than this is not

recommended with regard to its

efficiency.

• Please make sure that the interior of

your refrigerator is cleaned thoroughly.

• If two refrigerators are to be installed

side by side, there should be at least

2 cm distance between them.

• When you operate your refrigerator

for the first time, please observe the

following instructions during the initial

six hours.

- The door should not be opened

frequently.

- It must be operated empty without

any food in it.

- Do not unplug your refrigerator. If

a power failure occurs out of your

control, please see the warnings in

the “Recommended solutions for the

problems” section.

• Original packaging and foam

materials should be kept for future

transportations or moving.

Points to be considered

when re-transporting your

refrigerator

1. Your refrigerator must be emptied and

cleaned prior to any transportation.

2. Shelves, accessories, crisper and etc.

in your refrigerator must be fastened

securely by adhesive tape against any

jolt before repackaging.

3. Packaging must be tied with thick

tapes and strong ropes and the

rules of transportation printed on the

package must be followed.

Please do not forget…

Every recycled material is an

indispensable source for the nature and

for our national resources.

If you wish to contribute to recycling the

packaging materials, you can get further

information from the environmental

bodies or local authorities.

Before operating your

refrigerator

Before starting to use your refrigerator

check the following:

1. Is the interior of the refrigerator dry

and can the air circulate freely in the

rear of it?

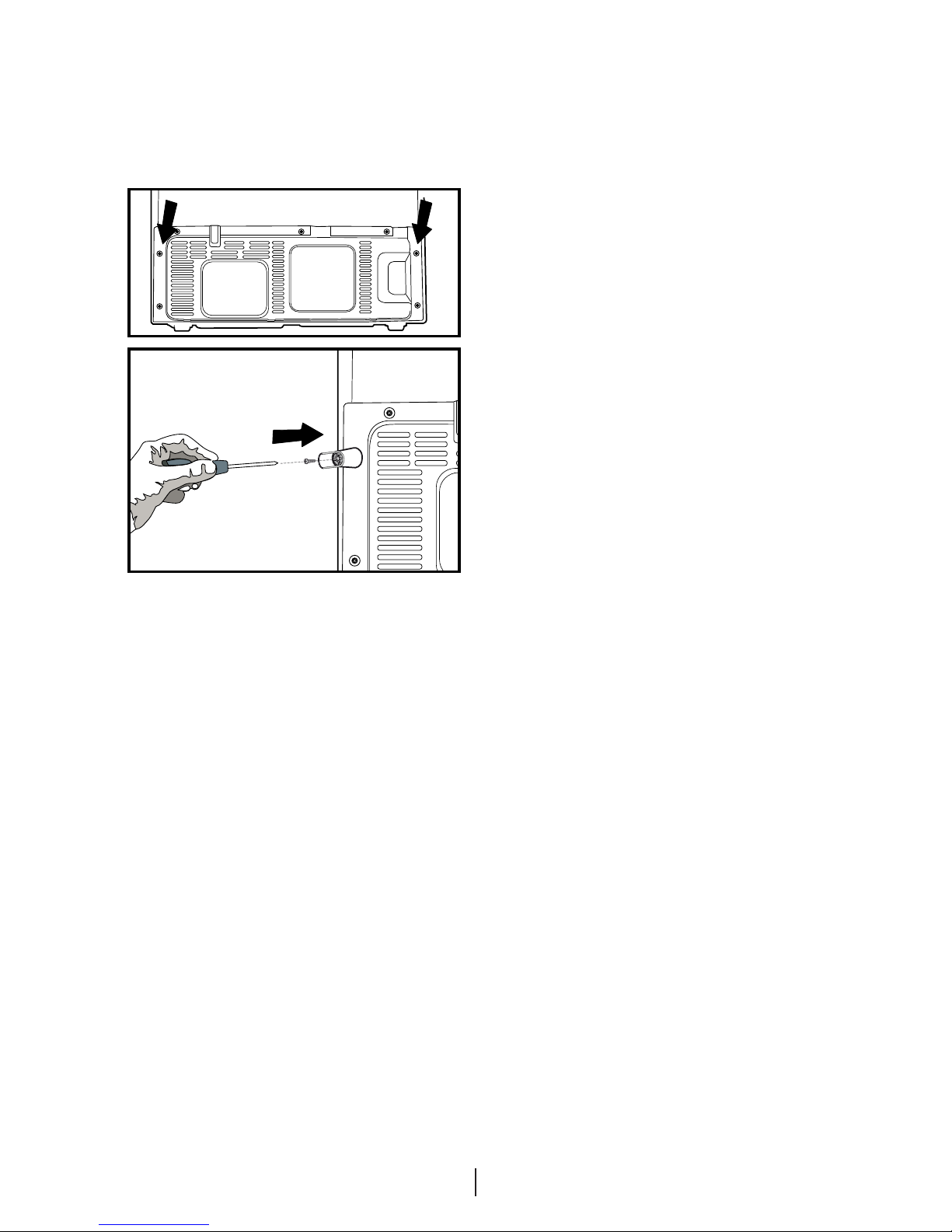

2. Insert the 2 plastic wedges onto the

rear ventilation as illustrated in the

following figure. Unscrew the existing

ones and use the screws given in the

same bag of wedges. Plastic wedges

will provide the required distance

between your refrigerator and the wall

in order to allow the air circulation.

Important:

• The connection must be in

compliance with national regulations.

• The power cable plug must be easily

accessible after installation.

• Voltage and allowable fuse protection

are specified in the “Technical

Specifications” section.

• The specified voltage must be equal

to your mains voltage.

• Extension cables and multiway plugs

must not be used for connection.

BA damaged power cable must be

replaced by a qualified electrician.

BThe appliance must not be operated

before it is repaired! There is danger of

electric shock!

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach

of children or dispose them of by

classifying them in accordance

with the waste instructions. Do not

dispose them of along with the normal

household waste.

The packing of your refrigerator is

produced from recyclable materials.

Disposing of your old

refrigerator

Dispose of your old machine without

giving any harm to the environment.

• You may consult your authorized

dealer or waste collection center of

your municipality about the disposal of

your refrigerator.

3. Clean the interior of the refrigerator as

recommended in the “Maintenance

and cleaning” section.

4. Plug the refrigerator into the wall

outlet. When the door is open the

respective interior light will come on.

5. You will hear a noise as the

compressor starts up. The liquid and

gases sealed within the refrigeration

system may also give rise to noise,

even if the compressor is not running

and this is quite normal.

6. Front edges of the refrigerator may

feel warm. This is normal. These areas

are designed to be warm to avoid

condensation.

Electric connection

Connect your refrigerator to a

grounded socket which is being

protected by a fuse with the appropriate

capacity.

Inhaltsverzeichnis

Sprachen:

Andere Teka Kühlschrank Handbücher

Teka

Teka RSR 41150 BU Bedienungsanleitung

Teka

Teka CI2 350 NF Bedienungsanleitung

Teka

Teka NFM700X-AU Bedienungsanleitung

Teka

Teka TGI2 200 NF Bedienungsanleitung

Teka

Teka TFI3 130D Bedienungsanleitung

Teka

Teka RBF 78720 Bedienungsanleitung

Teka

Teka TS3 370 EU Bedienungsanleitung

Teka

Teka RLF 74910 GBK Bedienungsanleitung

Teka

Teka RFD 77825 GBK EU Bedienungsanleitung

Teka

Teka TGF 270 Bedienungsanleitung

Teka

Teka FT2-410 VR01 Bedienungsanleitung

Teka

Teka NF1-350 series Bedienungsanleitung

Teka

Teka FTM 221 EU Bedienungsanleitung

Teka

Teka CT-340 Technisches Handbuch

Teka

Teka TG180 Bedienungsanleitung

Teka

Teka TKI4 340 SD Bedienungsanleitung

Teka

Teka CI3 330 NF Bedienungsanleitung

Teka

Teka RBF 77360 FI EU Bedienungsanleitung

Teka

Teka RSF 41150 BU EU Bedienungsanleitung

Teka

Teka TKI2 300 Bedienungsanleitung

Teka

Teka TKI4 350 SD UK Bedienungsanleitung

Teka

Teka RVU 20046 GBK Bedienungsanleitung

Teka

Teka Combi NFB 320 W Bedienungsanleitung

Teka

Teka RBF 78720 SS Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
