KONA MEGA GATEWAY –900MHZ
TDD
User Guide
Document Type:
User Guide
Document Number:
T0008387_UG
Document Issue:
1.0
Document Status:
Approved
Product Name:
KONA Mega Gateway
Product Code:
See Table 1
Issue Date:
October 14, 2022
KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 2 of 20
Document Revision
Revision
Issue
Date
Status
Editor
Comments
0.1
Oct. 12, 2022
Draft
K. Minderhoud
Original Draft
1.0
Oct. 14, 2022
Released
K. Minderhoud
Approved
KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 3 of 20
Table of Contents
1Product Description................................................................................................................. 6
1.1 Overview .......................................................................................................................... 6
1.2 Bulkhead Layout............................................................................................................... 8
1.3 Specifications.................................................................................................................. 10
2Installation............................................................................................................................. 11
2.1 Safety Precautions.......................................................................................................... 11
2.2 Unpacking and Inspection.............................................................................................. 12
2.3 Required Equipment for Installation.............................................................................. 12
2.4 KONA Mega Gateway Mounting.................................................................................... 12
2.5 Ground Cable Installation .............................................................................................. 14
2.6 Direct DC Power Cable Installation ................................................................................ 15
2.7 RF Cable Installation....................................................................................................... 16
2.8 Antenna Installation....................................................................................................... 16
2.9 Copper Ethernet Cable Installation................................................................................ 17
3Radio Compliance Statements .............................................................................................. 18
4Déclarations de conformité à la radio................................................................................... 20
KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 4 of 20
List of Tables
Table 1: KONA Mega Gateway Models........................................................................................... 6
Table 2: KONA Mega Gateway Interface Connector Types.......................................................... 10
Table 3: KONA Mega Gateway Specifications............................................................................... 10
Table 4: Maximum 3G/4G antenna gain....................................................................................... 16
KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 5 of 20
List of Figures
Figure 1: KONA Mega Gateway Common Dimensions................................................................... 7
Figure 2: KONA Mega Gateway Option #1 with Circular Plastic Connector Bulkhead Field .......... 8
Figure 3: KONA Mega Gateway Option #2 with Circular Plastic Connector Bulkhead Field .......... 8
Figure 4: KONA Mega Gateway Option #3 with Circular Plastic Connector Bulkhead Field .......... 9
Figure 5: KONA Mega Gateway Option #4 with Circular Plastic Connector Bulkhead Field .......... 9
Figure 6: KONA Module with Mounting Bracket .......................................................................... 13
Figure 7: Chassis Ground Connection........................................................................................... 14
Figure 8: Direct DC Power CPC Connector Connection Polarity................................................... 15
KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 6 of 20
1Product Description
1.1 Overview
The KONA Mega Gateway is a LoRaWAN IoT gateway that supports a broad range of LoRaWAN
channels. The Mega platform is designed to support a multitude of deployment configurations in
an outdoor environment. The hardware architecture supports one or two LoRa antennas, a GPS
antenna, direct DC input power or Power over Ethernet (PoE), and backhaul options including
copper Ethernet and 3G/4G wireless.
This user guide is specific to a subset of the full KONA Mega portfolio, inclusive only of Mega
gateways employing Time Division Duplexing (TDD), operating in the 900MHz frequency band,
and optionally including the Sierra Wireless EM7455 3G/4G modem. Table 1 lists all such KONA
Mega Gateway models.
Table 1: KONA Mega Gateway Models
Product Number
1X LoRa ANT
2X LoRa ANT
LTE Modem
Reference
T0004978
x
Figure 2
T0004982
x
Figure 4
T0004988
x
Figure 2
T0004992
x
Figure 4
T0004996
x
Figure 2
T0005000
x
Figure 4
T0005004
x
Figure 2
T0005006
x
x
Figure 3
T0005008
x
Figure 4
T0005010
x
x
Figure 5
KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 7 of 20

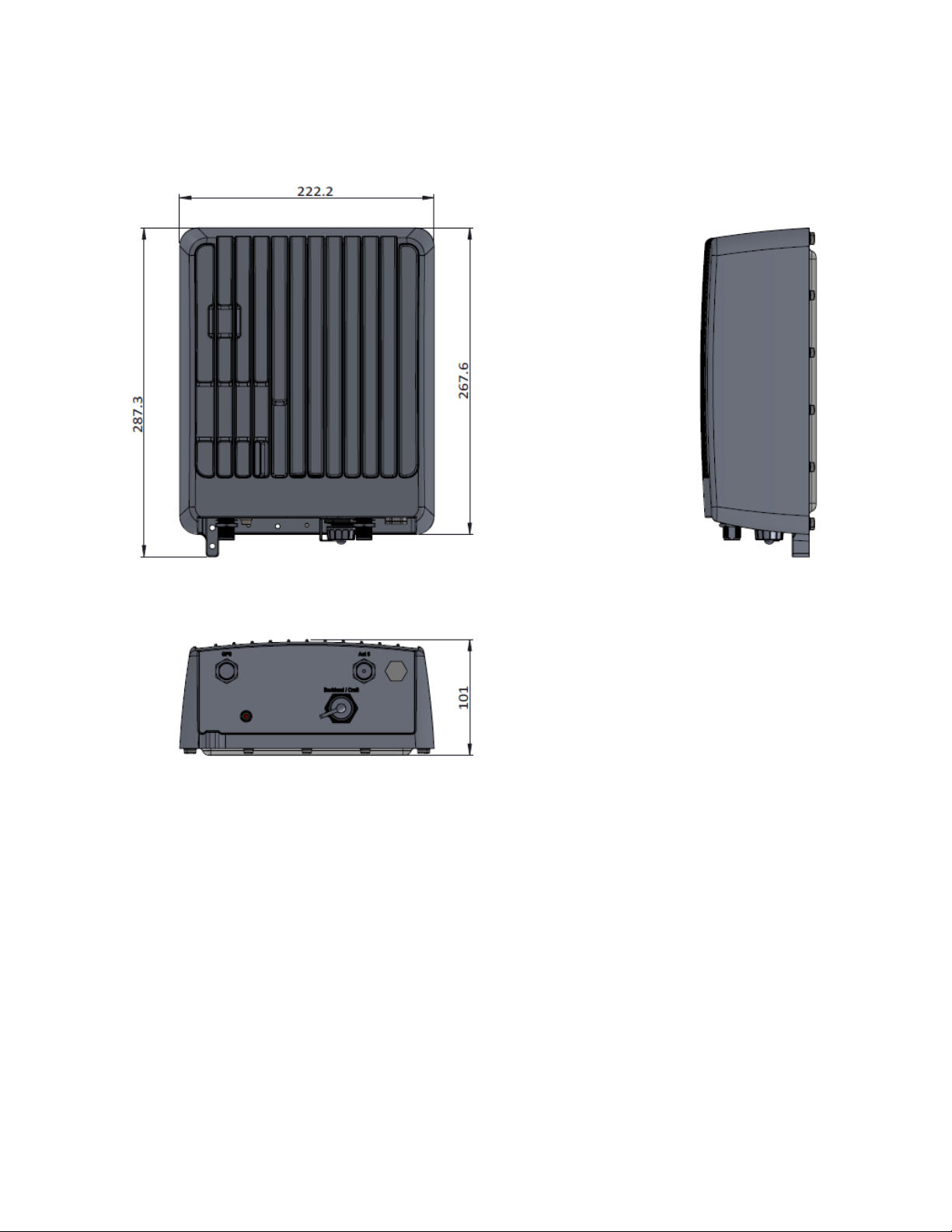

Figure 1 illustrates the common Gateway external form-factor. The differences between the
options are limited to the bulkhead field, and the internal cavity bandpass filters.
Figure 1: KONA Mega Gateway Common Dimensions
KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 8 of 20
1.2 Bulkhead Layout
The KONA Mega Gateway bulkhead component fields are detailed in the following figures.

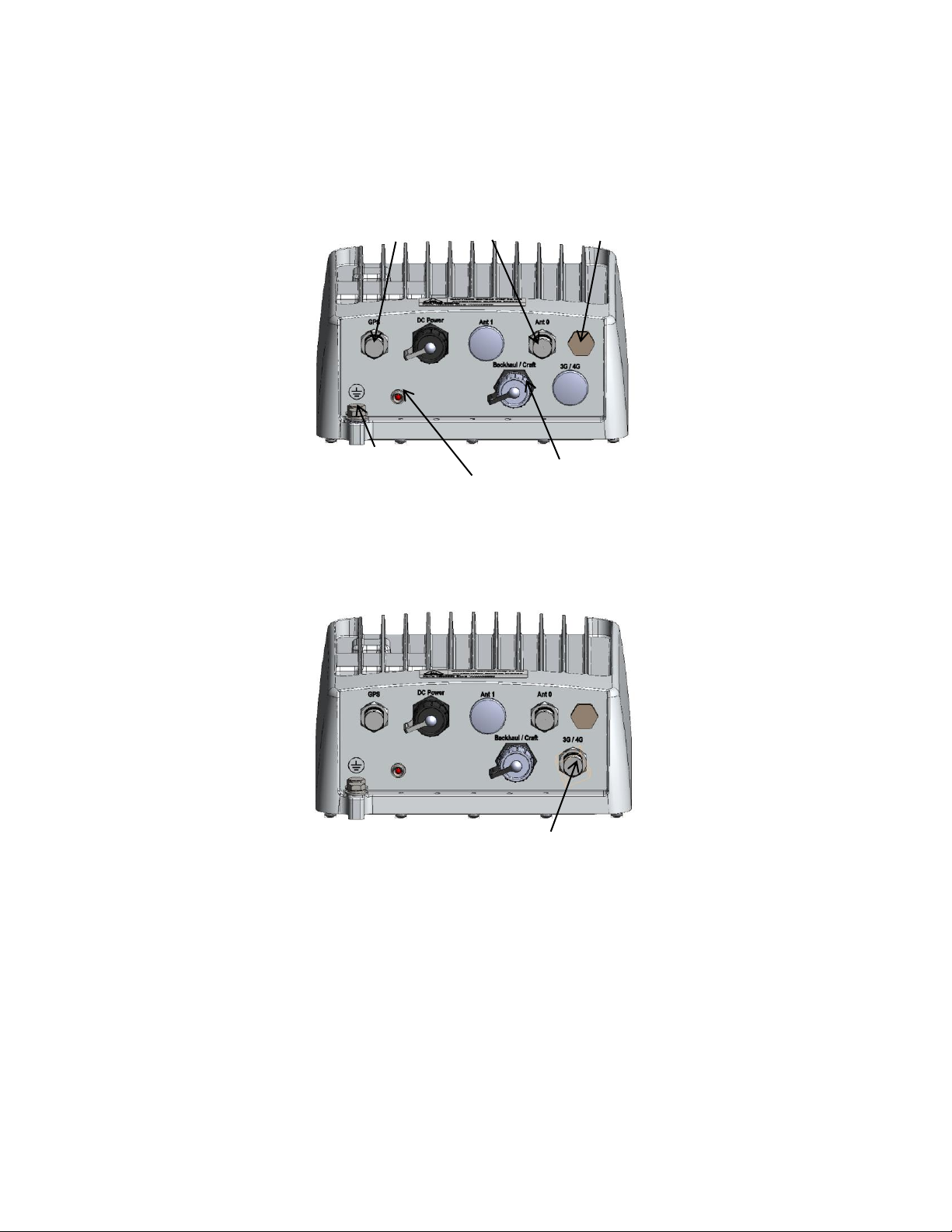

Figure 2: KONA Mega Gateway Option #1 with Circular Plastic Connector Bulkhead Field
Figure 3: KONA Mega Gateway Option #2 with Circular Plastic Connector Bulkhead Field
GPS
Antenna
LoRa RF
Antenna 0
Enclosure
Vent
LED
Protective
Earth Ground
Copper
Ethernet
LTE Antenna
Port
KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 9 of 20

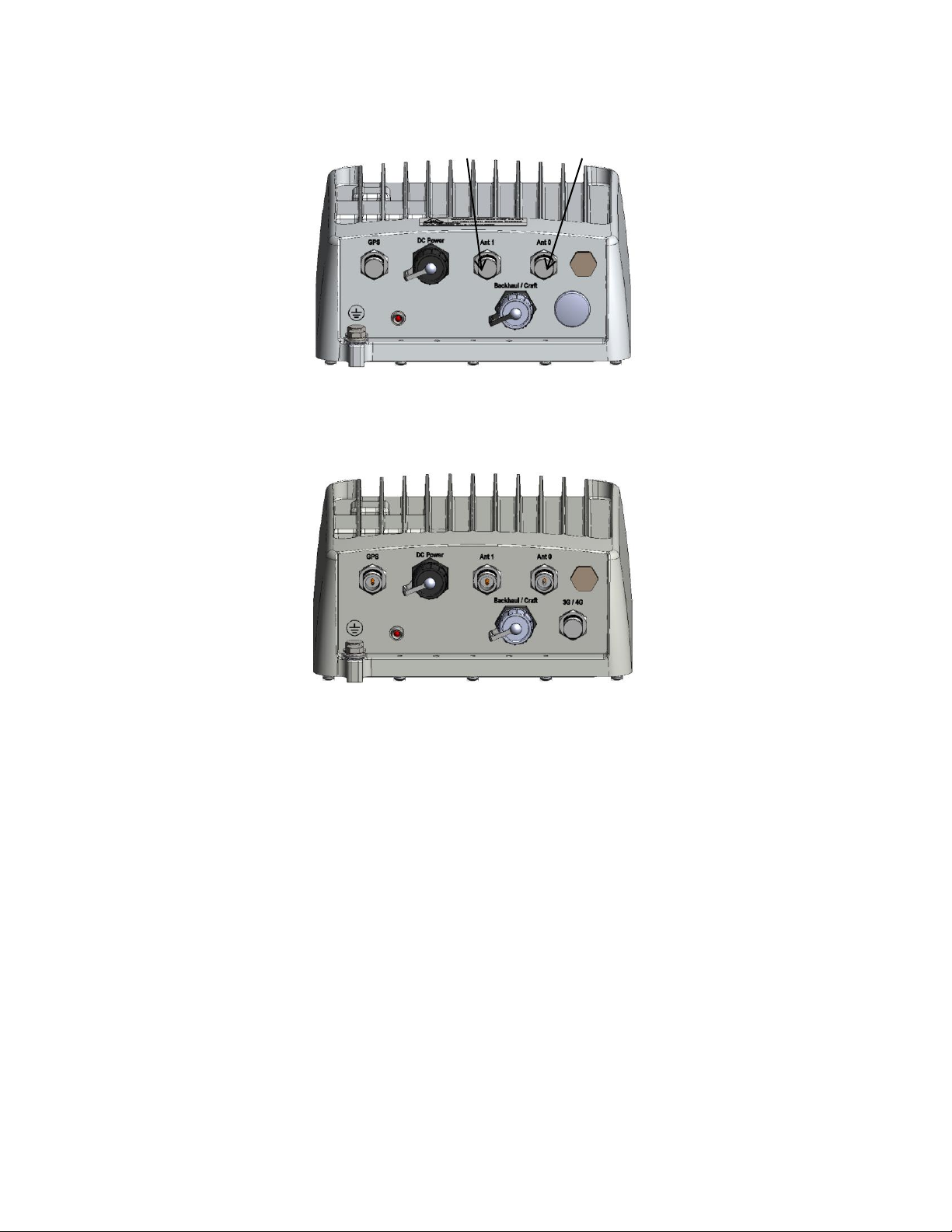

Figure 4: KONA Mega Gateway Option #3 with Circular Plastic Connector Bulkhead Field
Figure 5: KONA Mega Gateway Option #4 with Circular Plastic Connector Bulkhead Field
All KONA Gateway module interconnect is located on the bottom facing bulkhead. The RF
connectors are waterproof while unmated but all other connectors must be terminated with
mating connectors or covered with the supplied protective cap when not in use in order to be
water tight. Connector types and their mating connectors are listed in Table 2 .
LoRa RF
Antenna 0
LoRa RF
Antenna 1
KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 10 of 20
Table 2: KONA Mega Gateway Interface Connector Types
Interface
Connector Type
Mating Connector
LoRa Antenna
N-Type female
Industry standard N-Type male
Cellular Antenna
N-Type female
Industry standard N-Type male
GPS Antenna
N-Type female
Industry standard N-Type male
Copper Ethernet
(CPC connector)
Circular plastic threaded,
RJ-45
Shenzhen Chogori Technology Co., Ltd. Approved
mating connector (p/n 33000111-02 or equivalent)
DC Power Input
(CPC connector)
Circular plastic threaded,
2 contact, DC power
Shenzhen Chogori Technology Co., Ltd. Approved
mating connector (p/n 23002211-02 or equivalent)
Earth Ground
1/4 - 20 UNC double hole
Industry standard 2-hole lug, 1/4 x 0.75” spacing
1.3 Specifications
The KONA Mega Gateway specifications are listed in Table 3.
Table 3: KONA Mega Gateway Specifications
Attribute
Specification
Dimensions
222.2mm (8.7”) wide x 101mm (4.0”) deep x 287.3mm (11.3”) tall
Weight
5.1 kg (11.3 lbs)
Operating Temperature
-40°C to 60°C (-40°F to 140°F) at sea level Including solar loading.
Relative Humidity
10% to 100%
Operating Altitude
-60 m to 4,000 m (-197 ft to 13,123 ft)
Power Input, Direct DC
48 VDC nominal, 37 to 57 VDC operating range (after 42 V maximum start-
up threshold).
Positive or negative ground referenced feed. SELV & LPS source required.
Maximum 10A input overcurrent protection.
Power Input, PoE
IEEE 802.3 at over all four pairs (Mode A + Mode B) required
Power Consumption
35 W maximum
Weather Tightness
UL Type 6 (IP-67)
Regulatory Compliance
CSA/UL/EN 62368-1, CSA/UL/EN 60950-1, CSA/UL/EN 60950-22CE
FCC Pt. 15 Class B
Surge Protection
All interfaces are protected to primary levels except for the 3G/4G modem
antenna port which supports local antenna mounting only or requires an
external surge suppressor.
