Tektronix KEITHLEY 4210-MMPC-W Bedienungsanleitung

Keithley Instruments

28775 Aurora Road

Cleveland, Ohio 44139

1-800-833-9200

tek.com/keithley

Model 4210-MMPC-W

Multi-measurement Prober Cable Kit

PA-1085 Rev. B November 2023 *PPA-1085B* 1

Overview

The Keithley Model 4210-MMPC-W multi-measurement prober cable kit provides a collection of matched

connection accessories. When properly installed, these accessories have the performance needed that allow

current-voltage (I-V), capacitance-voltage (C-V), and pulsed I-V parametric characterization measurements to be

made using a single prober cable setup. This kit is for use with a Wentworth prober.

This prober cable kit requires the Keithley Articulated Arm (Wentworth part number 2026-96509). Contact your

Wentworth representative to obtain the necessary manipulator arm and instructions.

This document contains information about the installation and use of this cable kit:

▪Model 4200A-SCS instrument connections: Explains how to make connections from the 4200A-SCS to

the bulkhead.

▪Prober bulkhead to prober pin connections (basic setup): Explains how to make connections from the

prober bulkhead to the prober pins.

▪Usage scenarios: Provides the following specific prober cable setups:

▪I-V testing (2-pin and 4-pin)

▪C-V testing (2-pin and 4-pin)

▪Pulsed I-V measurements using the Keithley Model 4225-PMU, and the 4225-PMU with the 4225-RPM

Prober cable kit contents

The following figure shows the cables, adapters, and supplies that are included in the Model 4210-MMPC-W

multi-measurement cable kit.

Each 4210-MMPC-W kit supplies the required components to make sense and force connections to

one pin. Additional kits are required to make additional connections.

Model 4210-MMPC-W Multi-measurement Prober Cable Kit

2 PA-1085 Rev. B November 2023

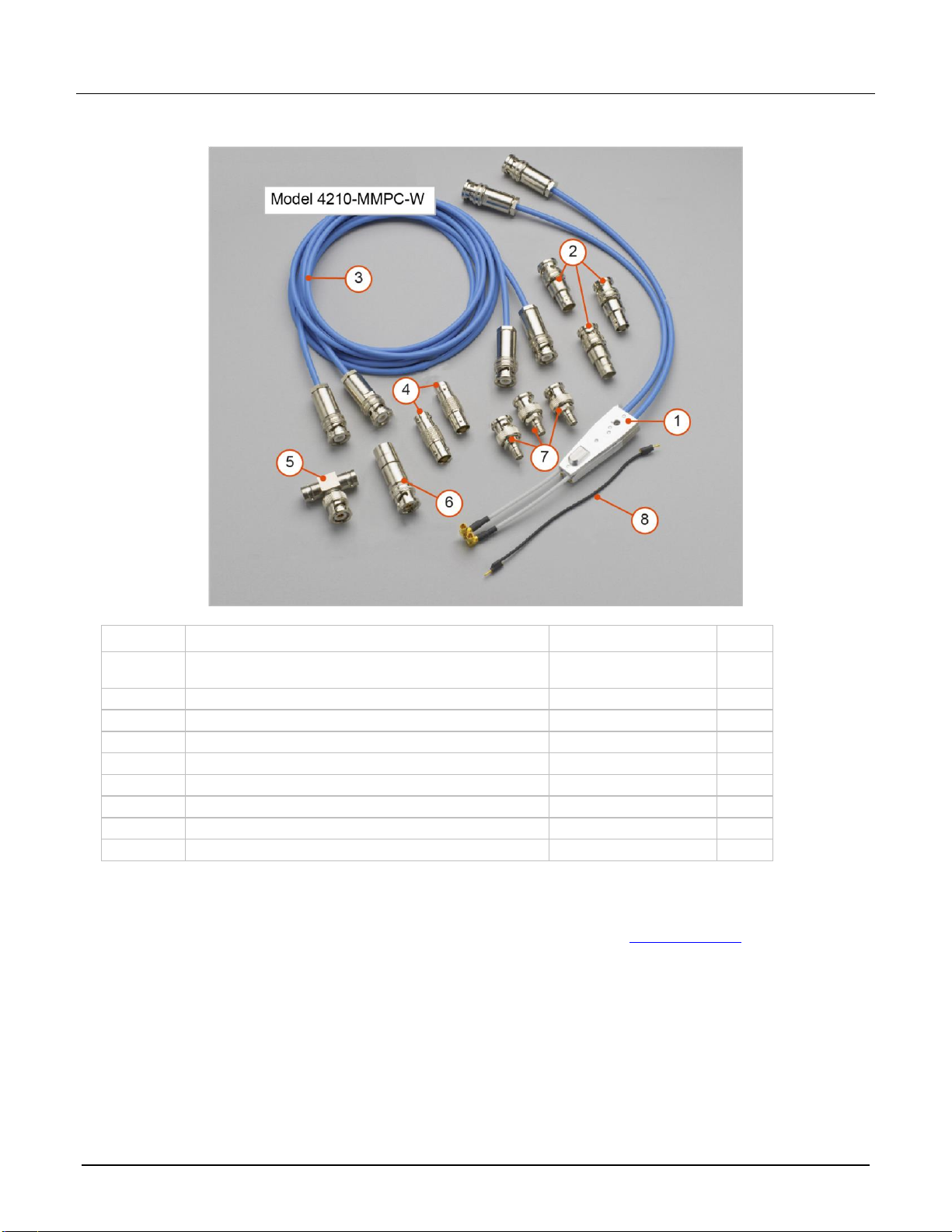

Figure 1: Model 4210-MMPC-W multi-measurement prober cable kit

Item

Description

Keithley part number

Qty

Prober cable assembly with clamp (blue), 37.5 cm

(14.75 in.)

CA-532

BNC jack to triaxial plug adapter

CS-712

Triaxial to triaxial cable (blue), 61.0 cm (24 in.)

CA-534-24

Triaxial jack to triaxial jack, high voltage adapter

CS-751

Triaxial plug to triaxial jack, tee

CS-737

Triaxial shorting plug

CS-1546

SMA jack to BNC plug adapter

CS-1247

Ground jumper cable assembly (black), 17.8 cm (7 in.)

CA-535-7

Not shown

Black M3X12MM stainless steel socket head cap screw

M3X12MMSSSOHCBLK

Related documents

The following documents are available in the 4200A Learning Center and at tek.com/keithley:

▪The Model 4200A-SCS Prober and External Instrument Control (document number 4200A-913-01).

▪White Paper 3023: Labs’ Demands for Greater Measurement Flexibility Require Cabling Systems Capable

of Accommodating Multiple Measurement Types. This white paper explains the different cabling

requirements for I-V, C-V, and pulse I-V testing. It also describes an example single multi-measurement

cabling system.

Model 4210-MMPC-W Multi-measurement Prober Cable Kit

PA-1085 Rev. B November 2023 3

Model 4200A-SCS instrument connections

To prevent injury or death due to electric shock, remove all power from the 4200A-SCS and

shut down the Wentworth prober before installing the prober cable kit.

Connect the Model 4200A-SCS instruments to the triaxial jacks on the prober bulkhead. See the following figure

for an example.

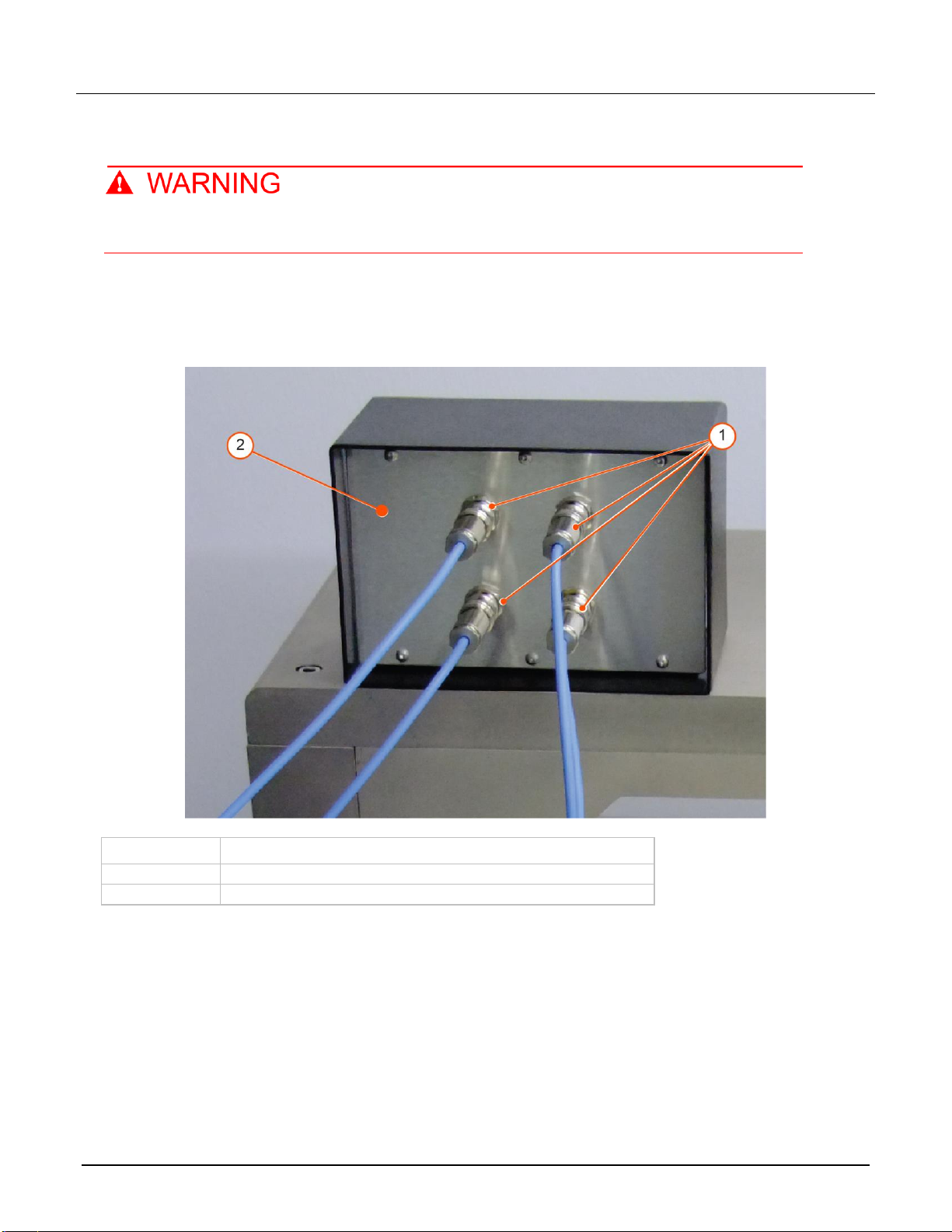

Figure 2: Typical prober bulkhead triaxial connectors

Item

Description

Triaxial jacks

Bulkhead

Model 4210-MMPC-W Multi-measurement Prober Cable Kit

4 PA-1085 Rev. B November 2023

I-V testing

For I-V testing, connect the triaxial cables of the 4200A-SCS source-measure units (SMUs) to the standard

triaxial jacks on the bulkhead. The following figure shows the prober connections for two SMUs.

The 4200A-SCS to prober portion of the following figure shows SMUs that do not use preamplifiers.

These SMUs use triaxial cables that are terminated with a miniature triaxial connector on one end and

a standard triaxial connector on the other end. These cables are supplied with the 4200A-SCS. If your

SMUs are equipped with preamplifiers, use the supplied cables that are terminated with standard

triaxial connectors on both ends. The cable diagrams after the following figure show both cables.

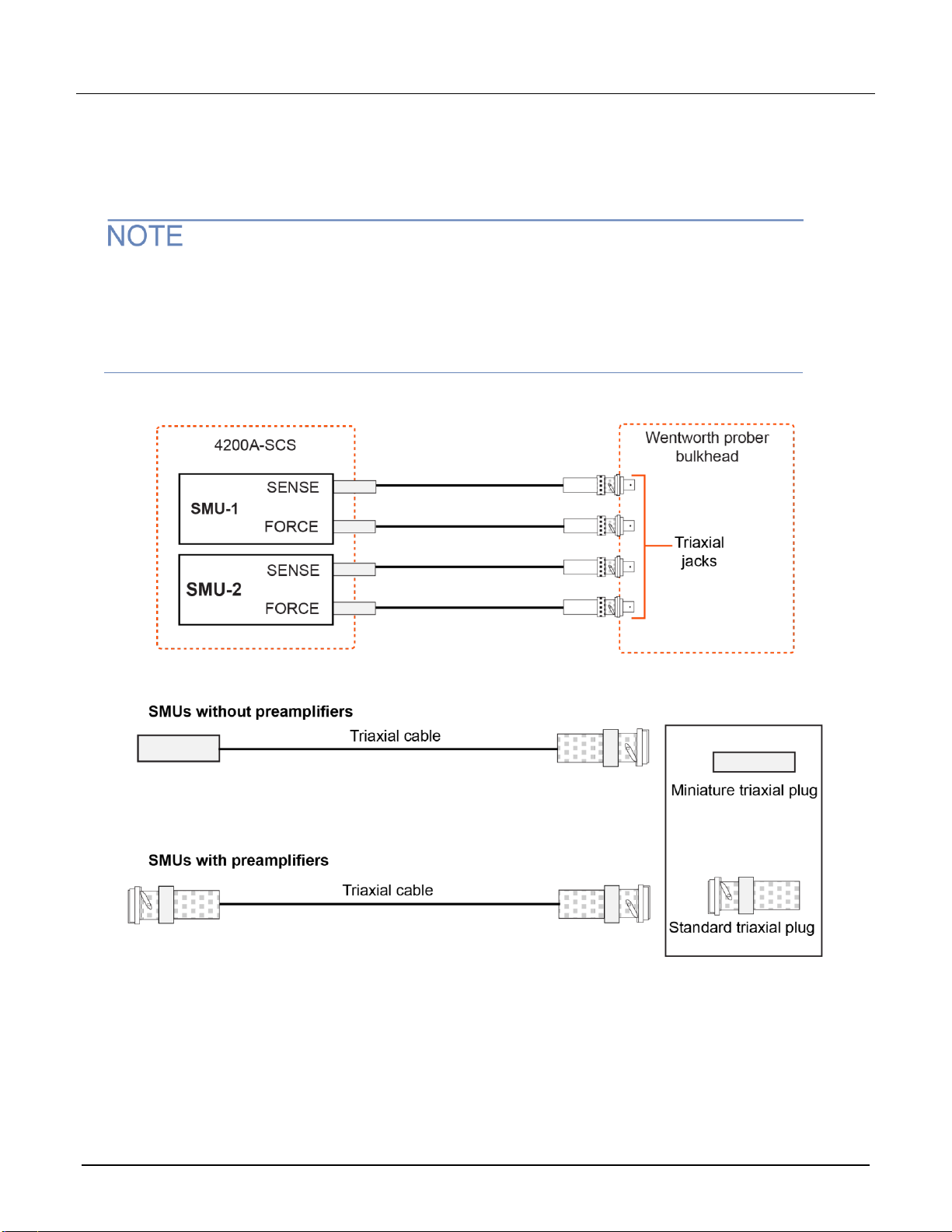

Figure 3: Model 4200A-SCS SMU connections to the prober

Figure 4: SMU triaxial cable diagrams

Model 4210-MMPC-W Multi-measurement Prober Cable Kit

PA-1085 Rev. B November 2023 5

C-V testing

You need two prober cable kits to connect the subminiature version A (SMA) cables of the CVU to the triaxial

jacks on the bulkhead of the prober. The following figure shows how to make the connections. Use the torque

wrench supplied with the 4200A-SCS to tighten the SMA connections to 8 in. lb.

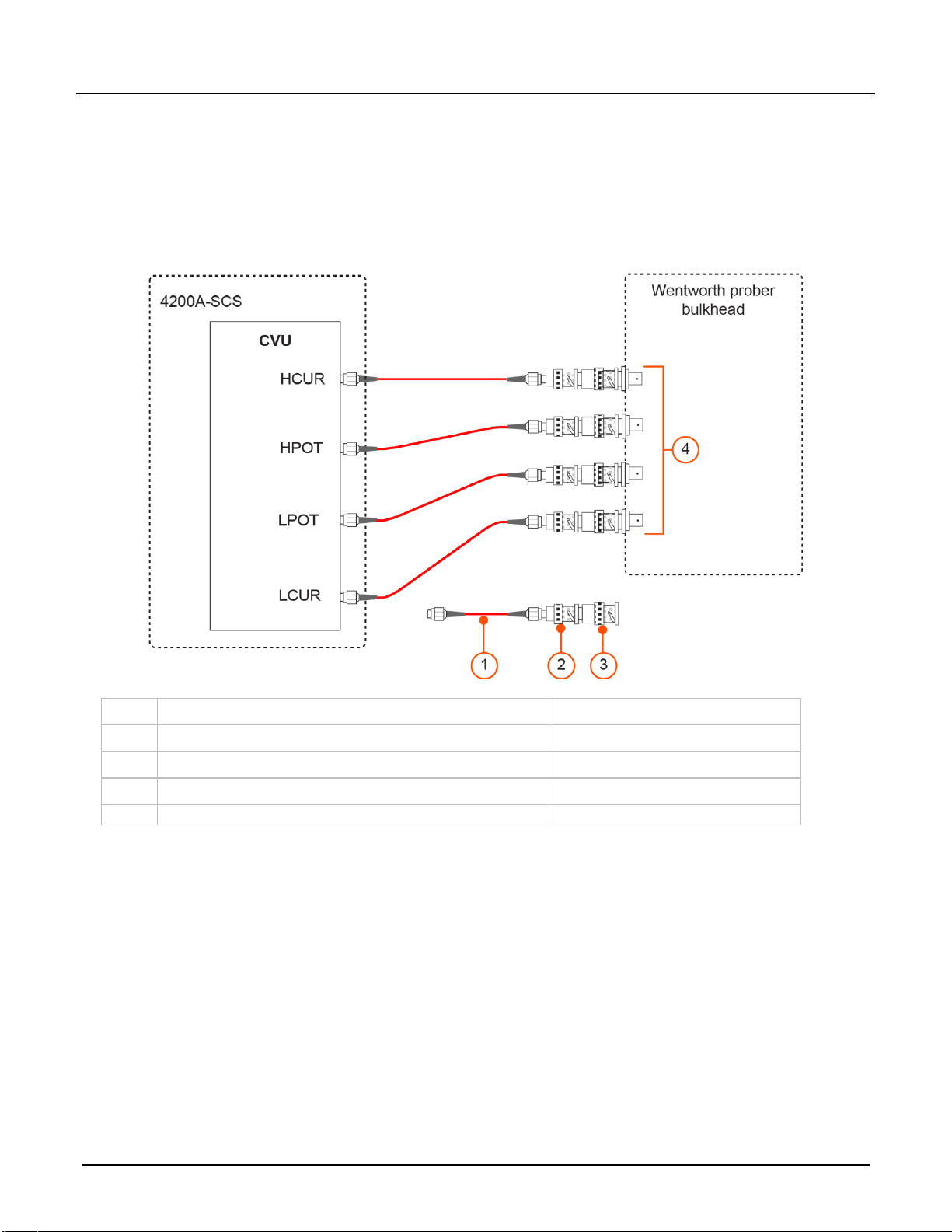

Figure 5: 4200A-SCS CVU prober connections

Item

Description

Part number

SMA cable (plug to plug), supplied with the CVU

Not applicable

SMA jack to BNC plug

CS-1247

BNC jack to triaxial plug

CS-712

Triaxial jacks

Not applicable

Model 4210-MMPC-W Multi-measurement Prober Cable Kit

6 PA-1085 Rev. B November 2023

Prober bulkhead to prober pin connections

The following figure shows the basic cable setup for the 2-pin I-V and 2-pin C-V testing scenarios described in this

document. The 4-pin I-V and 4-pin C-V testing scenarios require minor setup changes. Pulsed I-V setup, which is

more complex, is described in Usage scenarios (on page 9).

This setup requires two 4210-MMPC-W kits.

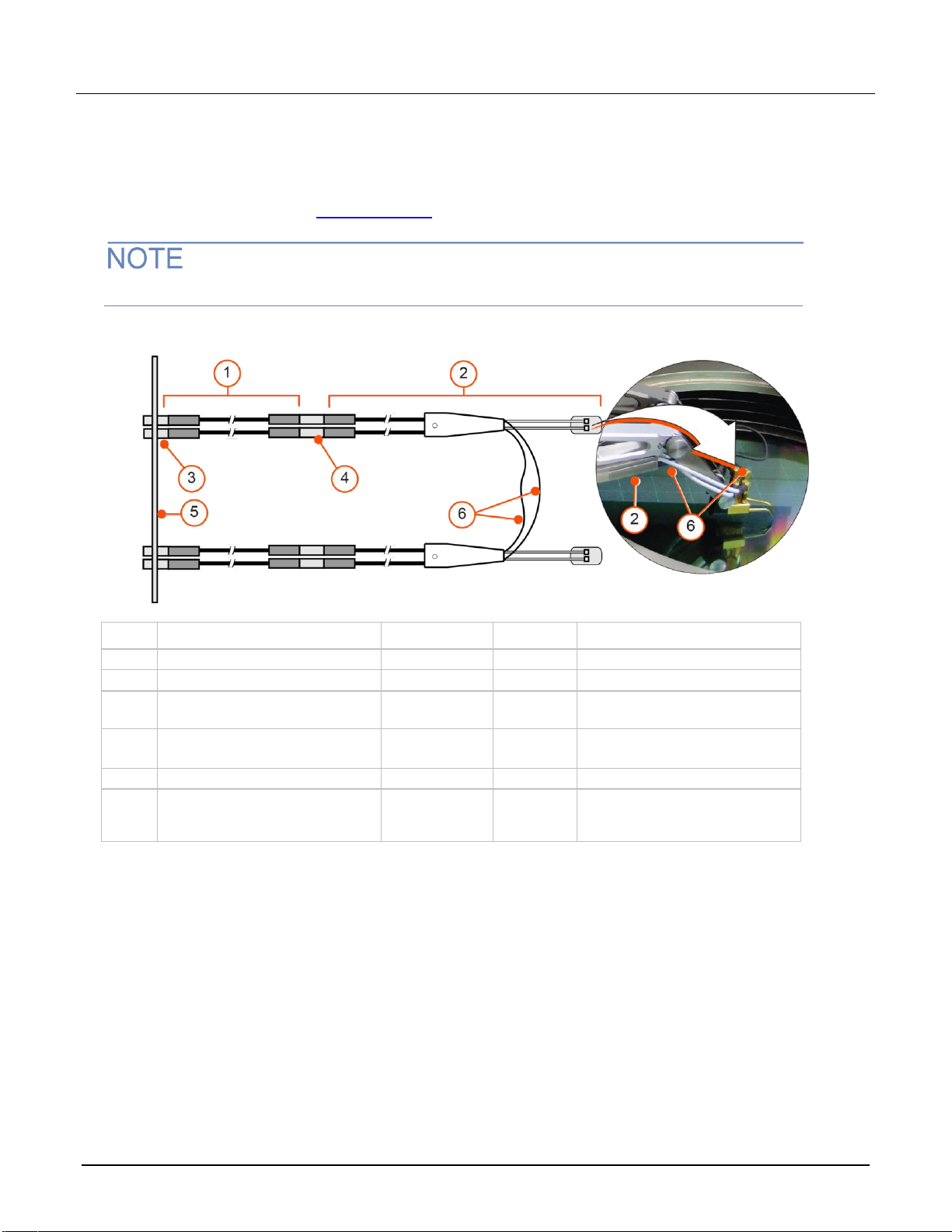

Figure 6: Basic 2-pin prober cable setup

Item

Description

Part number

Quantity

Notes

Triaxial to triaxial cable

CA-534-24

Prober cable assembly

CA-532

Triaxial connectors

Not applicable

Prober bulkhead triaxial

connectors.

Triaxial jack to triaxial jack, high

voltage adapter

CS-751

Prober bulkhead

Not applicable

For triaxial connectors.

Ground jumper cable assembly

CA-535-7

The jumpers connect the

commons of the two cable

assemblies.

Model 4210-MMPC-W Multi-measurement Prober Cable Kit

PA-1085 Rev. B November 2023 7

Installation guidelines

The following figure shows the prober cable assemblies of two 4210-MMPC-W kits installed in a

Wentworth prober.

To secure the cable assembly to the manipulator:

1. Secure each blue triaxial cable (2) to a manipulator using a single mounting screw (item 1 in the

following figure).

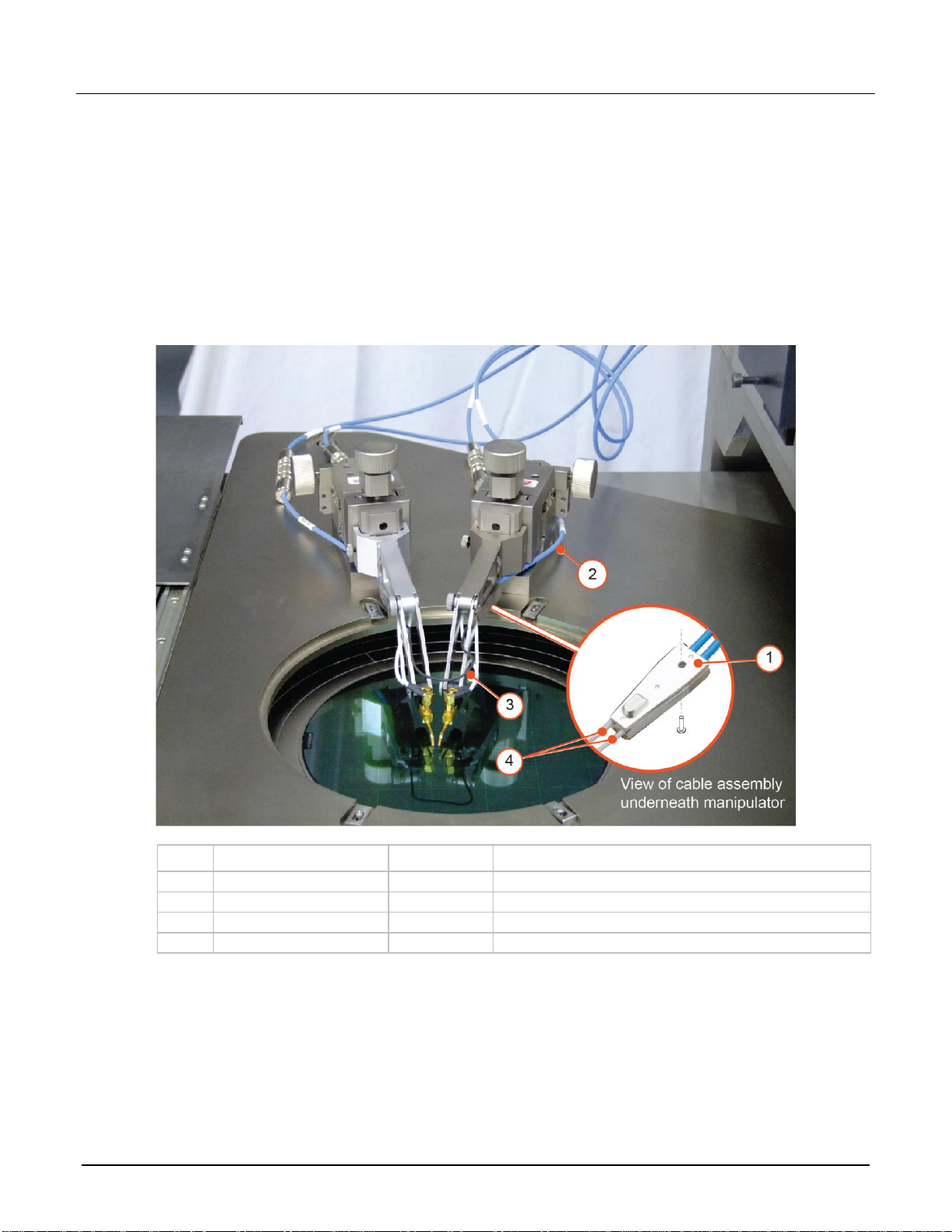

Figure 7: Two prober cable kits installed in a Wentworth prober

Item

Description

Part number

Notes

Mounting screw

Not applicable

Blue triaxial cable

CA-532

Black jumper

Not applicable

Connects the commons of the two cable assemblies.

Jumper blocks

2. Tighten the cable assemblies to the manipulators.

Model 4210-MMPC-W Multi-measurement Prober Cable Kit

8 PA-1085 Rev. B November 2023

3. Route the blue cables along the sides of the manipulators as shown in the previous figure.

When routing the wires, consider the possible movements of the manipulators and the movements of

the camera or microscope.

4. Connect a black jumper (item 3) from one cable assembly to the other.

5. Insert the jumper plugs into the ends of the assembly blocks (4). It is good practice to install the second

jumper to improve the connection and is a good place to store the extra jumper (not shown in the figure).

6. Connect the cable wires of the cable assemblies (item 1 in the following figure) to the probe tips (2).

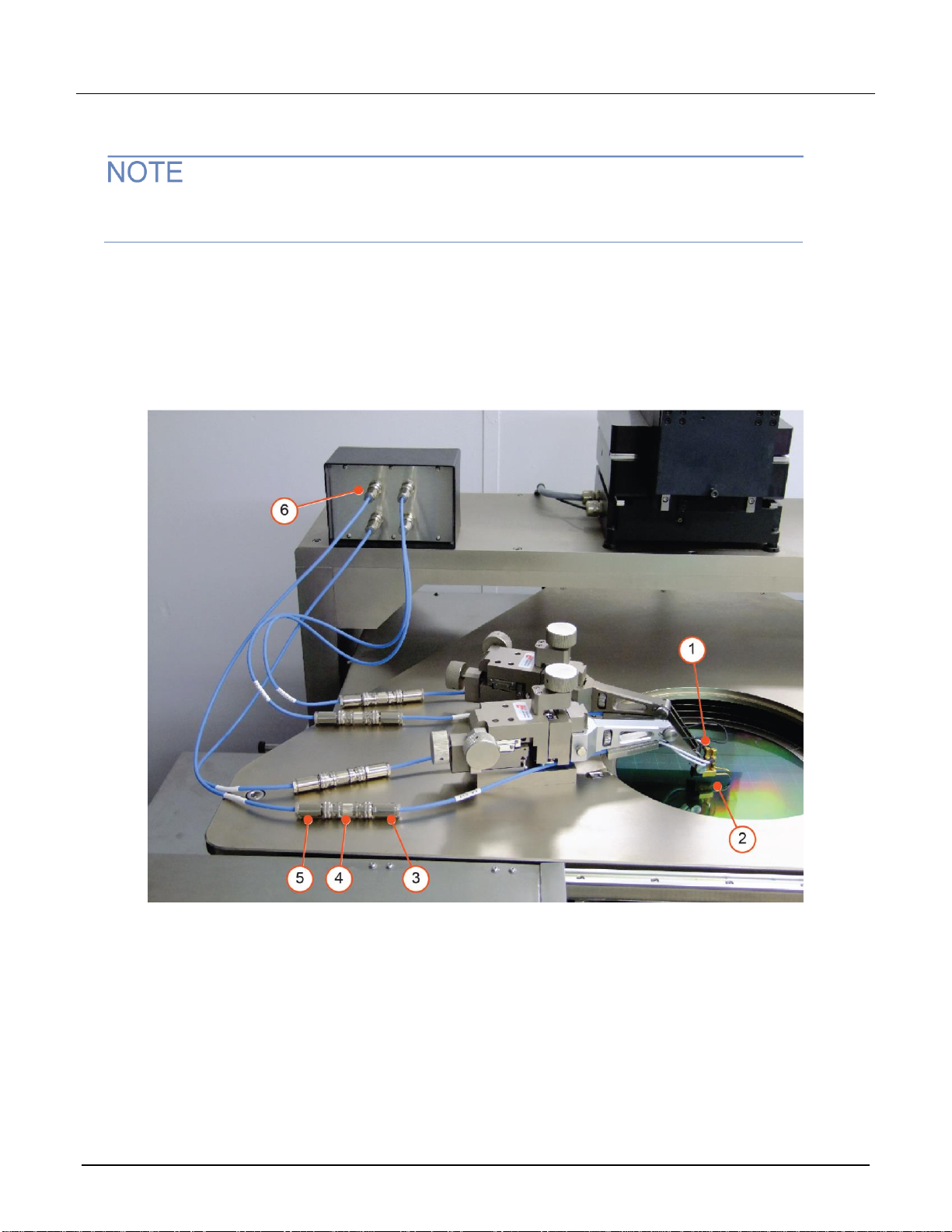

Figure 8: Side view of the installed prober cable assemblies

7. For each pin, connect the triaxial cable assemblies (3) to the supplied adapters (4).

8. Connect the triaxial cable assemblies (5) to the triaxial connectors on the bulkhead panel (6).

Model 4210-MMPC-W Multi-measurement Prober Cable Kit

PA-1085 Rev. B November 2023 9

Usage scenarios

The following usage scenarios provide information on how to set up 2-pin and 4-pin I-V tests, 2-pin and 4-pin C-V

tests, and pulsed I-V tests.

I-V testing: 2-pin I-V setup

The setup for 2-pin I-V testing requires two prober cable kits.

To perform 2-pin I-V testing, connect two 4200-SMUs or 4210-SMUs to the prober bulkhead and then use the

setup shown in the following figure as a guide to connect to the device under test (DUT). The figure shows typical

triaxial SMU connections to the outside of the bulkhead.

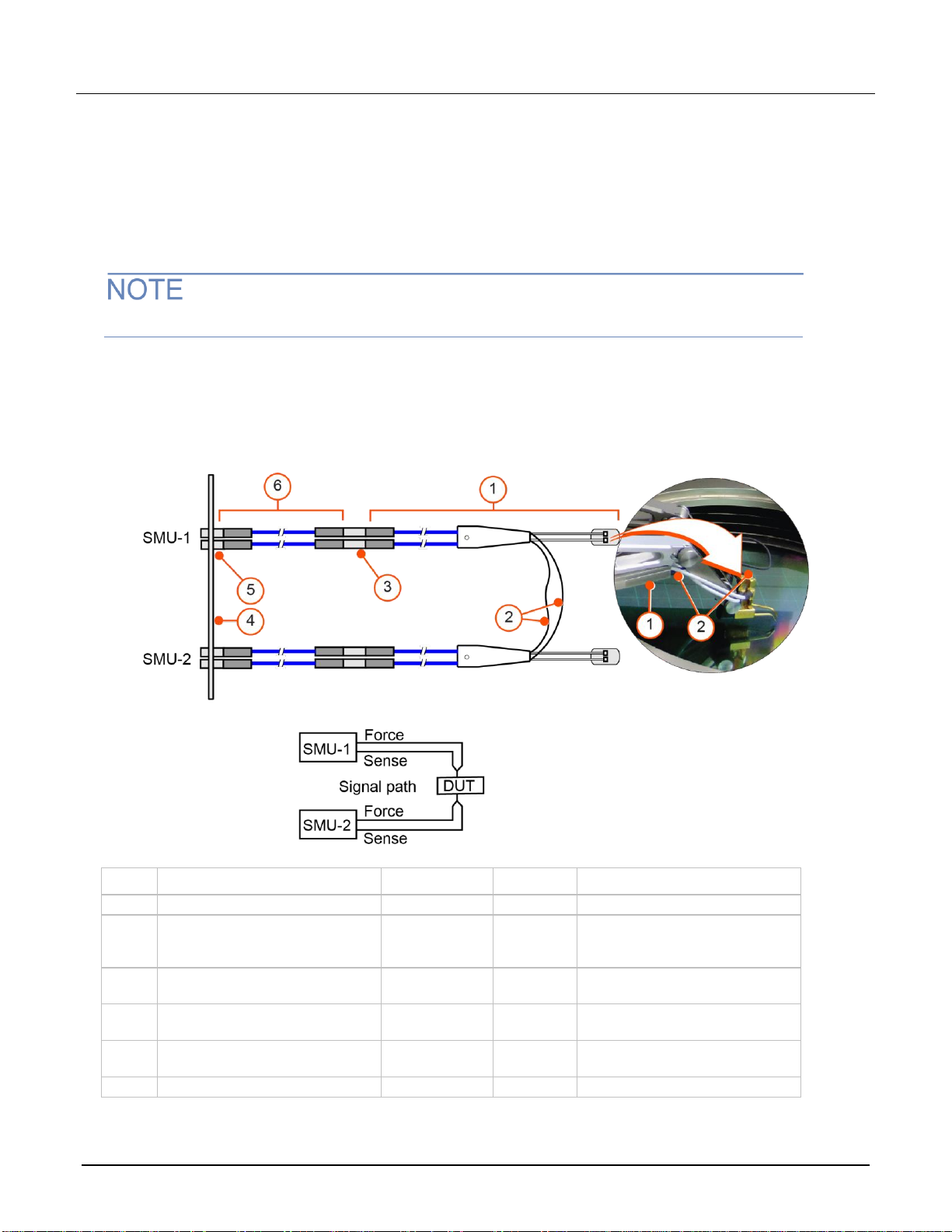

Figure 9: Test setup for 2-pin I-V testing

Item

Description

Part number

Quantity

Notes

Prober cable assembly

CA-532

Ground jumper cable assembly

CA-535-7

The jumpers connect the

commons of the two cable

assemblies.

Triaxial jack to triaxial jack, high

voltage adapter

CS-751

Prober bulkhead (for triaxial

connectors)

Not applicable

Triaxial connectors

Not applicable

Prober bulkhead triaxial

connectors.

Triaxial to triaxial cable

CA-534-24

Model 4210-MMPC-W Multi-measurement Prober Cable Kit

10 PA-1085 Rev. B November 2023

I-V testing: 4-pin I-V setup

The setup for 4-pin I-V testing requires four prober cable kits.

With four SMUs connected to the prober bulkhead, use the setup shown in the following graphic to perform 4-pin

I V testing. The figure in I-V testing (on page 4) shows two SMUs connected to one of the bulkhead connection

panels. Connect two additional SMUs to the other bulkhead connection panel.

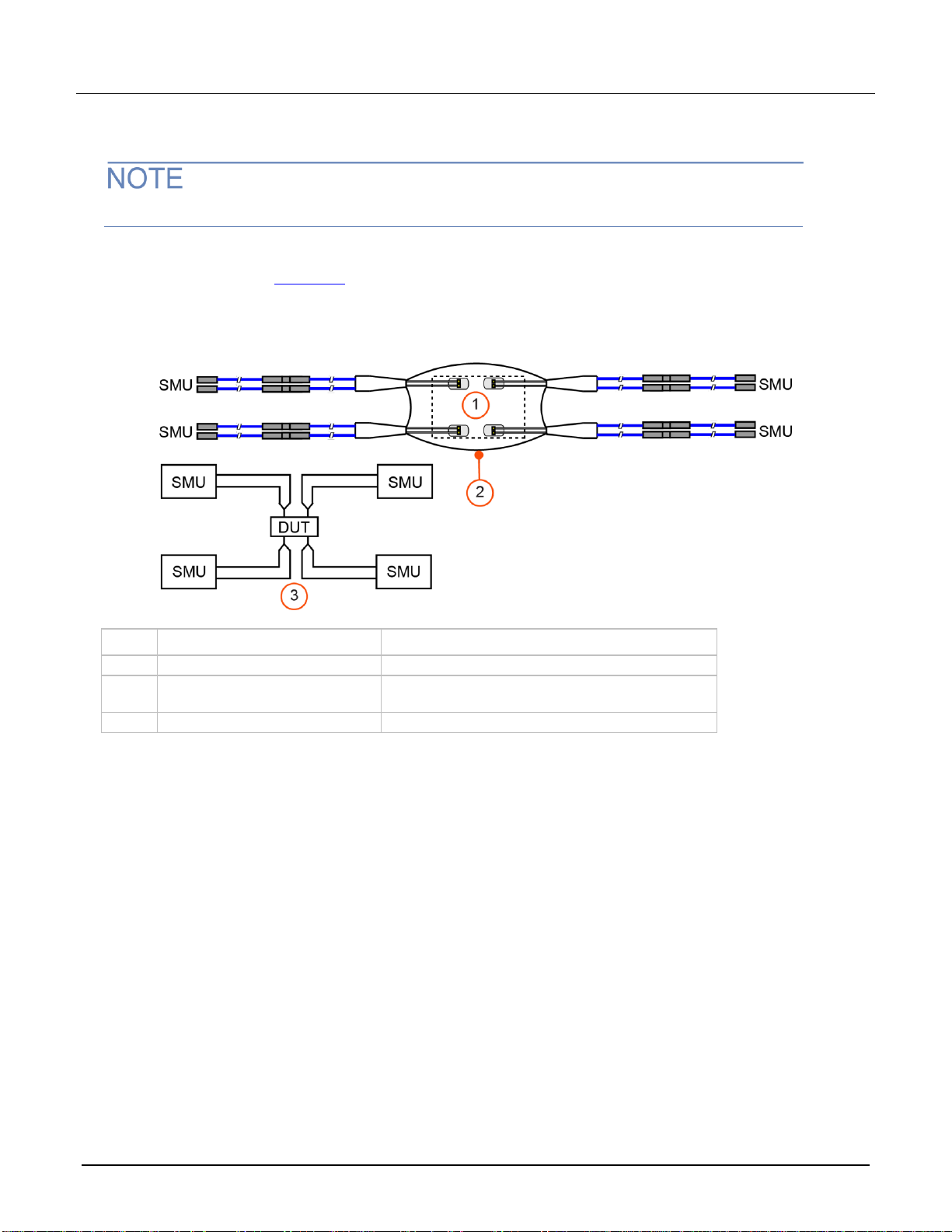

Figure 10: Test setup for 4-pin I-V testing

Item

Description

Notes

4-terminal DUT

Jumpers

The four jumpers connect the commons of the four

cable assemblies.

Signal path
