Tektronix TDS3FFT Bedienungsanleitung

User Manual

TDS3FFT

FFT Application Module

071-0349-01

*P071034901*

071034901

Advanced Test Equipment Rentals

www.atecorp.com 800-404-ATEC (2832)

Tektronix products are covered by U.S. and foreign patents,

issued and pending. Information in this publication supercedes

that in all previously published material. Specifications and

price change privileges reserved.

Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077

TEKTRONIX, TEK, TEKPROBE, and Tek Secure are

registered trademarks of Tektronix, Inc.

DPX, WaveAlert, and e*Scope are trademarks of

Tektronix, Inc.

WARRANTY SUMMARY

Tektronix warrants that the products that it manufactures and

sells will be free from defects in materials and workmanship

for a period of one (1) year from the date of shipment from an

authorized Tektronix distributor. If a product proves defective

within the respective period, Tektronix will provide repair or

replacement as described in the complete warranty statement.

To arrange for service or obtain a copy of the complete

warranty statement, please contact your nearest Tektronix sales

and service office.

EXCEPT AS PROVIDED IN THIS SUMMARY OR THE

APPLICABLE WARRANTY STATEMENT, TEKTRONIX

MAKES NO WARRANTY OF ANY KIND, EXPRESS OR

IMPLIED, INCLUDING WITHOUT LIMITATION THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT

SHALL TEKTRONIX BE LIABLE FOR INDIRECT,

SPECIAL OR CONSEQUENTIAL DAMAGES.

Contents

Safety Summary 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing the TDS3FFT Application Module 5. . . . . . . .

Introduction 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FFT Features 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Displaying an FFT Waveform 7. . . . . . . . . . . . . . . . . . .

FFT Math Menu 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FFT Windows 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Aliasing 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FFT Examples 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contacting Tektronix

Product

Support For questions about using Tektronixmeasurement

products, call toll free in North America:

1-800-833-9200

6:00 a.m. – 5:00 p.m. Pacific time

Or contact us by e-mail:

[email protected]

For product support outside of North America,

contact your local Tektronix distributor or sales

office.

Service

Support Tektronix offers a range of services, including

ExtendedWarrantyRepair and Calibration

services. Contact your local Tektronix distributoror

sales office for details.

For a listing of worldwide service centers, visit our

web site.

Toll-free

Number In North America:

1-800-833-9200

An operator can direct your call.

Postal

Address Tektronix, Inc.

Department or name (if known)

P.O. Box 500

Beaverton,OR97077

USA

Web Site www.tektronix.com

Safety Summary

To avoid potential hazards, use this product only as

specified. While using this product, you may need to

access other parts of the system. Read the General Safety

Summary in other system manuals for warnings and

cautions related to operating the system.

Preventing Electrostatic Damage

CAUTION. Electrostatic discharge (ESD) can

damage components in the oscilloscope and its

accessories. To prevent ESD, observe these

precautions when directed to do so.

Usea GroundStrap. Wear a grounded antistatic wrist strap

to discharge the static voltage from your body while

installing or removing sensitive components.

Use a Safe Work Area. Do not use any devices capable of

generating or holding a static charge in the work area

where you install or remove sensitive components.

Avoid handling sensitive components in areas that have a

floor or benchtop surface capable of generating a static

charge.

Handle Components Carefully. Do not slide sensitive

components over any surface. Do not touch exposed

connector pins. Handle sensitive components as little as

possible.

Transport andStore Carefully. Transport and store sensitive

components in a static-protected bag or container.

Manual Storage

The oscilloscope front cover has a convenient place to

store this manual.

Installing the TDS3FFT Application Module

Refer to the TDS3000 & TDS3000B Series Application

Module Installation Instructions for instructions on

installing and testing the application module.

Introduction

The FFT application module adds FFT (Fast Fourier

Transform) measurement capabilities to your oscillo-

scope. The FFT process mathematically converts the

standard time-domain signal (repetitive or single-shot

acquisition) into its frequency components, providing

spectrum analysis capabilities.

Being able to quickly look at a signal’s frequency

components and spectrum shape is a powerful research

and analysis tool. FFT is an excellent troubleshooting aid

for:

HTesting impulse response of filters and systems

HMeasuring harmonic content and distortion in

systems

HIdentifying and locating noise and interference

sources

HAnalyzing vibration

HAnalyzing harmonics in 50 and 60 Hz power lines

FFT Features

The FFT application module provides the following

features:

FFT Windows

Four FFT windows (Rectangular, Hamming, Hanning,

and Blackman-Harris) let you match the optimum

window to the signal you are analyzing. The Rectangular

window is best for nonperiodic events such as transients,

pulses, and one-shot acquisitions. The Hamming,

Hanning, and Blackman-Harris windows are better for

periodic signals.

Analyze Repetitive, Single-Shot, and Stored Waveforms

You can display an FFT waveform on any actively-ac-

quired signal (periodic or one-shot), the last acquired

signal, or any signal stored in reference memory.

dB or Linear RMS Scales

The FFT vertical graticule can be set to either dB or

Linear RMS. A dB scale is useful when the frequency

component magnitudes cover a wide dynamic range,

letting you show both lesser and greater- magnitude

frequency components on the same display. A Linear

scale is useful when the frequency component magni-

tudes are all close in value, allowing direct comparison

of their magnitudes.

Time Signals and FFT Waveforms Displayed Together

The time signals and FFT waveforms can be shown

together on the display. The time signal highlights the

problem; the FFT waveform helps you determine the

cause of the problem.

Displaying an FFT Waveform

1. Set the source signal Vertical SCALE so that the

signal peaks do not go off screen. Off-screen signal

peaks can result in FFT waveform errors.

2. Set the Horizontal SCALE control to show five or

more cycles of the source signal. Showing more

cycles means the FFT waveform shows more

frequency components, provides better frequency

resolution, and reduces aliasing.

If the signal is a single-shot (transient) signal, make

sure that the entire signal (transient event and ringing

or noise) is displayed and centered on the screen.

3. Push the Vertical MATH button to show the math

menu.

4. Push the FFT screen button to show the FFT side

menu.

5. Select a signal source. You can do an FFT on any

channel or any stored reference waveform.

6. Select the appropriate vertical scale and FFT window.

7. Use zoom controls and the cursors to magnify and

measure the FFT waveform.

HSignals that have a DC component or offset can cause

incorrect FFT waveform component magnitude

values. To minimize the DC component, choose AC

Coupling on the source signal.

HTo reduce random noise and aliased components in

repetitive or single-shot events, set the oscilloscope

acquisition mode to average over 16 or more samples.

Average mode attenuates signals not synchronized

with the trigger.

HDo not use the Average acquisition mode if the

source signal contains frequencies of interest that are

not synchronized with the trigger rate.

HDo not use Peak Detect and Envelope modes with

FFT. Peak Detect and Envelope modes can add

significant distortion to the FFT results.

HFor transient (impulse, one-shot) signals, set the

oscilloscope to trigger on the transient pulse in order

to center the pulse information in the waveform

record.

FFT Math Menu

Bottom Side Description

FFT Set FFT

Sourceto Sets the FFT signal source.

Valid input sources are Ch 1

and Ch 2 (2-channel instru-

ments), Ch 1 through Ch 4

(4-channelinstruments), and

Ref 1 through Ref 4 (all instru-

ments).

Set FFT Vert

Scale to Sets the display vertical scale

units. Available scales are

dBV RMS and Linear RMS.

Set FFT

Window to Sets which window function

(Hanning,Hamming, Blackman-

Harris, or Rectangular) to apply

to the source signal. Refer to

page 12 for more FFT window

information.

FFT Source Key Points

HPush the side menu button to select the source.

HUsing FFT slows down the oscilloscope’s response

time in Normal acquisition mode (10k record length).

HA waveform acquired in Normal acquisition mode

has a lower noise floor and better frequency

resolution than a waveform acquired in Fast Trigger

mode.

FFT Vertical Scale Key Points

HPush the side menu button to select a scale. Available

scales are dBV RMS and Linear RMS.

HUse the Vertical POSITION and SCALE knobs to

vertically move and rescale the FFT waveform.

HTo display FFT waveforms with a large dynamic

range, use the dBV RMS scale. The dBV scale

displays component magnitudes using a log scale,

expressed in dB relative to 1 VRMS, where 0 dB =1

VRMS, or in source waveform units (such as amps for

current measurements).

HTo display FFT waveforms with a small dynamic

range, use the Linear RMS scale. The Linear RMS

scale lets you display and directly compare

components with similar magnitude values.

Nyquist Frequency Key Point

HTo determine the Nyquist frequency, push the

ACQUIRE menu button. This displays the current

sample rate on the bottom right area of the screen.

The Nyquist frequency is one-half of the sample rate.

For example, if the sample rate is 25.0 MS/s, then the

Nyquist frequency is 12.5 MHz.

Zooming an FFT Display. Use the Zoom button ,

along with horizontal POSITION and SCALE controls,

to magnify FFT waveforms. When you change the zoom

factor, the FFT waveform is horizontally magnified

about the center vertical graticule, and vertically magni-

fied about the math waveform marker. Zooming does not

affect the actual time base or trigger position settings.

NOTE. FFT waveforms are calculated using the

entire source waveform record. Zooming in on a

region of either the source or FFT waveform

will not recalculate the FFT waveform for that

region.

Measuring FFT Waveforms Using Cursors. You can use

cursors to take two measurements on FFT waveforms:

magnitude (in dB or signal source units) and frequency

(in Hz). dB magnitude is referenced to 0 dB, where 0 dB

equals 1 VRMS. Use horizontal cursors (H Bars) to

measure magnitude and vertical cursors (V Bars) to

measure frequency.

Magnitudecursors Frequency cursors

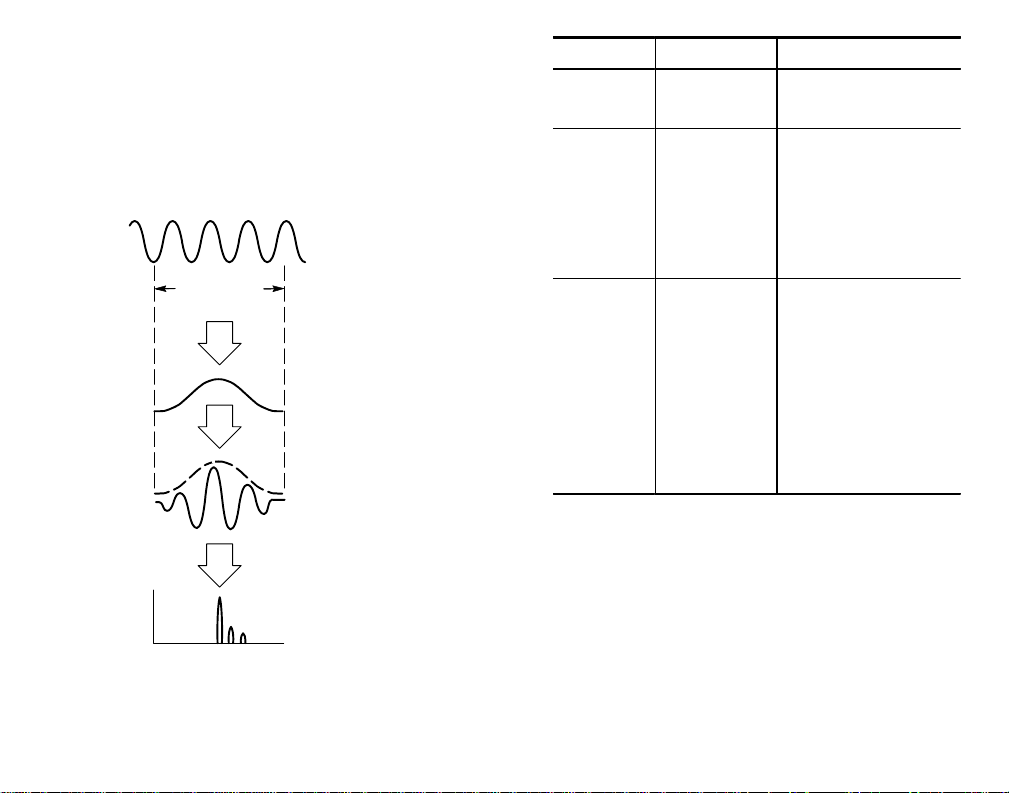

FFT Window Characteristics Best for measuring

Blackman-

Harris Bestmagnitude,

worst at resolving

frequencies.

Predominantly single fre-

quency waveforms to look

forhigherorder harmonics.

Hamming,

Hanning Betterfrequency,

poorermagnitude

accuracythan

Rectangular.

Hamminghas

slightly better fre-

quencyresolution

thanHanning.

Sine, periodic, and narrow-

bandrandomnoise.

Transients or bursts where

the signal levels before and

after the event are signifi-

cantly different.

RectangularBestfrequency,

worstmagnitude

resolution. This is

essentially the

same as no win-

dow.

Transients or bursts where

the signal levels before and

after the event are nearly

equal.

Equal-amplitudesine waves

with frequencies that are

very close.

Broad-bandrandom noise

with a relatively slow varying

spectrum.

FFT Windows

Applying a window function to the source waveform

record changes the waveform so that the start and stop

values are close to each other, reducing FFT waveform

discontinuities. This results in an FFT waveform that

more accurately represents the source signal frequency

components. The ’shape’of the window determines how

well it resolves frequency or magnitude information.

Source

waveform

Sourcewaveform

afterwindowing

Window

function

(Hanning)

FFT

Point-by-point

multiply

Withwindowing

Waveform

data points

Aliasing

Problems occur when the oscilloscope acquires a signal

containing frequency components that are greater than

the Nyquist frequency (1/2 the sample rate). The fre-

quency components that are above the Nyquist frequen-

cy are undersampled and appear to “fold back”around

the right edge of the graticule, showing as lower frequen-

cy components in the FFT waveform. These incorrect

components are called aliases.

Frequency

Amplitude

Aliasedfrequencies Actualfrequencies

0 Hz Nyquistfrequency

(½sample rate)

Use the following methods to eliminate aliases:

HIncrease the sample rate by adjusting the Horizontal

SCALE to a faster frequency setting. Since you

increase the Nyquist frequency as you increase the

horizontal frequency, the aliased frequency

components should appear at their proper frequency.

If the increased number of frequency components

shown on the screen makes it difficult to measure

individual components, use the Zoom button to

magnify the FFT waveform.

HUse a filter on the source signal to bandwidth limit

the signal to frequencies below that of the Nyquist

frequency. If the components you are interested in are

below the built-in bandwidth settings (20 MHz

bandwidth for all oscilloscopes, 150 MHz bandwidth

for 300 MHz and 500 MHz oscilloscopes), set the

source signal bandwidth to the appropriate value.

Push the Vertical MENU button to access the source

channel bandwidth menu.

Inhaltsverzeichnis

Andere Tektronix Steuereinheit Handbücher

Tektronix

Tektronix 7S11 Bedienungsanleitung

Tektronix

Tektronix DAS MTIF Bedienungsanleitung

Tektronix

Tektronix 7D11 Bedienungsanleitung

Tektronix

Tektronix VX4790A Bedienungsanleitung

Tektronix

Tektronix 80E02 Bedienungsanleitung

Tektronix

Tektronix TM 506A Bedienungsanleitung

Tektronix

Tektronix 80E07 Bedienungsanleitung

Tektronix

Tektronix TDS3SDI Gebrauchs- und Pflegehandbuch

Tektronix

Tektronix 73A-270 Bedienungsanleitung

Tektronix

Tektronix VX4287 Bedienungsanleitung

Tektronix

Tektronix TM 501 Bedienungsanleitung

Tektronix

Tektronix TDS3TRG Bedienungsanleitung

Tektronix

Tektronix 80A02 Bedienungsanleitung

Tektronix

Tektronix 80A05 Bedienungsanleitung

Tektronix

Tektronix MultiPaq VX4101A Bedienungsanleitung

Tektronix

Tektronix 80C00 Bedienungsanleitung

Tektronix

Tektronix 7A21N Bedienungsanleitung

Tektronix

Tektronix 73A-851 Bedienungsanleitung

Tektronix

Tektronix TDS3LIM Bedienungsanleitung

Tektronix

Tektronix TLA7PG2 Bedienungsanleitung

Tektronix

Tektronix ECO422D Gebrauchs- und Pflegehandbuch

Tektronix

Tektronix VX4237 Bedienungsanleitung

Tektronix

Tektronix TM 5006 Bedienungsanleitung

Tektronix

Tektronix VX4730 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
