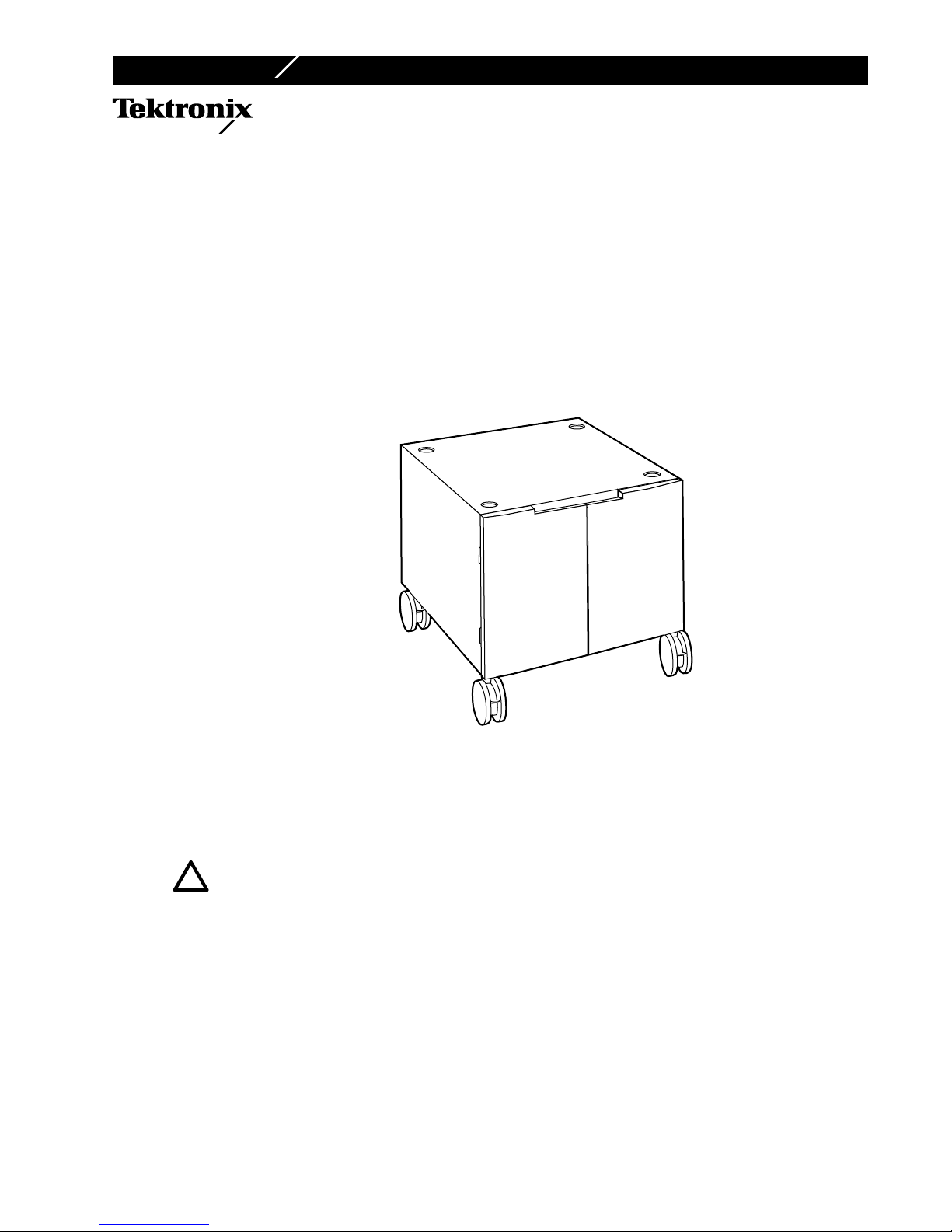

Installing the Printer Station

The Printer Station is designed to safely support the weight of the Phaser

380 color printer, the printerÕs

Lower Paper Tray Assembly, and printer supplies. Adding a Printer Station to the printer raises it to a

comfortable operating height, while providing a convenient location to store supplies and consumable

components, such as ColorStix

ink sticks, paper and transparency media, and a spare maintenance tray.

The Printer Station features hinged doors, a sliding drawer and lockable casters. Mounting recesses in

the top of the cabinet help you to position the printer and the optional Lower Paper Tray Assembly

during installation.

Caution

It is important that you follow these unpacking and setup procedures to avoid risk of

personal injury, and damage to the printer, the Lower Paper Tray Assembly and the

Printer Station.

2818-01

Installing the Printer Station

Location requirements

Before unpacking the Printer Station, prepare an area that allows appropriate clearances for proper

ventilation of the printer. Install on a level ßoor surface, allowing for no more than 1.3 cm (0.5 in.) tilt

from level across any side of the Printer Station.

Turning off the printer

Before unpacking the Printer Station, prepare the printer to be moved by turning it off using the On/Off

switch located on the rear panel. Allow at least 45 minutes for the printer to cool before moving it.

Use the rear-panel

On/Off

switch to turn off the printer. This places the printhead in

a safe position for moving the printer a short distance. If you are moving the printer

a long distance, remove the maintenance tray and lock the printhead transit

restraint. Refer to the printerÕs user manual for more information.

Caution

After turning off the printer, wait 45 minutes before moving it to allow the ink in the

printer to solidify. Failure to do so can result in ink spills that can damage the printer.

After the printer powers down, disconnect the power cord and other cables.

If present, disconnect the Lower Paper Tray Assembly cable from the printer.

Unpacking the Printer Station

Using a utility knife, cut open the Printer Station shipping box from the top to the

bottom at each corner.

Warning

The Printer Station weighs 31.4 kg. (69 lbs.). Do not attempt to lift it without the

assistance of another person.

Lift the Printer Station from the Printer Station shipping box.

Printer Station Dimensions Printer Clearances ProductWeights

Height: 51.5 cm (20.25 in.) Top: 45.7 cm (18 in.) Printer Station: 31.4 kg (69 lbs.)

Width: 59.7 cm (23.5 in.) Right Side: 10.2 cm (4 in.) Printer: 100 kg (220 lbs.)

Depth: 62.2 cm (24.5 in.) Rear: 10.2 cm (4 in.) Lower Paper Tray: 36.8 kg (81 lbs.)

Left Side, Front, Bottom:

no restrictions Combined Total: 168.2 kg (370 lbs.)

2818-02

Min.

Installing the Printer Station

Placing the printer on the Printer Station

Lock the Printer StationÕs front casters to secure it in place.

Optional: With the assistance of another person, place the Lower Paper Tray

Assembly on top of the Printer Station. The Lower Paper Tray AssemblyÕs feet

should sit inside the recesses on the top of the Printer Station cabinet.

With the assistance of three other people using the printerÕs built-in carrying

handles, place the printer on top of the Printer Station. The printerÕs feet should sit

inside the recesses on the top of the Printer Station cabinet. If you are installing the

printer on top of the Lower Paper Tray Assembly, make sure that the alignment pins

Þt in the holes in the base of the printer.

2818-03

2818-04

2818-05

Installing the Printer Station

Organizing printer supplies

The Printer StationÕs sliding drawer provides storage for up to 9 kg (20 lbs.) of printer supplies.

A bottom shelf provides additional storage space for supplies such as paper and transparency media.

Caution

The combined weight of a Printer Station, the printer, a Lower

Paper Tray Assembly and supplies can exceed 178 kg (390 lbs.). To

avoid damage or personal injury, use caution when moving the

Printer Station across uneven surfaces. Before moving the printer,

refer to the printer’s user manual or the instruction label located on

the right side of the printer.

2818-06

aser

380

ansparency Film

50Sheets

ADE

ACH

THER

TEKTRONIXPRINTERS&TEKTRONIXSUPPLIES

ForbestresultsuseonlyTektronixbrandsuppliesinyourPhaserprinter.Tektronix assumesno

responsibilityforprinterdamageormalfunctioncausedbytheuseoftonersorothersuppliesnot

manufacturedormarketedbyTektronix.

Storeinacool,

drylocation.

Keepinclosedbox.

ColorStix

Ink

Phaser

380 Printers

Black:016-1540-00

TEKTRONIXPRINTERS&TEKTRONIX SUPPLIES

FOR

PANTONE

CALIBRATED

PRINTERS

ColorStix

Ink

Phaser

380 Printers

Black:016-1540-00

TEKTRONIXPRINTERS&TEKTRONIX SUPPLIES

FOR

PANTONE

CALIBRATED

PRINTERS

ColorStix

Ink

Phaser

380 Printers

Black:016-1540-00

ColorStix

Ink

Phaser

380

Black:016

ColorStix

Ink

Phaser

380 Printers

Black:016-1540-00

ColorStix

Ink

Phaser

380 Printers

Black:016-1540-00

ColorStix

Ink

Phaser

380 Printers

Black:016-1540-00

ColorStix

Ink

Phaser

380 P

Black:016-1540
