TELEFLY MIGE2206G-2GF-4GT Bedienungsanleitung

MIGE2206G-2GF-4GT

Gigabit Din-rail Mounting

Industrial Ethernet Switch

User Manual

(Edition: V1.0)

www.telefly.cn

TELEFLY TELECOMMUNICATIONS EQUIPMENT CO.,LTD

TELE2206G-2GF-4GT Gi

abit Din-rail Mountin

Industrial Ethernet Switch

Safe Use Instruction

This product performance is excellent and reliable in the designed range of use,

but it’s necessary to avoid man-made damage or destroy for the

equipment.

Read the manual carefully and keep this manual for reference if need

afterwards.

Do not put the device close to the water sources or damp places.

Do not put anything on the power cable, it should be placed out of reach.

To avoid causing fire, do not knot or wrap the cable.

Power connector and other device connectors should be firmly

connected with each other, frequently inspection is needed.

Please keep the fiber socket and plug clean. Do not look directly at the

fiber section when the equipment is working.

Please keep the equipment clean and wipe it with a soft cotton cloth if

necessary.

Please do not repair the equipment by yourself, unless there is clear

instructions in the manual.

Under the following circumstances, please cut off power immediately and

Equipment water damage.

The equipment is broken or the casing is broken.

The equipment works abnormally or the performance has completely

changed.

The equipment produces odor, smoke or noise.

Statement: Information requiring explanation in use of the managed software.

Attention: Matters requiring specific attention in the use of the managed

software.

www.telefly.cn

III

Catalogue

1. Product Introduction.................................................- 1 -

1.1. Brief introduction.......................................................................... - 1 -

1.2. Features......................................................................................... - 1 -

1.3. Product model choose list..........................................................- 1 -

1.4. Product packing list..................................................................... - 2 -

2. Technical Parameter................................................. - 3 -

2.1. Technical parameters..................................................................- 3 -

3. Installation and Testing............................................- 4 -

3.1. Casing configuration................................................................... - 4 -

3.2. Front panel.................................................................................... - 4 -

3.3. LED indicator lights......................................................................- 4 -

3.4. Power supply................................................................................ - 5 -

3.5. Fiber connection...........................................................................- 6 -

4. Hardware Installation................................................- 8 -

4.1. DIN-Rail installation.....................................................................- 8 -

4.2. Cable connection......................................................................... - 8 -

5. Testing.......................................................................... - 9 -

5.1. Self-examination.......................................................................... - 9 -

5.2. RJ45 port testing..........................................................................- 9 -

5.3. Fiber port testing.......................................................................... - 9 -

6. Maintain and Service.............................................. - 10 -

6.1. On-line service........................................................................... - 10 -

6.2. Call for our customer service.................................................. - 10 -

6.3. Warranty policy...........................................................................- 10 -

TELE2206G-2GF-4GT Gi

abit Din-rail Mountin

Industrial Ethernet Switch

www.telefly.cn

- 1 -

1. Product Introduction

1.1. Brief introduction

The TELE2206G-2GF which developed and produced by Wuhan Maiwe is

a high performance industrial Ethernet switch with 6 gigabit Ethernet ports.It

includes 2x1000Base-X SFP fiber ports and 4x 10/100/1000Base-TX RJ45

ports.

The TELE2206G-2GF is an unmanaged industrial Ethernet switch with

35mm din-rail mounting. It can stably work in various hard industrial

environments.

1.2. Features

High performance Ethernet switch interfaces

The 10Base-T/100Base-TX/1000Base-T adaptive port (full/half duplex),

automatic MDI/MDI-X connection.

Support 2x1000Base-X SFP fiber ports with SFP fiber modular.

Industrial grade power supply design

Provide different power supply applications to be chosen:

a,Wide range DC power supply:DC12~48V (redundant dual power input

supported)

b,Wide range DC/AC power supply:DC110~370V and

AC85V~265V(only single power input)

Reliable EMC protection and over-current / over-voltage protection.

Reliable over-current, over-voltage and EMC protection

With relay alarm function for power supply fault.

Rugged configuration design

Single-ribbed aluminum chassis cooling surface design, efficient cooling

without fan, the system can work reliably at -40 ℃~ +85 ℃environment.

Closed high-strength aluminum casing, enabling the system to work

reliably in harsh and hazardous industrial environments.

Standard DIN-Rail mounted installation

1.3. Product model choose list

Model name 1000Base

Fiber port RJ45 port Power supply

TELE2206G-2GF 2 LC 4 DC12~48V

TELE2206G-2GF-AD220 2 LC 4 DC110~370V/

AC85~264

TELE2206G-2GF-4GT Gi

abit Din-rail Mountin

Industrial Ethernet Switch

www.telefly.cn

- 2 -

1.4. Product packing list

TELE2208G includes following items:

Item QTY

TELE2206G-2GF Industrial Ethernet switch 1pcs

User manual 1pcs

TELE2206G-2GF-4GT Gi

abit Din-rail Mountin

Industrial Ethernet Switch

www.telefly.cn

- 3 -

2. Technical Parameter

2.1. Technical parameters

Content TELE2206G-2GF

Ports quantity

2x1000Base-X SFP LC

8x10Base-T/100Base-TX/1000/Base-T

RJ45

System parameter

Standard support: IEEE802.3, IEEE802.3u,

IEEE 802.3x

MAC address table:1K

Switch method: storage and forward

Optic port parameter

Wavelength: 1310nm or 1550nm (Single

mode); 850nm (Multimode)

Typical Distance: 10~80Km to be chosen

(Single mode) 550m (Multi mode)

Converter type: shielded SFP LC

Transport rate: 1.25Gbps.

Electric port parameter

Physical port:RJ45 (shielded)

RJ-45 port:

10Base-T/100Base-TX/1000Base-T,auto-ne

gotiation

Communication distance:<100m

Power parameter

Voltage input:

DC power:DC12~48V(redundant dual

power input supported)

DC/AC power:

DC110~370V/AC85V~265V(only single

power input)

Input power: 2.4W/DC24V(empty

load);4.8W/DC24V(full load)

Physical parameter

Shell: Metal with no fan

Dimensions(HWD):144mm33mm97m

m(not include DIN rail equipment

dimensions)

IP grade:IP40

Installation:35mm din-rail mounting

Working environment

Temperature: -40℃~+85℃

Ambient Relative Humidity:

5~95%(non-condensing)

TELE2206G-2GF-4GT Gi

abit Din-rail Mountin

Industrial Ethernet Switch

www.telefly.cn

- 4 -

3. Installation and Testing

3.1. Casing configuration

The TELE2206G-2GF uses Din rail mount installation. Whole machine

with six sides fully enclosed structure.

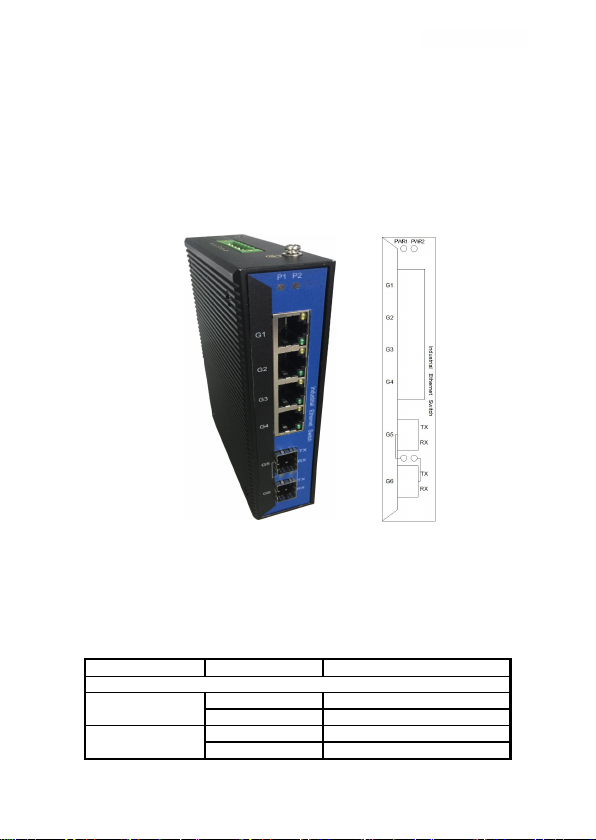

3.2. Front panel

The TELE2206G-2GF offers total 6 Ethernet ports on the front panel.

3.3. LED indicator lights

The LED indicator on the front panel can show the status of the system

and port operation, easy to find and solve problems. The below table shows

the LED indicator lights functions:

LED indicator lights

LED Status Function

System Status LED

(Red)

On Power 1 input is correct

Off Power 1 input is not working

(Red)

On Power 2 input is correct

Off Power 2 input is not working

TELE2206G-2GF-4GT Gi

abit Din-rail Mountin

Industrial Ethernet Switch

www.telefly.cn

- 5 -

RJ45 Port LED

Each RJ45 port has two LED indicator lights, the yellow LED indicates

the baud rate, the green LED indicates the port connection status.

1000M

(Yellow)

On 1000M state (1000Base-T）

Off 10/100M state

(10Base-T/100Base-TX)

LNK/ACT

(Green)

On Link is active

Blinking Data is being transmitted

Off Link is inactive

SFP fiber port LED

1000M

(Green)

On Link is active

Off Link is inactive

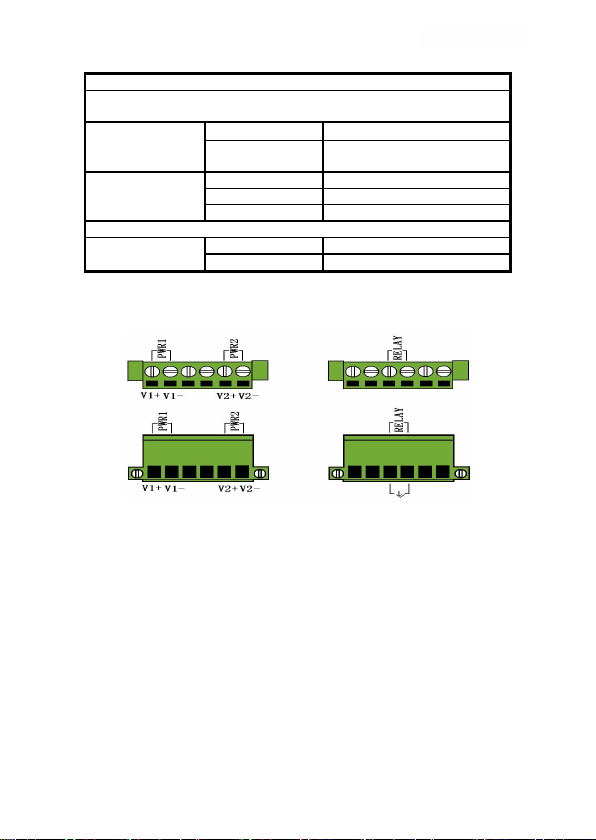

3.4. Power supply

The TELE2206G-2GF has a 6-ways terminal block on the top panel for the

power supply input as below.

The DC power model switch supports DC12~48V power supply, and

supports redundant dual power input (V1 and V2).

The DC/AC power model switch supports DC110~370V and AC85~265V

power supply, only single power input (V1).

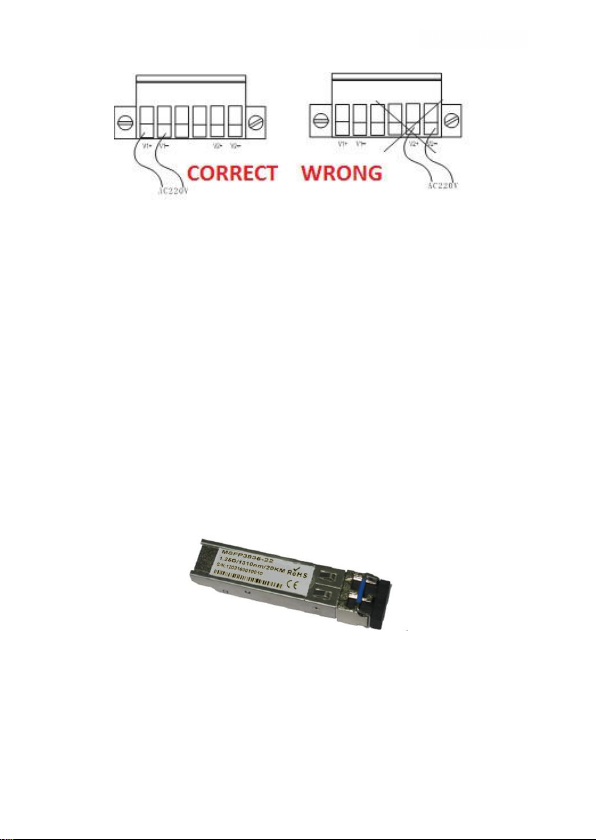

When use AC power supply, connect the Fire line L to V1+, connect the

Zero line N to V1-,DO NOT CONNECT TO V2+ AND V2-.And pay attention to

safety.

TELE2206G-2GF-4GT Gi

abit Din-rail Mountin

Industrial Ethernet Switch

www.telefly.cn

- 6 -

Power fault alarm relay:

The TELE2206G-2GF supports the power fault alarm relay function on the

terminal block (the 2 blocks in middle).

When the power supply is correct, the relay keeps open. When the power

supply fault, the relay changes to closed state.

3.5. Fiber connection

This product has two full-duplex 1000Base-LX single mode / multimode

fiber interface, the port number for the G1 and G2, using hot-swappable SFP

during the optical interface using LC connectors. Optical interface to be used in

pairs (TX and RX as a pair), TX mouth to light the originator, the remote switch

connected to another optical interface of the light receiving end RX; RX ports

for the light receiving end, to connect with a remote switch with an optical

interface light originator TX. The use of two redundant 1000Base-LX optical

interface fiber optic redundant ring network can be formed in the system failure

redundant ring switching time less than 20ms, can effectively improve network

reliability.

SFP optical module shown in the figure :

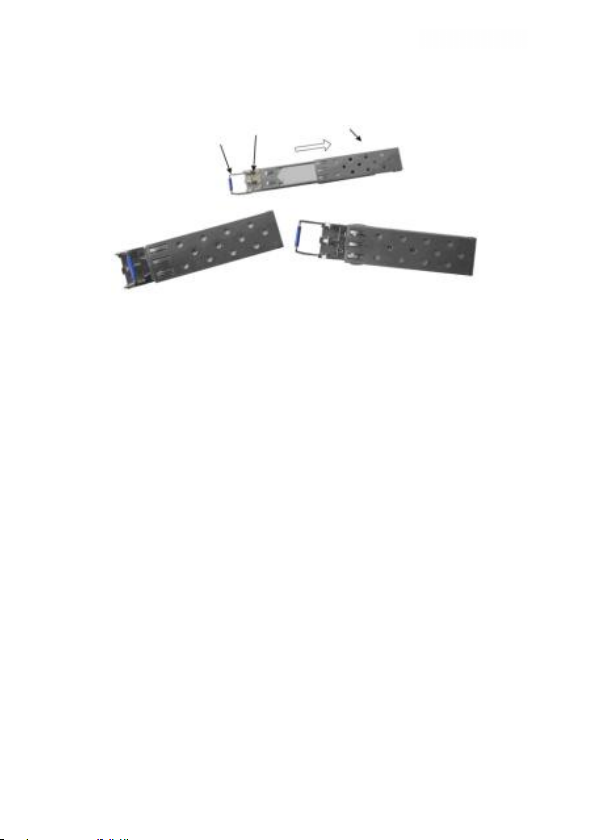

Hot-swappable SFP modules as follows:

Hot-plug procedure:

1. SFP during the observation of a finger end of the PCB.

2. the finger end into the SFP metal shielding cage, hear a click sound

indicates that the device has been inserted in place, then the SFP plug handle,

into the interface parallel to the normal position, you can use.

Hot drawing steps:

TELE2206G-2GF-4GT Gi

abit Din-rail Mountin

Industrial Ethernet Switch

www.telefly.cn

- 7 -

1. first unplug the SFP's plug handle perpendicular to the interface, this

time the device should be shielded with SPF cage mount hook disengaged.

2.parallel to pull the SFP module.

TELE2206G-2GF-4GT Gi

abit Din-rail Mountin

Industrial Ethernet Switch

www.telefly.cn
