Telematrix 3002MWD5 Bedienungsanleitung
3002MWD5
2 LINE -5 MEMORY
INSTALLATION
AND USER GUIDE
®
Features ...........................................………..……………………………………................................... 1
Controls ...........................................................................………………………………………………..2
Switch Settings .....................................….......................……………………………………………...... 4
Installation .....................................................................……………………………………………........ 5
Wall Mounting .....................................….......................……………………………………………........ 7
Programming Speed Dial Memory .................................……………………………………………....... 8
Operation ........................................................................……………………………………………..... 11
Care and Maintenance ..................................................……………………………………………....... 15
Service …………………………………………………..……………………………………….…………16
Warranty .......................................................................……………………………………………....... 17
CONTENTS
FEATURES
?Two Line
?Convenient Data Port
?5 Single Button Memory Locations With Secure Programming
?Tone Dialing
?Speaker Key
?Conference Key
?Mute Key
?Handset Volume Control
?TouchLite™Message Waiting Retrieval
?Store Key (submerged))
?Storable Flash Function (600 mS) (submerged)
?Storable Pause Function (3.6 seconds) (submerged)
?HI/LOW Ringer Volume Control Switch
?Desk or Wall Mountable
?Fully Modular, Easy To Install
1
DEFINITION OF CONTROLS
1. Handset ..........…………..………….........…... Hearing aid compatible, low profile styling.
2. Ringer Controls ………………….……………. Adjusts the volume of the ringers to HI/LOW setting.
3. Handset Jack ……………………………….…Modular receptacle where handset cord plugs into the base unit.
4. Dial Pad ………………………………….……..Large keys used for dialing.
5. Conference Key ………………………………Used for conference calling.
6. Handset Volume Control ……………….…….. Controls the loudness of the receiver volume when pressed.
7. Speaker Key ……………………………………Used to activate speaker
8. Mute Key ……………………………………….. Used to mute speaker key and handset
9. Hold Key ………………………………………..Used to place caller on hold
10. Message Waiting TouchLite™Key ………….. Used to call voice mail to retrieve messages.
11. Pause Key ……………………………………...(Submerged Key) Used to program a 3.6 second pause in memory.
12. Flash Key …………………………………….…(Submerged Key) Used to provide a 600 mS line break to access PBX/Centrex.
13. Feature Access Keys …………………………. 5 Programmable memory locations for frequently dialed phone numbers and access codes.
14. Data Port ……………………………………….. Used to connect a computer modem, fax machine, or answering device.
15. Store Key ……………………………………….(Submerged Key) Used to program information for speed dialing.
16. NEON/LED Message Waiting Switch ………. Used to Select Message Waiting indication Lamp Voltage.
2

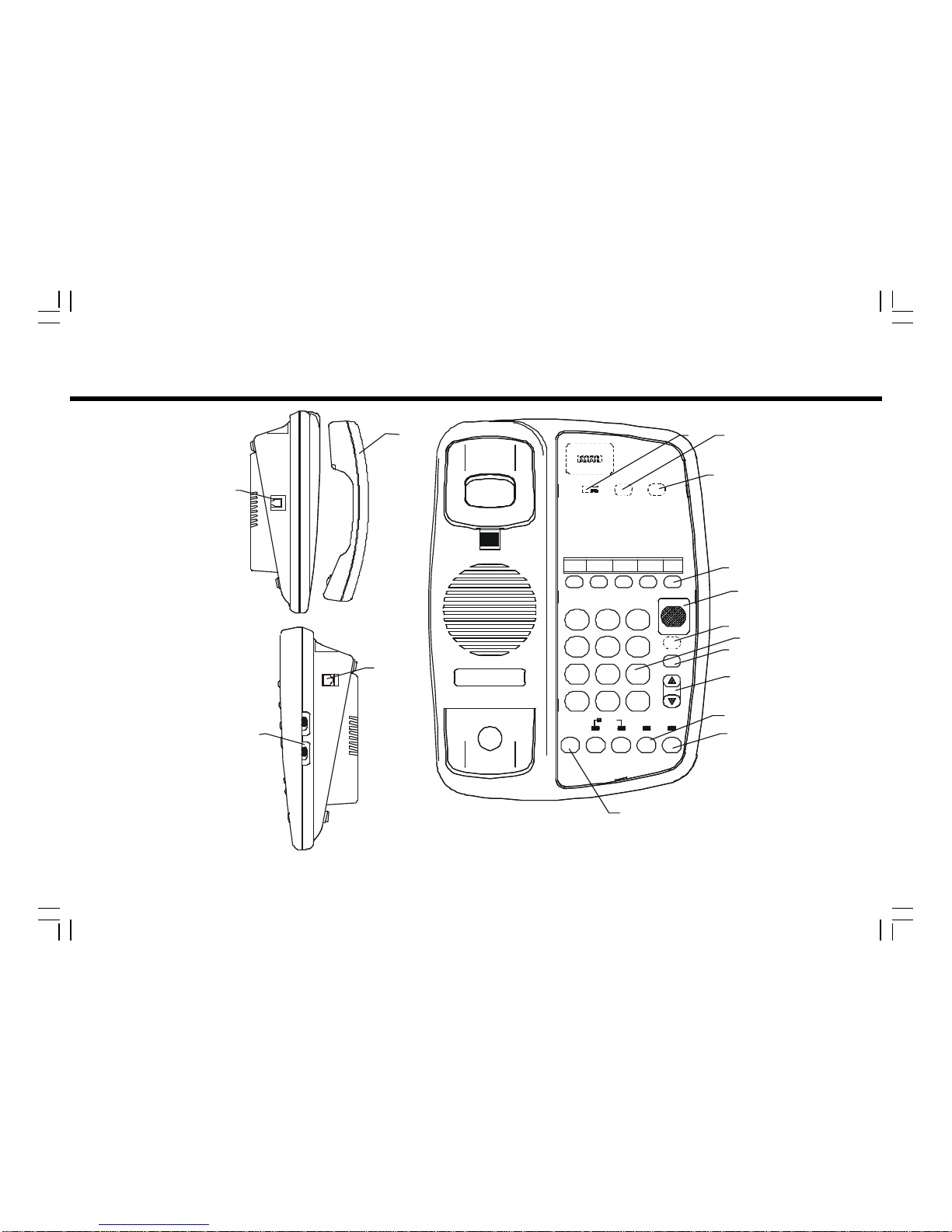

CONTROLS
3
(2)
(14)
LINE2
LOWHILOW
LINE1
HI
D
A
T
A
HANDSET
(1)
(3)
FRONT VIEW
HOLD LINE1 LINE2
MUTE
SPEAKER
*
0
7
4
8
5
#
VOL
9
6
PRESS HERE
REDIAL/PAUSE
CONF.
1
2
3
FOR MESSAGES
STORE
NEONOFFLED
FLASH
RINGER/HOLD
INUSE
(4)
(5)
(11)
(10)
(12)
(13)
(6)
(7)
(8)
(9)
(15)
(16)
Figure 5
SWITCH SETTINGS
There are installer selectable switches located on the bottom base underneath a protective plastic overlay. These switches are hid-
den behind a plastic cover for security. To locate, remove the plastic covers using a sharp pointer or paper clip as shown.
4

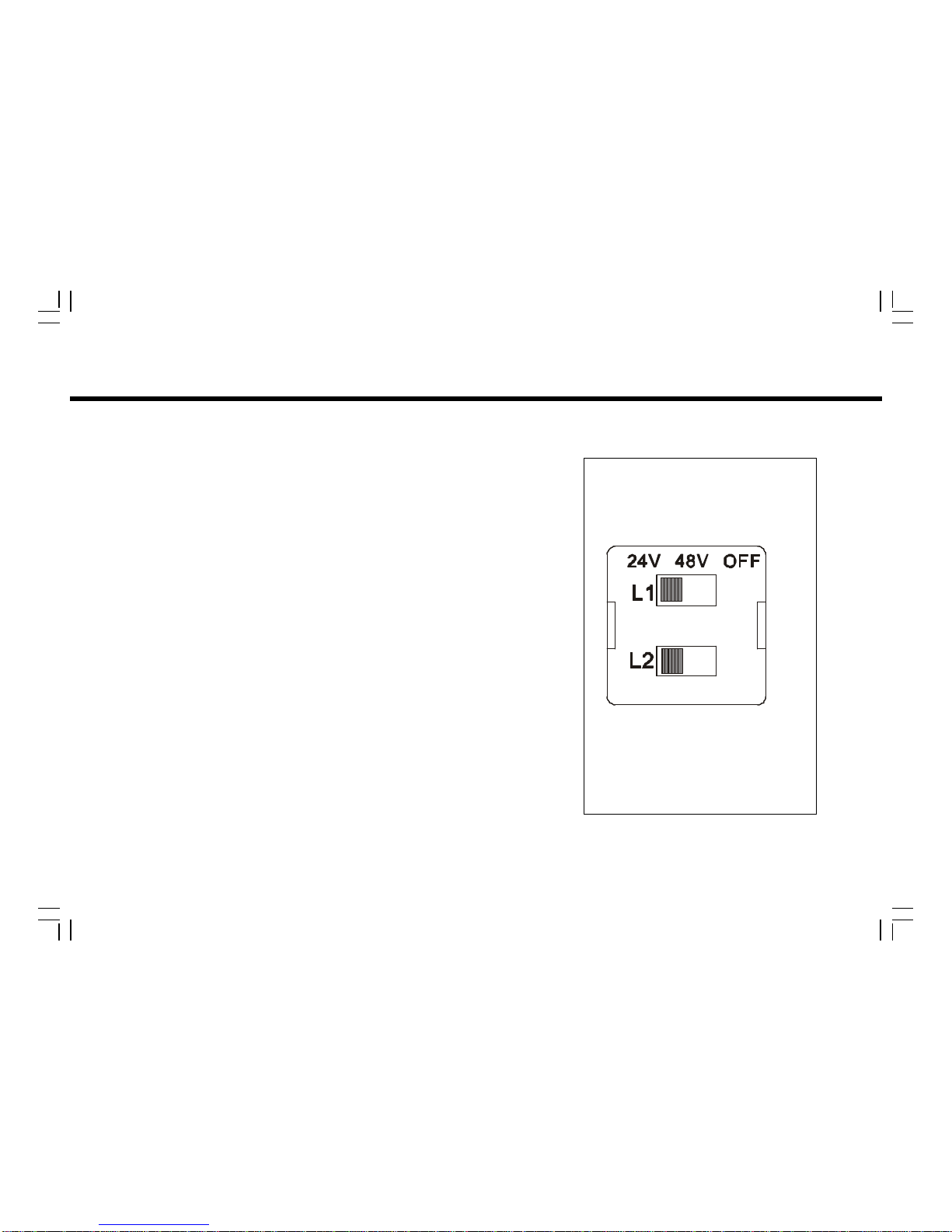

Line Voltage Selectors
The 3002MWD5 is designed to operate behind PBX telephone systems rated
between 24 volts and 48 volts. There are line voltage selector switches that
must be set according to the PBX system rating that the phone will be in-
stalled. There are two (2) switches, the first for Line 1 and the other for Line
2. Each switch has three (3) setting options. They are: “24V/48V/OFF”. Set
the switches by simply sliding to the appropriate setting. The ”OFF” setting is
used to turn off the line if a line appearance is not wired to the telephone.
(figure 6)
INSTALLATION

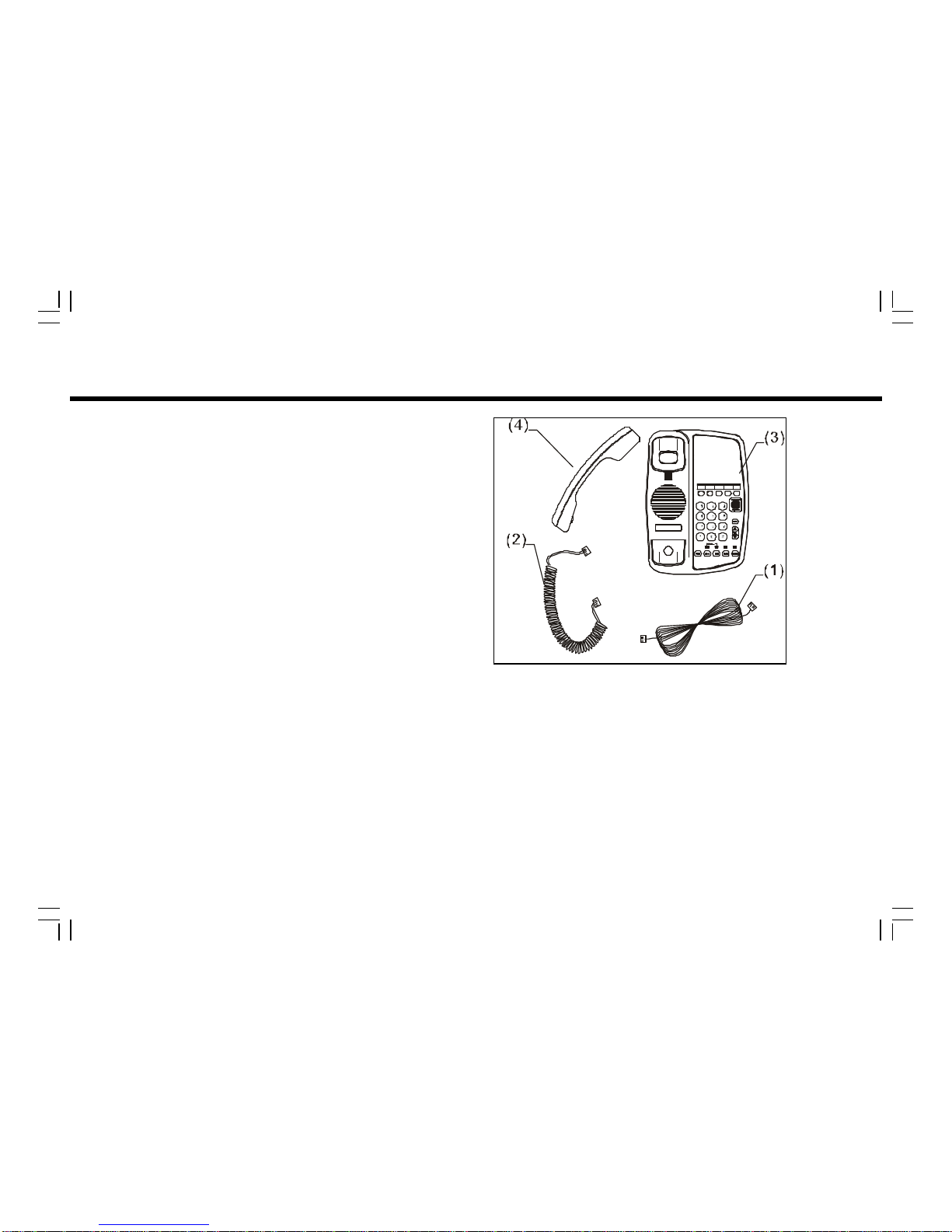

Parts Check List
The following parts are included in this package:
1. 15’ modular telephone line cord.
2. Modular coiled handset cord.
3. Base unit
4. Handset
Caution
?Never install telephone wiring during a lightning storm.
?Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
?Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface.
?Use caution when installing or modifying telephone lines.
5
Figure 3

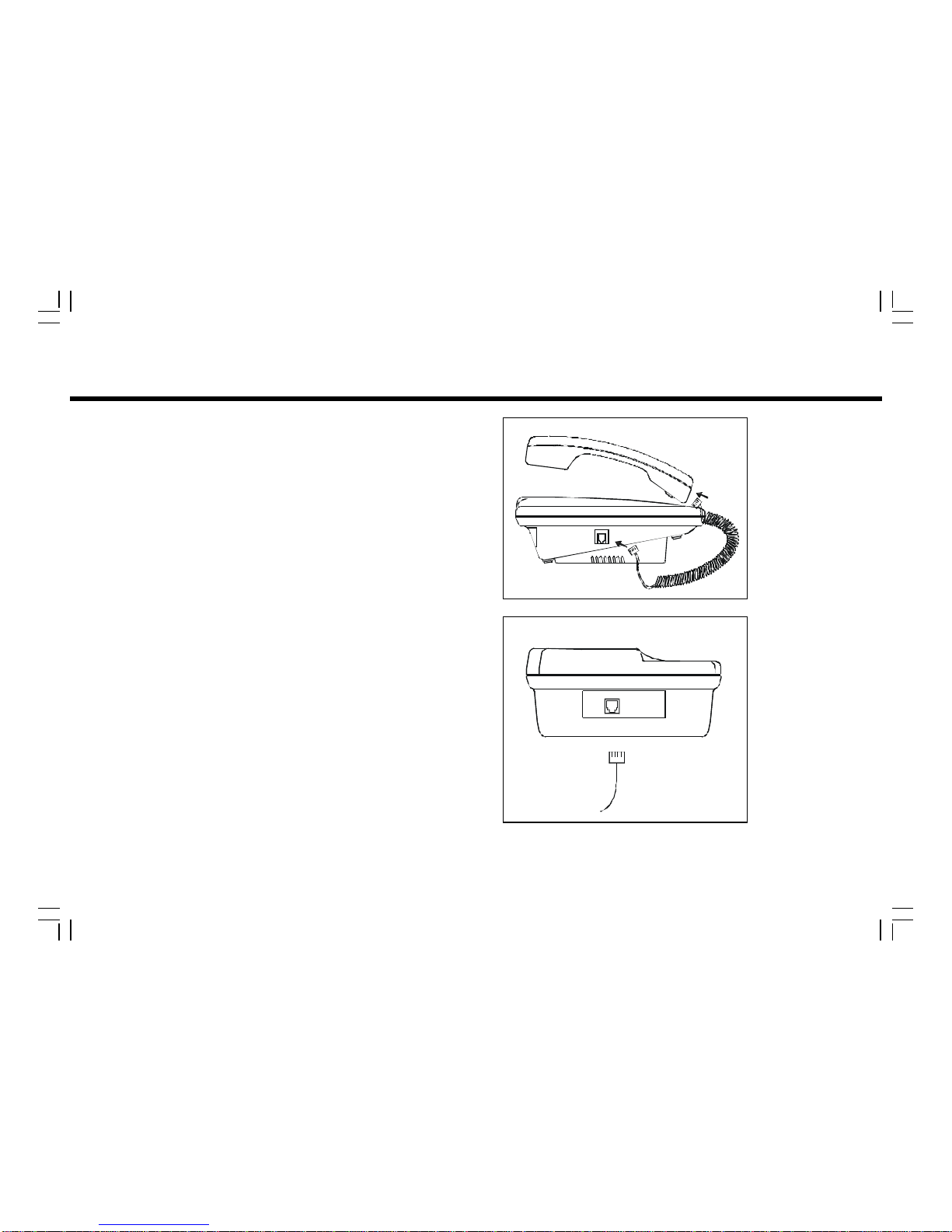

Connecting The Handset Cord
A 10’ modular coil handset cord is provided.
To install, simply plug one end of the handset
cord into the modular jack on the handset.
The remaining end of the handset cord plugs
into the jack labeled “Handset” located on
the left side of the base unit.
(figure 3)
INSTALLATION
Connecting The Line Cord
A 15’ modular line cord is provided.
To install, simply plug one end of the line
cord into the modular jack located on the
back of the base unit. The remaining end of
the line cord plugs into the wall jack.
(figure 4)
Figure 4
6
HANDSET
LINE
WALL MOUNTING

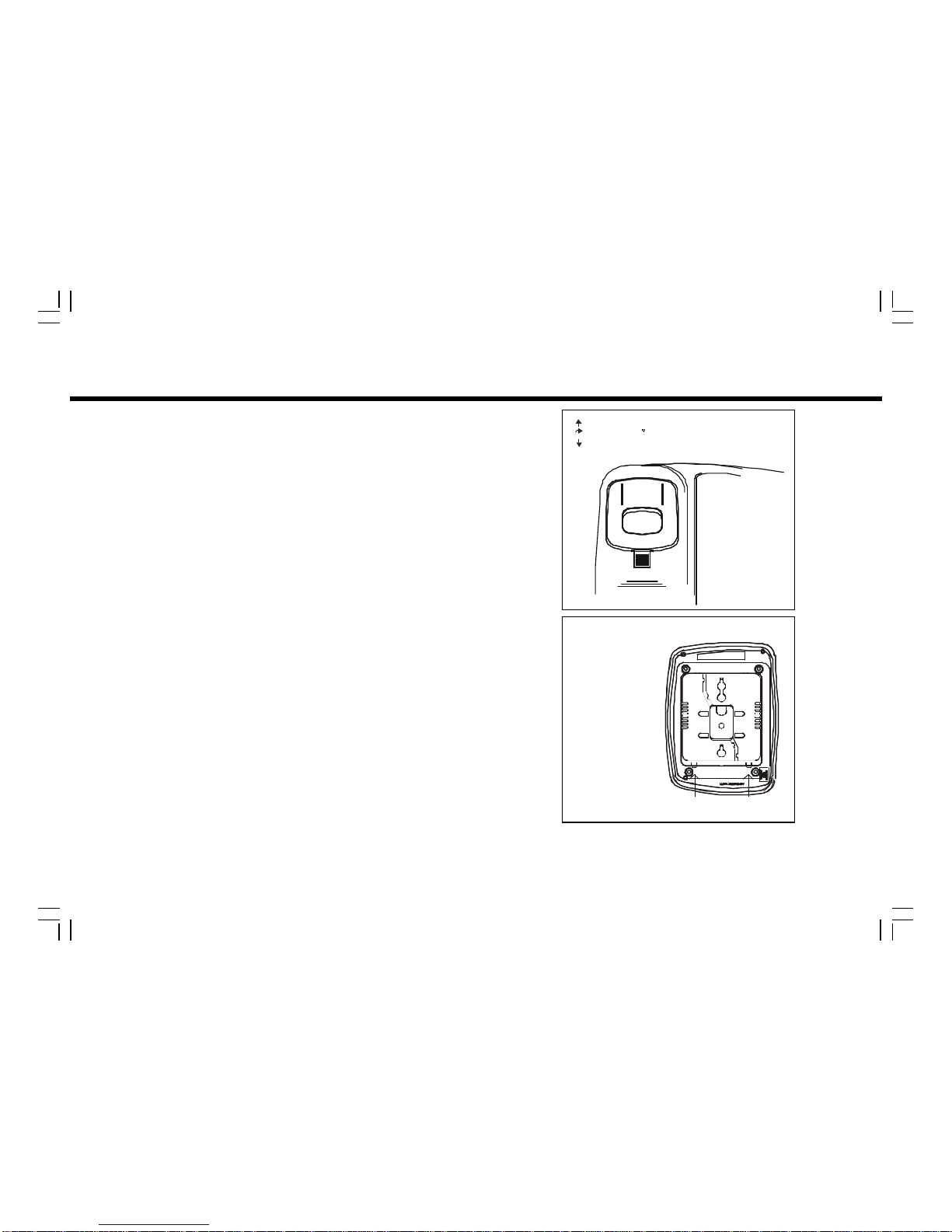

Wall Mounting Your 3002MWD5
The 3002MWD5 was designed to be conveniently wall mounted.
There is no additional hardware required. Follow these easy
steps:
1. The handset retaining clip must be engaged to secure the
handset when hanging up. To engage the clip, unsnap the
clip, rotate the clip 180º and then snap the clip into place.
(figure 7)
2. Plug one end of a short line cord (not included) into the line
jack on the back of the Marquis base unit. Plug the remaining
end of the short line cord into the wall jack. Next, guide the
phone onto the studs of the wall jack. Pull down firmly until
you feel it snap into place. The unit is now wall mounted.
(figure 8)
Figure 8
Figure 7
7
1. UNSNAP
2. ROTATE 180 .
3. SNAP INTO PLACE.
24V 48V OFF
L1
L2
LABEL-FCC
LABEL-S/NO.
LABEL-IC
LABEL-ETL
WEDGE
2.SNAP INTO PLACE.
TABS.
1.PRESS THE RELEASE
MOUNTING
6
PRESS HERE
REDIAL/PAUSE
CONF.
3
FOR MESSAGES
Figure 9

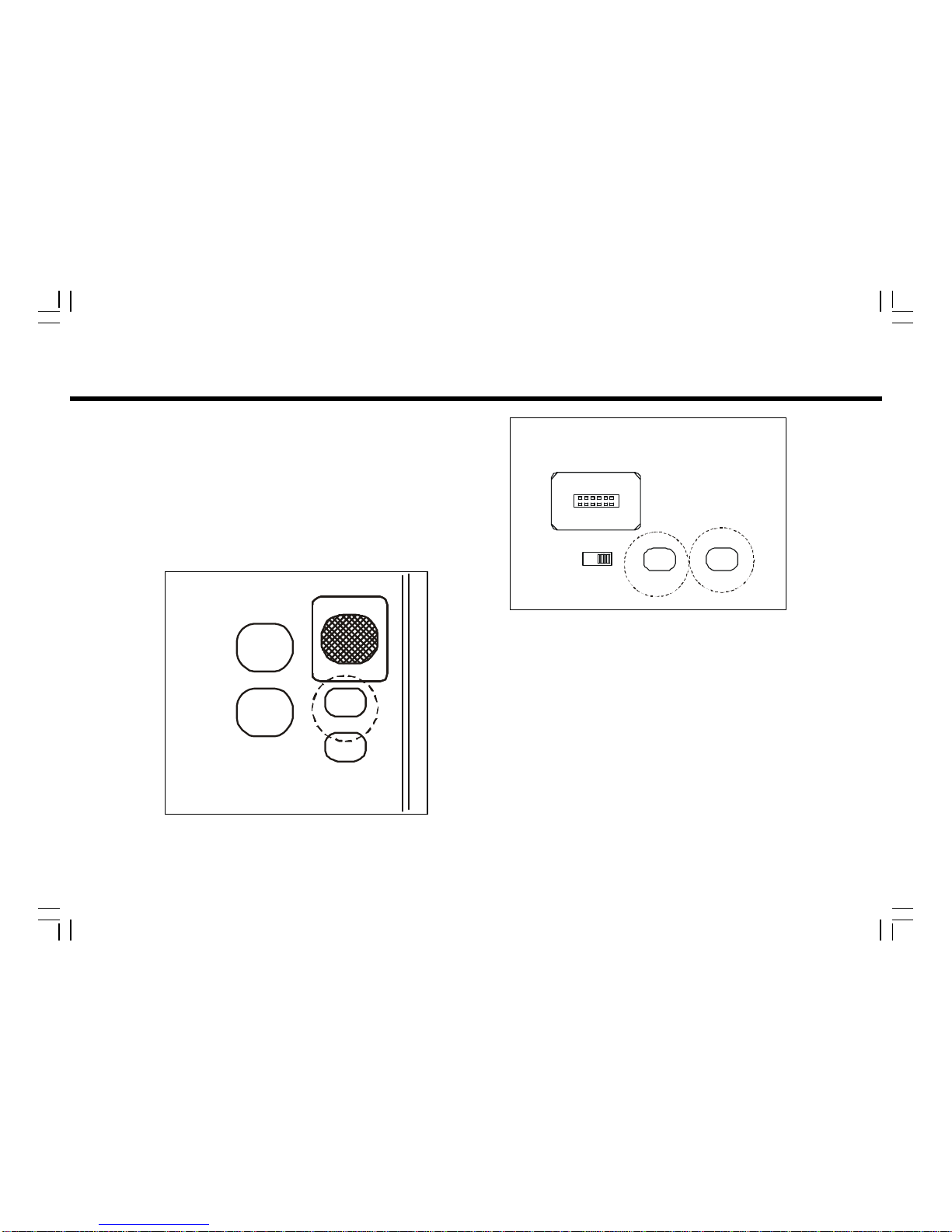

PROGRAMMING SPEED DIAL
The “STORE”, “FLASH”, and “PAUSE” function
keys are located underneath the clear plastic overlay
and paper faceplate. To access, lift off the overlay
and paper faceplate using a paperclip or sharp
pointer. (figure 9 and 10)
8
Figure 10
STORENEON OFF LED FLASH
