Televes DATBOSSMIX 149484 Bedienungsanleitung

Antenna Kit / Kit Antena

Ref. 149484 (Ant-149431 + PSU-550104 + S)

D E

C x2

F x4

J x2

O x2

K x2

R x4

Q x2

10 mm

MIX

6 8

CLICK!

10 mm

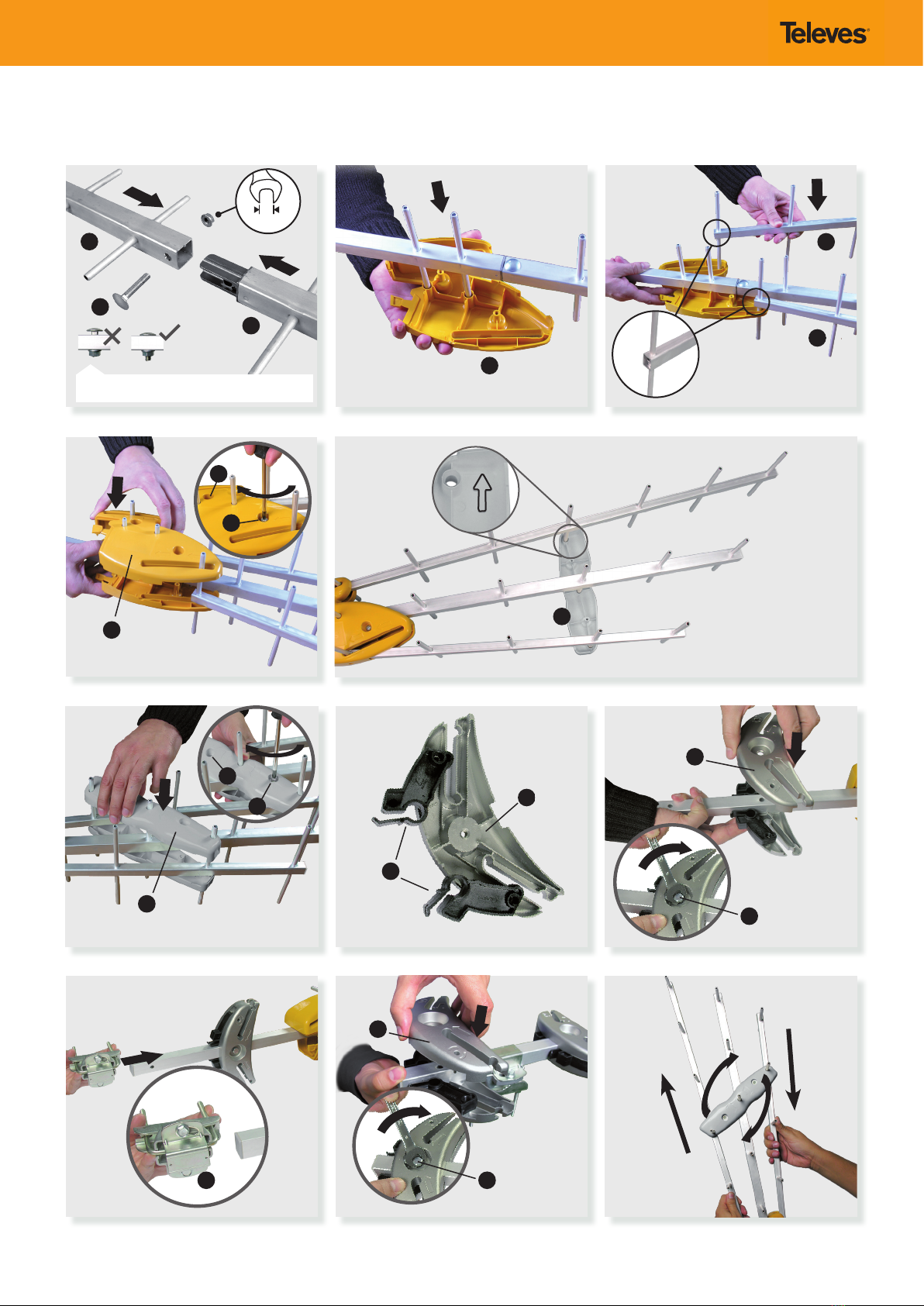

Antenna mounting / Montaje de la antena

Tighten the carriage bolts (P) until the square neck sinks

into the aluminum and the bolt head sits ush with the boom.

19 21

CLICK!

9/32”

(7mm)

1/8”

(3mm)

CLICK!

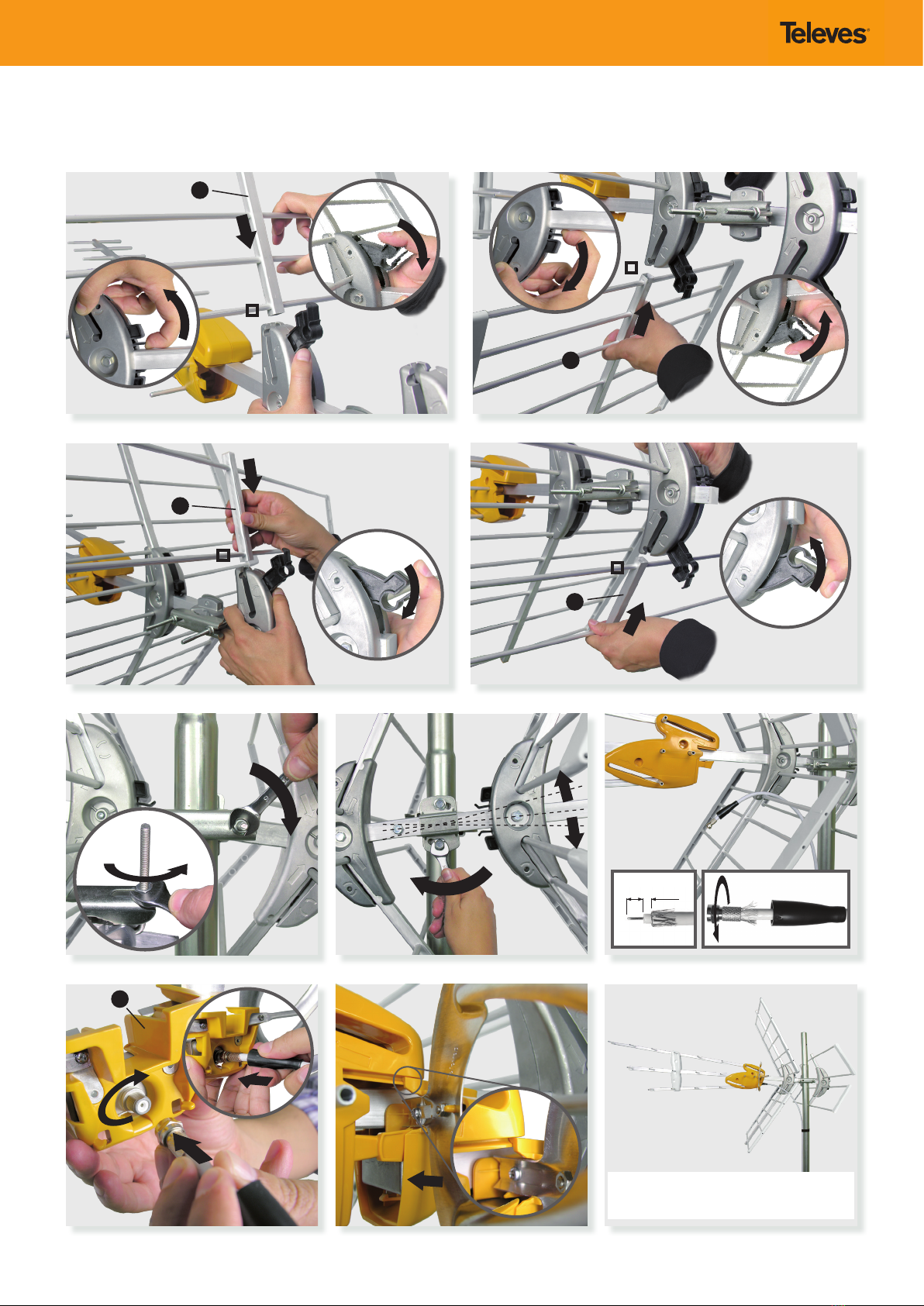

Once assembled, during final installation note that the

longer boom is the top part of the antenna, as indicated

in this picture.

2021 © Copyright, Televés S.A.U.

A00392

Watch TFORCE video

DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY DECLARAÇÃO DE CONFORMIDADE DECLARATION DE CONFORMITE DICHIARAZIONE DI CONFORMITÀ

DEKLARACJA ZGODNOŚCI KONFORMITÄTSERKLÄRUNG ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ FÖRSÄKRAN OM ÖVERENSSTÄMMELSE ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ  

https://doc.televes.com

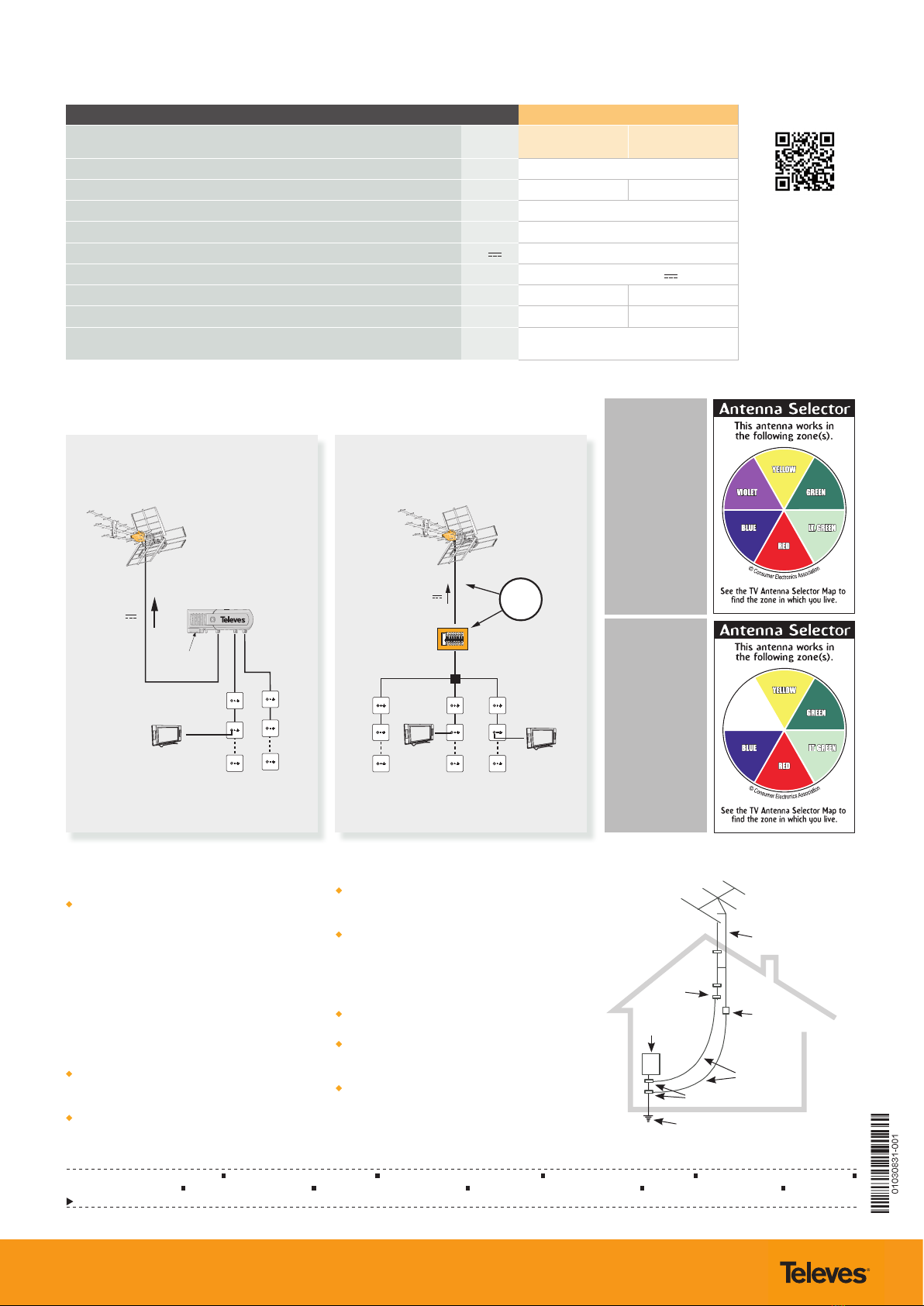

UHFHigh VHF

Technical specications of the intelligent antenna (it must be powered)

Características técnicas de la antena inteligente (debe estar alimentada)

Ref. Ref. 149484

Working band Banda de trabajo MHz 174 - 216

(CH7 - CH13) 470 - 608

(CH14 - CH36)

Mode Modo INTELLIGENT (BOSS ON)

Gain Ganancia dBi 36.5 40

Output level Nivel de salida Auto (1)

Signal level of use (recomm.) Nivel de señal de uso (recomend.) dBμV < 75

Powering voltage Tensión de alimentación V 12

Consumption Consumo mA 70 (max) @12V

Beamwidth Ancho de haz º 60 40

F/B ratio Relación D/A dB >15 >20

Wind load Carga al viento N120 (@ 80 miles/h)

165 (@ 93 miles/h)

(1) The gain is automatically adjusted according to the output level / La ganancia varía automáticamente en función del nivel de salida.

Televes USA LLC. 16596 E. 2nd Avenue Aurora, CO 80011 USA televes.usa@televes.com www.televes.com

Safety Instructions:

LIGHTNING PROTECTION

If installed outdoors, be sure the antenna system is

grounded so as to provide protection against voltage

surges and built-up static charges. Section 810 of the

National Electrical Code ANSI/NFPA70, or CSA C22.1

sections 10, 16, and 54, of the Canadian Electrical Code,

provide information with respect to proper grounding

of the mast and supporting structure, grounding of

the antenna lead-in wire to an antenna discharge unit,

size of grounding conductors, location of antenna-

discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode (see gure

and instructions).

Mount the lightning arrestor or 75 ohm coaxial

grounding block as close as possible to where the 75

ohm coaxial cable downlead enters the house.

The ground wires for both the mast and the downlead

should be copper or aluminium wire, number eight (8)

or larger.

The downlead wire from the antenna to the lightning

arrestor and the mast ground wire should be secured to

the house, spaced from four (4) to six (6) feet apart.

In the case of a “ground up” antenna installation it may

not be necessary to ground the mast if the mast extends

four or more feet in the earth. Consult a TV serviceman

for the proper depth in your location.

WARNINGS

To prevent re or shock hazard, do not expose the

included power supply to rain or moisture.

Installation of o-air antennas near power lines is

dangerous. For your safety, follow the installation

instructions.

Any alteration or modication to the product or usage

not in accordance with product instructions voids the

warranty.

Antenna Lead

in Wire

Example of antenna grounding as per

National Electrical Code, ANSI/NFPA 70

NEC - National Electrical Code

Ground

clamp

Electric Service

Equipment

Ground clamps

Power service Grounding Electrode System

(NEC Art 250, Part H)

Antenna Discharge Unit

(NEC Section 810-20)

(May substitute a 75 ohm

Coax Grounding Block)

Grounding Conductors

(NEC Section 810-21)

Application examples / Ejemplos de aplicación




































