Teltonika RUT950 LTE Bedienungsanleitung

USER MANUAL

RUT950 LTERouter

Legal notice

or all of the contents in this document in any form without the prior written permission of TELTONIKA Ltd is

prohibited. The manufacturer reserves the right to modify the product and manual for the purpose of technical

improvement without prior notice.

Other product and company names mentioned herein may be trademarks or trade names of their respective

owners.

Attention

Before using the device we strongly recommend reading this user manual first.

Do not rip open the device. Do not touch the device if the device block is broken.

All wireless devices for data transferring may be susceptible to interference, which could

affect performance.

The device is not water-resistant. Keep it dry.

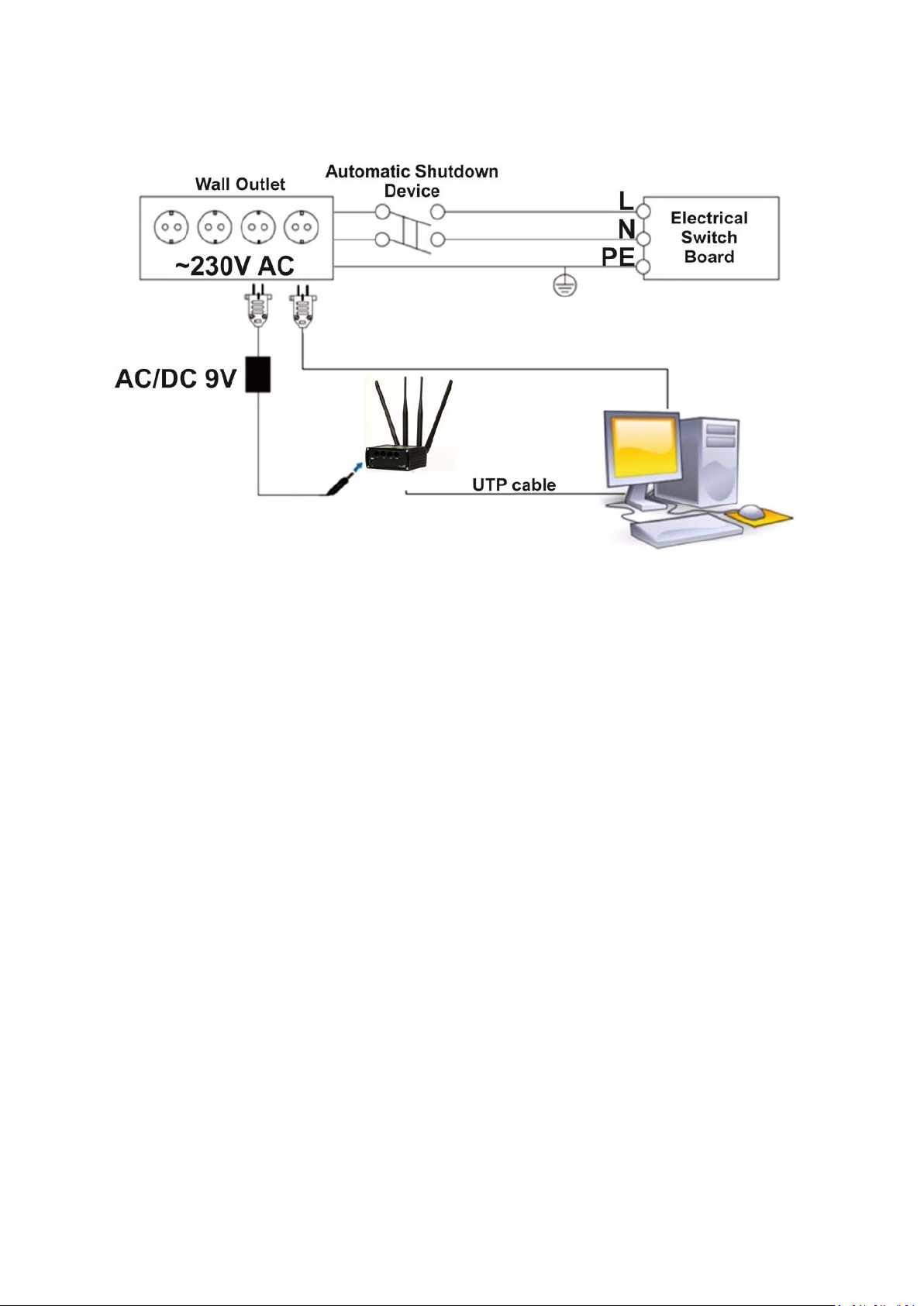

Device is powered by low voltage +9V DC power adaptor.

Table of Contents

Legal notice.............................................................................................................................................................. 2

Attention ................................................................................................................................................................. 2

SAFETY INFORMATION ............................................................................................................................................ 8

Device connection ............................................................................................................................................... 9

1 Introduction ................................................................................................................................................. 10

2 Specifications ............................................................................................................................................... 10

2.1 Ethernet ................................................................................................................................................... 10

2.2 Wi-Fi......................................................................................................................................................... 10

2.3 Hardware ................................................................................................................................................. 10

2.4 Electrical, Mechanical & Environmental.................................................................................................. 10

2.5 Applications ............................................................................................................................................. 11

3 Setting up your router ................................................................................................................................. 12

3.1 Installation ............................................................................................................................................... 12

3.1.1 Front Panel and Back Panel .............................................................................................................12

3.1.2 Hardware installation ...................................................................................................................... 12

3.2 Logging in ................................................................................................................................................. 13

4 Operation Modes......................................................................................................................................... 16

5 Powering Options ........................................................................................................................................ 16

5.1 Powering the device from higher voltage................................................................................................ 17

6 Status ........................................................................................................................................................... 18

6.1 Overview .................................................................................................................................................. 18

6.2 System Information ................................................................................................................................. 19

6.3 Network Information ............................................................................................................................... 20

6.4 Device information .................................................................................................................................. 31

6.5 Services .................................................................................................................................................... 32

6.6 Routes ...................................................................................................................................................... 32

6.6.1 ARP................................................................................................................................................... 32

6.6.2 Active IP-Routes............................................................................................................................... 33

6.6.3 Active IPv6-Routes ........................................................................................................................... 33

6.7 Realtime Graphs ...................................................................................................................................... 34

6.7.1 Mobile Signal Strenght..................................................................................................................... 34

6.7.2 Realtime Load .................................................................................................................................. 35

6.7.3 Traffic ............................................................................................................................................... 36

6.7.4 Realtime Wireless ............................................................................................................................ 37

6.7.5 Realtime Connections ...................................................................................................................... 38

6.8 Mobile Traffic........................................................................................................................................... 39

6.9 Speed Test................................................................................................................................................ 39

6.10 Events Log ............................................................................................................................................ 40

6.10.1 All Events ......................................................................................................................................... 40

6.10.2 System Events.................................................................................................................................. 41

6.10.3 Network Events ............................................................................................................................... 42

6.10.4 Events Reporting ............................................................................................................................. 43

6.10.5 Reporting Configuration.................................................................................................................. 44

7 Network ....................................................................................................................................................... 46

7.1 Mobile...................................................................................................................................................... 46

7.1.1 General............................................................................................................................................. 46

7.1.2 SIM Management ............................................................................................................................ 48

7.1.3 Network Operators .......................................................................................................................... 49

7.1.4 Mobile Data Limit ............................................................................................................................ 50

7.1.5 Sim Idle protection........................................................................................................................... 51

7.2 WAN......................................................................................................................................................... 52

7.2.1 Operation Mode .............................................................................................................................. 52

7.2.2 Common configuration.................................................................................................................... 53

7.3 LAN........................................................................................................................................................... 59

7.3.1 Configuration ................................................................................................................................... 59

7.3.2 DHCP Server..................................................................................................................................... 60

7.4 VLAN ........................................................................................................................................................ 61

7.4.1 VLAN Networks ................................................................................................................................ 61

7.4.2 LAN Networks .................................................................................................................................. 63

7.5 Wireless ................................................................................................................................................... 63

7.6 Firewall..................................................................................................................................................... 66

7.6.1 General Settings............................................................................................................................... 66

7.6.2 DMZ.................................................................................................................................................. 67

7.6.3 Port Forwarding ............................................................................................................................... 67

7.6.4 Traffic Rules ..................................................................................................................................... 69

7.6.5 Custom Rules ................................................................................................................................... 74

7.6.6 DDOS Prevention ............................................................................................................................. 75

7.7 Static Routes ............................................................................................................................................ 78

8 Services ........................................................................................................................................................ 79

8.1 VRRP......................................................................................................................................................... 79

8.1.1 VRRP LAN Configuration Settings .................................................................................................... 79

8.1.2 Check Internet connection............................................................................................................... 79

8.2 TR-069...................................................................................................................................................... 80

8.2.1 TR-069 Parameters Configuration ...................................................................................................80

8.3 Web filter ................................................................................................................................................. 81

8.3.1 Site blocking..................................................................................................................................... 81

8.3.2 Proxy based URL content blocker .................................................................................................... 81

8.4 NTP........................................................................................................................................................... 82

8.5 VPN .......................................................................................................................................................... 83

8.5.1 OpenVPN.......................................................................................................................................... 83

8.5.2 IPSec................................................................................................................................................. 86

8.5.3 GRE Tunnel....................................................................................................................................... 89

8.5.4 PPTP ................................................................................................................................................. 91

8.5.5 L2TP.................................................................................................................................................. 92

8.6 Dynamic DNS............................................................................................................................................ 93

8.7 SNMP ....................................................................................................................................................... 94

8.7.1 SNMP Settings.................................................................................................................................. 94

8.7.2 TRAP Settings ................................................................................................................................... 95

8.8 SMS Utilities............................................................................................................................................. 96

8.8.1 SMS Utilities ..................................................................................................................................... 96

8.8.2 Call Utilities ...................................................................................................................................... 99

8.8.3 User Groups ..................................................................................................................................... 99

8.8.4 SMS Management..........................................................................................................................100

8.8.5 Remote Configuration.................................................................................................................... 101

8.8.6 Statistics ......................................................................................................................................... 105

8.9 SMS Gateway ......................................................................................................................................... 105

8.9.1 Post/Get Configuration..................................................................................................................105

8.9.2 Email to SMS ..................................................................................................................................107

8.9.3 Scheduled Messages......................................................................................................................108

8.9.4 Auto Reply Configuration...............................................................................................................110

8.9.5 SMS Forwarding............................................................................................................................. 111

8.9.6 SMPP .............................................................................................................................................. 114

8.10 CLI....................................................................................................................................................... 115

8.11 Hotspot .............................................................................................................................................. 115

8.11.1 General settings............................................................................................................................. 115

8.11.2 Internet Access Restriction Settings..............................................................................................117

8.11.3 Logging .......................................................................................................................................... 117

8.11.4 Landing Page.................................................................................................................................. 119

8.11.5 Radius server configuration...........................................................................................................121

8.11.6 Statistics......................................................................................................................................... 122

8.12 Auto Reboot.......................................................................................................................................122

8.12.1 Ping Reboot ................................................................................................................................... 122

8.12.2 Periodic Reboot ............................................................................................................................. 123

8.13 QoS..................................................................................................................................................... 124

9 System........................................................................................................................................................ 125

9.1 Configuration Wizard............................................................................................................................. 125

9.2 Profiles ................................................................................................................................................... 127

9.3 Administration .......................................................................................................................................128

9.3.1 General........................................................................................................................................... 128

9.3.2 Troubleshoot.................................................................................................................................. 129

9.3.3 Backup............................................................................................................................................ 130

9.3.4 Diagnostics..................................................................................................................................... 132

9.3.5 MAC Clone .....................................................................................................................................132

9.3.6 Overview ........................................................................................................................................ 133

9.3.7 Monitoring .....................................................................................................................................134

9.4 User scripts ............................................................................................................................................ 134

9.5 Safe mode .............................................................................................................................................. 135

9.6 Firmware................................................................................................................................................ 135

9.6.1 Firmware........................................................................................................................................135

9.6.2 FOTA............................................................................................................................................... 136

9.7 Restore point ......................................................................................................................................... 137

9.7.1 Restore point create ...................................................................................................................... 137

9.7.2 Restore point load ......................................................................................................................... 137

9.8 Reboot.................................................................................................................................................... 137

10 Device Recovery......................................................................................................................................... 137

10.1 Reset button ...................................................................................................................................... 138

10.2 Safemode ........................................................................................................................................... 138

10.3 Bootloader’s WebUI........................................................................................................................... 138

11 Glossary: .................................................................................................................................................... 139

SAFETY INFORMATION

In this document you will be introduced on how to use a RUT950 router safely. We suggest you to adhere to the

following recommendations in order to avoid personal injuries and or property damage.

You have to be familiar with the safety requirements before using the device!

To avoid burning and voltage caused traumas, of the personnel working with the device, please follow these

safety requirements.

The device is intended for supply from a Limited Power Source (LPS) that power consumption

should not exceed 15VA and current rating of overcurrent protective device should not exceed 2A.

The highest transient overvoltage in the output (secondary circuit) of used PS

U shall not

exceed 36V peak.

The device can be used with the Personal Computer (first safety class) or Notebook (second

safety class). Associated equipment: PSU (power supply unit) (LPS) and personal computer (PC) shall

comply with the requirements of standard EN 60950-1.

Do not mount or service the device during a thunderstorm.

To avoid mechanical damages to the device it is recommended to transport it packed in a

damage-proof pack.

Protection in primary circuits of associated PC and PSU (LPS) against short circuits and earth

faults of associated PC shall be provided as part of the building installation.

To avoid mechanical damages to the device it is recommended to transport it packed in a damage-proof pack.

While using the device, it should be placed so, that its indicating LEDs would be visible as they inform in which working

mode the device is and if it has any working problems.

Protection against overcurrent, short circuiting and earth faults should be provided as a part of the building

installation.

Signal level of the device depends on the environment in which it is working. In case the device starts working

insufficiently, please refer to qualified personnel in order to repair this product. We recommend forwarding it to a repair

center or the manufacturer. There are no exchangeable parts inside the device.

Device connection

1Introduction

Thank you for purchasing a RUT950 LTE router!

RUT950 is part of the RUT9xx series of compact mobile routers with high speed wireless and Ethernet

connections.

This router is ideal for people who‘d like to share their internet on the go, as it is not restricted by a cumbersome

cable connection. Unrestricted, but not forgotten: the router still supports internet distribution via a broadband cable,

simply plug it in to the wan port, set the router to a correct mode and you are ready to browse.

2Specifications

2.1 Ethernet

•IEEE 802.3, IEEE 802.3u standards

•3 x LAN 10/100Mbps Ethernet ports

•1 x WAN 10/100Mbps Ethernet port

•Supports Auto MDI/MDIX

2.2 Wi-Fi

•IEEE 802.11b/g/n WiFi standards

•2x2 MIMO

•AP and STA modes

•64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods

•2.401 – 2.495GHz Wi-Fi frequency range

•20dBm max WiFi TX power

•SSID stealth mode and access control based on MAC address

2.3 Hardware

•High performance 560 MHz CPU with 128 Mbytes of DDR2 memory

•5.5/2.5mm DC power socket

•Reset/restore to default button

•2 x SMA for LTE , 2 x RP-SMA for WiFi antenna connectors

•4 x Ethernet LEDs, 1 x Power LED

•1 x bi-color connection status LED, 5 x connection strength LEDs

2.4 Electrical, Mechanical & Environmental

•Dimensions (H x W x D) 80mm x 106mm x 46mm

•Weight 250g

•Power supply 100 – 240 VAC -> 9 VDC wall adapter

•Input voltage range 9 – 30VDC

•Power consumption < 7W

•Operating temperature -40° to 75° C

•Storage temperature -45° to 80° C

•Operating humidity 10% to 90% Non-condensing

•Storage humidity 5% to 95% Non-condensing

Andere Handbücher für RUT950 LTE

Inhaltsverzeichnis

Andere Teltonika Router Handbücher

Teltonika

Teltonika RUT100 Bedienungsanleitung

Beliebte Router Handbücher anderer Marken

TRENDnet

TRENDnet TEW-722BRM Bedienungsanleitung

virtual access

virtual access GW7304-3G-AC Bedienungsanleitung

Intellinet

Intellinet 524445 Bedienungsanleitung

Kasda

Kasda KW6516 Bedienungsanleitung

EnGenius

EnGenius EPG600 Bedienungsanleitung

Hawking

Hawking HWRN1A Bedienungsanleitung

Four-Faith

Four-Faith F7B30 Bedienungsanleitung

D-Link

D-Link DIR-501 Bedienungsanleitung

D-Link

D-Link DIR-612 Bedienungsanleitung

TP-Link

TP-Link Archer D5 Bedienungsanleitung

D-Link

D-Link DSL-G604T Bedienungsanleitung

TP-Link

TP-Link TL-WR902AC Bedienungsanleitung

D-Link

D-Link DIR-825/AC Bedienungsanleitung

Sapido

Sapido BRB72n Bedienungsanleitung

NETGEAR

NETGEAR NIGHTHAWK R7000 Bedienungsanleitung

D-Link

D-Link GO-DSL-N150 Bedienungsanleitung

TRENDnet

TRENDnet TEW-651BR Bedienungsanleitung

MikroTik

MikroTik mAP lite Bedienungsanleitung
