Telycam TLC-700-U3 Bedienungsanleitung

TLC-700-U3

USB3.0 HD Video Camera

User Manual

Version V1.0（English）

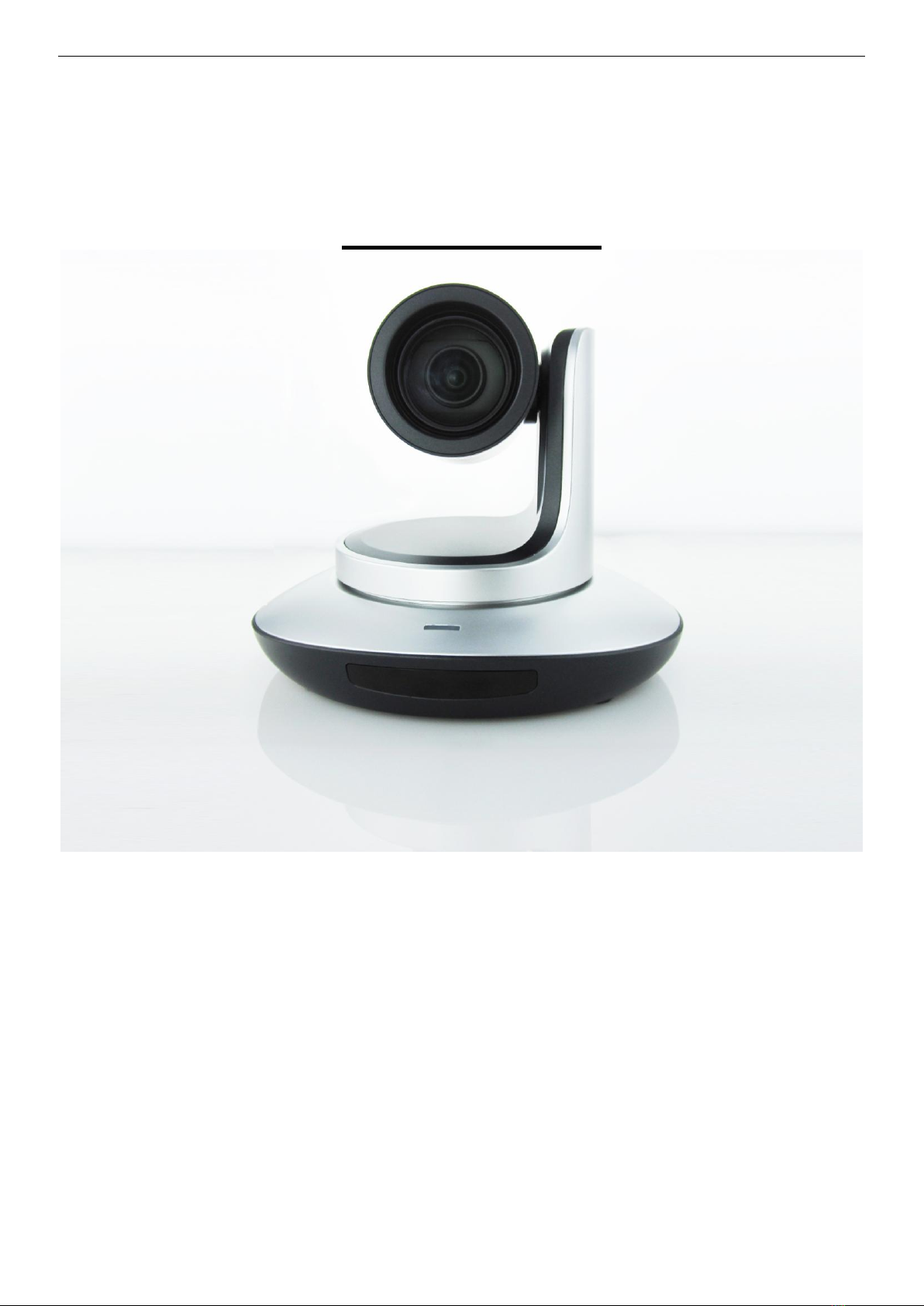

USB3.0 HD Video Camera

User Manual

Version V1.0

（English）

Contents

SAFETY GUIDES ..........................................................................................................................................................................1

ACCESSORIES................................................................................................................................................................. .............2

QUICK START...............................................................................................................................................................................2

PRODUCT HIGHLIGHTS............................................................................................................................................................3

CAMERA SPEC .............................................................................................................................................................................3

CAMERA INTERFACE ................................................................................................................................................................3

CAMERA DIMENSION................................................................................................................................................................4

IR REMOTE CONTROLLER......................................................................................................................................................5

VISCA IN（RS232）PORT...........................................................................................................................................................7

VISCA PROTOCOL ......................................................................................................................................................................8

PELCO-D PROTOCOL...............................................................................................................................................................14

PELCO-P PROTOCOL ...............................................................................................................................................................15

OSD MENU................................................................................................................................................................................... 16

IR TRANSFER(IR PASS)............................................................................................................................................................ 18

UVC CONTROL .......................................................................................................................................................................... 19

SAFETY GUIDES

1.Before operation, please fully read and follow all instructions in the manual. For your

safety, always keep this manual with the camera.

2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input

within this rate before powering on.

3.The camera power voltage is 12VDC, rated currency is 2A. We suggest you use it with the

original power supply adapter supplied by the factory.

4.Please keep the power cable, video cable and control cable in a safe place. Protect all

cables especially the connectors.

5.Operational environment: 0℃-50℃, humidity less than 90%.To avoid any danger, do not

put anything inside the camera, and keep away from the corrosive liquid.

6.Avoid stress, vibration and damp during transportation, storage and installation.

7.Do not detetch the camera housing and cover. For any service, please contact authorized

technicians.

8.RF cable and control cable should be individually shielded, and cannot be substituted with

other cables. Do not direct the camera lens towards strong light, such as the sun or the

intensive light.

9.Use a dry and soft cloth to clean the camera housing. Applied with neutral cleaning agent

when there is need to clean. To avoid damage on the camera lens, never use strong or

abrasive cleaning agents on the camera housing.

10.Do not move the camera by holding the camera head. To avoid mechanical trouble, do

not rotate the camera head by hand.

11.Put the camera on fixed and smooth desk or platform, avoid leaned installation.

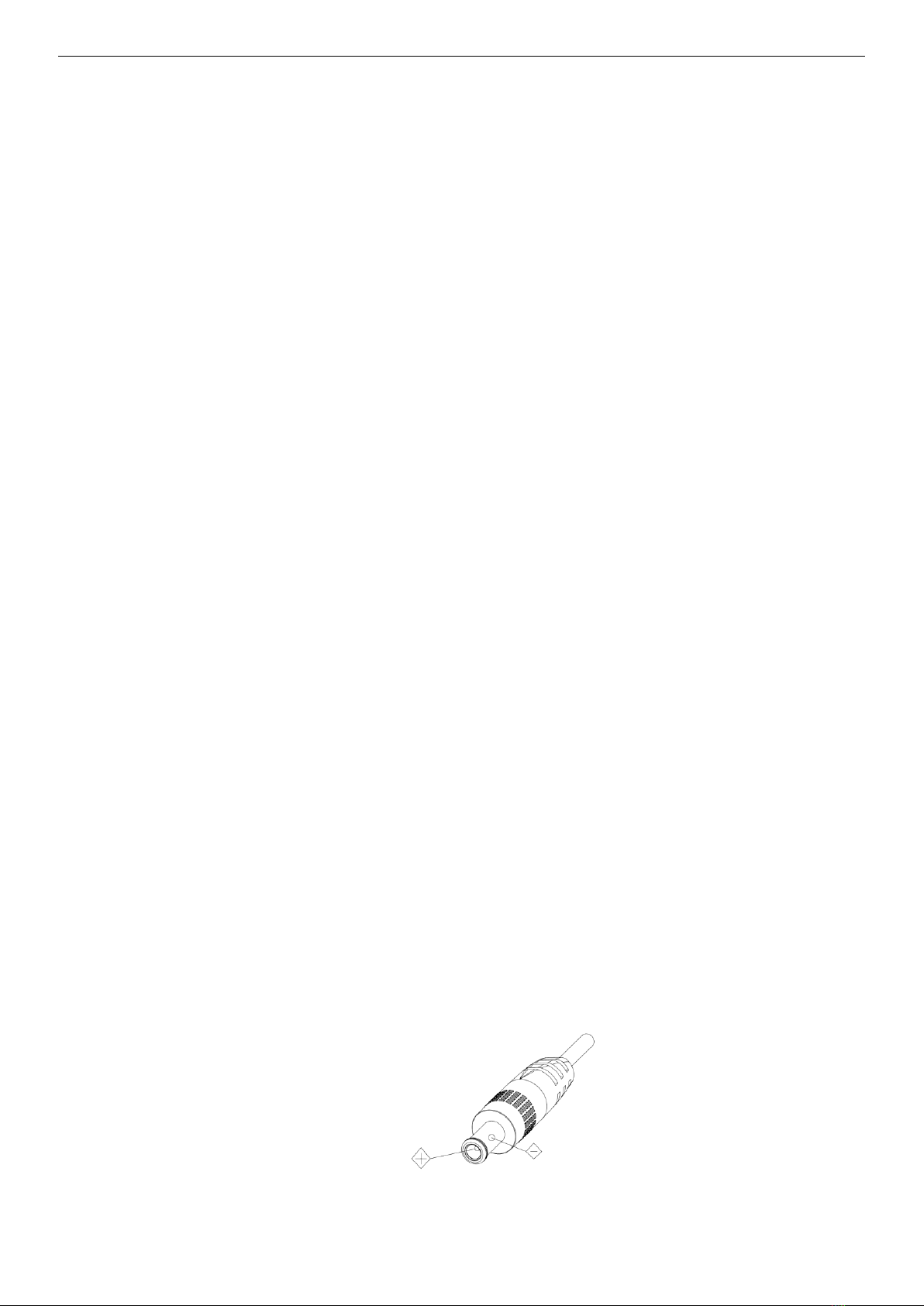

12. Power Supply Polarity(Drawing)

Note: the video quality may be affected by the specific frequencies of electromagnetic filed.

ACCESSORIES

Check all bellow items when open the package:

Camera·················································1

Power Adapter ········································1

Power Cable···········································1

RS232 Control Cable ································1

USB3.0 Cable·········································1

Remote Controller····································1

User Manual···········································1

Double-sided Adhesive ······························1

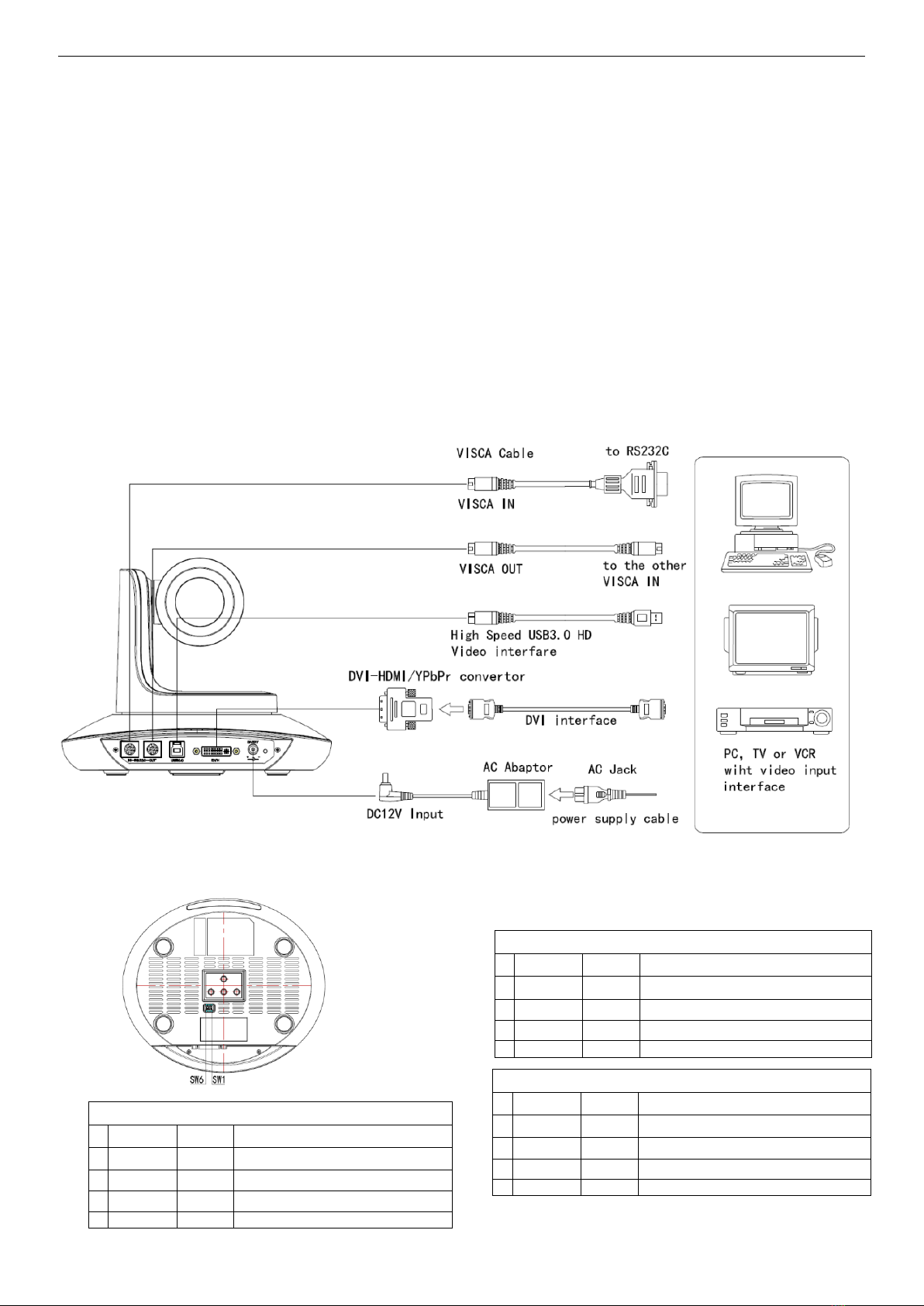

QUICK START

1.Check all cable connections before power on.

2.Dial Switch Setting (at the bottom of the camera):

Dial Switch（ARM）

SW-1

SW-2

Instruction

OFF

Updating mode

OFF

Debugging mode

OFF

Undefined

Working mode

Dial Switch（USB）

SW-5

SW-6

Instruction

OFF

Undefined

OFF

Working mode

OFF

Updating mode

Undefined

Dial Switch（IR CODE TYPE）

SW-3

SW-4

Instruction

OFF

Off(Close IR receiver)

OFF

Undefined

OFF

SEJIN 4PPM CODE

NEC CODE(standard)

PRODUCT HIGHLIGHTS

1. Fashionable and smart design, with advanced DSP, 1/2.86 inch sensor, provides ultra crystal and smooth image.

2. 20X optical zoom & 12X digital zoom, specially designed for big rooms application.

2. DVI-I(HDMI) &USB3.0 simultaneously output.

3. Fast switching between different video format: only 3 seconds needed.

4. USB2.0 compatible.

5.Daisy chain function: with both Visca in and Visca out port.

6. Multi language menu: English, Chinese, Russian, Spanish.

7.IR transfer/IR pass function: except receiving the camera remote controller signal, the camera can also receive

other codec’s IR remote control signal, and pass these IR control signal to the codec’s IR receiver (via VISCA

IN port).

CAMERA SPEC

1. Video Format: 1080p60/50/30/25; 720p60/50/30/25; 1080i60/50.

2. Video Output: DVI-I( HDMI), USB3.0

3. Sensor：1/2.86 inch 2.3MP HD CMOS sensor

4. Lens：f4.7～94mm(20X optical zoom)，F1.6 –3.5

5. Angle of View: 57.4°

5.RotationAngle: Pan rotation:±170°; Tilt rotation: -30°~+90°, support up-side down installation

6. Rotation Speed: Pan speed:0.1°-120°/s; Tile speed: 0.1°-80°/s

7.Preset: 10 via IR remote setting, (128 via COM setting）, preset accuracy :0.1°

8. SupportAuto/Manual White Balance,Auto/Manual Exposure (Iris, Shutter), Auto/ Manual/ OnePush Focus.

9. Support WDR function.

10. Control signal port: 8 pin mini DIN--RS232, VISCA/Pelco-D/Pelco-P protocol

11. Power voltage: DC12V/2.0A; power port: HEC3800.

12.Max comsumption:12W

13. Working temperature: -5 ~ 45℃

14. Storage temperature:-20 ~ 60℃

15. Net weight: 1.25KG（2.8LBS）

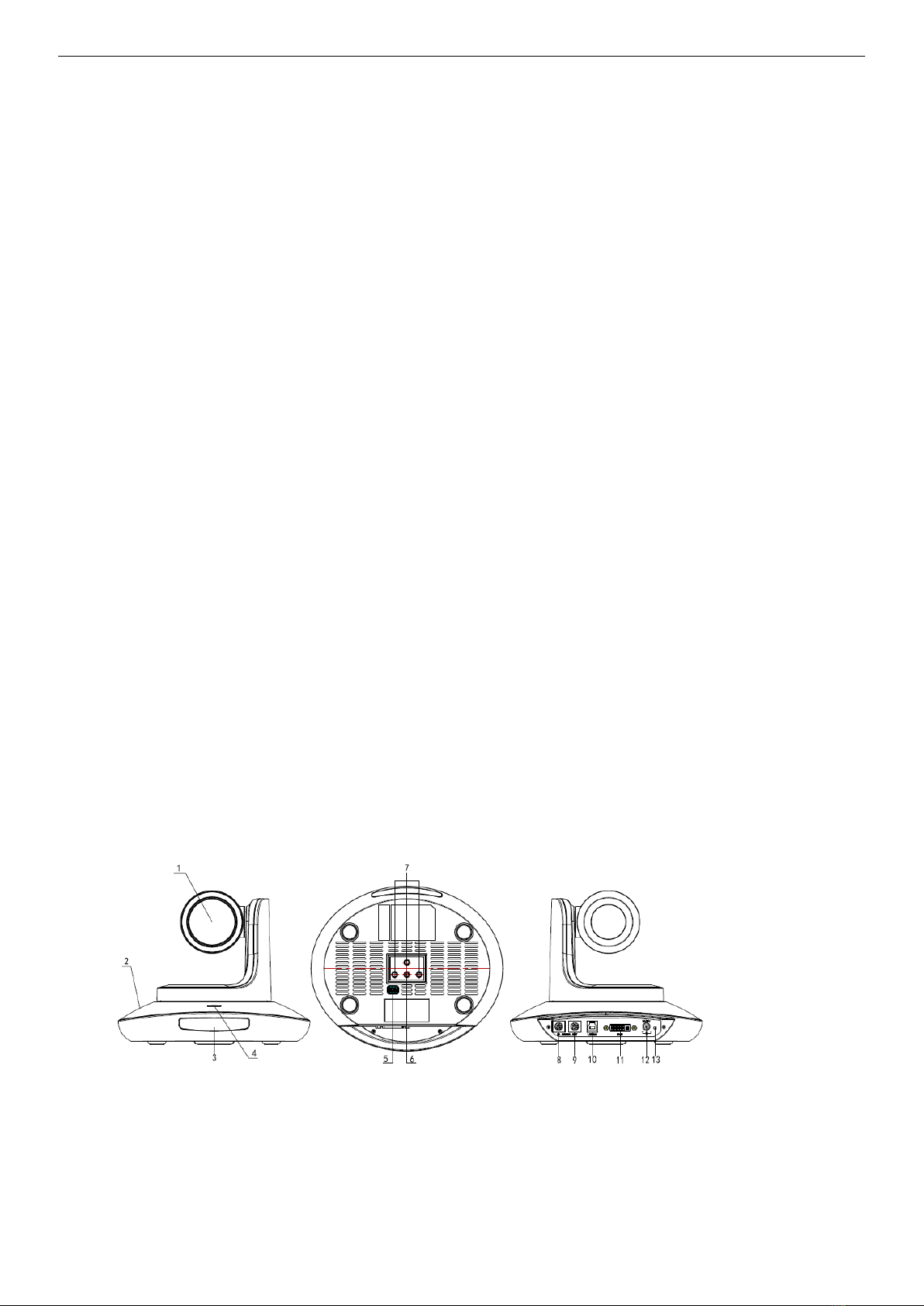

CAMERA INTERFACE

1. Camera Lens 5.Dial Switch 9.VISCA OUT port

2. Camera Base 6. Tripod Screw Hole 10.USB3.0 port

3. Power Indicator Light 7. Installation Hole 11.DVI-I port

4. IR Receiver Panel 8.VISCAIN port 12. Power Input 12VDC

13.Power indicator

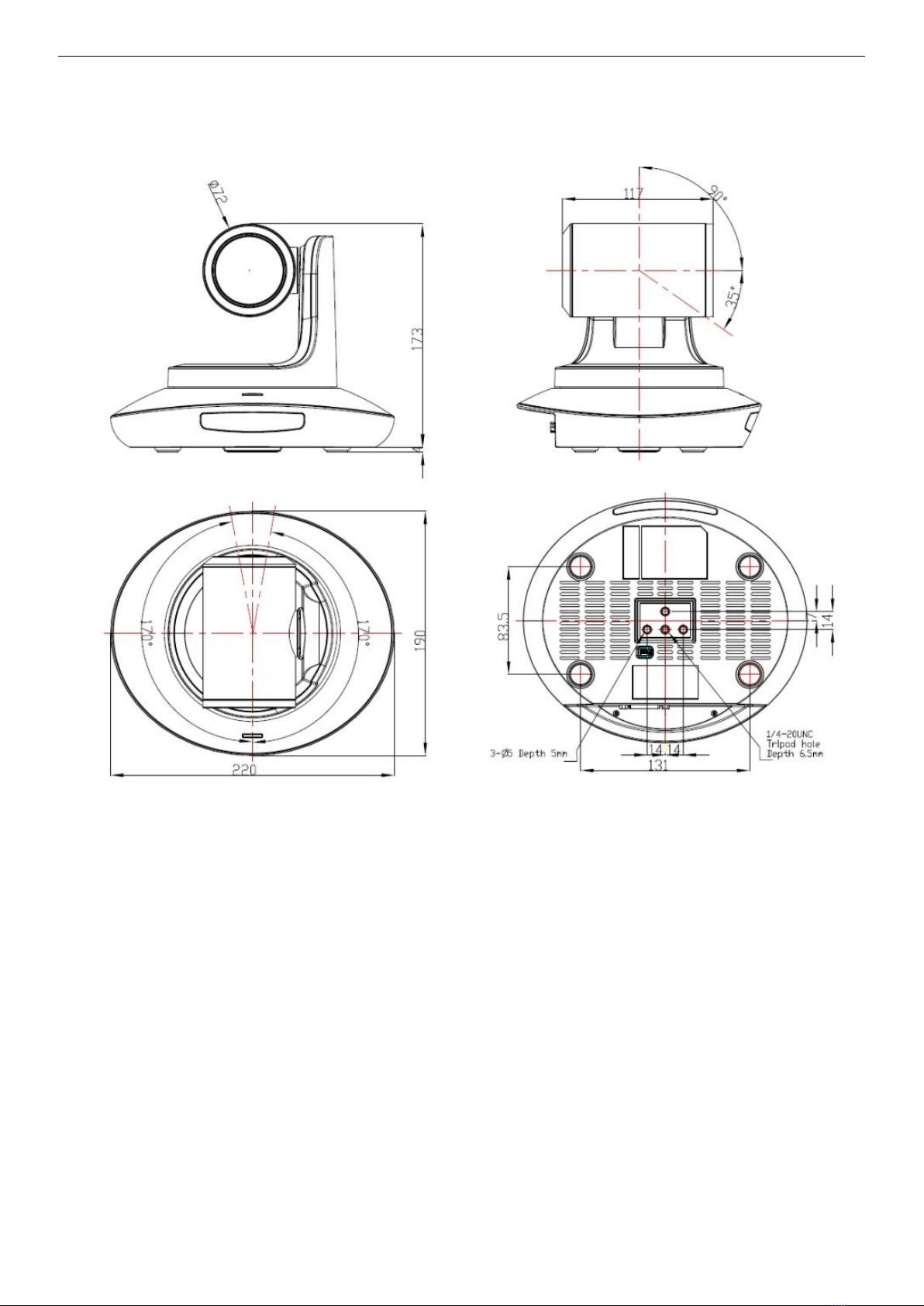

CAMERA DIMENSION(mm)
