Tennant 6200 Schulungshandbuch

IB340243 (6-99)LITHOIN U.S.A.1

No.340243

Machine:6200

Published:6-99/00

System:OPTIONS

INSTRUCTION BULLETIN

NOTE:DONOTDISCARD thePartsList fromtheInstruction Bulletin.Place theParts

Listinthe appropriateplace inyourmachinemanualforfuturereference.

Retaining thePartsListwill make iteasiertoreorderindividualparts and will

save you the costofordering anentire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 384188

SYNOPSIS/PROBLEM:

This kit contains the parts needed to install an overhead guard kit on the model 6200

sweeper.

Please follow step-by-step instructions.

SPECIAL TOOLS/CONSIDERATIONS:Hoist

(Estimated time to complete: 1 hour)

PREPARATION:

(Referto FIG.1)

FORSAFETY:Beforeleaving orservicing machine,stop on levelsurface and setparking

brake.Thenturn off machine and remove key.

INSTALLATION:

(Referto FIG.1)

1. Connect the two rear overhead guard legs (1) to the overhead guard (5) with hex

screws (6), washers (7), and lock nuts (8). (RefertoFIG.1)

2. Carefully hoist the overhead guard above the machine.

3. Slowly lower the overhead guard down on top of the machine to be mounted.

4. Loosely mount the overhead guard side mounting locations to the machine with hex

screws (9), flat washers (4), and lock nuts (10). (RefertoFIG.1)

5. Loosely mount the rear legs (1) to the machine with hex screws (3), flat washers (4), and

leg plates (2). (RefertoFIG.1)

6. Tighten all mounting hardware.

7. Remove hoist from the top of the overhead guard.

IB340243 (6-99)LITHOIN U.S.A.2

2

3

4

5

6

7

8

9

10

1

4

1

4

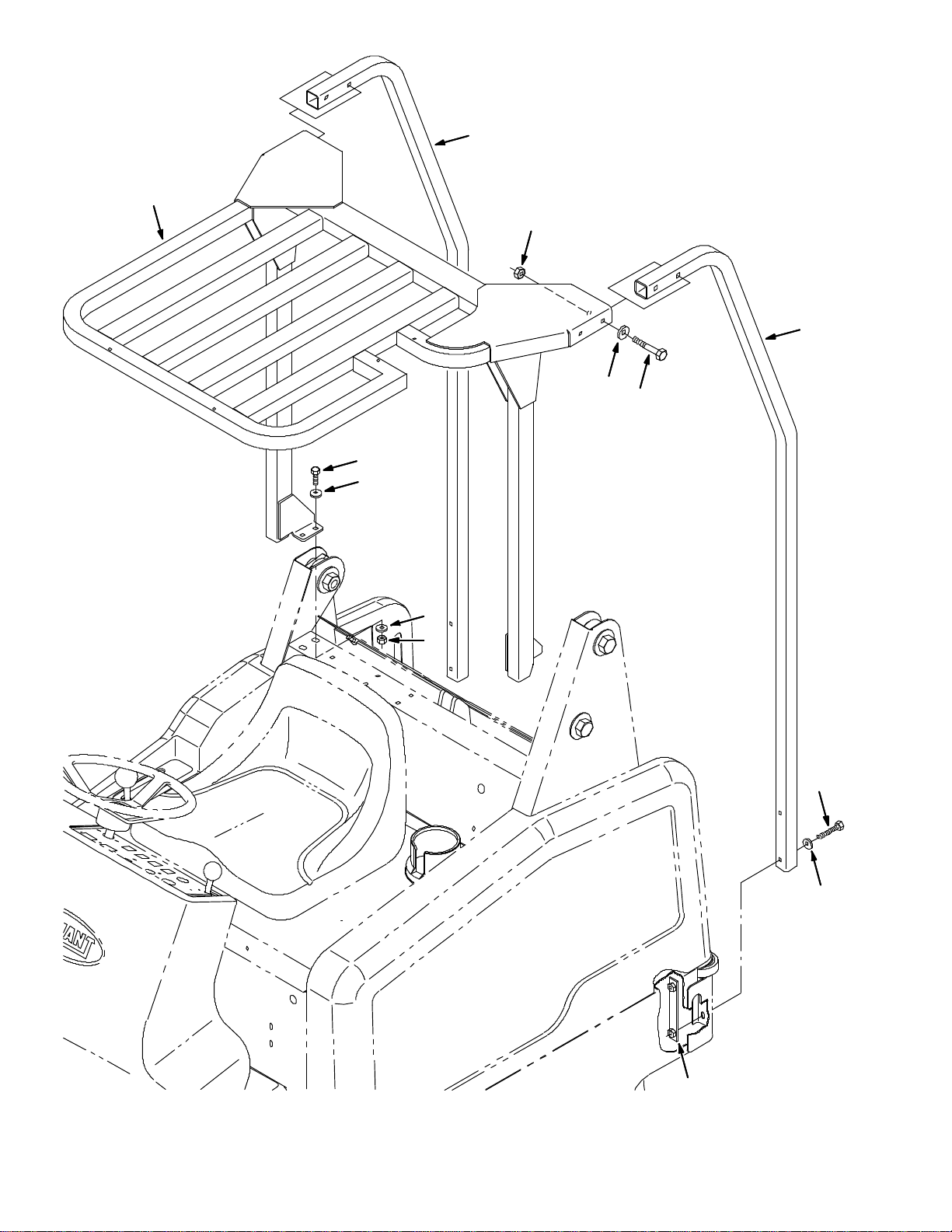

FIG.1-- OVERHEAD GUARD KITINSTALLATION

IB340243 (6-99)LITHOIN U.S.A.3

BILL OFMATERIALSFOROVERHEAD GUARD KIT384188

TENNANT

Ref.PartNo.Description Qty.

1 383668 Leg, rear, Ohg 2

2 384183 Plate, Ohg, leg, rear 2

3 06963 Screw, hex, M10--1.5 X 60, 8.8 4

4 32485 Washer, flat .38 SAE 12

5 384170 Guard wldt, Ohg, top 1

6 33950 Screw, hex, M12--1.75 X 80, Ss 4

7 32486 Washer, flat, .50 SAE 4

8 08711 Nut, hex, lock, M12--1.75, NI 4

9 03192 Screw, hex, M10--1.5 X 30, 8.8 4

10 41430 Nut, hex, Lock, M10--1.5, NI 4

TENNANT COMPANY

P. O. Box 1452

Minneapolis, MN 55440-1452
