MACHINE MAINTENANCE

To keep the machine in good working condition, follow

the machine maintenance procedures.

WARNING: Electrical Hazard. Disconnect

Battery Cables Before Servicing Machine.

DAILY MAINTENANCE

1. Drain and rinse out the recovery tank (Figure 34).

FIG. 34

2. Remove the debris tray and empty (Figure 35)

FIG. 35

3. Remove and clean the float shut--off screen located

in the recovery tank (Figure 36).

FIG. 36

4. Drain the solution tank (Figure 37)

FIG. 37

5. Remove the pad/brush and clean. Rotate pad or

replace when worn (Figure 38).

FIG. 38

6. Wipe the squeegee blades clean (Figure 39).

When machine is not in use, raise squeegee

assembly off floor or hang on storage bracket.

FIG. 39

ENGLISH

16 Tennant T2 (08--11)

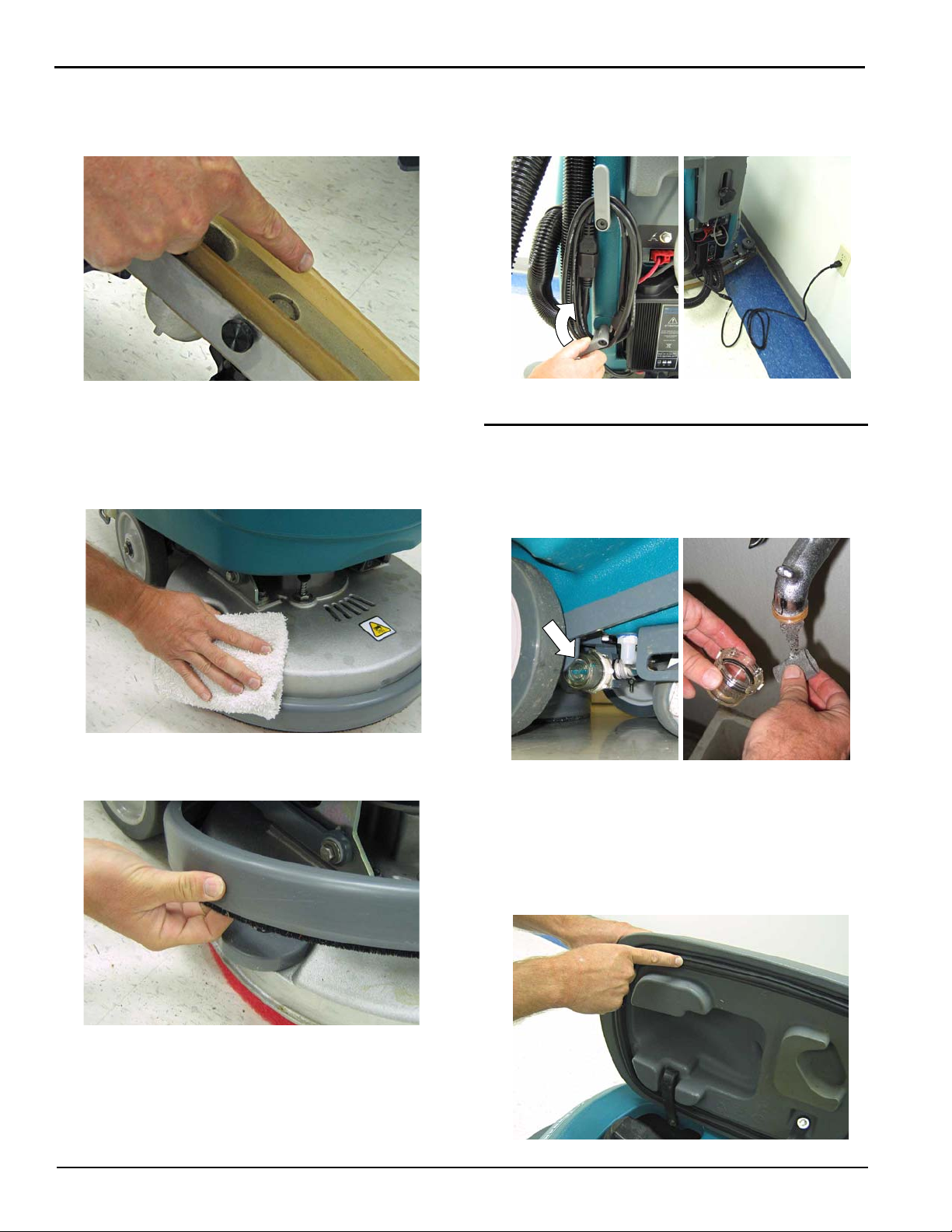

7. Check the condition of the squeegee blade wiping

edge (Figure 40). Rotate blade if worn.

(See SQUEEGEE BLADE REPLACEMENT)

FIG. 40

8. Clean the machine with an all purpose cleaner and

damp cloth (Figure 41).

FOR SAFETY: When cleaning machine, do not

power spray or hose off machine. Electrical

malfunction may occur.

FIG. 41

9. Inspect the condition of the scrub head skirt,

replace if worn or damaged (Figure 42).

FIG. 42

10. Recharge the batteries after a total of 30 minutes

of use or more (Figure 43). (See CHARGING

BATTERIES).

FIG. 43

MONTHLY MAINTENANCE

1. Remove the solution tank filter from underneath the

machine and rinse out the screen (Figure 44).

Make sure the solution tank is empty before

removing filter.

FIG. 44

2. Lead Acid Batteries: Clean the battery tops to

prevent corrosion (See BATTERY

MAINTENANCE).

3. Check for loose battery cable connections.

4. Inspect and clean the recovery tank cover seal

(Figure 45). Replace if damaged.

FIG. 45

ENGLISH

Tennant T2 (08--11) 17

5. Lubricate all pivot points and rollers with silicone

spray then coat with a water resistant grease to

maintain smooth operation.

6. Check the machine for loose nuts and bolts.

7. Check the machine for leaks.

MOTOR MAINTENANCE

Contact an Authorized Tennant Service Center for

carbon brush replacement.

Carbon Brush Replacement Hours

Vacuum Motor 750

Brush Motor 750

WARNING: Electrical Hazard. Disconnect

Battery Cables Before Servicing Machine.

SQUEEGEE BLADE REPLACEMENT

Each squeegee blade has four wiping edges. When the

blades become worn, simply rotate the blades

end-for-end or top-to-bottom for a new wiping edge.

Replace blade if all four edges are worn.

1. Remove the squeegee assembly from the machine.

2. Loosen the band clamp and remove the band from

the squeegee assembly (Figure 46).

FIG. 46

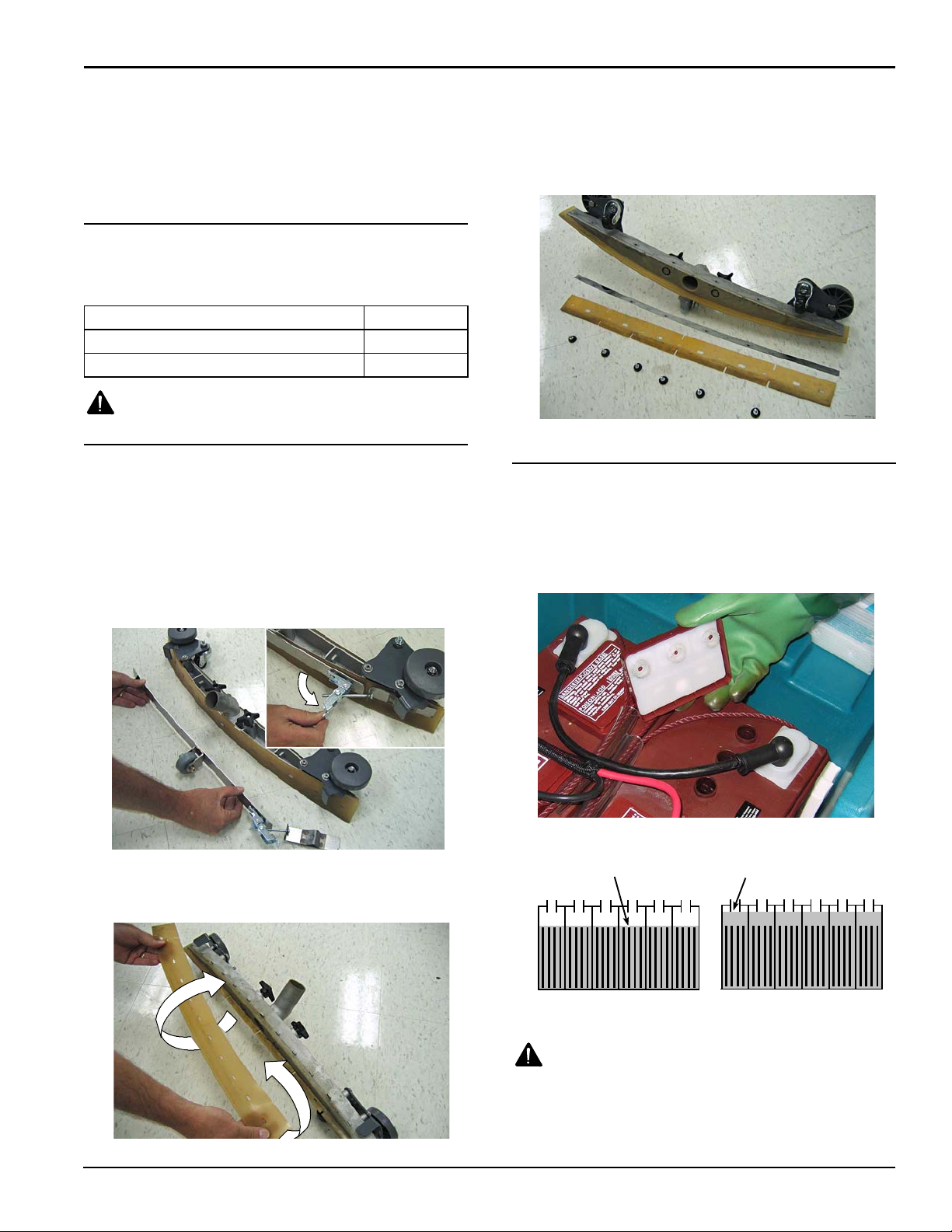

3. Remove and rotate the rear blade to a new wiping

edge. (Figure 47).

FIG. 47

4. Remove the thumb screws from the front blade and

rotate blade end--for--end (Figure 48).

NOTE: Use the 5--slot edge use on VCT flooring (vinyl

composite tile) and the 3--slot edge on grouted tile

floors.

FIG. 48

BATTERY MAINTENANCE (Lead Acid Batteries)

1. Check battery fluid level frequently to prevent

battery damage. The fluid should be at the level

shown (Figure 49). Add distilled water if low. DO

NOT OVERFILL, the fluid may expand and

overflow when charging.

Before Charging After Charging

CORRECT BATTERY FLUID LEVEL:

FIG. 49

WARNING: Fire Or Explosion Hazard.

Batteries Emit Hydrogen Gas. Keep Sparks And

Open Flame Away. Keep Battery Compartment

Open When Charging.

ENGLISH

18 Tennant T2 (08--11)

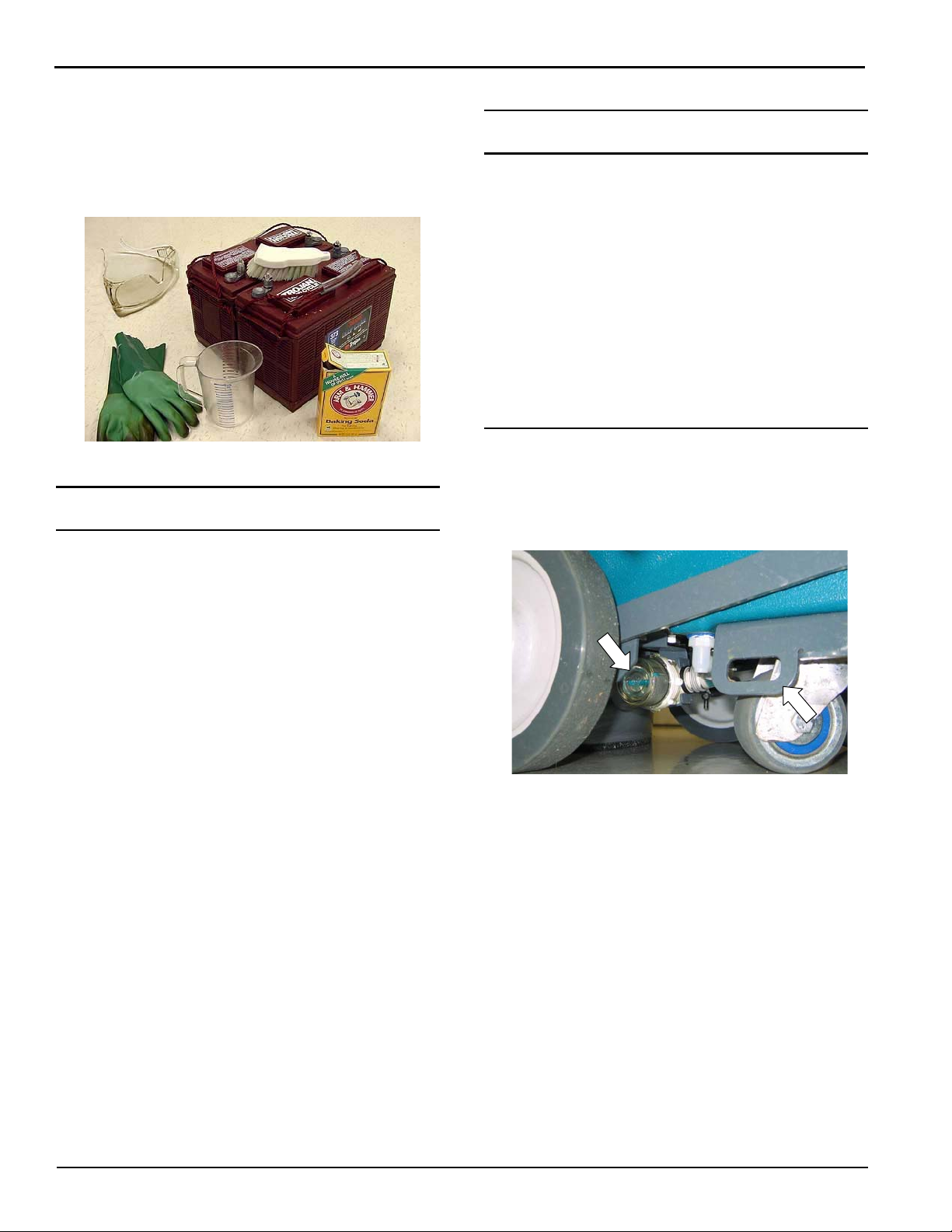

2. Clean the batteries to prevent battery corrosion.

Use a scrub brush with a mixture of baking soda

and water (Figure 50).

FOR SAFETY: When cleaning batteries, wear

protective gloves and eye protection. Avoid

contact with battery acid.

FIG. 50

TRANSPORTING MACHINE

When transporting the machine by use of trailer or

truck, be certain to follow the tie--down procedure

below:

1. Raise the scrub head and hang squeegee

squeegee on storage bracket.

2. Load the machine using a recommended loading

ramp.

3. Position the front of machine up against the front of

the trailer or truck and lower the scrub head.

4. Place a block behind each wheel to prevent the

machine from rolling.

5. Secure machine with tie--down straps. Machine is

equipped with two tie--down brackets (Figure 51).

FOR SAFETY: When transporting machine, use a

recommended ramp when loading/unloading

into/off truck or trailer. Use tie--down straps to

secure machine to truck or trailer.

STORING MACHINE

1. Charge the batteries before storing. Never store

the machine with discharged batteries.

2. Drain and rinse the tanks thoroughly.

3. Store the machine in a dry area with the squeegee

and scrub head in the up position.

4. Open the recovery tank cover to promote air

circulation.

ATTENTION: Do not expose machine to rain, store

indoors.

5. If storing machine in freezing temperatures, follow

the FREEZE PROTECTION instructions below.

FREEZE PROTECTION

1. Drain the solution tank and recovery tank of all

water.

2. Empty the solution tank filter located under the

machine (Figure 51).

FIG. 51

3. Pour 1 gallon/4 liters of recreational vehicle (RV)

antifreeze into the solution tank at full strength.

Do not dilute.

4. Turn the machine power on and operate the

solution flow system. Turn the machine off when

the red RV antifreeze is visible.
