Tennant T5 Bedienungsanleitung

KIT NO. 9008898

On- Board Charger

Replacement Kit

Models: T5

Page1of2

9008899 Rev. 01 (03- 15) Tennant Company Customer Service: (800) 553- 8033 or (763) 513- 2850

This new battery charger replacement kit is equipped with quick- disconnect cable connectors. If the

previous charger is not equipped with the quick- disconnect cable connectors, the supplied jumper

cable is required to install new charger.

IMPORTANT: The quick- disconnect connectors must be secured in a dry place away from the battery

tray. Using the supplied cable- ties, secure the connectors next to the control panel as described in the

below instructions.

INSTALLATION INSTRUCTIONS:

Installation Time: 1 Hour

TOOLS REQUIRED: 9/16”, 5.5mm, 10mm and 13mm

Sockets, 4mm Hex Wrench, Phillips Screwdriver.

BATTERY CHARGER INSTALLATION

1. Park the machine on a clean level surface.

2. Turn off the machine and remove the key.

FOR SAFETY: Before installing kit, stop on

level surface, turn off machine, and remove

key.

3. Remove the right side panel from machine to

allow for battery removal (Figure 1).

FOR SAFETY: Wear protective gloves and eye

protection when handling batteries and battery

cables. Avoid contact with battery acid.

Remove Front

Batteries

Fig. 1

4. Disconnect the positive and negative

battery cables and remove the two front

batteries from machine.

Skip to step 7 if old charger is equipped

with the quick- disconnect cable

connectors.

5. Remove the control box cover to access the

charger cable connections (Figure 2).

Part No. Description Qty.

1059139 Charger, 120VAC, w/ Jumper Cable 1

130773 Tie, Cable, Nyl 11.0L, .14W, 3.0 Max D 5

Kit Contents

Quick- Disconnect

Cable Connectors

Jumper

Cable

Cable- Ties

Remove

2Screws

Fig. 2

6. Connect the jumper cable to terminals as

shown (Figure 3). Replace the cover.

Red Cable to Contactor

Black Cable to Stand- off

Jumper Cable

Fig. 3

On- Board Charger Replacement Kit

INSTALLATION INSTRUCTIONS - Continued

Page2of2

KIT NO. 9008898

9008899 Rev. 01 (03- 15) Tennant Company Customer Service: (800) 553- 8033 or (763) 513- 2850

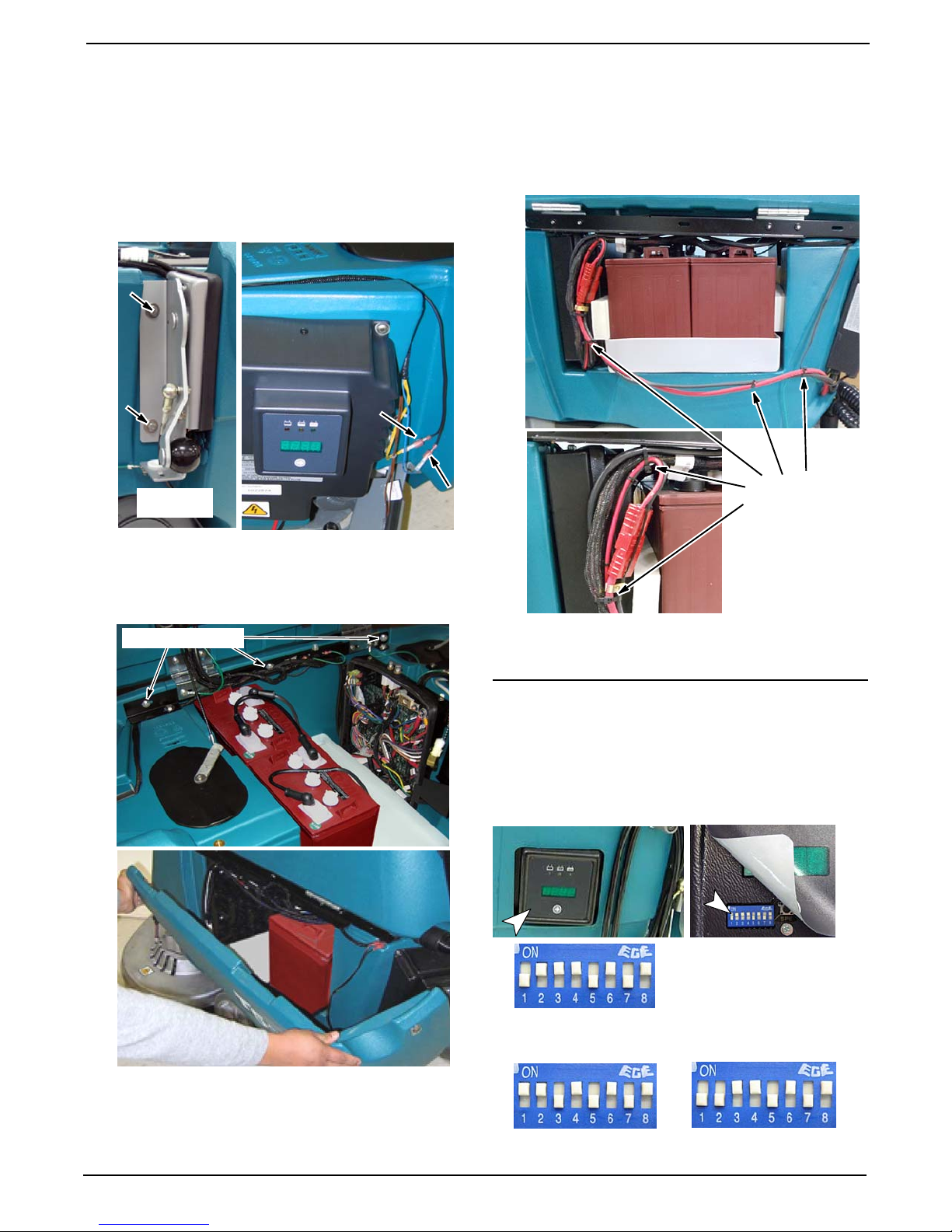

7. Mount the new battery charger to machine.

8. With the squeegee lift bracket removed, connect

the two black charger wires into the yellow/4A/4B

and blue/26 wire terminals (Figure 4). Re- attach

squeegee lift bracket to machine.

Squeegee

Lift Bracket

Fig. 4

9. Remove the machine’s left side panel. Three

mounting screws secure the panel into place

(Figure 5).

3 Mounting Screws

Fig. 5

10. Using the supplied cable- ties, route the

charger cables as shown and secure the

cable connectors next to the control panel as

shown below (Figure 6).

IMPORTANT: The quick- disconnect connectors

must be secured in a dry place away from the

battery tray.

Secure Cable

with Cable- ties

Fig. 6

11. Re- install side panels and batteries.

ON- BOARD BATTERY CHARGER SETTINGS

The charger is preset to charge wet/lead acid

batteries. To change the setting, unplug the

charger, peel up the corner of the display label

and set the DIP switches as shown. Failure to

properly set will result in battery damage.

Wet/Lead Acid Batteries

(Factory Setting)

AGM MK Batteries AGM Discover Batteries

NOTE:The following settings apply to T5 chargers

manufactured after 09/01/2012.
