TES TES-1307 Bedienungsanleitung

Datalogging K/J Thermometer

TES-1307

INSTRUCTION MANUAL

TES ELECTRICAL ELECTRONIC CORP.

1. SAFETY INFORMATION

Read the following safety information carefully before attempting to

operate or service the meter.

Use the meter only as specified in this manual; otherwise, the protection

provided by the meter may be impaired.

Environment conditions

Altitude up to 2000 meters

Relatively humidity 80% max.

Operation Ambient 0～40℃

Safety symbols

When servicing, use only specified replacement parts.

Caution refer to this manual before using the meter.

Dangerous voltages.

Meter is protected throughout by double insulation

or reinforced insulation.

Comply with EMC

2. SPECIFICATIONS

2-1 General Information

Display : Dual display LCD.

Measurement Range : Type K :-190℃to 1333℃(-310℉to 2431℉)

Type J :-190℃to 760℃(-310℉to 1400℉)

Resolution : 0.1℃, 1℃, 0.1℉, 1℉.

Input Protection : 60Vdc, or 24 Vrms ac.

Sampling Rate : 1 time per second.

Memory capacity : 8000 records data, utmost 255 sets of results.

Over range indication : “OL” appears on the display.

Break or no input indication : “- - - - -” appears on the display.

Low battery indication : The is display when the battery voltage

drops below the operating voltage.

Power supply : Single 9V battery 006P 9V or IEC 6F22, or

NEDA 1604.

Battery Life : Approx. 35 hours (Alkaline battery).

Operating temperature 0℃to 40℃(32℉to 104℉) ,

and humidity : 10 –80%RH

Storage temperature -10℃to 60℃(14℉to 140℉) ,

and humidity : 10 –70%RH

Dimensions : 145mm(L) x 68mm(W) x 35mm(H)

5.7(L) x 2.7(W) x 1.4(H) inches

Weight : Approx. 235g with battery.

Accessories : Instruction manual, carry case, battery,

CD Software, RS-232 cable, 9 pin to 25 pin

gender changer.

2-2 Electrical Specifications

Basic Accuracy: ( @23±5℃Calibration ) Accuracy are±( ...％of

reading + degree ) at 18℃to 28℃with relative humidity up to 80％.

For single thermocouple measurements

Function

Resolution

Range

Accuracy

Type K

Type J

℃

0.1℃

-190℃～-0℃

±( 0.5%rdg + 0.7℃)

0℃～1000℃

0℃～760℃

±( 0.1%rdg + 0.5℃)

1.0℃

1000℃～1333℃

±( 0.2%rdg + 1℃)

℉

0.1℉

-310℉～-0℉

±( 0.5%rdg + 1.4℉)

0℉～999.0℉

±( 0.1%rdg + 1.0℉)

1.0℉

1000℉～2431℉

1000℉～1400℉

±( 0.2%rdg + 2℉)

Temperature Coefficient:

0.1 times the applicable accuracy specification per ℃from o℃to 18℃

and 28℃to 40℃( 32℉to 64℉and 82℉to 104℉).

For T1-T2 Measurements accuracy is Basic accuracy add 0.2%rdg.

NOTE

The basic accuracy specification does not include the error of the probe.

Please refer to the probe accuracy specification for additional details.

3. FRONT PANEL DESCRIPTION

(1). Display

(2). Power ON/OFF & Hold button

Press the button to turn on the thermometer.

If we press the button again, it will to enter the Data Hold mode, the “HOLD”

annunciator is displayed. When HOLD mode is selected, the thermometer

held the present readings and stops all further measurements. All button will

be disabled. If we press it again to cancel HOLD mode.

Press and hold this button for 3 seconds, it will turns the thermometer OFF.

(3). MAX/MIN/AVG

Press the button to enter the MAX/MIN/AVG with “

” mode, [displays

the Maximum reading with time, Minimum reading and Average reading

stored in this “

” 4 (memory) mode.]

a). Press the button once, the LCD will show “

MAX”. The timer

located at the left bottom side of LCD display will be started. The LCD

display will show the maximum temperature measurement together with

the time that had been recorded since the meter last reset.

b). Press the button again the LCD will show “

MIN”. The LCD

display will show the minimum temperature measurement together

with the time that had been recorded since the meter last reset.

c). Press the button again, the LCD will show “

AVG ” , “ ”.

The average of the first 10 records.

d). Press the button again, the LCD will show “

” , “ ”. The LCD

display will be back the original status.

e). Press and hold the button for 3 seconds, the recorded maximum and

minimum values will be cleared. The meter will be back to the

normal mode.

Note : When MAX/MIN/AVG mode is selected, except

HOLD

OFF

all

function will be disabled.

The

MAX

MIN

AVG

button is only for main display use.

(4). REL/J :

Pressing this button to enter the relative mode, zero the display as a

reference value, and annunciator “ ” 0.0 is displayed. Press the

button again to exit the relative mode.

Keep pressing this button, and press

HOLD

OFF

button turn on, the

thermocouple type will be set as J-type, when it is on.

Note: If

REL

mode is selected, except

HOLD

OFF

and

REC

ERASE

button, all

function will be disabled.

When the meter is T1-T2 mode, the

REL

button will be disabled.

(5). T1 thermocouple input connector.

(6). T1/T2/T1-T2

When we first power the meter on, the meter main display will show T1,

and the secondary display will show T2.

If we press the button, the meter main display will show T2, and the

secondary display will show T1.

If we press it again, the meter main display will show T1-T2, and the

secondary display will show T1, T2, in circulation.

(7). REC/ERASE :

Data recording / reset datalogger

(8). ℃/℉:

Press this key will change the temperature scale between ℃and ℉.

(9). T2 thermocouple input connector.

(10). RS-232 interface.

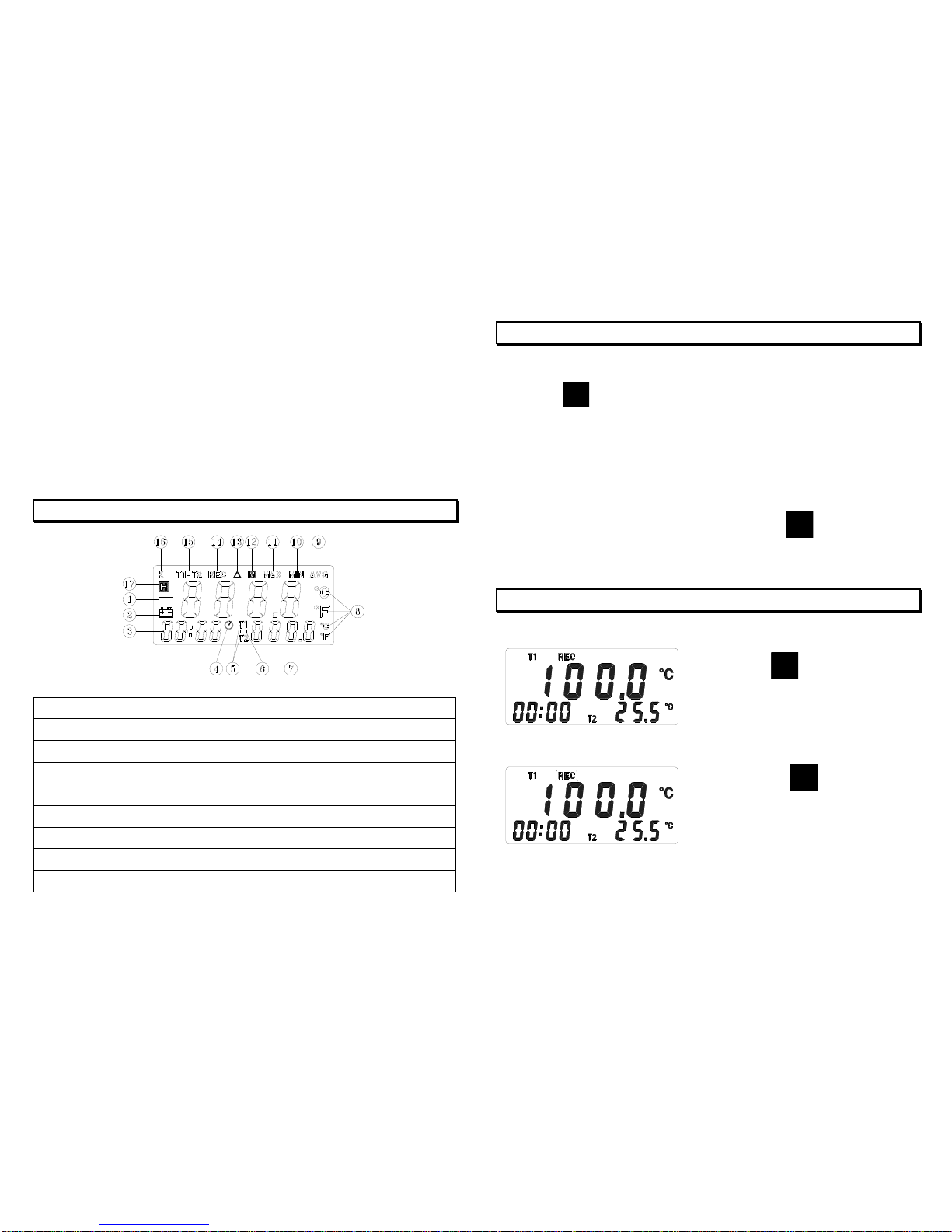

4. LCD DISPLAY DESCRIPTION

(1). Negative polarity

(10). Minimum

(2). Low battery mark

(11). Maximum

(3). Time information

(12). Memory

(4). Timer

(13). Relative mode

(5). Measure mode (secondary display)

(14). Data recording

(6). Negative polarity (secondary display)

(15). Measure mode (Main display)

(7). Measuring value (secondary display)

(16). K-Type

(8). Unit “ ℃, ℉”

(17). Hold function

(9). Average reading

5. OPERATION INSTRUCTIONS

(1). Plug the temperature probe into T1 or T2 input connectors.

(2). Press

HOLD

OFF

button once to power on the meter. The left bottom side of

LCD will show the date and time and then time counting status.

(3). If “- - - - ” appears, it indicates no temperature probe or the probe is

broken.

(4). Input the thermocouple to measure T1 & T2 and LCD will display the value

of T1 & T2 simultaneously. If users want to obtain the difference of

T1,T2 (T1-T2), users can press the button of

T1 T2

T1-T2

. In addition, the

value of T1 & T2 will display and interchange at the right bottom side of LCD.

6. DATA RECORDING/ERASING RECORDS

(1). Record one set :

(2). Record data continuously :

Press

REC

ERASE

button once, and

the “REC” will be displayed.

Pressing

REC

ERASE

button for 3

seconds, “REC” flash 1 time/sec in

the display. To set the interval

time of recording, refer to page 9 .

(3). Stop recording :

(4). Reset datalogger :

Note : If “

REC

ERASE

” pressed while memory is full, “ ” will display.

7. MODE SETTING

MAX

MIN

AVG

▲: Button for increasing the value of Parameters, increasing the

parameter rapid.

REL

: Button for moving to the desired parameter.

7-1 Date Time Setting :

Start with the power off mode. Keep pressing

T1 T2

T1-T2

button, then

press

HOLD

OFF

button turn on, it will be enter setting mode.

Press

(clock) button enter year.

Press

MAX

MIN

AVG

button for increasing the value of parameters, increasing the

parameter rapid.

Press

REL

button for moving to the desired parameter.

Set sequence : yyyyMMddhhmm

Then pls press

(clock) button to save the set value. While in the set

mode, if users intend to escape from the mode and don’t want to save the

value, users can press

HOLD

OFF

to end it.

※Each data you recorded will be saved together with date and time.

7-2 Set for Recording interval time

Start with the power off mode. Keep pressing

T1 T2

T1-T2

button, then

press

HOLD

OFF

button turn on, it will be enter setting mode.

Press

REC

ERASE

(INTV) button to set interval time.

Press

MAX

MIN

AVG

button for increasing the value of parameters, increasing the

parameter rapid.



Press

REL

button to adjust the next parameter (second).

Press the

REC

ERASE

button again to

stop recording.

Start with the power off mode.

Keep pressing

REC

ERASE

button,

then press

HOLD

OFF

button turn on,

the LCD display “dEL”.

Then pls press

REC

ERASE

(INTV) button to save the set value. While in the

set mode, if users intend to escape from the mode and don’t want to save

the value, users can press

HOLD

OFF

to end it.

Note : In the set mode, if users don’t push any button in 30 seconds, then it will

escape from set mode and enter into temperature measurement mode.

8. BATTERY REPLACEMENT

(1). As battery power is not sufficient, LCD will display replacement with one

new battery type 9V is required.

(2). Press bottom cover and push in the direction of the arrow to open.

(3). Disconnect battery from instrument and replace with a standard 9-Volt

battery and replace bottom cover.

9. OPTIONAL ACCESSORY

K ( CA ) type thermocouple.

Model

Range

Tolerances

Description

TP-K01

Bead probe

-50℃to 200℃

-58℉to 392℉

±2.2℃or ±0.75％

(±3.6℉or ±0.75％)

with Teflon tape insulation.

Maximum insulating

temperature : 260℃

TP-K02

immersion

probe

-50℃to 1000℃

-58℉to 1832℉

±2.2℃or ±0.75％

(±3.6℉or ±0.75％)

3.2φ×150 ㎜metal

sheath 100 ㎝

Compensating wire

TP-K03

Surface probe

-50℃to 750℃

-58℉to 1382℉

±2.2℃or ±0.75％

(±3.6℉or ±0.75％)

100 ㎝Compensating wire

12.5φx 94 ㎜handle

TP-K01: Available for general condition, especially for complex

and any place hard to reach.

TP-K02: Available for temperature measurement of liquid, gels or air.

TP-K03: Available for flat or curved surface measurement.

10. RS-232 INTERFACE, SOFTWARE INSTALLATION and OPERATION

For the detailed instruction, please refer to the content of attached

CD-ROM, which has the complete instruction of RS-232 interface,

software operation and relevant information.

RS-232 protocol : are enclosed within the content of CD-ROM,

please open the CD-ROM for details.

TES ELECTRICAL ELECTRONIC CORP.

7F, No. 31, Lane 513, Rui Guang Road, Neihu Dist. Taipei.

Taiwan, R. O. C.

Tel : (02) 2799-3660 Fax : 886-2-2799-5099

E-Mail : tes@ms9.hinet.net http://www.tes.com.tw

Jan-2007-5

Inhaltsverzeichnis

Andere TES Thermometer Handbücher

TES

TES TES-1313 Bedienungsanleitung

TES

TES TES-1306 Bedienungsanleitung

TES

TES TES-1322 Bedienungsanleitung

Beliebte Thermometer Handbücher anderer Marken

Delton

Delton 981A Bedienungsanleitung

Baker

Baker MM2P Bedienungsanleitung

Tarmo

Tarmo 320281 Bedienungsanleitung

Citizen

Citizen CTD 504 Bedienungsanleitung

TFA

TFA 14.1500 Bedienungsanleitung

Vive

Vive DMD1010 Bedienungsanleitung

Gotemp

Gotemp THB4002 Bedienungsanleitung

GREISINGER

GREISINGER G 1202 Bedienungsanleitung

Amprobe

Amprobe TMD-53W Bedienungsanleitung

Trotec

Trotec BP10 Bedienungsanleitung

Radiance instruments

Radiance instruments RT616 Series Bedienungsanleitung

Eurolec

Eurolec IR151 Bedienungsanleitung

Scaneo

Scaneo TS42B Bedienungsanleitung

Sper scientific

Sper scientific 800043 Bedienungsanleitung

Microlife

Microlife NC 200 Bedienungsanleitung

Motorola

Motorola MBP69SN Konfigurationshandbuch

The MeatStick

The MeatStick The MeatStick Bedienungsanleitung

Hama

Hama TH35-A Bedienungsanleitung
