User Manual

MK RO SRBENG BiH/

ENG

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing

and ﬁrst using the appliance, read this user manual carefully, including

its hints and warnings. To avoid unnecessary mistakes and accidents, it is

important to ensure that all people using the appliance are thoroughly

familiar with its operation and safety features. Save these instructions and

make sure that they remain with the appliance if it is moved or sold, so that

everyone using it through its life will be properly informed on appliance use

and safety.

For the safety of life and property keep to the precautions of these user

instructions as the manufacturer is not responsible for damages caused by

omission.

Children and vulnerable people safety

• This appliance can be used by children aged of 8 years and above and

persons with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge if they have supervision or have been

given instructions concerning the use of the appliance in a safe way and

understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload this

appliance.

• Children should be supervised to ensure that they do not play with the

appliance.

• Cleaning and user maintenance should not be done by children unless

they are aged from 8 years and above and supervised.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the

connection cable (as close to the appliance as you can) and remove the

door to prevent playing children from suffering electric shock or closing

themselves in.

• If this appliance features a magnetic door seal to replace an older

appliance having a spring lock (latch) on the door or lid, be sure to make

that spring lack unusable before you discard the old appliance. This will

prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in

the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by the manufacturer.

ENG

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream

makers) inside of refrigerating appliances, unless they are approved for this

purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a long period

of time because it could be very hot.1

WARNING! When positioning the appliance, ensure the supply cord is

not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable

power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a ﬂammable

propellant in this appliance.

• The refrigerant isobutene (R600a) is contained within the refrigerant

circuit of the appliance, a natural gas with a high level of environmental

compatibility, which is nevertheless ﬂammable.

• During transportation and installation of the appliance, be certain that none

of the components of the refrigerant circuit become damaged.

- avoid open ﬂames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the speciﬁcations or modify this product in any way.

Any damage to the cord may cause a short circuit, ﬁre and/or electric shock.

• This appliance is intended to be used in a household and similar

applications such as

- staff kitchen areas in shops, ofﬁces and other working environments;

- farm houses and by clients in hotels, motels and other residential type

environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor

and etc.) must be replaced by a certiﬁed service agent or qualiﬁed service

personnel.

WARNING! The light bulb supplied with this appliance is a “special use

light bulb” usable only with the appliance supplied. This “special use lamp” is

not usable for domestic lighting.1

• Power cord must not be lengthened.

• Make sure that the power plug is not squashed or damaged by the back

of the appliance. A squashed or damaged power plug may overheat and

cause a ﬁre.

1If there is a light in the compartment.

ENG

• Make sure that you can come to the main plug of the appliance.

• Do not pull the main cable.

• If the power plug socket is loose, do not insert the power plug. There is a

risk of electric shock or ﬁre.

• You must not operate the appliance without the lamp.

• This appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer compartment if your hands

are damp/wet, as this could cause skin abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot things on the plastic parts in the appliance.

• Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. 2

• Store pre-packed frozen food in accordance with the frozen food

manufacture, s instructions. 2

• Appliance, s manufactures storage recommendations should be strictly

adhered to. Refer to relevant instructions.

• Do not place carbonated of ﬁzzy drinks in the freezer compartment as it

creates pressure on the container, which may cause it to explode, resulting

in damage to the appliance.2

• Ice lollies can cause frost burns if consumed straight from the appliance.2

To avoid contamination of food, please respect the following

instructions

• Opening the door for long periods can cause a signiﬁcant increase of the

temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible

drainage systems.

• Clean water tanks if they have not been used for 48h; ﬂush the water

system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and ﬁsh in suitable containers in the refrigerator, so that it is

not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance)

are suitable for storing pre-frozen food, storing or making ice-cream and

making ice cubes.

• One-, two- and three -star compartments (if they are presented in the

appliance) are not suitable for the freezing of fresh food.

2If there is a freezer compartment.

ENG

• If the appliance is left empty for long periods, switch off, defrost, clean,

dry and leave the door open to prevent mount developing within the

appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the main plug

from the power socket.

• Do not clean the appliance with metal objects.

• Do not use sharp objects to remove frost from the appliance. Use a plastic

scraper. 2

• Regularly examine the drain in the refrigerator for defrosted water. If

necessary, clean the drain. If the drain is blocked, water will collect at the

bottom of the appliance. 3

Installation

• IMPORTANT! For electrical connection carefully follow the instructions

given in speciﬁc paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect

the appliance if it is damaged. Report possible damages immediately to

the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to

allow the oil to ﬂow back in the compressor.

• Adequate air circulation should be provided around the appliance, lacking

this leads to overheating. To achieve sufﬁcient ventilation, follow the

instructions relevant to installation.

• Wherever possible the spacers of the product should be against a wall

to avoid touching or catching warm parts (compressor, con- denser) to

prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the main plug is accessible after the installation of the

appliance.

Service

• Any electrical work required to do the servicing of the appliance should be

carried out by a qualiﬁed electrician or competent person.

• This product must be serviced by an authorized Service Center, and only

genuine spare parts must be used.

2If there is a freezer compartment.

3If there is a fresh-food storage compartment.

ENG

Energy saving

• Do not put hot food in the appliance;

• Do not pack food close together as this prevents air circulating;

• Make sure food does not touch the back of the compartment(s);

• If electricity goes off, do not open the door(s);

• Do not open the door(s) frequently;

• Do not keep the door(s) open for a long time;

• Do not set the thermostat on exceeding cold temperatures;

• All accessories, such as drawers, shelves balconies, should be kept there for

lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone

layer, in either its refrigerant circuit or insulation materials. The appliance shall

not be discarded together with the urban refuse and rubbish. The insulation

foam contains ﬂammable gases: the appliance shall be disposed according

to the appliance regulations which can be obtained from your local

authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaging indicates that this

product may not be treated as household waste. Instead it should be

taken to the appropriate collection point for the recycling of electrical

and electronic equipment. By ensuring this product is disposed of correctly,

you will help prevent potential negative consequences to the environment

and human health, which could otherwise be caused by inappropriate waste

handling of this product. For more detailed information about recycling of

this product, please contact your local council, your household waste

disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable.

Dispose the packaging in a suitable collection container to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.

2. Cut off the mains cable and discard it.

ENG

OVERVIEW

Note: Above picture

is for reference only.

Real appliance may be

different.

Fridge door shelves

Freezer shelves Fridge shelves

Freezer door shelves

Water Tank

Freezer Drawer(s)

Covers for

fridge vegetable

containers

Fridge vegetable

containers

Freezer drawer covers

Leveling Feet

WARNING!

During using, service and disposal the appliance, please pay

attention to symbol similar as left side, which is located on rear of

appliance (rear panel or compressor) and with yellow or orange

color.

It’s risk of ﬁre warning symbol. There are ﬂammable materials in

refrigerant pipes and compressor.

Please be far away ﬁre source during using, service and disposal.

ENG

INSTALLATION

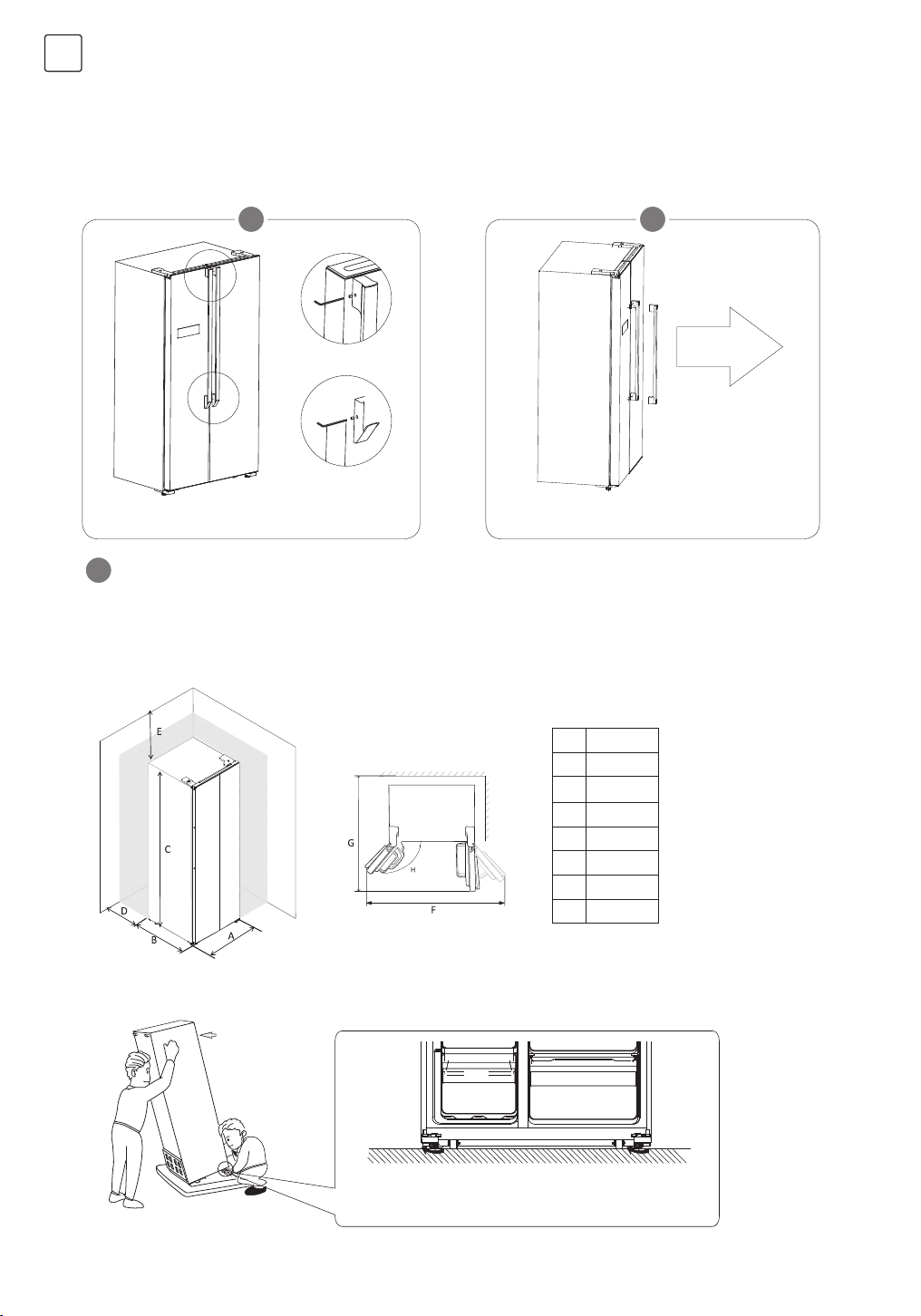

Unscrew hinge cover by

Philips screwdriver. Disconnect the harness.

1 2

Remove the doors

Tools required: Philips screwdriver, Flat bladed screwdriver.

• Ensure the unit is unplugged and empty.

• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the

door removing process.

• All parts removed must be saved to do the reinstallation of the door.

• Do not lay the unit ﬂat as this may damage the coolant system.

• It’s better that 2 people handle the unit during assembly.

Unscrew top hinge.

After the appliance is positioned, install the doors as reversed process.

Lift the door and place it on a soft

pad. Then remove another door as

same process.

Unscrew bottom hinges.

3 4 5

ENG

Space Requirement

• Keep enough space of door open.

• Keep at least 50mm gap at two sides and back.

• Clockwise rotate feet to heighten them by hand

• Anticlockwise rotate feet to lower ther by hand

Levelling the refrigerator

Doors

If kitchen door is not wide enough to pass the refrigerator, handle and doors can be removed according to bellow process.

Remove the handles

Tool required: Hex wrench in accessary bag.

• Ensure the unit is unplugged and empty.

• All parts removed must be saved to do the reinstallation of the door.

1 2

Unscrew handles with Hex wrench. Pull the handles to remove them.

After the appliance is positioned, install the handles by reversed process.

A900

B660

C1770

Dmin=50

Emin=50

F1800

G1560

H135�

Inhaltsverzeichnis

Sprachen:

Andere Tesla Kühlschrank Handbücher

Tesla

Tesla RD2101EH Bedienungsanleitung

Tesla

Tesla RB5201FMXE Bedienungsanleitung

Tesla

Tesla RB5210FHXE Bedienungsanleitung

Tesla

Tesla RS2400M1 Bedienungsanleitung

Tesla

Tesla RS3600FM Bedienungsanleitung

Tesla

Tesla RB5200FMX Bedienungsanleitung

Tesla

Tesla RS3600FM Bedienungsanleitung

Tesla

Tesla RS1300M1 Bedienungsanleitung

Tesla

Tesla RC2600H Bedienungsanleitung

Tesla

Tesla RS0400M1 Bedienungsanleitung

Tesla

Tesla RS0905H Bedienungsanleitung

Tesla

Tesla RM4700FHB Bedienungsanleitung

Tesla

Tesla RS0906H Bedienungsanleitung

Tesla

Tesla RC2700H Bedienungsanleitung

Tesla

Tesla Larder RS0900H Bedienungsanleitung

Tesla

Tesla RB4600FMXE Bedienungsanleitung

Tesla

Tesla RB4600FMX Bedienungsanleitung

Tesla

Tesla RC3100FHX Bedienungsanleitung

Tesla

Tesla RD2100M Bedienungsanleitung

Tesla

Tesla RS1100MB Bedienungsanleitung

Tesla

Tesla RS2400H Bedienungsanleitung

Tesla

Tesla RS0400M Bedienungsanleitung

Tesla

Tesla RC3200FHXE Bedienungsanleitung

Tesla

Tesla RI2700M1 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
