User's Guide

SLUU174A –March 2006–Revised October 2013

bq26500EVM Single-Cell Battery Fuel Gauge Evaluation

Module

The bq26500EVM is a complete evaluation system for the bq26500 single cell Li-Ion and Li-Polymer

battery gas gauge device. The EVM includes one bq26500 circuit module, CD ROM including Windows®-

based PC software and support documentation. An EV2300 board for gas gauge evaluation is required to

interface this EVM with the PC and can be purchased separately.

Contents

1 Introduction .................................................................................................................. 2

2 bq26500EVM-Based Circuit Module ..................................................................................... 3

3 bq26500EVM Circuit Module Schematic ................................................................................. 4

4 Circuit Module Physical Layouts .......................................................................................... 5

5 bq26500EVM Circuit Module List of Materials .......................................................................... 7

6 bq26500EVM Circuit Module Performance Specification Summary ................................................. 7

7 EVM Hardware and Software Setup ..................................................................................... 7

8 Operation ..................................................................................................................... 9

List of Figures

1 bq26500EVM Circuit Module Schematic................................................................................. 4

2 bq26500EVM Topside Assembly ......................................................................................... 5

3 bq26500EVM Silkscreen................................................................................................... 5

4 bq26500EVM Layer 1 Layout ............................................................................................. 6

5 bq26500EVM Layer 2 Layout ............................................................................................. 6

6 bq26500EVM Circuit Module Connection to Cells and System Load/Charger ..................................... 8

7 Initial Register Screen...................................................................................................... 9

8 EEPROM Screen.......................................................................................................... 10

9 Pro Screen ................................................................................................................. 11

List of Tables

1 bq26500EVM Ordering Information....................................................................................... 2

2 bq26500EVM Test Points.................................................................................................. 3

3 bq26500EVM Bill of Materials............................................................................................. 7

4 Performance Specification Summary..................................................................................... 7

5 Circuit Module-to-EV2300 Connection................................................................................... 8

6 Example Data Log......................................................................................................... 12

Windows is a registered trademark of Microsoft Corporation.

SLUU174A –March 2006–Revised October 2013 bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module

Introduction

www.ti.com

1 Introduction

The bq26500EVM is a complete evaluation system for the bq26500 single cell Li-Ion and Li-Polymer

battery gas gauge device. The EVM includes one bq26500 circuit module, CD ROM including Windows-

based PC software and support documentation. An EV2300 board for gas gauge evaluation is required to

interface this EVM with the PC and can be purchased separately. The circuit module includes one

bq26500, a current sense resistor and all other components on-board necessary to calculate remaining

battery capacity and predict at rate time to empty. The circuit module connects directly across the cell in a

battery. With the PC interface board and software, the user can read the bq26500 data registers, program

the on-chip configuration EEPROM, and evaluate the functions of the bq26500 under different charge and

discharge conditions.

1.1 Features

• Complete evaluation system for the bq26500 battery gas gauge

• Populated circuit module for quick setup

• PC software and interface board for easy evaluation

• Software allows EEPROM programming and data logging for system analysis

1.2 Kit Contents

1. bq26500 circuit module with sense resistor

2. CD ROM including Windows-based PC software and support documentation

3. Set of support documentation

1.3 Ordering Information

Table 1 contains the ordering information for the EVM

Table 1. bq26500EVM Ordering Information

EVM Part Number PC Interface Board Chemistry Pack Voltage Capacity

bq26500EVM−001 USB Li-Ion 2.6 V to 4.5 V 100 to 2000 mah

2bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module SLUU174A –March 2006–Revised October 2013

Submit Documentation Feedback

www.ti.com

bq26500EVM-Based Circuit Module

2 bq26500EVM-Based Circuit Module

The bq26500EVM based circuit module is an example circuit for battery fuel gauging of a single cell Li-

Ion/Li-Polymer battery pack. There are two separate circuits on the EVM module. One is the active

bq26500 fuel gauging circuitry; the other is the logic and power control to program the on-chip

configuration EEPROM of the bq26500. In a typical application, only the active fuel gauging circuitry is

required. The EEPROM programming circuitry would be required in a test setup to configure the bq26500

for the application by programming the EEPROM.

Contacts on the circuit module provide direct connection to the cell (J1−1, J2−2), the serial

communications port (J1−3). The system load and charger connect across J1−1 and J2−1.

2.1 Test Points

Table 2 describes the EVM test points and lists their signal names.

Table 2. bq26500EVM Test Points

Test Point Signal Name description

J1−1 PACK+ Cell positive/pack positive

J1−2 GPIO GPIO pin of the bq26500

J1−3 HDQ Serial communications port

J2−1 PACK−Pack negative

J2−2 BAT−Cell negative

J3−1 21V High voltage for EEPROM programming

J3−2 PROG Input for timing of EEPROM programming

pulse

J3−3 VSS Programming ground

J4 1−2 jumper position for programming EEPROM

2−3 jumper position for normal bq26500 operation (fuel

gauging)

SLUU174A –March 2006–Revised October 2013 bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module

bq26500EVM Circuit Module Schematic

www.ti.com

3 bq26500EVM Circuit Module Schematic

Figure 1 shows the circuit module schematic diagram.

Figure 1. bq26500EVM Circuit Module Schematic

4bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module SLUU174A –March 2006–Revised October 2013

Submit Documentation Feedback

www.ti.com

Circuit Module Physical Layouts

4 Circuit Module Physical Layouts

This chapter contains the board layout and assembly drawings for the bq26500EVM circuit module.

4.1 Board Layout

Figure 2 through Figure 5 show the PCB layers and assembly drawing for the bq26500EVM circuit

module.

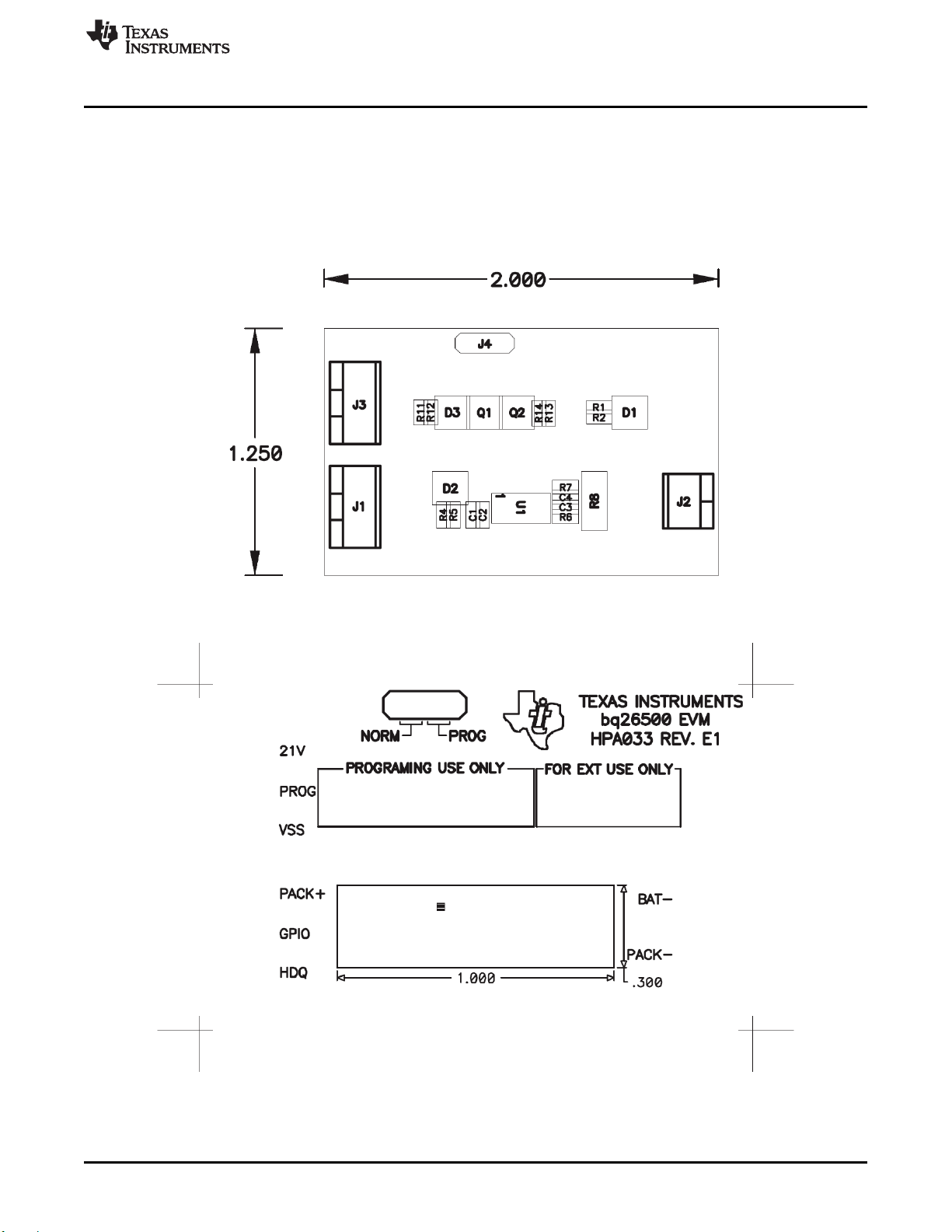

Figure 2. bq26500EVM Topside Assembly

Figure 3. bq26500EVM Silkscreen

SLUU174A –March 2006–Revised October 2013 bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module

Circuit Module Physical Layouts

www.ti.com

Figure 4. bq26500EVM Layer 1 Layout

Figure 5. bq26500EVM Layer 2 Layout

6bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module SLUU174A –March 2006–Revised October 2013

Submit Documentation Feedback

www.ti.com

bq26500EVM Circuit Module List of Materials

5 bq26500EVM Circuit Module List of Materials

Table 3 displays the EVM bill of materials.

Table 3. bq26500EVM Bill of Materials

Ref QTY Description MFR Part Number

Designators

C1, C2, C3, C4 4 Capacitor, ceramic, 0.1 µF, 16 V, X7R, 603 muRata GRM39X7R104K16

D1 1 Diode, Zener, 22 V, 350 mW, SOT23 Diodes, Inc. BZX84C22

D2, D3 2 Diode, Zener, 5.6 V, 350 mW, SOT23 Diodes, Inc. BZX84C5V6T

Q1 1 MOSFET, N-channel, 2N7002, 60 V, 115 mA, 1.2 Ω, Vishay−Liteon 2N7002DICT

SOT23

Q2 1 MOSFET, P-channel, ZVP3306F, −60 V, 0.09 A, 14 Ω, Zetex ZVP3306F

SOT23

R1, R2, R4, R5, 5 Resistor, chip, 100 Ω, 1/16 W, 5%, 603 Std Std

R11

R13, R14 2 Resistor, Chip, 1 M, 1/16 W, 5%, 603 Std Std

R6, R7, R12 3 Resistor, Chip, 100 kΩ, 1/16 W, 5%, 603 Std Std

R8 1 Resistor, Chip, 0.020 Ω, 1/2 W, 2%, 2010 Dale WSL2010−R020

U1 1 Single cell Li-Ion/Polymer gas gauge device, TSSOP−08 Texas Instruments bq26500PW

J1, J3 2 Terminal blocks, 3 position OST ED1515

J2 1 Terminal blocks, 2 position OST ED1514

J4 1 Header, 3-pin, 100-mil spacing, (36-pin strip) Sullins PTC36SAAN

N/A 1 Shunt Any HPA033

N/A 1 PCB Any HPA033

6 bq26500EVM Circuit Module Performance Specification Summary

This section summarizes the performance specifications of the bq26500EVM circuit module. Table 4 gives

the performance specifications of the circuit.

Table 4. Performance Specification Summary

Specification MIN TYP MAX Units

Input Voltage PACK+/BAT−2.6 4.5 V

Charge and Discharge Current 3(1) A

(1) Charge and discharge max. is limited by the PCB design and power dissipation of the 20-mΩ, 1/2-W sense resistor, included in

the kit.

7 EVM Hardware and Software Setup

This section describes how to install the bq26500EVM PC software and how to connect the different

components of the EVM.

7.1 Software Installation

Install the bq26500 evaluation software with steps through through :

1. Insert CD ROM into a CD ROM drive.

2. Select the CD ROM drive using My Computer or File Manager.

3. Select the ReadMeFirst.txt file.

4. Follow the instructions to install USB drivers for EV2300.

5. After installing the USB drivers for EV2300, double-click on the Setup.exe icon.

6. The setup program installs a windows application group.

SLUU174A –March 2006–Revised October 2013 bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module

EVM Hardware and Software Setup

www.ti.com

7.2 Hardware Connection

The three hardware components to the bq26500EVM are:

• The bq26500EVM circuit module,

• The PC interface board,

• And the PC

7.2.1 Connecting the bq26500EVM Circuit Module to a Battery Pack

Figure 6 shows how to connect the bq26500EVM circuit module to a Li-Ion cell and the system

load/charger.

Figure 6. bq26500EVM Circuit Module Connection to Cells and System Load/Charger

7.2.2 PC Interface Connection

The following steps configure the hardware for interface to the PC:

1. Connect colored wires that are included with EV2300 to bq26500EVM using Table 5 as a guide.

2. Connect the connector with colored wires to the HDQ connector that is on EV2300. HDQ connection is

located on the top right of EV2300.

3. Connect the PC USB cable to the EV2300 and the PC USB port.

The bq26500EVM is now set up for operation.

Table 5 lists the circuit module-to-EV2300 connections.

Table 5. Circuit Module-to-EV2300 Connection

bq26500EVM Color

HDQ BROWN

PACK−BLACK

PROG WHITE

PACK+(1) RED

(1) This connection is not useful when using a system load, charger or a power source (battery or external power supply).

8bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module SLUU174A –March 2006–Revised October 2013

Submit Documentation Feedback

www.ti.com

Operation

8 Operation

This section details the operation of the bq26500EVM software.

8.1 Starting the Program

Run the program from the Start→Programs→Texas Instruments→bq26500 Battery Monitor menu

sequence. The software defaults to PC USB port for communication. If the EV2300 is connected to USB

port, the program should load and display the initial data screen as shown in Figure 7.

Figure 7. Initial Register Screen

If the EV2300 is not connected to a USB port, the program will display a USB error message and then

display the initial data screen with no data in the register locations.

The com port can be changed by selecting the port under the options menu.

8.2 Initialization

This section describes the settings that must be made before the bq26500 is evaluated.

8.2.1 Loading the Sense Resistor Value

The bq26500EVM comes with a 20-mΩsense resistor on the circuit board. Make sure the sense resistor

value is entered in the RS box at the top of the initial register screen. This value is used by the PC

program to convert the bq26500 data set to engineering units. Checking the display engineering units box

displays the data set in engineering units. No check mark displays the data set just as the bq26500

calculates them, ie, in units of 3.0-µVh counts.

8.2.2 Programming the bq26500 EEPROM

Each bq26500 is programmed at the factory with default values in the EEPROM. The values in EEPROM

should be changed to match specific applications. The EEPROM values can be read by using the

EEPROM screen (Figure 8).

SLUU174A –March 2006–Revised October 2013 bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module

Operation

www.ti.com

Figure 8. EEPROM Screen

The values in the EEPROM can be easily changed using the EVM’s auto programming feature. To use the

auto program feature:

1. Make sure VOUT of the EV2300 is connected to PROG of the EVM.

2. Connect a 21-V supply across 21 V (J3−1) and VSS (J3−3).

3. Click on the use auto-programming box to enable auto EEPROM programming.

To change the EEPROM values simply click on the value to be changed, enter the new value, and press

enter.

The EEPROM values can be stored in a file on the PC by using the File|Save Gas Gauge Flash

Constants command from the pull down menu. Similarly, a saved file can be load by using the File|Open

Gas Gauge Flash Constants command. Once the file is called up, the Write all EEPROM button can be

used to write all the EEPROM values at once.

NOTE: Changing EEPROM data affects critical aspects of the bq26500 operation. Please review the

bq26500 data sheet to determine how to develop new data for the EEPROM based on your

application. It is recommend to first save the default EEPROM data as a file first before

changing the data. In this way, the default data programming can easily be restored.

The bq26500 automatically uses the new EEPROM in its calculations, once programmed.

8.2.3 Resetting the bq26500

The bq26500 can be reset at anytime by using the Options|Special Options|Reset bq26500 from the

pulldown menu. When reset, the bq26500 loads the configuration values from EEPROM and set the

remaining capacity registers to zero.

10 bq26500EVM Single-Cell Battery Fuel Gauge Evaluation Module SLUU174A –March 2006–Revised October 2013

Submit Documentation Feedback

Inhaltsverzeichnis

Andere Texas Instruments Steuereinheit Handbücher

Texas Instruments

Texas Instruments XDS110 Bedienungsanleitung

Texas Instruments

Texas Instruments 2000 series Bedienungsanleitung

Texas Instruments

Texas Instruments TPS650380EVM-054 Bedienungsanleitung

Texas Instruments

Texas Instruments TAS5086-5186V6EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1254 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS254900AQ1EVM-003 Bedienungsanleitung

Texas Instruments

Texas Instruments TPA2039D1 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS54672EVM-222 Bedienungsanleitung

Texas Instruments

Texas Instruments VCA5807 Bedienungsanleitung

Texas Instruments

Texas Instruments bq76PL536 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments BQ25672EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPA4411 Bedienungsanleitung

Texas Instruments

Texas Instruments LMZ35003EVM-001 Bedienungsanleitung

Texas Instruments

Texas Instruments ISO7220 Series Bedienungsanleitung

Texas Instruments

Texas Instruments DAC38RF8xEVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments PGA2505EVMV2 Bedienungsanleitung

Texas Instruments

Texas Instruments SWIFT TPS548A20 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS272C45 Bedienungsanleitung

Texas Instruments

Texas Instruments SimpleLink CC3200MOD Bedienungsanleitung

Texas Instruments

Texas Instruments SimpleLink Wi-Fi BoosterPack CC3120 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS25200EVM-618 Bedienungsanleitung

Texas Instruments

Texas Instruments TPA3251 Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320C3 Series Bedienungsanleitung

Texas Instruments

Texas Instruments UCC27423-Q1 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung

Texas Instruments bq26500EVM Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken
