Texas Instruments TPS7B8401EVM Bedienungsanleitung

SBVU060A–March 2020–Revised April 2020

TPS7B8401EVM Evaluation Module

User's Guide

SBVU060A–March 2020–Revised April 2020

TPS7B8401EVM Evaluation Module

Figure 1. TPS7B8401EVM Evaluation Module

This user’s guide describes the operational use of the TPS7B8401EVM evaluation module (EVM) as a

reference design for engineering demonstration and evaluation of the TPS7B8401 low-dropout (LDO)

linear regulator. Included in this user’s guide are setup and operating instructions, thermal and layout

guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).

Contents

1 Introduction ................................................................................................................... 2

2 PCB Layout................................................................................................................... 4

3 Bill of Materials............................................................................................................... 6

List of Figures

1 TPS7B8401EVM Evaluation Module...................................................................................... 1

2 Assembly Layer.............................................................................................................. 4

3 Top Layer Routing........................................................................................................... 4

4 First Middle Layer............................................................................................................ 4

5 Second Middle Layer........................................................................................................ 4

6 Bottom Layer Routing....................................................................................................... 5

List of Tables

1 TPS7B8401EVM BOM ..................................................................................................... 6

Introduction

www.ti.com

2SBVU060A–March 2020–Revised April 2020

Submit Documentation Feedback

TPS7B8401EVM Evaluation Module

Trademarks

All trademarks are the property of their respective owners.

1 Introduction

TI's TPS7B8401EVM helps design engineers evaluate the operation and performance of the TPS7B8401

family of linear regulators for possible use in their own circuit application. This particular EVM

configuration contains a single wide-input voltage, small size, linear regulator for a wide range of

applications. The regulator is capable of delivering up to 150 mA to the load with low VIN to VOUT dropout

voltage. For stability, use a minimum derated capacitance of 1-µF (or larger) output capacitor.

1.1 Before You Begin

The following warnings and cautions are noted for the safety of anyone using or working close to the

TPS7B8401EVM. Observe all safety precautions.

WARNING

Hot surface. Contact may cause burns. Do not touch.

CAUTION

The circuit module can be damaged by overtemperature. To avoid damage,

monitor the temperature during evaluation and provide cooling, as needed, for

your system environment.

CAUTION

Some power supplies can be damaged by application of external voltages. If

you are using more than one power supply, check your equipment

requirements and use blocking diodes or other isolation techniques, as needed,

to prevent damage to your equipment.

CAUTION

The circuit module is not a finished product or electrical appliance. The module

does not contain current or voltage thresholds for circuit protection. It must be

used by qualified personnel with additional equipment for evaluation only.

www.ti.com

Introduction

SBVU060A–March 2020–Revised April 2020

TPS7B8401EVM Evaluation Module

1.2 Inputs/Outputs Connectors and Jumper Descriptions

1.2.1 J1 – OUT_S

Regulated output voltage sense.

1.2.2 J2 – OUT

Regulated output power supply voltage screw terminal.

1.2.3 J3 – IN

Input voltage banana connector.

1.2.4 J4 – IN_S

Input voltage sense.

1.2.5 J5 –IN_ST

Input supply voltage screw terminal. Twist together the positive input lead and ground return lead from the

input power supply, and keep them as short as possible to minimize input inductance.

1.2.6 J6 – EN

Output voltage enable. To enable the output voltage, connect the jumper to short VI to EN.

1.2.7 J7 – OUT

Regulated output voltage banana connector.

1.2.8 J8 – GND

Input supply ground return banana connector.

1.2.9 J9 – GND

Regulated output voltage return banana connector.

1.2.10 J10 – Setpoint Selection

Use the jumper to short the correct resistor to GND for the desired output voltage.

1.2.11 J11 – Test Hookup

Intended for test purposes only.

1.2.12 TP1 – IN

Input voltage test point.

1.2.13 TP2 – OUT

Regulated output voltage test point.

1.2.14 TP3 – GND

Ground test point.

Introduction

www.ti.com

4SBVU060A–March 2020–Revised April 2020

Submit Documentation Feedback

TPS7B8401EVM Evaluation Module

1.2.15 TP4 – GND

Ground test point.

1.2.16 TP5 – GND

Ground test point.

1.2.17 TP6 – SO

Bode plot measurement test point.

1.2.18 TP7 – PG

Bode plot measurement test point.

1.3 Soldering Guidelines

To avoid damaging the integrated circuit (IC), use a hot-air system for any solder rework to modify the

EVM for the purpose of repair or other application reasons.

1.4 Equipment Connection

Connect the equipment as shown in the following steps:

1. Set the input power supply up to 40 V (max), and turn them off.

2. Connect the positive voltage lead from the input power supply to VIN at the J3 connector of the EVM.

3. Connect the ground lead from the input power supply to GND at the J8 connector of the EVM.

4. Connect a 0-A to 150-mA load between VOUT and GND.

5. Disable output voltage by connecting J6 pin 2 (EN) to J6 pin 1 (GND).

2 PCB Layout

Figure 2 to Figure 6 illustrate the PCB layout for this EVM.

Figure 2. Assembly Layer Figure 3. Top Layer Routing

www.ti.com

PCB Layout

SBVU060A–March 2020–Revised April 2020

TPS7B8401EVM Evaluation Module

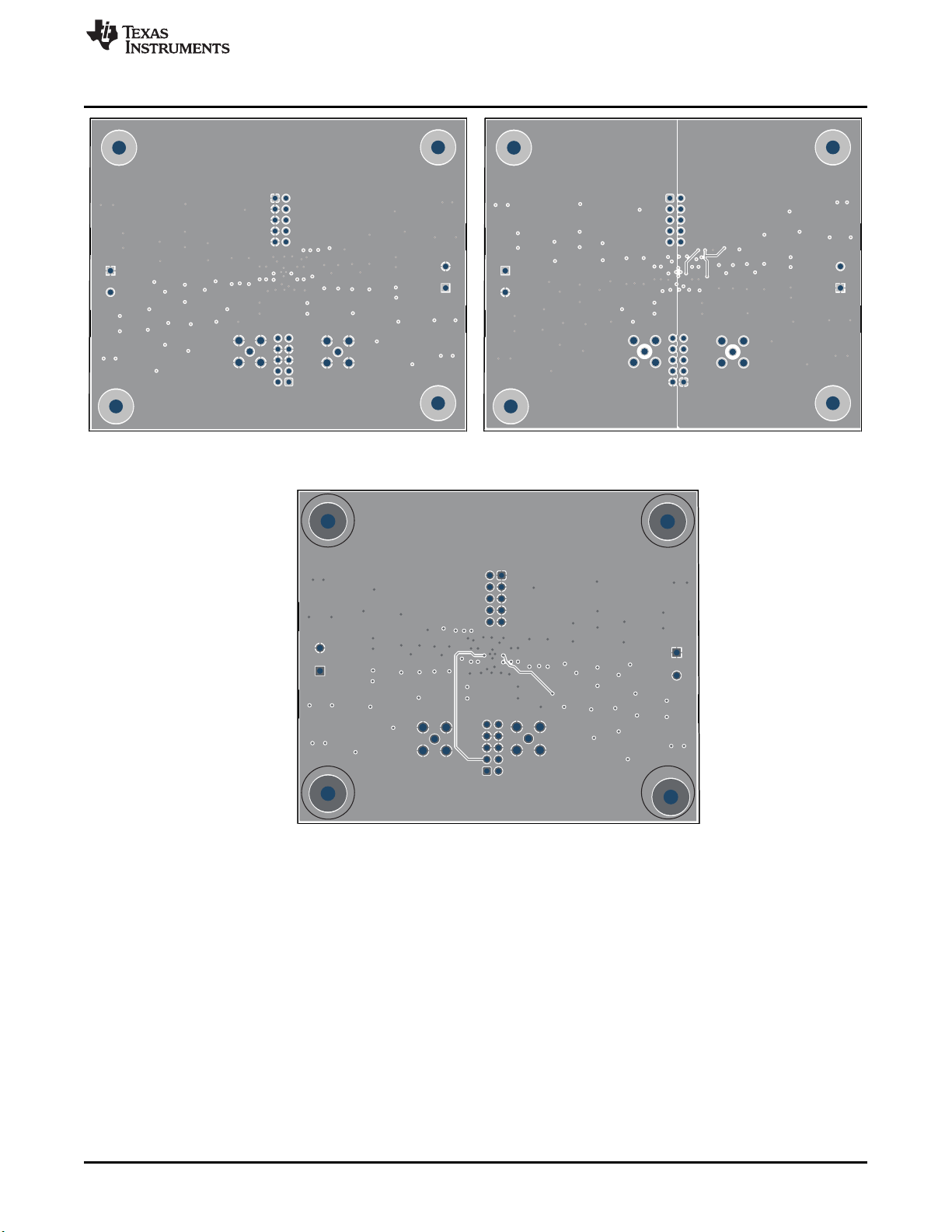

Figure 4. First Middle Layer Figure 5. Second Middle Layer

Figure 6. Bottom Layer Routing

Bill of Materials

www.ti.com

6SBVU060A–March 2020–Revised April 2020

Submit Documentation Feedback

TPS7B8401EVM Evaluation Module

3 Bill of Materials

Table 1 shows the BOM for this EVM.

(1) These assemblies are ESD sensitive, observe ESD precautions.

(2) These assemblies must be clean and free from flux and all contaminants. Use of no-clean flux is not acceptable.

(3) These assemblies must comply with workmanship standards IPC-A-610 Class 2.

(4) Unless otherwise noted in the Alternate Part Number or Alternate Manufacturer columns, all parts can be substituted with equivalents.

Table 1. TPS7B8401EVM BOM(1)(2)(3)(4)

Designator Quantity Value Description Package Reference Part Number Manufacturer Alternate Part

Number Alternate

Manufacturer

!PCB1 1 Printed Circuit Board LP036A Any

C3 1 1 µF CAP, CERM, 1 µF, 100 V, ±10%, X7R, 1210 1210 GRM32CR72A105KA35L MuRata

C6 1 10 µF CAP, CERM, 10 µF, 50 V, ±10%, X7R, 1210 1210 GRM32ER71H106KA12L MuRata

C8 1 0.01 µF CAP, CERM, 0.01 µF, 100 V,±10%, X7R,

0603 0603 885012206114 Wurth Elektronik

H9, H10, H11, H12 4 Bumpon, Hemisphere, 0.44 × 0.20, Clear Transparent Bumpon SJ-5303 (CLEAR) 3M

J3, J7 2 Standard Banana Jack, Insulated, Red 6091 6091 Keystone

J6 1 Header, 2.54 mm, 3 × 1, Gold, SMT Header, 2.54 mm, 3 × 1,

SMT TSM-103-01-L-SV-P-TR Samtec

J8, J9 2 Standard Banana Jack, Insulated, Black 6092 6092 Keystone

J11 1 Header, 2.54 mm, 5 × 2, Gold, TH Header, 2.54 mm, 5 × 2,

TH 61301021121 Wurth Elektronik

R1 1 42.2 k RES, 42.2 k, 1%, 0.1 W, AEC-Q200 Grade 0,

0603 0603 CRCW060342K2FKEA Vishay-Dale

R2 1 0 RES, 0, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 0603 RMCF0603ZT0R00 Stackpole

Electronics Inc

R3 1 10.5 k RES, 10.5 k, 1%, 0.1 W, 0603 0603 RC0603FR-0710K5L Yageo

R4 1 6.34 k RES, 6.34 k, 1%, 0.1 W, 0603 0603 RC0603FR-076K34L Yageo

R5 1 3.74 k RES, 3.74 k, 1%, 0.1 W, 0603 0603 RC0603FR-073K74L Yageo

R6 1 3.32 k RES, 3.32 k, 1%, 0.1 W, 0603 0603 RC0603FR-073K32L Yageo

R7 1 1.91 k RES, 1.91 k, 1%, 0.1 W, 0603 0603 RC0603FR-071K91L Yageo

SH-J1, SH-J2 2 1 × 2 Shunt, 100 mil, Gold plated, Black Shunt SNT-100-BK-G Samtec 969102-0000-DA 3M

TP1, TP2, TP3, TP4,

TP5, TP6, TP7 7 Test Point, Compact, SMT Testpoint_Keystone_Co

mpact 5016 Keystone

U1 1 150-mA, off-battery, low IQ, low-dropout

regulator VSON8 TPS7B8401QWDRBRQ1 Texas Instruments

C1 0 100 µF CAP, AL, 100 µF, 100 V, ±20%, 0.17 ohm,

AEC-Q200 Grade 2, SMD SMT Radial J16 EEV-FK2A101M Panasonic

C2, C4 0 47 µF CAP, TA, 47 µF, 50 V, ±10%, 0.24 ohm, SMD 6.2 × 6 mm 597D476X9050Z2T Vishay-Sprague

C5 0 100 µF CAP, AL, 100 µF, 35 V, ±20%, 0.2 ohm, AEC-

Q200 Grade 1, SMD D8xL10.2 mm EEE-TC1V101P Panasonic

C7 0 22 µF CAP, CERM, 22 µF, 50 V, ±20%, X7R,

Stacked 2220 Stacked 2220 KCM55WR71H226MH01K MuRata

www.ti.com

Bill of Materials

SBVU060A–March 2020–Revised April 2020

TPS7B8401EVM Evaluation Module

Table 1. TPS7B8401EVM BOM(1)(2)(3)(4) (continued)

Designator Quantity Value Description Package Reference Part Number Manufacturer Alternate Part

Number Alternate

Manufacturer

FID1, FID2, FID3 0 Fiducial mark. There is nothing to buy or

mount. N/A N/A N/A

H1, H2, H3, H4 0 Machine Screw, Round, #4-40 × 1/4, Nylon,

Philips panhead Screw NY PMS 440 0025 PH B&F Fastener

Supply

H5, H6, H7, H8 0 Standoff, Hex, 0.5"L #4-40 Nylon Standoff 1902C Keystone

J1, J4 0 SMA Straight Jack, Gold, 50 Ohm, TH SMA Straight Jack, TH 901-144-8RFX Amphenol RF

J2, J5 0 Terminal Block, 5 mm, 2 × 1, Tin, TH Terminal Block, 5 mm, 2

× 1, TH 691 101 710 002 Wurth Elektronik

J10 0 Header, 2.54 mm, 5 × 2, Gold, TH Header, 2.54 mm, 5 × 2,

TH 61301021121 Wurth Elektronik

Revision History

www.ti.com

8SBVU060A–March 2020–Revised April 2020

Submit Documentation Feedback

Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from Original (March 2020) to A Revision ....................................................................................................... Page

• Changed TPS7B84EVM-036 to TPS7B8401EVM throughout the document. .................................................... 1

STANDARD TERMS FOR EVALUATION MODULES

1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or

documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance

with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.

1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility

evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not

finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For

clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions

set forth herein but rather shall be subject to the applicable terms that accompany such Software

1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,

or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production

system.

2Limited Warranty and Related Remedies/Disclaimers:

2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License

Agreement.

2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM

to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by

neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have

been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications

or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control

techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM.

User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10)

business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.

2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit

User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty

period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or

replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be

warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day

warranty period.

WARNING

Evaluation Kits are intended solely for use by technically qualified,

professional electronics experts who are familiar with the dangers

and application risks associated with handling electrical mechanical

components, systems, and subsystems.

User shall operate the Evaluation Kit within TI’s recommended

guidelines and any applicable legal or environmental requirements

as well as reasonable and customary safeguards. Failure to set up

and/or operate the Evaluation Kit within TI’s recommended

guidelines may result in personal injury or death or property

damage. Proper set up entails following TI’s instructions for

electrical ratings of interface circuits such as input, output and

electrical loads.

NOTE:

EXPOSURE TO ELECTROSTATIC DISCHARGE (ESD) MAY CAUSE DEGREDATION OR FAILURE OF THE EVALUATION

KIT; TI RECOMMENDS STORAGE OF THE EVALUATION KIT IN A PROTECTIVE ESD BAG.

www.ti.com

3Regulatory Notices:

3.1 United States

3.1.1 Notice applicable to EVMs not FCC-Approved:

FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software

associated with the kit to determine whether to incorporate such items in a finished product and software developers to write

software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or

otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition

that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.

Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must

operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.

3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:

CAUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to

operate the equipment.

FCC Interference Statement for Class A EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

FCC Interference Statement for Class B EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

3.2 Canada

3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247

Concerning EVMs Including Radio Transmitters:

This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of the device.

Concernant les EVMs avec appareils radio:

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation

est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit

accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Concerning EVMs Including Detachable Antennas:

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)

gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type

and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for

successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types

listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.

Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited

for use with this device.

Inhaltsverzeichnis

Andere Texas Instruments Steuereinheit Handbücher

Texas Instruments

Texas Instruments BoosterPack BP-ADS7128 Bedienungsanleitung

Texas Instruments

Texas Instruments LMX9838 Bedienungsanleitung

Texas Instruments

Texas Instruments TPSM8282xEVM-080 Bedienungsanleitung

Texas Instruments

Texas Instruments TA 5 1 Q15B5EVM-K Series Bedienungsanleitung

Texas Instruments

Texas Instruments TAS5086-5186V6EVM Bedienungsanleitung

Texas Instruments

Texas Instruments 2000 series Bedienungsanleitung

Texas Instruments

Texas Instruments TPS23523EVM-863 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS65313-EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DAC8580 Bedienungsanleitung

Texas Instruments

Texas Instruments LMK05318EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TSU6721EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS61280-585 Bedienungsanleitung

Texas Instruments

Texas Instruments TLC5540 Bedienungsanleitung

Texas Instruments

Texas Instruments TPSM846C24 Bedienungsanleitung

Texas Instruments

Texas Instruments bq24153A Bedienungsanleitung

Texas Instruments

Texas Instruments TPSM84424EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS630702EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DAC90 EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments TLC6A598 Bedienungsanleitung

Texas Instruments

Texas Instruments SimpleLink CC3200MOD Bedienungsanleitung

Texas Instruments

Texas Instruments TCA7408EVM Bedienungsanleitung

Texas Instruments

Texas Instruments FPC401 Bedienungsanleitung

Texas Instruments

Texas Instruments DRV2605LEVM-MD Bedienungsanleitung

Texas Instruments

Texas Instruments SWIFT TPS548A20 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
