TMS570LS31 Hercules™ ARM®

Safety MCU Development Kit (HDK)

USER GUIDE

TMS570LS31 HDK User Guide

2 Texas Instruments Proprietary Information – Internal Data

Table of Contents

1. Introduction....................................................................................................5

1.1 Scope of Document .................................................................................5

1.2 TMS570LS31 HERCULES Development Kit (HDK) Features.................5

1.3 HDK Board Block Diagram ......................................................................6

1.4 TMS570LS31 HDK Contents...................................................................6

1.5 HDK Specifications..................................................................................7

1.6 Basic Operation.......................................................................................7

1.7 Memory Map............................................................................................7

1.8 Power Supply...........................................................................................8

2. Physical Description ......................................................................................9

2.1 Board Layout ...........................................................................................9

2.2 Connectors ..............................................................................................9

2.2.1 20Pin ARM JTAG Header...............................................................10

2.2.2 Ethernet Interface............................................................................10

2.2.3 CAN Interface..................................................................................11

2.2.4 J19, MIPI ETM Connector...............................................................11

2.2.5 J7, XDS100V2 USB JTAG Interface ...............................................13

2.2.6 P1, +12V Input ................................................................................13

2.2.7 SCI Interface...................................................................................14

2.2.8 Daughter Card Interface..................................................................14

2.3 LEDs......................................................................................................18

2.4 S2 DIP Switch........................................................................................20

2.5 Jumpers.................................................................................................20

2.6 S4, Power On Reset Switch...................................................................20

2.7 S3, System Reset Switch.......................................................................21

Appendix A .........................................................................................................22

Schematics .........................................................................................................22

This appendix contains the schematics for the TMS570LS31 HDK board..........22

Appendix B .........................................................................................................36

Operation Notices...............................................................................................36

1Support Resources......................................................................................36

Figure 1, TMS570LS31 HDK Board Block Diagram............Error! Bookmark not

defined.

Figure 2, TMS570LS31 HDK Board, Interfaces Top Side.....................................9

Figure 3, J2, J3 Screw Terminal Block................................................................11

Figure 4, J19, 60pin MIPI ETM Header...............................................................12

Figure 5, +12 Volt Input Jack..............................................................................13

Figure 6, DIP Switch Settings .............................................................................20

TMS570LS31 HDK User Guide

3 Texas Instruments Proprietary Information – Internal Data

Table 1, TMS570LS31 Memory Map....................................................................7

Table 2, Power Test Points...................................................................................8

Table 3, Connectors on HDK Board......................................................................9

Table 4, 20pin ARM JTAG Header .....................................................................10

Table 5; J1, Ethernet Interface............................................................................11

Table 6, J19, MIPI Connector Signal Mapping....................................................12

Table 7, J7, XDS100V2 USB JTAG Interface.....................................................13

Table 8, J14, USB Host Connector.......................Error! Bookmark not defined.

Table 9, J16, USB Device Connector ...................Error! Bookmark not defined.

Table 10, Expansion Connector P2 (J10, Right, TopView).................................14

Table 11, Expansion Connector P1 (J9, Left, TopView) .....................................15

Table 12, Expansion Connector P3 (J11, Bottom One, TopView) ......................17

Table 13, Demo LEDs.........................................................................................18

Table 14, Other LEDs as Indicator......................................................................19

Table 15, S2 DIP Switch Functions.....................................................................20

Table 16, Jumpers..............................................................................................20

TMS570LS31 HDK User Guide

4 Texas Instruments Proprietary Information – Internal Data

About This Manual

This document describes the board level operations of the TMS570LS31

Hercules Development Kit (HDK). The HDK is based on the Texas Instruments

TMS570LS3137 337 BGA Microcontroller. The TMS570LS31 HDK is a table top

card that allows engineers and software developers to evaluate certain

characteristics of the TMS570LS31 microcontroller to determine if the

microcontroller meets the designer’s application requirements as well as begin

early application development. Evaluators can create software to execute on

board or expand the system in a variety of ways.

Notational Conventions

This document uses the following conventions:

The TMS570LS31 HDK will sometimes be referred to as the TMS570 HDK or

HDK.

Program listings, program examples, and interactive displays are shown in a

special italic typeface. Here is a sample program listing.

equations

!rd = !strobe&rw;

Information About Cautions

This book may contain cautions.

This is an example of a caution statement.

A caution statement describes a situation that could potentially damage your

software, or hardware, or other equipment. The information in a caution is

provided for your protection. Please read each caution carefully.

Related Documents, Application Notes and User Guides

Information regarding this device can be found at the following Texas

Instruments website:

http://www.ti.com/hercules

TMS570LS31 HDK User Guide

5 Texas Instruments Proprietary Information – Internal Data

1. Introduction

This development kit provides a product-ready hardware and software platform

for evaluating the functionality of the Texas Instruments TMS570LS31x and

TMS570LS21x microcontroller family. Schematics, list of materials, and PCB

layout are available to ease hardware development and reduce time to market.

1.1 Scope of Document

This user guide will list the contents of the development kit, point out the features

of the major components, and provide the instructions necessary to verify your

development kit is in working order. Any additional usage instructions or details

fall outside the scope of this document. Additional resources will be listed at the

end of this user guide.

1.2 TMS570LS31 HERCULES Development Kit (HDK) Features

The HDK comes with a full complement of on board devices that suit a wide

variety of application environments. Key features include:

•A Texas Instruments TMS570LS3137 337-ball BGA microcontroller

•On board USB XDS100v2 JTAG emulator

•ARM 20-pin JTAG debug header for external JTAG emulator

•External emulator detection circuit

•10/100 Mbps Ethernet interface

•Two DCAN Transceivers and screw terminal blocks

•One ambient light sensor

•One ambient temperature sensor

•SCI accessible through a USB Virtual Port (VCP)

•One 8MB SDRAM

•Eight user programmable LEDs (2 tri-color LEDs, and 6 white LEDs)

•One user programmable pushbutton

•Three expansion connectors for hardware prototyping and daughter card

use

•Reset pushbuttons (nPOR and nRST)

•One SD card slot (SPI mode)

•Embedded trace macrocell (ETM) debug interface via MIPI connector

•Configurable pin mux options

•5V and 3.3V ADC option jumper (configured 5V by default)

•Current measurement capability for 3.3V IO, 1.2V Core, 1.2V PLL, 3.3V or

5V ADC, and 3.3V VCCP.

•Power supply supporting 5V to 12V DC input

TMS570LS31 HDK User Guide

6 Texas Instruments Proprietary Information – Internal Data

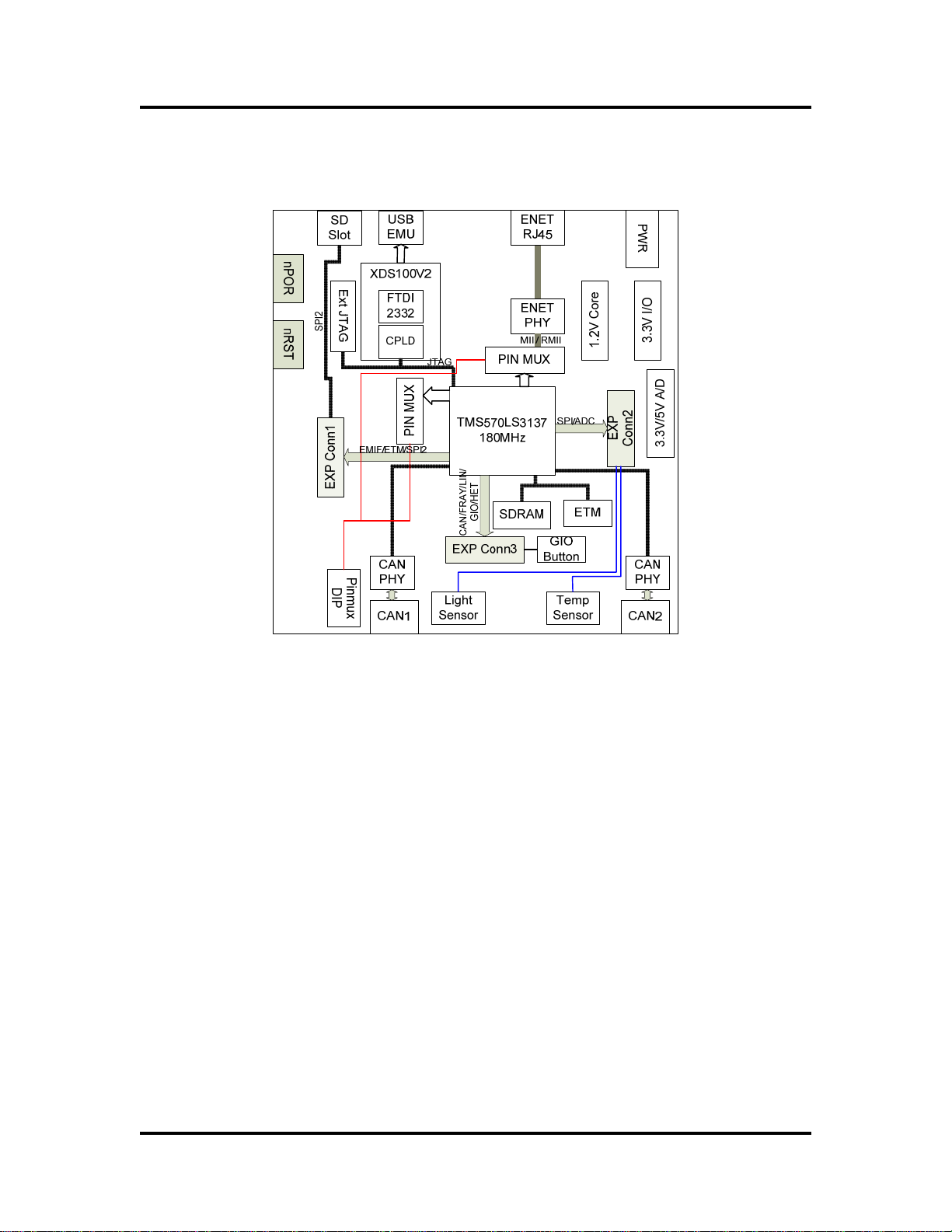

1.3 HDK Board Block Diagram

Figure 1, TMS570LS31 HDK Board Block Diagram

1.4 TMS570LS31 HDK Contents

The kit contains everything needed to develop and run applications for

TMS570LS31 microcontrollers including:

Board

TMS570LS31 Card

Cables and Accessories

12 volt power supply with power adapters for US, or Europe

Type A to mini B USB cable for using on board XDS100V2 JTAG

emulator

Category-5 Ethernet cable

Flashlight for light sensor demo

DVD Containing

Texas Instruments’ Code Composer Studio™ IDE (CCS)

nowFlash™ Flash Programming Tools

nowECC™ ECC Tool

HALCoGen GUI-based device configuration and driver examples

TMS570LS31 HDK User Guide

7 Texas Instruments Proprietary Information – Internal Data

HET Co-Processor Assembler and Debug Environment (HET IDE)

Quickstart application source code (blinky example CCS4.x project)

Complete documentation

1.5 HDK Specifications

Board supply voltage: 5V–12V Vdc

Board supply current: 130mA typ (fully active, CPU at 180 MHz)

Dimensions: 4.90” x 4.30” x 0.85” (LxWxH)

RoHS status: Compliant

CE and FCC status: Compliant

1.6 Basic Operation

The HDK is designed to work with TI’s Code Composer Studio and other ARM

IDE development tools. The IDE communicates with the board through the

embedded emulator or an external JTAG emulator. To start, follow the

instructions in the Quick Start Guide to install Code Composer. This process will

install all of the necessary development tools, documentation and drivers.

1.7 Memory Map

The TMS570LS31 family of MCUs have a large byte addressable address space.

The memory map table shows the address space of a TMS570LS31

microcontroller on the left with specific details of how each region is used by the

HDK on the right. By default, the internal memory sits at the beginning of the

address space.

The SDRAM is mapped into CS0 space on the EMIF. CS2/3/4 are used for

synchronous memory for example SRAM, NOR flash, NAND flash etc.

Table 1, TMS570LS31 Memory Map

Start

Address End Address HDK

0x0000 0000 0x002F FFFF Flash

0x0800 0000 0x0803 FFFF RAM

0x0840 0000 0x0843 FFFF RAM-ECC

0x6000 0000 0x63FF FFFF CS2 Async RAM

0x6400 0000 0x67FF FFFF CS3 Async RAM

0x6800 0000 0x7BFF FFFF CS4 Async RAM

0x8000 0000 0x87FF FFFF CS0 Sync SDRAM

TMS570LS31 HDK User Guide

8 Texas Instruments Proprietary Information – Internal Data

1.8 Power Supply

The HDK board operates from a single +12V external power supply connected to

the main power input (P1), a 2.5 mm, barrel-type plug. Internally, the +12V input

is converted into +1.2V, +3.3V and +5.0V using Texas Instruments swift voltage

regulators and PTH power module. The +1.2V supply is used for the MCU core

while the +3.3V supply is used for the MCU's I/O buffers and other module on the

board. The +5.0 volt supply is used for ADC power (2nd option).

There are multiple power test points on the HDK board. The three main test point

pairs provide a convenient mechanism to check the HDK’s current for each

supply. The table below shows the voltages for each test point and what the

supply is used for.

Table 2, Power Test Points

Test Point Pair Voltage Voltage Use

TP14 and TP15 1.2V MCU core

TP16 and TP17 3.3V MCU IO and logic

TP18 and TP19 1.2V MCU PLL

TP20 and TP21 3.3V MCU Flash pump

TP22 and TP23 3.3V or 5.0V (J8 to

enable 5V) MCU MibADC, and

ADREFHI

TMS570LS31 HDK User Guide

9 Texas Instruments Proprietary Information – Internal Data

2. Physical Description

This chapter describes the physical layout of the TMS570LS31 HDK board and

its interfaces.

2.1 Board Layout

The TMS570LS31 HDK board is a 4.9 x 4.3 inch (125 x 109 mm.) eight (8) layer

printed circuit board which is powered by an external +12 volt only power supply.

Figure 2 shows the layout of the TMS570LS31 HDK board.

Figure 2, TMS570LS31 HDK Board, Interfaces Top Side

2.2 Connectors

The HDK board has twenty nine (29) interfaces to various peripherals. These

interfaces are described in the following sections.

Table 3, Connectors on HDK Board

TMS570LS31 HDK User Guide

10 Texas Instruments Proprietary Information – Internal Data

Connector Size Function

J1 RJ45 Ethernet

J2 3 terminal, 2.54mm DCAN1

J3 3 terminal, 2.54mm DCAN2

J4 10x2, 2.54mm ARM 20pin JTAG header

J6 19x2, mictor RTP

J7 4pin, Mini-B USB XDS100V2 USB

J9 33x2, 2mm Exp P1, SPI1, SPI5, ADC

J10 33x2, 2mm EXP P2, SPI2, EMIF, ECLK

J11 40x2, 2mm EXP P3, SPI3, GIO, NHET, DCAN,

Flexray, LIN

J12 19x2, mictor DMM

J15 SD card

J19 30x2, MIPI ETM MIPI Header

P1 2.5mm +12V In

2.2.1 20PinARMJTAGHeader

In addition to on board XDS100V2 JTAG. One 20pin ARM JTAG header is added

for using external emulator. This is the standard interface used by JTAG

emulators to interface to ARM microcontrollers. The pinout for the connector is

shown in the figure.

Table 4, 20pin ARM JTAG Header

Signal Name Pin# Pin# Signal Name

Vref 1 2 VCC

nTRST 3 4 GND

TDI 5 6 GND

TMS 7 8 GND

TCK 9 10 GND

RTCK 11 12 GND

TDO 13 14 GND

nRST 15 16 GND

NC 17 18 GND

NC 19 20 GND

2.2.2 EthernetInterface

The several configurations of the TMS570LS31 series integrate an Ethernet MAC

on chip. Please consult the family datasheets for availability. This interface is

routed to the on board PHY via CBT switches. The board uses a DP83640 PHY.

Inhaltsverzeichnis

Andere Texas Instruments Mikrocontroller Handbücher

Texas Instruments

Texas Instruments TMDXRM42HDK Bedienungsanleitung

Texas Instruments

Texas Instruments CC3220-LAUNCHXL Bedienungsanleitung

Texas Instruments

Texas Instruments Piccolo F280049 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1298RECG-FE Bedienungsanleitung

Texas Instruments

Texas Instruments TMS570LC4357 Produkthandbuch

Texas Instruments

Texas Instruments MSP430F6720A Bedienungsanleitung

Texas Instruments

Texas Instruments MSP430FG6425 Bedienungsanleitung

Texas Instruments

Texas Instruments MSPM0G310 Series Bedienungsanleitung

Texas Instruments

Texas Instruments MSP430F67771 Bedienungsanleitung

Texas Instruments

Texas Instruments Serial Programming Adapter MSP430 Bedienungsanleitung

Texas Instruments

Texas Instruments CC2540 Bedienungsanleitung

Texas Instruments

Texas Instruments AM243 Series Bedienungsanleitung

Texas Instruments

Texas Instruments DV2031S2 Bedienungsanleitung

Texas Instruments

Texas Instruments Hercules TMS570LS31x Bedienungsanleitung

Texas Instruments

Texas Instruments CC2431ZDK Bedienungsanleitung

Texas Instruments

Texas Instruments J721EXENETXPANEVM Bedienungsanleitung

Texas Instruments

Texas Instruments CC1120 Bedienungsanleitung

Texas Instruments

Texas Instruments MSP430F5529 LaunchPad Bedienungsanleitung

Texas Instruments

Texas Instruments PurePath CC85XXDK-HEADSET Bedienungsanleitung

Texas Instruments

Texas Instruments Errata MSP430F6779 Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320DM357 Bedienungsanleitung

Texas Instruments

Texas Instruments Serial Programming Adapter MSP430 Bedienungsanleitung

Texas Instruments

Texas Instruments CC2530-CC2592EM Bedienungsanleitung

Texas Instruments

Texas Instruments Hercules TMS570LS04 Series Bedienungsanleitung

Beliebte Mikrocontroller Handbücher anderer Marken

AMS

AMS AS7261 Demo Kit Bedienungsanleitung

Novatek

Novatek NT6861 Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266 SDK Einrichtungshandbuch

Nuvoton

Nuvoton ISD61S00 ChipCorder Leitfaden

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Bedienungsanleitung

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Bedienungsanleitung

NEC

NEC 78GK0S/K 1+ Series Montage- und Bedienungsanleitung

Mikroe

Mikroe SEMITECH N-PLC Click Montage- und Bedienungsanleitung

Intel

Intel Agilex Bedienungsanleitung

Cypress

Cypress CY4607 HX2VL Bedienungsanleitung

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Bedienungsanleitung

CYPRES

CYPRES CY14NVSRAMKIT-001 Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266EX Betriebsanleitung

Abov

Abov AC33M8128L Bedienungsanleitung

Laird

Laird BL654PA Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories C8051F800 Bedienungsanleitung

Energy micro

Energy micro EFM32 Giant Gecko Starter Kit Bedienungsanleitung

Mikroe

Mikroe click Proximity 2 Bedienungsanleitung
