Meet the

CC1354P10-1

LaunchPad

Development Kit

Connect your LaunchPad to a computer

and visit dev.ti.com

Part Number: LP-EM-CC1354P10-1

BoosterPack Ecosystem

SimpleLink ULP Sense

BoosterPack

- Flow meter measurements

- Ultra low power accelerometer

- Two cap touch buttons

- Analog Light Sensor

- Reed switch

- 0-200kΩpotentiometer

See them all @ ti.com/boosterpack

Software Tools SmartRF Studio

A powerful application to

evaluate radio performance.

SimpleLink SDK and

SimpleLink Academy

Advanced software and

tutorials to easy ramp your

development with your new

LaunchPad.

Professional Software tools

LaunchPads are supported by

professional IDEs that

provide industrial-grade

features and full debug-

capability. Set breakpoints,

watch variables, profile code,

inspect memory and more.

Sharp 128x128 Memory

LCD and microSD card

BoosterPack

- 1.28 128 x 128 pixel LCD

(LS013B7DH03)

- microSD card slot

- DCDC 3V to 5V converter

- Ultra-low-power operation

2023 Texas Instruments Incorporated. The platform bar, LaunchPad, EnergyTrace and Code Composer Studio

are trademarks of Texas Instruments.

All other trademarks are the property of their respective owners.

The BoosterPack™ connector

The pinout to connect BoosterPack accessories (available separately) are shown below.

www.ti.com/ccs

Code Composer Studio

IDE

3V3

DIO23A0

GND

DIO12

RXD

DIO13

TXD

DIO22

DIO24

DIO10

SPI_CLK

DIO21

DIO4

I2C_SCL

DIO5

DIO19

DIO11

DIO14

LP_RST

DIO9

DIO8

DIO42

DIO41

DIO15

DIO47

DIO46

DIO20

DIO45

DIO18

DIO40

DIO16

DIO17

I2C_SDA

DIO25

DIO26

DIO27

DIO28

DIO29

DIO30

DIO43

DIO44

SPI_CS

BTN_2

DIO40*

SPI_MOSI

SPI_MISO

BTN_1

CTS

RTS SWO

RESET*

TMS

TCK

TDO

TDI

XDS110 EnergyTrace™ Technology

The LP-EM-CC1354P10-1 is compatible with EnergyTrace technology.

EnergyTrace implements a new method for measuring MCU current consumption. It uses

a DC-DC solution to measure the time density of charge pulses, allowing accuracy on

ultra low power measurements. Its high dynamic range (700 nA to 400 mA) and fast

sampling rate (256 kSPS) captures the complete operational profile of the wireless MCU.

Find more information at

ti.com/EnergyTrace

EnergyTrace Profile

EnergyTrace Profile runtime and energy data for low power modes along with each

function run during Active Mode.

Graphical Power Data in Code Composer Studio

These two tabs of the EnergyTrace Technology window show a graph over time of

power and energy.

Available in the LP-XDS110ET Debug Probe and selected LaunchPads

UART (DIO12, DIO13), Reset (LP_RST) and JTAG (TMS, TCK, TDO and TDI) are also present in the

LP-EM Debug Connector. Power (GND, 3V3 and 5V) is also provided.

*These functions are not connected to the LaunchPad connector by default.

SPRUIZ8

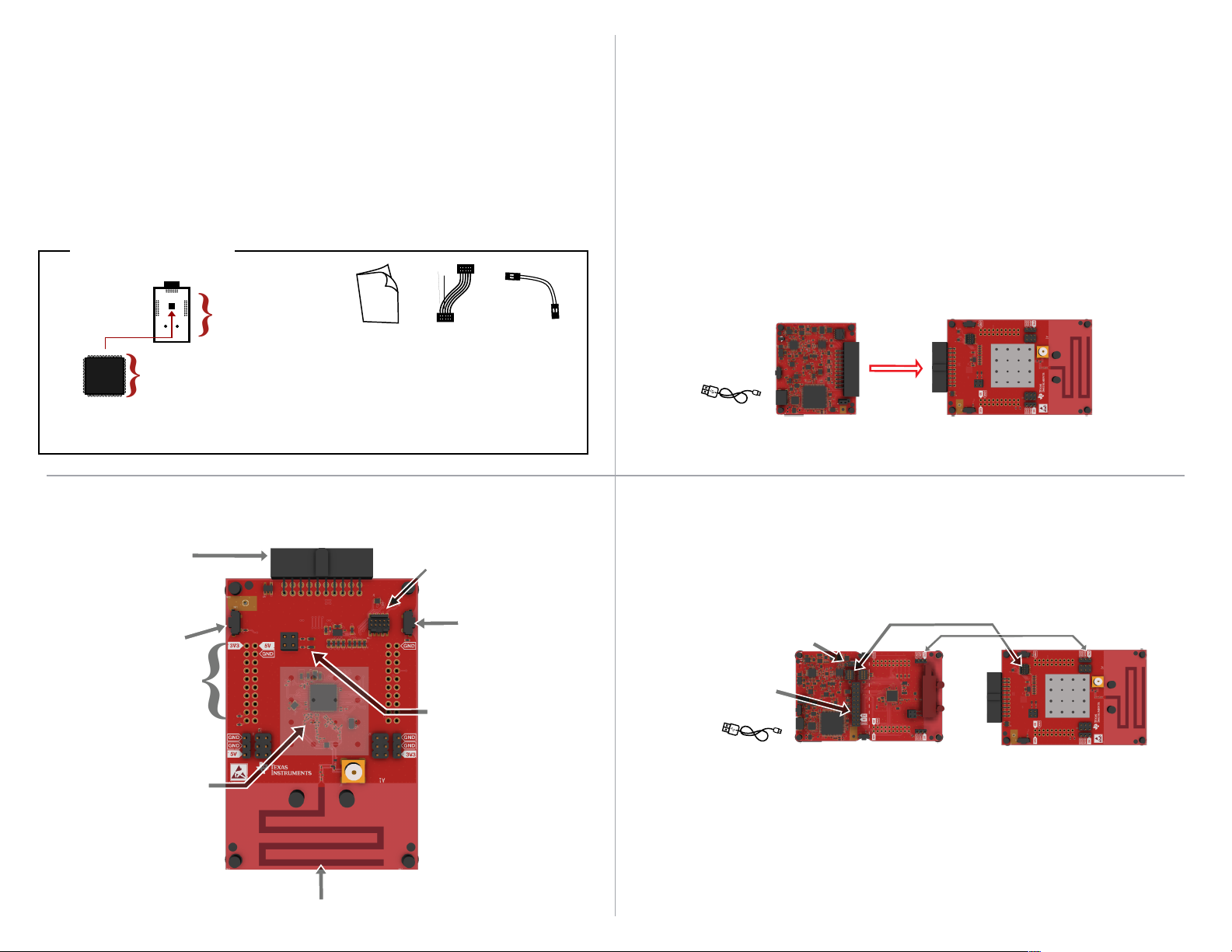

A closer look at your new

LaunchPad Development Kit

Featured microcontroller: CC1354P10

This LaunchPad is great for...

- Battery-operated wireless applications operating in the Sub-1 GHz (868 and 915 MHz) and 2.4 GHz ISM

RF bands. It features two Sub-1 GHz RF paths up to + 14 and +20 dBm and one 2.4 GHz up to +5 dBm

- Adding RF capabilities to your product using one of the supported protocols: Bluetooth LE, Zigbee,

IEEE 802.15.4g, Wi-SUN®, Wireless M-Bus, MIOTY®and proprietary protocols

What comes in the box?



LP-EM-CC1354P10-1

LaunchPad

CC1354P10 Microcontroller

- 48 MHz CPU

- 1 MB Flash, 256 kB RAM

- Programmable radio supporting

various protocols and up to +20 dBm

at either 868/915 MHz or 2.4 GHz

- Low power consumption

QSG

This Quick

Start Guide

10-pin

Debug Cable

2-wire

Power Cable

CC1354P10

{

- Four 32-bit or eight x 16-bit timers

- ADC with 8 channels, 12 bits and 200 ksamples/s

- DAC with 8 bits

- Serial communications: UART, SPI, I2C

- Two comparators

- Real-time clock

Separate LaunchPad



LP-EM-CC1354P10-1



Hardware setup

What do you need?

To use your new LaunchPad, you need to connect an external Debug Probe to either the 20-pin

LP-EM Debug connector on the edge of the board or to the 10-pin Debug connector and supply

power separately.

Option 1: Using the LP-EM Debug Connector

This is the easiest way to setup the hardware. It requires either an LP-XDS110 or

LP-XDS110ET Debug Probe (sold separately).

Simply connect the edge connector of the Debug Probe to the edge connector of the LaunchPad

and connect the USB port of the Debug Probe to the host computer. A secondary UART

communications channel will also be available and power to the LaunchPad will be provided

directly.

LP-XDS110 or LP-XDS110ET



LP-EM-CC1354P10-1



USB to the host

computer

USB to the host

computer

LP-EM Debug Connector

Together with a LP-XDS110 or

LP-XDS110ET, allows:

- Debugging and programming

- Communicating to the host via UART

- Powering the microcontroller

10-pin Debug Connector

Allows using an external JTAG Debug

Probe to debug/program the device

20-pin BoosterPack

plug-in module connector

(J1, J2, J3 & J4)

Button/Switch

BTN-2 (DIO14)

{

Antenna

CC1354P106T0RSK

Wireless Microcontroller

(under the RF shield)

LP-EM-CC1354P10-1 Overview

Button/Switch

BTN-1 (DIO15)

User LEDs

Red (DIO6)

Green (DIO7)

For additional details, consult dev.ti.com/?id=LP-EM-CC1354P10-1

When using the 10-pin debug connector, the UART communications channel must be wired

separately (this connector does not carry UART signals).

If using a standalone Debug Probe, consult its documentation to see if it supports the ARM

Cortex-M 10-pin standard.

Remove all jumpers,

except GND and 3V3

2-wire Power Cable

Jumper on the position

XDS110 Power

10-pin Debug Cable

Option 2: Using the 10-pin debug connector

Either a standalone debug probe or a separate LaunchPad with a built-in debug probe can

be used.

Connect the two boards as shown in the picture below:
