User's Guide

SLAU094A–October 2002–Revised May 2011

ADS7861/8361/7863EVM

This user's guide describes the characteristics, operation, and use of the ADS7861/8361/7863EVM. This

evaluation model (EVM) is an evaluation board for the ADS7861,ADS7863, and ADS8361, a family of

12-/16-bit, dual, 500-kSPS, 2+2 channel, serial analog-to- digital converters (ADCs). The EVM allows

evaluation of all aspects of the ADS7861/7863/8361 devices. Complete circuit descriptions, a schematic

diagram, and a bill of materials are included in this document.

The following related documents are available for download through the Texas Instruments web site at

http://www.ti.com.

Related Documentation

Document Literature Number

ADS7861 Product Data Sheet SBAS110

ADS7863 Product Data Sheet SBAS383E

ADS8361 Product Data Sheet SBAS230

Op Amps for Everyone Design Guide SLOD006B

Contents

1 EVM Overview ............................................................................................................... 2

2 Analog Interface ............................................................................................................. 2

3 Digital Interface .............................................................................................................. 3

4 Power Supplies .............................................................................................................. 4

5 EVM Operation .............................................................................................................. 4

6 Schematic, Bill of Materials, and Layout ................................................................................. 5

All trademarks are the property of their respective owners.

SLAU094A–October 2002–Revised May 2011 ADS7861/8361/7863EVM

EVM Overview

www.ti.com

1 EVM Overview

1.1 Features

ADS7861/8361/7863EVM:

•Full-featured evaluation board for the ADS7861, ADS8361, and ADS7863, dual, 500-kSPS,

12-bit/16-bit, serial output, 2+2 analog input, simultaneous sampling analog-to-digital converters

•Analog inputs can be configured as single-ended or differential

•Built-in reference

•High-speed serial interface

This manual covers the operation of the ADS7861EVM, ADS8361EVM, and the ADS7863EVM,

collectively identified as ADS7861/8361/7863EVM. Throughout this document, the abbreviation EVM and

the term evaluation module are synonymous with the ADS7861/8361/7863EVM. Unless otherwise

indicated, all references to device operation apply to all three devices.

1.2 Introduction

The ADS7861 operates from 5 V for AVDD and DVDD while the ADS8361 operates from 2.7 V to 3.6 V for

AVDD and DVDD. The ADS7863 operates from 2.7 V to 5.5 V for AVDD and DVDD. Each device is a

high-speed, low-power, 12-bit or 16-bit A/D converter (ADC).

The four fully-differential analog inputs are divided into two pairs (A and B). Each ADC accepts an analog

input voltage in the range of –VREF to +VREF (5 VPP), centered on the internal 2.5-V reference. The

device also accepts bipolar input ranges when a level shift circuit is used in the analog frontend circuitry.

Refer to Section 12 of the Design Guide, Op Amps for Everyone (literature number SLOD006B) for

information on various circuit applications.

2 Analog Interface

For maximum flexibility, the ADS7861/8361/7863EVM is designed for easy interfacing to multiple analog

sources. Samtec part numbers SSW–110–22–F–D–VS–K and TSM–110–01–T–DV–P provide a

convenient, 10-pin, dual row header/socket combination at J1. This header/socket provides access to the

analog input pins of the ADC. Consult Samtec at http://www.samtec.com or call 1-800-SAMTEC-9 for a

variety of mating connector options. Table 1 summarizes the pinouts for analog interfaces J1.

Table 1. J1: Analog Interface Pinout

Pin Number Signal Description

J1.2 B1+ Noninverting input, channel B1

J1.4 B1–Inverting input, channel B1

J1.6 B0+ Noninverting input, channel B0

J1.8 B0–Inverting input, channel B0

J1.10 A1+ Noninverting input, channel A1

J1.12 A1–Inverting input, channel A1

J1.14 A0+ Noninverting input, channel A0

J1.16 A0–Inverting input, channel A0

Pins are unused and should be left open for

J1.18 Unused use with future amplifier and sensor input

modules.

External reference source input (2.5 V nom,

J1.20 REFIN 2.525 V max)

J1.1 to J1.19 (odd) AGND Analog ground connections

2ADS7861/8361/7863EVM SLAU094A–October 2002–Revised May 2011

Submit Documentation Feedback

www.ti.com

Digital Interface

3 Digital Interface

The ADS7861/8361/7863EVM is designed for easy interfacing to multiple control platforms. Samtec part

numbers SSW–110–22–F–D–VS–K and TSM–110–01–T–DV–P provide a convenient, 10-pin dual row

header/socket combination at J2. This header/socket provides access to the digital control and serial data

pins of the ADS7861/8361. Consult Samtec at http://www.samtec.com or call 1-800-SAMTEC-9 for a

variety of mating connector options. Table 2 describes the J2 serial interface pins.

Table 2. J2: Serial Interface Pins

Pin Number Signal Description

Chip select; active low signal, enables data

J2.1 CS transfer and device configuration

J2.3 SCLK Serial clock

J2.5 SCLK(R) Serial clock return for DSP host

J2.7 FS Frame sync

J2.9 FS(R) Frame sync return for DSP host

J2.11 SDI Serial data input

J2.13 SDO Serial data output

Interrupt output; provides an interrupt

J2.15 INT source to the host processor

Conversion start; provides an alternate

J2.17 CSTART method of conversion initialization

J2.19 SPARE

3.1 Additional Control Options

Table 3 shows the pinout of header J5. This dual-row, four-position header provides additional control

functionality to the ADS7861/8361/7863EVM. Signals A0, M0, and M1 are configured with pull-up resistors

by default. The jumper shunts supplied with the EVM can be used to set these signals to logic low. These

signals can also be connected to control signals in the user's system.

Table 3. J5: Header

Pin Number Signal Description

J5.1 M0 Selects two-channel or four-channel mode

J5.3 M1 Selects between serial outputs A and B

Operates in conjunction with M0. See device

J5.5 A0 data sheet for details.

J5.7 OUT B B channel secondary output

J5.2 to J5.8 (even) DGND Digital ground connections

SLAU094A–October 2002–Revised May 2011 ADS7861/8361/7863EVM

Power Supplies

www.ti.com

4 Power Supplies

The ADS7861 EVM board requires 5 VDC for both the analog and digital sections of the ADC. While filters

are provided for all power-supply inputs, optimal performance of the EVM requires a clean, well-regulated

power source. Positive 5-VDC power is applied to J3 and J4 (pin 1 referenced to pin 2). The ADS8361 and

ADS7863 each require 5 VDC for the analog supply located on J3, and 2.7 V to 5.5 VDC for the digital

supply located on J4.

An alternate power source can be applied via J6 located on the bottom side of the printed circuit board

(PCB). If a variable digital supply voltage is desired, completely remove the shunt jumper from W3. Apply

a 100-mA current limited dc voltage of not more than 5.5 V to J4.

NOTE: The shunt jumper at location W3 should be placed across pin 2 and pin 3 for proper

operation of the ADS7861. This configuration is the factory default condition for all device

versions of the ADS7861/8361/7863EVM.

4.1 Reference Voltage

The ADS7861/8361/7863 can be configured to use its internal reference or external reference source

through jumper W1 (see schematic appended to this document for details). If an external reference is

desired, the shunt jumper on W1 should cover pins 2 and 3. The external reference is supplied through

header/socket J1 pin 20 (J1.20).

5 EVM Operation

Apply a current limited (150 mA max) 5-VDC source to J3 and J4 before connecting the analog input

signals and digital control signals.

5.1 Analog Input

The analog input source can be applied directly to header/socket J1 (top or bottom side) or through

optional amplifier and signal conditioning modules. The analog input level should not exceed 5 VPP.The

analog input range is from –VREF to VREF (0 V to 5 VDC) centered at 2.5 V.

5.2 Digital Control

The digital control signals can be applied directly to header/socket J2 (top or bottom side). The

ADS7861/8361/7863EVM can also be connected directly to a DSP interface board. Consult the respective

device product folder for a complete list of DSP interface cards and optional analog interface modules.

5.3 Default Jumper and Header Settings

Jumper W2 is provided to allow separation of the convert start (CONVST) and read (RD) signals. The

factory default condition for the EVM is to place a shunt jumper between pin 1 and pin 2 of W2. This

configuration combines signals RD and CONVST, which are applied to the ADC via pin J2.7. When W2 is

moved to pin 2 and pin 3, the RD signal is applied via pin J2.7 while CONVST is applied to pin J2.17.

Header J5 provides a way to access the M0, M1, and A1 control lines as well as the OUTB serial data.

Shunt jumpers are placed on pins 1 and 2, 3 and 4, and 5 and 6 of J5, which defaults M0, M1, and A0 to

logic low levels. Removing the jumpers allows these lines to go to logic high levels through the associated

pull-up resistors R12, R13, and R14. In the factory default configuration, the ADC converts the A0 and B0

inputs, and places AOUT serial data on pin J2.13, and BOUT serial data on pin J5.7.

4ADS7861/8361/7863EVM SLAU094A–October 2002–Revised May 2011

Submit Documentation Feedback

www.ti.com

Schematic, Bill of Materials, and Layout

6 Schematic, Bill of Materials, and Layout

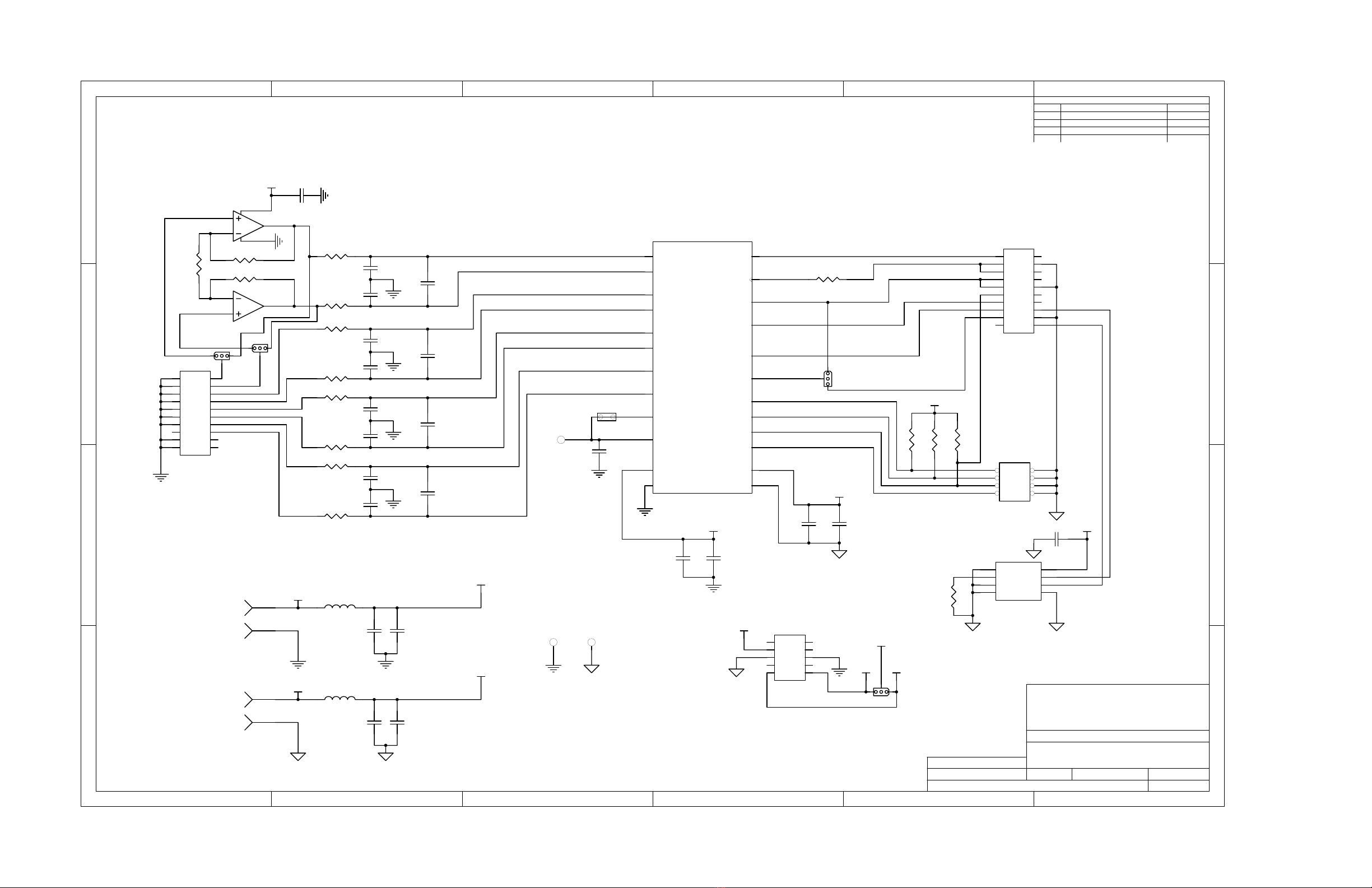

A schematic for the ADS7861/8361/7863EVM is appended to this user's guide. The bill of materials is

provided in Table 4.

6.1 Bill of Materials

NOTE: All components should be compliant with the European Union Restriction on Use of

Hazardous Substances (RoHS) Directive. Some part numbers may be either leaded or

RoHS. Verify that purchased components are RoHS-compliant. (For more information about

TI's position on RoHS compliance, see the Quality and Eco-Info information on the TI web

site.)

Table 4. Bill of Materials

Qty

Item No. ADS7861 ADS8361 ADS7863 Ref Des Description Vendor Part Number

1 1 1 1 N/A Printed Wiring Board – –

100pF, 0603, Ceramic, C0G, 50V,

2 8 8 8 C1 to C8 Murata GRM1885C1H101JA01D

C9, C10, C11, C12, 1000pF, 0603, Ceramic, C0G, 50V,

3 5 5 5 Murata GRM1885C1H102JA01D

C22 5%

C13, C14, C15, C16, 0.1μF, 0603, Ceramic, X7R, 50V,

4 5 5 5 Murata GRM188R71H103KA01D

C23 10%

10μF, 0805, Ceramic, X5R, 10V,

5 2 2 2 C17, C18 Murata GRM219R61A106KE44D

10%

1.0μF, 0603, Ceramic, X5R, 16V,

6 2 2 2 C19, C20 Murata GRM185R61C105KE44D

10%

0.47μF, 0603, Ceramic, X7R, 16V,

7 1 1 1 C21 Murata GRM188R71C474KA88D

10%

8 2 2 2 L1, L2 Ferrite Chip 600Ω500MA 0805 TDK MMZ2012R601A

10-Pin, Dual Row, SMT Header (20

9 2 2 2 J1, J2 (top side) Samtec TSM-110-01-T-DV-P

Pos.)

J1B, J2B (bottom 10-Pin, Dual Row, SMT Socket (20

10 2 2 2 Samtec SSW-110-22-F-D-VS-K

side) Pos.)

11 2 2 2 J3, J4 2 Terminal Screw Connector OST ED555/2DS

12 1 1 1 J5 4-Pin, Dual Row, TH Header (8 Pos.) Samtec TSW-104-07-L-D

5-Pin, Dual Row, SMT Socket (10

13 1 1 1 J6 (bottom side) Samtec SSW-105-22-F-D-VS-K

Pos.)

14 0 0 0 W1 Not installed

15 2 2 2 W2, W3 3-Pin header Samtec TSW-103-07-L-S

16 2 2 2 W4, W5 3-Pin , 2mm header Samtec TMM-103-01-T-S

17 10 10 10 R1 to R8, R14, R15 49.9Ω, 0603, 1%, 1/10W Yageo RC0603FR-0749R9L

18 2 2 2 R9 R10 33Ω, 0603, 1%, 1/10W Yageo RC0603FR-0733RL

19 3 3 3 R11 R12 R13 10Ω, 0603, 1% 1/10W Yageo RC0603FR-0710KL

20 0 0 0 R16 Not installed – –

21 1 1 1 TP1 Red Test Point Loop Keystone 5000

22 2 2 2 TP2 TP3 Black Test Point Loop Keystone 5001

IC, ADC Dual 16-Bit 500kSPS

1 0 0 TI ADS7861E

24QSOP

23 U1 IC, ADC Dual 16-Bit 500kSPS

0 1 0 TI ADS8361IDBQ

24QSOP

0 0 1 IC, ADC 12-Bit SER 2M 24QSOP TI ADS7863IDBQ

IC EEPROM 256kBIT 400KHz

24 1 1 1 U2 Microchip 24AA256-I/ST

8TSSOP

IC OPAMP GP R-R 50MHz DUAL

25 1 1 1 U3 TI OPA2365AID

8SOIC

SLAU094A–October 2002–Revised May 2011 ADS7861/8361/7863EVM

Revision History

www.ti.com

Revision History

Changes from Original (October, 2002) to A Revision ................................................................................................... Page

•Updated entire document to current standards ....................................................................................... 1

•Added ADS7863EVM to document contents ......................................................................................... 1

•Added figure of EVM ..................................................................................................................... 1

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

6Revision History SLAU094A–October 2002–Revised May 2011

Submit Documentation Feedback
