SWRU508C–May 2017–Revised May 2020

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

User's Guide

SWRU508C–May 2017–Revised May 2020

AWR1642 Evaluation Module (AWR1642BOOST)

Single-Chip mmWave Sensing Solution

The AWR1642 BoosterPack™ from Texas Instruments™ is an easy-to-use evaluation board for the

AWR1642 mmWave sensing device, with direct connectivity to the microcontroller (MCU) LaunchPad™

Development Kit. The BoosterPack contains everything required to start developing software for on-chip

C67x DSP core and low-power Arm®R4F controllers, including onboard emulation for programming and

debugging as well as onboard buttons and LEDs for quick integration of a simple user interface.

Contents

1 Getting Started............................................................................................................... 2

1.1 Introduction .......................................................................................................... 2

1.2 Key Features ....................................................................................................... 2

1.3 Kit Contents.......................................................................................................... 2

2 Hardware...................................................................................................................... 3

2.1 Block Diagram....................................................................................................... 5

2.2 Power Connections................................................................................................. 6

2.3 Connectors .......................................................................................................... 6

2.4 PC Connection..................................................................................................... 10

2.5 Connecting the BoosterPack to the LaunchPad or the MMWAVE-DEVPACK............................ 10

2.6 Antenna............................................................................................................. 12

2.7 Jumpers, Switches, and LEDs................................................................................... 14

3 Design Files and Software Tools......................................................................................... 17

3.1 Hardware........................................................................................................... 17

3.2 Software, Development Tools, and Example Code........................................................... 17

4 Design Revision History .................................................................................................. 18

5 Mechanical Mounting of PCB............................................................................................. 18

6 PCB Storage and Handling Recommendations........................................................................ 18

7 Regulatory Information .................................................................................................... 19

8 Troubleshooting ............................................................................................................ 19

9 References.................................................................................................................. 19

Trademarks

BoosterPack, Texas Instruments, LaunchPad, Code Composer Studio are trademarks of Texas

Instruments.

Arm is a registered trademark of Arm Limited.

Windows is a registered trademark of Microsoft Corporation.

All other trademarks are the property of their respective owners.

Getting Started

www.ti.com

2SWRU508C–May 2017–Revised May 2020

Submit Documentation Feedback

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

1 Getting Started

1.1 Introduction

The AWR1642 BoosterPack from Texas Instruments is an easy-to-use evaluation board for the AWR1642

mmWave sensing device, with direct connectivity to the microcontroller (MCU) LaunchPad Development

Kit. The BoosterPack contains everything required to start developing software for on-chip C67x DSP core

and low-power ARM R4F controllers, including onboard emulation for programming and debugging as well

as onboard buttons and LEDs for quick integration of a simple user interface.

The standard 20-pin BoosterPack headers make the device compatible with a wide variety of TI MCU

LaunchPads and enables easy prototyping.

1.2 Key Features

• Two 20-pin LaundPad connectors that leverages the ecosystem of the TI LaunchPad

• XDS110 based JTAG emulation with a serial port for onboard QSPI flash programming

• Back-channel UART through USB-to-PC for logging purposes

• Onboard antenna

• 60-pin, high-density (HD) connector for raw analog-to-digital converter (ADC) data over LVDS and

trace-data capability

• Onboard CAN-FD transceiver

• One button and two LEDs for basic user interface

• 5-V power jack to power the board

1.3 Kit Contents

The following items are included with the AWR1642BOOST kit.

• AWR1642BOOST evaluation board

• Mounting brackets, screws, and nuts to place the printed-circuit board (PCB) vertical

• Micro USB cable to connect to PC

NOTE: A 5-V, > 2.5-A supply brick with a 2.1-mm barrel jack (center positive) is not included. TI

recommends using an external power supply that complies with applicable regional safety

standards, such as UL, CSA, VDE, CCC, PSE, and more. The length of the power cable

should be < 3 m.

1.3.1 mmWave Proximity Demo

TI provides sample demo codes to easily get started with the AWR1642 evaluation module (EVM) and to

experience the functionality of the AWR1642 radar sensor. For details on getting started with these

demos, see www.ti.com/tool/mmwave-sdk.

5-V Power

AWR1642

Flash

60-pin HD

Connector

Micro USB

Connector

SOP ControlsNRST_SWGPIO1_SW

Onboard Antenna

CAN-FD

Connector

www.ti.com

Hardware

SWRU508C–May 2017–Revised May 2020

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

2 Hardware

Figure 1 and Figure 2 show the front and rear view of the EVM, respectively.

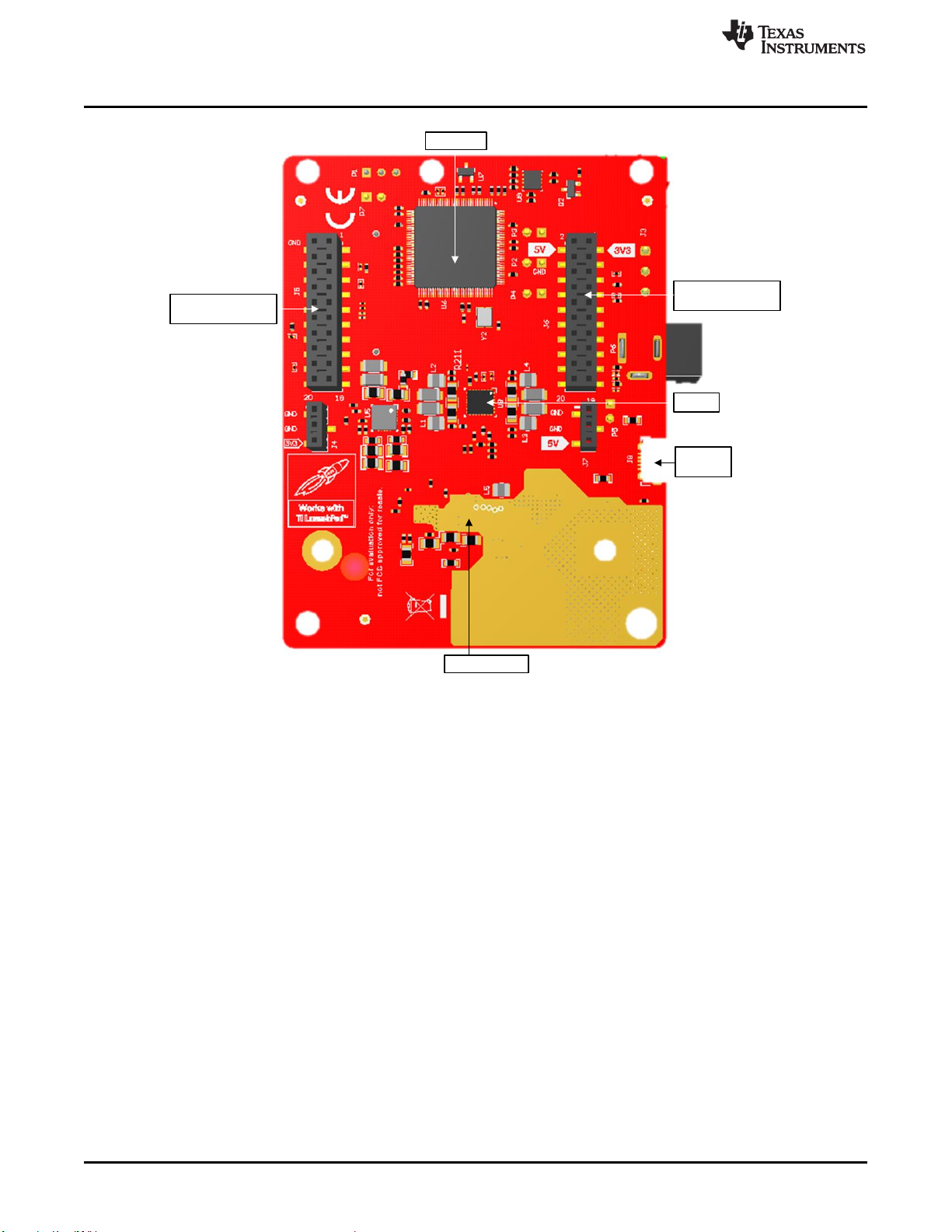

Figure 1. EVM (Front)

Micro USB

Connector

Heat Sink Area

20-SLQ/DXQFK3DGŒ

Connector (J6)

20-SLQ/DXQFK3DGŒ

Connector (J5)

XDS110

PMIC

Hardware

www.ti.com

4SWRU508C–May 2017–Revised May 2020

Submit Documentation Feedback

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

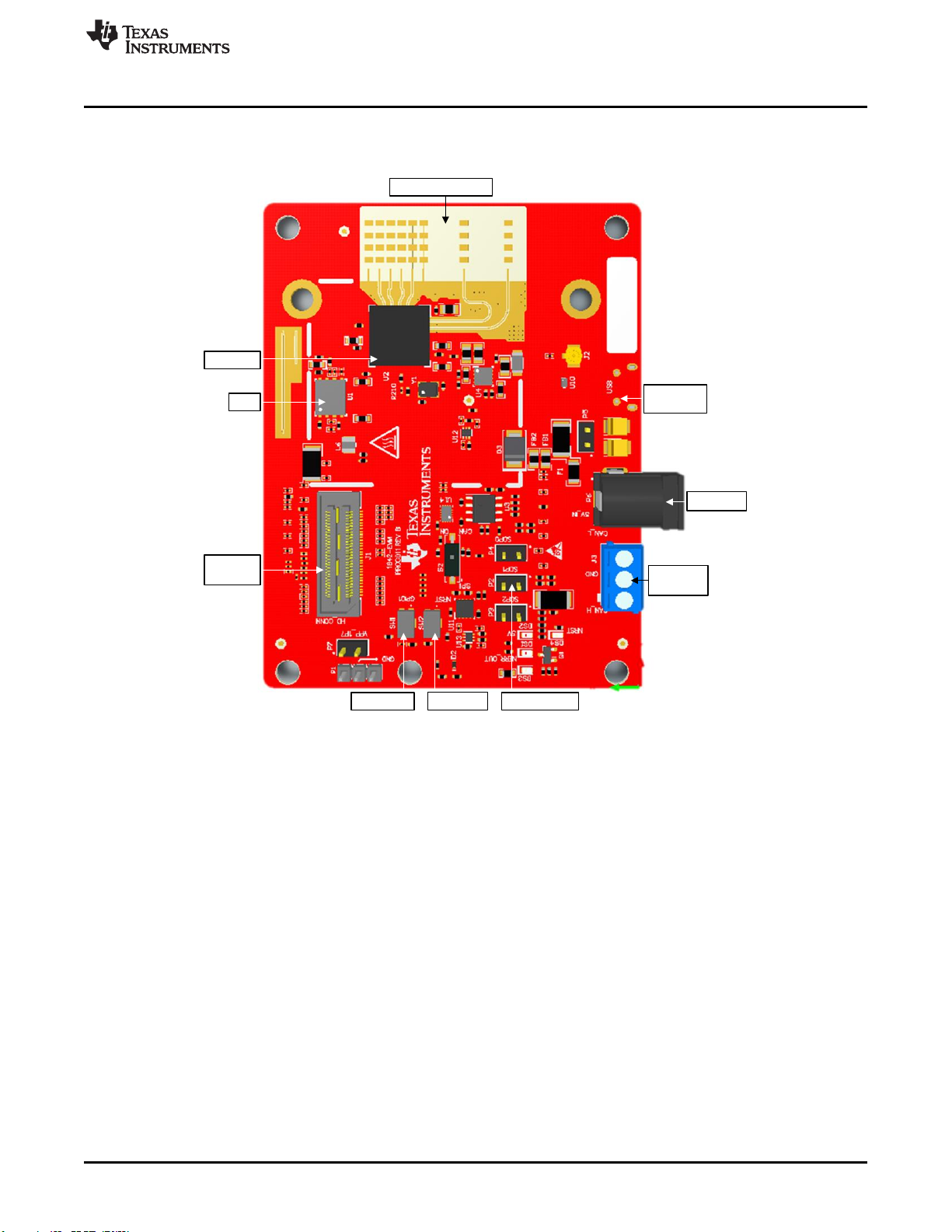

Figure 2. EVM (Rear)

AWR1642

BP Connector

XDS110

CANFD

SOP

PC Interface

through USB

UART and JTAG

SPI, UART, I2C,

Rst, Nerrs,

SOPs, Loggers,

CAN, and GPIOs

60-pin HD

LVDS data and Clk

JTAG and trace

40-Mhz

XTAL

QSPI

Flash

Optional for 3.3-V

from MCU

LaunchPadTM

PMIC

LDO1

4 RX and 2 TX PCBs

LDO2

1.8 V

1.3 V

1.2 V

3.3 VIO

1.8 V

2.3 V

EN control from the

MCU

PGOOD signal to

MCU for power

sequencing

5-V input

from jack

and MCU

Power and 2 GPIO

LED indicators

Control signals for

external MCU interface

Current

measurement

www.ti.com

Hardware

SWRU508C–May 2017–Revised May 2020

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

2.1 Block Diagram

Figure 3 shows the block diagram.

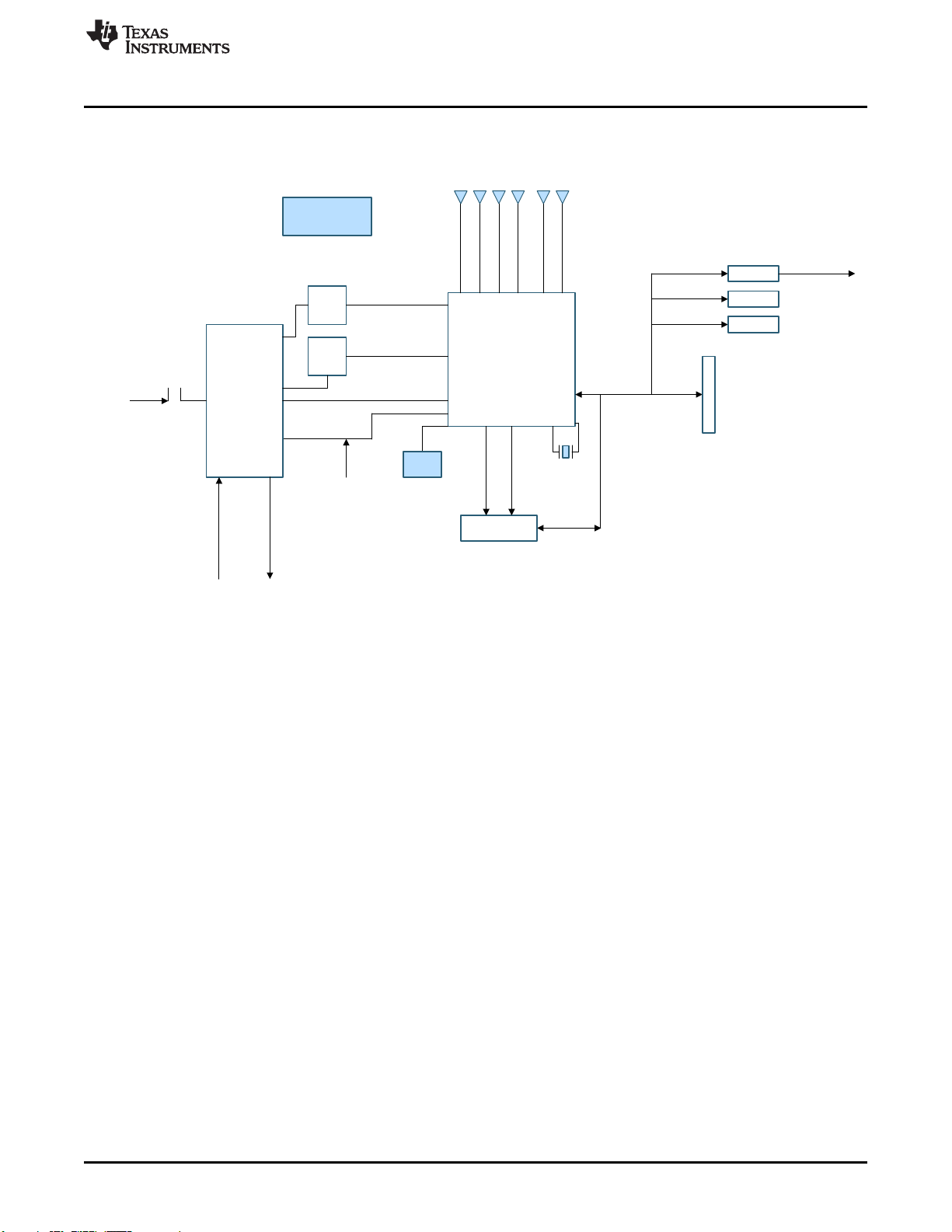

Figure 3. Block Diagram

Figure 4. Block Diagram

Hardware

www.ti.com

6SWRU508C–May 2017–Revised May 2020

Submit Documentation Feedback

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

2.2 Power Connections

The BoosterPack is powered by the 5-V power jack (5-A current limit), shown in Figure 5. As soon as the

power is provided, the NRST and 5-V LEDs should glow, indicating that the board is powered on.

NOTE: After the 5-V power supply is provided to the EVM, it is recommended to press the NRST

switch (SW2) one time to ensure a reliable boot-up state.

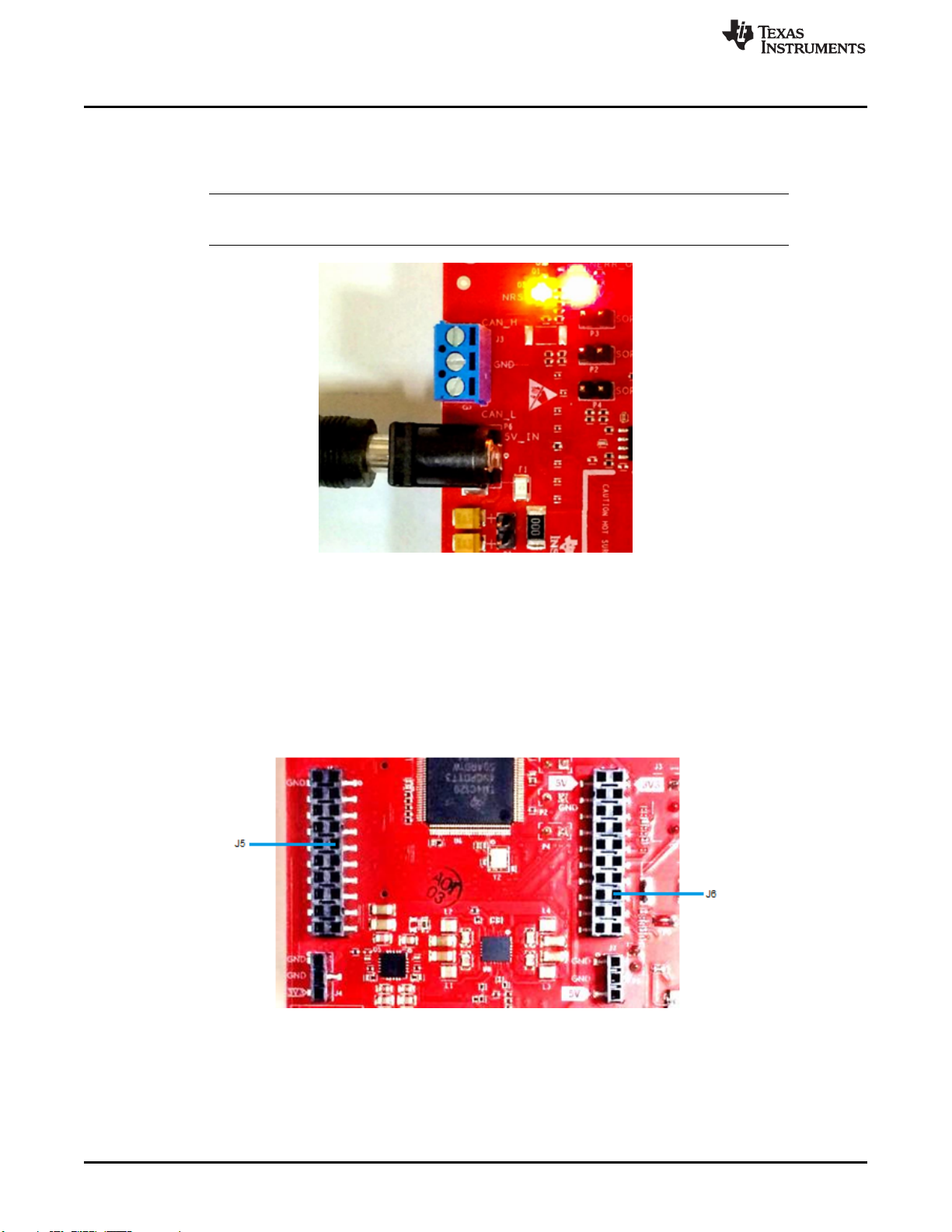

Figure 5. Power Connector

2.3 Connectors

2.3.1 20-Pin BoosterPack Connectors

The BoosterPack has the standard LaunchPad connectors (J5 and J6, shown in Figure 6) that enable it to

be directly connected to all TI MCU LaunchPads. While connecting the BoosterPack to other LaunchPads,

ensure the pin-1 orientation is correct by matching the 3V3 and 5-V signal marking on the boards.

Figure 6. 20-Pin BoosterPack Connectors

www.ti.com

Hardware

SWRU508C–May 2017–Revised May 2020

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

Table 1 and Table 2 provide the connector-pin information.

Table 1. J5 Connector Pin

Pin Number Description Pin Number Description

1 NERROUT 2 GND

3 NERRIN 4 DSS LOGGER

5 MCUCLK OUT 6 SPI_CS

7 NC 8 GPIO01

9 MSS LOGGER 10 nRESET

11 WARMRST 12 SPI_MOSI

13 BSS LOGGER 14 SPI_MISO

15 SOP2 16 HOSTINT

17 SOP1 18 GPIO02

19 SOP0 20 NC

(1) Voltage input to the GPADC available on the AWR1642.

(2) Indicates the state of the onboard VIO supply for the AWR device coming from the onboard PMIC. A HIGH on the PGOOD

signal (3.3 V) indicates the supply is stable. Because the I/Os are not failsafe, the MCU must not drive any I/O signals to the

AWR device before this I/O supply is stable to avoid leakage current into the I/Os.

(3) Controls the onboard PMIC enable. The MCU can use this to shut down the PMIC and AWR device during the periods it does

not use the AWR device and save power. The power up of the PMIC takes approximately 5 ms once the enable signal is made

high.

Table 2. J6 Connector Pin

Pin Number Description Pin Number Description

1 3V3 2 5 V

3 NC 4 GND

5 RS232RX (Tx from AWR device) 6 ANA1(1)

7 RS232RX (Rx into AWR device) 8 ANA2(1)

9 SYNC_IN 10 ANA3(1)

11 NC 12 ANA4(1)

13 SPI_CLK 14 PGOOD (onboard VIO)(2)

15 GPIO0 16 PMIC Enable(3)

17 SCL 18 SYNC_OUT

19 SDA 20 PMIC CLK OUT

Hardware

www.ti.com

8SWRU508C–May 2017–Revised May 2020

Submit Documentation Feedback

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

2.3.2 60-Pin HD Connector

The 60-pin HD connector provides the high speed LVDS data, control signals (SPI, UART, I2C, NRST,

NERR, SOPs) and JTAG debug signals. The connector can be connected to the MMWAVE-DEVPACK

board to further get to the standard TSW1400 EVM. Figure 7 shows the HD connector, and Table 3

provides the connector information.

Figure 7. HD Connector

www.ti.com

Hardware

SWRU508C–May 2017–Revised May 2020

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

(1) Indicates the state of the onboard VIO supply for the AWR device coming from the onboard PMIC. A HIGH on the PGOOD signal (3.3 V)

indicates the supply is stable. Because the I/Os are not failsafe, the MCU must not drive any I/O signals to the AWR device before this

I/O supply is stable to avoid leakage current into the I/Os.

Table 3. J1 Connector Pin

Pin Number Description Pin Number Description

1 5V 2 5V

3 5V 4 TDO

5 TDI 6 TCK

7 SPI_CS 8 TMS

9 SPI_CLK 10 HOSTINT

11 SPI_MOSI 12 SPI_MISO

13 PGOOD (onboard VIO)(1) 14 NERROUT

15 DMM_CLK 16 SYNC_IN

17 DMM_SYNC 18 GND

19 TRACE_DATA0 20 NC

21 TRACE_DATA1 22 NC

23 TRACE_DATA2 24 GND

25 TRACE_DATA3 26 LVDS_FRCLKP

27 TRACE_DATA4 28 LVDS_FRCLKM

29 TRACE_DATA5 30 GND

31 TRACE_DATA6 32 NC

33 TRACE_DATA7 34 NC

35 TRACE_DATA8 36 GND

37 TRACE_DATA9 38 NC

39 TRACE_DATA10 40 NC

41 TRACE_DATA11 42 GND

43 TRACE_DATA12 44 LVDS_CLKP

45 TRACE_DATA13 46 LVDS_CLKM

47 TRACE_DATA14 48 GND

49 TRACE_DATA15 50 LVDS_1P

51 I2C_SDA 52 LVDS_1M

53 I2C_SCL 54 GND

55 RS232RX (Rx into AWR device) 56 LVDS_0P

57 RS232TX (Tx from AWR device) 58 LVDS_0M

59 nRESET 60 GND

Hardware

www.ti.com

10 SWRU508C–May 2017–Revised May 2020

Submit Documentation Feedback

AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave

Sensing Solution

2.3.3 CAN Interface Connector

The J3 connector provides the CAN_L and CAN_H signals from the onboard CAND-FD transceiver

(TCAN1042HGVDRQ1). These signals can be directly wired to the CAN bus.

Because the digital CAN signals (Tx and Rx) are muxed with the SPI interface signals on the AWR device,

one of the two paths must be selected. In the Rev A of the board, to enable the CAN interface, R11 and

R12 resisters must be populated with 0 Ω; R4, R6, R28, and R63 resistors must be removed to disconnect

the SPI path. In the Rev B board, this is done by placing the switch S2 on the "CAN" position.

Figure 8 shows the CAN connector.

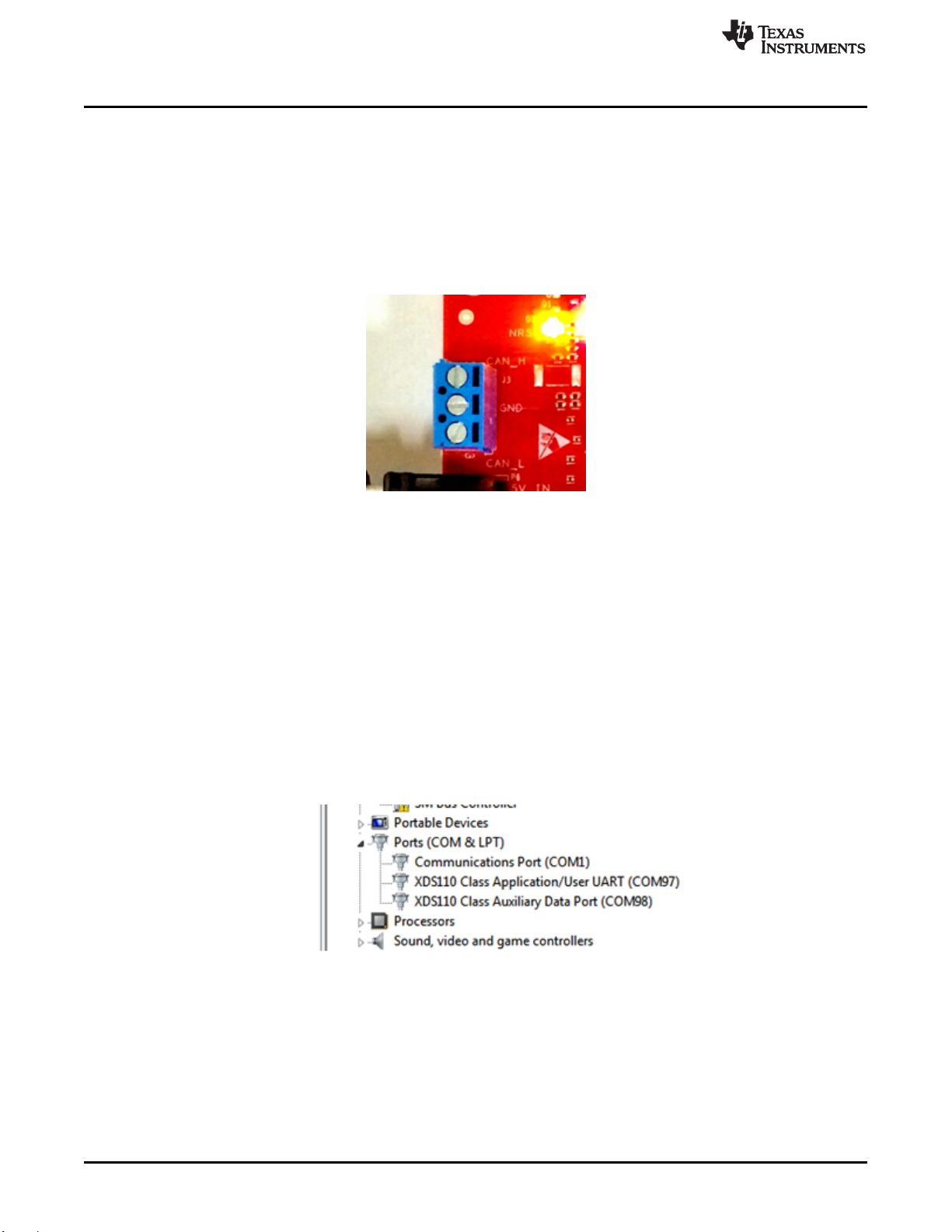

Figure 8. CAN Connector

2.4 PC Connection

The connectivity is provided through the micro USB connector over the onboard XDS110

(TM4C1294NCPDT) emulator. This connection provides the following interfaces to the PC:

• JTAG for Code Composer Studio™ (CCS) connectivity

• UART1 for flashing the onboard serial flash, downloading FW through Radar Studio, and getting

application data sent through the UART

• MSS logger UART (can be used to get MSS code logs on the PC)

When the USB is connected to the PC, the device manager should recognize the following COM ports,

shown in Figure 9:

• XDS110 Class Application/User UART – UART1 port

• XDS110 Class Auxiliary Data Port – MSS logger port

Figure 9. COM Ports

If Windows®is unable to recognize the COM ports, users must install the EMU pack available at XDS

Emulation Software Package.

2.5 Connecting the BoosterPack to the LaunchPad or the MMWAVE-DEVPACK

The development pack may be required with the BoosterPack for the following use cases:

• Connecting to Radar Studio

Radar Studio TSW1400+Devpack, mmwave Studio TSW1400+Devpack/DCA1000 tool is a tool that

Andere Handbücher für AWR1642

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments TUSB8040AEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TMP75BEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS56121 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS131E08 Bedienungsanleitung

Texas Instruments

Texas Instruments LP876242-Q1 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1675REF Bedienungsanleitung

Texas Instruments

Texas Instruments TSW308 Series Bedienungsanleitung

Texas Instruments

Texas Instruments TLV320AIC3104EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TAS5733LEVM Fehlerbehebungshandbuch

Texas Instruments

Texas Instruments Stellaris EK-LM3S9B92 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS7A13EVM-057 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS7056EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS54J20EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS65560EVM-165 Bedienungsanleitung

Texas Instruments

Texas Instruments TPA3136D2 Bedienungsanleitung

Texas Instruments

Texas Instruments BP-DAC81404EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LSF010XEVM-001 Bedienungsanleitung

Texas Instruments

Texas Instruments DAC124S085EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TMAG5 73 Series Bedienungsanleitung

Texas Instruments

Texas Instruments DLPC4430EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPD2E2U06-Q1EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS2661EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LMX2595 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LMK1D1208IEVM Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
