INA228, INA229, INA237, INA238, and INA239 EVM User’s

Guide

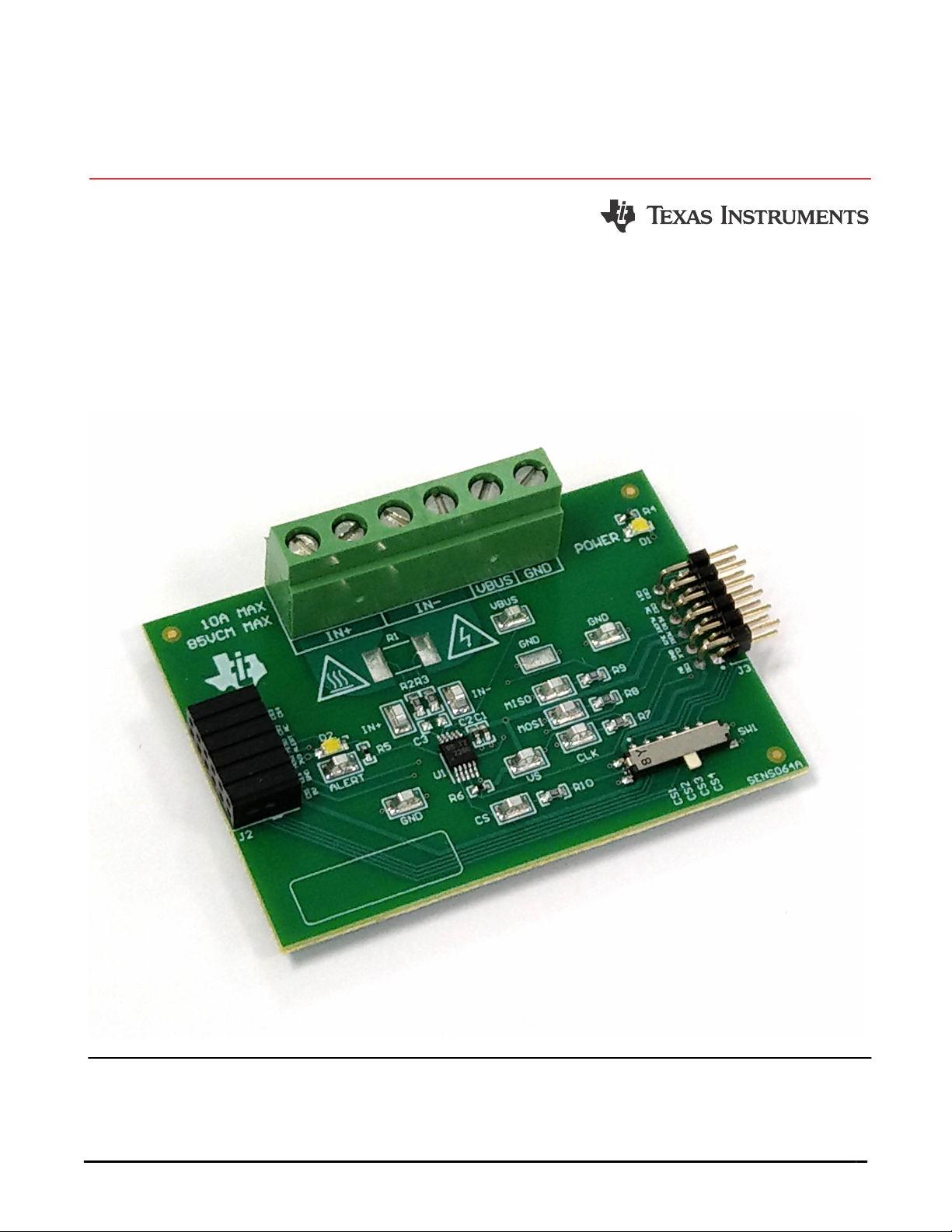

ABSTRACT

This user’s guide describes the characteristics, operation, and use of the INA228, INA229, INA237, INA238,

and INA239 evaluation modules (EVMs). These EVMs are designed to evaluate the performance of the

INA228, INA229, INA237, INA238, and INA239. Throughout this document, the terms evaluation board,

evaluation module, and EVM are synonymous with the INA228EVM, INA229EVM, INA237EVM, INA238EVM,

and INA239EVM. This document includes a schematic, reference printed-circuit board (PCB) layouts, and a

complete bill of materials (BOM).

www.ti.com

SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide 1

Table of Contents

1 Trademarks..............................................................................................................................................................................2

General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines............................................... 3

2 Overview..................................................................................................................................................................................5

2.1 Kit Contents........................................................................................................................................................................5

2.2 Related Documentation From Texas Instruments.............................................................................................................. 6

3 Hardware................................................................................................................................................................................. 6

3.1 Features............................................................................................................................................................................. 6

4 Operation.................................................................................................................................................................................7

4.1 Quick Start Setup............................................................................................................................................................... 7

4.2 EVM Operation...................................................................................................................................................................7

5 Circuitry................................................................................................................................................................................. 22

5.1 Current Sensing IC...........................................................................................................................................................22

5.2 Input Signal Path..............................................................................................................................................................22

5.3 Digital Circuitry................................................................................................................................................................. 22

6 Schematics, PCB Layout, and Bill of Materials................................................................................................................. 23

6.1 Schematics.......................................................................................................................................................................23

6.2 PCB Layout...................................................................................................................................................................... 27

6.3 Bill of Materials.................................................................................................................................................................29

7 Revision History................................................................................................................................................................... 32

1 Trademarks

All trademarks are the property of their respective owners.

Table of Contents www.ti.com

2INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines

WARNING

Always follow TI's set-up and application instructions, including use of all interface components within their

recommended electrical rated voltage and power limits. Always use electrical safety precautions to help ensure

your personal safety and those working around you. Contact TI's Product Information Center http://ti.com/

customer support for further information.

Save all warnings and instructions for future reference.

WARNING

Failure to follow warnings and instructions may result in personal injury, property damage or death

due to electrical shock and burn hazards.

The term TI HV EVM refers to an electronic device typically provided as an open framed, unenclosed printed

circuit board assembly. It is intended strictly for use in development laboratory environments, solely for qualified

professional users having training, expertise and knowledge of electrical safety risks in development and

application of high voltage electrical circuits. Any other use and/or application are strictly prohibited by Texas

Instruments. If you are not suitably qualified, you should immediately stop from further use of the HV EVM.

1. Work Area Safety:

a. Keep work area clean and orderly.

b. Qualified observer(s) must be present anytime circuits are energized.

c. Effective barriers and signage must be present in the area where the TI HV EVM and its interface

electronics are energized, indicating operation of accessible high voltages may be present, for the

purpose of protecting inadvertent access.

d. All interface circuits, power supplies, evaluation modules, instruments, meters, scopes, and other related

apparatus used in a development environment exceeding 50Vrms/75VDC must be electrically located

within a protected Emergency Power Off EPO protected power strip.

e. Use stable and non-conductive work surface.

f. Use adequately insulated clamps and wires to attach measurement probes and instruments. No

freehand testing whenever possible.

2. Electrical Safety:

a. As a precautionary measure, it is always good engineering practice to assume that the entire EVM may

have fully accessible and active high voltages.

b. De-energize the TI HV EVM and all its inputs, outputs and electrical loads before performing any

electrical or other diagnostic measurements. Revalidate that TI HV EVM power has been safely de-

energized.

c. With the EVM confirmed de-energized, proceed with required electrical circuit configurations, wiring,

measurement equipment hook-ups and other application needs, while still assuming the EVM circuit and

measuring instruments are electrically live.

d. Once EVM readiness is complete, energize the EVM as intended.

www.ti.com General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines

SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide 3

WARNING

While the EVM is energized, never touch the EVM or its electrical circuits, as they could be

at high voltages capable of causing electrical shock hazard.

3. Personal Safety

a. Wear personal protective equipment e.g. latex gloves or safety glasses with side shields or protect EVM

in an adequate lucent plastic box with interlocks from accidental touch.

Limitation for safe use:

EVMs are not to be used as all or part of a production unit.

General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines www.ti.com

4INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

2 Overview

The INA228, INA229, INA237, INA238, and INA239 devices are digital power monitors with integrated 20-bit

(INA229 and INA228) and 16-bit (INA237, INA238, and INA239) delta-sigma ADCs specifically designed for

current-sensing applications. The devices can measure a selectable full-scale differential input of ±163.84 mV

or ±40.96 mV across the shunt with common-mode voltage support from –0.3 V to +85 V. For the INA228 and

INA229, built-in digital accumulation calculates average power, internal die temperature, energy, and charge

accumulation. For the INA237, INA238, and INA239, built-in digital accumulation calculates average power and

internal die temperature. All devices also have built-in diagnostics to indicate system health accessible through

a digital output pin, ALERT. The devices operate from a single supply of 2.7 V to 5.5 V, drawing < 1.1-mA

current during operation and < 5-µA current during shutdown. The output can be interfaced with a multitude

of microcontrollers (MCUs) with a standard 4-wire SPI interface (INA229 and INA239) or with a standard I2C

interface (INA228, INA237, and INA238).

Table 2-1. Device Summary

PRODUCT

DIGITAL

PROTOCOL

ADC

RESOLUTION

MAX GAIN

ERROR

MAX OFFSET

VOLTAGE

INA228 I2C 20-bit 0.05% ±1 µV

INA229 SPI 20-bit 0.05% ±1 µV

INA237 I2C 16-bit 0.3% ±50 µV

INA238 I2C 16-bit 0.1% ±5 µV

INA239 SPI 16-bit 0.1% ±5 µV

2.1 Kit Contents

Table 2-2 lists the contents of the EVM kit. Contact Texas Instruments Customer Support if any component is

missing.

Table 2-2. Kit Contents

ITEM QUANTITY

INA228EVM, INA229EVM, INA237EVM,

INA238EVM, OR INA239EVM test board 1

Note that this EVM requires the TI Sensor Control Board (SCB), which is sold separately.

www.ti.com Overview

SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide 5

2.2 Related Documentation From Texas Instruments

This user's guide is available from the TI website under literature number SBOU241. Any letter appended to the

literature number corresponds to the document revision that is current at the time of the writing of this document.

Newer revisions are available from www.ti.com or the Texas Instruments' Literature Response Center at (800)

477-8924 or the Product Information Center at (972) 644-5580. When ordering, identify the document by both

title and literature number. Table 2-3 lists documentation related to the EVM. Click the links in Table 2-3 for

further information. The device name links to the product web folder on www.ti.com. The literature number links

to the document PDF.

Table 2-3. Related Documentation

DOCUMENT TITLE

DOCUMENT

LITERATURE

NUMBER

INA228 data sheet SLYS021

INA228-Q1 data sheet SLYS022

INA229 data sheet SLYS023

INA229-Q1 data sheet SLYS024

INA237 data sheet SBOSA20

INA237-Q1 data sheet SBOSA27

INA238 data sheet SLYS025

INA238-Q1 data sheet SLYS026

INA239 data sheet SLYS027

INA239-Q1 data sheet SLYS028

Getting Started with Digital Power Monitors SBOA511

3 Hardware

The EVM is an easy-to-use platform for evaluating the main features and performance of the INA228, INA229,

INA237, INA238, or INA239. The EVM supports current measurements up to 10 amps through the PCB, and

includes a graphical user interface (GUI) used to read and write device registers as well as view and save results

data.

The EVM is intended to provide basic functional evaluation of the devices. The layout is not intended to be a

model for the target circuit, nor is it laid out for electromagnetic compatibility (EMC) testing. The EVM consists

of two printed-circuit boards (PCBs). The larger PCB is referred to as the EVM, and has either the INA228,

INA229, INA237, INA238, or INA239 installed. The smaller PCB is referred to as the SCB Controller, and is used

to interface the EVM with the GUI.

3.1 Features

• GUI support to read and write device registers as well as view and save results data

• EVM detached from SCB for custom use cases

• Multiple EVM support with single SCB/GUI

• Conveniently powered from a common micro-USB connector through the SCB

Overview www.ti.com

6INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

4 Operation

4.1 Quick Start Setup

The following instructions describe how to set up and use the EVM.

1. Purchase an SCB if you do not already have one.

a. To use a PAMB Controller instead, see PAMB Compatibility.

2. Download this driver and install it as an administrator: https://www.ti.com/lit/zip/sbac253.

a. Follow the download prompts, a myTI account will be required.

b. Note that this driver is labeled as a PAMB driver, but is also used for the SCB.

3. Attach the EVM to the SCB Controller as shown in Figure 4-1.

a. Refer to Figure 4-2 when connecting multiple EVMs of the same type together.

4. Connect the EVM to the PC using the provided USB cable.

a. Insert the micro USB cable into the SCB Controller onboard USB receptacle J2.

b. Plug the other end of the USB cable into a PC.

5. Access the GUI from this link in either Chrome, Firefox, or Safari: https://dev.ti.com/gallery/info/

CurrentSensing/INA228_229_237_238_239EVM_GUI/.

6. Connect the GND reference of the external system to the GND node of the EVM (pin 1 of J1).

7. Provide a differential input voltage signal to the IN+ and IN– nodes by connecting the signal leads to J1 pin 5

or 6 and J1 pin 3 or 4 on the EVM as explained in Current Sensing Operation.

4.2 EVM Operation

To use the EVM with the SCB Controller (sold separately), connect the EVM as shown in Figure 4-1.

Figure 4-1. EVM (Left) Connected to SCB Controller (Right)

If using multiple EVMs, connect them as shown in Figure 4-2. Make sure to use a different chip select/address

for each device. The GUI only supports one EVM/device type at a time, up to 4 EVMs total.

www.ti.com Operation

SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide 7

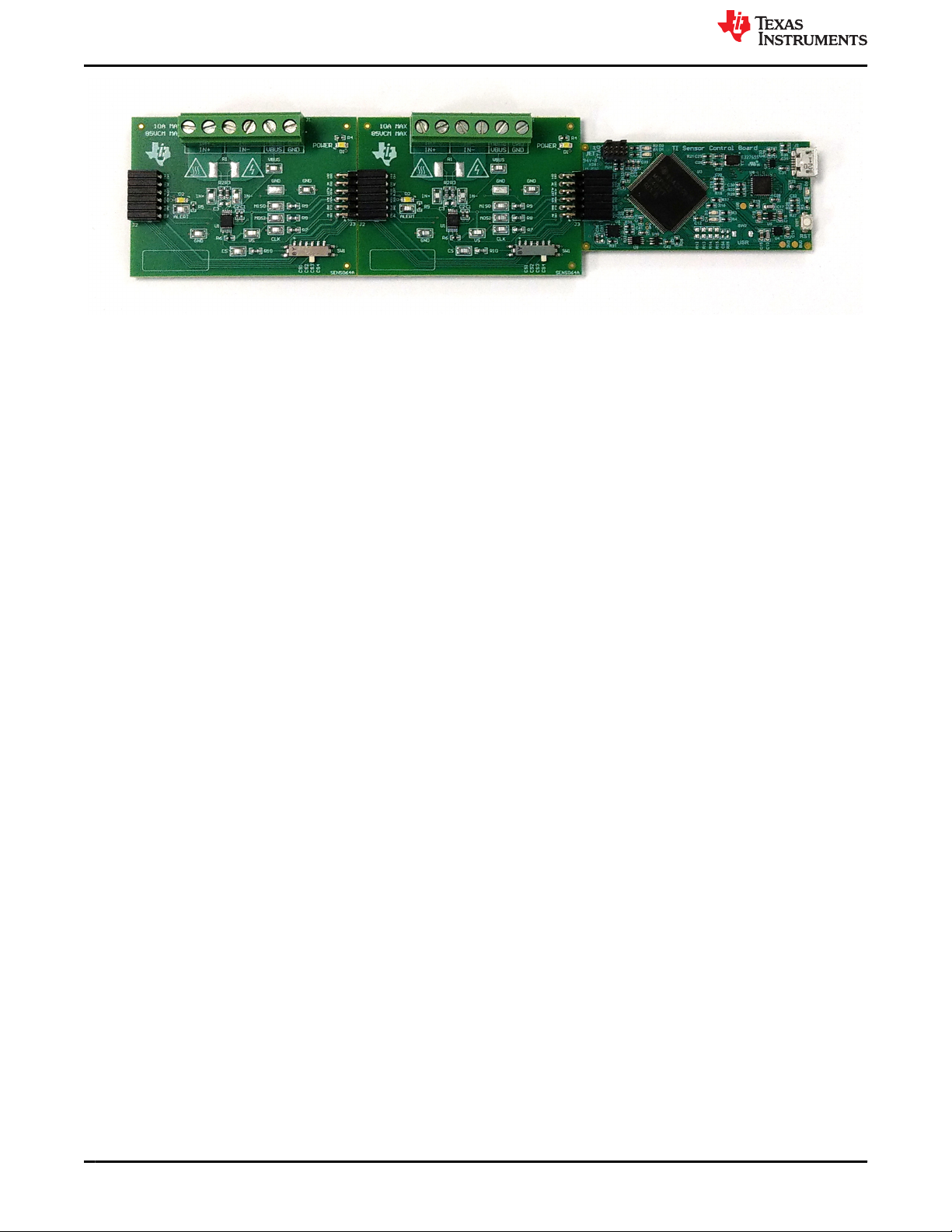

Figure 4-2. Multiple EVMs Connected to SCB Controller

4.2.1 Setup

4.2.1.1 Driver Installation

Download and install this driver: https://www.ti.com/lit/zip/sbac253. This is a one-time step per computer, and will

require a myTI account. Note that this driver is labeled as a PAMB driver, but is also used for the SCB. Unzip the

folder and run the .exe file with administrator privileges.

4.2.1.2 Firmware

Firmware updates will be pushed through the GUI if the previous driver was installed. Downloaded offline GUIs

will only update the SCB Controller with the latest firmware available at the time of download. To check for the

latest GUI or Firmware updates, launch the latest GUI version from the web browser.

4.2.1.2.1 Firmware Debug

If the firmware must be manually reinstalled for any reason, follow these steps to reinstall the firmware. Make

sure the EVM is connected to the SCB.

1. First, see if the GUI can program the firmware manually.

a. Plug in the SCB controller to the PC

b. Launch the GUI

c. It is possible that the MCU has already entered Device Firmware Update (DFU) mode. If so, the GUI

may notify you and try to update the firmware to the latest version.

d. If it does not update automatically, go to File > Program Device...

2. If step 1 is unsuccessful (or if the Program Device button is grayed out), manually configure the MCU on the

SCB Controller to be in DFU Mode. This can be done through either of the below methods with the SCB

Controller powered on:

a. Through software:

• Send the command 'bsl' on the SCB's USB Serial (COM) port.

b. Though hardware:

• For safety, turn off and disconnect all load sources and external voltages.

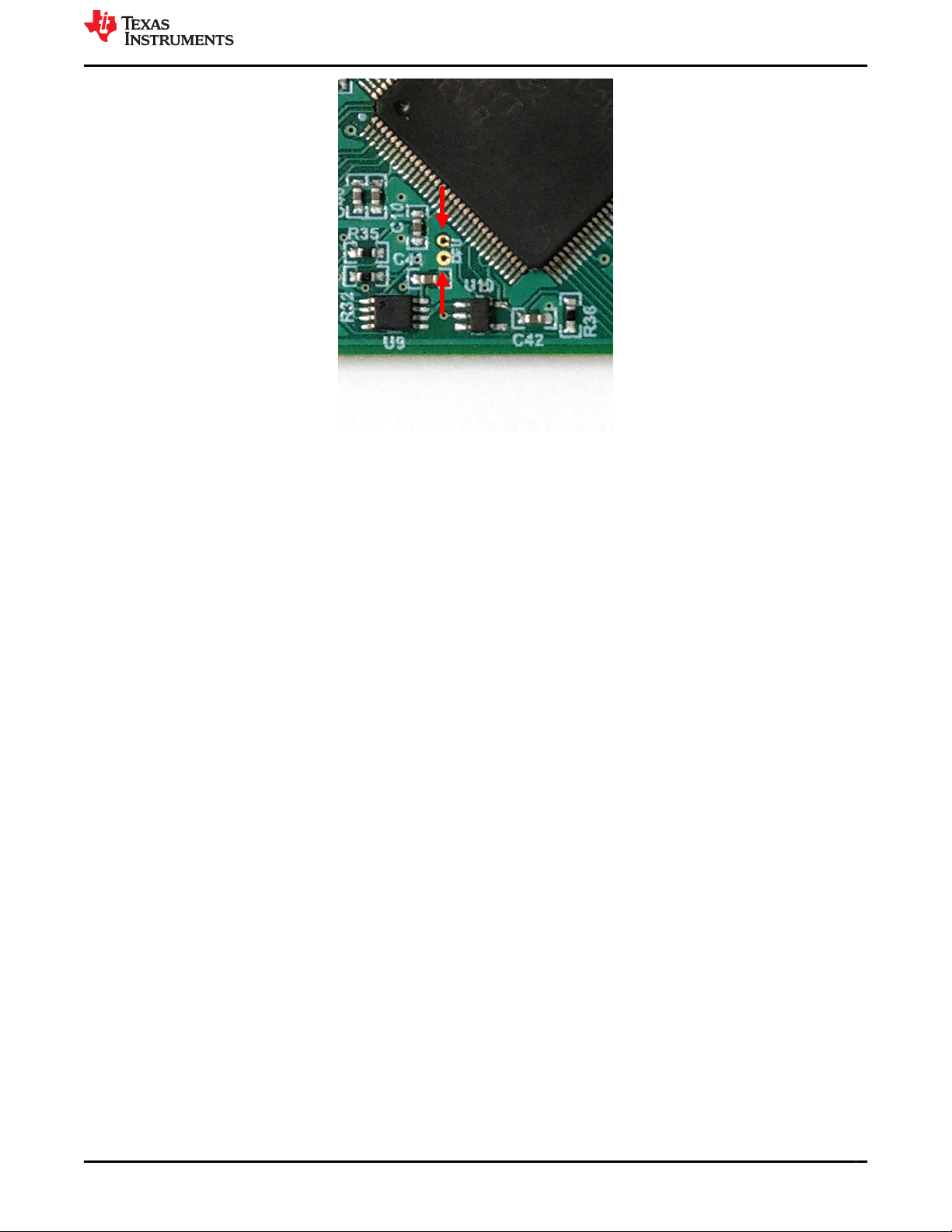

• While shorting the two test points labeled DFU (shown in Figure 4-3) with a pair of tweezers (or wire),

press and release the RESET button.

Operation www.ti.com

8INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

Figure 4-3. Test Points Used to Enter DFU Mode Manually

• If you are using the PAMB board instead, these test points are placed near PK1 and PK2.

With the MCU in DFU mode, the firmware can now be uploaded through the method outlined in Step 1.

4.2.1.3 GUI Setup and Connection

You can access the GUI from this link in either Chrome, Firefox, or Safari: https://dev.ti.com/gallery/info/

CurrentSensing/INA228_229_237_238_239EVM_GUI/.

4.2.1.3.1 Initial Setup

To set up the GUI the first time:

1. Make sure that the previously mentioned driver was installed successfully to ensure that everything works

properly and that the GUI can update the EVM firmware, if necessary.

2. Check to make sure the EVM/SCB Controller unit is plugged into the PC, then go to the previously-provided

GUI link.

3. Open the GUI Composer application to launch the GUI from the web browser (see Figure 4-4).

www.ti.com Operation

SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide 9

Figure 4-4. GUI Composer Application

a. The GUI link will bring up all versions of the GUI. TI recommends to launch the newest version available.

b. For first-time GUI Composer setup, follow the prompts to download the TI Cloud Agent and browser

extension (see Figure 4-5). These prompts will appear after you close the README.md dialog box.

Figure 4-5. TI Cloud Agent

4. To download the GUI for offline use, click the icon in the GUI Composer application and follow the

prompts (see Figure 4-4).

4.2.1.3.2 GUI to EVM Connection

To connect the GUI to the EVM, follow these steps:

1. Setup and launch the GUI as described in Initial Setup.

2. Check to make sure that the EVM connected to the GUI, then close the README.md file page to initiate the

connection. If successful, the text Hardware Connected should be visible near the bottom left corner of the

GUI.

Figure 4-6. Hardware Connected

Operation www.ti.com

10 INA228, INA229, INA237, INA238, and INA239 EVM User’s Guide SBOU241E – APRIL 2020 – REVISED AUGUST 2022

Submit Document Feedback

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments DS90C189-Q1EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TAS6424MS-Q1 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DRV2634EVM-DC Bedienungsanleitung

Texas Instruments

Texas Instruments TPS65217CEVM Bedienungsanleitung

Texas Instruments

Texas Instruments CC900DB Bedienungsanleitung

Texas Instruments

Texas Instruments TMAG5 73 Series Bedienungsanleitung

Texas Instruments

Texas Instruments TPS60250EVM-185 Bedienungsanleitung

Texas Instruments

Texas Instruments DRV8899-Q1 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS53316EVM-075 Bedienungsanleitung

Texas Instruments

Texas Instruments TLV320AIC33EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LMZM23601 Bedienungsanleitung

Texas Instruments

Texas Instruments LP8580EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS56C20 Bedienungsanleitung

Texas Instruments

Texas Instruments WL1835MODCOM8A Bedienungsanleitung

Texas Instruments

Texas Instruments SWIFT TPS54350EVM-235 Bedienungsanleitung

Texas Instruments

Texas Instruments LMR33640EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS274C65 Bedienungsanleitung

Texas Instruments

Texas Instruments LMK6EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TLV320AIC32EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS22985EVM Bedienungsanleitung

Texas Instruments

Texas Instruments AM572x series Bedienungsanleitung

Texas Instruments

Texas Instruments TPS382-Q1EVM Bedienungsanleitung

Texas Instruments

Texas Instruments INAEVM-ALT-SO8 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS70151 Series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
