User’s Guide

LMX2594PSEVM Evaluation Instructions

ABSTRACT

The LMX2594PSEVM uses two LMX2594 synthesizers to generate two phase-coherent outputs with very fine

phase adjustment capability. The outputs of the synthesizers can also be combined to produce lower noise and

jitter than is possible with just one.

The LMX2594 is a high-performance, wideband synthesizer that can generate any frequency from 10 MHz to 15

GHz without using an internal doubler, thus eliminating the need for sub-harmonic filters.

Table of Contents

1 LMX2594PSEVM Evaluation Module.....................................................................................................................................3

1.1 Evaluation Module Contents.............................................................................................................................................. 3

1.2 Evaluation Setup Requirement.......................................................................................................................................... 3

1.3 Resources.......................................................................................................................................................................... 3

2 Setup........................................................................................................................................................................................4

2.1 Connection Diagram.......................................................................................................................................................... 4

2.2 Power Supply..................................................................................................................................................................... 4

2.3 Reference Clock.................................................................................................................................................................4

2.4 SYNC Input........................................................................................................................................................................ 4

2.5 RF Output...........................................................................................................................................................................4

2.6 Programming......................................................................................................................................................................4

2.7 Evaluation Software........................................................................................................................................................... 5

3 Typical Measurement..............................................................................................................................................................6

3.1 Category 3 Synchronization............................................................................................................................................... 6

3.2 Phase Noise Improvement.................................................................................................................................................7

www.ti.com Table of Contents

SNAU278 – JULY 2022

Submit Document Feedback

LMX2594PSEVM Evaluation Instructions 1

4 Schematic................................................................................................................................................................................9

5 PCB Layout and Layer Stack-up..........................................................................................................................................11

5.1 PCB Layer Stack-Up........................................................................................................................................................ 11

5.2 PCB Layout...................................................................................................................................................................... 11

6 Bill of Materials..................................................................................................................................................................... 13

7 EVM Modification..................................................................................................................................................................14

8 Troubleshooting Guide.........................................................................................................................................................15

9 Reference PRO......................................................................................................................................................................16

9.1 Output Frequency Selection.............................................................................................................................................16

9.2 Output Format Selection.................................................................................................................................................. 17

9.3 Typical Output Characteristics......................................................................................................................................... 18

9.4 Firmware Update..............................................................................................................................................................18

Trademarks

PLLatinum™ is a trademark of Texas Instruments.

Windows® is a registered trademark of Microsoft Corporation.

All trademarks are the property of their respective owners.

Trademarks www.ti.com

2LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022

Submit Document Feedback

1 LMX2594PSEVM Evaluation Module

1.1 Evaluation Module Contents

The following is included in the package:

• One LMX2594PSEVM board (DC193-001).

• One Reference PRO board (SV601349).

• One USB cable.

• One 10-pin ribbon cable.

1.2 Evaluation Setup Requirement

The evaluation requires the following hardware and software:

• A DC power supply

• A spectrum analyzer or a signal analyzer

• A PC running Windows® 7 or more recent version

• An oscilloscope

• A high quality signal generator

• Texas Instruments Clocks and Synthesizers TICS Pro software

• Texas Instruments PLLatinum™ Simulator Tool (optional)

1.3 Resources

Related evaluation and development resources include:

•LMX2594 data sheet

•TICS Pro software

•PLLatinum Simulator Tool (PLL Sim)

•Reference PRO design file

• Reference designs:

–TIDA-01410

–TIDA-01346

www.ti.com LMX2594PSEVM Evaluation Module

SNAU278 – JULY 2022

Submit Document Feedback

LMX2594PSEVM Evaluation Instructions 3

2 Setup

2.1 Connection Diagram

Figure 2-1. Connection Diagram

2.2 Power Supply

Apply 3.6 V to Vcc SMA connector. Acceptable supply voltage range is 3.5 V to 5 V. The maximum current

consumption in the most extreme configuration must not exceed 1200 mA. The onboard LDOs will provide a

3.3-V supply to the LMX2594 devices.

2.3 Reference Clock

Connect a low jitter reference clock to the OSCin SMA connector. This clock is evenly distributed to both

LMX2594 devices. If a sine wave clock is used, 8 dBm or more input power is suggested.

2.4 SYNC Input

In category 1 and 2 phase synchronization, the timing of the SYNC signal is not critical. This SYNC signal can

be generated from the Reference Pro board. In category 3 phase synchronization, the SYNC signal has to be

carefully aligned with the reference clock of the synthesizers. This SYNC signal shall be provided externally to

the SYNC SMA connector.

2.5 RF Output

Each LMX2594 device has two RF outputs, but only RFoutA is used. By default, RFoutAP pin is connected to

the SMA connector while the RFoutAM pin is terminated onboard. This is the default configuration to measure

the phases between the outputs of the LMX2594 devices. With some modification to the EVM, the sum of the

two LMX2594 devices output can be obtained from the SumRFout SMA connector. See Section 7 for more

information on EVM modification.

2.6 Programming

Connect the ribbon cable from the Reference PRO to the LMX2594PSEVM.

Connect the USB cable from a PC to the USB port on the Reference PRO board. This provides a power

supply to the Reference PRO board and communication with the TICS Pro software. A firmware update may be

required. See Section 9.4 for details.

The two LMX2594 devices share the uWIRE socket but only one device can be programmed at a time. Make

sure that only one of the DIP switches is in the ON position at a time.

Setup www.ti.com

4LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022

Submit Document Feedback

Figure 2-2. uWIRE Switches

2.7 Evaluation Software

Download and install TICS Pro to a PC. Run the software and follow the following steps to get started.

1. Go to Select Device → PLL + VCO → LMX2594.

2. Go to Default Configuration → Default Mode.

www.ti.com Setup

SNAU278 – JULY 2022

Submit Document Feedback

LMX2594PSEVM Evaluation Instructions 5

3 Typical Measurement

3.1 Category 3 Synchronization

Use the flow chart in the data sheet to determine the phase synchronization category. If it is a category 3

synchronization, there is limitation to the reference clock frequency and the timing of the SYNC signal with

respect to the reference clock is critical. Shown below is a category 3 synchronization example.

Figure 3-1. Category 3 TICS Pro Configuration

If it is a category 3 synchronization, VCO_PHASE_SYNC should be checked to put the devices in SYNC mode.

After programming, the outputs from the two LMX2594 devices may not be phase-aligned.

Figure 3-2. Output Phases Before Synchronization

Typical Measurement www.ti.com

6LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022

Submit Document Feedback

A timing critical SYNC pulse is needed to trigger synchronization.

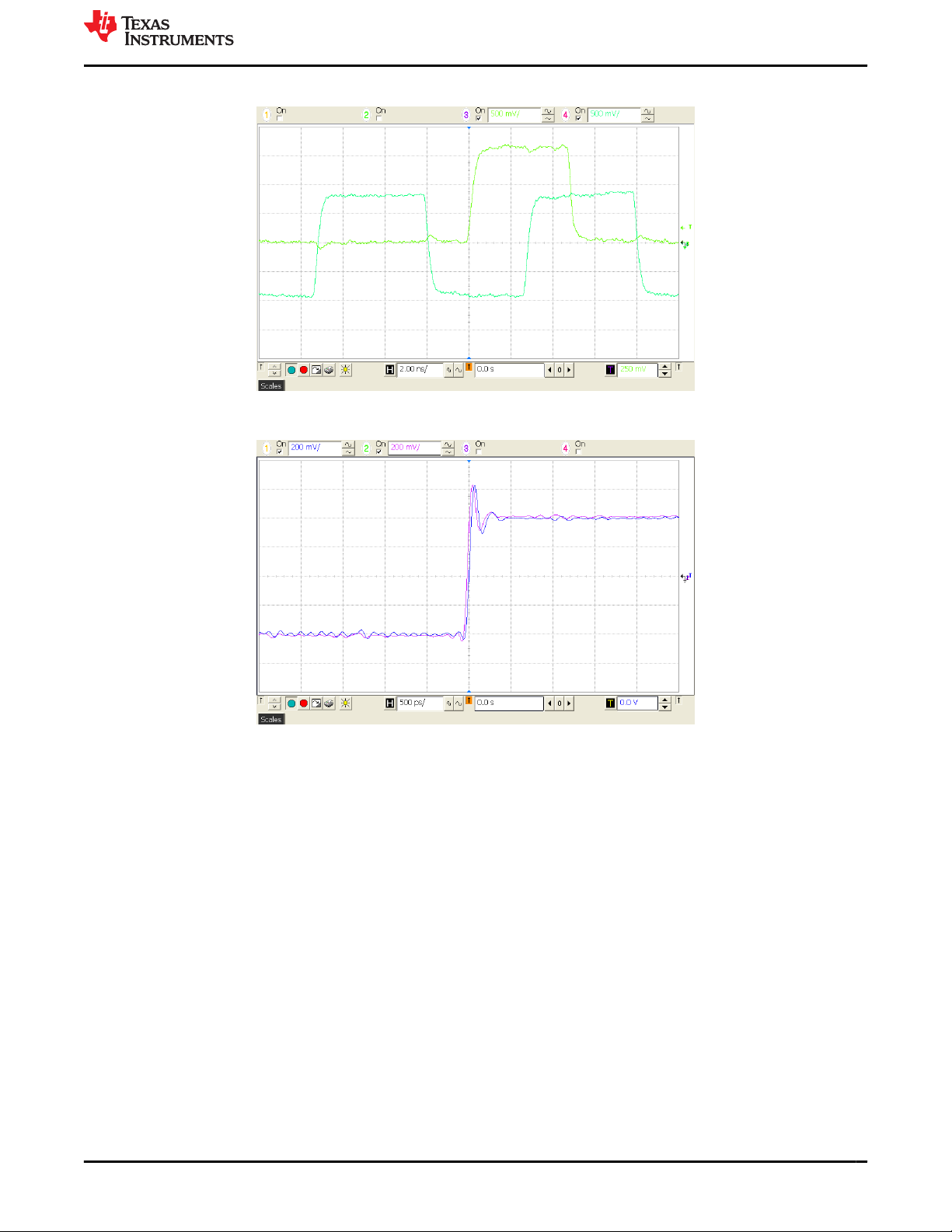

Figure 3-3. Timing Critical SYNC Pulse

Figure 3-4. Output Phases After Synchronization

3.2 Phase Noise Improvement

By combining the output of two synthesizers that are in-phase, a theoretical 3-dB phase noise benefit is possible

due to the output power being 6-dB higher while the noise power is only 3-dB higher.

To measure the combined phase noise, some modification to the EVM is needed. See Section 7 for details.

In Figure 3-5, the blue trace shown the phase noise of individual LMX2594 device while the black trace

respresented the phase noise of the combined signal.

www.ti.com Typical Measurement

SNAU278 – JULY 2022

Submit Document Feedback

LMX2594PSEVM Evaluation Instructions 7

Figure 3-5. Combined Phase Noise

Typical Measurement www.ti.com

8LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022

Submit Document Feedback

4 Schematic

Figure 4-1. LMX2594PSEVM Schematic (Page 1)

Figure 4-2. LMX2594PSEVM Schematic (Page 2)

www.ti.com Schematic

SNAU278 – JULY 2022

Submit Document Feedback

LMX2594PSEVM Evaluation Instructions 9

Figure 4-3. LMX2594PSEVM Schematic (Page 3)

Schematic www.ti.com

10 LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022

Submit Document Feedback
