TI CC3000 BoosterPack Evaluation Board

User's Guide

Literature Number: SWRU331

November 2012

Contents

Preface ....................................................................................................................................... 4

1 Introduction ........................................................................................................................ 5

2 CC3000 BoosterPack Evaluation Board ................................................................................. 6

2.1 BoosterPack Board Top View ............................................................................................. 6

2.2 CC3000 BoosterPack Board Bottom View .............................................................................. 7

2.3 Antenna ...................................................................................................................... 9

2.4 Hardware Setup ........................................................................................................... 13

2.5 CC3000 BoosterPack Schematic ........................................................................................ 15

2.6 Bill of Materials (BOM) .................................................................................................... 16

2.6.1 PCB Design Guidelines .......................................................................................... 16

2.6.2 RF Trace ........................................................................................................... 16

2.6.3 Antenna ............................................................................................................ 17

2.6.4 Power Trace ....................................................................................................... 17

2.6.5 Ground ............................................................................................................. 18

3 Application Development ................................................................................................... 19

2Contents SWRU331–November 2012

Submit Documentation Feedback

www.ti.com

List of Figures

2-1. BoosterPack Board Top View............................................................................................. 6

2-2. CC3000 BoosterPack Board Bottom View .............................................................................. 8

2-3. Antenna Location and RF Trace Routing................................................................................ 9

2-4. Matching Circuit Between the Antenna and the CC3000 BoosterPack ............................................ 10

2-5. Return Loss From the ACX Antenna and Matching Circuit.......................................................... 11

2-6. Antenna Radiation Pattern ............................................................................................... 12

2-7. Host PCB Mating Connector Arrangement ............................................................................ 13

2-8. CC3000 BoosterPack Schematics ...................................................................................... 15

2-9. Trace Design for PCB Layout............................................................................................ 16

2-10. Antenna Layout Guidelines .............................................................................................. 17

2-11. Power Trace................................................................................................................ 18

2-12. Ground Routing for the CC3000 BoosterPack Board................................................................. 18

3-1. MSP-EXP430G2 Test Platform and CC3000 BoosterPack Board.................................................. 19

List of Tables

2-1. Key Parts of CC3000 BoosterPack Board Top View................................................................... 6

2-2. J2 Configuration of the CC3000 Evaluation Module Board ........................................................... 7

2-3. Header J11 of the CC3000 BoosterPack Board Top View............................................................ 7

2-4. Header J12 of the CC3000 BoosterPack Board Top View............................................................ 7

2-5. Header J9 of the CC3000 BoosterPack Board Bottom View.......................................................... 8

2-6. Header J10 of the CC3000 BoosterPack Board Bottom View........................................................ 8

2-7. Launchpad to BoosterPack Pin Comparison .......................................................................... 13

2-8. PCB Stack-Up Data....................................................................................................... 16

2-9. Trace Design Measurement Values .................................................................................... 16

SWRU331–November 2012 List of Figures

Preface

SWRU331–November 2012

Read This First

About This Manual

This user guide describes how to use the TI CC3000 BoosterPack evaluation board to evaluate the

performance of the TI CC3000 module.

Related Documentation From Texas Instruments

•TI SimpleLink™ CC3000 Module – Wi-Fi 802.11b/g Network Processor Data Sheet (SWRS126)

• CC3000 Wiki for MCU: http://processors.wiki.ti.com/index.php/CC3000_Wi-Fi_for_MCU

If You Need Assistance

The primary sources of CC3000 information are the device-specific data sheets and user’s guides. For the

most up-to-date version of the user’s guide and data sheets, go to http://www.ti.com/product/cc3000.

FCC Warning

This equipment is intended for use in a laboratory test environment only. It generates, uses, and can

radiate radio frequency energy and has not been tested for compliance with the limits of computing

devices pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable

protection against radio frequency interference. Operation of this equipment in other environments may

cause interference with radio communications, in which case the user at his own expense will be required

to take whatever measures may be required to correct this interference.

SimpleLink is a trademark of Texas Instruments.

Wi-Fi is a registered trademark of Wi-Fi Alliance.

4Read This First SWRU331–November 2012

Submit Documentation Feedback

Chapter 1

SWRU331–November 2012

Introduction

This user guide describes how to use the TI CC3000 BoosterPack evaluation board to evaluate the

performance and functionality of the TI CC3000 module. The TI CC3000 module is a self-contained Wi-Fi®

solution that enables internet connectivity for a wide variety of embedded applications. This document

details the key parts and features of the CC3000 BoosterPack evaluation board along with the different

options available for the user and includes layout guidelines to assist in PCB development.

SWRU331–November 2012 Introduction

SWRU331-001

Chapter 2

SWRU331–November 2012

CC3000 BoosterPack Evaluation Board

2.1 BoosterPack Board Top View

Figure 2-1 Table 2-1 describe the key parts and jumpers mounted on top of the CC3000 BoosterPack

board. Table 2-2 describes the J2 configuration of the CC3000 evaluation module (EM) board. Table 2-3

and Table 2-4 describe the signals on J11 and J12.

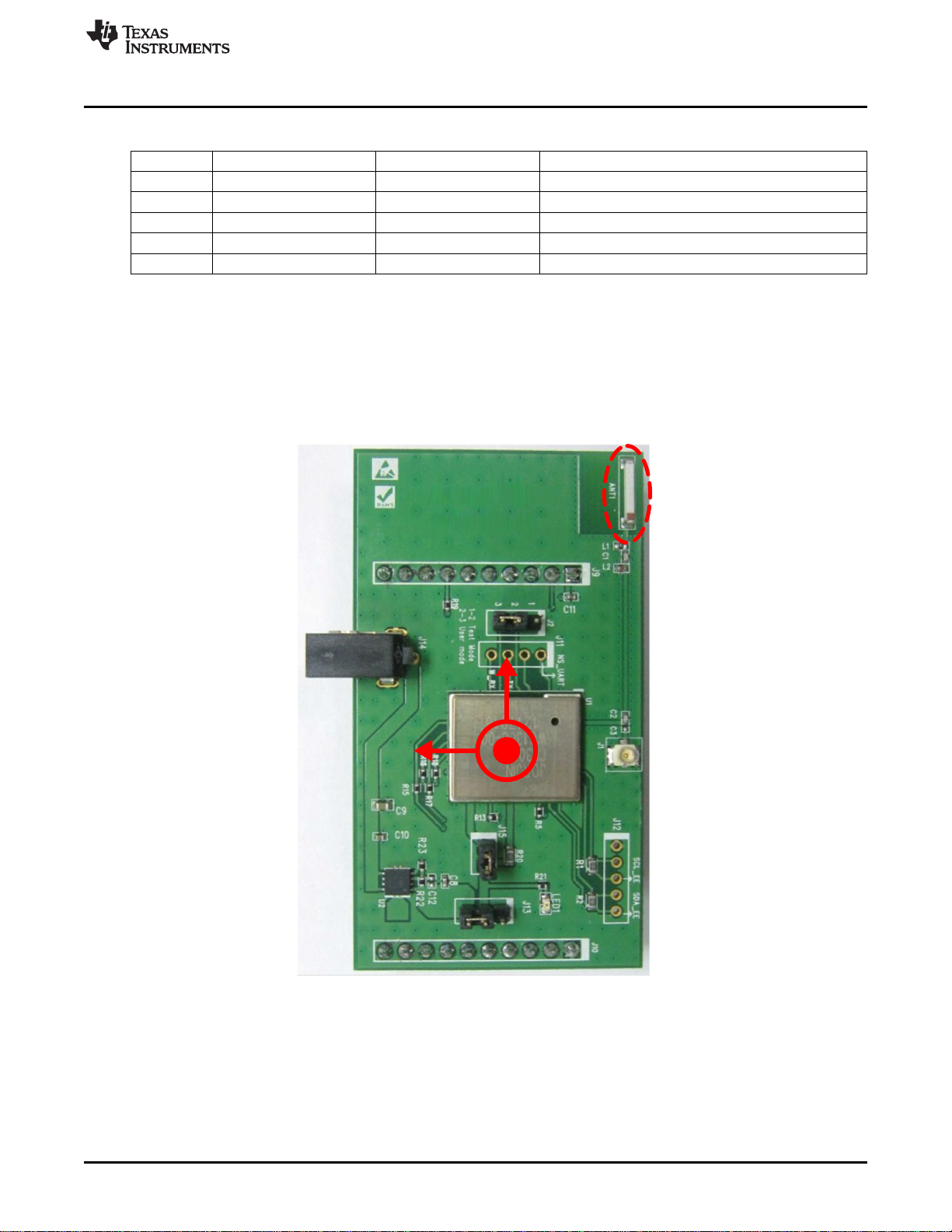

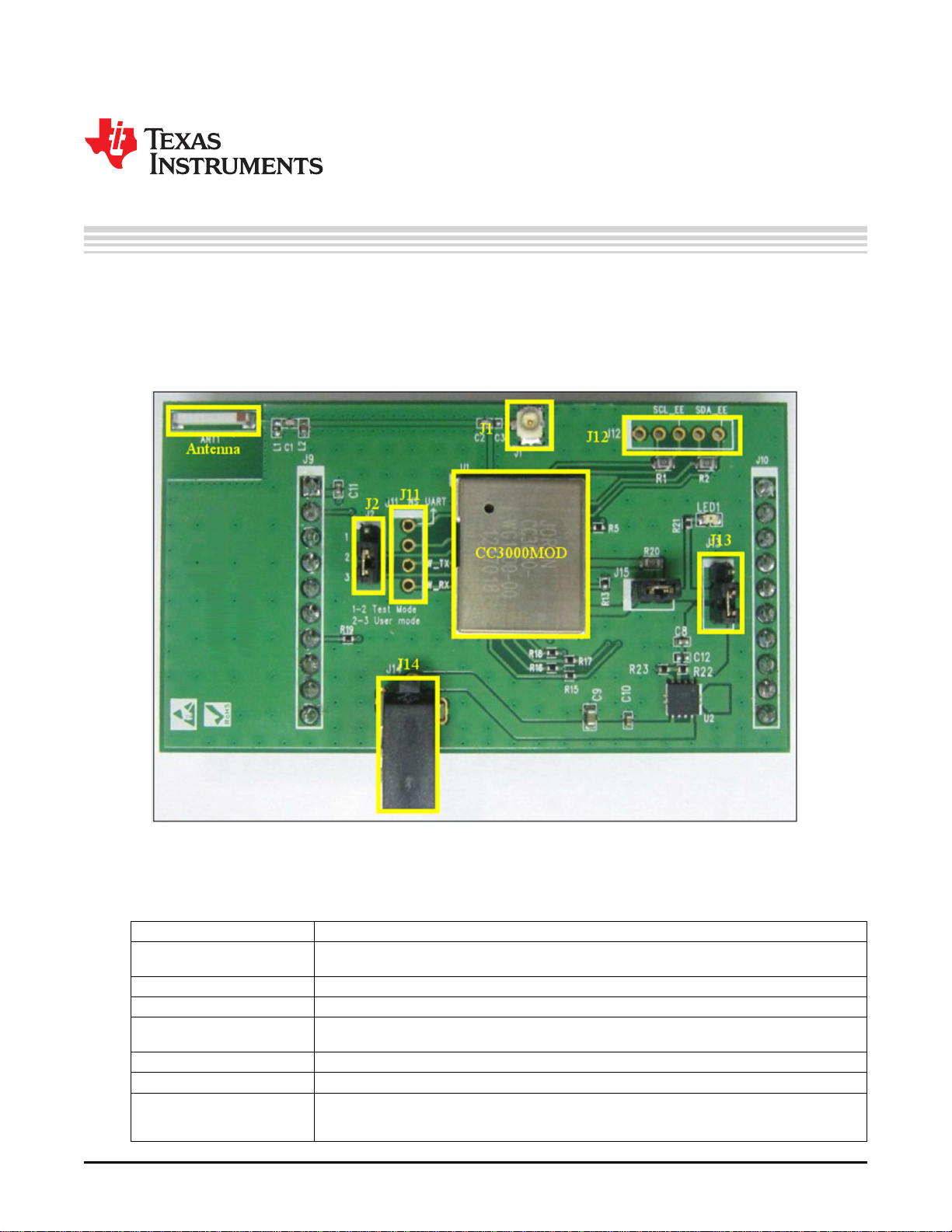

Figure 2-1. BoosterPack Board Top View

Table 2-1. Key Parts of CC3000 BoosterPack Board Top View

Part Name Description

CC3000MOD Core module for performance evaluation (for more information, see the CC3000 module

datasheet)

Antenna Can be used for radiated testing by reworking the capacitor to correct pads

J1 U.FL RF connector used for conductive power tests

J2 Used to swap between test mode and operation mode. When pins 2 and 3 are shorted, J2 runs in

operation mode. When pins 1 and 2 are shorted, J2 runs in test mode.

J11 Through-hole test points (for more information, see Table 2-3)

J12 Through-hole test points (for more information, see Table 2-4)

J13 Used to switch between external power and power from the motherboard. Can be used for power

measurements. Connect pins 1 and 2 for power from the LaunchPad flash programmer and

debugging tool. Connect pins 2 and 3 for external power.

6CC3000 BoosterPack Evaluation Board SWRU331–November 2012

Submit Documentation Feedback

www.ti.com

CC3000 BoosterPack Board Bottom View

Table 2-1. Key Parts of CC3000 BoosterPack Board Top View (continued)

Part Name Description

J14 DC jack for external power supply. If power is not supplied from the motherboard, ensure that

external power is applied.

Table 2-2. J2 Configuration of the CC3000 Evaluation Module Board

Mode Description

Test mode: CC3000 radio Connect pins 1 and 2. Test mode is used with the CC3000 radio tool to operate, test, and

tool(1) calibrate the CC3000 chip-set designs during development. This tool uses the RS232/UART pins

to run radio frequency (RF) RX and TX tests on the CC3000 module. For more information, see

the CC3000 wiki.

Functional mode: Normal mode Connect Pins 2 and 3. Normal mode is for regular functionality between the host platform and the

CC3000 module.

(1) For more information about test software for the PC, go to the CC3000 wiki at

http://processors.wiki.ti.com/index.php/CC3000_Wi-Fi_for_MCU.

Table 2-3. Header J11 of the CC3000 BoosterPack Board Top View

Pin Pin Name Pin Type Descriptions

1 Reserved – Reserved

2 Reserved – Reserved

3 WL_RS232_TX Output RS232 transmit output; Used for radio tool serial

interface in test mode. Leave floating in functional mode.

4 WL_RS232_RX Input RS232 receive output; Used for radio tool serial interface

in test mode. Leave floating in functional mode.

Table 2-4. Header J12 of the CC3000 BoosterPack Board Top View

Pin Pin Name Pin Type Descriptions

1 GND – Ground

2 SCL_CC3000 Output I2C clock signal output from the CC3000 device. This pin

is connected to SCL_EEPROM through a 0-Ωresistor

and is not used by end users.

3 SCL__EEPROM Input I2C clock signal input from EEPROM inside

CC3000MOD. This pin is connected to SCL_CC3000

using a 0-Ωresistor and is not used by end users.

4 SDA_CC3000 Input and Output I2C data signal from the CC3000 device. This pin is

connected to SDA_EEPROM using a 0-Ωresistor and is

not used by end users.

5 SDA_EEPROM Input and Output I2C data signal from EEPROM inside CC3000MOD. This

pin is connected to the SDA_CC3000 device using a 0-Ω

resistor and is not used by end users.

2.2 CC3000 BoosterPack Board Bottom View

The two BoosterPack mating connectors (J9 and J10) connect to the host platform and mount to the

bottom of the BoosterPack board, as shown in Figure 2-2.Table 2-5 and Table 2-6 describe the signals

on J9 and J10.

SWRU331–November 2012 CC3000 BoosterPack Evaluation Board

SWRU331-002

CC3000 BoosterPack Board Bottom View

www.ti.com

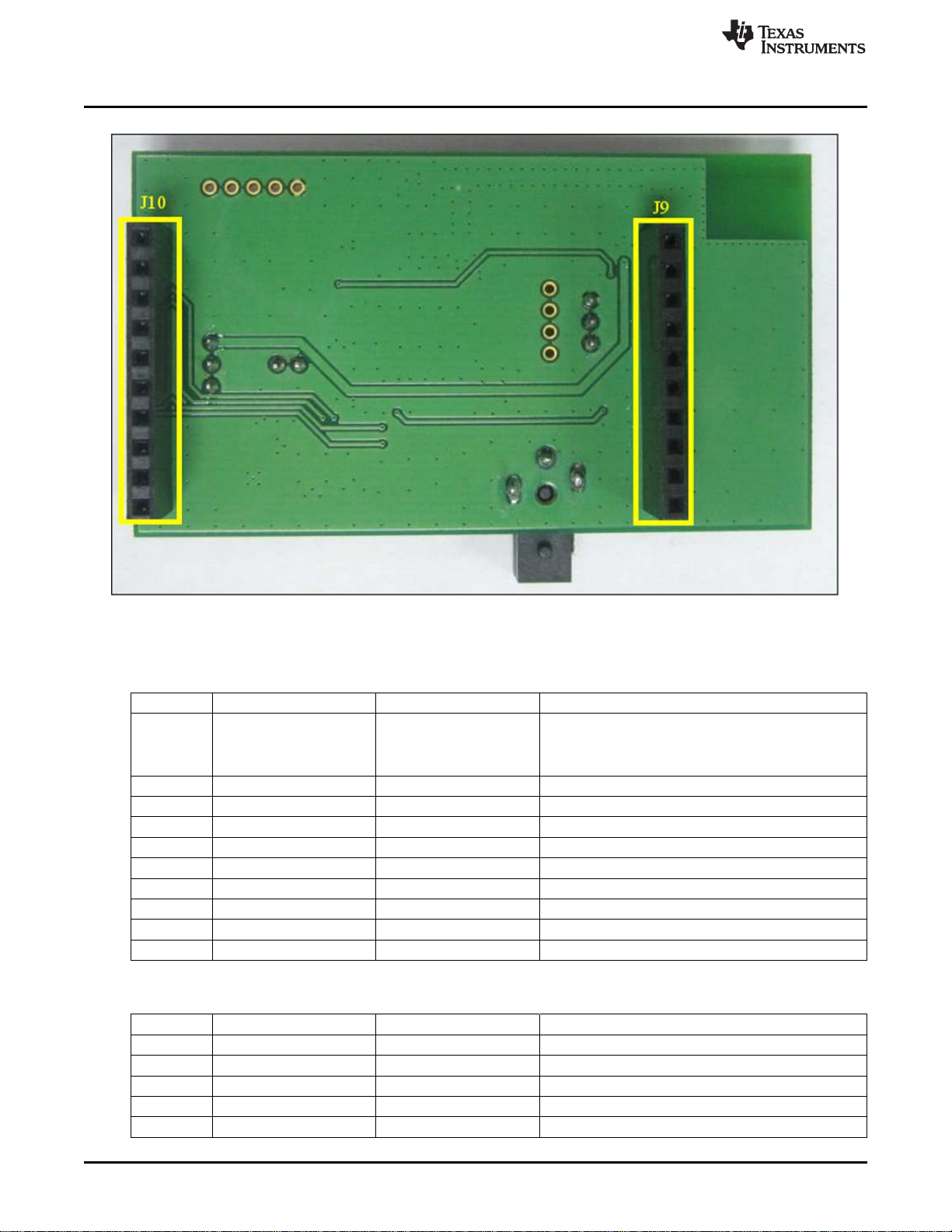

Figure 2-2. CC3000 BoosterPack Board Bottom View

Table 2-5. Header J9 of the CC3000 BoosterPack Board Bottom View

Pin Pin Name Pin Type Descriptions

1 VBAT_IN Power In Battery voltage input to module. For the MSP430 host

platform, VIO_HOST = VBAT_IN. For other platforms

that have different voltage levels from the battery

voltages, R14 can be removed.

2 VBAT_SW_EN Input Active-high enables signal from the host device

3 Reserved – Reserved

4 Reserved – Reserved

5 Reserved – Reserved

6 Reserved – Reserved

7 WL_SPI_CLK Input Host interface SPI clock input

8 Reserved – Reserved

9 Reserved – Reserved

10 Reserved – Reserved

Table 2-6. Header J10 of the CC3000 BoosterPack Board Bottom View

Pin Pin Name Pin Type Descriptions

1 GND – Ground

2 WL_SPI_IRQ Output Host interface SPI interrupt request

3 WL_SPI_CS Input Host interface SPI chip select

4 Reserved – Reserved

5 Reserved – Reserved

8CC3000 BoosterPack Evaluation Board SWRU331–November 2012

Submit Documentation Feedback

SWRU331-003

AT8010-E2R9HAA

www.ti.com

Antenna

Table 2-6. Header J10 of the CC3000 BoosterPack Board Bottom View (continued)

Pin Pin Name Pin Type Descriptions

6 WL_SPI_DIN Input Host interface SPI data input

7 WL_SPI_CLK Input Host interface SPI clock input

8 Reserved – Reserved

9 Reserved – Reserved

10 Reserved – Reserved

2.3 Antenna

The ACX ceramic mounts on the BoosterPack board with a specific layout and matching circuit for the

radiation tests conducted in FCC, CE, and IC certifications. Figure 2-3 shows the location of the ACX

ceramic antenna on the BoosterPack board and the RF trace routing from the CC3000 device to the

antenna. Figure 2-3 shows the matching circuit between the antenna and the BoosterPack board.

Figure 2-3. Antenna Location and RF Trace Routing

SWRU331–November 2012 CC3000 BoosterPack Evaluation Board

AT8010-E2R9HAA

1.8 nH

1.5 pF

Antenna

www.ti.com

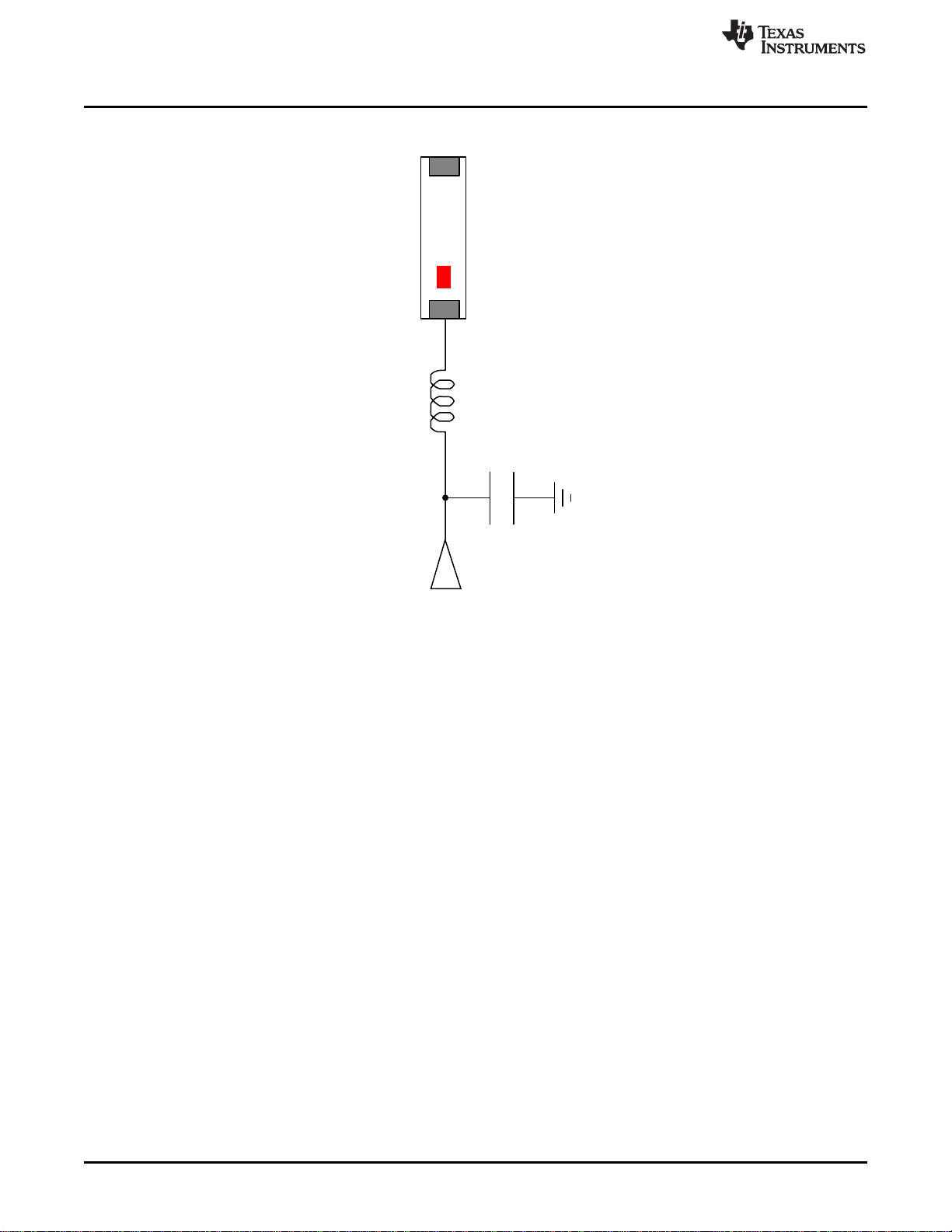

Figure 2-4. Matching Circuit Between the Antenna and the CC3000 BoosterPack

The return loss is based on the matching circuit and RF trace routing, as shown in Figure 2-5.

10 CC3000 BoosterPack Evaluation Board SWRU331–November 2012

Submit Documentation Feedback

Andere Handbücher für TI CC3000

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments EVM430-FR6989 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1672EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LMK00105 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS5420EVM-175 SWIFT Bedienungsanleitung

Texas Instruments

Texas Instruments DS90UB954-Q1EVM Bedienungsanleitung

Texas Instruments

Texas Instruments CC2500EMK Bedienungsanleitung

Texas Instruments

Texas Instruments DAC 0504 Series Bedienungsanleitung

Texas Instruments

Texas Instruments TRF3765 Series Bedienungsanleitung

Texas Instruments

Texas Instruments DEM-PCM2912 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPA0122 Bedienungsanleitung

Texas Instruments

Texas Instruments BUF22821EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS66020EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS54J60EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8568EVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8028EVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments TAS5708EVM Bedienungsanleitung

Texas Instruments

Texas Instruments C2000 F28003x Series Bedienungsanleitung

Texas Instruments

Texas Instruments BQ25792EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LM5108EVM Bedienungsanleitung

Texas Instruments

Texas Instruments SimpleLink CC2650 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS7A10EVM-004 Bedienungsanleitung

Texas Instruments

Texas Instruments LM63635EVM Bedienungsanleitung

Texas Instruments

Texas Instruments bq25040 Bedienungsanleitung

Texas Instruments

Texas Instruments TLV3801EVM Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
