User’s Guide

TMUX7211, TMUX7212, and TMUX7213 Evaluation

Modules

ABSTRACT

This user's guide describes the characteristics, operation, and use of the TMUX7211, TMUX7212, and

TMUX7213 evaluation modules (EVM), which is represented by TMUX721xEVM in this user's guide. A complete

schematic diagram, printed-circuit board layouts, and bill of materials are included in this document.

Table of Contents

1 Introduction.............................................................................................................................................................................2

2 Information About Cautions and Warnings..........................................................................................................................2

3 Features of this EVM.............................................................................................................................................................. 2

4 EVM Images.............................................................................................................................................................................3

5 EVM Setup............................................................................................................................................................................... 5

6 EVM Connectors and Test Points..........................................................................................................................................6

6.1 Connectors.........................................................................................................................................................................6

6.2 Test Points..........................................................................................................................................................................6

7 PCB Layouts............................................................................................................................................................................7

8 Schematics..............................................................................................................................................................................9

9 Bill of Materials..................................................................................................................................................................... 10

10 Related Documentation......................................................................................................................................................10

List of Figures

Figure 4-1. TMUX721xEVM Topside View...................................................................................................................................3

Figure 4-2. TMUX721xEVM Bottom View....................................................................................................................................4

Figure 7-1. Top View Illustration of the TMUX721xEVM Layout..................................................................................................7

Figure 7-2. Bottom View Illustration of the TMUX721xEVM Layout............................................................................................ 8

Figure 8-1. Schematic of the TMUX721xEVM (DNI View)...........................................................................................................9

List of Tables

Table 1-1. Device Comparison Table........................................................................................................................................... 2

Table 5-1. Component Pad to TMUX721x Pin Matrix.................................................................................................................. 5

Table 5-2. TMUX7211 Truth Table............................................................................................................................................... 5

Table 5-3. TMUX7212 Truth Table...............................................................................................................................................5

Table 5-4. TMUX7213 Truth Table...............................................................................................................................................5

Table 6-1. Jumper and Header Postion Functions.......................................................................................................................6

Table 6-2. Test Point Signal Connections.................................................................................................................................... 6

Table 9-1. TMUX721xEVM Bill of Materials...............................................................................................................................10

Trademarks

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SCDU024 – DECEMBER 2020

Submit Document Feedback

TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules 1

1 Introduction

The TMUX7211EVM, TMUX7212EVM, and TMUX7213EVM support evaluation of the TMUX7211, TMUX7212,

and TMUX7213 devices in the 16-pin TSSOP (PW) package respectively. The TMUX7211, TMUX7212, and

TMUX7213 are complementary metal-oxide semiconductor (CMOS) switches with four independently selectable

1:1, single-pole single-throw (SPST) switch channels. These device support dual supplies (±4.5 V to ±22 V), a

single supply (4.5 V to 44 V), or asymmetric supplies (such as VDD = 12 V, VSS = –5 V). TMUX7211,

TMUX7212, and TMUX7213 support bidirectional analog and digital signals on the source (Sx) and drain (Dx)

pins ranging from VSS to VDD. All logic control inputs support logic levels from 1.8 V to VDD, ensuring both TTL

and CMOS logic compatibility when operating in the valid supply voltage range. The Fail-Safe Logic circuitry

allows voltages on the control pins to be applied before the supply pin, protecting the devices from potential

damage.

Table 1-1. Device Comparison Table

Product Description

TMUX7211 Low-Leakage-Current, Precision, 4-Channel, 1:1 (SPST) Switches

(Normally Closed)

TMUX7212 Low-Leakage-Current, Precision, 4-Channel, 1:1 (SPST) Switches

(Normally Open)

TMUX7213 Low-Leakage-Current, Precision, 4-Channel, 1:1 (SPST) Switches

(Dual Open and Dual Closed)

2 Information About Cautions and Warnings

CAUTION

This EVM contains components that can potentially be damaged by electrostatic discharge. Always

transport and store the EVM in its supplied ESD bag when not in use. Handle using an antistatic

wristband. Operate on an antistatic work surface. For more information on proper handling, see

Electrostatic Discharge (ESD) application report.

3 Features of this EVM

The EVM has the following features:

• 35 tests points (including 7 GND test points), which allows easy access for measuring signals

• Quick prototyping and testing setup for the TMUX7211, TMUX7212, and TMUX7213 devices in the 16-pin

TSSOP (PW) package

• No specific TMUX721x device is supplied or soldered to the evaluation modules, which allows flexibility to

choose the desired IC for evaluation

• Support for both single supply and dual supply operation

• Six power supply decoupling capacitors (2 × 0.1 μF, 2 × 1 μF, and 2 × 10 μF)

• Jumpers to eight signal lanes, VDD and VSS power rails, and control signals

• Eight pads are available for placement of SMA connectors

• Pads are available for pull-up or pull-down resistors on control signal pathways

• Pads are available for surge protection diodes

• 0805 capacitor pads are available on all signal pathways referenced to ground

Introduction www.ti.com

2TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules SCDU024 – DECEMBER 2020

Submit Document Feedback

4 EVM Images

Figure 4-1. TMUX721xEVM Topside View

www.ti.com EVM Images

SCDU024 – DECEMBER 2020

Submit Document Feedback

TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules 3

Figure 4-2. TMUX721xEVM Bottom View

EVM Images www.ti.com

4TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules SCDU024 – DECEMBER 2020

Submit Document Feedback

5 EVM Setup

The following instructions are for setting up the EVM:

1. The control inputs and signal lines may be loaded by soldering components to signal path pads as needed.

Table 5-1 describes which load pads correspond to what pin on the DUT. SMA connectors can be soldered to

corresponding pads accordingly.

Table 5-1. Component Pad to TMUX721x Pin Matrix

IC Pin # 0805 Capacitor

Pad ID

Protection

Diode Pad

Protection

Diode PN#

0603 Pull-up

Pad

0603 Pull-Down

Pad

Pad Locations

D1 2 C19 D7 SMAJ36CA R36 R41 Top Layer

S1 3 C11 D3 SMAJ36CA R13 R19 Top Layer

S4 6 C14 D6 SMAJ36CA R26 R31 Top Layer

D4 7 C16 D9 SMAJ36CA R43 R49 Top Layer

D3 10 C17 D10 SMAJ36CA R46 R51 Top Layer

S3 11 C13 D5 SMAJ36CA R23 R29 Top Layer

S2 14 C12 D4 SMAJ36CA R14 R21 Top Layer

D2 15 C15 D8 SMAJ36CA R33 R39 Top Layer

2. The board is powered by attaching ±5 V to ±22 V dual power supply or 5 V to 44 V single power supply to the

screw terminal J2, with VDD, VSS, and GND oriented as specified in Table 6-1. Jumper J1 should be shorted

only when using single sided operation.

3. Jumpers should be placed according to the desired functionality. Reference TMUX7211, TMUX7212, and

TMUX7213 Truth Tables (Table 5-2 through Table 5-4) to configure the corresponding control jumpers.

Additional signal path jumpers may be configured as shown in Table 6-1.

Table 5-2. TMUX7211 Truth Table

SEL x(1) Channel x

0 Channel x ON

1 Channel x OFF

Table 5-3. TMUX7212 Truth Table

SEL x Channel x

0 Channel x OFF

1 Channel x ON

Table 5-4. TMUX7213 Truth Table

SEL x Channel 1 and Channel 4 Channel 2 and Channel 3

0 OFF ON

1 ON OFF

(1) X denotes 1, 2, 3, or 4 for the corresponding channel.

www.ti.com EVM Setup

SCDU024 – DECEMBER 2020

Submit Document Feedback

TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules 5

6 EVM Connectors and Test Points

6.1 Connectors

Table 6-1. Jumper and Header Postion Functions

Jumper ID Header

Pos. 1

Header

Pos. 2

Header

Pos. 3

Header

Pos. 4

Header

Pos. 5

Header

Pos. 6

Board Function Fitted

(Y/N)

J1 VSS GND N/A N/A N/A N/A Single Supply Short VSS to GND Y

J2 VSS GND VDD N/A N/A N/A Power Supplies Y

J3 VDD SEL 1 GND N/A N/A N/A Can Short SEL line to VDD or GND Y

J4 VDD SEL 2 GND N/A N/A N/A Can Short SEL line to VDD or GND Y

J5 VDD SEL 3 GND N/A N/A N/A Can Short SEL line to VDD or GND Y

J6 VDD SEL 4 GND N/A N/A N/A Can Short SEL line to VDD or GND Y

J7 N/A VDD GND I/O (S1) N/A VSS Signal Input—can short to either rail Y

J8 VDD N/A I/O (S2) GND VSS N/A Signal Input—can Short to either rail Y

J9 VDD N/A I/O (S3) GND VSS N/A Signal Input—can Short to either rail Y

J10 N/A VDD GND I/O (S4) N/A VSS Signal Input—can short to either rail Y

J11 VDD N/A I/O (D2) GND VSS N/A Signal Input—can Short to either rail Y

J12 N/A VDD GND I/O (D1) N/A VSS Signal Input—can short to either rail Y

J13 N/A VDD GND I/O (D4) N/A VSS Signal Input—can short to either rail Y

J14 VDD N/A I/O (D3) GND VSS N/A Signal Input—can Short to either rail Y

S1.1 I/O (S1) GND GND GND GND N/A SMA Pad N

D1.1 I/O (D1) GND GND GND GND N/A SMA Pad N

S2.1 I/O (S2) GND GND GND GND N/A SMA Pad N

D2.1 I/O (D2) GND GND GND GND N/A SMA Pad N

S3.1 I/O (S3) GND GND GND GND N/A SMA Pad N

D3.1 I/O (D3) GND GND GND GND N/A SMA Pad N

S4.1 I/O (S4) GND GND GND GND N/A SMA Pad N

D4.1 I/O (D4) GND GND GND GND N/A SMA Pad N

6.2 Test Points

Table 6-2. Test Point Signal Connections

Signal Test Point ID

VDD VDD1 and VDD2

GND GND1, GND2, GND3, GND4, GND5, GND6, and GND7

VSS VSS1 and VSS2

S1 S1.0 and S1.2

D1 D1.0 and D1.2

S2 S2.0 and S2.2

D2 D2.0 and D2.2

S3 S3.0 and S3.2

D3 D3.0 and D3.2

S4 S4.0 and S4.2

D4 D4.0 and D4.2

SEL1 SEL1.0 and SEL1.1

SEL2 SEL2.0 and SEL2.1

SEL3 SEL3.0 and SEL3.1

SEL4 SEL4.0 and SEL4.1

EVM Connectors and Test Points www.ti.com

6TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules SCDU024 – DECEMBER 2020

Submit Document Feedback

7 PCB Layouts

Figure 7-1 and Figure 7-2 show the EVM PCB layout images.

Figure 7-1. Top View Illustration of the TMUX721xEVM Layout

www.ti.com PCB Layouts

SCDU024 – DECEMBER 2020

Submit Document Feedback

TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules 7

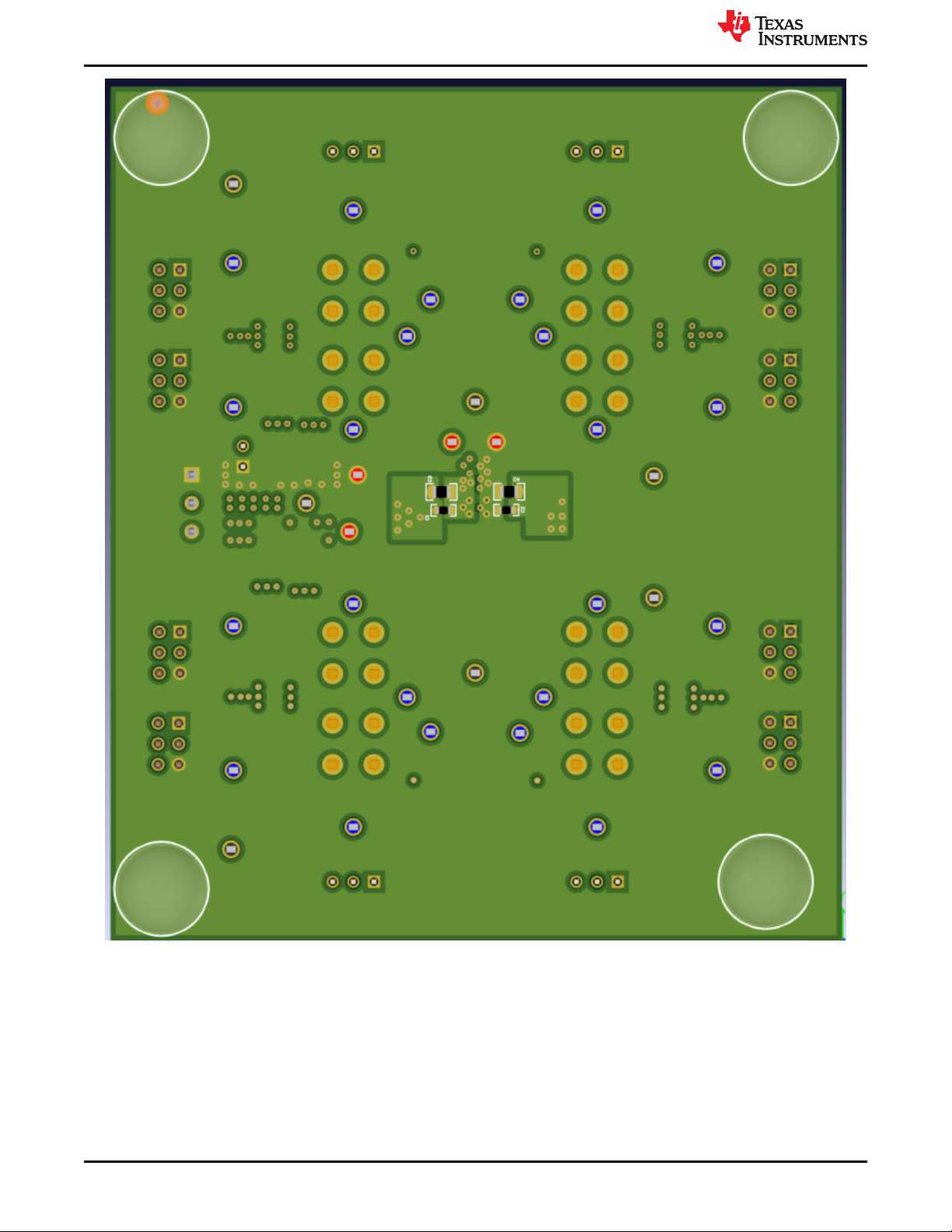

Figure 7-2. Bottom View Illustration of the TMUX721xEVM Layout

PCB Layouts www.ti.com

8TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules SCDU024 – DECEMBER 2020

Submit Document Feedback

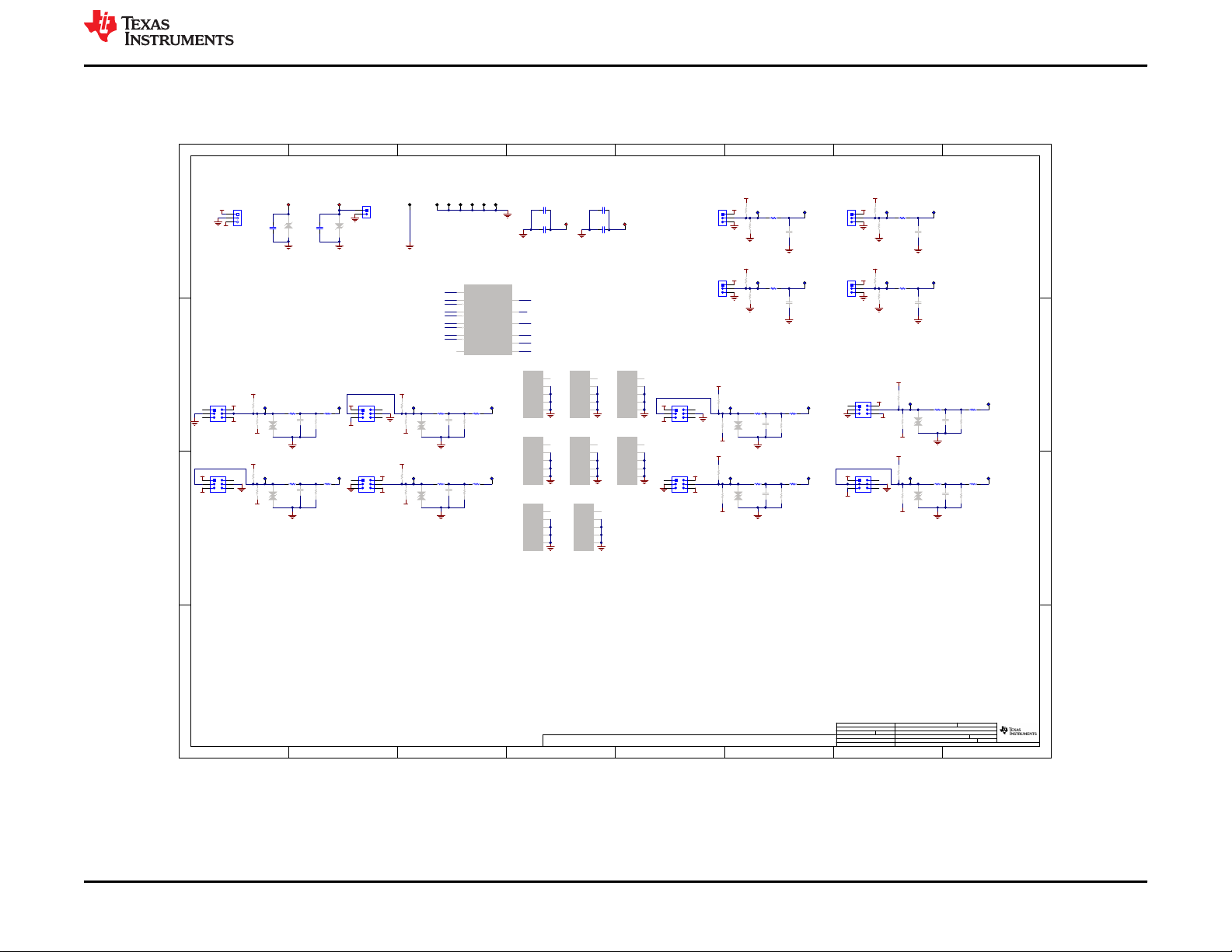

8 Schematics

Schematic views of the TMUX721xEVM. Figure 8-1 shows DNI view, removing DNI parts which are not included on the evaluation model out-of-the-box.

D D

C C

B B

A A

2 3

9/4/2020

TMUXx212_EVM.schdoc

Sheet Title:

Size:

Mod. Date:

File: Sheet: of

A2 http://www.ti.com

Contact:

Project Title:

Designed for:

Assembly Variant: 001

©Texas Instruments

Drawn By:

Engineer:

Texas Instruments and/or its licensors do not warrant the accuracy or completeness of this specification or any information contained therein. Texas Instruments and/or its licensors do not

warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its

licensors do not warrant that the design is production worthy. You should completely validate and test your design implementation to confirm the system functionality for your application.

Not in version controlSVN Rev:

Number: Rev:

TID #:

Orderable:

GND

VDD1 GND5 GND6

GND

GND7GND4GND3GND2

MNT_1

MNT_2

MNT_3

MNT_4

S3.1

DNP

MNT_1

MNT_2

MNT_3

MNT_4

S1.1

DNP

MNT_1

MNT_2

MNT_3

MNT_4

S2.1

DNP

S1 S2

36V

SMAJ36A

DNP

MNT_1

MNT_2

MNT_3

MNT_4

D2.1

DNP

MNT_1

MNT_2

MNT_3

MNT_4

S4.1

DNP

MNT_1

MNT_2

MNT_3

MNT_4

D1.1

DNP

S4 D1

MNT_1

MNT_2

MNT_3

MNT_4

D4.1

DNP

MNT_1

MNT_2

MNT_3

MNT_4

D4.1

DNP

D3 D4

1µF

100V

GND

100nF

100V

1.0k

R13

DNP

VDD

1.0k

R19

DNP

GND

R15

R16

SEL1.0 SEL1.1

GND

VDD

VSS

GND

GND1

GND

VSS1

36V

SMAJ36A

DNP

100V

10uF

1µF

100V

GND

100nF

100V

10uF

VDD VSS

1µF

100V

DNP

1µF

100V

C11

DNP

36V

SMAJ36CA

DNP

VSS

1.0k

R14

DNP

VDD

S2.2S2.0

1.0k

R21

DNP

GND

R17

R18

1µF

100V

C12

DNP

36V

SMAJ36CA

DNP

VSS

1.0k

R23

DNP

VDD

S3.2

S3.0

1.0k

R29

DNP

GND

R24

R25

VDD

1µF

100V

C13

DNP

36V

SMAJ36CA

DNP

VSS

1.0k

R26

DNP

VDD

S4.2S4.0

1.0k

R31

DNP

GND

R27

R28

1µF

100V

C14

DNP

36V

SMAJ36CA

DNP

VSS

VDD

GND

J3 1.0k

DNP

VDD

1.0k

DNP

GND

SEL1GND

VDD VSS

SEL2.0 SEL2.1

GND

1µF

100V

DNP

VDD

GND

J4 1.0k

DNP

VDD

1.0k

DNP

GND

SEL2

SEL3.0 SEL3.1

GND

1µF

100V

DNP

VDD

GND

J5 1.0k

DNP

VDD

1.0k

R11

DNP

GND

SEL3

SEL4.0 SEL4.1

GND

R10

1µF

100V

C10

DNP

VDD

GND

J6 1.0k

DNP

VDD

1.0k

R12

DNP

GND

SEL4

GND GND GND

GND GND

VDD

D1.2D1.0

1.0k

R41

DNP

GND

R37

36V

SMAJ36CA

DNP

VSS

1µF

100V

C19

DNP

1.0k

R36

DNP

R38

S1.0 S1.2

VSS

VDD

GND

VSS

D1 2

SEL2

16 S2

14 D2 15

GND 5

D3 10

SEL3

D4 7

SEL4

VDD

SEL1

1S1

VSS 4

TMUX7212PWR

DNP

SEL2

SEL1

SEL3

SEL4

VDD

D2.2D2.0

1.0k

R39

DNP

GND

R34

36V

SMAJ36CA

DNP

VSS

1µF

100V

C15

DNP

1.0k

R33

DNP

R35

VSS

VDD

GND

VDD

D3.2D3.0

1.0k

R51

DNP

GND

R47

36V

D10

SMAJ36CA

DNP

VSS

1µF

100V

C17

DNP

1.0k

R46

DNP

R48

VSS

VDD

D4.2D4.0

1.0k

R49

DNP

GND

R44

36V

SMAJ36CA

DNP

VSS

1µF

100V

C16

DNP

1.0k

R43

DNP

R45

VSS

VDD

GND

1.0k

R40

DNP

1.0k

R50

DNP 1.0k

R52

DNP

1.0k

R42

DNP

1.0k

R22

DNP

1.0k

R32

DNP

1.0k

R30

DNP

1.0k

R20

DNP

VSS

VDD

VSS

VDD

VSS

VDD

VSS

VDD

GND

GNDGND

GND

VSS2

1 2

3 4

5 6

61300621121

1 2

3 4

5 6

61300621121

1 2

3 4

5 6

61300621121

1 2

3 4

5 6

J10

61300621121

1 2

3 4

5 6

J13

61300621121

1 2

3 4

5 6

J11

61300621121

1 2

3 4

5 6

J12

61300621121

1 2

3 4

5 6

J14

61300621121

VDD2

PIC101

PIC102

COC1

PIC201

PIC202

COC2

PIC301

PIC302

COC3

PIC401

PIC402

COC4

PIC501

PIC502

COC5

PIC601

PIC602

COC6

PIC701

PIC702

COC7

PIC801

PIC802

COC8

PIC901

PIC902

COC9

PIC1001

PIC1002

COC10

PIC1101

PIC1102

COC11

PIC1201

PIC1202

COC12

PIC1301

PIC1302

COC13

PIC1401

PIC1402

COC14

PIC1501

PIC1502

COC15

PIC1601

PIC1602

COC16

PIC1701

PIC1702

COC17

PIC1901

PIC1902

COC19

PID101

PID102

COD1

PID10001

COD100

PID10101

PID10102

PID10103

PID10104

PID10105

COD101

PID10201

COD102

PID201

PID202

COD2

PID20001

COD200

PID20101

PID20102

PID20103

PID20104

PID20105

COD201

PID20201

COD202

PID301

PID302

COD3

PID30001

COD300

PID30201

COD302

PID401

PID402

COD4

PID40001

COD400

PID40101

PID40102

PID40103

PID40104

PID40105

COD401

PID40101

PID40102

PID40103

PID40104

PID40105

PID40201

COD402

PID501

PID502

COD5

PID601

PID602

COD6

PID701

PID702

COD7

PID801

PID802

COD8

PID901

PID902

COD9

PID1001

PID1002

COD10

PIGND101

COGND1

PIGND201

COGND2

PIGND301

COGND3

PIGND401

COGND4

PIGND501

COGND5

PIGND601

COGND6

PIGND701

COGND7

PIJ101

PIJ102

COJ1

PIJ201

PIJ202

PIJ203

COJ2

PIJ301

PIJ302

PIJ303

COJ3

PIJ401

PIJ402

PIJ403

COJ4

PIJ501

PIJ502

PIJ503

COJ5

PIJ601

PIJ602

PIJ603

COJ6

PIJ701 PIJ702

PIJ703 PIJ704

PIJ705 PIJ706

COJ7

PIJ801 PIJ802

PIJ803 PIJ804

PIJ805 PIJ806

COJ8

PIJ901 PIJ902

PIJ903 PIJ904

PIJ905 PIJ906

COJ9

PIJ1001 PIJ1002

PIJ1003 PIJ1004

PIJ1005 PIJ1006

COJ10

PIJ1101 PIJ1102

PIJ1103 PIJ1104

PIJ1105 PIJ1106

COJ11

PIJ1201 PIJ1202

PIJ1203 PIJ1204

PIJ1205 PIJ1206

COJ12

PIJ1301 PIJ1302

PIJ1303 PIJ1304

PIJ1305 PIJ1306

COJ13

PIJ1401 PIJ1402

PIJ1403 PIJ1404

PIJ1405 PIJ1406

COJ14

PIR101

PIR102

COR1

PIR201

PIR202

COR2

PIR301 PIR302

COR3

PIR401 PIR402

COR4

PIR501

PIR502

COR5

PIR601

PIR602

COR6

PIR701

PIR702

COR7

PIR801

PIR802

COR8

PIR901 PIR902

COR9

PIR1001 PIR1002

COR10

PIR1101

PIR1102

COR11

PIR1201

PIR1202

COR12

PIR1301

PIR1302

COR13

PIR1401

PIR1402

COR14

PIR1501 PIR1502

COR15

PIR1601 PIR1602

COR16

PIR1701

PIR1702

COR17

PIR1801 PIR1802

COR18

PIR1901

PIR1902

COR19

PIR2001

PIR2002

COR20

PIR2101

PIR2102

COR21

PIR2201

PIR2202

COR22

PIR2301

PIR2302

COR23

PIR2401 PIR2402

COR24

PIR2501 PIR2502

COR25

PIR2601

PIR2602

COR26

PIR2701

PIR2702

COR27

PIR2801 PIR2802

COR28

PIR2901

PIR2902

COR29

PIR3001

PIR3002

COR30

PIR3101

PIR3102

COR31

PIR3201

PIR3202

COR32

PIR3301

PIR3302

COR33

PIR3401

PIR3402

COR34

PIR3501 PIR3502

COR35

PIR3601

PIR3602

COR36

PIR3701 PIR3702

COR37

PIR3801 PIR3802

COR38

PIR3901

PIR3902

COR39

PIR4001

PIR4002

COR40

PIR4101

PIR4102

COR41

PIR4201

PIR4202

COR42

PIR4301

PIR4302

COR43

PIR4401

PIR4402

COR44

PIR4501 PIR4502

COR45

PIR4601

PIR4602

COR46

PIR4701 PIR4702

COR47

PIR4801 PIR4802

COR48

PIR4901

PIR4902

COR49

PIR5001

PIR5002

COR50

PIR5101

PIR5102

COR51

PIR5201

PIR5202

COR52

PIS10001

COS100

PIS10101

PIS10102

PIS10103

PIS10104

PIS10105

COS101

PIS10201

COS102

PIS20001

COS200

PIS20101

PIS20102

PIS20103

PIS20104

PIS20105

COS201

PIS20201

COS202

PIS30001

COS300

PIS30101

PIS30102

PIS30103

PIS30104

PIS30105

COS301

PIS30201

COS302

PIS40001

COS400

PIS40101

PIS40102

PIS40103

PIS40104

PIS40105

COS401

PIS40201

COS402

PISEL10001

COSEL100

PISEL10101

COSEL101

PISEL20001

COSEL200

PISEL20101

COSEL201

PISEL30001

COSEL300

PISEL30101

COSEL301

PISEL40001

COSEL400

PISEL40101

COSEL401

PIU101 PIU102

PIU103

PIU104

PIU105

PIU106 PIU107

PIU108

PIU109

PIU1010

PIU1011

PIU1012

PIU1013

PIU1014 PIU1015

PIU1016

COU1

PIVDD101

COVDD1

PIVDD201

COVDD2

PIVSS101

COVSS1

PIVSS201

COVSS2

Figure 8-1. Schematic of the TMUX721xEVM (DNI View)

www.ti.com Schematics

SCDU024 – DECEMBER 2020

Submit Document Feedback

TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules 9

9 Bill of Materials

Table 9-1 details the EVM bill of materials.

Table 9-1. TMUX721xEVM Bill of Materials

Designator Component Manufactuer Description Quantity

H9, H10, H11, H12 SJ-5303 (CLEAR) 3M Bumpon, Hemisphere, 0.44 X

0.20, Clear

C1, C2 C1608X7S2A104K080AB TDK CAP, CERM, 0.1 µF, 100 V, ±10%,

X7S, 0603

C3, C4 C2012X7S2A105K125AB TDK CAP, CERM, 1 µF, 100 V, ± 10%,

X7S, 0805

C5, C6 CKG45NX7S2A106M500JJ TDK CAP, CERM, 10 µF, 100 V, ± 20%,

X7S, AEC-Q200 Grade 1, 1812

J1 PEC02SAAN Sullins Connector

Solutions

Header, 100 mil, 2×1, Tin, TH 1

J3, J4, J5, J6 PEC03SAAN Sullins Connector

Solutions

Header, 100 mil, 3×1, Tin, TH 4

J7, J8, J9, J10, J11, J12, J13,

J14

61300621121 Wurth Elektronik Header, 2.54 mm, 3×2, Gold, TH 8

J2 691214110003 Wurth Elektronik Terminal Block, 3.5 mm, 3×1, TH 1

R3, R4, R9, R10, R15, R16,

R17, R18, R24, R25, R27,

R28, R34, R35, R37, R38,

R44, R45, R47, R48

RMCF0603ZT0R00 Stackpole Electronics

Inc

RES, 0, 1%, 0.1 W, AEC-Q200

Grade 0, 0603

SH-J1, SH-J2, SH-J3, SH-J4,

SH-J5, SH-J6, SH-J7, SH-J8

SNT-100-BK-G Samtec Shunt, 100 mil, Gold plated, Black 8

VDD1, VDD2, VSS1, VSS2 5005 Keystone Test Point, Compact, Red, TH 4

D1.0, D1.2, D2.0, D2.2, D3.0,

D3.2, D4.0, D4.2, S1.0, S1.2,

S2.0, S2.2, S3.0, S3.2, S4.0,

S4.2, SEL1.0, SEL1.1,

SEL2.0, SEL2.1, SEL3.0,

SEL3.1, SEL4.0, SEL4.1

5122 Keystone Test Point, Compact, Blue, TH 24

GND1, GND2, GND3, GND4,

GND5, GND6, GND7

5006 Keystone Test Point, Compact, Black, TH 7

10 Related Documentation

• Texas Instruments, Electrostatic Discharge (ESD) application report

Bill of Materials www.ti.com

10 TMUX7211, TMUX7212, and TMUX7213 Evaluation Modules SCDU024 – DECEMBER 2020

Submit Document Feedback

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments bq76PL536A Bedienungsanleitung

Texas Instruments

Texas Instruments DLP LightCrafter Dual DLPC900 Handbuch

Texas Instruments

Texas Instruments PCM1802EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPA032D02 Bedienungsanleitung

Texas Instruments

Texas Instruments TMUX741 EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments TAS5721EVM Bedienungsanleitung

Texas Instruments

Texas Instruments MMWAVE-DEVPACK Bedienungsanleitung

Texas Instruments

Texas Instruments UCC28880EVM-616 Bedienungsanleitung

Texas Instruments

Texas Instruments BOOSTXL-TPS65218 Bedienungsanleitung

Texas Instruments

Texas Instruments LMH1297EVM Bedienungsanleitung

Texas Instruments

Texas Instruments EK-TM4C123GXL Bedienungsanleitung

Texas Instruments

Texas Instruments LMK5C33216EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DRV5011-5012EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS25810EVM-745 Bedienungsanleitung

Texas Instruments

Texas Instruments TPIC74100EVM Bedienungsanleitung

Texas Instruments

Texas Instruments BQ76942EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS62088YWCEVM-084 Bedienungsanleitung

Texas Instruments

Texas Instruments LM5158EVM-BST Bedienungsanleitung

Texas Instruments

Texas Instruments TLC5944EVM-358 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS8125 EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments TMCS1100 Bedienungsanleitung

Texas Instruments

Texas Instruments HDC1050EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TAS6424MS-Q1 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TRF37T05EVM Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
