Texas Instruments TPS929160EVM Bedienungsanleitung

User’s Guide

TPS929160EVM User's Guide

ABSTRACT

This user's guide describes the setup and use of the TPS929160EVM evaluation module (EVM). This EVM

helps the user evaluate the features of the Texas Instruments TPS929160-Q1, which is an automotive 16-

channel LED driver with FlexWire interface, to address increasing needs of individual control of each LED

string. This document includes hardware setup instructions, software instructions, a schematic diagram, a bill of

materials and printed-circuit board layout drawings.

WARNING

Hot surface! Contact may cause burns. Do not touch!

Some components may reach high temperatures >55°C when the board is powered on. The user must

not touch the board at any point during operation or immediately after operating, as high temperatures

may be present.

Table of Contents

1 What You Get...........................................................................................................................................................................2

2 What You Need In Addition....................................................................................................................................................3

3 How to Get Started..................................................................................................................................................................3

4 Board Layout.........................................................................................................................................................................13

5 Revision History................................................................................................................................................................... 17

Trademarks

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

TPS929160EVM User's Guide 1

1 What You Get

The TPS929160EVM kit (Figure 1-1) contains:

• USB2ANY

– Ribbon cable

– USB cable

• TPS929160EVM

• TPS929120CANEVM

• DB-09 cable

Figure 1-1. TPS929160EVM Kit

What You Get www.ti.com

2TPS929160EVM User's Guide SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

2 What You Need In Addition

The following additional items are required to run the TPS929160EVM:

• PC with TPS929160EVM GUI installed or to run the on-line TPS929160EVM GUI

• 12-V DC power supply

3 How to Get Started

3.1 Hardware Setup

There are two hardware setups to simulate the communication between MCU and TPS929160-Q1 directly or

through CAN transceiver. And TPS929160EVM contains a buck in the board. You can decide whether to use it

by "J66", "J31".

3.1.1 Communication without CAN Transceiver

Figure 3-1 shows the hardware setup when TPS929120CANEVM is not used. Figure 3-2 shows the jumper

configurations for the TPS929160EVM without TPS929120CANEVM connected. This jumper is the default

jumper configuration shipped with the board.

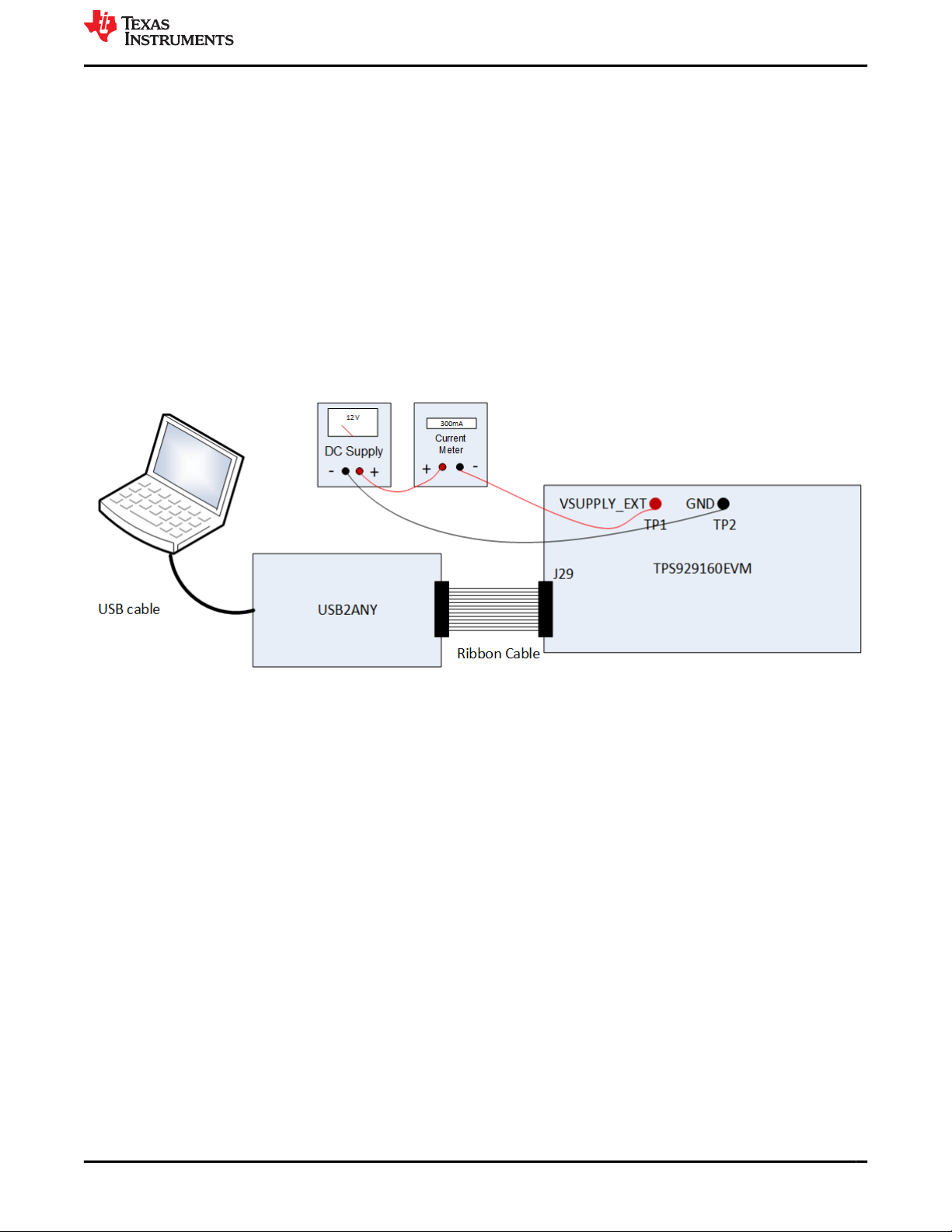

Figure 3-1. Hardware Setup without CAN Transceiver

• Connect a 12-V power supply to TP1 (VSUPPLY_EXT) and TP2 (GND).

• Connect USB2ANY tool to PC through the USB cable.

• Connect USB2ANY tool to the J4 connector of TPS929160EVM through ribbon cable.

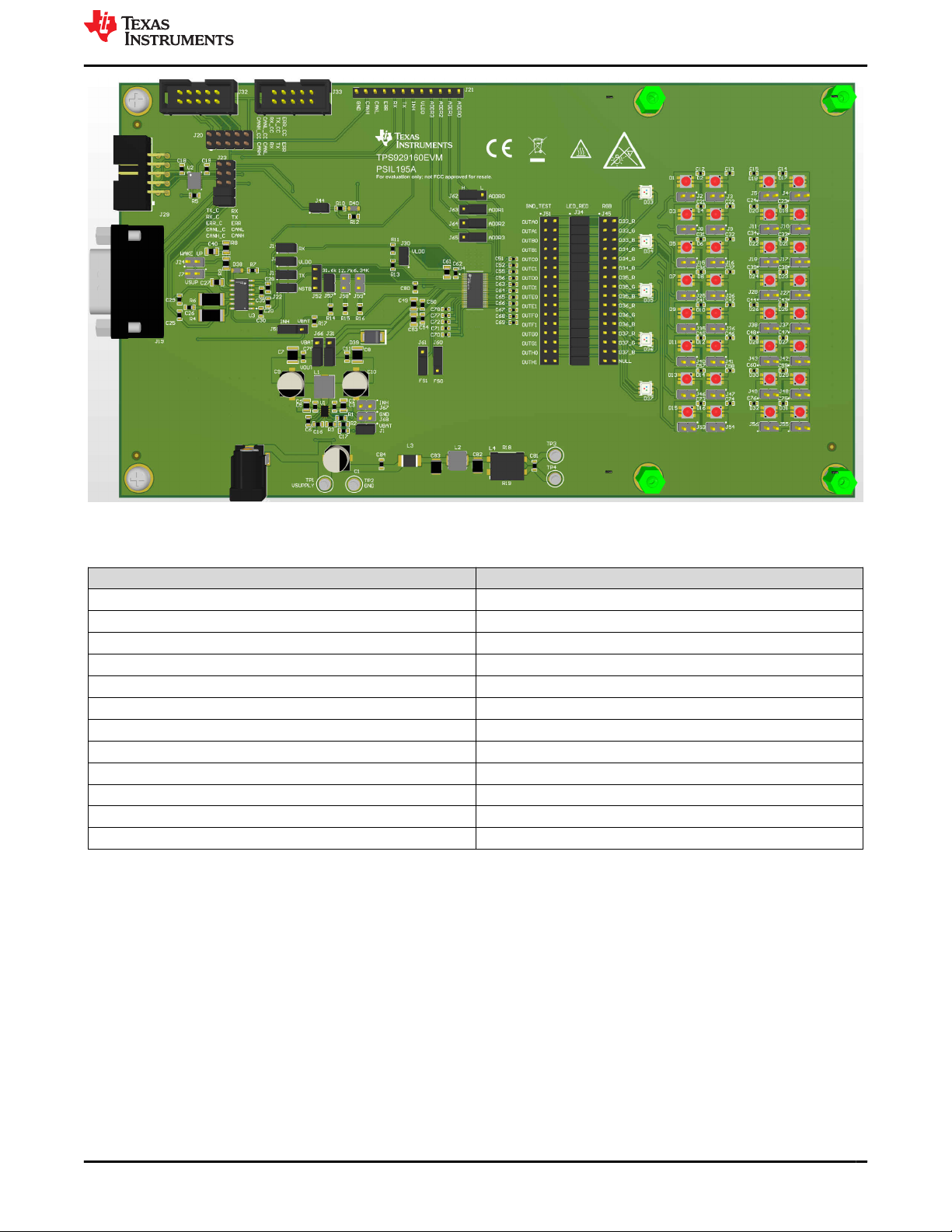

Figure 3-2. TPS929160EVM Jumper Configurations without TPS929120CANEVM Connected

www.ti.com What You Need In Addition

SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

TPS929160EVM User's Guide 3

Table 3-1. TPS929160EVM Jumpers Setting without TPS929240CANEVM Connected

HEADER SETTING

J44, J30, J57, J1 Short

J20, J7, J24, J14, J6, J13, J22, J52, J58, J59, J67, J68, J51, J45 Open

J23 Short “TX_C” to “RX”, “RX_C” to “TX”, “ERR_C” to “ERR”

J64 Short “ADDR2” to “L”

J63 Short “ADDR1” to “L”

J62 Short “ADDR0” to “H”

J60 Short “FS0” to “H”

J61 Short “FS1” to “L”

J31, J66 Short to “VOUT”

J50 Short to “VBAT”

All headers paralleled with LEDs Open

3.1.2 Communication with CAN Transceiver

Figure 3-3 shows the hardware setup when TPS929120CANEVM is used. Figure 3-4 shows the jumper

configurations for TPS929160EVM with TPS929120CANEVM connected.

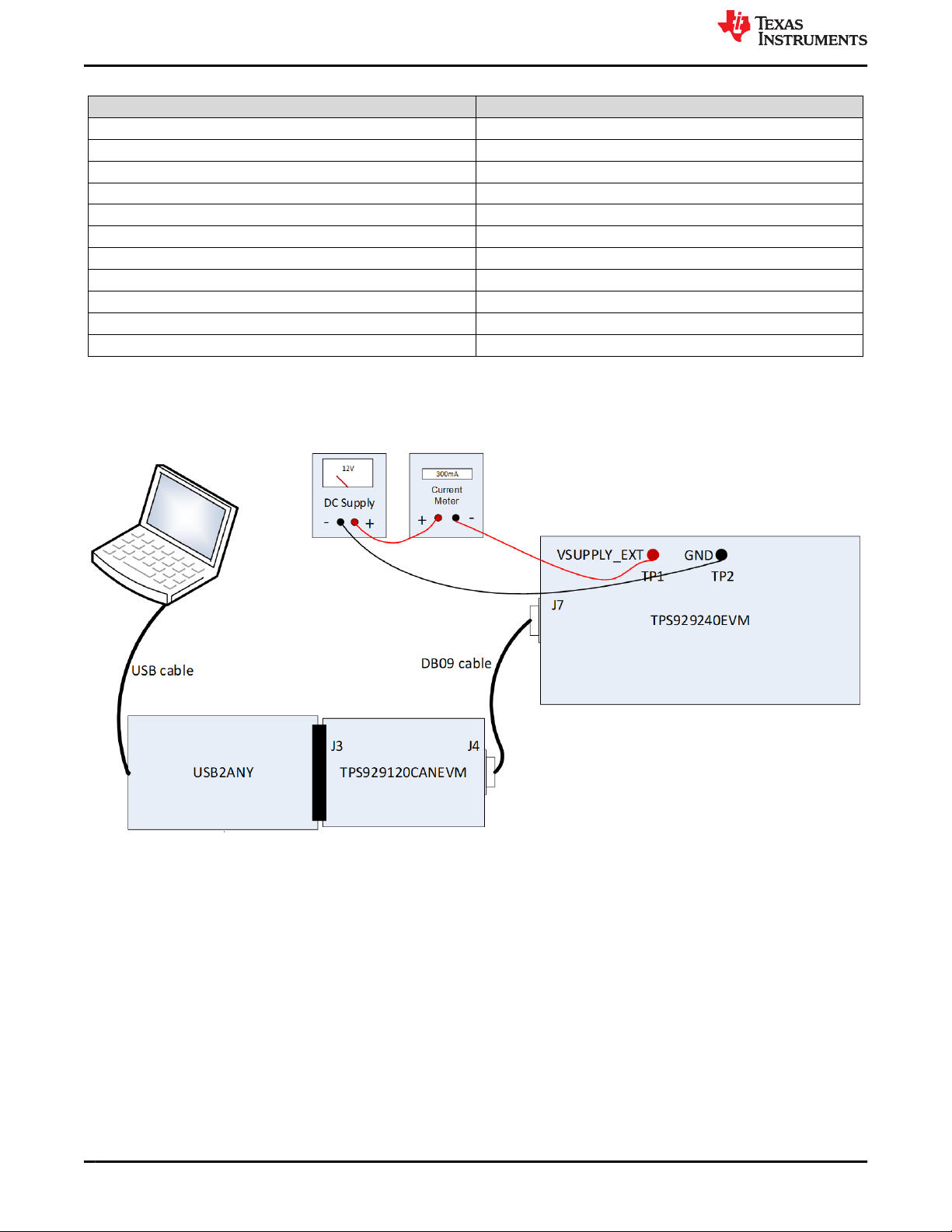

Figure 3-3. Hardware Setup with CAN Transceiver

• Connect a 12-V power supply to TP1 (VSUPPLY_EXT) and TP2 (GND).

• Connect USB2ANY tool to PC through USB cable.

• Plug TPS929120CANEVM to USB2ANY tool through the J3 header of TPS929240CANEVM.

• Connect TPS929120CANEVM to TPS929160EVM through the J4 connector of TPS929240CANEVM and the

J7 connector of TPS929160EVM with DB-09 cable.

How to Get Started www.ti.com

4TPS929160EVM User's Guide SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

Figure 3-4. TPS929160EVM Jumper Configurations with TPS929120CANEVM Connected

Table 3-2. TPS929160EVM Jumpers Setting with TPS929240CANEVM Connected

HEADER SETTING

J44, J30, J7, J14, J6, J13, J22, J57, J34, J67 Short

J20, J52, J58, J59, J51, J45, J24, J1, J68 Open

J23 Short “CANH_C” to “CANH”, “CANL_C” to “CANL”

J65 Short “ADDR2” to “L”

J64 Short “ADDR2” to “L”

J63 Short “ADDR1” to “L”

J62 Short “ADDR0” to “H”

J60 Short “FS0” to “H”

J61 Short “FS1” to “L”

J31, J66 Short to “VOUT”

J50 Short to “INH”

All headers paralleled with LEDs Open

Figure 3-5 shows the jumper configurations for TPS929120CANEVM. For header J5, short "+ 5 V" to "+ 5

V_U2A". For header J6, short "+ 3.3 V" to "+ 3.3 V_U2A".

www.ti.com How to Get Started

SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

TPS929160EVM User's Guide 5

Figure 3-5. TPS929120CANEVM Jumper Configurations

3.2 Software Installation

There are two types of the GUI, online version and desktop version.

3.2.1 Run Applications Through Online

Go to the TPS929160-Q1 EVM web page. Scroll down to the "Order Now" section and click the "Start

Evaluation" button to reach to the TPS929160-Q1 gallery page. Login to user account privileges can be required

to open the gallery page. All GUI versions are shown ordered from left to right on the gallery page as shown in

Figure 3-6. Left most application icon shows the latest version. Clicking the application icon to open the online

version GUI. There may be prompt to download and install the browser extension and TI Cloud Agent for the first

time. Follow the steps to install the browser extension and TI Cloud Agent Applications.

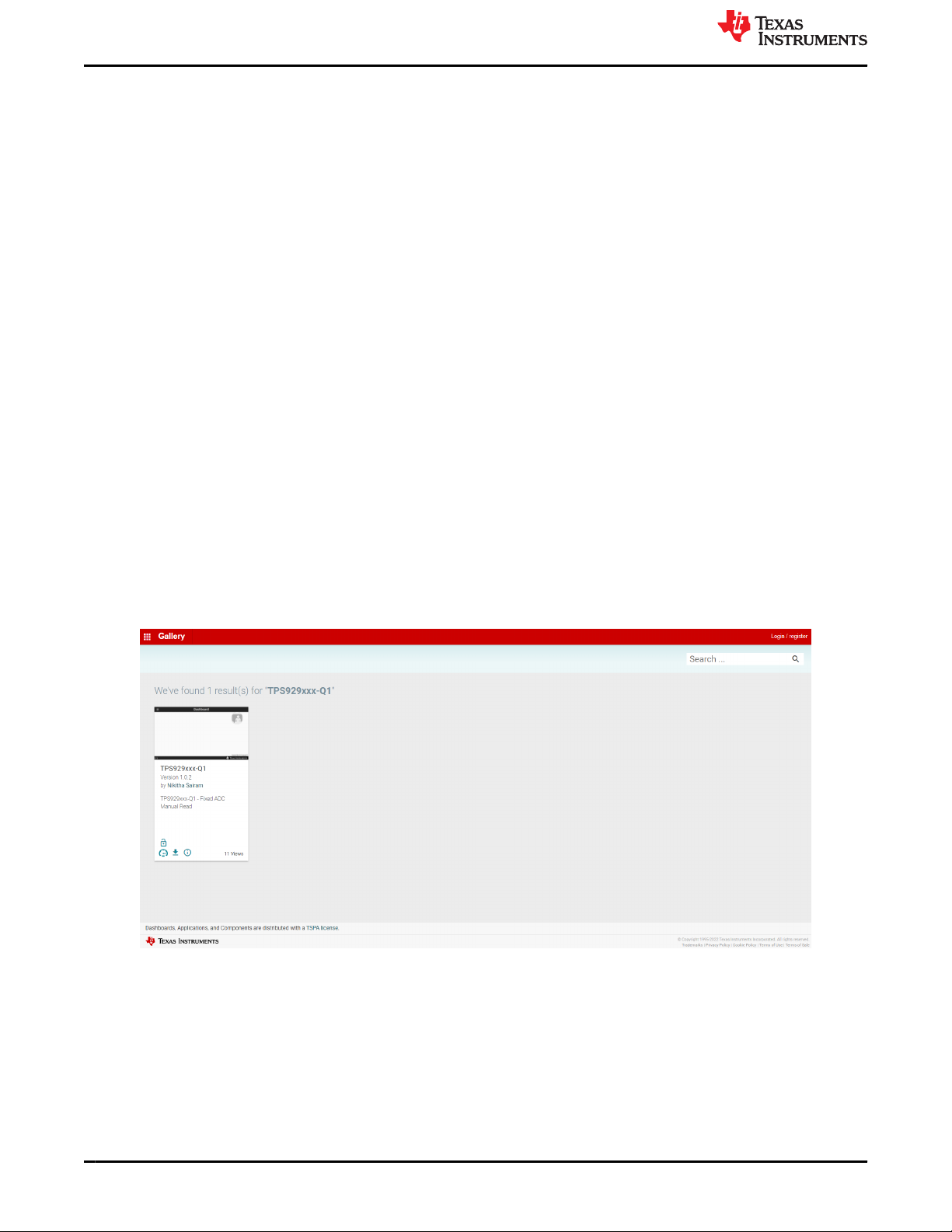

Figure 3-6. TPS929160-Q1 Gallery Page

How to Get Started www.ti.com

6TPS929160EVM User's Guide SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

3.2.2 Run Applications on Desktop

Click the "Download" button under the "Order Now" section to download the TPS929160EVM GUI installation

zip file to local computer, or you can download it from the application icon as showed in Figure 3-7 by hovering

the cursor over the download button and selecting the appropriate platform. Then extract the zip folder and

install the GUI using the exe - TPS929160-Q1-1.0.5.setup-win_7.3.0. Make sure the network is connected while

installing the GUI.

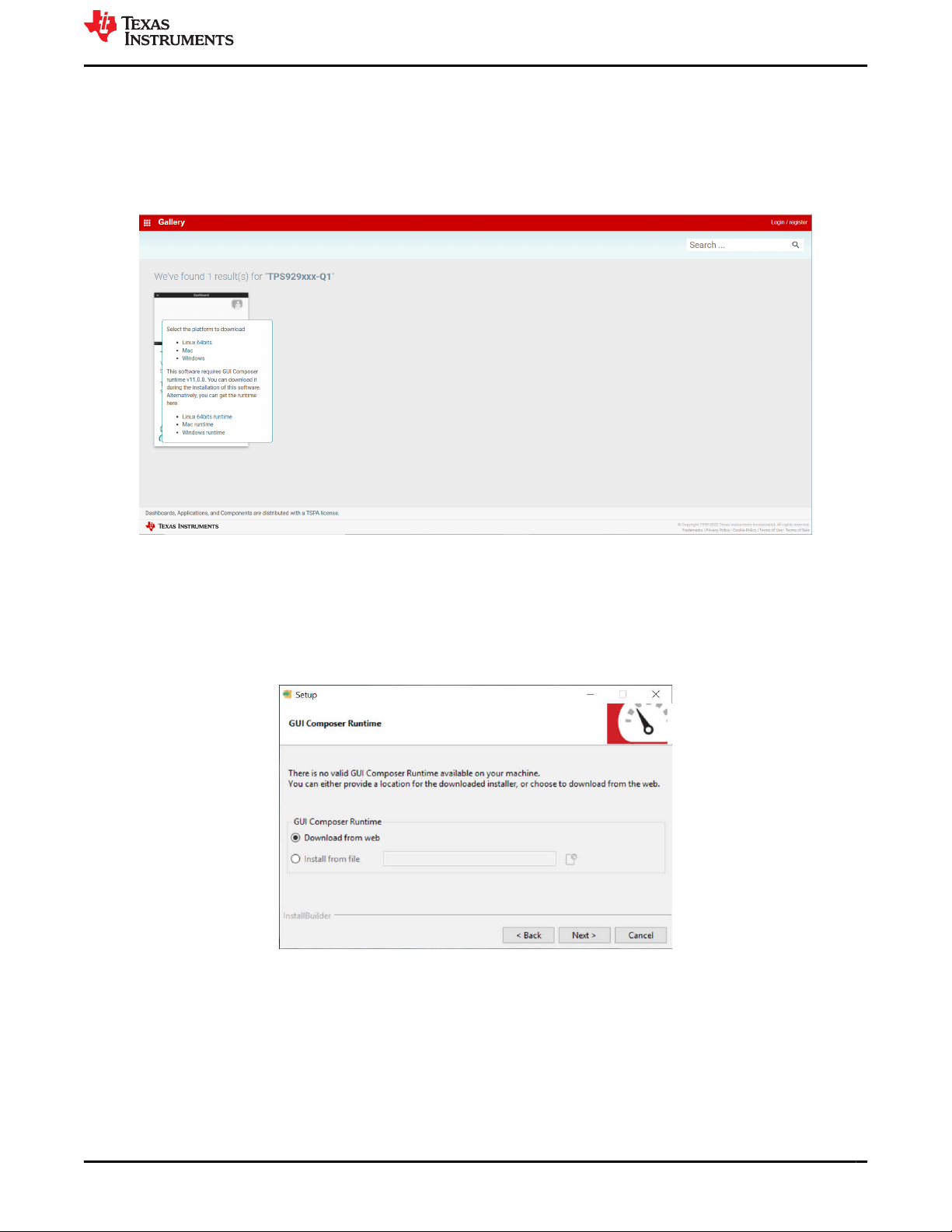

Figure 3-7. GUI and GUI Composer Download Page

Follow the on-screen instructions by clicking the "Next" button to accept the license, default installation directory

and to install the GUI Composer Runtime engine. Either provide a location for the downloaded GUI Composer

Installer, or choose to download from the web. The GUI Composer Installer can be downloaded from the gallery

page as showed in Figure 3-7 by selecting the appropriate platform. Continue to click on the "Next" button to

complete the GUI Composer Runtime installation.

Figure 3-8. GUI Composer Runtime Installation

After the GUI Composer installation, it continues to install the TPS929160EVM GUI. Follow the on-screen

instructions by clicking the "Next" button to finish the GUI installation. After installed, a shortcut to the GUI is

found on the desktop and also in the start-up menu under the Texas Instruments folder.

www.ti.com How to Get Started

SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

TPS929160EVM User's Guide 7

3.3 Firmware Update

After opening the GUI, the GUI tries to connect the EVM board. At the moment, the GUI detects the

firmware version of the connected USB2ANY tool automatically. If the firmware version is not mapping with

the recommended version for the GUI, there is a prompt as shown in Figure 3-9 to help user update the firmware

in the USB2ANY. Click the update button to begin the firmware update process. After firmware update succeeds,

click the finish button to close the prompt window. Then the GUI tries to connect the EVM board again with the

defined device address. After it connects successfully, there is a 3 confirmation sync-up prompt windows, the

connected LEDs type (Monochrome or REG), Fail-Safe state (0 or 1) and EEPROM programming Mode (Chip

select or External address). For each confirmation window, just click on the correct image mapping to the current

EVM setup.

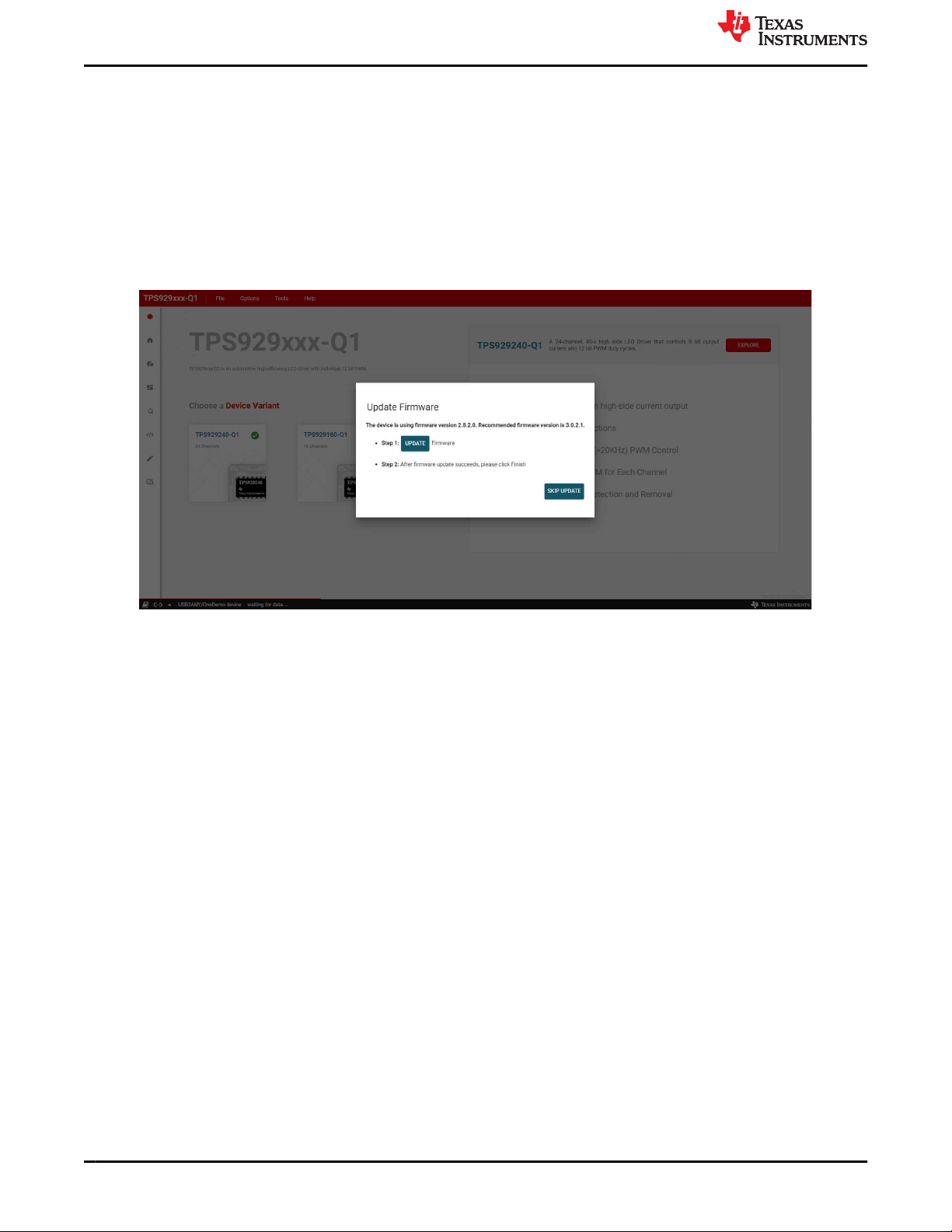

Figure 3-9. Firmware Update Prompt Window

If the firmware version of the USB2ANY tool is lower than 2.8.2.0 there is not firmware update prompt as showed

in Figure 3-9. Upgrade the firmware version to 2.8.2.0 manually. Go to USB2ANY Interface Adaptor web page,

scroll down to "Key Document" section and click "USB2ANY Explorer Software" to download the installation

file. Extract the zip file and install the USB2ANY Explorer using the "USB2ANY Explorer-2.8.2.0 Setup" exe file.

After USB2ANY Explorer installation, open the software with USB2ANY tool connected to the computer. Please

make sure that the GUI is closed while opening the USB2ANY Explorer. After the explorer is opened, there is

a "USB2ANY Firmware Requirement" prompt. Click the "OK" button to continue. Follow the instructions on the

"USB2ANY Firmware Loader" as showed in Figure 3-10 to update the firmware.

After upgrading the USB2ANY firmware version to 2.8.2.0, close the USB2ANY Explorer and open the

TPS929160EVM GUI again. While trying to connect the EVM board, the firmware upgrade window as showed in

Figure 3-9 appears.

How to Get Started www.ti.com

8TPS929160EVM User's Guide SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

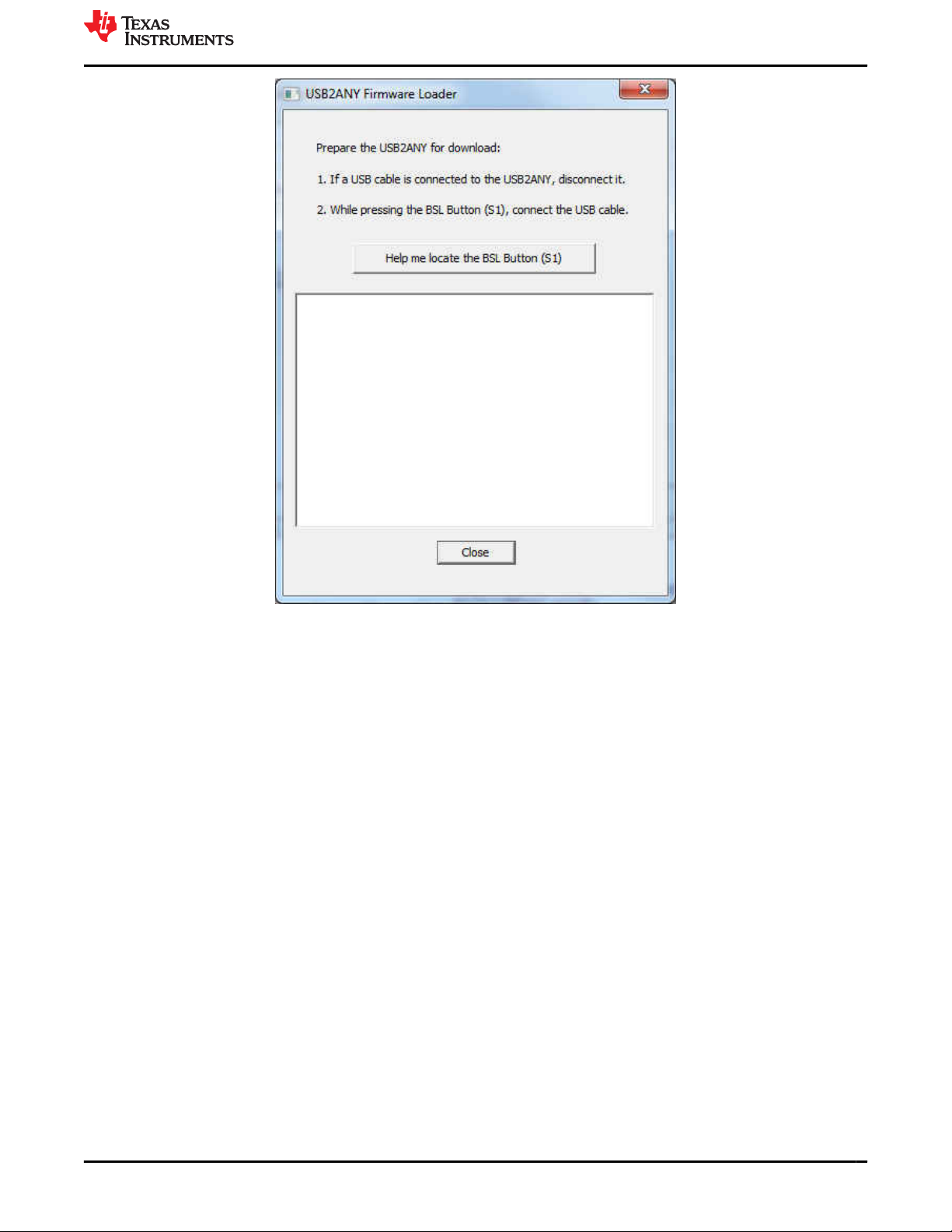

Figure 3-10. USB2ANY Firmware Loader

3.4 GUI Function

This section provides instructions to run the TPS929160EVM using the TPS929160EVM GUI.

3.4.1 Connection Status

Make sure to power up the EVM board and connect it to the PC through USB2ANY tool before opening the

on-line version GUI or desktop version GUI. If the GUI has been opened but the USB2ANY has not been

connected to the PC, make sure the USB2ANY has been connected to the powered-up EVM board when

plugging it into the PC. Other operation orders may lead to the GUI working abnormally. After this action

happens, please refresh the on-line version GUI or re-run the desktop version GUI.

The GUI supports both hardware setups with CAN board connected or not connected. When CAN board

connected, the CAN checkbox on the "Device Address" widget must be checked. When the CAN board is not

connected, leave the CAN checkbox unchecked. Before changing hardware setup, remove the USB2ANY cable

plug from PC.

Before using the GUI, make sure the hardware is connected successfully. Check the connection status on the

home page where there is a green check mark on the left side of the TPS929160-Q1 body, which means the

USB2ANY is connected to the computer successfully. If there is a red X mark, it means the hardware is not

connected. Reconnect the device.

After hardware is connected, either "Hardware Connected" or "Hardware not Connected" shows on the bottom

left corner of the GUI. The button to connect or disconnect the GUI to hardware is also available there. Click

the button to connect to hardware if hardware is not connected or to disconnect from hardware while hardware

connected.

To connect the GUI to device successfully, set the correct device address on the GUI to map the real device

address. See the TPS929160-Q1 12-Channel Automotive 40-V High-Side LED Driver with FlexWire data sheet

www.ti.com How to Get Started

SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

TPS929160EVM User's Guide 9

for instructions to set the device address. The default device address setting value of the GUI is 0x01 when you

open the GUI.

On the EVM board, the ADDR0, ADDR1, ADDR2and ADDR3 can be configured as High or Low through "J62",

"J63", "J64"and "J65" connectors. On the GUI page you can directly enter the specified value through the

"Device Address" widget.

Figure 3-11. TPS929160EVM GUI Connection Status

3.4.2 LED Control Page

Figure 3-12 shows the registers page.On the left side, you can select one or more channels to control. On the

right side, you can change the current and PWM of the selected channel. The ADC value and error flag is shown

on the right. The green button called "Device Configuration" is used to make an advanced setup.

Figure 3-12. TPS929160EVM GUI LED Control Page

How to Get Started www.ti.com

10 TPS929160EVM User's Guide SLVUCJ0 – DECEMBER 2022

Submit Document Feedback

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments TLV1544EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1298ECG-FE Bedienungsanleitung

Texas Instruments

Texas Instruments INA253EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TMAG5328EVM Bedienungsanleitung

Texas Instruments

Texas Instruments BQ25175EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LMP92066 Bedienungsanleitung

Texas Instruments

Texas Instruments BQ25303J Bedienungsanleitung

Texas Instruments

Texas Instruments TPS3840EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DRA72 Series Bedienungsanleitung

Texas Instruments

Texas Instruments DAC82002EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS2378 Bedienungsanleitung

Texas Instruments

Texas Instruments THS6132EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DS90UB913A-CXEVM Bedienungsanleitung

Texas Instruments

Texas Instruments UCD9080EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS61030EVM-029 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS54225 Bedienungsanleitung

Texas Instruments

Texas Instruments DLP471TEEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS53819AEVM-123 Bedienungsanleitung

Texas Instruments

Texas Instruments bq24195/L Bedienungsanleitung

Texas Instruments

Texas Instruments DAC8801/11EVM Bedienungsanleitung

Texas Instruments

Texas Instruments bq34z100EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS650830EVM-095 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS2372-4EVM-006 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS23882B1EVM Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
