User’s Guide

TPSM33625, TPSM3365F Evaluation Module

ABSTRACT

The TPSM33625EVM and TPSM33625FEVM enables the evaluation of the TPSM33625 and TPSM33625F

power modules. The EVMs allow for several configurations of the power module. Additionally, electrical test

points provide ease in verifying the performance of the power regulator. Lastly, these EVMs serve as a basis for

the TPSM33625 and TPSM33625F layout and component selection.

CAUTION

Read the user's guide before use.

CAUTION

Hot surface! Contact can cause burns. Do not touch!

Table of Contents

1 Introduction.............................................................................................................................................................................3

2 Setup Procedure..................................................................................................................................................................... 4

3 Test Setup................................................................................................................................................................................5

4 Schematic................................................................................................................................................................................7

5 TPSM33625EVM and TPSM33625FEVM Evaluation............................................................................................................ 9

6 Layout.................................................................................................................................................................................... 13

7 Bill of Materials..................................................................................................................................................................... 17

8 Related Documentation........................................................................................................................................................18

9 Revision History................................................................................................................................................................... 19

List of Figures

Figure 3-1. Test Setup Diagram...................................................................................................................................................6

Figure 4-1. Schematic-Compliance Testing Filter........................................................................................................................ 7

Figure 4-2. Schematic (TPSM33625EVM) – TPSM33625.......................................................................................................... 7

Figure 4-3. Schematic (TPSM33625FEVM) – TPSM33625F...................................................................................................... 7

Figure 4-4. Schematic (TPSM33625EVM) – Configuration Jumpers and Evaluation Test Points...............................................8

Figure 4-5. Schematic (TPSM33625FEVM) – Configuration Jumpers and Evaluation Test Points.............................................8

Figure 5-1. CISPR32 Conducted Scan........................................................................................................................................9

Figure 5-2. CISPR32 Conducted Scan........................................................................................................................................9

Figure 5-3. IR Top Case Measurement......................................................................................................................................10

Figure 5-4. IR Top Case Measurement......................................................................................................................................10

Figure 5-5. IR Top Case Measurement......................................................................................................................................11

Figure 5-6. IR Top Case Measurement......................................................................................................................................11

www.ti.com Table of Contents

SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

TPSM33625, TPSM3365F Evaluation Module 1

Figure 5-7. IR Top Case Measurement......................................................................................................................................12

Figure 5-8. IR Top Case Measurement......................................................................................................................................12

Figure 6-1. PCB Top 2-D (TPSM33625EVM)............................................................................................................................ 13

Figure 6-2. PCB Top 2-D (TPSM33625FEVM).......................................................................................................................... 13

Figure 6-3. PCB Bottom 2-D......................................................................................................................................................14

Figure 6-4. Top Layer.................................................................................................................................................................14

Figure 6-5. Mid Layer 1..............................................................................................................................................................15

Figure 6-6. Mid Layer 2..............................................................................................................................................................15

Figure 6-7. Bottom Layer........................................................................................................................................................... 16

List of Tables

Table 1-1. EVM Overview............................................................................................................................................................ 3

Table 2-1. Suggested Frequency and Output Voltage Settings................................................................................................... 4

Table 3-1. Description of Jumpers, Test Points, and Terminal Blocks......................................................................................... 5

Table 7-1. Bill of Materials..........................................................................................................................................................17

Trademarks

All trademarks are the property of their respective owners.

Trademarks www.ti.com

2TPSM33625, TPSM3365F Evaluation Module SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

1 Introduction

The output voltage of the TPSM33625EVM and TPSM33625FEVM can be configured from 1.8 V to 12 V with

a load current up to 2.5 A. Measurement points are provided to easily measure conversion efficiency and look

at other performance metrics. In addition, jumpers and test points are provided to evaluate the features of the

TPSM33625 and TPSM33625F, such as programmable enable UVLO, adjustable switching frequency and mode

select (or synchronization), and power-good flag.

The EVM layout allows the TPSM33625 and TPSM33625F and the orderable part numbers to be installed, and

their specific features to be evaluated. The TPSM33625EVM comes installed with the TPSM33625RDNR, the

adjustable switching frequency (RT pin) version of the TPSM33625. The TPSM33625FEVM comes installed with

the TPSM33625FRDNR, the fixed 1-MHz version of the TPSM33625 with mode selection and synchronization

pin.

The TPSM33625EVM is configured by default to be enabled with an output voltage of 5 V, and a switching

frequency of 2.2 MHz with frequency foldback (auto mode) at light load. The TPSM33625FEVM is configured

by default to be enabled with an output voltage of 5 V, and configured for auto mode. The following sections

outline the step-by-step procedure to use the TPSM33625EVM and TPSM33625FEVM and the performance that

is exhibited.

Table 1-1. EVM Overview

EVM Buck Regulator Buck Features

TPSM33625EVM TPSM33625RDNR

Output: 3.3 V/ADJ (1-15 V)

Fsw: ADJ

Mode: Auto

TPSM33625FEVM TPSM33625FRDNR

Output: 5 V/ADJ (1-15 V)

Fsw: 1 MHz

Mode: Auto/FPWM

www.ti.com Introduction

SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

TPSM33625, TPSM3365F Evaluation Module 3

2 Setup Procedure

The following procedure outlines the steps to be taken for using the TPSM33625EVM and TPSM625FEVM. Use

this section in conjunction with Section 3 to correctly setup the EVM.

1. Determine the output voltage that is to be evaluated, then reference Section 2. This table provides the

recommended jumper configurations.

2. After making any required changes, confirm that the output voltage is within a couple percent of the set

output voltage.

3. Verify the performance of the EVM and compare with applicable curves within this user's guide.

4. Consult on e2e if there are concerns in the evaluation of this device.

Table 2-1. Suggested Frequency and Output Voltage Settings

VOUT (V) Suggested Frequency

1.8 300 kHz

2.5 800 kHz

3.3 1 MHz

51 MHz (J4: 3 – 4) *2.2 MHz can improve transient response for given

output capacitance.

12 2.2 MHz

Setup Procedure www.ti.com

4TPSM33625, TPSM3365F Evaluation Module SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

3 Test Setup

Table 3-1. Description of Jumpers, Test Points, and Terminal Blocks

Reference Designator Description

J1 Input to series, PI filter for EMC compliance testing. Note polarity, which is annotated in the silkscreen.

Connect to a terminal block with a short, thick gauge (18AWG) wire.

TP1, TP2

VIN test points that bypass the EMC filter and connect directly to input capacitors. Enables more accurate

efficiency measurements as well as potential parasitic minimization and signal integrity of AC measurements.

Connect to test points with a short, thick gauge (18AWG) wire.

TP4 PGOOD test point for verifying PGOOD (output) flag feature.

TP3, TP6

VOUT test points connected directly to output capacitors. Enables more accurate efficiency measurements, as

well, potential parasitic minimization and signal integrity of AC measurements. Connect to test points with a

short, thick gauge (18AWG) wire.

J2 Output (VOUT) terminal block. Connect to terminal block with a short, thick gauge (18AWG) wire.

TP11, TP12 EN test point for accurately measuring EN voltage. If EN voltage is to be applied (externally), resistor R2 and

R4 potentially can need to be removed.

J5 Disable the regulator by shorting the pins of the jumper.

TPSM33625EVM:

Jumper for configuring the switching frequency of the converter. Using the "key" annotated in the schematic

and also in the silkscreen.

Placing the jumper on the adjacent pins sets the annotated switching frequency.

TPSM33625FEVM:

Jumper for configuring the mode or for external signal source synchronization. The EVM is configured for

fixed 1-MHz operation. The mode is set by using the "key" annotated in the schematic and also in the

silkscreen, and by placing the jumper on the pins next to the annotated mode.

Auto mode: Diode emulation (discontinuous inductor current) and frequency foldback in light-load condition.

FPWM mode: Forced continuous conduction (continuous inductor current), constant frequency operation in

light-load condition.

In addition to determining the mode of the device, this pin can be used for synchronization to the

frequency and phase of an external signal source. Reference the data sheet for corresponding signal source

requirements.

TP7, TP8 Test points for applying an external signal source to synchronize the regulator to. The synchronization function

is only to be used with the TPSM33625FEVM (TPSM33625FRDNR).

J3 Jumper for configuring the output voltage. Set the voltage by using the "key" annotated in the schematic and

also in the silkscreen, and by placing the jumper on the pins next to the annotated output voltage.

TP9, TP10 Test points for applying an AC signal source (across an injection resistor) often used in evaluating the loop

response in a current mode regulator, such as the TPSM33625 or TPSM33625F.

www.ti.com Test Setup

SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

TPSM33625, TPSM3365F Evaluation Module 5

DC Supply

E-Load

DVM

Ammeter Ammeter

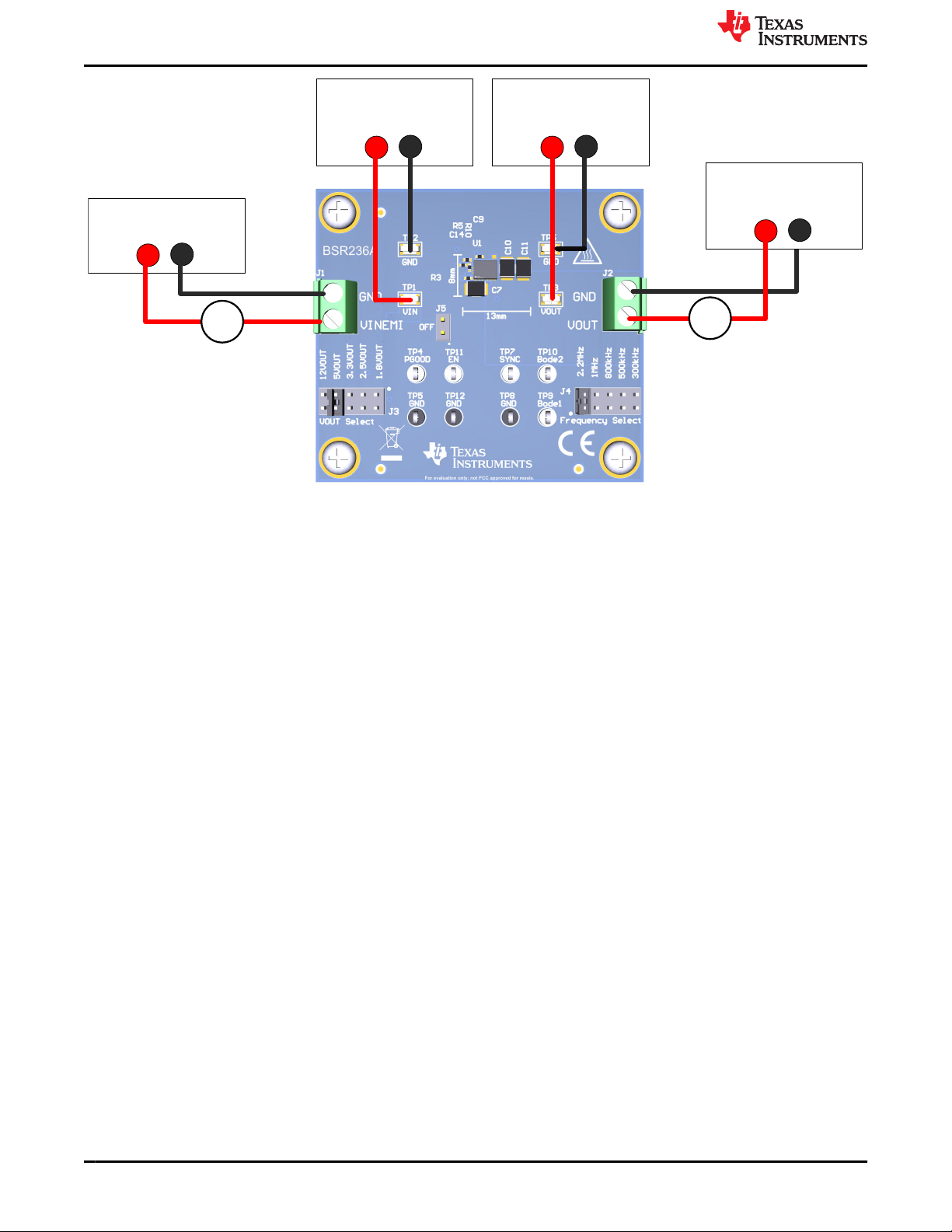

Figure 3-1. Test Setup Diagram

Test Setup www.ti.com

6TPSM33625, TPSM3365F Evaluation Module SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

4 Schematic

Customers can choose to implement a PI filter in series with the input of a power regulator, which allows for the

differential noise generated to be attenuated, allowing a noise emission regulation to be met. The filter crossover

frequency is designed for 1-MHz switching frequency, attenuating the switching frequency and the corresponding

harmonics greatly. A damping capacitor is provided (C5), to damp the high-Q PI filter. For more information on

filter damping, see Section 8.

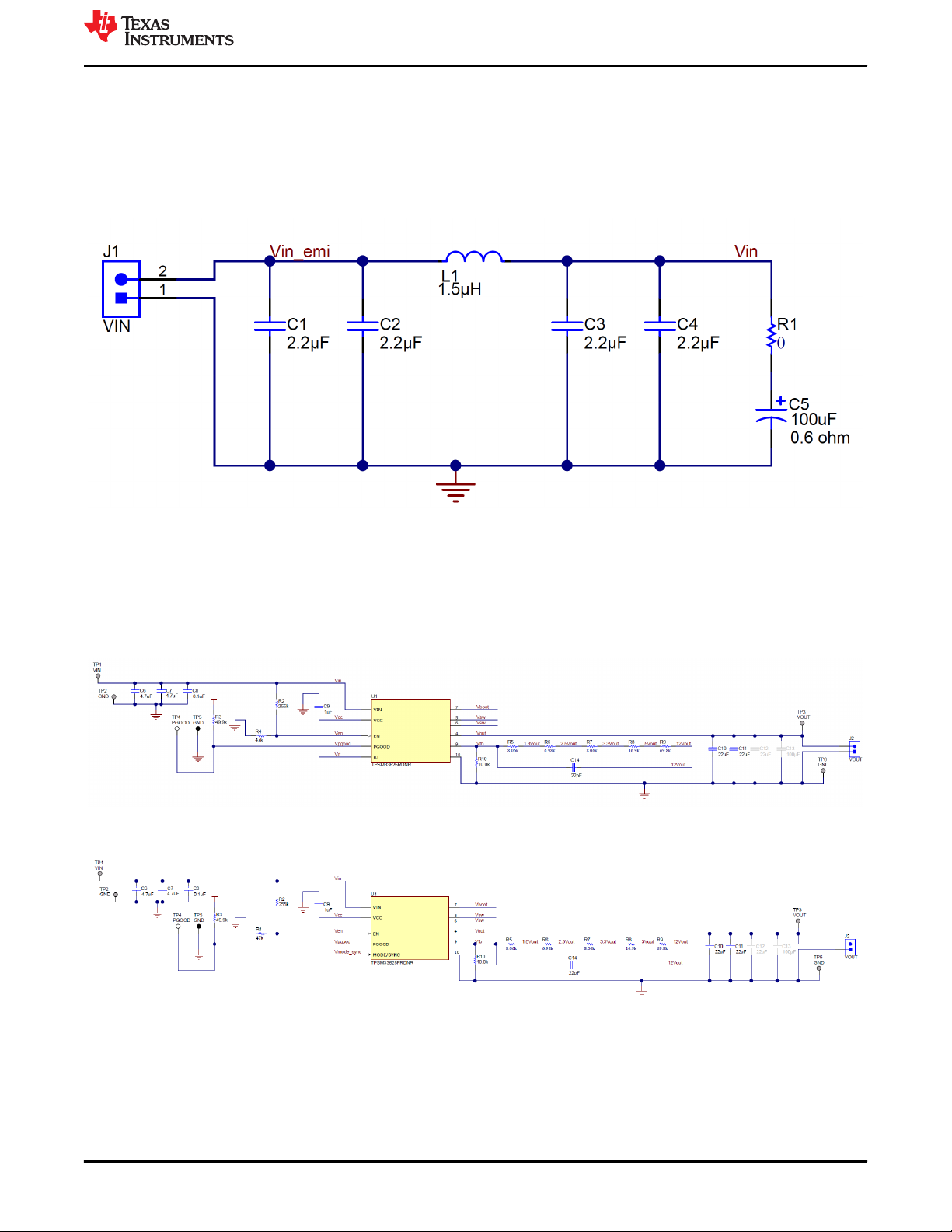

Figure 4-1. Schematic-Compliance Testing Filter

In the buck schematic, the difference between the TPSM33625EVM and TPSM33625FFEVM is the

REFDES=U1 device part number. Use a buck schematic with additional feedback resistors to program

the output voltage and add a placeholder for additional output capacitance to achieve stability or meet a

output transient specification with pin definition RT (adjustable frequency) or Mode/Sync (mode select or

synchronization) differing.

Figure 4-2. Schematic (TPSM33625EVM) – TPSM33625

Figure 4-3. Schematic (TPSM33625FEVM) – TPSM33625F

A disable, frequency select, and output voltage select jumper are provided to aid the evaluation. Additionally, test

points to evaluate product features and stability are provided.

www.ti.com Schematic

SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

TPSM33625, TPSM3365F Evaluation Module 7

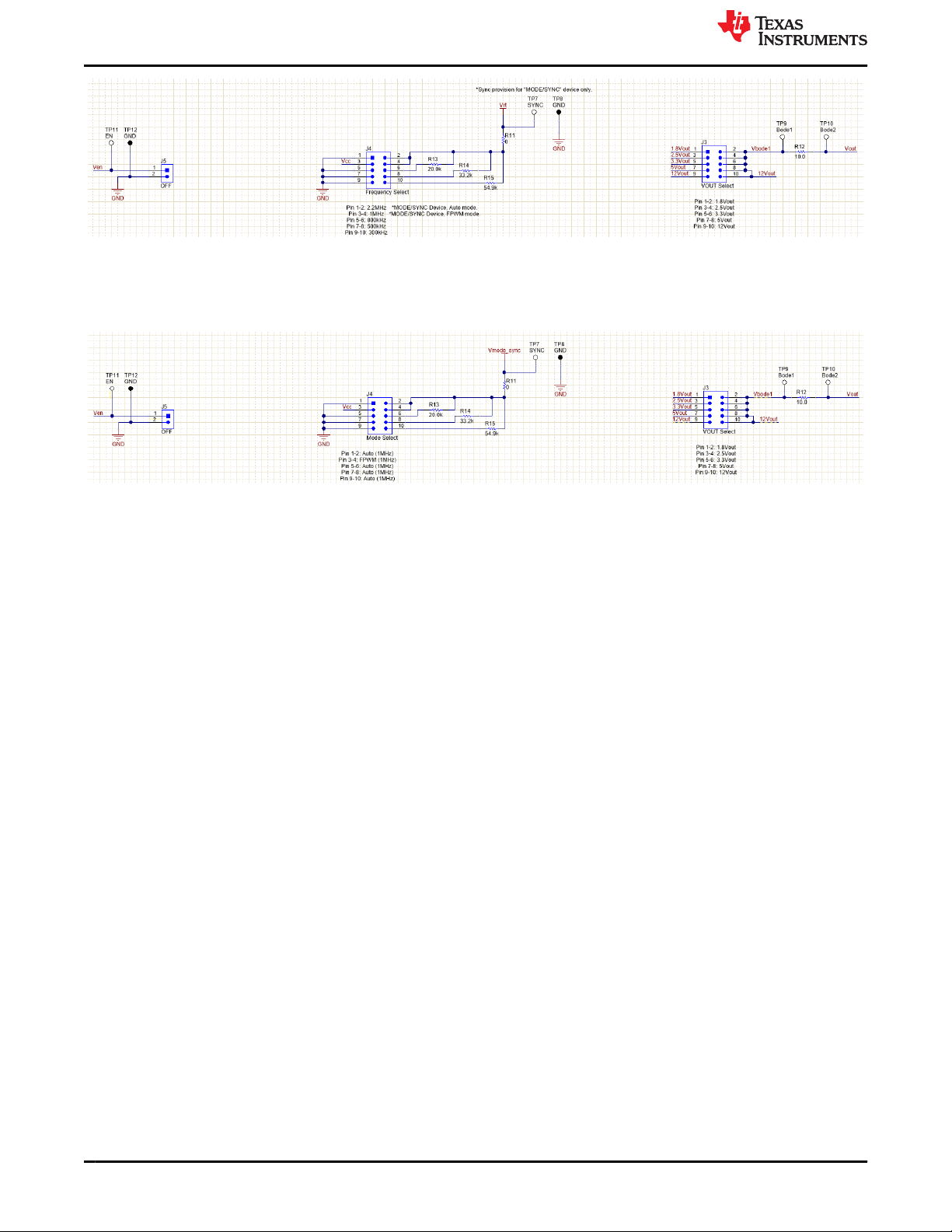

Figure 4-4. Schematic (TPSM33625EVM) – Configuration Jumpers and Evaluation Test Points

A disable, mode select or synchronization, and output voltage select jumper are provided to aid the evaluation.

Additionally, test points to evaluate product features and stability are provided.

Figure 4-5. Schematic (TPSM33625FEVM) – Configuration Jumpers and Evaluation Test Points

Schematic www.ti.com

8TPSM33625, TPSM3365F Evaluation Module SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

5 TPSM33625EVM and TPSM33625FEVM Evaluation

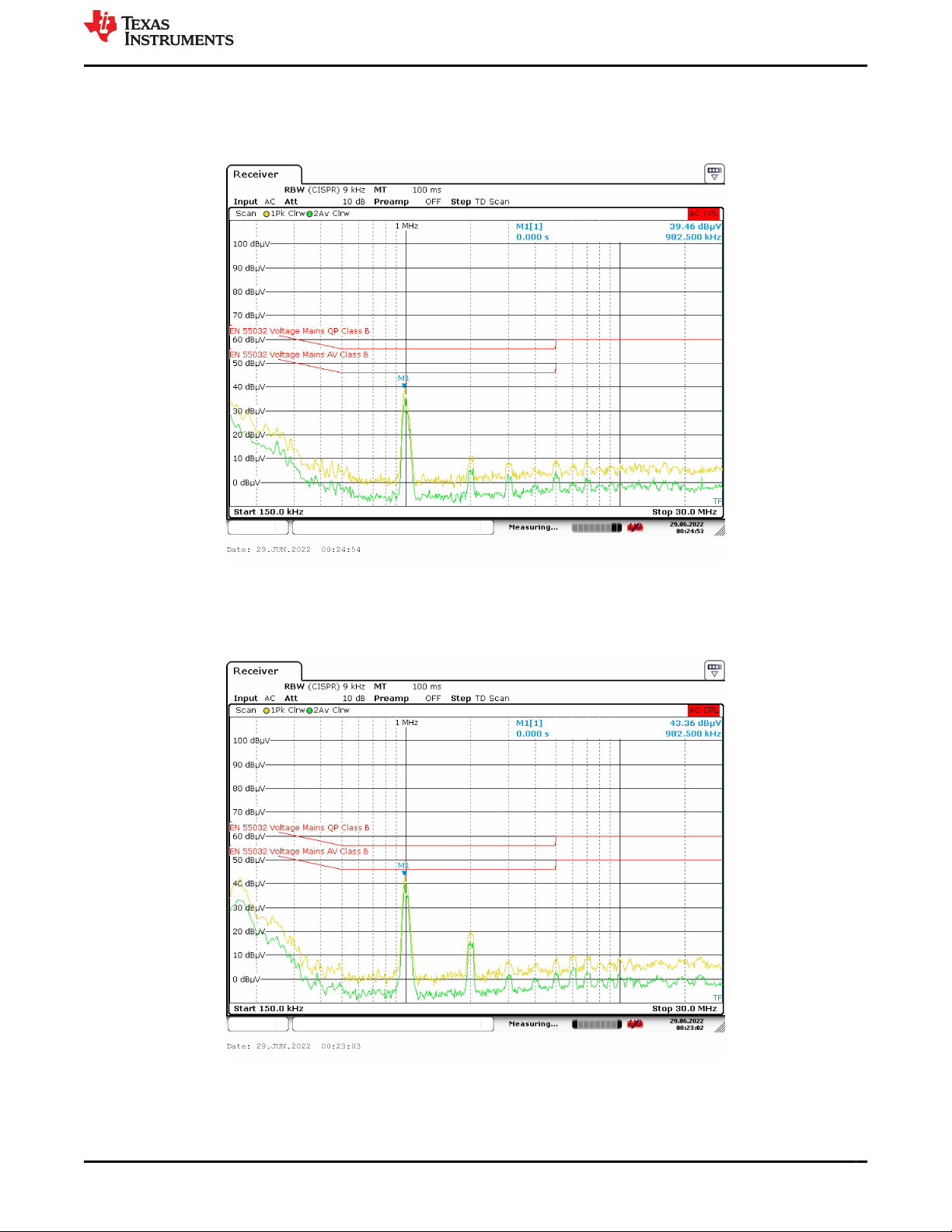

The data was tested on unmodified EVM, configured for 1-MHz operation and 5 VOUT, and was measured at 12

V and a 2-A load.

Figure 5-1. CISPR32 Conducted Scan

The data was tested on unmodified EVM, configured for 1-MHz operation and 5 VOUT, and was measured at 24

VIN and a 2-A load.

Figure 5-2. CISPR32 Conducted Scan

www.ti.com TPSM33625EVM and TPSM33625FEVM Evaluation

SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

TPSM33625, TPSM3365F Evaluation Module 9

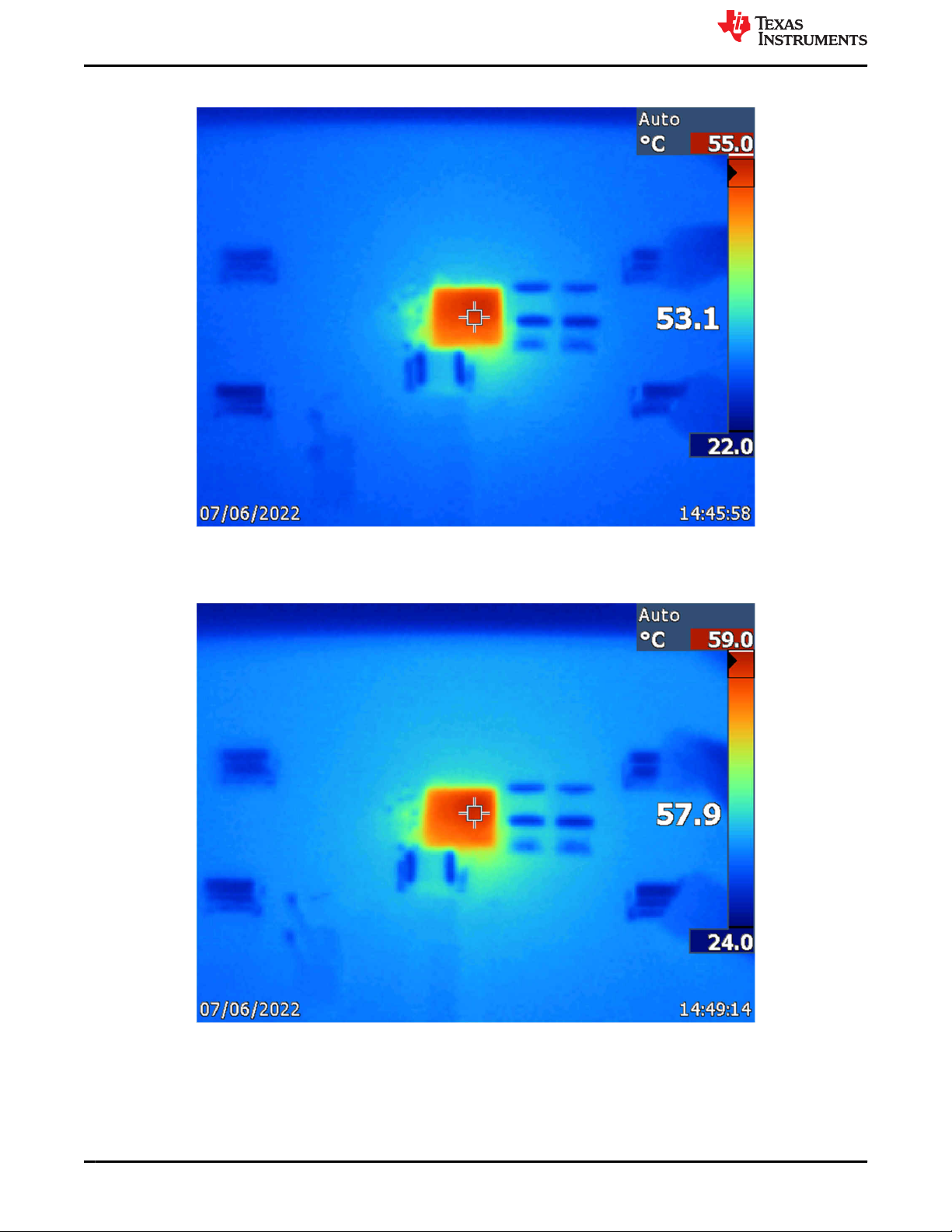

12 VIN, 2.2 MHz, 2-A load (continuous)

Figure 5-3. IR Top Case Measurement

12 VIN, 1 MHz, 2-A load (continuous)

Figure 5-4. IR Top Case Measurement

TPSM33625EVM and TPSM33625FEVM Evaluation www.ti.com

10 TPSM33625, TPSM3365F Evaluation Module SLVUCG3A – SEPTEMBER 2022 – REVISED MARCH 2023

Submit Document Feedback

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments bqSWITCHER bq241 EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments TLV3802 Bedienungsanleitung

Texas Instruments

Texas Instruments DAC161S997 Bedienungsanleitung

Texas Instruments

Texas Instruments TPSM8D6C24EVM-2V0 Bedienungsanleitung

Texas Instruments

Texas Instruments AFE11612EVM Bedienungsanleitung

Texas Instruments

Texas Instruments BQ25616J Bedienungsanleitung

Texas Instruments

Texas Instruments AMC1303 Bedienungsanleitung

Texas Instruments

Texas Instruments DS90UB925QSEVB Bedienungsanleitung

Texas Instruments

Texas Instruments DRV8412EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320C8 Series Bedienungsanleitung

Texas Instruments

Texas Instruments MC 8316AEVM Series Kurzanleitung

Texas Instruments

Texas Instruments ADC364 EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments LMG2100 Bedienungsanleitung

Texas Instruments

Texas Instruments UCC29950EVM-631 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS42JBx9 Bedienungsanleitung

Texas Instruments

Texas Instruments XIO2200 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS53126EVM-600 Bedienungsanleitung

Texas Instruments

Texas Instruments TAS5706EVM2 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS54240EVM-VSON Bedienungsanleitung

Texas Instruments

Texas Instruments UCC21220EVM-009 Bedienungsanleitung

Texas Instruments

Texas Instruments LMR36506RREVM Bedienungsanleitung

Texas Instruments

Texas Instruments LMX2615EVM-CVAL Bedienungsanleitung

Texas Instruments

Texas Instruments TPS25740EVM-741 Bedienungsanleitung

Texas Instruments

Texas Instruments TRF370 Series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
