User’s Guide

TRF1208 Evaluation Module

ABSTRACT

The basic steps and functions that are required to ensure the proper operation and quick setup of the TRF1208-

EVM. This document also includes a schematic diagram, a bill of materials (BOM), printed-circuit board (PCB)

layouts, and test block diagrams is outlined in this document. Throughout this document, the abbreviations EVM,

TRF1208 EVM and the term evaluation module are synonymous with the TRF1208-EVM, unless otherwise

noted.

Table of Contents

1 Description.............................................................................................................................................................................. 2

1.1 Features............................................................................................................................................................................. 2

1.2 General Usage Information................................................................................................................................................ 2

2 EVM Overview......................................................................................................................................................................... 4

2.1 Schematic.......................................................................................................................................................................... 4

2.2 PCB Layers........................................................................................................................................................................ 5

2.3 TRF1208 EVM Bill of Material............................................................................................................................................6

2.4 Stack-Up and Material........................................................................................................................................................7

3 Test Setup Diagrams.............................................................................................................................................................. 8

3.1 S-Parameter Test Setup.....................................................................................................................................................8

3.2 Noise Figure Test Setup.....................................................................................................................................................9

3.3 Two-Tone OIP3 Test Setup.............................................................................................................................................. 10

4 Related Documentation........................................................................................................................................................11

List of Figures

Figure 1-1. Single Tone Setup for Gain and Output P1dB...........................................................................................................2

Figure 2-1. TRF1208 EVM Schematic.........................................................................................................................................4

Figure 2-2. Top Layer...................................................................................................................................................................5

Figure 2-3. Layer 2...................................................................................................................................................................... 5

Figure 2-4. Layer 3...................................................................................................................................................................... 5

Figure 2-5. Bottom Layer............................................................................................................................................................. 5

Figure 2-6. TRF1208 EVM Stack-Up (Units in Mils).................................................................................................................... 7

Figure 3-1. S-Parameter Test Setup............................................................................................................................................ 8

Figure 3-2. PCB Trace Loss vs Frequency..................................................................................................................................9

Figure 3-3. Noise Figure Test Setup............................................................................................................................................ 9

Figure 3-4. OIP3 Test Setup...................................................................................................................................................... 10

List of Tables

Table 2-1. TRF1208 EVM BOM................................................................................................................................................... 6

Trademarks

Isola® is a registered trademark of Isola USA Corporation.

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SBOU266 – SEPTEMBER 2021

Submit Document Feedback

TRF1208 Evaluation Module 1

1 Description

The TRF1208 evaluation module (EVM) is used to evaluate the TRF1208 device, which is a single-ended input

to differential output RF amplifier available in a 2 × 2-mm2, 12-pin WQFN package. The device is designed to

drive a high-speed differential input ADC without using a passive balun.

The board is set up for 50-Ω single-ended input matching. The amplifier has a low output impedance. The board

has ac-coupling capacitors at input and output. The EVM is ready to connect to a +3.3-V power supply, signal

source, and test instruments for the measurements.

1.1 Features

• Operates on a single +3.3-V supply.

• Designed for a single-ended 50-Ω input matching.

• Simple interface to the inputs and output through onboard SMA connectors.

• Power down option available onboard using a jumper connector.

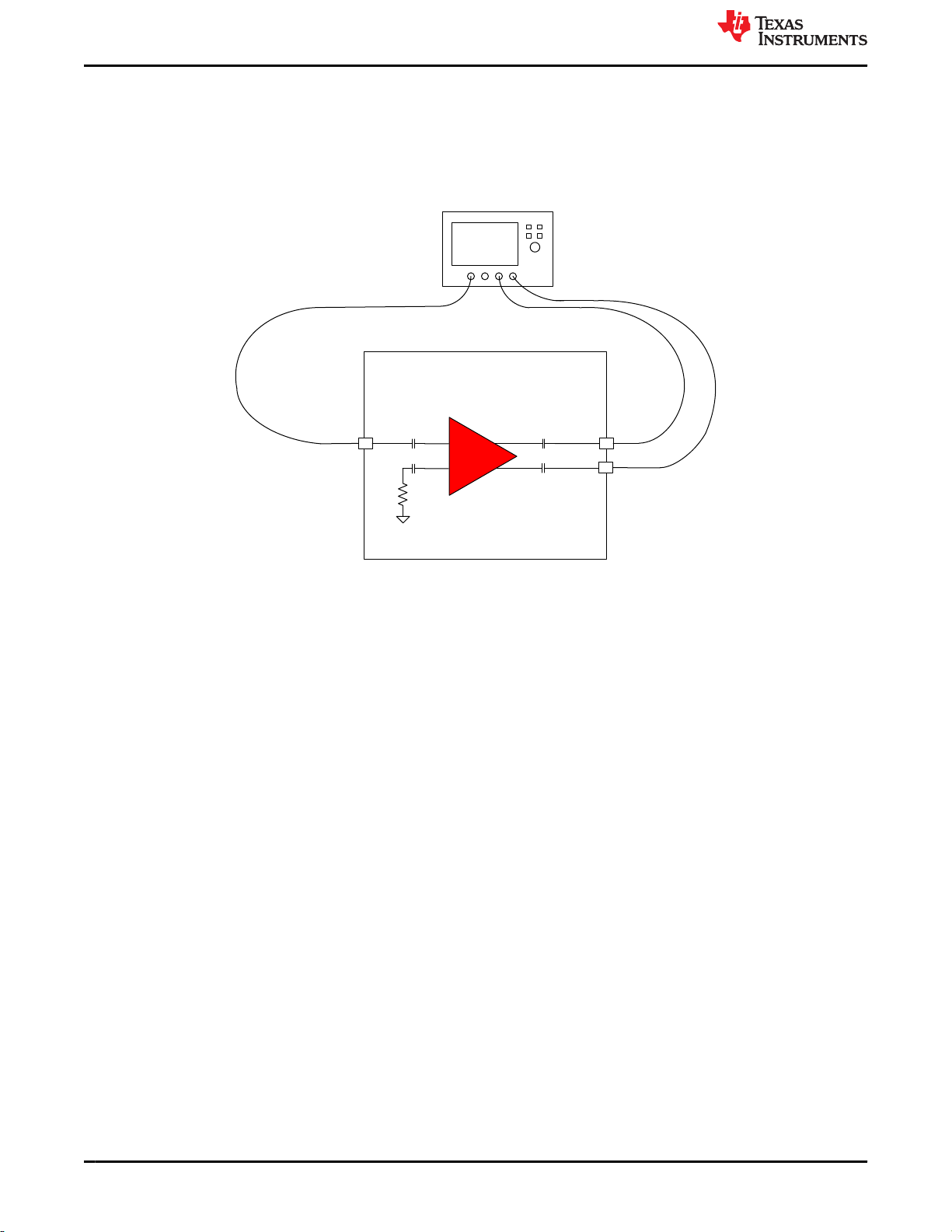

(J4)

TRF1208

+3.3-V Single Bench

Power Supply

+3.3 V GND

(J6)

TRF1208 EVM

(J1)

DMM

(Current

Measurement)

(J5)

RF Signal Generator

Spectrum Analyzer

Hyperlabs HL9402

or similar

0°

180°

2:1, Zo = 50



3-dB pad

6-dB pad

3-dB pad

INP

INM

OUTM

OUTP

Figure 1-1. Single Tone Setup for Gain and Output P1dB

1.2 General Usage Information

This section provides general usage information for the TRF1208 EVM. See for a general single tone setup

diagram as a reference point for the following instructions. Some components such as supply bypass capacitors

are omitted for clarity.

1. Recommended power up sequence:

a. Before connecting the power-supply cables to the EVM, set the DC output power supply to +3.3 V.

b. Set the current limit of the DC output power supply at 250 mA.

c. Making sure the supply is turned off, connect the power supply cables to the J1 connector of the EVM.

d. Now turn on the DC power supply of VCC = +3.3 V. The supply current (IQ) drawn from the power supply

should be approximately 135 mA.

e. If the supply current is low, ensure that the device is not disabled by the PD pin.

2. Power-down option:

a. Connect +1.8 V (logic-1) on PD pin to power-down the chip. Ground the PD pin to enable the chip.

Description www.ti.com

2TRF1208 Evaluation Module SBOU266 – SEPTEMBER 2021

Submit Document Feedback

3. Single tone measurement setup recommendation:

a. Connect an RF signal generator to input SMA connector, J4.

When measuring single tone distortion, use an RF band pass filter as shown in Figure 1-1.

b. The RF signal generator used must support up to 12-GHz signal frequency for testing out the TRF1208

EVM.

c. The TRF1208 device input is 50-Ω in the pass-band.

To minimize signal reflections due to impedance mismatch, TI recommends using an attenuator pad of

approximately 3-dB to 6-dB between the source and J4 SMA input.

d. The EVM outputs are fully differential (or 180° out-of-phase) at J5 and J6 SMA connectors.

The TRF1208 device has low output impedance at dc and low frequencies.

e. When connecting to a spectrum analyzer, the differential signal out of the EVM should be converted to a

single-ended signal using an external passive balun as shown in Figure 1-1.

Usage of an attenuator pad of approximately 3-dB to 6-dB is recommended at the three terminals of the

passive balun to minimize reflections.

f. Lastly, it is recommended to properly characterize and account for the insertion loss of RF coaxial (coax)

cables, attenuator pads, and passive baluns to measure accurate gain and power levels for the device.

4. Matching considerations:

a. TRF1208 is a wide-band amplifier and it expects 50-Ω input matching over its operating bandwidth upto

about 12 GHz. A signal generator or Noise Source that drives this EVM will have 50-Ω impedance

over a wide band width. But if this EVM is driven by a narrow-band driver or a source that has non

50-Ω matching, then there may be instability issues with the amplifier. To avoid such issues, additional

matching may be require at the input. See the TRF1208 Single Channel, 10 MHz to 8 GHz 1-dB BW,

Single Ended to Differential Amplifier data sheet for more information.

b. As mentioned earlier, the TRF1208 device has low output impedance and a zero-ohm series resistors

are used in the EVM. When the EVM outputs are connected to a balun, it is recommended to use

attenuator pads to minimize reflections.

www.ti.com Description

SBOU266 – SEPTEMBER 2021

Submit Document Feedback

TRF1208 Evaluation Module 3

2 EVM Overview

This section includes the schematic diagram, a bill of materials (BOM), PCB layer prints, and EVM stack-up

information.

2.1 Schematic

Figure 2-1 shows the TRF1208 EVM schematic.

Figure 2-1. TRF1208 EVM Schematic

EVM Overview www.ti.com

4TRF1208 Evaluation Module SBOU266 – SEPTEMBER 2021

Submit Document Feedback

2.2 PCB Layers

Figure 2-2 through Figure 2-5 illustrate the PCB layers for this EVM.

Figure 2-2. Top Layer Figure 2-3. Layer 2

Figure 2-4. Layer 3 Figure 2-5. Bottom Layer

www.ti.com EVM Overview

SBOU266 – SEPTEMBER 2021

Submit Document Feedback

TRF1208 Evaluation Module 5

2.3 TRF1208 EVM Bill of Material

Table 2-1. TRF1208 EVM BOM

Item # Designator Quantity Value Description Package Reference Part Number Manufacturer Alternate Part

Number

Alternate

Manufacturer

1 C1, C2, C3, C4 4 0.1 µF CAP, CERM, 0.1 µF, 16 V, ± 10%, X7R, 0402 0402 ATC530L104KT16T AT Ceramics

2 C5 1 22 µF CAP, CERM, 22 µF, 10 V, ± 20%, X5R, 0603 0603 CL10A226MP8NUNE Samsung

Electro-

Mechanics

3 C6, C7 2 2.2 µF CAP, CERM, 2.2 µF, 10 V, ± 10%, X7S, 0402 0402 C1005X7S1A225K050B

TDK

4 C8 1 0.22 µF CAP, CERM, 0.22 µF, 10 V, ± 20%, X5R, 0201 0201 LMK063BJ224MP-F Taiyo Yuden

5 J1 1 Header, 2.54 mm, 2x1, Gold, TH Header, 2.54 mm, 2x1, TH 61300211121 Wurth

Elektronik

6 J4, J5, J6 3 50 Ω JACK, SMT 50 Ω JACK, SMT 145-0701-802 Cinch

Connectivity

7 J9 1 Header, 100 mil, 3x1, Tin, TH Header, 3 PIN, 100 mil, Tin PEC03SAAN Sullins

Connector

Solutions

8 L1 1 1000 Ω Ferrite Bead, 1000 Ω at 100 MHz, 0.25 A, 0402 0402 BLM15HD102SN1D MuRata

9 R1 1 49.9 RES, 49.9, 1%, 0.05 W, AEC-Q200 Grade 1,

0201

0201 ERJ-1GEF49R9C Panasonic

10 R2 1 2.49k RES, 2.49 k, 1%, 0.063 W, AEC-Q200 Grade 0,

0402

0402 CRCW04022K49FKED Vishay-Dale

11 R3 1 3.24k RES, 3.24 k, 1%, 0.063 W, AEC-Q200 Grade 0,

0402

0402 CRCW04023K24FKED Vishay-Dale

12 R4, R5 2 0 RES, 0, 5%, .05 W, AEC-Q200 Grade 0, 0201 0201 ERJ-1GN0R00C Panasonic

13 SH-J1 1 1x2 Shunt, 100 mil, Gold plated, Black Shunt SNT-100-BK-G Samtec 969102-0000-DA 3M

14 U1 1 RF IC WQFN-FCRLF12 TRF1208RPVR Texas

Instruments

15 FID1, FID2, FID3 0 Fiducial mark. There is nothing to buy or mount. N/A N/A N/A

16 R6, R7 0 0.1 RES, 0.1, 1%, 0.25 W, 0402 0402 ERJ2BWFR100X Panasonic

EVM Overview www.ti.com

6TRF1208 Evaluation Module SBOU266 – SEPTEMBER 2021

Submit Document Feedback

2.4 Stack-Up and Material

The TRF1208 EVM is a 67-mil, 4-layer board whose material type is Isola® 370HR. The top layer routes the

power, ground, and signals between SMA connectors and the device. Second layer is the reference RF ground

layer. The signal trace impedance is targeted at 50Ω. The bottom 3 layers are ground layers.

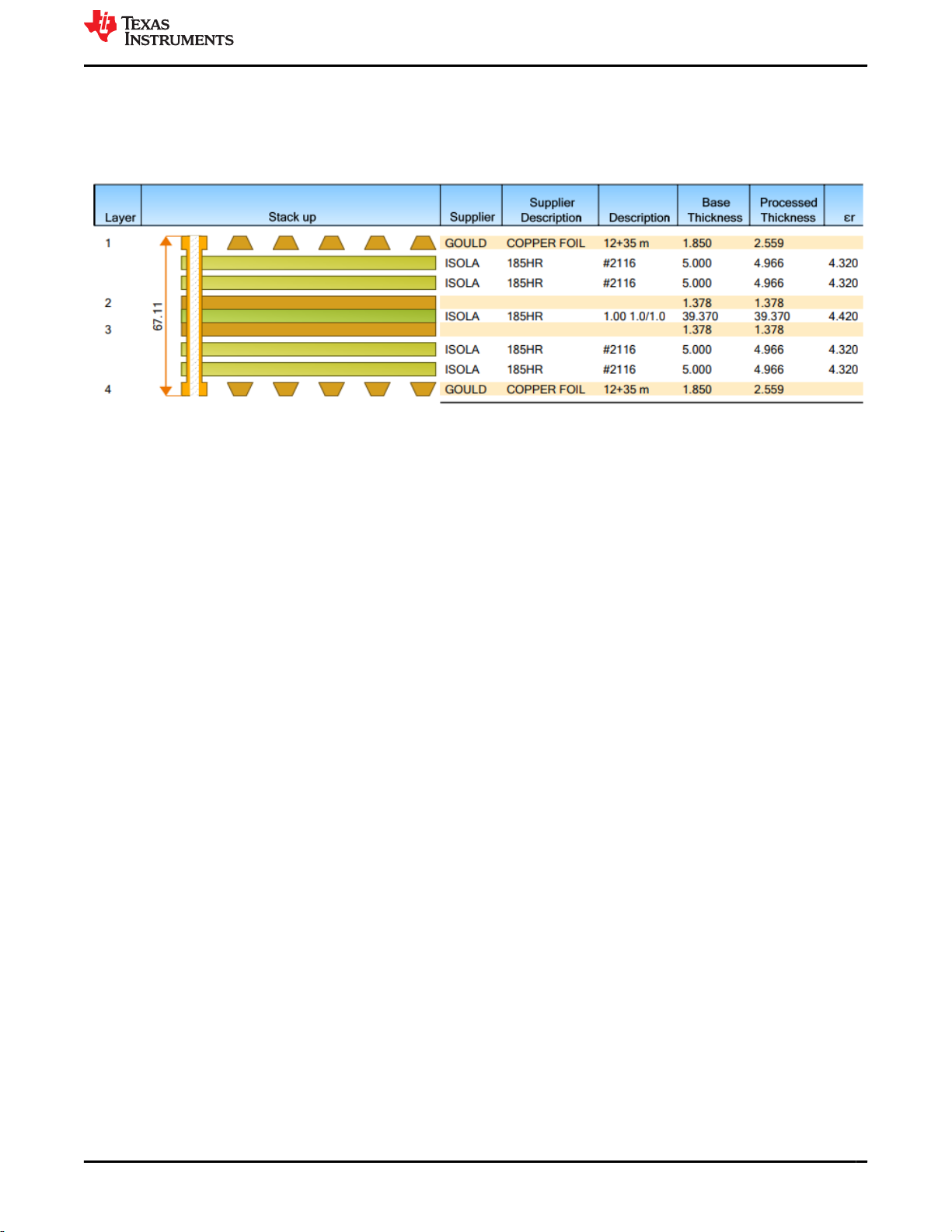

Figure 2-6. TRF1208 EVM Stack-Up (Units in Mils)

www.ti.com EVM Overview

SBOU266 – SEPTEMBER 2021

Submit Document Feedback

TRF1208 Evaluation Module 7

3 Test Setup Diagrams

This section includes general recommendations for S-parameter, noise figure, and two-tone OIP3 setup while

measuring the TRF1208 EVM.

3.1 S-Parameter Test Setup

(J4)

TRF1208

(J6)

TRF1208 EVM

(J5)

INP

INM

OUTM

OUTP

Vector Network Analyzer

Figure 3-1. S-Parameter Test Setup

Use the following guidelines for S-parameter measurement:

1. As Figure 3-1 shows, the S-parameter measurement is typically done using a Vector Network Analyzer

(VNA). For measuring the TRF1208 EVM, a 3-port VNA is recommended which can generate single-ended

and receive differential signals at the input and output ports of EVM respectively.

2. Before connecting the RF coax cables to the EVM, you must calibrate the VNA along with the cables using a

calibration kit.

3. Make sure the frequency sweep and output power level from the VNA is set within the linear operating range

of the TRF1208 devices. The resolution bandwidth (RBW) and dynamic range of the VNA can be adjusted to

give optimum sweep time for the measurement.

4. It is important to account for board trace losses at the input and output side of the device during gain

measurements. Figure 3-2 gives typical input and output trace losses measured on the EVM.

Test Setup Diagrams www.ti.com

8TRF1208 Evaluation Module SBOU266 – SEPTEMBER 2021

Submit Document Feedback

freq (GHz)

S21 (dB)

0 2 4 6 8 10 12 14 16

-3

-2.5

-2

-1.5

-1

-0.5

0.5

Input trace loss: - SE 50-ohm (dB)

Output trace loss: Diff 100-ohm (dB)

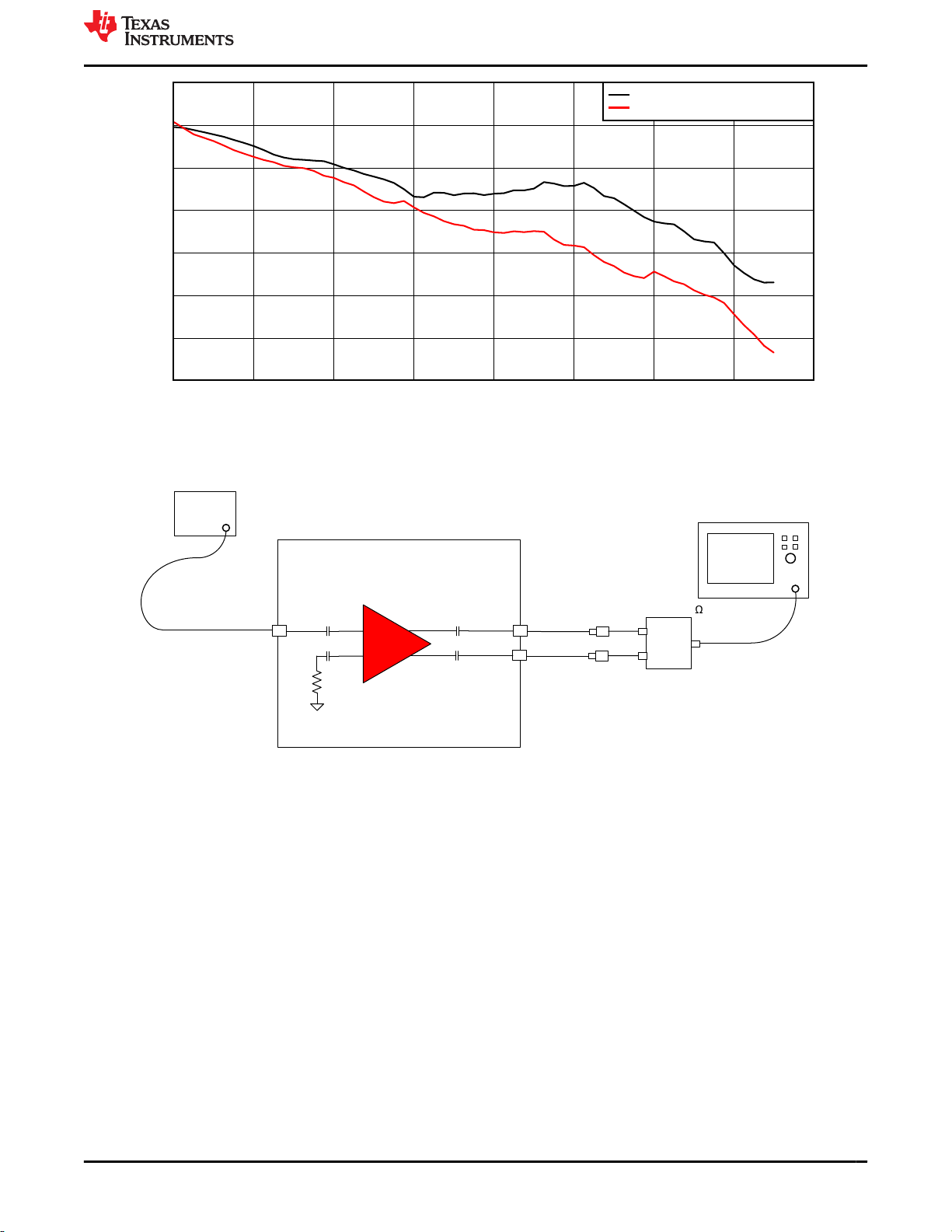

Figure 3-2. PCB Trace Loss vs Frequency

3.2 Noise Figure Test Setup

ENR Diode

Spectrum Analyzer or

Noise Figure Analyzer

0°

180°

2:1, Zo = 50



3-dB pad

(J4)

TRF1208

(J6)

TRF1208 EVM

(J5)

INP

INM

OUTM

OUTP

Hyperlabs HL9402

or similar

Figure 3-3. Noise Figure Test Setup

Use the following guidelines for Noise Figure (NF) measurement:

1. As Figure 3-3 shows, the traditional Y-factor method can be used for the NF measurement using a Noise

Diode and a spectrum analyzer (or a Noise Figure Analyzer).

2. While doing the measurement, take into account any RF cable losses to the EVM board. Any external input

attenuator added for matching will result in proportional NF degradation and must be calibrated out in the

measurement.

3. Also, onboard losses of the input traces at the device input pin must be factored into the NF measurement.

4. If the loss after the device output is significant, it is important to factor the output loss into the NF

measurement. Use the Friis equation to calculate the Noise Figure of the device from the total measured NF.

www.ti.com Test Setup Diagrams

SBOU266 – SEPTEMBER 2021

Submit Document Feedback

TRF1208 Evaluation Module 9

3.3 Two-Tone OIP3 Test Setup

RF Signal Gen 1

Spectrum Analyzer

0°

180°

2:1, Zo = 50



3-dB pad

6-dB pad

3-dB pad

RF Signal Gen 2

Power Splitter/

Combiner

6-dB pad 6-dB pad

(J4)

TRF1208

(J6)

TRF1208 EVM

(J5)

INP

INM

OUTM

OUTP

Hyperlabs HL9402

or similar

Mini-circuits

ZN2PD2-14W+

or equivalent

Figure 3-4. OIP3 Test Setup

Use the following guidelines for two-tone OIP3 measurement:

1. As Figure 3-4 shows, combine two signal generator outputs using an in-phase power splitter and combiner.

A 6-dB attenuator is recommended at the signal generator outputs to prevent the generators from talking to

each other and resulting in signal generator IMD3 spurs.

2. Set both the signal generator outputs to a power level and frequency spacing such that it would yield the

desired output power (POUT) at the device.

3. We recommend that the output power level is within the linear operation range of the TRF1208 device. For

example, if the total desired output power at the device is 8 dBm, then set the signal generators such that

each of the fundamental output power results in 2 dBm per tone. As a general rule, it is recommended to

keep the total output power level approximately 6 to 8 dB lower than the 1-dB compression point. See the

device data sheet for the output power levels supported by the device.

4. For the OIP3 test, the two tones can be spaced by the specified frequency.

5. Set the spectrum analyzer attenuation setting appropriately so that the spectrum analyzer non-linearity does

not affect the measurements.

6. Keep spectrum analyzer RBW and VBW settings identical for main tone and IM3 products.

7. For output IP3 calculation, take into account combined losses at the desired frequency band between the

TRF1208 device output to the spectrum analyzer input. The combined power losses include loss due to

PCB output trace, RF coax cable, 0/180◦passive balun and any attenuator pad used for external matching

purposes. The calculated OIP3 is given in Equation 1.

Output IP3 = (PIN_SA – IMD3) / 2 + PIN_SA + PLOSS

where,

• PIN_SA = Input power per tone into the spectrum analyzer

• PLOSS = Power loss from the device output to the spectrum analyzer input

• IMD3 = Higher power of the two intermodulation distortion products recorded at either 2f1 – f2 or 2f2 – f1

8. In Equation 1, PIN_SA + PLOSS = POUT is the amplifier output power per tone.

Test Setup Diagrams www.ti.com

10 TRF1208 Evaluation Module SBOU266 – SEPTEMBER 2021

Submit Document Feedback

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments TLC59282EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS92611-Q1 Bedienungsanleitung

Texas Instruments

Texas Instruments bq25120EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DRV8300-EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments LMK04808B Bedienungsanleitung

Texas Instruments

Texas Instruments TLC5944EVM-358 Bedienungsanleitung

Texas Instruments

Texas Instruments bq76920EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TAS6422-Q1 Bedienungsanleitung

Texas Instruments

Texas Instruments CAPTIVATE-EMC Bedienungsanleitung

Texas Instruments

Texas Instruments TPS2595EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS7057 Bedienungsanleitung

Texas Instruments

Texas Instruments bq24195/L Bedienungsanleitung

Texas Instruments

Texas Instruments bq27742EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TMP007EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS25830Q1EVM-040 Bedienungsanleitung

Texas Instruments

Texas Instruments TMP112EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS36Q1EVM Bedienungsanleitung

Texas Instruments

Texas Instruments UCC3817-EVM Bedienungsanleitung

Texas Instruments

Texas Instruments BQ25175EVM Bedienungsanleitung

Texas Instruments

Texas Instruments AFE4405 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPSM63608 Bedienungsanleitung

Texas Instruments

Texas Instruments SN75LVCP600S Bedienungsanleitung

Texas Instruments

Texas Instruments ADS62P EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments BP-DAC81404EVM Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
