texet DPF-510 Bedienungsanleitung
1
Copyright Information
All rights reserved. No part of this publication may be reproduced, transmitted,
stored in a retrieval system, or translated into any language in any form by any
means, optical, electronic, recording, or otherwise, without the written permission
of our company.
We The Hira Company reserve the right to revise this manual and to make
changes to any or all parts at any time, without obligation to notify any person or
entity of such revisions and changes.
2
3
Table of contents
•Specifications 4
•System Requirements 5
•USB Device Unplugging Notice 5
•Getting to Know Your Digital Photo Frame 6
•Remote Control 7
•Viewing JPEG/AVI files from a SD/MMC card 8
Viewing Images 8
Displaying Images 9
Browsing Images 9
Setting an Image as the Background 9
Setting the Effects 9
Playing Video Clips 10
Setting Video Effect 11
•
Setup Mode 12
•
Calendar Mode 13
•
Card Reader 14
•
AV Out Mode
14
4
Specifications
Screen Size: 5” TFT LCD
Supports 16:9 and 4:3 displays
On-Screen Display
Language: English, French, Spanish
German, Italian, Dutch
File formats supported: JPEG (up to 26 Mega Pixels)
Pure Motion JPEG, AVI
Expansion Slot: SD/MMC Card Slot, up to 2GB capacity
Speaker: Built-in Speaker (Mono)
Interface: USB 2.0
Infrared: IR Remote Control
Other Functions: Slide Show
7 Photo Effects
Photo Rotation
Alarm Clock & Calendar
SD/MMC Card Reader
Standard Accessories: USB Cable, Adapter (100V-240V)
Instruction Manual, Stand
Driver CD & Arcsoft software
Remote Control
Dimension: -x – x- mm (W X H X D)
Weight: -g
Power Source: Input AC 100 – 240 V
Output DC 9V, 2A
5
Minimum System Requirements:
Pentium 166 MHz processor or higher
Microsoft Windows 98SE/ME/2000/XP
Available USB Port
Super VGA video card and colour monitor
CD-ROM or DVD-ROM drive
64 MB RAM
2000MB available HD space
Mass Storage Operating System: Win98SE, ME, 2000, XP
USB Device Unplugging Notice:
To unplug the Digital Photo Frame from the computer, be sure to stop
the device before hand. To stop the Digital Photo Frame, please
follow the steps below:
Removing the Digital Photo Frame from a PC: (For Windows
ME/2000/XP)
1. Click on the “ “device icon located on the taskbar. Select the
device you want to stop (e.g. Stop USB Mass Storage Device
Drive (E: )).
2. Follow on-screen instructions to safely remove the Digital Photo
Frame.
Notice:
The Digital Photo Frame with an SD card acts exactly like a
card reader (mass storage device) by connecting the Digital
Photo Frame to a computer via USB. (See “Card Reader”
section.)
Before editing photos, the AP driver and photo-editing
software must be installed.
6

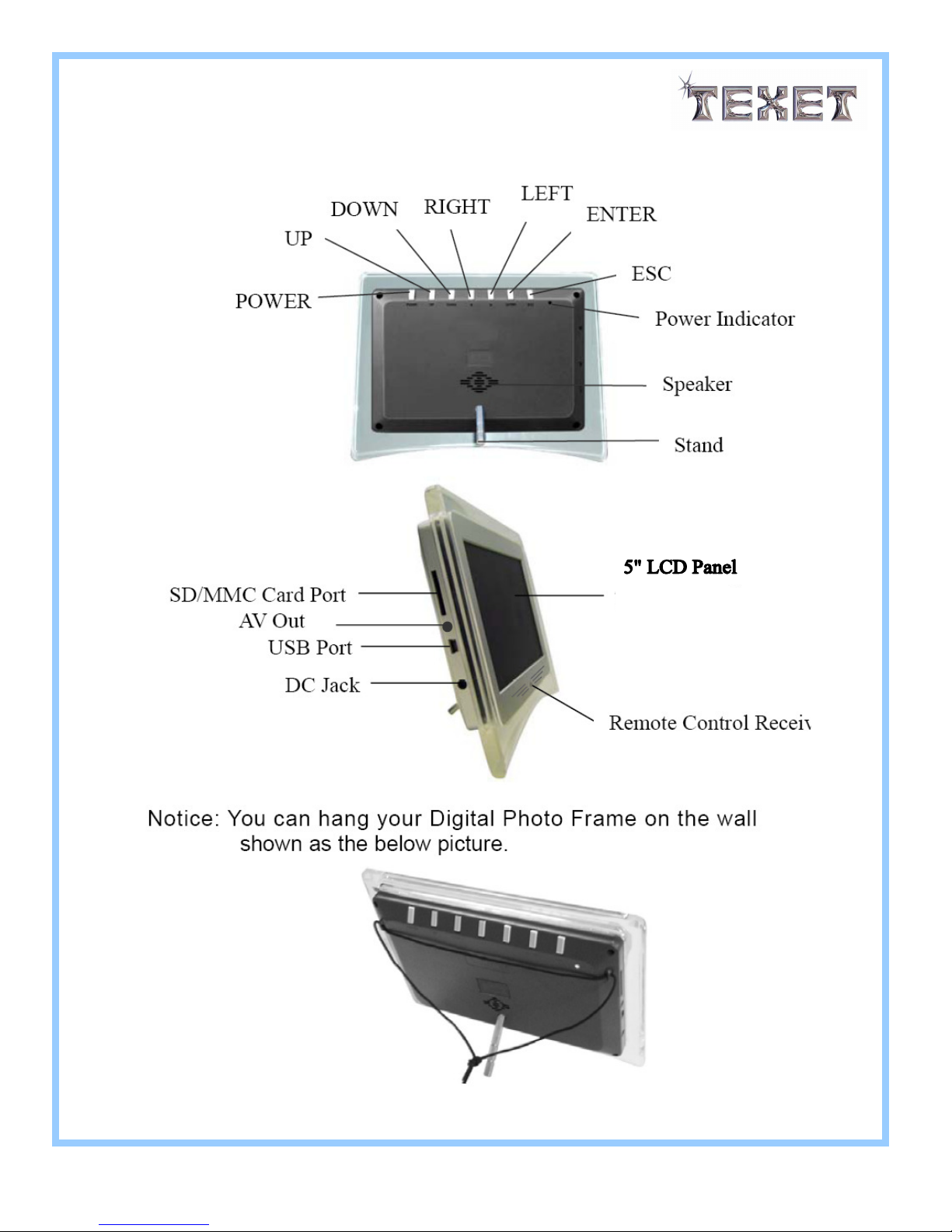

Getting to Know Your Digital Photo Frame
7
Remote Control
8
Viewing JPEG/AVI files from an SD/MMC card
Notice: The video-playing function is optional; some Digital Photo
Frame models may be unable to play AVI files.
i. Connect the Digital Photo Frame to the DC 9V adapter.
ii. Insert the SD/MMC card into the Digital Photo Frame SD/MMC Card
Port. Turn on the Digital Photo Frame.
iii. The Digital Photo Frame will automatically recognise the SD/MMC
card and display all image thumbnails as below.
See the following section 4.1 to display images.
To return to the main menu, press the “ESC” button on the
Digital Frame (or the “Back” button on the remote control) as shown
below.
Viewing Images
1. To view still images, enter the playback mode first and then
enter the image thumbnail mode. (The Digital Photo Frame will
automatically enter the image thumbnail mode right after it is
turned on. Skip to section 4.1 “Displaying Images.”)
2. To enter the playback mode, press “UP” or “DOWN” to select
the playback icon in the main menu and then press the
“ENTER” button.
9
3. Select the image-viewing icon by pressing “LEFT” or
“RIGHT” after entering the playing mode. Press “ENTER” to
enter the image thumbnail mode as shown below.
4.1 Displaying Images:
Use the navigation buttons to select a thumbnail to display.
Press the “ENTER” button and the image thumbnail will be
enlarged.
4.2 Browsing Images:
When an image is enlarged, press “LEFT” or “RIGHT” to view
the next image.
4.3 Setting an image as the background:
When an image is enlarged, press “DOWN” to set the current
picture as the background.
4.4 Setting the effects
When an image is enlarged, press “ENTER” to set picture
effects as shown below.
10
4.4.1 Press “LEFT” or “RIGHT” to choose different effects.
4.4.2 Press “ENTER” to confirm or “ESC” to exit. (The “ESC” button
on the Digital Frame equals to the “Back” button on the remote
control.)
Playing Video Clips
1.
To play video clips, enter the playback mode first and
then enter the video thumbnail mode.
2.
To enter the playback mode, press “UP” or “DOWN” to
select the playback icon in the main menu and
then press the “ENTER” button.
3.
Select the video-playing icon by pressing “LEFT” or
“RIGHT” after entering the playback mode. Press
“ENTER” to enter the video thumbnail mode as shown
below.
