INSTALLATION

INSTRUCTIONS

For Built-in Refrigerators

and Freezers

INSTRUCTIONS

D'INSTALLATION

Pour refrig6rateurs et

congelateurs encastres

INSTRUCCIONES

DE INSTALACION

Para los refrigeradores

y congeladores empotrados

9000189696

Bottom Freezer

(2-door)

Congelateur inf@ieur

(2 portes)

Congelador independiente

(2 puertas)

Thermedor _

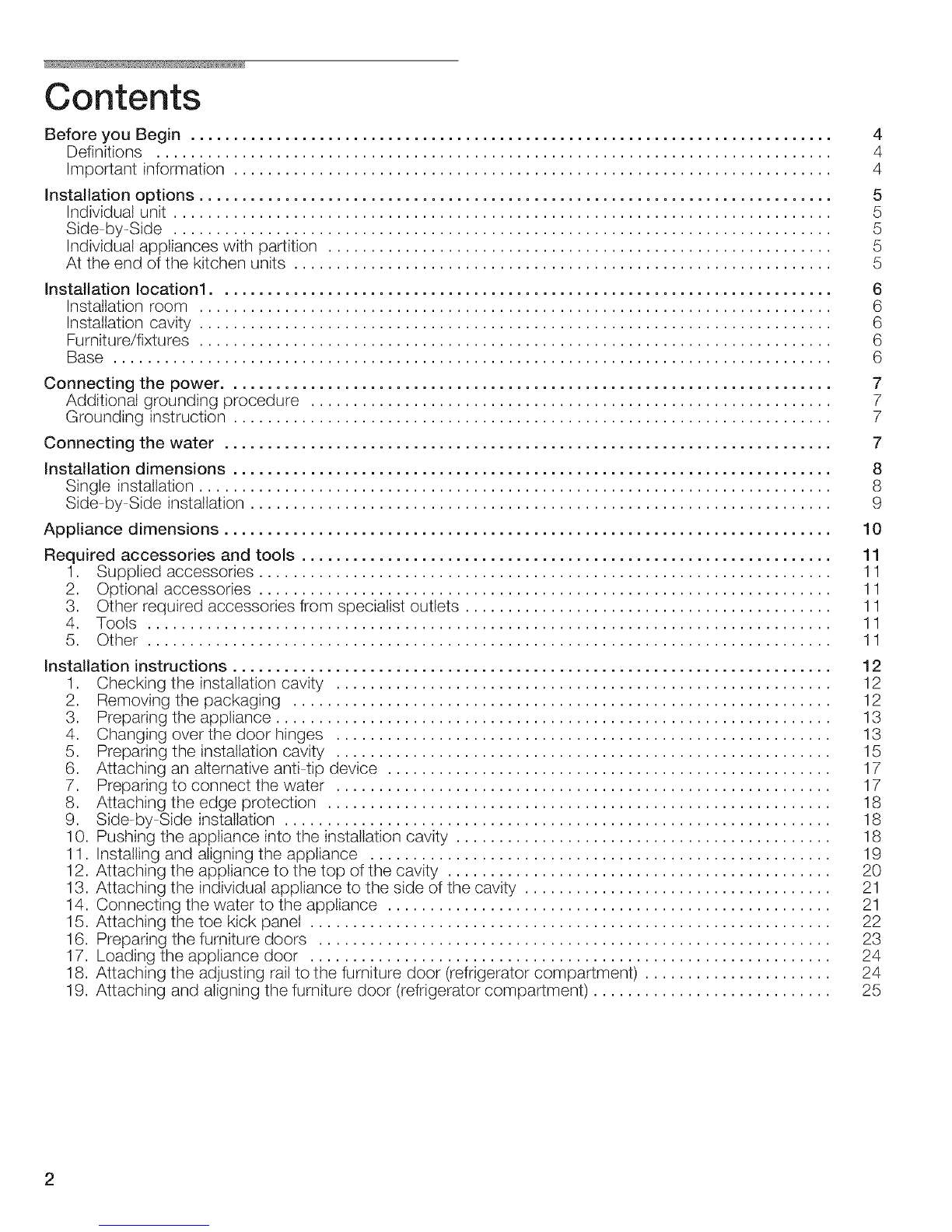

Contents

Before you Begin ........................................................................... 4

Definitions ............................................................................... 4

Important information ...................................................................... 4

Installation options .......................................................................... 5

Individual unit ............................................................................. 5

Side by-Side ............................................................................. 5

Individual appliances with partition ........................................................... 5

At the end of the kitchen units ............................................................... 5

Installation location1 ........................................................................ 6

Installation room .......................................................................... 6

Installation cavity .......................................................................... 6

Furniture/fixtures .......................................................................... 6

Base .................................................................................... 6

Connecting the power ....................................................................... 7

Additional grounding procedure ............................................................. 7

Grounding instruction ...................................................................... 7

Connecting the water ....................................................................... 7

Installation dimensions ...................................................................... 8

Single installation .......................................................................... 8

Side-by Side installation .................................................................... 9

Appliance dimensions ....................................................................... 10

Required accessories and tools .............................................................. 11

1. Supplied accessories ................................................................... 11

2. Optional accessories ................................................................... 11

3. Other required accessories from specialist outlets ........................................... 11

4. Tools ................................................................................ 11

5. Other ................................................................................ 11

Installation instructions ...................................................................... 12

1. Checking the installation cavity .......................................................... 12

2. Removing the packaging ............................................................... 12

3. Preparing the appliance ................................................................. 13

4. Changing over the door hinges .......................................................... 13

5. Preparing the installation cavity .......................................................... 15

6. Attaching an alternative anti tip device .................................................... 17

7. Preparing to connect the water .......................................................... 17

8. Attaching the edge protection ........................................................... 18

9. Side-by Side installation ................................................................ 18

10. Pushing the appliance into the installation cavity ............................................ 18

11. Installing and aligning the appliance ...................................................... 19

12. Attaching the appliance to the top of the cavity ............................................. 20

13. Attaching the individual appliance to the side of the cavity .................................... 21

14. Connecting the water to the appliance .................................................... 21

15. Attaching the toe kick panel ............................................................. 22

16. Preparing the furniture doors ............................................................ 23

17. Loading the appliance door ............................................................. 24

18. Attaching the adjusting rail to the furniture door (refrigerator compartment) ...................... 24

19. Attaching and aligning the furniture door (refrigerator compartment) ............................ 25

20.Attachingthefurnituredoor(refrigeratorcompartment)...................................... 26

21.Attachingtheadjustingrail(freezercompartment)........................................... 27

22.Attachingandaligningthe furnituredoor(freezercompartment)............................... 28

23. Attachingthefurnituredoor(freezercompartment).......................................... 29

24. Attachingthelowerbracket ............................................................. 30

25. Attachingthefingerguard............................................................... 30

26. Attachingthecovers ................................................................... 31

27. Mountingofairseparator............................................................... 32

28. Adjustingthedooropeningangle ........................................................ 33

29. Changingthedoorspring............................................................... 33

Before you Begin

Read these instructions completely and carefully.

IN PORTANT These installation instructions are intended for use by

Save these instructions for local inspector's use.

Observe all governing codes and ordinances.

Note to Installer Be sure to leave these instructions

with the Consumer.

Note to Consumer Keep these instructions with your

Owner's Manual for future reference.

WARNING

This appliance must be properly grounded. See the

section on "Connecting the power" on page 7.

WARNING

_ hese appliances are top heavy and must be

secured to prevent the possibility of tipping

forward. Anti tip protection is required.

Keep doors closed until the appliance is completely

installed and secured per installation instructions.

qualified installers. All connections for water, electrical

power and grounding must comply with local codes and

ordinances and be made by licensed personnel when

required. In the absence of a local code:

In the U.S.A., in accordance with the National

Electric Code, ANSI/NFPA70 latest edition/State

and Municipal codes and/or local codes.

In Canada, in accordance with the Canadian

Electric Code C22.1 latest edition/Provincial and

Municipal codes and/or local codes.

Definitions

WARNING This indicates that death or serious

injuries may occur as a result of not observing this

warning.

Due to the weight and size of this appliance, and to

reduce the risk of personal injury or damage to the

product TWO PEOPLE ARE REQUIRED FOR

PROPER INSTALLATION.

CAUTION

Skill Level Installation of this appliance requires basic

mechanical, carpentry and plumbing skills. Proper

installation is the responsibility of the installer. Product

failure due to improper installation is not covered under

the Appliance Warranty. See the Owner's Manual for

warranty information.

WARNING

Use this appliance only for its intended purpose.

Immediately repair or replace electric service cords that

become frayed or damaged.

Unplug the appliance or switch off the fuse before

cleaning or making repairs.

Repairs should be made by a qualified service

technician.

CAUTION This indicates that minor or moderate

injuries or damage may occur as a result of not

observing this warning.

[_ This symbol is used to draw the user's attention to

something in particular.

Important information

The importance of complying with all regulations

and instructions in this installation manual cannot be

emphasised enough. The installation should be carried

out by a qualified fitter.

Before starting the installation, always read this

installation manual in full. It contains important details

which the fitter must observe. Provided this manual is

read thoroughly, the installation wilt be simple,

trouble free and, most importantly, safe.

Installation options

There are many different installation options.

These are limited only by the design of the kitchen and

the function of the finger guard.

Individual unit

* Partition required!

[_ When 2 appliances are installed Side-by Side,

the Basic Combination Side-by-Side Sealing kit

"BSEALKIT10" must be used to ensure a stable

connection.

See the section on "Optional accessories" on

page 11.

Individual appliances with partition

Note

When dimensioning the partition for model 4, note

the thickness of the furniture fronts to prevent

damage if the doors are opened at the same time.

Use the Extreme Combination Side-by-Side

Heating kit "XHEATKIT10"

a) If the gap between the appliances is tess than

6" (160 mm),

See the section on "Optional accessories" on

page 11.

Minimum thickness of the partition 5/s" (16 mm).

At the end of the kitchen units

If one side of the appliance is visible, a side panel must

be used.

The side panel must be connected firmly to the watt,

the floor and overhead furniture/fixtures before the

appliance is placed in the cavity.

The dimensions of the side panel are taken from the

opposite cavity watt. During installation ensure that the

cavity is square and the exact size.

installation location

Do not install the appliance:

outdoors,

in an environment with dripping water,

in rooms which are at risk of frost.

Appliance is very heaw for empty weight see the

following table:

BM (Bottom Mount) 36" approx. 430 tbs /195 kg

Installation room

The appliance should be installed in a dry, ventilated

room.

The ambient temperature should not drop below 55 °F

(13 °C) or rise above 110 °F (43 °C), otherwise

malfunctions may occur.

The installation location should not be exposed to direct

sunlight and not placed near a heat source, such as an

oven, radiator, etc. If installation next to a heat source is

unavoidable, use a suitable insulating plate or observe

the following minimum distances from the heat source:

11/4" (30 mm) from an electric cooker,

12" (300 mm) from an oil or solid fuel cooker.

Installation cavity

It is important to observe the specified dimensions of

the installation cavity for a trouble free installation of the

appliance and for the subsequent general view of the

furniture front.

]]ln particular ensure that the cavity is square.

Squareness can be checked by suitable means,

e.g. spirit level, diagonal measurements, etc.

]]The side walls of the cavity must be flush.

The minimum thickness of side walls and the top watt

must be 5/8" (16 mm).

The minimum thickness of toe kick panet must be

U2" (13 mm).

A thickness of 3/4" (19 mm) is recommended.

Furniture/fixtures

The new appliance is screwed securely to adjacent

and overhead furniture/fixtures.

For this reason it is essential that all attachable

furniture/fixtures are connected securely to the

base or the watt by suitable means.

Base

A fully toad appliance is very heavy for the

toad bearing capacity at least see the following table:

BM (Bottom Mount) 36" approx. 1200 tbs /540 kg

To ensure that the appliance is installed securely and

functions properly, the base must be flat and level.

The base must be made of a hard, rigid material.

The installation area must be the same height as the rest

of the room.

On account of the heaw weight of a fully loaded

appliance, a toad bearing base is required. If in doubt,

contact an architect or a building expert.

Connecting the power

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

The appliance comes with a 3 wire power supply cord,

UL listed in the USA.

The appliance requires a 3 wire receptacle.

The receptacle must be installed by a licensed

electrician only.

Orient ground prong to the bottom as shown in the

pictures.

For the installation position of the receptacle see

"Installation dimensions", page 8.

Additional grounding procedure

Some local regulations may require a seperate ground.

In such cases, the required accesseory ground wire,

clamp and screw must be purchased seperatety.

Never ground the appliance to plastic plumbing lines,

gas lines or water pipes.

Grounding instruction

This appliance must be grounded. In the event of

a malfunction or breakdown, grounding wilt reduce

the risk of electric shock by providing a path of least

resistance for the electric current.

Improper connection of the equipment grounding

conductor may result in electric shock. Have the

appliance checked by a qualified electrician or

service technician if you are in doubt as to whether

the appliance has been properly grounded.

Connecting the water

A cold water connection is required for operation of

the automatic ice maker. The water pressure must

be between 25 and 120 p.s.i. (1.72 8.25 bar).

The installation must comply with local plumbing

regulations.

A separate shut-off valve must be installed for the

appliance water connection.

The shut off valve for the water connection must not be

behind the appliance. It is recommended to place the

shut off valve directly next to the appliance (base unit)

or in another easily accessible location.

When installing the water connection, observe the

permitted installation areas for the pipe. For the

permitted installation areas and dimensions see

"Installation dimensions", page 8.

The supply pipe can be located at the side on the right

(a), at the side on the left (b) or underneath (c).

Maximum outer diameter of the water pipe

(without fittings): _3/32" (10 mm).

Attach a separate shut off valve for the water

connection in a suitable, easily accessible location.

Do not use a self piercing valve!

installation dimensions

Single installation

• , :i_

18" (457)

(25)

36" (914)

ill

iiil_i_

(46)

Water connection

2 5/16"

(59)

(2s)

(1o)

I m .... 13!/3_'

(25)

l U /5_),o,2

I 8 (lo)

Legend:

A Areafor installationofthe powerconnection

B Areafor installationoftlqewaterconnection

D Openingdepthof niclqe,dependingon kitclqendesign

(seeDESIGNGUIDE)

D= 24" (610mm)minimum

NOTE: Cavitymustbesuare.

Sidewailoftile cavitymustbeflush.

Side-by-Side installation

The cavity dimensions indicated above for the

respective appliance apply to a Side-by Side installation

of two appliances.

The total width of the cavity results from the addition of

the cavity widths indicated for the two appliances.

Example:

Freezer 18" /Bottom Mount appliance 36"

18"

L 9" (457) (1371) 36!,

18" (914)

i4 _

(2133,6)

90 ° 90 °

i° "° ° ii

t8" 36"

(457) _,: (914}

(13"71)

18" 36"

(457) 54" (914)

(1371)

Legend:

A Areafor installationoftile powerconnection

B Areafor installationofthewaterconnection

D Openingdepthof niclle,dependingon kitcllendesign

(seeDESIGNGUIDE)

D- 24" (610mm)minimum

NOTE: Cavitymustbesuare.

Sidewalloftile cavitymustbeflush.

Appliance dimensions

(338,9)

82t

t 211/32"

(333,7)

e) 24"

(¢10)

5i 1!/32'

(1304 4}

84'*

(2133,6}

2813'32 '

(721,e)

(9818)

115'

Legend:

a) Adjustmentin levellinglegs+13/8" (35ram)/-1/2" (13ram).

b) Dimensionsmayvary.

c) Tllicknessofdoorpanelmayvary.

d) Tllis dimensionmayvarydependingon installation,paneltllickness

and kitcllenIlardware.

e) Unitdimensions

Note: Onedesignoftilewoodenpaneldisplayed.Forfurtlqerinforma=

tionabouttiledifferentstylescllecktileDESIGNGUIDE.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Thermador Kühlschrank Handbücher

Thermador

Thermador T18ID900LP Bedienungsanleitung

Thermador

Thermador T24IF70NSP/99 Bedienungsanleitung

Thermador

Thermador FREEDOM T36BT71FSE Bedienungsanleitung

Thermador

Thermador T241R Series Bedienungsanleitung

Thermador

Thermador T18 Series Bedienungsanleitung

Thermador

Thermador T24IF70NSP/47 Bedienungsanleitung

Thermador

Thermador T18 Series Bedienungsanleitung

Thermador

Thermador T36BT810NS Bedienungsanleitung

Thermador

Thermador T24IR800SP Bedienungsanleitung

Thermador

Thermador T30IB Series Bedienungsanleitung

Thermador

Thermador T36BT71FS Bedienungsanleitung

Thermador

Thermador T36IT903NP Bedienungsanleitung

Thermador

Thermador KBULT3651A Bedienungsanleitung

Thermador

Thermador T42BD810NS Bedienungsanleitung

Thermador

Thermador T36IT902NP Bedienungsanleitung

Thermador

Thermador T24UR925DS Bedienungsanleitung

Thermador

Thermador FREEDOM T36IT71NNP Bedienungsanleitung

Thermador

Thermador T24UR925DS Bedienungsanleitung

Thermador

Thermador FREEDOM T36BT71FSE Bedienungsanleitung

Thermador

Thermador T30BB810SS Bedienungsanleitung

Thermador

Thermador FREEDOM T18ID80NLP Bedienungsanleitung

Thermador

Thermador T24UR925DS Bedienungsanleitung

Thermador

Thermador T24IR Series Bedienungsanleitung

Thermador

Thermador T23IR905SP Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
