Thermo Pride OME-72T36 Handbuch

THERMO PRODUCTS, LLC.

POST OFFICE BOX 237

DENTON, NC 27239

PHONE: 800-476-4328

MO-487

ECN 5577-M 190924

M DE IN US

OIL-FIRED FURNACE

DOWN FLOW & DIRECT VENT (SEALED COMBUSTION)

MODEL: OME-72D36 / OME-72T36

INSTALLATION AND SERVICE MANUAL

For installation in:

1. Manufactured Homes

2. Modular Homes/Buildings

3. Site Construction—Residential

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

W AT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

: If the information in these instructions is not followed exactly, a fire or explosion may result

causing property damage, personal injury or loss of life.

: Improper installation, adjustment, alteration, service, or maintenance can cause injury or

property damage. Refer to this manual. For assistance or additional information consult a qualified installer,

service agency, or fuel supplier.

: Do not use this appliance if any part has been underwater. Immediately call a qualified service

technician to inspect the appliance and to replace any part of the electrical or control system that has been

underwater.

PLEASE READ T ESE INSTRUCTIONS PRIOR TO INSTALLATION, INITIAL FIRING, AND BEFORE

PERFORMING ANY SERVICE OR MAINTENANCE. T ESE INSTRUCTIONS MUST BE LEFT WIT T E USER

AND S OULD BE RETAINED FOR FUTURE REFERENCE BY QUALIFIED SERVICE PERSONNEL.

All installations and services must be performed by qualified service personnel.

I. SAFETY SECTION

This page and the following two pages contain various warnings and cautions found

throughout this furnace Service and Installation Manual. Please read and comply with the

statements on the cover and the statements below.

: ll local codes and ordinances must be followed with regard to the oil tank and

oil lines. ll lines must have shut off valves, use a proper pipe joint compound (specified for

use with oil) on all pipe threads, no kinks, no sharp bends, and be properly tested for leaks.

Flare fittings are recommended for tubing.

: This furnace is not to be used as a construction heater.

: DO NOT RUN THE OIL PUMP DRY FOR MORE TH N FIVE MINUTES.

: When testing electrical equipment, always follow standard electrical procedures

and precautions.

: The heat exchanger must be cleaned by a qualified service person.

: The area around the furnace should be kept free and clear of combustible

materials, especially papers and rags.

: NEVER burn garbage or refuse in your furnace. NEVER try to ignite oil or gas

by tossing burning papers or other material into your furnace.

: Thermo Pride oil furnaces are designed to burn commercial standards of No. 1

and No. 2 fuel oil. NEVER USE G SOLINE OR MIXTURE OF OIL ND G SOLINE.

: Do not attempt to start the burner when: 1. Excess oil has accumulated 2. The

furnace is full of vapors or 3. The combustion chamber is very hot. If one or more of these

conditions exist, contact a qualified service person.

: If the temperature rise exceeds 100°F, the heat exchanger may fail voiding the

heat exchanger warranty resulting in property damage, personal injury or loss of life.

: Burner adjustments must be confirmed by instrumentation. Failure to use

accurate or calibrated instrumentation to setup the burner may result in reduced efficiency,

sooting and/or the production of hazardous carbon monoxide gas.

: ny attempt to relocate safety controls or replace safety controls with a control

that is not approved or incompatible, may result in personal injury, substantial property

damage or death.

All installations and services must be performed by qualified service personnel.

: If you do not follow these instructions exactly, a fire or explosion may result

causing personal injury, loss of life or property damage.

: NEVER use gasoline or a mixture of oil and gasoline to start the burner or

furnace.

: H Z RD OF SPHYXI TION: Negative pressure inside the closet with closet

door closed and the furnace blower operating shall be no more negative than minus 0.05 inch

water column.

: Do not obstruct any return air openings, including the return grille on the

furnace. To do so may cause the furnace to activate the high limit and shut down or it may

cause asphyxiation.

: ll local codes and ordinances take precedence with regard to tank and oil lines.

ll lines must have shutoff valves, a good pipe joint compound approved for use with oil on

all pipe threads, no kinks, no sharp bends and be properly tested for leaks. Flare fittings are

recommended for tubing.

: Do not use motor oil or any fuel heavier than No. 2 fuel oil..

All installations and services must be performed by qualified service personnel.

: If you suspect there is a problem with the furnace, the venting system or any other

related problem, immediately contact a qualified service agency. If a service agency is not

available contact your fuel supplier.

: Personal injury, or property damage, could result from major repair or service of

this furnace by anyone other than a qualified contractor. Only the routine maintenance

described in the user section of this manual should be performed by the user.

: The area around the furnace should be kept free and clear of combustible

materials, especially papers and rags.

: Never burn garbage or refuse in your furnace. Never try to ignite oil or gas by

tossing burning papers or other material into your furnace.

: Do not attempt to start the burner when:

1. Excess oil or gas has accumulated.

2. The furnace is full of vapors.

4. The combustion chamber is very hot.

If one or more of these conditions exist, contact a qualified service person.

: Do not block or obstruct air openings on the furnace or air openings

communicating with the area in which the furnace is installed.

: Do not allow the outside air intake to be blocked or obstructed by vegetation, ice,

snow or any other materials.

: Do not use this furnace if any part has been underwater. Immediately call a

qualified service agency to inspect the furnace and to replace any part of the electrical or

control system which has been underwater.

: Should overheating occur or the fuel supply fail to shut off, shut off the manual

fuel supply valve to the furnace before shutting off the electrical supply.

All installations and services must be performed by qualified service personnel.

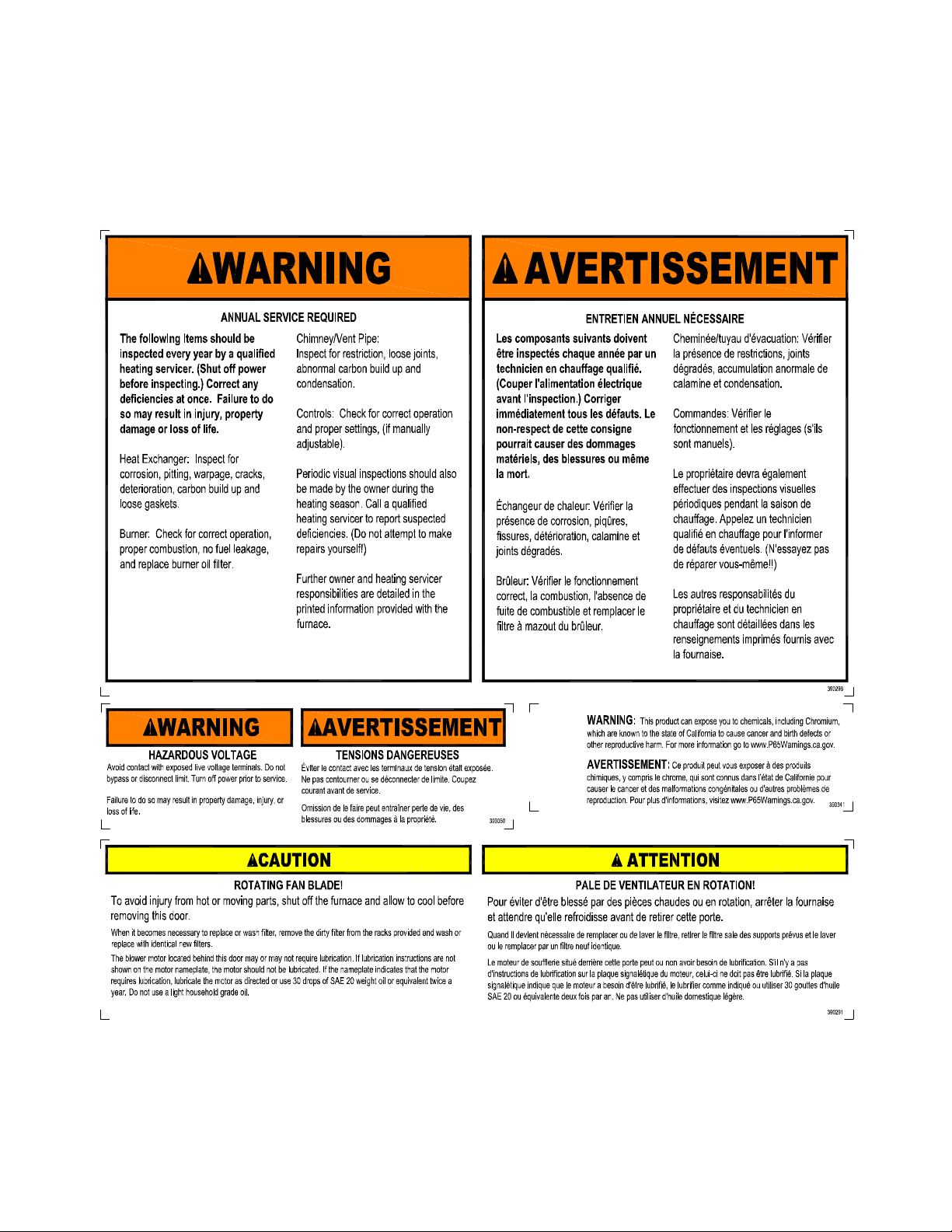

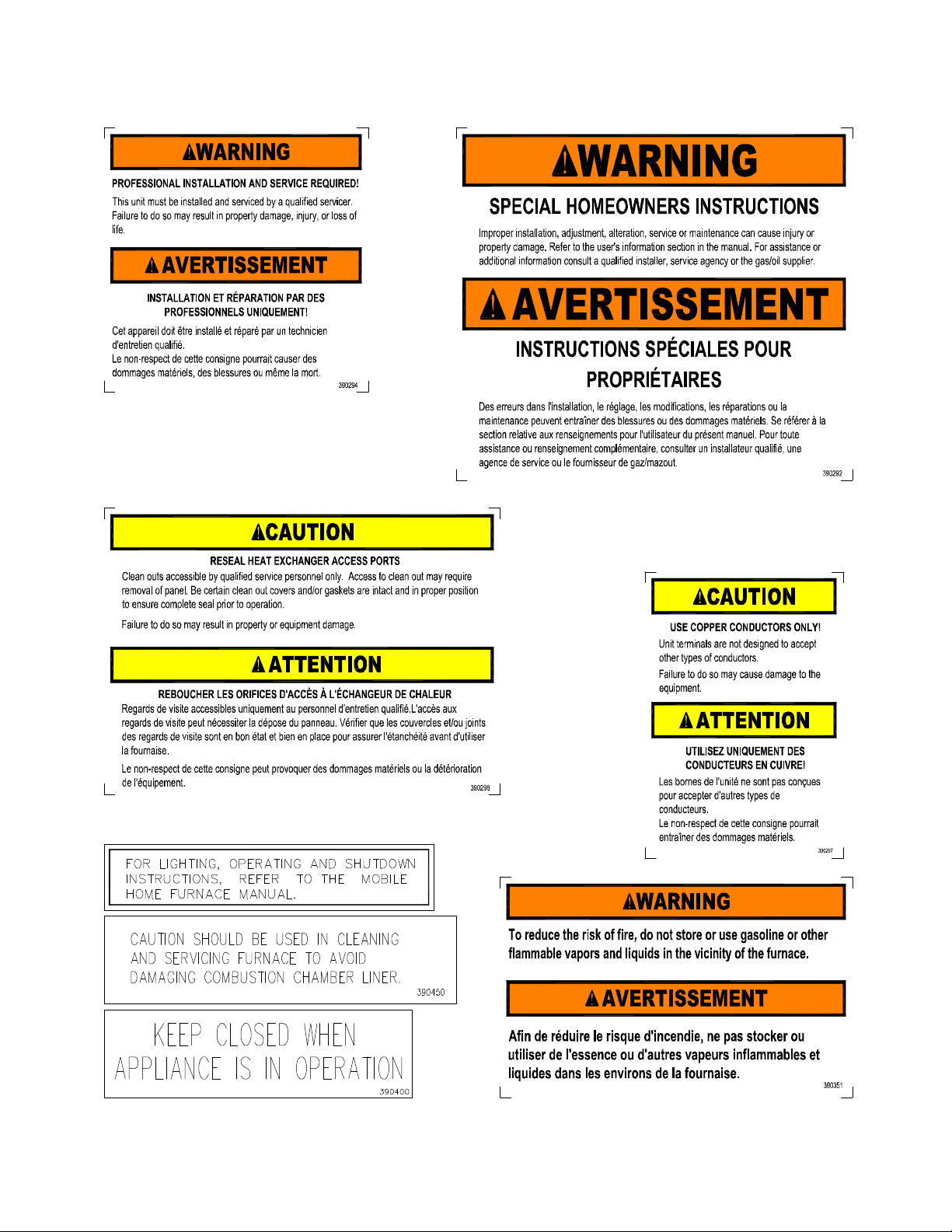

This page and the following page contain reproductions of the various warning and

instruction labels placed on the Thermo Pride Oil Furnace. Please read and comply with

the contents of these labels.

All installations and services must be performed by qualified service personnel.

TABLE OF CONTENTS

SECTION BEGINNING PAGE

I. S FETY SECTION 1

II. GENER L INSTRUCTIONS ND CLE R NCES 6

III. FURN CE SPECIFIC TIONS 8

IV. INST LL TION 10

. ROOF J CK 10

B. ST ND RD CHIMNEY 10

C. FURN CE LOC TION 10

D. B SE INST LL TION 11

1. Combustible Floor Base Model: 70-B SE 11

2. Cottage Base Model: 01COT-B SE 13

E. LCOVE INST LL TION 15

F. CLOSET INST LL TION 15

G. COMBUSTION IR 16

H. FUEL PIPING 19

1. Oil Tank and Piping 19

J. ELECTRIC L WIRING 21

1. Electrical Branch Supply Circuit 22

2. Connection of Power Supply Wires 22

3. Connection of Thermostat Wires 22

4. Blower Controller Information for PSC/CTM Motor 23

5. Wiring Diagram 30

K. BURNER INST LL TION 32

L. BURNER OPER TION ND DJUSTMENT 32

M. FLUE G S COMBUSTION N LYSIS 35

V. DE LER M INTEN NCE 36

. TROUBLESHOOTING 37

B. C D CELL CHECKOUT PROCEDURE 42

C. HE T EXCH NGER CLE NING INSTRUCTIONS 42

D. CLE NING OR REPL CING FLUE PIPES 44

E. EXTENDED SHUTDOWN ND REST RT 44

VI. USERS INFORM TION SECTION 45

. W RNINGS & C UTIONS 45

B. COMPONENT LOC TIONS 46

C. INSPECTION RE S 46

D. FILTER LOC TION ND CLE NING 47

E. CONT CT INFORM TION 47

PPENDIX - REPL CEMENT P RTS LIST 48

All installations and services must be performed by qualified service personnel.

II. GENERAL INSTRUCTIONS AND CLEARANCES

NOTE: READ T IS SECTION BEFORE STARTING INSTALLATION

1. The selection of a furnace heating capacity for a proposed installation should be based on a

heat loss calculation made according to the manuals provided by the ir Conditioning Contractors

of merica ( CC ) or the merican Society of Heating, Refrigeration and ir Conditioning

Engineers, Inc. ( SHR E).

2. The installer shall be familiar with and comply with all codes and regulations applicable to the

installation of this heating appliance. In addition to the governing standards items a) through e)

this appliance shall also comply with “CS B139 for recommended installation practices” where

applicable.

a. Federal Manufactured Home Constructions & Safety Standard (HUD Total 24, Part 280).

b. merican National Standard ( NSI-119.2/NFP -501C), for all recreational vehicle

installations.

c. merican National Standard ( NSI-Z223.1/NFP -54), for all gas-fired furnaces.

d. merican National Standard ( NSI-Z95.1/NFP -31), for all oil-fired furnaces.

e. merican National Standard Electric Code ( NSI-C1/NFP -70), for all electrical field

wiring.

The oil-fired furnace has been investigated under the UL 307 test standard and CS B140 and

is listed by ETL and described as, “For installation as central furnace special type”.

: The area around the furnace must be kept free and clear of combustible

materials, especially papers and rags.

: This furnace is not to be used as a construction heater.

1. Definitions of "combustible" and "non-combustible" materials as presented in the 1996 version

of the National Fuel Gas Code, NSI Z223.1-1996/NFP 70-1996, are as follows:

a. Combustible material:

“...materials made of or surfaced with wood, compressed

paper, plant fibers, or other materials that are capable of

being ignited and burned. Such materials shall be

considered combustible even though flameproofed, fire-

retardant treated, or plastered.”

All installations and services must be performed by qualified service personnel.

b. Non-combustible material:

“...material that is not capable of being ignited and burned;

such as material consisting entirely of, or a combination of,

steel, iron, brick, concrete, slate, asbestos, glass, and plaster.”

This heating appliance must be installed with clearances to combustible material surfaces of not

less than the minimum distances given below. lso, allow ample clearances for servicing the

furnace for easy access to the air filter, blower assembly, burner assembly, controls, and vent

connections.

MODELS OME

CLOSET LCOVE

FRONT

B CK

SIDES

ROOF J CK

VENT CONNECTOR

TOP

PLENUM SIDES

TOP ND SIDES OF DUCT

BOTTOM OF DUCT

6”

0”

6”

1”

18”

0”

6”

1”
