User Manual
MaxQ 2000 CO2lus
Digital CO2Resistant Shaker
Catalog #88881101, #88881102
#88881103, #88881104
Operation Manual 0000847
Thermo Scientific
MANUAL NUMBER 0000-847
1 - - 10/28/21 88881127B and 88881181 are introduced. TFI
0 0 18/11/2020 Original
REV ECR/ECN DATE DESCRI TION By
Preface
CO2esistant Shaker i
Thermo Scientificii CO2esistant Shaker
Preface
Do You Need Information or Assistance on
Thermo Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-800-438-4851 Toll Free, U.S. and Canada
1-877-213-8051 FAX
http://www.thermofisher.com Internet Worldwide Web Home Page
service.led.marietta@thermofisher.com Tech Support Email Address
Certified Service Web Pagewww.unitylabservices.com
Our staff can provide information on pricing and give you quotations. We canSales Support
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation orService Support
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo Scientific products.
Whatever Thermo Scientific products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
Thermo Fisher Scientific (Asheville) LLC
401 Millcreek Road, Box 649
Marietta, OH 45750
International customers, please contact your local Thermo Scientific distributor.
CO2esistant Shaker iiiThermo Scientific
Table of Contents
Unpacking and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Universal (Aluminum) Platform Installation . . . . . . . . . . . . . . . . . . .1-3
18 inch (Aluminum) Platform Installation . . . . . . . . . . . . . . . . . . . . .1-4
Rubber Mat Platform Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Connections of the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Storing the Signal Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Output Current of Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Maximum Shaking Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Operations on the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Speed and Time Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Alarm System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section 8
iv CO2esistant Shaker Thermo Scientific
Table of Contents
CO2esistant Shaker 1-1Thermo Scientific
Section 1 Unpacking and Installation
1. Inspect contents upon receipt of the instrument, if the instrument is
upside down, contact the manufacturer immediately.
2. Check packing list below. If there are any damaged or missing items,
contact the manufacturer.
3. Place the instrument on a level and firm surface, to avoid vibration and
noise.
Thermo
Scientific
Cat. No.
88881101 88881102 88881103 88881104
ictutre
Model name on
carton box label.
MaxQ 2000 CO2
lus, 100-240V,
for USA
MaxQ 2000 CO2
lus,
100-240V,
various plugs
MaxQ 2000 CO2 lus
romotion ackage
for USA, includes
CO2 resistant shaker
(88881101), Universal
latform and Flask
Clamp Starter Kit
MaxQ 2000 CO2 lus
romotion ackage for
EMEA & A AC, includes
CO2 resistant shaker
(88881102), Universal
latform & Flask Clamp
Starter Kit
Main Body 1 1 1 1
Control Box 1 1 1 1
General Power
Adaptor 1 1 1 1
US Plug 1 N/A 1 N/A
CN Plug N/A 1 N/A 1
Table 1-1. Packing List
1-2 CO2esistant Shaker Thermo Scientific
Section 1
Unpacking and Installation
Thermo
Scientific
Cat. No.
88881101 88881102 88881103 88881104
ictutre
Model name on
carton box label.
MaxQ2000CO2
lus, 100-240V,
for USA
MaxQ2000CO2
lus, 100-240V,
various plugs
MaxQ2000CO2 lus
romotion ackage
for USA, includes
CO2 resistant shaker
(88881101), Universal
latform and Flask
Clamp Starter Kit
MaxQ2000CO2 lus
romotion ackage for
EMEA & A AC,
includes CO2 resistant
shaker (88881102),
Universal latform &
Flask Clamp Starter Kit
EU Plug N/A 1 N/A 1
UK Plug N/A 1 N/A 1
Universal
Platform (AL) N/A N/A 1 1
100ml Flask
Clamp N/A N/A 2 2
250ml Flask
Clamps N/A N/A 4 4
500ml Flask
Clamps N/A N/A 4 4
1L Flask Clamps N/A N/A 2 2
2L Flask Clamps N/A N/A 2 2
Data Port 1 1 1 1
Table 1-1. Packing List (Continued)
1. Place the instrument on a level and firm surface; it must be capable
of supporting the weight and load of the instrument, and the impact
force generated by the motion. Prepare related parts (see Figure 1-1).
2. Install the horizontal universal platform on the fixed plate of the Main
body, ensure all four mounting holes in the universal platform and the
four threaded mounting holes are in alignment.
3. Fasten the universal platform and the fixed plate with four M4x14
cross recessed countersink head screws.
CO2esistant Shaker 1-3Thermo Scientific
Section 1
Unpacking and Installation
Universal (Aluminum)
latform Installation
Figure 1-1. Universal Platform Installation Diagram
1) M4x14 cross recessed countersink head screws
2) Universal (aluminum) platform
3) Main body of CO2resistant shaker
1-4 CO2esistant Shaker Thermo Scientific
Section 1
Unpacking and Installation
1. Place the instrument on a level and firm surface; it must be capable
of supporting the weight and load of the instrument, and the impact
force generated by the motion. Prepare related parts (see Figure 1-2).
2. Install the horizontal universal platform on the fixed plate of the Main
body, ensure all four mounting holes in the universal platform and the
four threaded mounting holes are in alignment.
3. Fasten the universal platform and the fixed plate with four M4x14
cross recessed countersink head screws.
18 inch (Aluminum)
latform Installation
Figure 1-2. 18 inch Platform Installation Diagram
1) M4x14 cross recessed countersink head screws
2) 18 inch (aluminum) platform
3) Main body of CO2resistant shaker
1. Place the instrument on a level and firm surface; it must be capable
of supporting the weight and load of the instrument, and the impact
force generated by the motion. Prepare related parts (see Figure 1-3).
2. Install the horizontal platform on the fixed plate of the Main body;
ensure all four mounting holes on the platform and the four threaded
mounting holes are in alignment.
3. Fasten the platform and the fixed plate with four M4x10 cross recessed
countersink head screws.
4. Place the rubber mat on the platform.
Rubber Mat latform
Installation

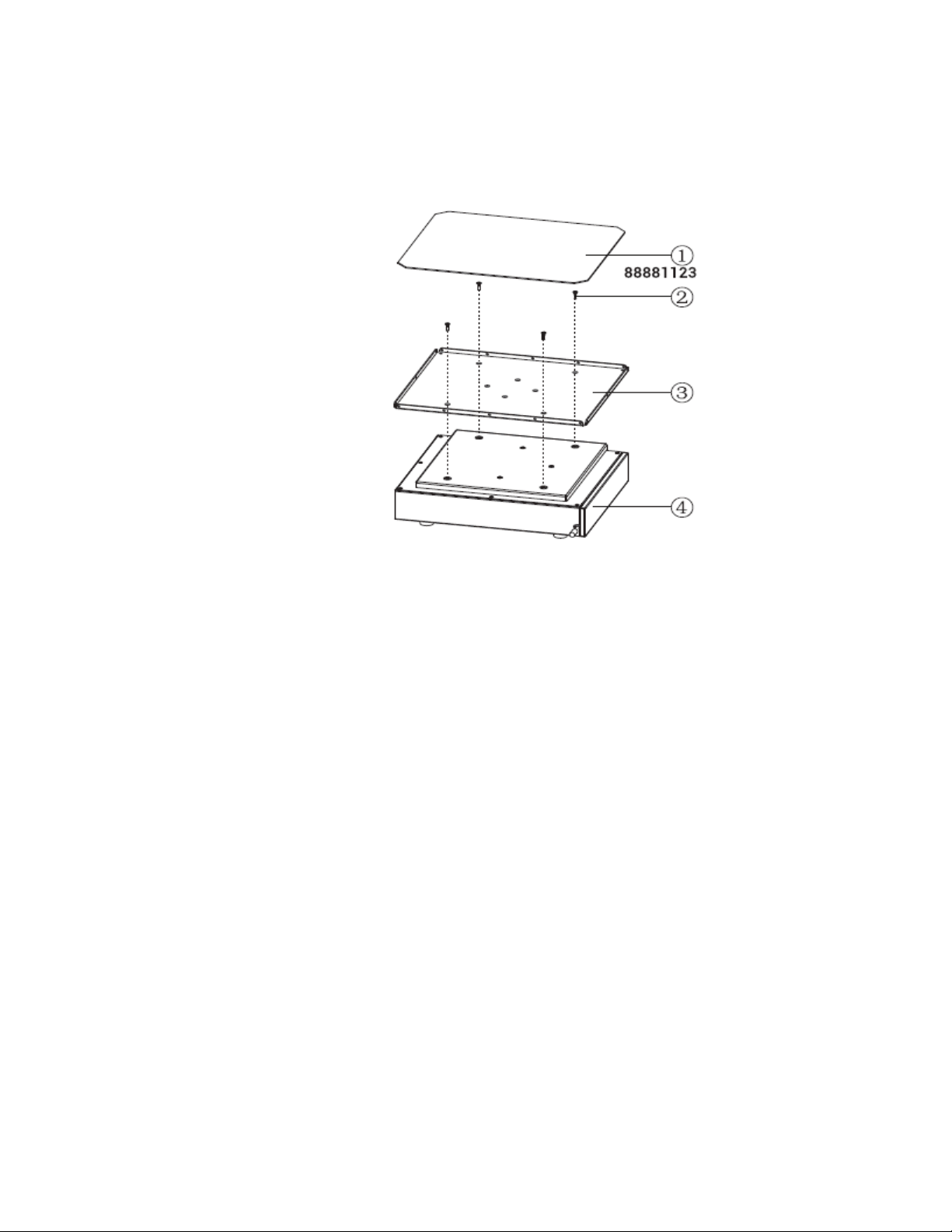

Figure 1-2. Universal Platform Installation Diagram
1) Rubber mat
2) M4x10 cross recessed countersunk head screws
3) Platform
4) Main body of CO2resistant shaker
CO2esistant Shaker 1-5Thermo Scientific
Section 1
Unpacking and Installation
