Thermo Scientific 263C-AEV-TS Bedienungsanleitung

ES Series Laboratory

Refrigerators-Freezer User's Manual

Laboratory fridge-freezer range

Applicable models:

263C-AEV-TS

263C-AEW-TS

Contents

Intended Use and Special Warning 3

Before first use 3

Positioning of fridge-freezer 3

Transportation and moving of fridge-freezer 4

Energy saving tips 4

Important information 4

Product information 4

Product details 5

Controller overview 6

Viewing and resetting minimum and maximum temperatures 7

Changing the factory set point 8

Changing the temperature scale 9

Changing the remote alarm contacts 9

Alarms 10

Remote alarm contacts 10

Maintenance and Servicing 11

Defrosting 11

Cleaning 12

Reversing the door 12

Storage 13

Electrical Connection 14

Disposal 15

Troubleshooting 16

Warranty 17

Contact Information 17

Intended Use and Special Warning

This equipment is tested in compliance with established regulations and then shipped ready for

use. This equipment is intended for general purpose cold storage and is not to be used in the

presence of explosive gases or mixtures and / or close to sources with high magnetic or electric

fields. Not intended for flammable material storage.

If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

Thank you for purchasing this ES series cold storage equipment. Before you first use this

laboratory fridge freezer please carry out the following actions:

•Check that the fridge freezer has not been damaged in any way during transportation.

•If any damage is found it must be reported to your local dealer immediately

•Ensure all packaging has been removed, including cardboard, polystyrene and any tape

used to hold shelves in place for transportation.

•The fridge freezer has been cleaned prior to despatch; however, we advise that it should

be cleaned using lukewarm water containing a mild detergent and a soft cloth.

•We recommend that the fridge-freezer should be left in an upright position for 24 hours

prior to switching on.

•This equipment is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the equipment by a

person responsible for their safety.

•Children should not be allowed to play with the equipment.

Positioning and safely using your ES series fridge freezer

•Warning – to reduce the risk of the unit falling over, do not tip beyond 10 degrees

•Make sure the equipment is placed in a dry, well ventilated site, away from heat

sources.

•The equipment must be placed on a level surface. If necessary, adjust the feet on the

product so the equipment remains level during operation.

•The equipment should have sufficient clearance around it to provide adequate

ventilation – 10cm at each side, 6cm at the rear and 2.5cm at the top.

•Before ANY maintenance activity, pull the plug out of the socket by gripping the plug,

DO NOT pull on the plug cord.

•DO NOT use double-wire extension cords. If an extension cord is necessary make sure

it is a cord, which possess a protection safety certificate.

•If the main power supply cord is damaged, it should be replaced by a qualified service

engineer.

•DO NOT attempt any repairs to the equipment yourself (apart from those highlighted in

the Maintenance and Service Section). Repairs carried out by someone without the

relevant training are putting their personal safety at risk and will invalidate your

warranty.

•Do not store explosive substances such as aerosol cans with a flammable propellant in

this equipment.

•WARNING: this equipment is only to be operated by authorised personnel or

personnel who have correct knowledge on how the equipment operates.

Transporting and moving your ES series fridge freezer

The fridge freezer must always be moved in the vertical position. The cabinet must not be tilted

anymore than 10°. In the event that the cabinet is tilted more than 10°, the power supply must

not be connected until the equipment has stood upright for at least 24 hours.

Energy saving tips

This equipment is cooled by energy-efficient R600a refrigerant. To keep running costs as low

as possible always:

•Position the equipment away from heat sources.

•Make sure the air can circulate freely around the equipment, don’t block ventilation

grid.

•Ensure that products being stored are below room temperature upon entry.

•Make sure the door is opened as little as possible whilst in use and closed as quickly as

possible to prevent unnecessary temperature fluctuations.

Important Information

The fridge-freezer contains environment-friendly, non ozone depleting refrigerant R600a. As

R600a is a flammable gas, it is important to avoid damage to the refrigeration circuit during

transport and installation. If the refrigeration circuit is damaged, avoid using a naked flame in

the vicinity of the fridge-freezer and connecting power to the fridge-freezer. Also make sure

there is good ventilation in the room. If you are in doubt please contact your supplier.

– WARNING: Keep ventilation openings, in the equipment enclosure or in the built-in

structure, clear of obstruction.

– WARNING: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

– WARNING: Do not damage the refrigerant circuit

– WARNING: Do not use electrical equipment s inside the food storage compartments of

the equipment, unless they are of the type recommended by the manufacturer.

Product Information

This fridge-freezer has been designed and built with the intention of the product being used

within a Laboratory and is designed to store contents between +1°C to +10°C (fridge) and

-12 to -20°C and below (freezer).

Please see below for specific product information:

Model Height

(mm) Width

(mm) Depth

(mm) Weight

(Kg) Refrigerant

type Ambient/Room

working

temperature

No. of

shelves Door

Type

263C 1680 540 600 58 R600a +10°C to

+32°C 3 Solid

There are also 2 roller castors at the rear of the equipment to ease product movement.

Please contact your local representative for more information on replacement parts

Product details

1. Lock

2. Electronic Controller

3. Antimicrobial handle

4. Wire Shelf

5. Solid Basket

6. Adjustable foot (2 at front of equipment)

7. Door furniture

1 2

Controller overview and operation

1. Menu

2. Lock keypad

3. Maximum temperature / Up

4. Power

5. Mute

6. Minimum temperature / Down

7. Set / Enter

1 2 3

4 5 6 7

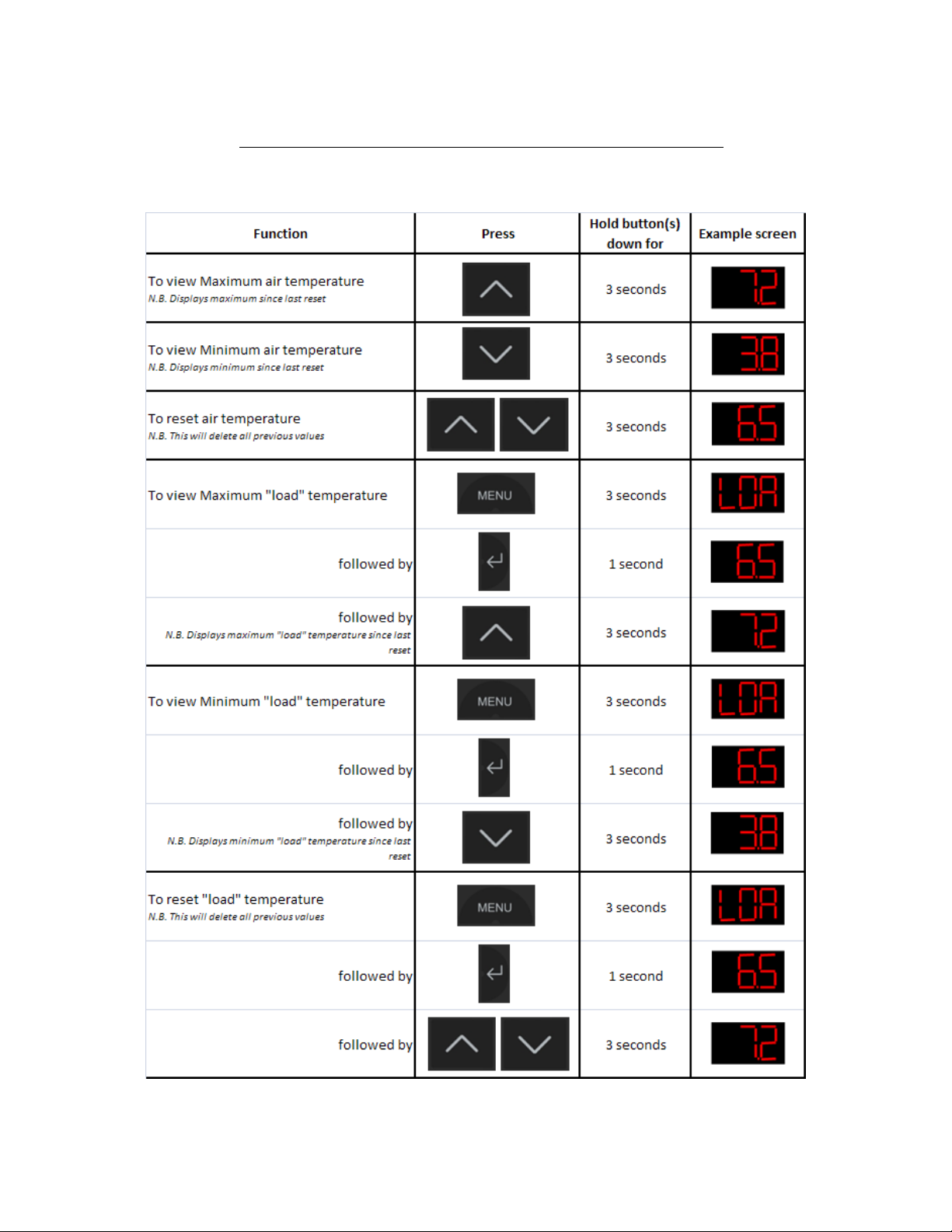

Viewing & resetting minimum and maximum temperatures

The factory default maximum temperature is XXX oC and the minimum temperature is XXX oC.

Changing the factory set point

(the set point is the point at which the fridge-freezer normally holds the temperature at; in rare

circumstances such as high/low room temperatures it may be necessary to adjust this slightly. Changing

the factory setting is not recommended)

Function Press Holdbutton(s)

downfor Examplescreen

Tochangethesetpoint 3seconds

followedby Once

followedby 1second

(currentsetpoint)

followedby /

(Increase/Decrease)

upto10times

followedby 1second

Note:setpointcanbeincreasedordecreasedin+/‐0.1°incrementsbyaMAXIMUMof1°C

Read the Freezer-Temperature on Display :

For control the Freezer-Temperature on the Display , press the " Enter-Button " for 5 seconds .

The temperature goes back to Refrigerator-Temperature , after any seconds.

Changing the temperature scale between Celsius (°C) and Fahrenheit (°F)

Function Press Holdbutton(s)

downfor Examplescreen

Tochangetemperaturescale 3seconds

followedby Twotimes

followedby 1second

(currentscale)

followedby /Once

followedby 1second

Changing the remote alarm contacts

Function Press Holdbutton(s)

downfor Examplescreen

Tochangethealarmcontactstate 3seconds

followedby Threetimes

followedby 1second

(currentstate)

followedby /Once

followedby 1second

Note:NO=NormallyOpen,NC=NormallyClosed

Warning Alarms

This fridge-freezer has been designed to provide both an audible and visual alarm should any

of the following situations occur:

•Door is left open for a set period

•Internal air temperature goes outside the set parameters, either too high or too low

•Internal ‘load’ temperature goes outside the set parameters, either too high or too low

Should one of these alarms occur this can be muted by pressing on the controller.

The ‘load’ temperature is a simulated temperature which is intended to provide an indication of

the temperature of the fridge-freezer’s contents (e.g. a 5ml sample). The temperature of a

fridge-freezer’s contents will change more slowly (up or down) than the air temperature within

that fridge-freezer should there be a fault or the door is left open.

Remote alarm contacts

All ES series laboratory fridge-freezers include remote alarm contacts and these terminal

contacts enable the user to connect to a remote control station; these contacts can be found on

the rear of the cabinet. WARNING: These contacts must only be accessed by a competent

electrician.

In order to use these contacts the following must be carried out:

1. The fridge-freezer MUST be disconnected from the power supply before removing the

terminal cover.

2. Unscrew the cover (figure 1) on the right hand side of the rear of the cabinet to expose

the connectors (figure 2).

3. Use the right hand outer positions that correspond to the left hand cable positions for

your connections using 0.75mm cable stripped to 0.6mm.

4. Depress the larger slot above the cable entrance on the right hand side with a small

electrical screwdriver. This allows the cable to be inserted into the slot directly below.

In the event of a door open alarm, high or low temperature alarm or power failure a remote

relay will switch within the controller to make an electrical circuit.

Please note that the contacts supplied are voltage free. A voltage of between 12V DC and

230V AC can be connected at the contacts. The maximum load must not exceed 2A. The

minimum power rating is 500mA / 12V AC.

In a normal condition (i.e. no alarm) the relay OPENS the contact for the remote alarm facility.

In an alarm condition the relay CLOSES the contact for the remote alarm facility.

Figure 1 Figure 2
