Thetford SC250 Bedienungsanleitung
Remove waste holding tank.
Remove bowl retainer bracket closest to
the door and take the bowl inner off.
Description: SC250/C260 Electric valve
Part number: 23709
Look for Service Centres, Point of Sale addresses and other
information on: www.thetford-europe.com
Version: 2
Date: May 2011
Tools required:
Repair instruction

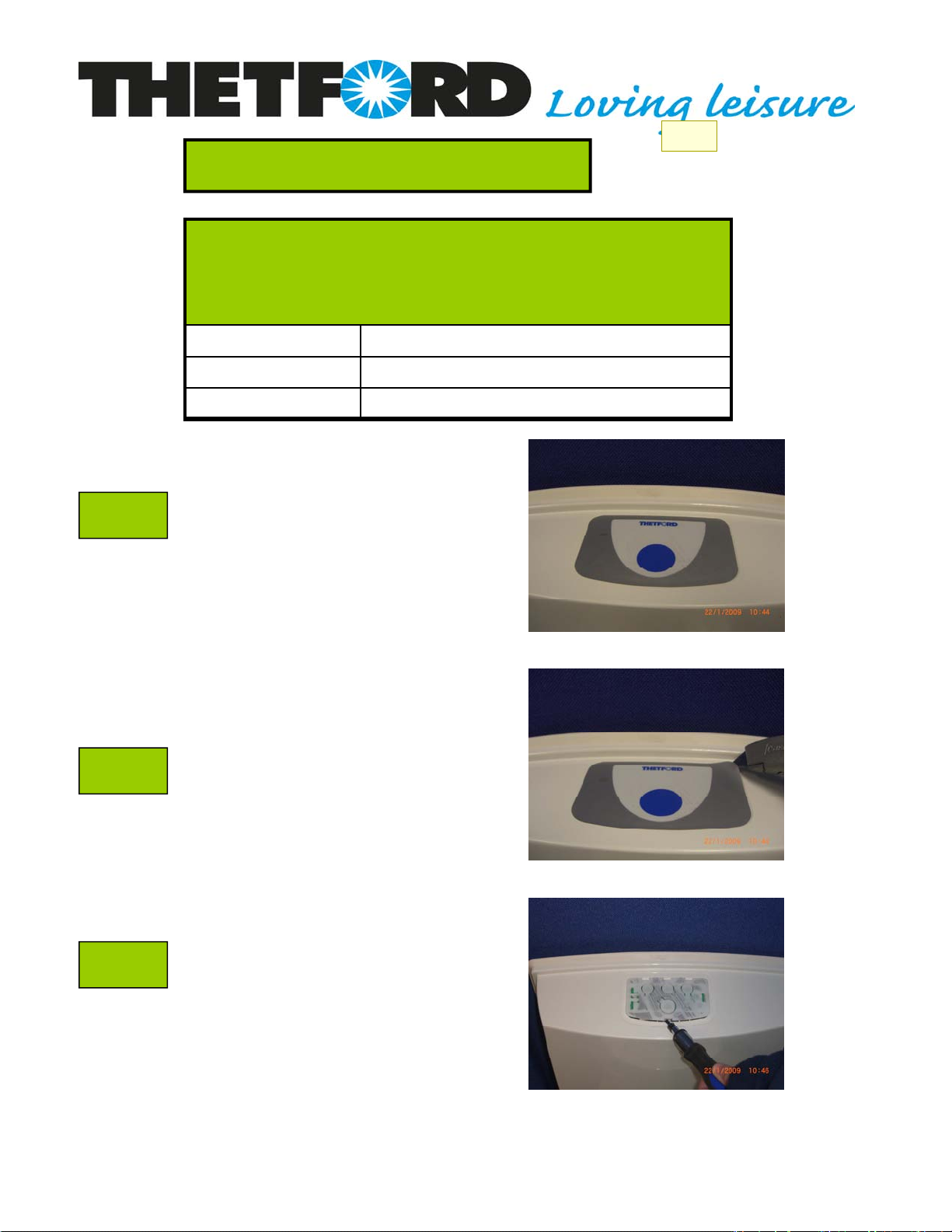

A
B
Remove retaining clip and electric valve.
Slide hose clamp over water tube and push
new electric valve in. Note: arrow should point
in direction of water flow
C
D
Push tube onto valve and assemble
the hose clamp.
Route the tubing around bowl.
Warning for C250! Lip needs to
be on the inside.
Push the bowl inner back in position
and bring tube back on its place.
Rotate the retainer back in position
E
F
G
H
42799/0511
1/1 06/10
Description: SC250 Overlay
Part number: 50708
Look for Service Centres, Point of Sale addresses and other
information on: www.thetford-europe.com
Version: 1
Date: June 2010
Tools required: Stanley knife
Repair instruction
B
A
Remove overlay
and place new
overlay
42695
Using a sharp object such
as a stanley knife carefully
peel back the overlay taking
care not to damage the
main body of the toilet
MvS1
Slide 1
MvS1
This information will be used in a database, so please read carefully and apply the following 5 steps!
How to use the template?
1 Description product name + part number
2 Version version of the repair instruction For example V1, newer version V2 etc
3 Date date when the instruction is made
4 Tools required tools that are required for this repair
5 Fill in by footer description and date (go to view and choose Header and Footer -->after you've filled
in the specs -->apply to all)
Other
1. Please try not to move the rest of the text and keep the lay-out intact!
2. Use Arial 10 for writing
3. DO NOT OVERWRITE FILE!
Maurice van Seeters; 23-3-2006
A
B
C
Locate the overlay on the top
of the toilet
Using a sharp object such as a
stanley knife carefully peel back the
overlay taking care not to damage
the main body of the toilet
Once the overlay has been
removed use a flat head screw
driver to unclip the panel that
houses the control panel and turn it
over
1/2 06/10
Description: SC250 Control panel
Part number: 50709/50710/50711
Look for Service Centres, Point of Sale addresses and other
information on: www.thetford-europe.com
Version: 1
Date: June 2010
Tools required: Stanley knife, flat head screwdriver
Repair instruction
42689
MvS1
Slide 1
MvS1
This information will be used in a database, so please read carefully and apply the following 5 steps!
How to use the template?
1 Description product name + part number
2 Version version of the repair instruction For example V1, newer version V2 etc
3 Date date when the instruction is made
4 Tools required tools that are required for this repair
5 Fill in by footer description and date (go to view and choose Header and Footer -->after you've filled
in the specs -->apply to all)
Other
1. Please try not to move the rest of the text and keep the lay-out intact!
2. Use Arial 10 for writing
3. DO NOT OVERWRITE FILE!
Maurice van Seeters; 23-3-2006

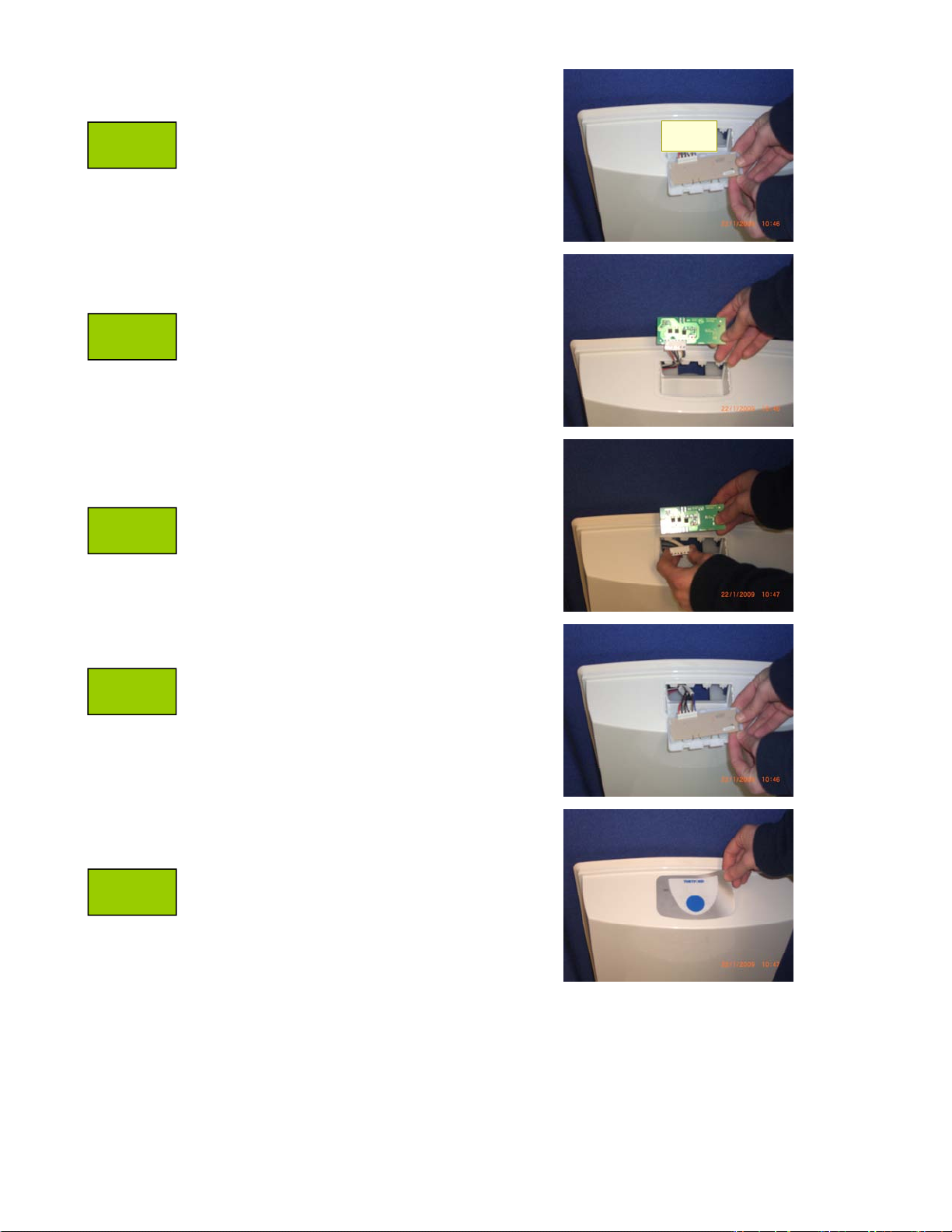

D
E
F
Simply unclip the control
panel from its housing.
**Note
Take note of the positioning of the
wire connecting as this is important
when re-attaching
Remove control panel and replace
with new
2/2 06/10
G
H
Clip the control panel back
into its housing and clip the
two parts back in the toilet
Replace the overlay
42689
** In case the PCB is glued with hotmelt to the housing, steps D until G can be left out.
MvS6
Slide 2
MvS6
This information will be used in a database, so please read carefully and apply the following 5 steps!
How to use the template?
1 Description product name + part number
2 Version version of the repair instruction For example V1, newer version V2 etc
3 Date date when the instruction is made
4 Tools required tools that are required for this repair
5 Fill in by footer description and date (go to view and choose Header and Footer -->after you've filled
in the specs -->apply to all)
Other
1. Please try not to move the rest of the text and keep the lay-out intact!
2. Use Arial 10 for writing
3. DO NOT OVERWRITE FILE!
Maurice van Seeters; 23-3-2006
Description: SC250 CWE Pump
Part Number: 50712
Look for Service Centres, Point of Sale addresses and other
information on: www.thetford.eu
Version: V1
Date: June 2010
Tools required: Electrical crimps
Repair instruction
A
B
C
Drain the flush water tank,
remove the waste tank and
remove the fuse
Locate the pump and remove
from it’s housing by moving
the two arms away from each
other
Once the pump has been
removed disconnect the flush
tube from the top of the pump
and remove the tube from the
base of the water tank
1/3 06/1042690
MvS1
Slide 1
MvS1
This information will be used in a database, so please read carefully and apply the following 5 steps!
How to use the template?
1 Description product name + part number
2 Version version of the repair instruction For example V1, newer version V2 etc
3 Date date when the instruction is made
4 Tools required tools that are required for this repair
5 Fill in by footer description and date (go to view and choose Header and Footer -->after you've filled
in the specs -->apply to all)
Other
1. Please try not to move the rest of the text and keep the lay-out intact!
2. Use Arial 10 for writing
3. DO NOT OVERWRITE FILE!
Maurice van Seeters; 23-3-2006
