Thomann VARYTEC Hero Mirror Bedienungsanleitung

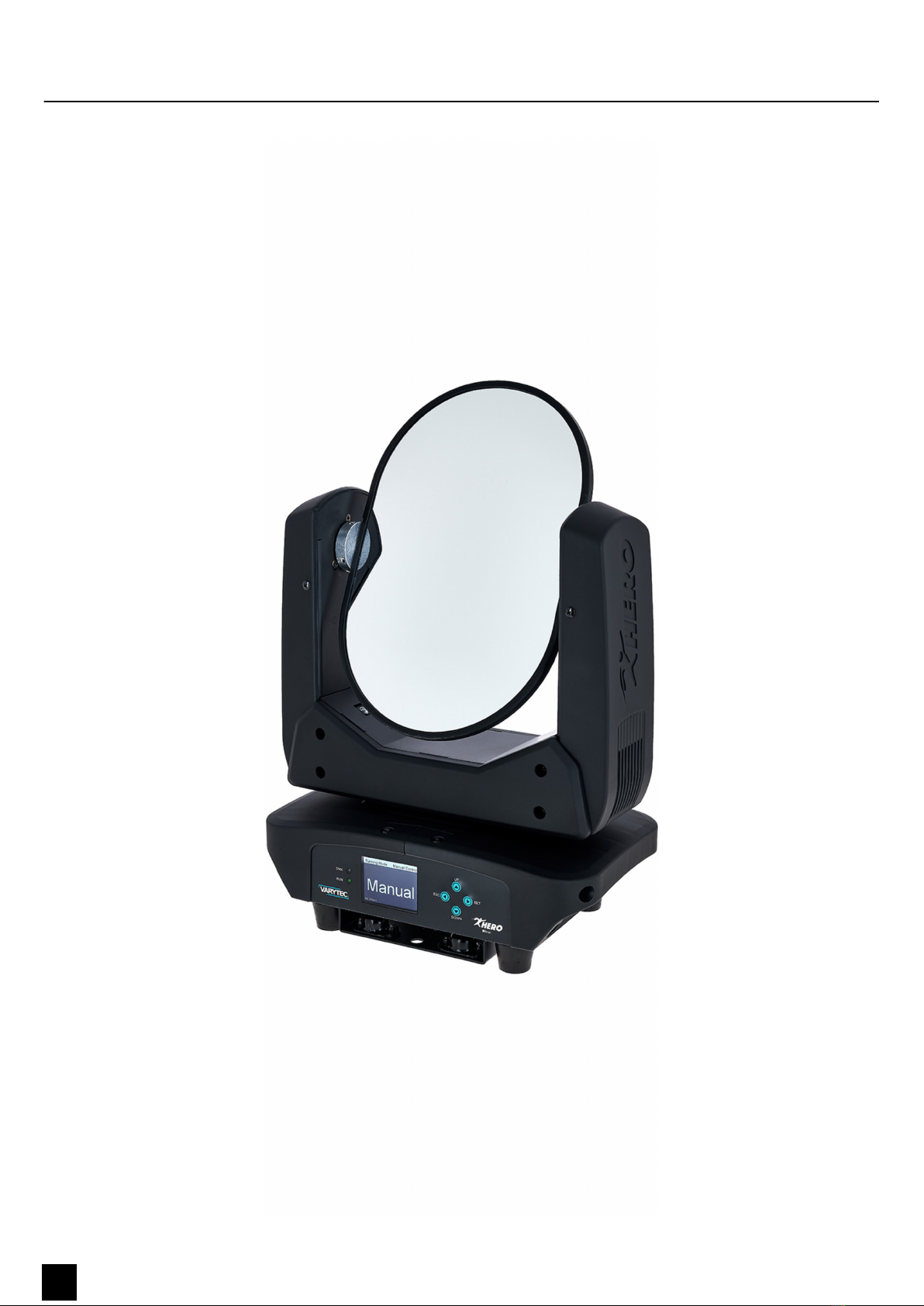

Hero Mirror

Moving Head

User Manual

Thomann GmbH

Hans-Thomann-Straße 1

96138 Burgebrach

Germany

Telephone: +49 (0) 9546 9223-0

Internet: www.thomann.de

14.08.2023, ID: 531495 (V2)

Table of contents

1 General information.............................................................................................................. 5

1.1 Symbols and signal words........................................................................................... 5

2 Safety instructions................................................................................................................. 6

3 Features....................................................................................................................................... 8

4 Installation................................................................................................................................. 9

5 Starting up............................................................................................................................... 11

6 Connections and controls................................................................................................ 12

7 Operating................................................................................................................................. 13

7.1 Starting the device....................................................................................................... 13

7.2 Main menu...................................................................................................................... 13

7.3 Operating modes.......................................................................................................... 14

7.4 Settings............................................................................................................................. 16

7.5 System information...................................................................................................... 18

7.6 Menu overview.............................................................................................................. 19

7.7 Functions in 4-channel DMX mode........................................................................ 19

7.8 Functions in 8-channel DMX mode........................................................................ 20

8 Technical specications.................................................................................................... 21

9 Plug and connection assignment................................................................................. 22

10 Troubleshooting................................................................................................................... 23

11 Cleaning.................................................................................................................................... 24

12 Protecting the environment........................................................................................... 25

Table of contents

Hero Mirror 3

Moving Head

4Hero Mirror

Moving Head

1 General information

This document contains important instructions for the safe operation of the product.

Read and follow the safety instructions and all other instructions. Keep the document

for future reference. Make sure that it is available to all those using the product. If you

sell the product to another user, be sure that they also receive this document.

Our products and documentation are subject to a process of continuous develop‐

ment. They are therefore subject to change. Please refer to the latest version of the

documentation, which is ready for download under www.thomann.de.

1.1 Symbols and signal words

In this section you will nd an overview of the meaning of symbols and signal words

that are used in this document.

Signal word Meaning

DANGER! This combination of symbol and signal word indicates

an immediate dangerous situation that will result in

death or serious injury if it is not avoided.

WARNING! This combination of symbol and signal word indicates

a possible dangerous situation that can result in death

or serious injury if it is not avoided.

CAUTION! This combination of symbol and signal word indicates

a possible dangerous situation that can result in minor

injury if it is not avoided.

NOTICE! This combination of symbol and signal word indicates

a possible dangerous situation that can result in mate‐

rial and environmental damage if it is not avoided.

Warning signs Type of danger

Warning – high-voltage.

Warning – dangerous optical radiation.

Warning – suspended load.

Warning – danger zone.

General information

Hero Mirror 5

Moving Head

2 Safety instructions

This device is intended for use as a freely moving reector. The device is designed for

professional use only and is not suitable for use in households. Use the device only as

described in this user manual. Any other use or use under other operating conditions

is considered to be improper and may result in personal injury or property damage.

No liability will be assumed for damages resulting from improper use.

This device may be used only by persons with sucient physical, sensorial, and intel‐

lectual abilities and having corresponding knowledge and experience. Other persons

may use this device only if they are supervised or instructed by a person who is

responsible for their safety.

Extend the operating life of the device by regular breaks and by avoiding

frequent switching on and o. The device is not suitable for

continuous operation .

Safety

DANGER!

Risk of injury and choking hazard for children!

Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never

allow children to play with the packaging material and the device. Always store packaging material out of the reach of babies and

small children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without

supervision. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that

children could play with.

DANGER!

Danger to life due to electric current!

Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable

parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.

DANGER!

Danger to life due to electric current!

A short circuit could lead to a re hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a

safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply

and arrange repair. If in doubt, seek advice from a qualied electrician.

WARNING!

Risk of eye damage caused by high light intensity!

The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look

directly into the light source.

WARNING!

Risk of injury caused by falling due to unsuitable trusses and other xtures!

If trusses or other xtures are not designed for the weight of the intended number of moving heads, falling can cause severe

injury and considerable damage. Before mounting, ensure that the load capacity of trusses and other xtures is sucient for the

intended number of devices. Take into account any additional load that aects the load bearing parts due to the movement of

the head. When installing and operating, make sure to follow the standards and regulations that apply in your country. Always

secure devices with a secondary safety attachment, such as a safety cable or a safety chain.

CAUTION!

Risk of injury due to unexpected movements of the device!

The device head may perform fast movements and generate very bright light. This is the case immediately after the device is

switched on, in automatic or remote operation, and when a connected DMX controller is switched o. Persons who are in the

immediate vicinity of the device may be injured or frightened by this. Make sure that there are no obstacles within the movement

range of the mirror, and that no persons are in the immediate vicinity of the head before switching it on and during its operation.

Switch o the device before any work is performed in the movement range or immediate vicinity of the device, or if unauthorised

persons are in that area.

Intended use

Safety instructions

6Hero Mirror

Moving Head

NOTICE!

Risk of re due to covered vents and neighbouring heat sources!

If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can

overheat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other

heat sources. Never operate the device in the immediate vicinity of naked ames.

NOTICE!

Damage to the device if operated in unsuitable ambient conditions!

The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the

ambient conditions specied in the “Technical specications” chapter of this user manual. Avoid operating it in environments

with direct sunlight, heavy dirt and strong vibrations. Avoid operating it in environments with strong temperature uctuations. If

temperature uctuations cannot be avoided (for example after transport in low outside temperatures), do not switch on the

device immediately. Never subject the device to liquids or moisture. Never move the device to another location while it is in oper‐

ation. In environments with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by

qualied specialists at regular intervals to prevent damage due to overheating and other malfunctions.

NOTICE!

Damage to the device due to high voltages!

The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess

voltages can also cause a risk of injury and res. Make sure that the voltage specication on the device matches the local power

grid before plugging in the device. Only operate the device from professionally installed mains sockets that are protected by a

residual current circuit breaker (FI). As a precaution, disconnect the device from the power grid when storms are approaching or it

the device will not be used for a longer period.

NOTICE!

Risk of overheating and re due to inadequate distance and bad ventilation!

If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can

overheat and cause res. Make sure that illuminated surfaces are more than 2 m away. Do not operate the device in ambient

temperatures above 40 °C. Always ensure sucient ventilation at the operating location.

NOTICE!

Possible staining due to plasticiser in rubber feet!

The plasticiser contained in the rubber feet of this product may react with the coating of the oor and cause permanent dark

stains after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the device’s rubber feet and

the oor.

NOTICE!

Risk of re due to installation of a wrong fuse!

Using fuses of a dierent type than compatible with the device may cause a re and seriously damage the device. Only use fuses

of the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter.

NOTICE!

Risk of re by exceeding the maximum current

The device can supply power to other devices of identical design and connected in series. If too many devices are connected, the

power consumption can exceed the maximum permitted power consumption, which can cause the device to overheat and burst

into ames. Only connect devices of identical design to the device. When deciding how many devices you can connect in series,

make sure that the maximum permitted power consumption as stated on the device is not exceeded. Also refer to the specica‐

tions in the technical specications for the device. Only use power cords with a cable cross-section designed for the required

current intensity when connecting the devices in series.

Safety instructions

Hero Mirror 7

Moving Head

3 Features

Special features of the device:

nMotorized mirror for deecting light and laser beams

nHighly reective, double-sided mirror

n99% reection with little loss of light

nTwo moving axes

– Tilt (endless rotation)

– Pan (540°)

nControl via DMX (4 or 8 channels) or buttons and display on the unit

nBuilt-in automatic show programmes

nSound control

nMaster / Slave mode

nRobust metal and plastic housing

Features

8Hero Mirror

Moving Head

4 Installation

Unpack and check carefully there is no transportation damage before using the unit.

Keep the equipment packaging. To fully protect the product against vibration, dust

and moisture during transportation or storage use the original packaging or your

own packaging material suitable for transport or storage, respectively.

Lift the device only at its base. Lifting the device at its head may damage the device.

You can install the device standing or hanging. When in use, the device must be

mounted at a solid surface or clamped to an approved truss.

Work from a stable platform whenever you install or move the device or when you

perform any kind of maintenance. Block access under the work area.

WARNING!

Risk of injury caused by falling due to unsuitable trusses and other

xtures!

If trusses or other xtures are not designed for the weight of the

intended number of moving heads, falling can cause severe injury and

considerable damage.

Before mounting, ensure that the load capacity of trusses and other x‐

tures is sucient for the intended number of devices. Take into account

any additional load that aects the load bearing parts due to the move‐

ment of the head.

When installing and operating, make sure to follow the standards and

regulations that apply in your country.

Always secure devices with a secondary safety attachment, such as a

safety cable or a safety chain.

NOTICE!

Data transfer errors due to improper wiring!

If the DMX connections are wired incorrectly, this can cause errors

during the data transfer.

Do not connect the DMX input and output to audio devices, e.g. mixers

or ampliers.

Use special DMX cables for the wiring instead of normal microphone

cables.

Installation

Hero Mirror 9

Moving Head

AB B

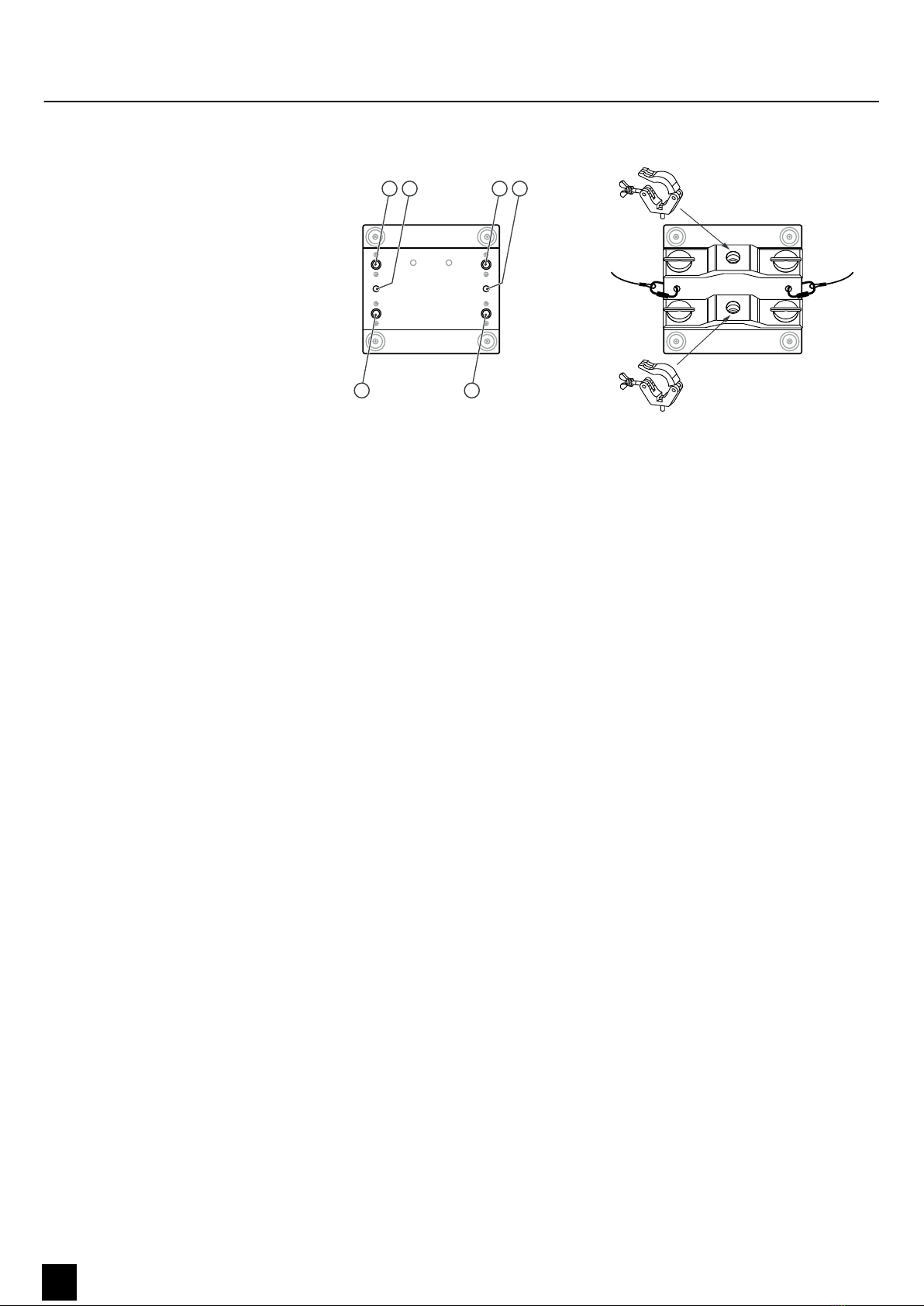

The Quick Lock mounts on the bottom side of the housing (A) allow the secure

attachment of the included mounting brackets. There, you can fasten adapters such

as half couplers, trigger clamps, c-hooks etc. Safety cables are threaded through the

safety eyelets (B) on the bottom side of the housing.

Mounting options

Installation

10 Hero Mirror

Moving Head

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere thomann DJ-Equipment Handbücher

thomann

thomann Varytec LED Studio Par Rookie COB 100W Bedienungsanleitung

thomann

thomann ignition Romeo 650/1000 Fresnel/PC Bedienungsanleitung

thomann

thomann STAIRVILLE PAR64 MKII RGBA Bedienungsanleitung

thomann

thomann Stairville DJ Lase Pro Advanced 2000 Bedienungsanleitung

thomann

thomann STAIRVILLE maTrixx SC-100 DMX LED Effect Bedienungsanleitung

thomann

thomann Stairville Stage TRI LED Bundle Extension Bedienungsanleitung

thomann

thomann VARYTEC Retro Blinder 200 LED Bedienungsanleitung

thomann

thomann STARVILLE Mini Stage Par 7x6W RGB Bedienungsanleitung

thomann

thomann STAIRVILLE PAR56 Active 300W DMX Bedienungsanleitung

thomann

thomann Stairville 150-R MKIII Bedienungsanleitung

thomann

thomann STAIRVILLE Outdoor Stage PAR 12 X 3W Tri Bedienungsanleitung

thomann

thomann STAIRVILLE Stage Quad LED Bundle RGBW Bedienungsanleitung

thomann

thomann Stairville Mini Stage Par CW/WW/A Bedienungsanleitung

thomann

thomann Stairville novaSpot 250 Bedienungsanleitung

thomann

thomann fun generation Colour Burst Bedienungsanleitung

thomann

thomann STAIRVILLE 238663 Bedienungsanleitung

thomann

thomann Stairville CLB5 2P RGBWW Bedienungsanleitung

thomann

thomann Stairville LED 120 COB True White Bedienungsanleitung

thomann

thomann LaserDerby Bedienungsanleitung

thomann

thomann Varytec Star Shot Laser FX Bedienungsanleitung

thomann

thomann STAIRVILLE B1R Beam Bedienungsanleitung

thomann

thomann STAIRVILLE Beam Moving Head B2R Bedienungsanleitung

thomann

thomann Varytec Giga Bar HEX 3 Bedienungsanleitung

thomann

thomann Fun Generation LED Pot COB 40W RGB WW Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung

KAM

KAM DMX Laser80 FScan Bedienungsanleitung

thomann VARYTEC Hero Mirror Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken
