Thor Kitchen TWC2403DI Bedienungsanleitung
Wine Cooler
Service Manual
Models: TWC2403DI
Features
Energy efficiency
Micro foam technology
Low noise operation
Thick insulation for enerqv efficiency
Version number: 00.00
Edition: 2019-5-20
1
CONTENT
1. Content ................................................................ 2
2. Specifications
......................................................................
3
3. Safety precautions
..............................................................
4
4. Function Schedule
.................................................................
7
5. System Flow Chart
..............................................................
8
6. Circuit Diagram
....................................................................
9

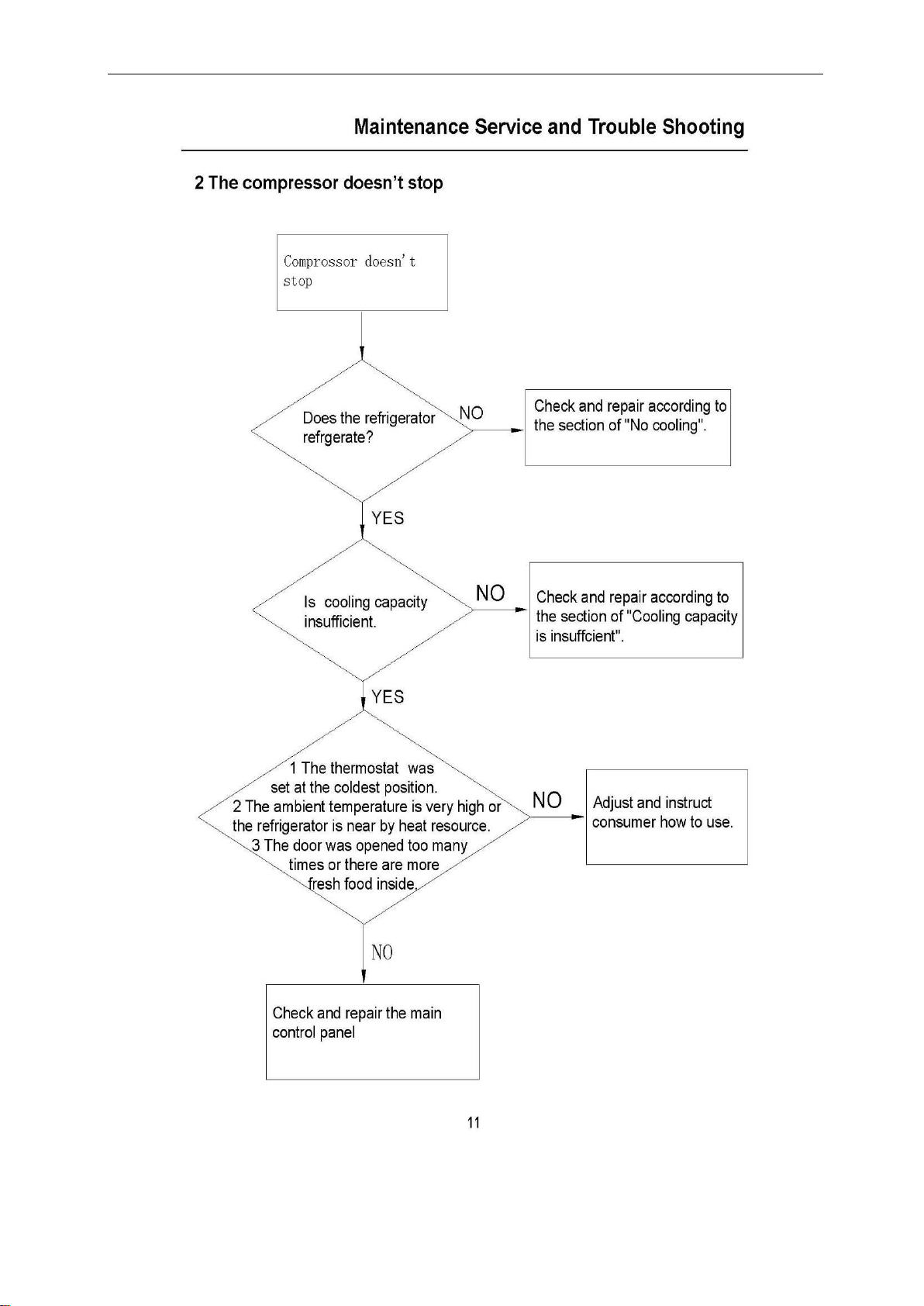

7. Maintenance Service and Trouble Shooting ..............10
8.List of Parts...............................................................28
2
Specifications
Models
Net capacity
(L) 458
Color
Black
Power Supply
(V/Hz) 110-/60
Rated Input Power
(W) 370
Power Consumption
(kW.-h/24h) 1.3
Net Weight
(Lbs)264
Gross Weight
(Lbs)286
Unit Dimension 60*68.5*187
(W*D*H)(CM)
Packing Dimension
(W*D*H)(CM) 66*74*200
Container Quantity 40'HC (PCS) 54
3
Function Page
Function Schedule
• Energy efficiency
• Micro foam technology
• Low noise operation
• Thick insulation for energy efficiency
7
System Flow Chart
1. Schematic diagram of System Flow Chart
2. Brief Description of System Flow Chart
Model TWC2403DI is a fan cooling double-system wine
cooler. When the wine cooler is just powered on, the
refrigerant flows in the sequence:
Compressor-Condenser-Drier-Capillary
Restrictor-Evaporator.
8
Circuit Diagram
1. Schematic Circuit Diagram
2.Brief Description of Control Principle
Model TWC2403DI is the direct cooling double-system
Wine Cooler; an electronic type of all the control is
generally adopted. The display control PCB directly
controls the start and stop of compressor, and hence the
refrigerator temperature.
9
