Thor Gas Fryer

Technical Service Manual

Model: GH110-P , GH110-N,GH111-P,GH111-N

IMPORTANT FOR FUTURE REFERENCE

Please complete this information and retain this manual for the life of the equipment. For Warranty

Service and/or parts, this information is required.

Model Number Serial Number Date Purchased

WARNING: For your safety, do not store or use gasoline or other flammable vapors or

liquids in the vicinity of this or any other appliances. Keep the area free and clear of

combustible.

WARNING：Improper installation, adjustment, alteration, service or maintenance can

cause property damage, injury, or death. Read the installation operating and

maintenance instructions thoroughly before installing, or servicing this equipment.

WARNING：Instructions must be posted in a prominent location. All safety

precautions must be taken in the event the user smells gas. Safety information can be

obtained from your local gas supplier.

15 Badgally Road, Campbelltown

NSW 2560

Table of Contents

TABLE OF CONTENTS

PAGE

Introduction

Specification

Dimensions

Installation

4 ~ 6

Operation

7 ~ 9

Cleaning and Maintenance

10 ~ 11

Troubleshooting

12 ~ 25

Conversion from NG to LPG and vice-versa

Explosion Drawing

Parts List

Introduction

We are confident that you will be delighted with your Thor Gas Fryer, and it will become a most valued appliance in

your commercial kitchen.

To ensure you receive the utmost benefit from your new Gas Fryer, there are two important things you can do.

Firstly:

Please read the instruction book carefully and follow the directions given. The time taken will be well spent.

Secondly:

If you are unsure of any aspect of the installation, instructions or performance of your appliance, contact your dealer

promptly. In many cases a phone call could answer your question.

CE Only:

These instructions are only valid if the country code appears on the appliance. If the code does not appear on the

appliance, refer to the supplier of this appliance to obtain the technical instructions for adapting the appliance to the

conditions for use in that country.

WARNING:

IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE

PROPERTY DAMAGE, INJURY OR DEATH.

READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE

INSTALLING OR SERVICING THIS APPLIANCE.

WARNING:

INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS ARE TO BE POSTED IN A

PROMINENT LOCATION. THIS INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS

SUPPLIER.

WARNING:

GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT

AGAINST RISK OF FIRE.

•THE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.

•IT IS RECOMMENDED THAT A REGULAR INSPECTION IS MADE BY A COMPETENT SERVICE PERSON

TO ENSURE CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.

•DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY

OF THIS OR ANY OTHER APPLIANCE.

•DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.

CAUTION:

THIS APPLIANCE IS;

•FOR PROFESSIONAL USE AND IS TO BE USED BY QUALIFIED PERSONS ONLY.

•ONLY QUALIFIED SERVICE PERSONS ARE TO CARRY OUT INSTALLATION, SERVICING AND GAS

CONVERSION OPERATIONS.

•COMPONENTS HAVING ADJUSTMENTS PROTECTED BY THE MANUFACTURER SHOULD NOT BE

ADJUSTED BY THE USER/OPERATOR.

•DO NOT OPERATE THE APPLIANCE WITHOUT THE LEGS SUPPLIED FITTED.

Specifications

General

Stainless steel enclosure

All burner has flame safeguard

The valve is the modulating thermostat with on/off function with temperature selecting knob

Cast iron burner

Thermostat with manual reset limit switch

Three/four burner; Three/four combustion tube

Oil Tank size 14” X 14"

Pack Contents

The following is included:

Gas Fryer

Feet

Instruction Manual

Gas Supply Requirements

The burner operating pressure is to be measured at the gas control valve outlet test point with

one burner operating at ‘High’ setting. The operating pressure is ex-factory set, through the

appliance regulator and not to be adjusted.

Minimum input Heat of burner: 21MJ for LPG AND NAT

Natural Gas

Propane

GH110-N

GH111-N

GH110-P

GH111-P

Single burner Heat

Input

32.5 MJ

Heat Total

65 MJ

97.5 MJ

65 MJ

97.5 MJ

Burner Operating

1.0 kPa

2.75 kPa

Supply Pressure

1.0 kPa

2.75 kPa

Gas Connection

¾” BSP

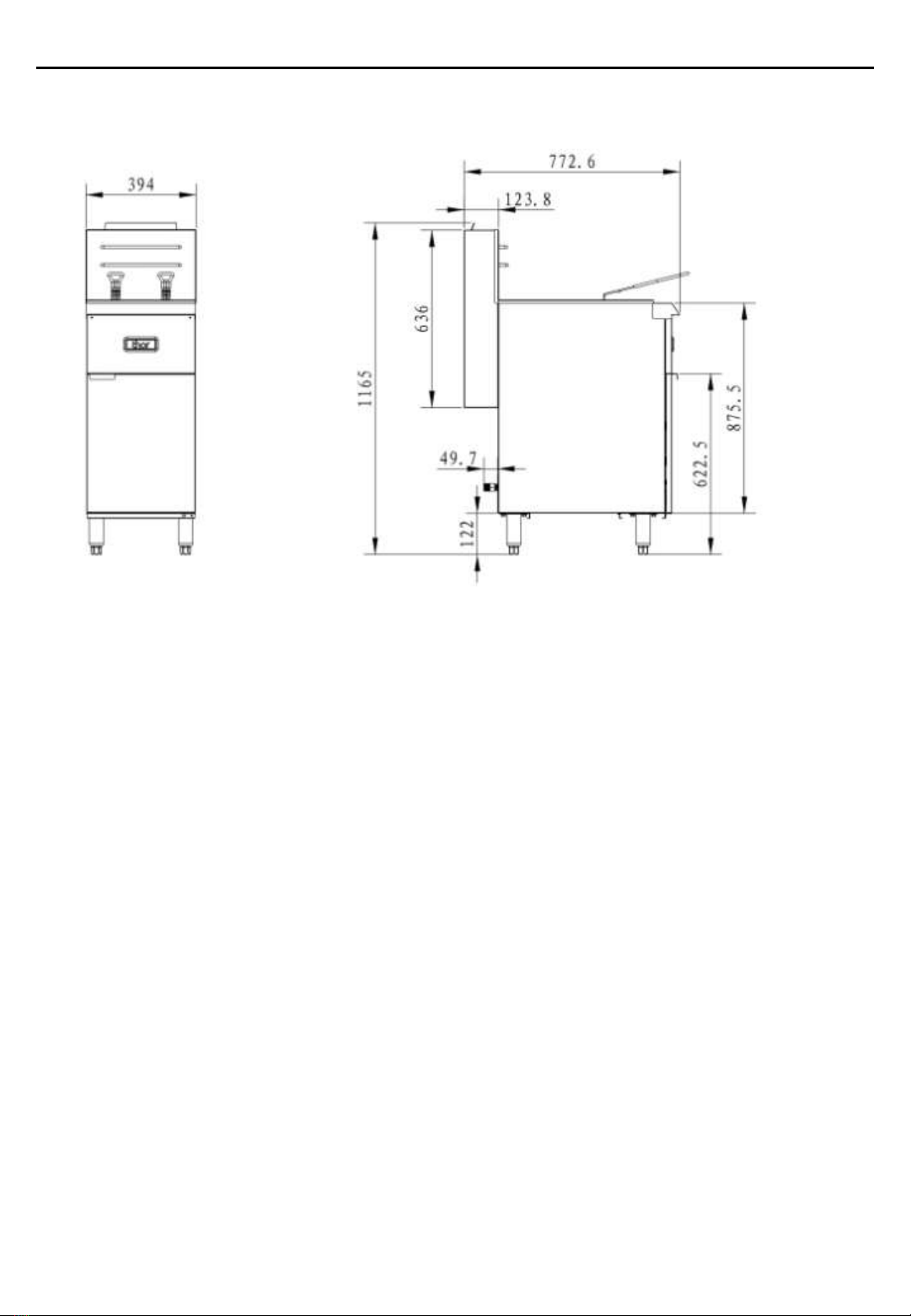

Dimensions

GH110-P, GH110-N, GH111-P, GH111-N

Installation Requirements

NOTE:

• It is most important that this appliance is installed correctly and that operation is correct before use.

Installation shall comply with local gas, health and safety requirements.

• This appliance shall be installed with sufficient ventilation to prevent the occurrence of unacceptable

concentrations of substances harmful to health.

Our Gas Fryers are designed to provide years of satisfactory service and correct installation is essential to achieve the

best performance, efficiency and trouble-free operation.

This appliance must be installed in accordance with National installation codes and in addition, in accordance with

relevant National / Local codes covering gas and fire safety.

Australia:

AS 5601/AG 601 (to be AS 5601)- Gas Installations

New Zealand:

NZS 5261 - Gas Installation.

United Kingdom:

Gas Safety (Installation and Use) Regulations 1998

BS 6173-Installation of Catering Appliances.

BS 5440-1&2 Installation Flueing & Ventilation.

Ireland:

IS 820-Non Domestic Gas Installations.

Installations must be carried out by qualified persons only. Failure to install equipment to the relevant codes and

manufacturer’s specifications shown in this section will void the warranty. Components having adjustments

protected by the manufacturer are only to be adjusted by an authorized service agent. They are not to be adjusted

by the installation person.

Unpacking

• Remove all packaging and transit protection from the appliance including all protective plastic coating from the

exterior stainless steel panels.

• Check equipment and parts for damage. Report any damage immediately to the carrier and distributor.

• Ensure that the 4 adjustable castors are fitted with the protruding centre screw.

• Report any deficiencies to the distributor who supplied the appliance.

• Check that the available gas supply is correct to that shown on the rating plate located on the right hand panel.

Location

1. Installation must allow for a sufficient flow of fresh air for the combustion air supply.

2. Installation must include adequate ventilation means, to prevent dangerous build-up of combustion products.

3. Any gas burning appliance requires adequate clearance and ventilation for optimum and trouble-free operation.

The minimum installation clearances shown below are to be adhered to.

4. Position the appliance in its approximate working position.

5. All air for burner combustion is supplied from underneath the unit. The legs must always be fitted and no

obstructions placed on the underside or around the base of the unit, as obstructions will cause incorrect

operation and / or failure of the appliance.

6. Components having adjustments protected by manufacturer are only allowed to be adjusted by an authorized

service agent. They are not to be adjusted by the installation person.

Installation

Clearances

NOTE: Only non-combustible materials can be used in close proximity to this appliance.

Assembly

NOTE:

•This appliance is assembled before delivery except castors.

•This appliance is fitted with adjustable castors to enable the appliance to be positioned securely

and level. This should be carried out on completion of the gas connection. Refer to the ‘Gas

Connection’ section.

•IM will be stated that the appliance shall be installed in such a way that side body surfaces are

not accessible in the installed position.

Gas Connection

NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON.

A 3/4" male BSP line for the gas connection is located near the lower right rear corner of the fryer. The

serial plate (located inside the front door of the fryer) indicates the type of gas the unit is equipped to

burn (natural gas or propane). The fryer should be connected ONLY to the type of gas for which it is

equipped.

For orifice sizes and pressure regulator settings, see the chart on page 4. If the fryer is being installed at

over 2,000 feet altitude and that information was not specified when ordered, contact the appropriate

authorized Thor Service Representative or the Thor Service Department. Failure to install with proper

orifice sizing will result in poor performance and may void the warranty.

If applicable, the vent line from the gas appliance pressure regulator shall be installed to the outdoors in

accordance with local codes or, in the absence of local codes, with the Australia: AS 5601/AG 601 (to be

AS 5601) - Gas Installations or New Zealand: NZS 5261 - Gas Installation.

An adequate gas supply is imperative. Undersized or low pressure lines will restrict the volume of gas

necessary for satisfactory performance. A combination gas valve and pressure regulator, which is provided

with each unit, is set to maintain a 1.0kPa manifold pressure for natural gas or 2.75kPa manifold pressure

for propane gas. Fluctuations of more than 25% on natural gas or 10% on propane gas will create

problems and affect burner operating characteristics.

Purge the supply line to clean out dust, dirt, or other foreign matter before connecting the line to the unit.

It is recommended that an individual manual shutoff valve be installed in the gas supply line to the unit.

Use pipe joint compound that is suitable for use with both natural and LP gas on all threaded connections.

ALL PIPE JOINTS AND CONNECTIONS MUST BE TESTED THOROUGHLY FOR GAS LEAKS. USE ONLY SOAPY

WATER FOR TESTING ON ALL GASES. NEVER USE AN OPEN FLAME TO CHECK FOR GAS LEAKS. ALL

CONNECTIONS MUST BE CHECKED FOR LEAKS AFTER THE UNIT HAS BEEN PUT INTO OPERATION. TEST

PRESSURE SHOULD NOT EXCEED 3.45kPa

Installation

Combustible Surface

Non Combustible Surface

Left / Right Hand Side

Rear

355mm

250mm

0mm

CAUTION

THIS APPLIANCE AND ITS INDIVIDUAL COMBINATION GAS VALVE MUST BE DISCONNECTED FROM THE

GAS SUPPLY PIPING SYSTEM DURING ANY PRESSURE TESTING OF THAT SYSTEM AT TEST PRESSURES

IN EXCESS OF 14”WC (1/2 PSIG or 3.45 kPa).

If the incoming gas pressure is in excess of 14"WC (1/2PSI, 3.45 kPa), a proper step-down regulator

will be required.

Connect the gas supply directly to the 3/4" male BSP connector located near the lower left rear corner of the fryer.

When tightening the supply pipe, be sure to hold the mating connector extending from the unit securely with a

wrench. This will prevent any damage or distortion to the internal piping and controls of the unit.

After connecting the gas supply, check again that the fryer is level. Use a long spirit level four ways; across the front

and rear of the fryer pot, and along each edge.

Commissioning

1. Before leaving the new installation;

a. Check the following functions in accordance with the operating instructions specified in the

‘Operation’ section of this manual.

• Light the Pilot Burner.

• Light the Main Burner.

• Turning 'Off' the Main Burner/Pilot.

b. Ensure that the operator has been instructed in the areas of correct lighting, operation, and shutdown

procedure for the appliance.

2. This manual must be kept by the owner for future reference and a record of the Date of Purchase, Date of

Installation and the Serial Number of the Appliance must be recorded and kept with this manual. (These details

can be found on the Rating label, refer to the ‘Gas Connection’ section).

NOTE: If for some reason it is not possible to get the appliance to operate correctly, shut off the gas supply and

contact the supplier of this appliance.

Installation

Install the Regulator

Operation

Operation Guide

CAUTION:

• THIS APPLIANCE IS FOR PROFESSIONAL USE AND IS ONLY TO BE USED BY QUALIFIED PEOPLE.

• ONLY QUALIFIED SERVICE PERSONS ARE TO CARRY OUT INSTALLATION, SERVICING OR GAS CONVERSION

OPERATIONS.

• COMPONENTS HAVING ADJUSTMENTS PROTECTED (E.G. PAINT SEALED) BY THE MANUFACTURER SHOULD NOT

BE ADJUSTED BY THE USER/OPERATOR.

Filling the fryer pot

1. Close drain valve completely before filling the fryer pot.

2. When the fryer is new, fill the fryer pot with water and clean thoroughly (see “Weekly Cleaning” on

page 14) in order to remove protective coatings and any foreign matter.

3. The recommended solid shortening capacity for the fryer pot (35, 55 or 75lbs) is described on the serial

plate (which is located inside the front door).

4. Remove the basket support frame when filling the fryer pot with solid shortening.

5. When solid shortening is used, be careful not to bend, break, or twist the thin capillary wires of the

sensing elements located in the fryer pot.

6. Pack solid shortening into the zone below the tubes, all spaces between the tubes, and at least an inch

above the top of the tubes before lighting the fryer. If any air spaces are left around the heat tube

surfaces when the heat is turned on, the tube surfaces will become red hot, burn the solid shortening,

weaken the fryer pot, and could result in a fire.

CAUTION

NEVER ATTEMPT TO MELT A SOLID BLOCK OF SHORTENING ON TOP OF THE HEAT TUBES. NEVER START THE BURNERS

WHEN THE FRYPOT IS EMPTY.

7. To prevent burning or scorching the solid shortening, keep the thermostat set at the lowest

temperature until all the solid shortening between and above the tubes has been melted. Additional

solid shortening can then be added until the desired frying depth has been reached.

8. Replace the basket support frame over the fryer pot heat tubes.

Operation

Operation Guide

Open the burner compartment door and do the following:

1. Turn thermostat to “0”

2. Press down the ignition button, turn the thermostat counterclockwise to the “0” position (shown), and

continue to press the knob down.

3. While pressing the ignition button down, use a lit match or piezo igniter to ignite the pilot. Continue to

press the knob down for about 30 seconds. If the pilot does not stay lit when the ignition button is

released, repeat the lighting procedure and keep the ignition button pressed for 10-20 seconds.

Adjustment of pilot flame may be necessary.

4. When the pilot stays lit, turn the knob counterclockwise to the temperature required. Do not press

down on the knob in this step.

5. DO NOT turn the thermostat on until the fryer pot is filled with oil or solid shortening.

6. Once the fryer pot is filled with oil, set the thermostat to the desired temperature

Shut-down Button

Pizeo Ignitor

Thermostat

Pilot Position

High Temperature

Protection Reset

button

Ignition

Button

Shutdown Procedure

Standby: Turn thermostat on the combination gas valve to the “0”position. At this setting, only the pilot

burner will remain ignited.

Complete Shutdown: Press the shut-down button to extinguish pilot burner and main burner and turn

thermostat completely off.

Relighting

In the event of a main burner ignition failure, a five minute purge period must be observed prior to

re- establishing the ignition source.

1. Shut off all gas.

2. Wait five minutes.

3. Follow the “Lighting” procedure described on page 11.

Automatic Pilot Valve

The Automatic Pilot Valve provides an automatic safety shutoff for the fryer when the pilot flame is

extinguished. When the pilot flame is burning, the valve is held open electromagnetically by the electrical

current from a thermopile in the pilot flame. When the pilot flame goes out, generation of current ceases and

the valve closes automatically.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere THOR Fritteuse Handbücher

THOR

THOR GL165-P Betriebsanleitung

Beliebte Fritteuse Handbücher anderer Marken

Innsky

Innsky 55SA1US Bedienungsanleitung

Falcon

Falcon G350/11 Benutzerhandbuch

GoWISE USA

GoWISE USA GW22612 Bedienungsanleitung

Wolf

Wolf IF15/S Bedienungsanleitung

Electrolux

Electrolux Thermetic 9CHG583284 Kurzanleitung

Gourmia

Gourmia GAF799 Bedienungsanleitung

DeLonghi

DeLonghi D677UX Bedienungsanleitung

SEVERIN

SEVERIN DEEP FRYER - Benutzerhandbuch

Toastmaster

Toastmaster TMFG18-NAT Bedienungsanleitung

Domo

Domo DO465FR Bedienungsanleitung

Henny Penny

Henny Penny PFG-691 Bedienungsanleitung

Farberware

Farberware FBW FT 43721 B Bedienungsanleitung

GERMANICA

GERMANICA GEAF5L3LD Bedienungsanleitung

Roller Grill

Roller Grill MF 120 R Bedienungsanleitung

Philips

Philips HD9211 Bedienungsanleitung

Linea 2000

Linea 2000 Domo DO536FR Bedienungsanleitung

Lakeland

Lakeland 31796 Bedienungsanleitung

Dash

Dash Tasti-Crisp DFAF755 Bedienungsanleitung
