Thrustmaster T-GT II Bedienungsanleitung

Europe, Middle East

ENGLISH

FRANÇAIS

DEUTSCH

NEDERLANDS

ITALIANO

ESPAÑOL

PORTUGUÊS

РУССКИЙ

ČESTINA

TÜRKÇE

POLSKI

SVENSKA

SUOMI

SLOVENCINA

MAGYAR NYELV

תירבע

ﺔﻴﺑﺮﻌﻟا

North America/

Norteamérica

ENGLISH

FRANÇAIS

ESPAÑOL

Latin America/

América Latina

ENGLISH

ESPAÑOL

PORTUGUÊS

Asia Pacic

日本語

ENGLISH

1/16

For PlayStation®5 consoles and PlayStation®4 consoles

User Manual

WARNING:

To ensure that your T-GT II racing wheel functions correctly with games,

you may be required to install the game’s automatic updates

(available when your console is connected to the Internet).

2/16

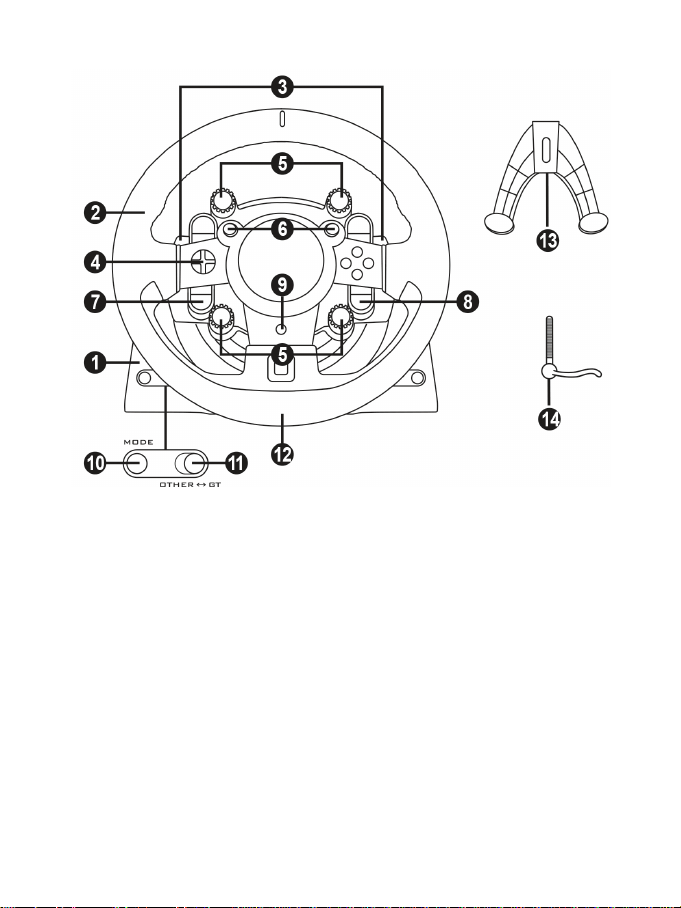

TECHNICAL FEATURES

1T-GT II base

2T-GT II wheel

32 sequential paddle shifters (up & down)

4Directional buttons

54 rotary selectors with Push function

62 mini-sticks

7SHARE/CREATE button

8OPTIONS button

9PS button

10 MODE button + red/green indicator light

11 Built-in USB sliding switch: OTHER / GT

12 Large threaded hole (for attachment

system and fastening screw)

13 Attachment system

14 Metal fastening screw

3/16

15 Thrustmaster Quick Release

16 T-DFB effects system (only compatible

with the PS5™ consoles and PS4™

consoles in GT mode)

17 Connector for T-TURBO power supply

18 Connector for removable USB cable

19 Connector for pedal set (not included)

20 Connector for TH8A shifter (shifter sold

separately)

21 T-TURBO power supply

22 Power supply cable

23 Removable USB cable

PLUGGING THE WHEEL INTO AN ELECTRICAL OUTLET:

PLEASE READ CAREFULLY!

Never plug the T-TURBO power supply into an electrical outlet with a different voltage! The

T-TURBO power supply’s voltage is indicated on the label located above the female connector for the

power supply cable.

Never connect a power supply other than the T-TURBO power supply to the T-GT II base,

even if the connector is compatible! For example, never connect the power adapter for the T500 RS

wheel to the T-GT II base.

4/16

WARNING

Before using this product, please read this manual carefully and save it for later reference.

Warning – Electrical shock

* Keep the product in a dry location and do not expose it to dust or sunlight.

* Do not twist or pull on the connectors and cables.

* Do not spill any liquid on the product or its connectors.

* Do not short-circuit the product.

* Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.

* Do not use a power supply cable other than the one provided with your racing wheel.

* Do not use the power supply cable if the cable or its connectors are damaged, split or broken.

* Make sure that the power supply cable is properly plugged into an electrical outlet, and properly

connected to the connector at the rear of the racing wheel’s base.

* Do not open up the racing wheel: there are no user-serviceable parts inside. Any repairs must be

carried out by the manufacturer, its authorized representative or a qualified technician.

* Only use attachment systems/accessories specified by the manufacturer.

* If the racing wheel is operating abnormally (if it is emitting any abnormal sounds, heat or odors), stop

using it immediately, unplug the power supply cable from the electrical outlet and disconnect the

other cables.

* If you will not be using the racing wheel for an extended period of time, unplug its power supply cable

from the electrical outlet.

* The electrical outlet must be located near the equipment and must be easily accessible.

Information for 220V power supply adapter

Information published

Value

Unit

Manufacturer’s name or trademark,

commercial registration number and

address

GUILLEMOT CORPORATION S.A.

414 196 758 Rennes

Place du Granier

BP 97143

35571 Chantepie Cedex

France

Model identifier

Turbo Power 220V

Input voltage

220 - 240

Input AC frequency

50 / 60

Output voltage

24,0

V AC

Output current

4,0

Output power

96,0

Average active efficiency

90,9

Efficiency at low load (10 %)

86,8

No-load power consumption

0,01

5/16

Air vents

Make sure not to block any of the air vents on the racing wheel’s base. For optimal ventilation, make

sure to do the following:

* Position the wheel’s base at least 10 cm away from any wall surfaces.

* Do not place the base in any tight spaces.

* Do not cover the base.

* Do not let any dust build up on the air vents.

Warning – Injuries due to Force Feedback and repeated movements

Playing with a Force Feedback racing wheel may cause muscle or joint pain. To avoid any problems:

* Avoid lengthy gaming periods.

* Take 10 to 15 minute breaks after each hour of play.

* If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few

hours before you start playing again.

* If the symptoms or pain indicated persist when you start playing again, stop playing and consult your

doctor.

* Keep out of children’s reach.

* During gameplay, always leave both hands correctly positioned on the wheel without completely

letting go.

* During calibration and gameplay, never place your hand or your arm through the openings in the

racing wheel.

* Make sure that the racing wheel’s base is properly secured, as per this manual’s instructions.

Product to be handled only by users

16 years of age or older

HEAVY PRODUCT

Be careful not to drop the product on

yourself or on anyone else!

ALWAYS NEVER NEVER

6/16

UPDATING YOUR RACING WHEEL’S FIRMWARE

The firmware included in your racing wheel’s base can be updated to a more recent version featuring

product enhancements.

To display the firmware version that your racing wheel is currently using and update it if required: on

PC, visit https://support.thrustmaster.com. Click Racing Wheels / T-GT II Pack, then select

Firmware and follow the instructions describing the download and installation procedure.

Important note:

On PC, the USB sliding switch (11)on the racing wheel’s base must always be set to the

“OTHER” position.

7/16

INSTALLING THE WHEEL ON ITS BASE

Align the connector positions using the arrows:

Base (1) connector: Arrow pointing upwards

Racing wheel (2) connector: Arrow pointing upwards

Once the connectors are correctly positioned, simply rotate the Thrustmaster Quick Release (15)

device’s ring anticlockwise, while holding the racing wheel (2) in position.

Then, tighten the ring as much as you can: to do so, hold the ring in position and rotate the racing

wheel clockwise.

Once you have installed the wheel, rotate it 180° (when facing the wheel, the GT logo should be

upside down) to access the small attachment screw located on the ring of the Thrustmaster Quick

Release (15)device. Use a large Phillips screwdriver to tighten the small attachment screw (do not use

excessive force), turning it clockwise.

When using a Philips screwdriver, ensure NOT to use excessive force

when tightening the small attachment screw!

Stop turning the screw as soon as you feel some resistance.

8/16

ATTACHING THE RACING WHEEL

Attaching the racing wheel’s base to a cockpit

24 2 M6-type hexagon head/Phillips-head bolts

25 2 washers

26 2 mounting discs (metal on one side, and textured rubber on the other)

1. Position the washers (25) on the metal sides of the mounting discs (26), and insert the M6-type

hexagon head/Phillips-head bolts (24).

2. Place the racing wheel’s base on the cockpit shelf.

3. Using a 10 mm wrench key or a Phillips-head screwdriver, screw the cockpit mounting kit into the

cockpit shelf and into the 2 small screw threads located on the underside of the wheel.

9/16

ATTENTION:

- Do not remove the foam pads located on the underside of the racing wheel’s base! The foam

pads amplify the effects of the T-DFB system when the wheel is attached.

- The textured rubber side of the mounting discs (26) must imperatively be positioned facing the

cockpit shelf = never position the metal side facing the cockpit shelf.

Attaching the racing wheel to a table or a desktop

1. Place the racing wheel on a table or any other horizontal, flat and stable surface.

2. Insert the fastening screw (14)in the attachment system (13), then tighten the device by turning the

screw anticlockwise, so that it feeds into the large threaded hole (12)located beneath the racing

wheel, until the wheel is perfectly stable.

ALWAYS NEVER

WARNING:

- Never tighten the screw alone, without the attachment system in place (this could damage the

racing wheel).

- Do not remove the foam pads located on the underside of the racing wheel’s base! The foam

pads amplify the effects of the T-DFB system when the wheel is attached.
