Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction 前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

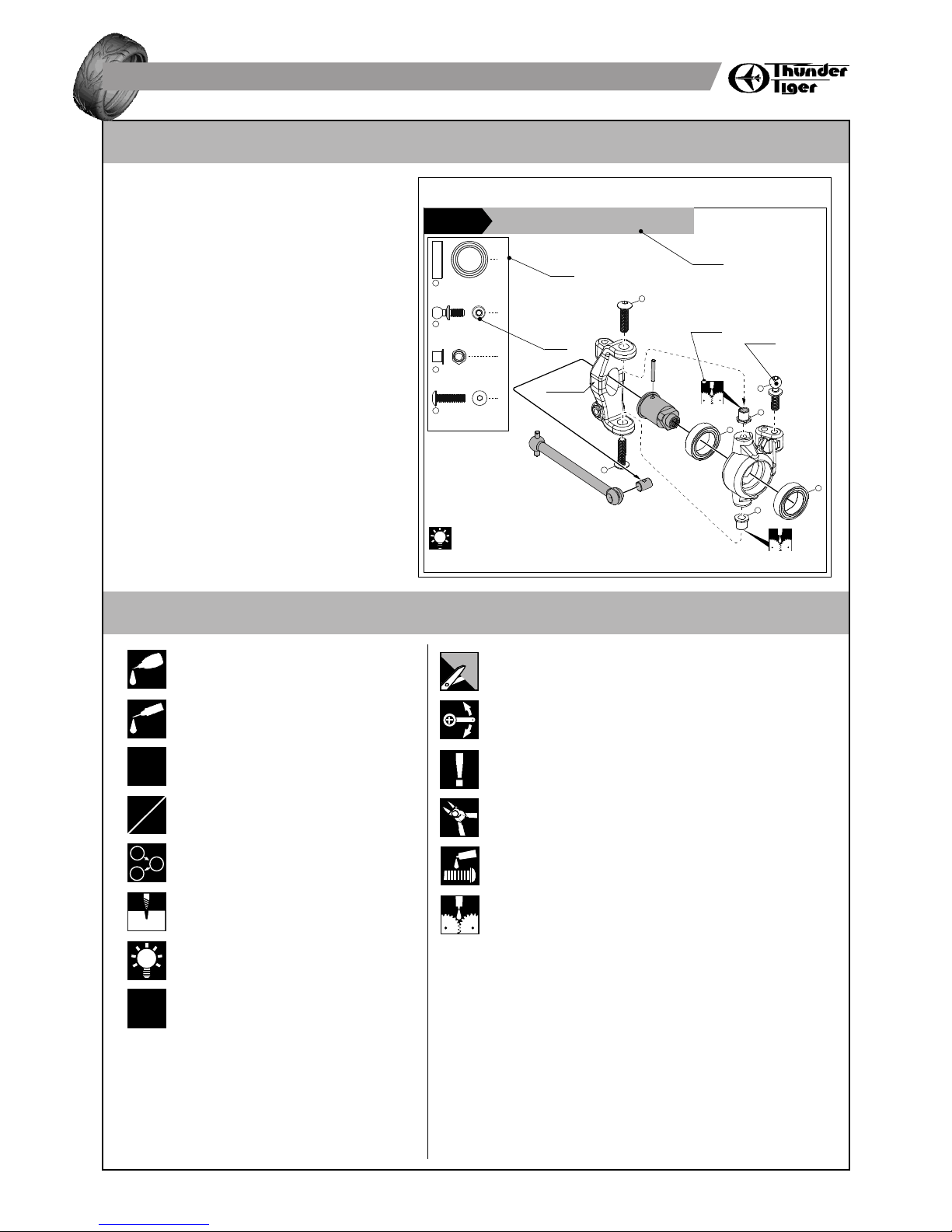

Index 索引

Manual Format

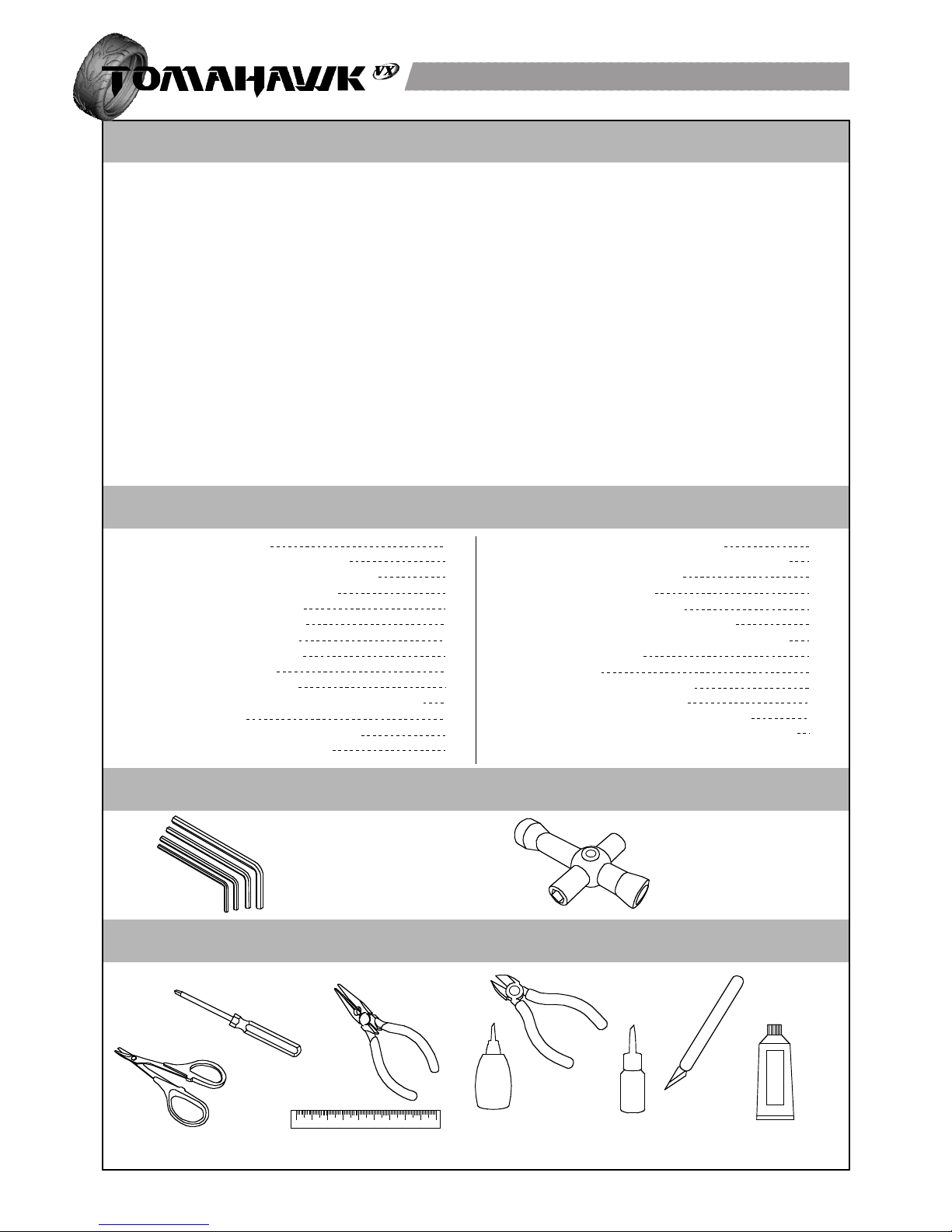

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

Hint

組裝提示

30 31

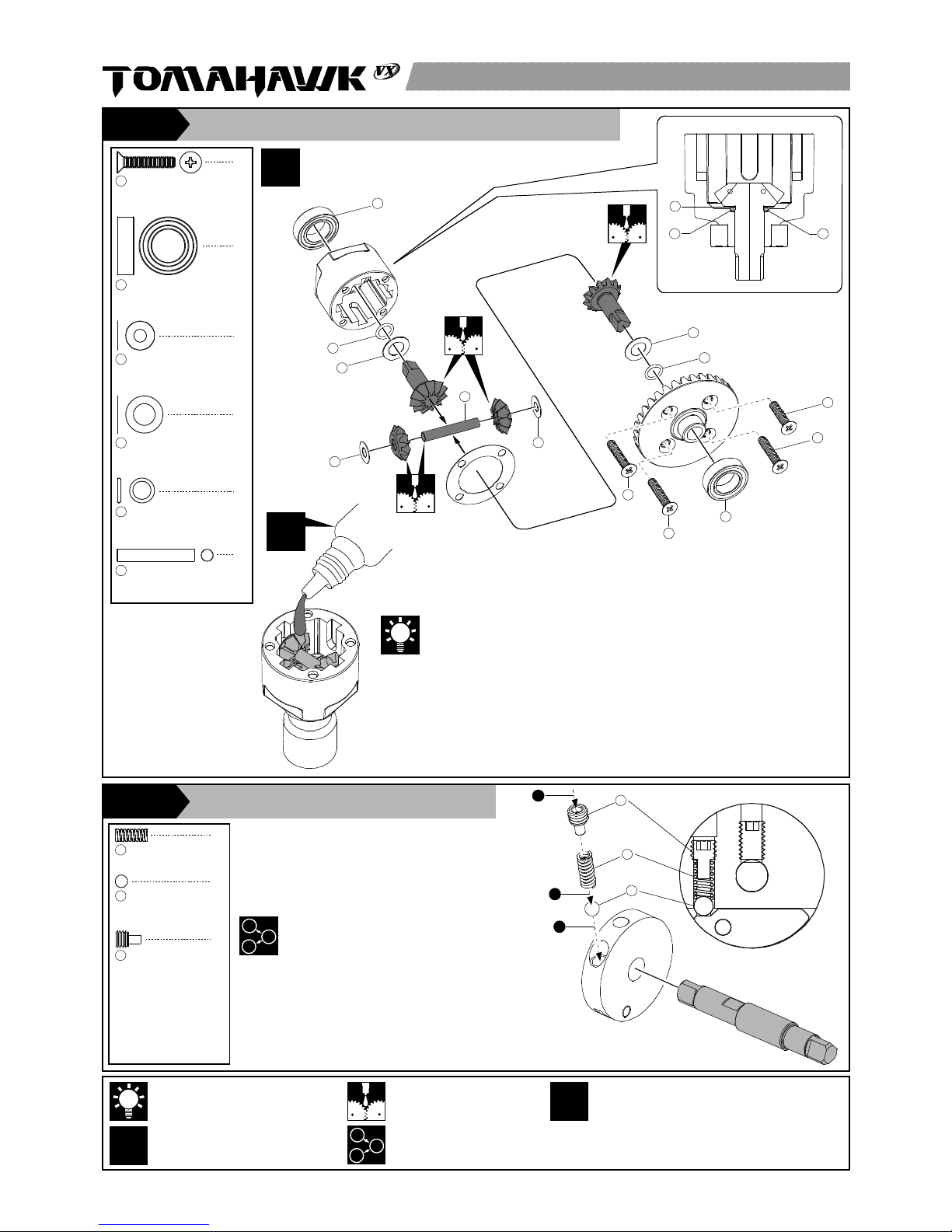

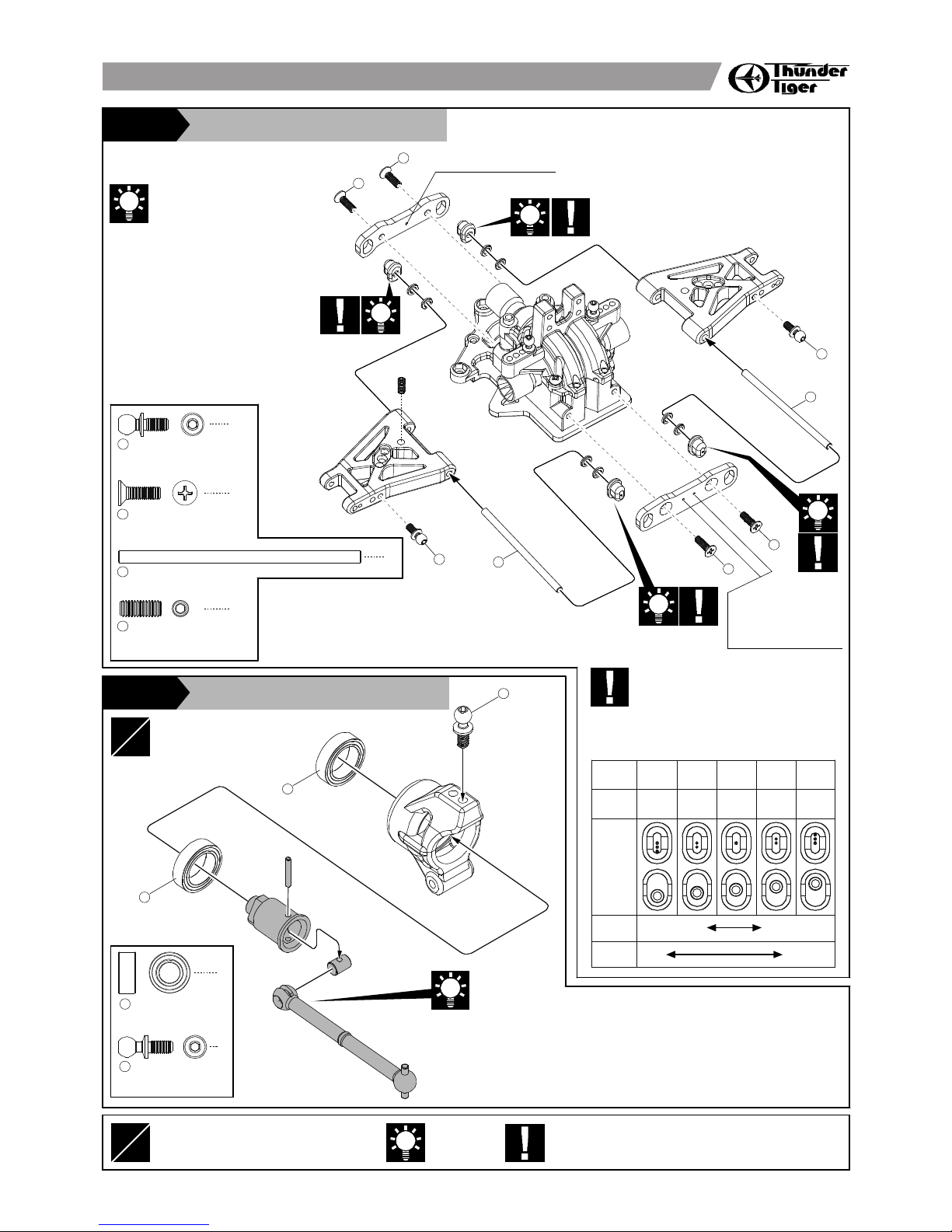

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

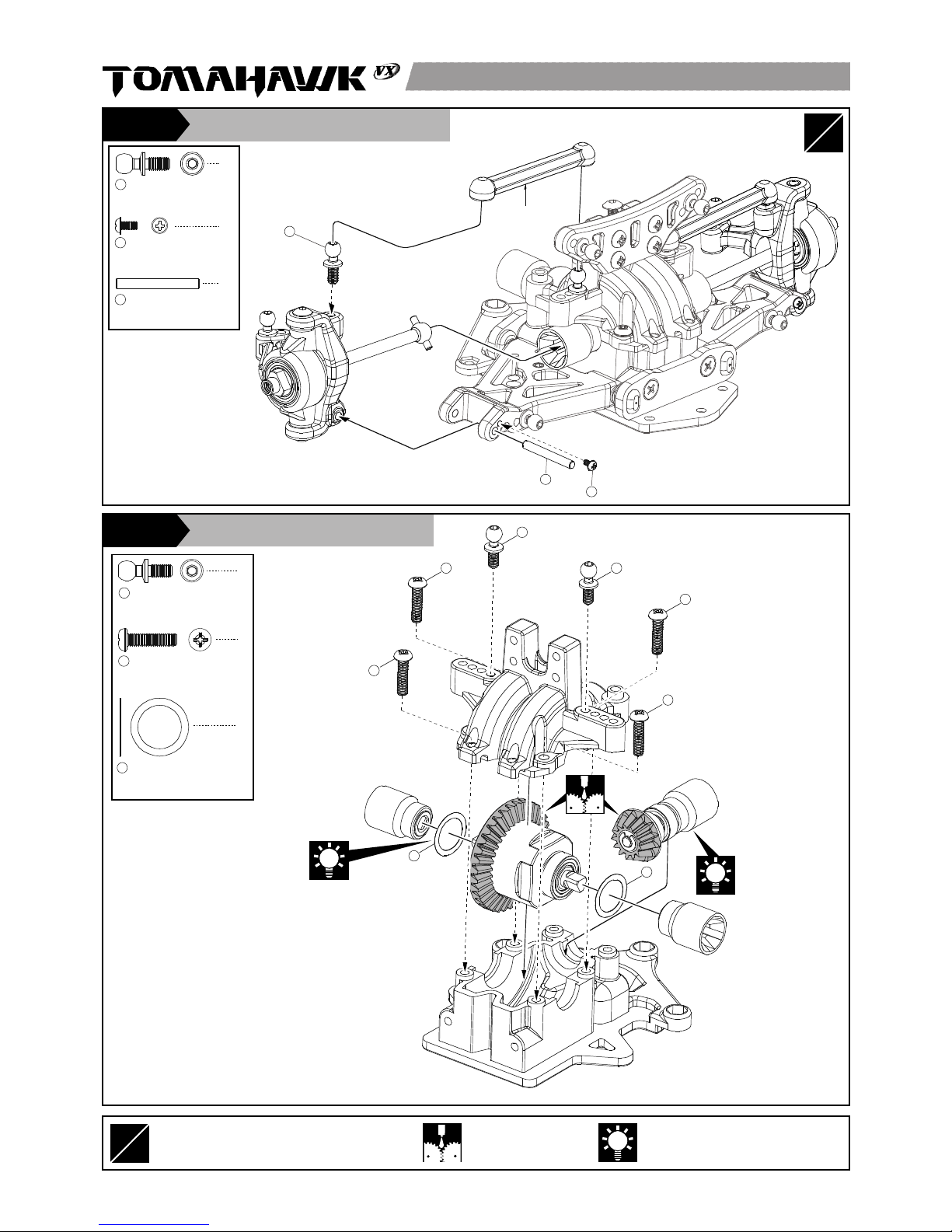

STEP3 Front Differential Unit前差速箱

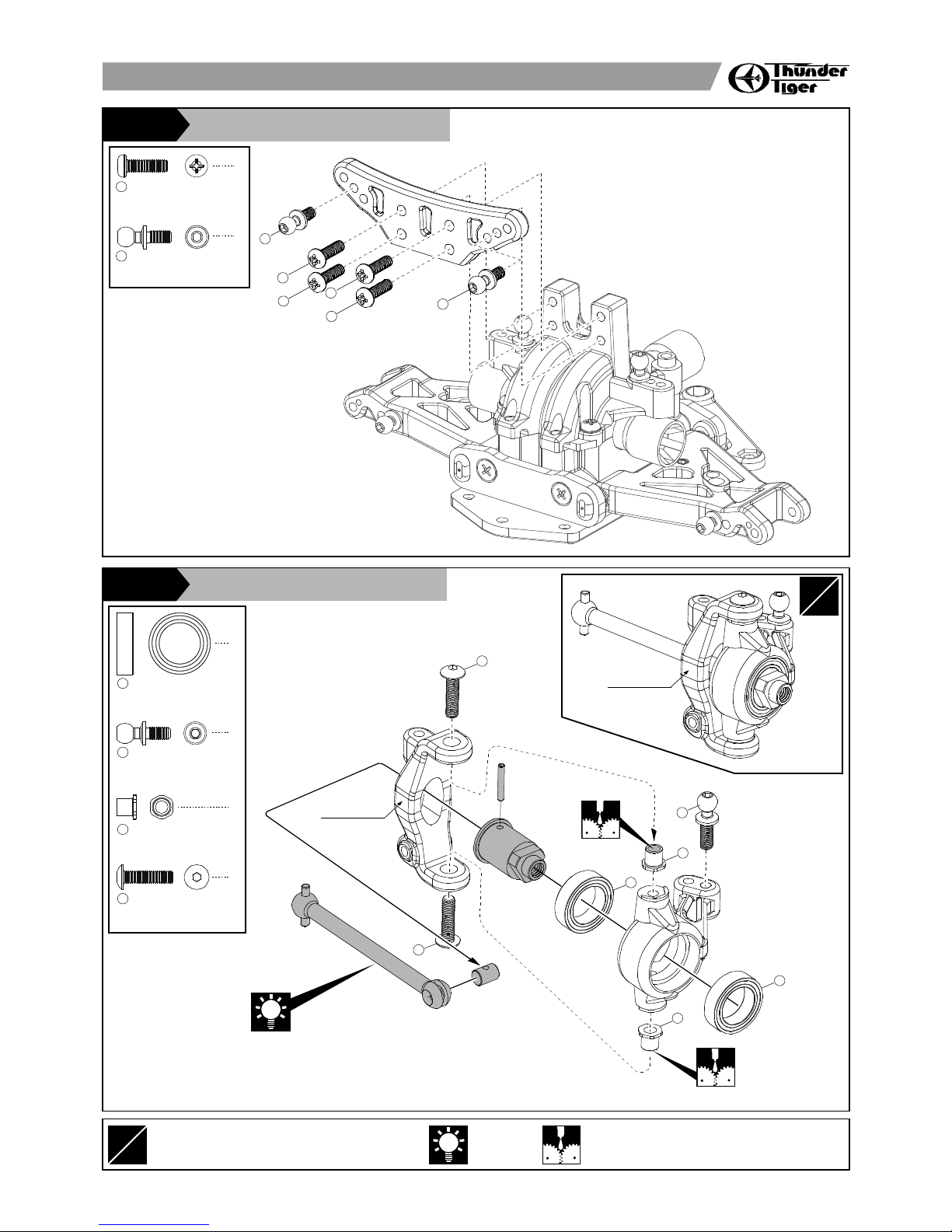

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7

Shock Absorber避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays actual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

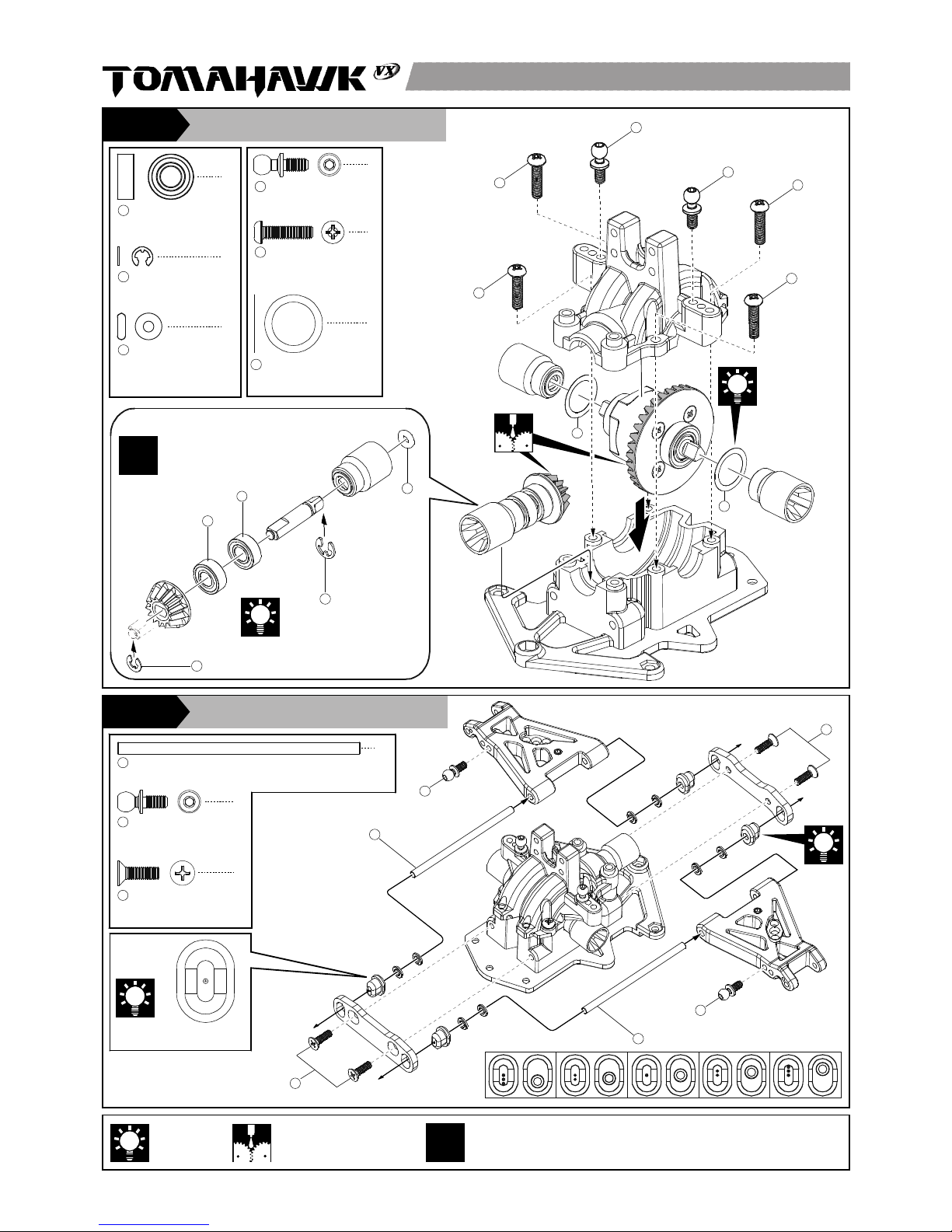

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

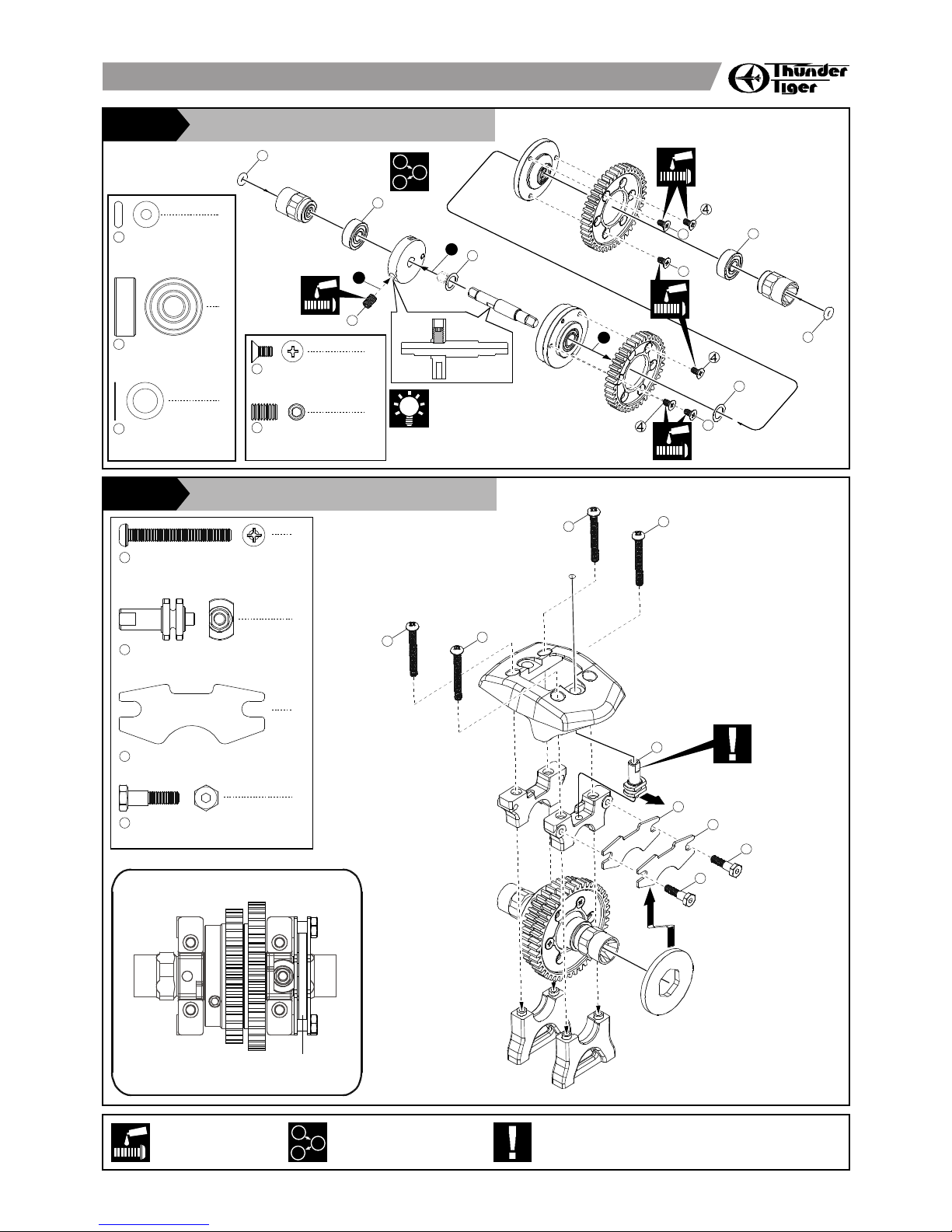

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

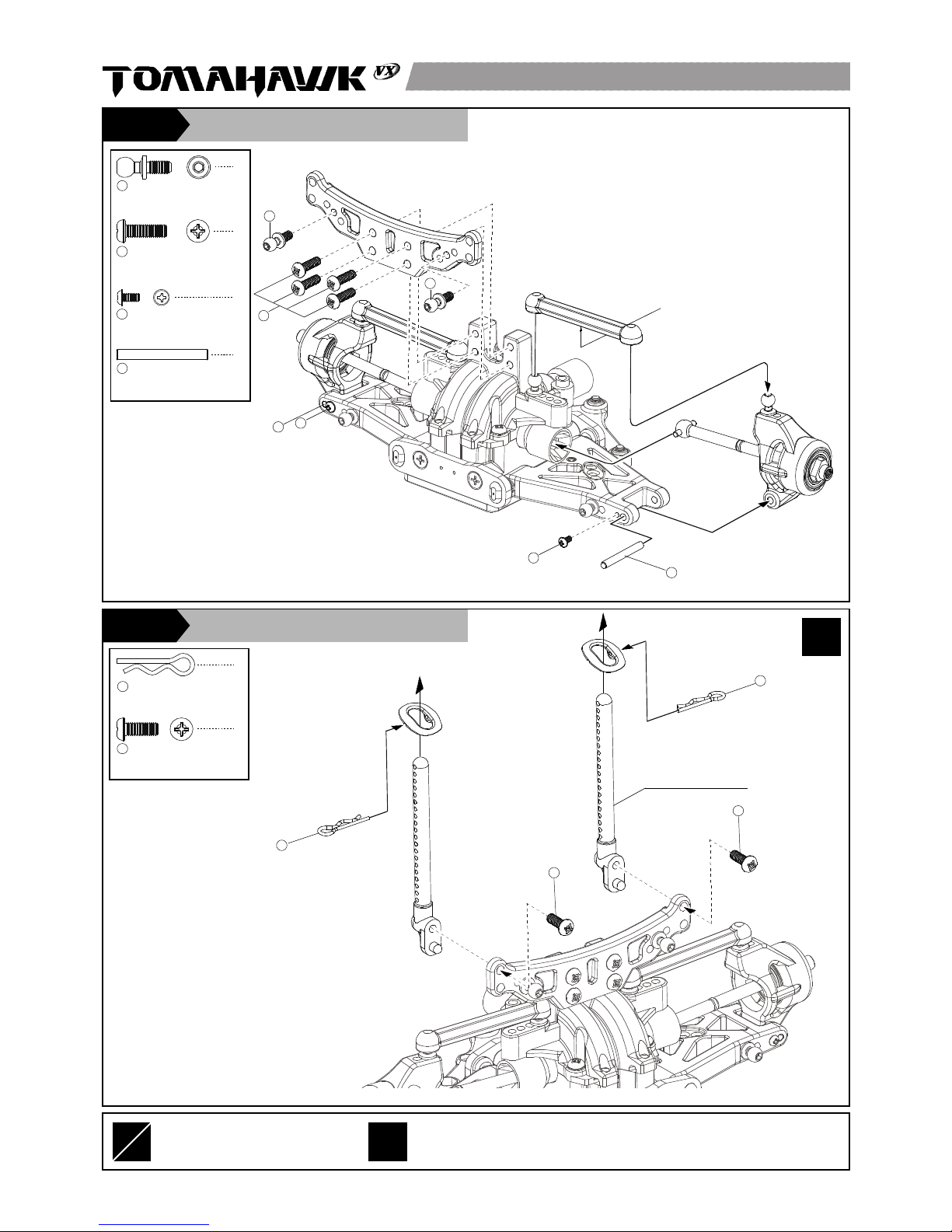

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7

Shock Absorber避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示"S-ST"

Marked "S-ST"

標示"S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTEDXANAVI GT-R R34

CLEARXANAVI GT-R R34W/DECAL

XANAVI GT-R R34DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20),M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20),M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4),5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART#DESCRIPTIONNOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂,26mm(電鍍紅)

10爪輪轂,26mm(黑)

8爪輪轂,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲, M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲(20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20),M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4),5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板

PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架

PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板

PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3)

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃(適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160SHOCK SPRING,RED

避震器彈簧,紅(中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑(特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白(特軟)

TOMAHAWK VX OPTION PART LIST

PART#DESCRIPTIONNOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示"S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm

2mm

4mm

6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE雙色電鍍藍, 26mm

PD6601-P C/PURPLE雙色電鍍紫, 26mm

PD6601-Y C/YELLOW雙色電鍍黃, 26mm

SPRINT DRIFT TIRE疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART#DESCRIPTIONNOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assemble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mmHARD 2.5x1.9mmEXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME電鍍銀, 26mm

PD6682 WHITE白色

, 26mm

PD6682-B BLACK黑色

, 26mm

RACING DISH WHEEL蝶式輪轂

PD7649 WHITE白色, 26mm

PD7650 WHITE白色, 30mm

10爪輪轂

PD7699 WHITE白色, 26mm

PD7770 WHITE白色, 30mm

(2)

WHEEL & TIRE OPTIONPART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803

AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2)(2)(2)(2)

Insert Foam Included.

PD7714OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST

How to read the instruction manual?

Temporarily tighten

暫時鎖附暫時鎖附

True-to-scale diagram

實際尺寸對照

Must be purchased separately

改裝品需另購

Apply C.A Glue

使用快乾膠黏合

Apply silicon oil

使用模型專用矽油

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Drill holes with the specified diameter

依標示尺寸鑽孔

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Apply threadlocker

使用螺絲防鬆膠

Assemble in right order

標示依順序組裝

Assemble as many times as specified

依指示組裝所需數量

Must be purchased separately

改裝品需另購

silicon oil

矽油

Assemble in right order

標示依順序組裝

Pay close attention here

注意組裝步驟

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Pay close attention here

注意組裝步驟

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Apply threadlocker

使用螺絲防鬆膠

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Apply silicon oil

使用模型專用矽油

Apply threadlocker

使用螺絲防鬆膠

Pay close attention here

注意組裝步驟

Apply C.A Glue

使用快乾膠黏合

Assemble as many times as specified

依指示組裝所需數量

Drill holes with the specified diameter

依標示尺寸鑽孔

Pay close attention here

注意組裝步驟

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Pay close attention here

注意組裝步驟

Must be purchased separately

改裝品需另購

Pay close attention here

注意組裝步驟

6mm

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

In the chassis set, these dog bones have been assembled in one-piece unit.

原廠已組配完成

Marked "L"

標示 "L"

Apply grease

使用潤滑油膏(黃油)

STEP20 Tire/Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20

STEP16 Engine Set 引擎與離合器罩

STEP16 Installation of Engine Set引擎安裝

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP12 Installation of Rear Brace 結合後補強版

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box結合電池盒

STEP10 Radio Box 電池盒

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP8

Steering Bellcrank轉向曲柄組

STEP6 Rear Suspension 後擺臂懸吊組

STEP5 Rear Differential Unit後差速箱

STEP2 2-Speed Transmission Unit 2段變速組

24 25 26 27 29

PART# DESCRIPTION NOTE

TOMAHAWK VX PARTS LIST

PD7712

PD8088-1

PD8093

PD8098

PD9051

PD9052

PD9053

PD9054

PD9055

PD9057

PD9058

PD9059

PD9060

PD9061

PD9062

PD9063

PD9064

PD9065

PD9066

PD9067

PD9068

PD9069

PD9070

PD9071

PD9072

PD9073

PD9074

PD9075

PD9076

PD9077

PD9078

PD9079

PD9080

PD9081

PD9082

PD9083

PD9084

PD9085

PD9086

PD9087

PD9088

PD9089

PD9090

PD9091

PD9092

PD9093

PD9094

PD9095

PD9096

PD9097

PD9098

PD9099

PD9100

PD9101

PD9102

PD9103

PD9104

PD9105

PD9106

PD9107

TOMAHAWK VX PART LIST

JD7045 V3

TOMAHAWK VX PART LIST TOMAHAWK VX PART LIST

TOMAHAWK VX PART LIST

2 3

4 5

6 7 8

2120

1817

16151413

ANTENNA BAG,BLACK

SHOCK CAP

SHOCK BLADDER

SHOCK PISTON SET

DIFFERENTIAL CASE

FRONT BULK SET

REAR BULK SET

OUTDRIVE CUP SET

DIFFERENTIAL GEAR SET

DRIVE PINION SET 13T

DIFF SPUR GEAR 34T

ONE WAY BEARING SET

1ST/2ND SPUR GEAR,43/38

2 SPD. CLUTCH HUB

2 SPD. CLUTCH SET

2 SPD. DRIVE SHAFT

CTR DIFF. COVER

CTR DIFF. MOUNT

DISC BRAKE SET

2 SPD. CLUTCH BELL

FLY WHEEL

1ST/2ND PINION ,17/22 GEAR

CLUTCH SHOE SET

ENGINE MOUNT

BUMPER SET

URETHANE BUMPER

SHOCK TOWER SET

FRONT SUSP. ARMS

REAR SUSP. ARMS

STEERING BLOCK SET

CASTER BLOCK SET

FRONT UNIVERSAL SHAFT

OUTER HINGE PIN SET

UPPER LINK SET

SUSP. ARM MOUNT BUSHING

INNER HINGE PIN SET

FRONT TOE PLATE,0

REAR TOE PLATE,2.5

SWING RACK SET

SWING POST SCREW

CTR. DRIVE SHAFT SET

CHASSIS BRACE SET

HUB CARRIER SET

SWITCH PLATE & SPACERS

RADIO TRAY

CHASSIS

REAR UNIVERSAL SHAFT

FUEL TANK

MUFFLER

SILICONE TUBING

MANIFOLD

SHOCK SET

SHOCK SPRING,(2.5x1.8mm),BLUE

SHOCK SHAFT

SHOCK CAP & SPRING COLLAR

SHOCK EYELET

BALL STUD,L

BALL STUD,S

TH/BK LINKAGE SET

STEERING SERVO HORN SET

Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction 前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

Index 索引

Manual Format

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

Hint

組裝提示

30 31

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7

Shock Absorber避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays actual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7

Shock Absorber避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示"S-ST"

Marked "S-ST"

標示"S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTED XANAVI GT-R R34

CLEAR XANAVI GT-R R34 W/DECAL

XANAVI GT-R R34 DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20), M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20), M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4), 5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART# DESCRIPTION NOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂 ,26mm(電鍍紅)

10爪輪轂 ,26mm(黑)

8爪輪轂 ,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲 , M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲 (20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20), M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4), 5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板

PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架

PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板

PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3)

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151 FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃(適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156 HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160SHOCK SPRING,RED

避震器彈簧,紅(中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑(特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白(特軟)

TOMAHAWK VX OPTION PART LIST

PART#DESCRIPTIONNOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示 "S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm

2mm

4mm

6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE雙色電鍍藍, 26mm

PD6601-P C/PURPLE雙色電鍍紫, 26mm

PD6601-Y C/YELLOW雙色電鍍黃, 26mm

SPRINT DRIFT TIRE疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART#DESCRIPTIONNOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assemble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mmHARD 2.5x1.9mmEXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME電鍍銀, 26mm

PD6682 WHITE白色

, 26mm

PD6682-B BLACK黑色

, 26mm

RACING DISH WHEEL蝶式輪轂

PD7649 WHITE白色, 26mm

PD7650 WHITE白色, 30mm

10爪輪轂

PD7699 WHITE白色, 26mm

PD7770 WHITE白色, 30mm

(2)

WHEEL & TIRE OPTIONPART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803

AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2)(2)(2)(2)

Insert Foam Included.

PD7714 OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST

How to read the instruction manual?

Temporarily tighten

暫時鎖附暫時鎖附

True-to-scale diagram

實際尺寸對照

Must be purchased separately

改裝品需另購

Apply C.A Glue

使用快乾膠黏合

Apply silicon oil

使用模型專用矽油

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Drill holes with the specified diameter

依標示尺寸鑽孔

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Apply threadlocker

使用螺絲防鬆膠

Assemble in right order

標示依順序組裝

Assemble as many times as specified

依指示組裝所需數量

Must be purchased separately

改裝品需另購

silicon oil

矽油

Assemble in right order

標示依順序組裝

Pay close attention here

注意組裝步驟

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Pay close attention here

注意組裝步驟

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Apply threadlocker

使用螺絲防鬆膠

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Apply silicon oil

使用模型專用矽油

Apply threadlocker

使用螺絲防鬆膠

Pay close attention here

注意組裝步驟

Apply C.A Glue

使用快乾膠黏合

Assemble as many times as specified

依指示組裝所需數量

Drill holes with the specified diameter

依標示尺寸鑽孔

Pay close attention here

注意組裝步驟

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Pay close attention here

注意組裝步驟

Must be purchased separately

改裝品需另購

Pay close attention here

注意組裝步驟

STEP4 Front Suspension 前擺臂懸吊組

6mm

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

In the chassis set, these dog bones have been assembled in one-piece unit.

原廠已組配完成

Marked "L"

標示 "L"

Apply grease

使用潤滑油膏(黃油)

STEP20 Tire/Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20

STEP16 Engine Set 引擎與離合器罩

STEP16 Installation of Engine Set引擎安裝

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP12 Installation of Rear Brace 結合後補強版

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box結合電池盒

STEP10 Radio Box 電池盒

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP8

Steering Bellcrank轉向曲柄組

STEP6 Rear Suspension 後擺臂懸吊組

STEP5 Rear Differential Unit後差速箱

STEP2 2-Speed Transmission Unit 2段變速組

24 25 26 27 29

PART# DESCRIPTION NOTE

TOMAHAWK VX PARTS LIST

PD7712

PD8088-1

PD8093

PD8098

PD9051

PD9052

PD9053

PD9054

PD9055

PD9057

PD9058

PD9059

PD9060

PD9061

PD9062

PD9063

PD9064

PD9065

PD9066

PD9067

PD9068

PD9069

PD9070

PD9071

PD9072

PD9073

PD9074

PD9075

PD9076

PD9077

PD9078

PD9079

PD9080

PD9081

PD9082

PD9083

PD9084

PD9085

PD9086

PD9087

PD9088

PD9089

PD9090

PD9091

PD9092

PD9093

PD9094

PD9095

PD9096

PD9097

PD9098

PD9099

PD9100

PD9101

PD9102

PD9103

PD9104

PD9105

PD9106

PD9107

TOMAHAWK VX PART LIST

JD7045 V3

TOMAHAWK VX PART LIST TOMAHAWK VX PART LIST

TOMAHAWK VX PART LIST

2 3

4 5

6 7 8

2120

1817

16151413

ANTENNA BAG,BLACK

SHOCK CAP

SHOCK BLADDER

SHOCK PISTON SET

DIFFERENTIAL CASE

FRONT BULK SET

REAR BULK SET

OUTDRIVE CUP SET

DIFFERENTIAL GEAR SET

DRIVE PINION SET 13T

DIFF SPUR GEAR 34T

ONE WAY BEARING SET

1ST/2ND SPUR GEAR,43/38

2 SPD. CLUTCH HUB

2 SPD. CLUTCH SET

2 SPD. DRIVE SHAFT

CTR DIFF. COVER

CTR DIFF. MOUNT

DISC BRAKE SET

2 SPD. CLUTCH BELL

FLY WHEEL

1ST/2ND PINION ,17/22 GEAR

CLUTCH SHOE SET

ENGINE MOUNT

BUMPER SET

URETHANE BUMPER

SHOCK TOWER SET

FRONT SUSP. ARMS

REAR SUSP. ARMS

STEERING BLOCK SET

CASTER BLOCK SET

FRONT UNIVERSAL SHAFT

OUTER HINGE PIN SET

UPPER LINK SET

SUSP. ARM MOUNT BUSHING

INNER HINGE PIN SET

FRONT TOE PLATE,0

REAR TOE PLATE,2.5

SWING RACK SET

SWING POST SCREW

CTR. DRIVE SHAFT SET

CHASSIS BRACE SET

HUB CARRIER SET

SWITCH PLATE & SPACERS

RADIO TRAY

CHASSIS

REAR UNIVERSAL SHAFT

FUEL TANK

MUFFLER

SILICONE TUBING

MANIFOLD

SHOCK SET

SHOCK SPRING,(2.5x1.8mm),BLUE

SHOCK SHAFT

SHOCK CAP & SPRING COLLAR

SHOCK EYELET

BALL STUD,L

BALL STUD,S

TH/BK LINKAGE SET

STEERING SERVO HORN SET

Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction 前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

Index 索引

Manual Format

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

oil

C.A

Hint

組裝提示

30 31

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7 Shock Absorber 避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays actual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7 Shock Absorber避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston 活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示"S-ST"

Marked "S-ST"

標示"S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTED XANAVI GT-R R34

CLEAR XANAVI GT-R R34 W/DECAL

XANAVI GT-R R34 DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20), M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20), M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4), 5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART# DESCRIPTION NOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂 ,26mm(電鍍紅)

10爪輪轂 ,26mm(黑)

8爪輪轂 ,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲 , M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲 (20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20), M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4), 5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140 FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142 FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板 PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架 PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板 PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3 )

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151 FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃 (適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156 HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160 SHOCK SPRING,RED

避震器彈簧,紅 (中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑 (特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白 (特軟)

TOMAHAWK VX OPTION PART LIST

PART#DESCRIPTIONNOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示 "S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm 2mm

4mm 6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE雙色電鍍藍, 26mm

PD6601-P C/PURPLE雙色電鍍紫, 26mm

PD6601-Y C/YELLOW雙色電鍍黃, 26mm

SPRINT DRIFT TIRE疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART#DESCRIPTIONNOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assemble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mm HARD 2.5x1.9mm EXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME電鍍銀, 26mm

PD6682 WHITE白色

, 26mm

PD6682-B BLACK黑色

, 26mm

RACING DISH WHEEL蝶式輪轂

PD7649 WHITE白色, 26mm

PD7650 WHITE白色, 30mm

10爪輪轂

PD7699 WHITE白色, 26mm

PD7770 WHITE白色, 30mm

(2)

WHEEL & TIRE OPTIONPART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803 AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2)(2)(2)(2)

Insert Foam Included.

PD7714 OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST

How to read the instruction manual?

Temporarily tighten

暫時鎖附暫時鎖附

True-to-scale diagram

實際尺寸對照

Must be purchased separately

改裝品需另購

Apply C.A Glue

使用快乾膠黏合

Apply silicon oil

使用模型專用矽油

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Drill holes with the specified diameter

依標示尺寸鑽孔

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Apply threadlocker

使用螺絲防鬆膠

Assemble in right order

標示依順序組裝

Assemble as many times as specified

依指示組裝所需數量

Must be purchased separately

改裝品需另購

silicon oil

矽油

Assemble in right order

標示依順序組裝

Pay close attention here

注意組裝步驟

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Pay close attention here

注意組裝步驟

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Apply threadlocker

使用螺絲防鬆膠

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Apply silicon oil

使用模型專用矽油

Apply threadlocker

使用螺絲防鬆膠

Pay close attention here

注意組裝步驟

Apply C.A Glue

使用快乾膠黏合

Assemble as many times as specified

依指示組裝所需數量

Drill holes with the specified diameter

依標示尺寸鑽孔

Pay close attention here

注意組裝步驟

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Pay close attention here

注意組裝步驟

Must be purchased separately

改裝品需另購

Pay close attention here

注意組裝步驟

6mm

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

In the chassis set, these dog bones have been assembled in one-piece unit.

原廠已組配完成

Marked "L"

標示 "L"

Apply grease

使用潤滑油膏(黃油)

STEP20 Tire/Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20

STEP16 Engine Set 引擎與離合器罩

STEP16 Installation of Engine Set引擎安裝

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP12 Installation of Rear Brace 結合後補強版

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box結合電池盒

STEP10 Radio Box 電池盒

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP8 Steering Bellcrank 轉向曲柄組

STEP6 Rear Suspension 後擺臂懸吊組

STEP5 Rear Differential Unit後差速箱

STEP2 2-Speed Transmission Unit 2段變速組

24 25 26 27 29

PART# DESCRIPTION NOTE

TOMAHAWK VX PARTS LIST

PD7712

PD8088-1

PD8093

PD8098

PD9051

PD9052

PD9053

PD9054

PD9055

PD9057

PD9058

PD9059

PD9060

PD9061

PD9062

PD9063

PD9064

PD9065

PD9066

PD9067

PD9068

PD9069

PD9070

PD9071

PD9072

PD9073

PD9074

PD9075

PD9076

PD9077

PD9078

PD9079

PD9080

PD9081

PD9082

PD9083

PD9084

PD9085

PD9086

PD9087

PD9088

PD9089

PD9090

PD9091

PD9092

PD9093

PD9094

PD9095

PD9096

PD9097

PD9098

PD9099

PD9100

PD9101

PD9102

PD9103

PD9104

PD9105

PD9106

PD9107

TOMAHAWK VX PART LIST

JD7045 V3

TOMAHAWK VX PART LIST TOMAHAWK VX PART LIST

TOMAHAWK VX PART LIST

2 3

4 5

6 7 8

2120

1817

16151413

ANTENNA BAG,BLACK

SHOCK CAP

SHOCK BLADDER

SHOCK PISTON SET

DIFFERENTIAL CASE

FRONT BULK SET

REAR BULK SET

OUTDRIVE CUP SET

DIFFERENTIAL GEAR SET

DRIVE PINION SET 13T

DIFF SPUR GEAR 34T

ONE WAY BEARING SET

1ST/2ND SPUR GEAR,43/38

2 SPD. CLUTCH HUB

2 SPD. CLUTCH SET

2 SPD. DRIVE SHAFT

CTR DIFF. COVER

CTR DIFF. MOUNT

DISC BRAKE SET

2 SPD. CLUTCH BELL

FLY WHEEL

1ST/2ND PINION ,17/22 GEAR

CLUTCH SHOE SET

ENGINE MOUNT

BUMPER SET

URETHANE BUMPER

SHOCK TOWER SET

FRONT SUSP. ARMS

REAR SUSP. ARMS

STEERING BLOCK SET

CASTER BLOCK SET

FRONT UNIVERSAL SHAFT

OUTER HINGE PIN SET

UPPER LINK SET

SUSP. ARM MOUNT BUSHING

INNER HINGE PIN SET

FRONT TOE PLATE,0

REAR TOE PLATE,2.5

SWING RACK SET

SWING POST SCREW

CTR. DRIVE SHAFT SET

CHASSIS BRACE SET

HUB CARRIER SET

SWITCH PLATE & SPACERS

RADIO TRAY

CHASSIS

REAR UNIVERSAL SHAFT

FUEL TANK

MUFFLER

SILICONE TUBING

MANIFOLD

SHOCK SET

SHOCK SPRING,(2.5x1.8mm),BLUE

SHOCK SHAFT

SHOCK CAP & SPRING COLLAR

SHOCK EYELET

BALL STUD,L

BALL STUD,S

TH/BK LINKAGE SET

STEERING SERVO HORN SET

Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction 前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

Index 索引

Manual Format

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

Hint

組裝提示

30 31

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7 Shock Absorber 避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays ac tual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7 Shock Absorber 避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston 活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

5 5

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank 轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示 "S-ST"

Marked "S-ST"

標示"S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTED XANAVI GT-R R34

CLEAR XANAVI GT-R R34 W/DECAL

XANAVI GT-R R34 DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20), M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20), M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4), 5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART# DESCRIPTION NOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂 ,26mm(電鍍紅)

10爪輪轂 ,26mm(黑)

8爪輪轂 ,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲 , M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲 (20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20), M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4), 5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140 FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142 FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板 PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架 PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板 PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3 )

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151 FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃 (適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156 HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160 SHOCK SPRING,RED

避震器彈簧,紅 (中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑 (特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白 (特軟)

TOMAHAWK VX OPTION PART LIST

PART# DESCRIPTION NOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3 ）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示 "S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm 2mm

4mm 6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE 雙色電鍍藍 , 26mm

PD6601-P C/PURPLE 雙色電鍍紫, 26mm

PD6601-Y C/YELLOW 雙色電鍍黃, 26mm

SPRINT DRIFT TIRE 疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART# DESCRIPTION NOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assemble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mm HARD 2.5x1.9mm EXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME電鍍銀, 26mm

PD6682 WHITE白色

, 26mm

PD6682-B BLACK黑色

, 26mm

RACING DISH WHEEL蝶式輪轂

PD7649 WHITE白色, 26mm

PD7650 WHITE白色, 30mm

10爪輪轂

PD7699 WHITE白色, 26mm

PD7770 WHITE白色, 30mm

(2)

WHEEL & TIRE OPTIONPART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803 AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2) (2)(2)(2)

Insert Foam Included.

PD7714 OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876 ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST

How to read the instruction manual?

Temporarily tighten

暫時鎖附暫時鎖附

True-to-scale diagram

實際尺寸對照

Must be purchased separately

改裝品需另購

Apply C.A Glue

使用快乾膠黏合

Apply silicon oil

使用模型專用矽油

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Drill holes with the specified diameter

依標示尺寸鑽孔

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Apply threadlocker

使用螺絲防鬆膠

Assemble in right order

標示依順序組裝

Assemble as many times as specified

依指示組裝所需數量

Must be purchased separately

改裝品需另購

silicon oil

矽油

Assemble in right order

標示依順序組裝

Pay close attention here

注意組裝步驟

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Pay close attention here

注意組裝步驟

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Apply threadlocker

使用螺絲防鬆膠

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Apply silicon oil

使用模型專用矽油

Apply threadlocker

使用螺絲防鬆膠

Pay close attention here

注意組裝步驟

Apply C.A Glue

使用快乾膠黏合

Assemble as many times as specified

依指示組裝所需數量

Drill holes with the specified diameter

依標示尺寸鑽孔

Pay close attention here

注意組裝步驟

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Pay close attention here

注意組裝步驟

Must be purchased separately

改裝品需另購

Pay close attention here

注意組裝步驟

6mm

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

In the chassis set, these dog bones have been assembled in one-piece unit.

原廠已組配完成

Marked "L"

標示 "L"

Apply grease

使用潤滑油膏(黃油)

STEP20 Tire/Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20

STEP16 Engine Set 引擎與離合器罩

STEP16 Installation of Engine Set引擎安裝

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP12 Installation of Rear Brace 結合後補強版

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box結合電池盒

STEP10 Radio Box 電池盒

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP8 Steering Bellcrank 轉向曲柄組

STEP6 Rear Suspension 後擺臂懸吊組

STEP5 Rear Differential Unit後差速箱

STEP2 2-Speed Transmission Unit 2段變速組

24 25 26 27 29

PART# DESCRIPTION NOTE

TOMAHAWK VX PARTS LIST

PD7712

PD8088-1

PD8093

PD8098

PD9051

PD9052

PD9053

PD9054

PD9055

PD9057

PD9058

PD9059

PD9060

PD9061

PD9062

PD9063

PD9064

PD9065

PD9066

PD9067

PD9068

PD9069

PD9070

PD9071

PD9072

PD9073

PD9074

PD9075

PD9076

PD9077

PD9078

PD9079

PD9080

PD9081

PD9082

PD9083

PD9084

PD9085

PD9086

PD9087

PD9088

PD9089

PD9090

PD9091

PD9092

PD9093

PD9094

PD9095

PD9096

PD9097

PD9098

PD9099

PD9100

PD9101

PD9102

PD9103

PD9104

PD9105

PD9106

PD9107

TOMAHAWK VX PART LIST

JD7045 V3

TOMAHAWK VX PART LIST TOMAHAWK VX PART LIST

TOMAHAWK VX PART LIST

2 3

4 5

6 7 8

2120

1817

16151413

ANTENNA BAG,BLACK

SHOCK CAP

SHOCK BLADDER

SHOCK PISTON SET

DIFFERENTIAL CASE

FRONT BULK SET

REAR BULK SET

OUTDRIVE CUP SET

DIFFERENTIAL GEAR SET

DRIVE PINION SET 13T

DIFF SPUR GEAR 34T

ONE WAY BEARING SET

1ST/2ND SPUR GEAR,43/38

2 SPD. CLUTCH HUB

2 SPD. CLUTCH SET

2 SPD. DRIVE SHAFT

CTR DIFF. COVER

CTR DIFF. MOUNT

DISC BRAKE SET

2 SPD. CLUTCH BELL

FLY WHEEL

1ST/2ND PINION ,17/22 GEAR

CLUTCH SHOE SET

ENGINE MOUNT

BUMPER SET

URETHANE BUMPER

SHOCK TOWER SET

FRONT SUSP. ARMS

REAR SUSP. ARMS

STEERING BLOCK SET

CASTER BLOCK SET

FRONT UNIVERSAL SHAFT

OUTER HINGE PIN SET

UPPER LINK SET

SUSP. ARM MOUNT BUSHING

INNER HINGE PIN SET

FRONT TOE PLATE,0

REAR TOE PLATE,2.5

SWING RACK SET

SWING POST SCREW

CTR. DRIVE SHAFT SET

CHASSIS BRACE SET

HUB CARRIER SET

SWITCH PLATE & SPACERS

RADIO TRAY

CHASSIS

REAR UNIVERSAL SHAFT

FUEL TANK

MUFFLER

SILICONE TUBING

MANIFOLD

SHOCK SET

SHOCK SPRING,(2.5x1.8mm),BLUE

SHOCK SHAFT

SHOCK CAP & SPRING COLLAR

SHOCK EYELET

BALL STUD,L

BALL STUD,S

TH/BK LINKAGE SET

STEERING SERVO HORN SET

Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction 前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

Index 索引

Manual Format

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

Hint

組裝提示

30 31

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7 Shock Absorber 避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays ac tual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7 Shock Absorber 避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston 活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank 轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示 "S-ST"

Marked "S-ST"

標示 "S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTED XANAVI GT-R R34

CLEAR XANAVI GT-R R34 W/DECAL

XANAVI GT-R R34 DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20), M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20), M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4), 5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART# DESCRIPTION NOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂 ,26mm(電鍍紅)

10爪輪轂 ,26mm(黑)

8爪輪轂 ,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲 , M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲 (20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20), M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4), 5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140 FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142 FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板 PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架 PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板 PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3 )

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151 FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃 (適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156 HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160 SHOCK SPRING,RED

避震器彈簧,紅 (中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑 (特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白 (特軟)

TOMAHAWK VX OPTION PART LIST

PART# DESCRIPTION NOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3 ）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示 "S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm 2mm

4mm 6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE 雙色電鍍藍 , 26mm

PD6601-P C/PURPLE 雙色電鍍紫, 26mm

PD6601-Y C/YELLOW 雙色電鍍黃, 26mm

SPRINT DRIFT TIRE 疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART# DESCRIPTION NOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE 脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assemble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mm HARD 2.5x1.9mm EXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME 電鍍銀, 26mm

PD6682 WHITE 白色

, 26mm

PD6682-B BLACK 黑色

, 26mm

RACING DISH WHEEL 蝶式輪轂

PD7649 WHITE 白色 , 26mm

PD7650 WHITE 白色 , 30mm

10爪輪轂

PD7699 WHITE 白色, 26mm

PD7770 WHITE 白色, 30mm

(2)

WHEEL & TIRE OPTION PART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803 AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2) (2) (2) (2)

Insert Foam Included.

PD7714 OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876 ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST

How to read the instruction manual?

Temporarily tighten

暫時鎖附暫時鎖附

True-to-scale diagram

實際尺寸對照

Must be purchased separately

改裝品需另購

Apply C.A Glue

使用快乾膠黏合

Apply silicon oil

使用模型專用矽油

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Drill holes with the specified diameter

依標示尺寸鑽孔

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Apply threadlocker

使用螺絲防鬆膠

Assemble in right order

標示依順序組裝

Assemble as many times as specified

依指示組裝所需數量

Must be purchased separately

改裝品需另購

silicon oil

矽油

Assemble in right order

標示依順序組裝

Pay close attention here

注意組裝步驟

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Pay close attention here

注意組裝步驟

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Apply threadlocker

使用螺絲防鬆膠

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Apply silicon oil

使用模型專用矽油

Apply threadlocker

使用螺絲防鬆膠

Pay close attention here

注意組裝步驟

Apply C.A Glue

使用快乾膠黏合

Assemble as many times as specified

依指示組裝所需數量

Drill holes with the specified diameter

依標示尺寸鑽孔

Pay close attention here

注意組裝步驟

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Pay close attention here

注意組裝步驟

Must be purchased separately

改裝品需另購

Pay close attention here

注意組裝步驟

6mm

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

In the chassis set, these dog bones have been assembled in one-piece unit.

原廠已組配完成

Marked "L"

標示 "L"

Apply grease

使用潤滑油膏(黃油)

STEP20 Tire/Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20

STEP16 Engine Set 引擎與離合器罩

STEP16 Installation of Engine Set引擎安裝

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP12 Installation of Rear Brace 結合後補強版

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box結合電池盒

STEP10 Radio Box 電池盒

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP8 Steering Bellcrank 轉向曲柄組

STEP6 Rear Suspension 後擺臂懸吊組

STEP5 Rear Differential Unit後差速箱

STEP2 2-Speed Transmission Unit 2段變速組

24 25 26 27 29

PART# DESCRIPTION NOTE

TOMAHAWK VX PARTS LIST

PD7712

PD8088-1

PD8093

PD8098

PD9051

PD9052

PD9053

PD9054

PD9055

PD9057

PD9058

PD9059

PD9060

PD9061

PD9062

PD9063

PD9064

PD9065

PD9066

PD9067

PD9068

PD9069

PD9070

PD9071

PD9072

PD9073

PD9074

PD9075

PD9076

PD9077

PD9078

PD9079

PD9080

PD9081

PD9082

PD9083

PD9084

PD9085

PD9086

PD9087

PD9088

PD9089

PD9090

PD9091

PD9092

PD9093

PD9094

PD9095

PD9096

PD9097

PD9098

PD9099

PD9100

PD9101

PD9102

PD9103

PD9104

PD9105

PD9106

PD9107

TOMAHAWK VX PART LIST

JD7045 V3

TOMAHAWK VX PART LIST TOMAHAWK VX PART LIST

TOMAHAWK VX PART LIST

2 3

4 5

6 7 8

2120

1817

16151413

ANTENNA BAG,BLACK

SHOCK CAP

SHOCK BLADDER

SHOCK PISTON SET

DIFFERENTIAL CASE

FRONT BULK SET

REAR BULK SET

OUTDRIVE CUP SET

DIFFERENTIAL GEAR SET

DRIVE PINION SET 13T

DIFF SPUR GEAR 34T

ONE WAY BEARING SET

1ST/2ND SPUR GEAR,43/38

2 SPD. CLUTCH HUB

2 SPD. CLUTCH SET

2 SPD. DRIVE SHAFT

CTR DIFF. COVER

CTR DIFF. MOUNT

DISC BRAKE SET

2 SPD. CLUTCH BELL

FLY WHEEL

1ST/2ND PINION ,17/22 GEAR

CLUTCH SHOE SET

ENGINE MOUNT

BUMPER SET

URETHANE BUMPER

SHOCK TOWER SET

FRONT SUSP. ARMS

REAR SUSP. ARMS

STEERING BLOCK SET

CASTER BLOCK SET

FRONT UNIVERSAL SHAFT

OUTER HINGE PIN SET

UPPER LINK SET

SUSP. ARM MOUNT BUSHING

INNER HINGE PIN SET

FRONT TOE PLATE,0

REAR TOE PLATE,2.5

SWING RACK SET

SWING POST SCREW

CTR. DRIVE SHAFT SET

CHASSIS BRACE SET

HUB CARRIER SET

SWITCH PLATE & SPACERS

RADIO TRAY

CHASSIS

REAR UNIVERSAL SHAFT

FUEL TANK

MUFFLER

SILICONE TUBING

MANIFOLD

SHOCK SET

SHOCK SPRING,(2.5x1.8mm),BLUE

SHOCK SHAFT

SHOCK CAP & SPRING COLLAR

SHOCK EYELET

BALL STUD,L

BALL STUD,S

TH/BK LINKAGE SET

STEERING SERVO HORN SET

Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction 前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

Index 索引

Manual Format

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

Hint

組裝提示

30 31

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7 Shock Absorber 避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays ac tual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7 Shock Absorber 避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston 活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank 轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示 "S-ST"

Marked "S-ST"

標示 "S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTED XANAVI GT-R R34

CLEAR XANAVI GT-R R34 W/DECAL

XANAVI GT-R R34 DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20), M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20), M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4), 5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART# DESCRIPTION NOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂 ,26mm(電鍍紅)

10爪輪轂 ,26mm(黑)

8爪輪轂 ,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲 , M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲 (20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20), M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4), 5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140 FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142 FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板 PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架 PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板 PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3 )

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151 FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃 (適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156 HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160 SHOCK SPRING,RED

避震器彈簧,紅 (中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑 (特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白 (特軟)

TOMAHAWK VX OPTION PART LIST

PART# DESCRIPTION NOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3 ）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示 "S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm 2mm

4mm 6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE 雙色電鍍藍 , 26mm

PD6601-P C/PURPLE 雙色電鍍紫, 26mm

PD6601-Y C/YELLOW 雙色電鍍黃, 26mm

SPRINT DRIFT TIRE 疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART# DESCRIPTION NOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE 脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assemble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mm HARD 2.5x1.9mm EXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME 電鍍銀, 26mm

PD6682 WHITE 白色

, 26mm

PD6682-B BLACK 黑色

, 26mm

RACING DISH WHEEL 蝶式輪轂

PD7649 WHITE 白色 , 26mm

PD7650 WHITE 白色 , 30mm

10爪輪轂

PD7699 WHITE 白色, 26mm

PD7770 WHITE 白色, 30mm

(2)

WHEEL & TIRE OPTION PART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803 AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2) (2) (2) (2)

Insert Foam Included.

PD7714 OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876 ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST

How to read the instruction manual?

Temporarily tighten

暫時鎖附暫時鎖附

True-to-scale diagram

實際尺寸對照

Must be purchased separately

改裝品需另購

Apply C.A Glue

使用快乾膠黏合

Apply silicon oil

使用模型專用矽油

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Drill holes with the specified diameter

依標示尺寸鑽孔

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Apply threadlocker

使用螺絲防鬆膠

Assemble in right order

標示依順序組裝

Assemble as many times as specified

依指示組裝所需數量

Must be purchased separately

改裝品需另購

silicon oil

矽油

Assemble in right order

標示依順序組裝

Pay close attention here

注意組裝步驟

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Pay close attention here

注意組裝步驟

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Apply threadlocker

使用螺絲防鬆膠

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Apply silicon oil

使用模型專用矽油

Apply threadlocker

使用螺絲防鬆膠

Pay close attention here

注意組裝步驟

Apply C.A Glue

使用快乾膠黏合

Assemble as many times as specified

依指示組裝所需數量

Drill holes with the specified diameter

依標示尺寸鑽孔

Pay close attention here

注意組裝步驟

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Pay close attention here

注意組裝步驟

Must be purchased separately

改裝品需另購

Pay close attention here

注意組裝步驟

6mm

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

In the chassis set, these dog bones have been assembled in one-piece unit.

原廠已組配完成

Marked "L"

標示 "L"

Apply grease

使用潤滑油膏(黃油)

STEP20 Tire/Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20

STEP16 Engine Set 引擎與離合器罩

STEP16 Installation of Engine Set引擎安裝

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP12 Installation of Rear Brace 結合後補強版

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box結合電池盒

STEP10 Radio Box 電池盒

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP8 Steering Bellcrank 轉向曲柄組

STEP6 Rear Suspension 後擺臂懸吊組

STEP5 Rear Differential Unit後差速箱

STEP2 2-Speed Transmission Unit 2段變速組

24 25 26 27 29

PART# DESCRIPTION NOTE

TOMAHAWK VX PARTS LIST

PD7712

PD8088-1

PD8093

PD8098

PD9051

PD9052

PD9053

PD9054

PD9055

PD9057

PD9058

PD9059

PD9060

PD9061

PD9062

PD9063

PD9064

PD9065

PD9066

PD9067

PD9068

PD9069

PD9070

PD9071

PD9072

PD9073

PD9074

PD9075

PD9076

PD9077

PD9078

PD9079

PD9080

PD9081

PD9082

PD9083

PD9084

PD9085

PD9086

PD9087

PD9088

PD9089

PD9090

PD9091

PD9092

PD9093

PD9094

PD9095

PD9096

PD9097

PD9098

PD9099

PD9100

PD9101

PD9102

PD9103

PD9104

PD9105

PD9106

PD9107

TOMAHAWK VX PART LIST

JD7045 V3

TOMAHAWK VX PART LIST TOMAHAWK VX PART LIST

TOMAHAWK VX PART LIST

2 3

4 5

6 7 8

2120

1817

16151413

ANTENNA BAG,BLACK

SHOCK CAP

SHOCK BLADDER

SHOCK PISTON SET

DIFFERENTIAL CASE

FRONT BULK SET

REAR BULK SET

OUTDRIVE CUP SET

DIFFERENTIAL GEAR SET

DRIVE PINION SET 13T

DIFF SPUR GEAR 34T

ONE WAY BEARING SET

1ST/2ND SPUR GEAR,43/38

2 SPD. CLUTCH HUB

2 SPD. CLUTCH SET

2 SPD. DRIVE SHAFT

CTR DIFF. COVER

CTR DIFF. MOUNT

DISC BRAKE SET

2 SPD. CLUTCH BELL

FLY WHEEL

1ST/2ND PINION ,17/22 GEAR

CLUTCH SHOE SET

ENGINE MOUNT

BUMPER SET

URETHANE BUMPER

SHOCK TOWER SET

FRONT SUSP. ARMS

REAR SUSP. ARMS

STEERING BLOCK SET

CASTER BLOCK SET

FRONT UNIVERSAL SHAFT

OUTER HINGE PIN SET

UPPER LINK SET

SUSP. ARM MOUNT BUSHING

INNER HINGE PIN SET

FRONT TOE PLATE,0

REAR TOE PLATE,2.5

SWING RACK SET

SWING POST SCREW

CTR. DRIVE SHAFT SET

CHASSIS BRACE SET

HUB CARRIER SET

SWITCH PLATE & SPACERS

RADIO TRAY

CHASSIS

REAR UNIVERSAL SHAFT

FUEL TANK

MUFFLER

SILICONE TUBING

MANIFOLD

SHOCK SET

SHOCK SPRING,(2.5x1.8mm),BLUE

SHOCK SHAFT

SHOCK CAP & SPRING COLLAR

SHOCK EYELET

BALL STUD,L

BALL STUD,S

TH/BK LINKAGE SET

STEERING SERVO HORN SET

Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction 前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

Index 索引

Manual Format

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

Hint

組裝提示

30 31

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7 Shock Absorber 避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays ac tual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7 Shock Absorber 避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉 LR

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston 活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank 轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示 "S-ST"

Marked "S-ST"

標示 "S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTED XANAVI GT-R R34

CLEAR XANAVI GT-R R34 W/DECAL

XANAVI GT-R R34 DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20), M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20), M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4), 5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART# DESCRIPTION NOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂 ,26mm(電鍍紅)

10爪輪轂 ,26mm(黑)

8爪輪轂 ,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲 , M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲 (20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20), M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4), 5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140 FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142 FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板 PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架 PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板 PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3 )

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151 FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃 (適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156 HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160 SHOCK SPRING,RED

避震器彈簧,紅 (中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑 (特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白 (特軟)

TOMAHAWK VX OPTION PART LIST

PART# DESCRIPTION NOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3 ）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示 "S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm 2mm

4mm 6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE 雙色電鍍藍 , 26mm

PD6601-P C/PURPLE 雙色電鍍紫, 26mm

PD6601-Y C/YELLOW 雙色電鍍黃, 26mm

SPRINT DRIFT TIRE 疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART# DESCRIPTION NOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE 脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assemble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mm HARD 2.5x1.9mm EXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME 電鍍銀, 26mm

PD6682 WHITE 白色

, 26mm

PD6682-B BLACK 黑色

, 26mm

RACING DISH WHEEL 蝶式輪轂

PD7649 WHITE 白色 , 26mm

PD7650 WHITE 白色 , 30mm

10爪輪轂

PD7699 WHITE 白色, 26mm

PD7770 WHITE 白色, 30mm

(2)

WHEEL & TIRE OPTION PART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803 AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2) (2) (2) (2)

Insert Foam Included.

PD7714 OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876 ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST

How to read the instruction manual?

Temporarily tighten

暫時鎖附暫時鎖附

True-to-scale diagram

實際尺寸對照

Must be purchased separately

改裝品需另購

Apply C.A Glue

使用快乾膠黏合

Apply silicon oil

使用模型專用矽油

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Drill holes with the specified diameter

依標示尺寸鑽孔

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Apply threadlocker

使用螺絲防鬆膠

Assemble in right order

標示依順序組裝

Assemble as many times as specified

依指示組裝所需數量

Must be purchased separately

改裝品需另購

silicon oil

矽油

Assemble in right order

標示依順序組裝

Pay close attention here

注意組裝步驟

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Pay close attention here

注意組裝步驟

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Apply threadlocker

使用螺絲防鬆膠

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Apply silicon oil

使用模型專用矽油

Apply threadlocker

使用螺絲防鬆膠

Pay close attention here

注意組裝步驟

Apply C.A Glue

使用快乾膠黏合

Assemble as many times as specified

依指示組裝所需數量

Drill holes with the specified diameter

依標示尺寸鑽孔

Pay close attention here

注意組裝步驟

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Pay close attention here

注意組裝步驟

Must be purchased separately

改裝品需另購

Pay close attention here

注意組裝步驟

6mm

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

In the chassis set, these dog bones have been assembled in one-piece unit.

原廠已組配完成

Marked "L"

標示 "L"

Apply grease

使用潤滑油膏(黃油)

STEP20 Tire/Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20

STEP16 Engine Set 引擎與離合器罩

STEP16 Installation of Engine Set引擎安裝

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP12 Installation of Rear Brace 結合後補強版

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box結合電池盒

STEP10 Radio Box 電池盒

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP8 Steering Bellcrank 轉向曲柄組

STEP6 Rear Suspension 後擺臂懸吊組

STEP5 Rear Differential Unit後差速箱

STEP2 2-Speed Transmission Unit 2段變速組

24 25 26 27 29

PART# DESCRIPTION NOTE

TOMAHAWK VX PARTS LIST

PD7712

PD8088-1

PD8093

PD8098

PD9051

PD9052

PD9053

PD9054

PD9055

PD9057

PD9058

PD9059

PD9060

PD9061

PD9062

PD9063

PD9064

PD9065

PD9066

PD9067

PD9068

PD9069

PD9070

PD9071

PD9072

PD9073

PD9074

PD9075

PD9076

PD9077

PD9078

PD9079

PD9080

PD9081

PD9082

PD9083

PD9084

PD9085

PD9086

PD9087

PD9088

PD9089

PD9090

PD9091

PD9092

PD9093

PD9094

PD9095

PD9096

PD9097

PD9098

PD9099

PD9100

PD9101

PD9102

PD9103

PD9104

PD9105

PD9106

PD9107

TOMAHAWK VX PART LIST

JD7045 V3

TOMAHAWK VX PART LIST TOMAHAWK VX PART LIST

TOMAHAWK VX PART LIST

2 3

4 5

6 7 8

2120

1817

16151413

ANTENNA BAG,BLACK

SHOCK CAP

SHOCK BLADDER

SHOCK PISTON SET

DIFFERENTIAL CASE

FRONT BULK SET

REAR BULK SET

OUTDRIVE CUP SET

DIFFERENTIAL GEAR SET

DRIVE PINION SET 13T

DIFF SPUR GEAR 34T

ONE WAY BEARING SET

1ST/2ND SPUR GEAR,43/38

2 SPD. CLUTCH HUB

2 SPD. CLUTCH SET

2 SPD. DRIVE SHAFT

CTR DIFF. COVER

CTR DIFF. MOUNT

DISC BRAKE SET

2 SPD. CLUTCH BELL

FLY WHEEL

1ST/2ND PINION ,17/22 GEAR

CLUTCH SHOE SET

ENGINE MOUNT

BUMPER SET

URETHANE BUMPER

SHOCK TOWER SET

FRONT SUSP. ARMS

REAR SUSP. ARMS

STEERING BLOCK SET

CASTER BLOCK SET

FRONT UNIVERSAL SHAFT

OUTER HINGE PIN SET

UPPER LINK SET

SUSP. ARM MOUNT BUSHING

INNER HINGE PIN SET

FRONT TOE PLATE,0

REAR TOE PLATE,2.5

SWING RACK SET

SWING POST SCREW

CTR. DRIVE SHAFT SET

CHASSIS BRACE SET

HUB CARRIER SET

SWITCH PLATE & SPACERS

RADIO TRAY

CHASSIS

REAR UNIVERSAL SHAFT

FUEL TANK

MUFFLER

SILICONE TUBING

MANIFOLD

SHOCK SET

SHOCK SPRING,(2.5x1.8mm),BLUE

SHOCK SHAFT

SHOCK CAP & SPRING COLLAR

SHOCK EYELET

BALL STUD,L

BALL STUD,S

TH/BK LINKAGE SET

STEERING SERVO HORN SET

Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction 前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

Index 索引

Manual Format

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

Hint

組裝提示

30 31

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7 Shock Absorber 避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays ac tual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7 Shock Absorber 避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston 活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank 轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示 "S-ST"

Marked "S-ST"

標示 "S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTED XANAVI GT-R R34

CLEAR XANAVI GT-R R34 W/DECAL

XANAVI GT-R R34 DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20), M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20), M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4), 5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART# DESCRIPTION NOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂 ,26mm(電鍍紅)

10爪輪轂 ,26mm(黑)

8爪輪轂 ,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲 , M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲 (20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20), M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4), 5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140 FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142 FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板 PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架 PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板 PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3 )

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151 FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃 (適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156 HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160 SHOCK SPRING,RED

避震器彈簧,紅 (中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑 (特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白 (特軟)

TOMAHAWK VX OPTION PART LIST

PART# DESCRIPTION NOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3 ）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示 "S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm 2mm

4mm 6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE 雙色電鍍藍 , 26mm

PD6601-P C/PURPLE 雙色電鍍紫, 26mm

PD6601-Y C/YELLOW 雙色電鍍黃, 26mm

SPRINT DRIFT TIRE 疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART# DESCRIPTION NOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE 脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assemble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mm HARD 2.5x1.9mm EXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME 電鍍銀, 26mm

PD6682 WHITE 白色

, 26mm

PD6682-B BLACK 黑色

, 26mm

RACING DISH WHEEL 蝶式輪轂

PD7649 WHITE 白色 , 26mm

PD7650 WHITE 白色 , 30mm

10爪輪轂

PD7699 WHITE 白色, 26mm

PD7770 WHITE 白色, 30mm

(2)

WHEEL & TIRE OPTION PART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803 AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2) (2) (2) (2)

Insert Foam Included.

PD7714 OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876 ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST

How to read the instruction manual?

Temporarily tighten

暫時鎖附暫時鎖附

True-to-scale diagram

實際尺寸對照

Must be purchased separately

改裝品需另購

Apply C.A Glue

使用快乾膠黏合

Apply silicon oil

使用模型專用矽油

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Drill holes with the specified diameter

依標示尺寸鑽孔

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Apply threadlocker

使用螺絲防鬆膠

Assemble in right order

標示依順序組裝

Assemble as many times as specified

依指示組裝所需數量

Must be purchased separately

改裝品需另購

silicon oil

矽油

Assemble in right order

標示依順序組裝

Pay close attention here

注意組裝步驟

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Pay close attention here

注意組裝步驟

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Apply threadlocker

使用螺絲防鬆膠

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Apply silicon oil

使用模型專用矽油

Apply threadlocker

使用螺絲防鬆膠

Pay close attention here

注意組裝步驟

Apply C.A Glue

使用快乾膠黏合

Assemble as many times as specified

依指示組裝所需數量

Drill holes with the specified diameter

依標示尺寸鑽孔

Pay close attention here

注意組裝步驟

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Pay close attention here

注意組裝步驟

Must be purchased separately

改裝品需另購

Pay close attention here

注意組裝步驟

6mm

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

In the chassis set, these dog bones have been assembled in one-piece unit.

原廠已組配完成

Marked "L"

標示 "L"

Apply grease

使用潤滑油膏(黃油)

STEP20 Tire/Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20

STEP16 Engine Set 引擎與離合器罩

STEP16 Installation of Engine Set引擎安裝

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP12 Installation of Rear Brace 結合後補強版

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box結合電池盒

STEP10 Radio Box 電池盒

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP8 Steering Bellcrank 轉向曲柄組

STEP6 Rear Suspension 後擺臂懸吊組

STEP5 Rear Differential Unit後差速箱

STEP2 2-Speed Transmission Unit 2段變速組

24 25 26 27 29

PART# DESCRIPTION NOTE

TOMAHAWK VX PARTS LIST

PD7712

PD8088-1

PD8093

PD8098

PD9051

PD9052

PD9053

PD9054

PD9055

PD9057

PD9058

PD9059

PD9060

PD9061

PD9062

PD9063

PD9064

PD9065

PD9066

PD9067

PD9068

PD9069

PD9070

PD9071

PD9072

PD9073

PD9074

PD9075

PD9076

PD9077

PD9078

PD9079

PD9080

PD9081

PD9082

PD9083

PD9084

PD9085

PD9086

PD9087

PD9088

PD9089

PD9090

PD9091

PD9092

PD9093

PD9094

PD9095

PD9096

PD9097

PD9098

PD9099

PD9100

PD9101

PD9102

PD9103

PD9104

PD9105

PD9106

PD9107

TOMAHAWK VX PART LIST

JD7045 V3

TOMAHAWK VX PART LIST TOMAHAWK VX PART LIST

TOMAHAWK VX PART LIST

2 3

4 5

6 7 8

2120

1817

16151413

ANTENNA BAG,BLACK

SHOCK CAP

SHOCK BLADDER

SHOCK PISTON SET

DIFFERENTIAL CASE

FRONT BULK SET

REAR BULK SET

OUTDRIVE CUP SET

DIFFERENTIAL GEAR SET

DRIVE PINION SET 13T

DIFF SPUR GEAR 34T

ONE WAY BEARING SET

1ST/2ND SPUR GEAR,43/38

2 SPD. CLUTCH HUB

2 SPD. CLUTCH SET

2 SPD. DRIVE SHAFT

CTR DIFF. COVER

CTR DIFF. MOUNT

DISC BRAKE SET

2 SPD. CLUTCH BELL

FLY WHEEL

1ST/2ND PINION ,17/22 GEAR

CLUTCH SHOE SET

ENGINE MOUNT

BUMPER SET

URETHANE BUMPER

SHOCK TOWER SET

FRONT SUSP. ARMS

REAR SUSP. ARMS

STEERING BLOCK SET

CASTER BLOCK SET

FRONT UNIVERSAL SHAFT

OUTER HINGE PIN SET

UPPER LINK SET

SUSP. ARM MOUNT BUSHING

INNER HINGE PIN SET

FRONT TOE PLATE,0

REAR TOE PLATE,2.5

SWING RACK SET

SWING POST SCREW

CTR. DRIVE SHAFT SET

CHASSIS BRACE SET

HUB CARRIER SET

SWITCH PLATE & SPACERS

RADIO TRAY

CHASSIS

REAR UNIVERSAL SHAFT

FUEL TANK

MUFFLER

SILICONE TUBING

MANIFOLD

SHOCK SET

SHOCK SPRING,(2.5x1.8mm),BLUE

SHOCK SHAFT

SHOCK CAP & SPRING COLLAR

SHOCK EYELET

BALL STUD,L

BALL STUD,S

TH/BK LINKAGE SET

STEERING SERVO HORN SET

Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction 前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

Index 索引

Manual Format

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

Hint

組裝提示

30 31

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7 Shock Absorber 避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays ac tual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7 Shock Absorber 避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston 活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank 轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示 "S-ST"

Marked "S-ST"

標示 "S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTED XANAVI GT-R R34

CLEAR XANAVI GT-R R34 W/DECAL

XANAVI GT-R R34 DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20), M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20), M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4), 5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART# DESCRIPTION NOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂 ,26mm(電鍍紅)

10爪輪轂 ,26mm(黑)

8爪輪轂 ,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲 , M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲 (20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20), M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4), 5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140 FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142 FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板 PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架 PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板 PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3 )

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151 FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃 (適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156 HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160 SHOCK SPRING,RED

避震器彈簧,紅 (中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑 (特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白 (特軟)

TOMAHAWK VX OPTION PART LIST

PART# DESCRIPTION NOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3 ）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示 "S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm 2mm

4mm 6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE 雙色電鍍藍 , 26mm

PD6601-P C/PURPLE 雙色電鍍紫, 26mm

PD6601-Y C/YELLOW 雙色電鍍黃, 26mm

SPRINT DRIFT TIRE 疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART# DESCRIPTION NOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE 脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assem ble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mm HARD 2.5x1.9mm EXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME 電鍍銀, 26mm

PD6682 WHITE 白色

, 26mm

PD6682-B BLACK 黑色

, 26mm

RACING DISH WHEEL 蝶式輪轂

PD7649 WHITE 白色 , 26mm

PD7650 WHITE 白色 , 30mm

10爪輪轂

PD7699 WHITE 白色, 26mm

PD7770 WHITE 白色, 30mm

(2)

WHEEL & TIRE OPTION PART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803 AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2) (2) (2) (2)

Insert Foam Included.

PD7714 OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876 ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST

How to read the instruction manual?

Temporarily tighten

暫時鎖附暫時鎖附

True-to-scale diagram

實際尺寸對照

Must be purchased separately

改裝品需另購

Apply C.A Glue

使用快乾膠黏合

Apply silicon oil

使用模型專用矽油

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble in right order

依標示順序組裝

Drill holes with the specified diameter

依標示尺寸鑽孔

Cut off shaded portion

依標示部分裁切

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Apply threadlocker

使用螺絲防鬆膠

Assemble in right order

標示依順序組裝

Assemble as many times as specified

依指示組裝所需數量

Must be purchased separately

改裝品需另購

silicon oil

矽油

Assemble in right order

標示依順序組裝

Pay close attention here

注意組裝步驟

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Assemble left and right side the same way

左右側組件相同

Pay close attention here

注意組裝步驟

Ensure smooth, non-binding movement when assembling

確認組件靈活度

Apply threadlocker

使用螺絲防鬆膠

Assemble left and right side the same way

左右側組件相同

Assemble as many times as specified

依指示組裝所需數量

Apply silicon oil

使用模型專用矽油

Apply threadlocker

使用螺絲防鬆膠

Pay close attention here

注意組裝步驟

Apply C.A Glue

使用快乾膠黏合

Assemble as many times as specified

依指示組裝所需數量

Drill holes with the specified diameter

依標示尺寸鑽孔

Pay close attention here

注意組裝步驟

Pay close attention here

注意組裝步驟

Cut off excess

裁剪多餘部分

Pay close attention here

注意組裝步驟

Must be purchased separately

改裝品需另購

Pay close attention here

注意組裝步驟

6mm

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

In the chassis set, these dog bones have been assembled in one-piece unit.

原廠已組配完成

Marked "L"

標示 "L"

Apply grease

使用潤滑油膏(黃油)

STEP20 Tire/Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20

STEP16 Engine Set 引擎與離合器罩

STEP16 Installation of Engine Set引擎安裝

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP12 Installation of Rear Brace 結合後補強版

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box結合電池盒

STEP10 Radio Box 電池盒

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP8 Steering Bellcrank 轉向曲柄組

STEP6 Rear Suspension 後擺臂懸吊組

STEP5 Rear Differential Unit後差速箱

STEP2 2-Speed Transmission Unit 2段變速組

24 25 26 27 29

PART# DESCRIPTION NOTE

TOMAHAWK VX PARTS LIST

PD7712

PD8088-1

PD8093

PD8098

PD9051

PD9052

PD9053

PD9054

PD9055

PD9057

PD9058

PD9059

PD9060

PD9061

PD9062

PD9063

PD9064

PD9065

PD9066

PD9067

PD9068

PD9069

PD9070

PD9071

PD9072

PD9073

PD9074

PD9075

PD9076

PD9077

PD9078

PD9079

PD9080

PD9081

PD9082

PD9083

PD9084

PD9085

PD9086

PD9087

PD9088

PD9089

PD9090

PD9091

PD9092

PD9093

PD9094

PD9095

PD9096

PD9097

PD9098

PD9099

PD9100

PD9101

PD9102

PD9103

PD9104

PD9105

PD9106

PD9107

TOMAHAWK VX PART LIST

JD7045 V3

TOMAHAWK VX PART LIST TOMAHAWK VX PART LIST

TOMAHAWK VX PART LIST

2 3

4 5

6 7 8

2120

1817

16151413

ANTENNA BAG,BLACK

SHOCK CAP

SHOCK BLADDER

SHOCK PISTON SET

DIFFERENTIAL CASE

FRONT BULK SET

REAR BULK SET

OUTDRIVE CUP SET

DIFFERENTIAL GEAR SET

DRIVE PINION SET 13T

DIFF SPUR GEAR 34T

ONE WAY BEARING SET

1ST/2ND SPUR GEAR,43/38

2 SPD. CLUTCH HUB

2 SPD. CLUTCH SET

2 SPD. DRIVE SHAFT

CTR DIFF. COVER

CTR DIFF. MOUNT

DISC BRAKE SET

2 SPD. CLUTCH BELL

FLY WHEEL

1ST/2ND PINION ,17/22 GEAR

CLUTCH SHOE SET

ENGINE MOUNT

BUMPER SET

URETHANE BUMPER

SHOCK TOWER SET

FRONT SUSP. ARMS

REAR SUSP. ARMS

STEERING BLOCK SET

CASTER BLOCK SET

FRONT UNIVERSAL SHAFT

OUTER HINGE PIN SET

UPPER LINK SET

SUSP. ARM MOUNT BUSHING

INNER HINGE PIN SET

FRONT TOE PLATE,0

REAR TOE PLATE,2.5

SWING RACK SET

SWING POST SCREW

CTR. DRIVE SHAFT SET

CHASSIS BRACE SET

HUB CARRIER SET

SWITCH PLATE & SPACERS

RADIO TRAY

CHASSIS

REAR UNIVERSAL SHAFT

FUEL TANK

MUFFLER

SILICONE TUBING

MANIFOLD

SHOCK SET

SHOCK SPRING,(2.5x1.8mm),BLUE

SHOCK SHAFT

SHOCK CAP & SPRING COLLAR

SHOCK EYELET

BALL STUD,L

BALL STUD,S

TH/BK LINKAGE SET

STEERING SERVO HORN SET

Maintenance Manual & Parts Catalogue

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

Introduction

前言

Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble

your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely

to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums

and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world

of R/C.

感謝您購買雷虎科技TOMAHAWK VX引擎四驅房車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆測

試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的重

要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑問，

歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.

tiger.com.tw，我們將竭誠為您服務！

Under Safety Precautions 安全注意事項

Please read all of the instructions and familiarize yourself with the product and its controls before operation.

1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,

its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this

model.

2. Always keep this instruction manual on hand during assembly and for operating reference.

3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat

up the screw being installed which can result in some melting of the plastic parts or stripped threads.

4. For best performance, it is important to make sure all the moving parts can move freely without binding.

5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when

assembling and operating this product. Keep away from any high speed rotating parts during operation.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責

任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

Index 索引

Manual Format

Tools Included 內附工具

Hex Wrenches

1.5 / 2.0 / 2.5 / 3.0mm

六角板手組

4-Way Cross Wrench

十字套筒

Tools Required For Assembly組裝維修工具

Philips Screwdrivers

(L/M/S)

十字起子

Needle Nose Pliers

尖嘴鉗 Hobby Knife

模型用切割刀

Wire Cutter

斜口剪

Lexan Body Curved Scissor

車殼專用剪

Ruler

尺

Super Glue

(CA Glue)

快乾膠

Grease

潤滑油膏（黃油）

Thread Locking Adhesive

(Threadlocker)

螺絲防鬆膠

Example 說明範例

Symbols Used Throughout The Manual

Hint

組裝提示

30 31

STEP1 Front Differential 前差速組 / Rear Differential 後差速組

3x25mm

BT Philip Machine Screw

圓頭十字螺絲

Brake Cam

煞車凸輪

Brake Pad

煞車夾片

Brake Screw

煞車夾片固定螺絲

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

2.5mm

E-Clip2

E型扣環

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

2.9x1.8mm

O-Ring

O型環

5x11x4mm

Ball Bearing

軸承

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

STEP4 Front Suspension 前擺臂懸吊組

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

10x15x4mm

Ball Bearing

軸承

3x12mm

BT Machine Screw

圓頭十字螺絲

Caster Block Bushing

C型輪座

STEP4 Front Suspension 前擺臂懸吊組

6mm(L)

Ball Stud

球頭座

2x4mm

BT Self-Tapping Screw

圓頭十字墊圈螺絲

2.5x20mm

Outer Hinge Pin (Front)

輪座固定軸

Shock Shaft

避震器軸

Shock Eyelet

避震軸球頭

2.5mm

E-Clips

E字扣

3x12mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud

球頭座

6mm(S)

Ball Stud

球頭座

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Inner Hinge Pin

擺臂軸

3x10mm

BT Philip Machine Screw

圓頭十字螺絲

6mm(L)

Ball Stud (PD9104)

球頭座

2.5x22mm

Outer Hinge Pin (Rear)

擺臂軸

2x4mm

BT Self-Tapping Screw w/washer

圓頭十字墊圈螺絲

Body Clip

車殼R型插銷

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

Swing Post Screw

轉向曲柄固定螺絲

5x8x2.5mm

Ball Bearing

軸承

6mm(L)

Ball Stud

球頭座

2.6x12mm

F/H Self-Tapping Screw

平頭十字螺絲

2.6x8mm

F/H Self-Tapping Screw

平頭十字螺絲

2x12mm

BT Philip Machine Screw

圓頭十字螺絲

2.5x5mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

R型插銷

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

M3 Lock Nut

止鬆螺帽

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP7 Shock Absorber 避震器組

維修說明書及零件包型錄

1/10 SCALE NITRO POWERED 4WD TOURING CAR SERIES

1:10 引擎動力四驅房車系列

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.

本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。

Indicates the assembly step number and the

parts that are to be assembled.

Displays ac tual size drawings, and part

quantities used.

All parts, except screws, are identified by its

order numbers. When purchasing spare parts,

identify the part required and cross reference

this to the spare parts list in the end of this

maunal, which shows the purchasable spare

parts and the corresponding order numbers.

This instruction manual uses several symbols.

Pay careful attention to them dur ing

construction. Details are given at the bottom

of each page.

顯示組立步驟及需組立之零件部位

零件實際對照尺寸及使用數量

請比對零件形狀以及後附零件料號對照圖示找

出需求零件料號

操作說明符號可更有效協助組裝者使用此說明

書，請依說明書符號指示進行組裝步驟

說明書使用方式

符號說明

You may also use silicone oil to replace grease for the differentials. Fill up to 80%. We

recommend using #7000 silicone oil for the front differential and # 10000 silicone oil for

the rear differential. Change the viscosity of the silicone oil according to track conditions

and your driving style.

玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之黃油。裝填時液面請勿超過

差速本體上緣(約八分滿即可)。進階玩家建議于前差速組使用#7000號之差速矽油，後差

速組使用#10000號之差速矽油。差速矽油需另外採購。玩家可依操作習慣及操作路面情況

選擇適合濃度之矽油來調整差速反應。

Put the clutch steel ball into the hole on the 2-Speed clutch.

Next, tighten the set screw to the 2-Speed spring until the spring

bottoms out, then unscrew 1 1/2-1 3/4 turns. This is the factory

setting of the 2-Speed. Adjust accordingly to track conditions.

將離合甩片鋼珠及彈簧依序放入離合器本體，將固定螺絲鎖到

底後再鬆開1 1/2-1 3/4圈(注意!請勿將固定螺絲鎖死，如此將造

成彈簧失效)，進階玩家可依場地需求調整換檔時間。

Thetiresandwheelsinyourkitmayvaryfrom

thoseshowninthepictures.ThunderTigeris

constantlyworkingtoupgradeourkitsandwe

reservetherighttochangespecificatioins

withoutpriornotice.

本套件所附之輪胎與輪轂可能跟圖示有所差異。

因產品後續之設計研發或功能不斷改善之原因，

我們將保留產品規格變更權利，不再另行通知使

用者。

Leave one unit of drive axle for

later step.

將剩餘組件留待接下步驟組裝

8x14x4mm

Ball Bearing

軸承

2 Speed Spring

2段變速彈簧

6x9mm

Washer

墊圈

Top View

上視圖

Firmly tighten the set screw onto the flat spot.

將固定螺絲鎖附於變速軸平面上

5x8mm

Washer

墊圈

3x19mm

銷

3x5mm

Washer

墊圈

4.4x0.8mm

O-Ring

O型環

2.5x14mm

F/H Philip Machine Screw

平頭十字螺絲

3mm

Clutch Steel Ball

離合甩片鋼珠

3x6mm

Cap Screw

彈簧固定螺絲

14x10.5x0.1mm

Diff Shim

差速箱墊片

5x14x5mm

Ball Bearing

軸承

2.9x1.8mm

O-Ring

O型環

4x6mm

Set Screw

無頭內六角固定螺絲

2.5 x 5 mm

F/H Philip Machine Screw

平頭十字螺絲

STEP9 Steering Servo轉向伺服機 / Throttle/Brake Control Servo油門/煞車伺服機

STEP10 Radio Box 電池盒

STEP7 Shock Absorber 避震器組

〈Front Shock Tower〉

〈前避震器支架〉

In the chassis set, these dog bones have

been assembled in one-piece unit.

原廠已組配完成

In the chassis set, these dog bones have been

assembled in one-piece unit.

原廠已組配完成

Note direction

注意組裝方向

Note: !!!The use of the servo spacer may very

depending on the manufacturer's stock servo

you purchased. Check the servo to see if a

spacer is needed.

注意!!!由於市售伺服機規格不一，伺服機的

安裝調整請依各家廠牌伺服機實際安裝情況為

準來使用調整墊片。

3x10mm

BT Philip Tap Screw W / Washer

圓頭十字墊圈螺絲

6mm(S)

Ball Stud

球頭座

Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your

servo from the chart below. Install the servo horn arm with the stock mounting screw.

See the graphic for the correct neutral angle.

標示"T"搭配原廠伺服幾使用。請參考列表找尋適合各家廠牌伺服機所使用之拉桿座，然後

配合拉桿鎖附於伺服機上。

拉桿角度請依圖示調整於中立位置(約90度)。

Thread servo cord through.

將伺服機連接線/插頭依圖示穿進電池盒。

〈Rear Suspension〉

〈將後擺臂懸吊組結合於底板上〉

Connect as per instruction manual

依說明書指示將伺服機及電源開關連結於接收機

〈Rear Chassis Brace〉

〈將後補強版結合於後懸吊組與電池盒上〉

Thread antenna cord through the tubing.

將天線穿過套管並套上黑色護套〈Radio & Servo Tray Unit〉

〈將電池盒結合於底板上〉

〈Front Suspension〉

〈將前擺臂懸吊組結合於底板上〉

Cut the silicone tube to 265mm length

for the fuel tube.

將油管裁切成265mm之長度做為輸油管

Cut the silicone tube to 195mm length

for the pressure tube.

將油管裁切成195mm之長度做為回壓管

Pass tube through tube clip. Squeeze

the end of pressure tube into the hole in

the tuned pipe about 10mm.

將油管固定於油管夾上並將回壓管塞入

排氣管回壓接孔內約10mm後固定

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x12 mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

5x10x4mm

Ball Bearing

軸承

5x8x2.5mm

Ball Bearing

軸承

3x6mm

Socket Hex Machine Screw

內六角固定螺絲

3x28mm

Socket Hex Machine Screw

內六角固定螺絲

3x10mm

Socket Hex Machine Screw

內六角固定螺絲

3mm

Washer

墊圈

3mm

Spring Washer

彈簧墊圈

5x8mm

Washer

鋼迫緊板

3x8mm

BT Machine Screw

圓頭十字螺絲

Tighten the screws with one sheet of paper inserted

between both gears.

使用紙片調整主齒與驅動齒之間的間隙至適中位置。

Fuel Tube & Tuned Pipe

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

M3 Lock Nut

止鬆螺帽

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

3x8mm

F/H Philip Machine Screw

平頭十字螺絲

3x10mm

F/H Philip Machine Screw

平頭十字螺絲

Body Clip

車殼R型插銷

Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides.

將輪胎(含內襯)與輪轂結合並在胎緣內側點上快乾膠黏合。

Warning: Follow the adhesive instructions for proper use and safety. Wear eye and hand protection.

注意!!!使用快乾膠時請注意安全，最好戴上手套及護目鏡以避免危險。

4mm

Washer

墊圈

4x12mm

Socket Hex Machine Screw

內六角固定螺絲

Cover the shaft with cloth before

griping it with pliers.

組裝避震球頭時，可以用布料包覆

芯軸，以避免芯軸被尖嘴鉗刮傷。

Ensure the piston move

smoothly.

最後再確認避震器活塞

是否移動順暢無阻

Note Direction

This side face forward.

此面朝前

Marked "L"

標示 "L"

〈For Right〉

〈右側組件〉

〈For Right〉

〈右側組件〉

Rear

此面朝後

Engine Assembly

引擎組立圖

Pull down the piston and

slowly fill in the silicon oil.

The factory set-up of the

shock is #500 of silicon oil

for the front and rear shock

absorbers.

重新裝填矽油時，請先將活

塞及避震軸下拉，然後緩注

入避震器矽油于套筒內。

原廠避震器設定為前後避震

器皆使用#500號矽油。

Then gently move the shaft/piston

up and down to get rid of the

bubbles.

緩慢的將活塞及避震軸上下移動

使得套筒之氣泡能快點消失。

Add silicon oil one more

time up to the brim.

等所有氣泡都消失後再將液

面補滿

Put the shock bladder onto

the shock body, wipe off

excess oil and tighten the

shock cap.

將避震器封套置於套筒上

端並下壓結合，擦拭多餘

之矽油並鎖上避震器上蓋

Silicon oil

矽油

Piston 活塞

Tire/Wheels 輪胎及輪轂

說明書導讀

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Apply grease

使用潤滑油膏(黃油)

A d j u s t t h e

backlash with the

shims.

用來調整差速器

本體與齒輪箱之

間距，減少共

振。

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Marked "S-CM"

標示 "S-CM"

Apply grease

使用潤滑油膏(黃油)

Hint

組裝提示

Hint

組裝提示

〈For Right〉

〈右側組件〉

〈Rear Shock Tower〉

〈後避震器支架〉

LRx2

14x10.5x0.1mm

Diff Shim

差速箱墊片

STEP8

3x8mm

BT Philip Machine Screw

圓頭十字螺絲

3x18mm

BT Philip Machine Screw

圓頭十字螺絲

Steering Bellcrank 轉向曲柄組

Front Chassis Brace

前補強板

No.6194-F

Marked "S-ST"

標示 "S-ST"

Marked "S-ST"

標示 "S-ST"

Marked "T"

標示 "T"

Marked "T"

標示 "T"

Hint

組裝提示

Battery

電池盒

2.9x1.8mm

O-Ring

O型環

Hint

組裝提示

Hint

組裝提示

〈Throttle Linkage〉

〈伺服機油門拉桿〉

Hint

組裝提示

Tube clip 油管夾

Hint

組裝提示

Attach the shock eyelet onto

the shock shaft until it reaches

the mark line on the shaft

將避震球器頭鎖附於芯軸直到

球頭上緣到達刻線。

TOMAHAWK VX PARTS LIST

PD9108

PD9109

PD9110

PD6601-R

PD9112

PD9113

9262

PD9114

PD9115

PD9116

PD9117

PD9118

PD9119

PD9120

PD9121

PD9122

PD0668

PD0669

PD0880

PD0874

PD0973

PD0978

PD0980

PD0982

PD1002

PD1191

PD1192

PD1244

PD1338

PD1532

PD1533

PD1534

PD1569

PD1572

PD1598

PD1683

PD2488

PD6307

PD7081

PD7193

PD7419

PD7441

PD7466

PD7469

PD7475

PD8178

PD8205

PD9123

PD9124

PD9125

PD9126

PD9129

PD9130

PD9131

PD9132

PD9133

PD9134

TH/BK SERVO HORN SET

BODY POST SET

HEX ADAPTER SET

5-SPK WHEEL ,26mm(CHROME/RED)

10-SPK WHL ,26mm(BLACK)

8-SPK WHL,26mm(BLACK)

1/10 AIR CLEANER, DUAL FOAM

PAINTED Z-TUNE

CLEAR Z-TUNE W/DECAL

Z-TUNE DECAL SET

PAINTED 350Z

CLEAR 350Z W/DECAL

350Z DECAL SET

PAINTED XANAVI GT-R R34

CLEAR XANAVI GT-R R34 W/DECAL

XANAVI GT-R R34 DECAL SET

BT M. SCREW(20),M3x10

BT M. SCREW(20),M3x12

BT P.M. SCREW(20),M3x25

BALL BEARING SET(4), d5xD10xW4

WASHER(20), 4mm

E-CLIP(20), 4mm

SPRING WASHER(20)

NYLON STRAP(20), SMALL

BALL BEARING SET(4), d5xD8xW2.5

CTP.M.SCREW(20), M3x8

CTP.M.SCREW(20), M3x10

LOCK NUT(10), M3

SKH.M SCREW(20),M3x12

BT P.M. SCREW(20),M3x8

BT P.M. SCREW(20),M3x10

BT P.M. SCREW(20),M3x12

E-CLIP(20),2.5mm

BALL BEARING(2), d6xD12xW4

SET SCREWS(20), M4x4

BT P. TAP SCREW , M3x10

BT P.M. SCREW(20), M3x18

SK H.M SCREW (20), M3x6

CTP.M.SCREW(20), M3x12

BODY CLIPS(20), HNLR5

BALL BEARING SET(4), d5xD14xW5

BALL BEARING SET(4), d8xD14xW4

BALL BEARING SET(10), d5xD11xW4

SKH.M SCREW(10),M4x12

SKH.M SCREW(10),M3x10

O-RING(20)

BHP SCRDW(20), M3x6

SKH.M SCREW(20), M3x28

CT P.M.SCREW(20), M25x12

CT P.M.SCREW(20), M25x5

SET SCREW(20), M4x10

BALL BEARING(4), 10x15x4

BALL BEARING(4), 5x8x2.5mm

CTP. TAP SCREW(20) ,M26x10

CTP. TAP SCREW(20) ,M26x12

BT P. TAP SCREW ,M2x4

1/10 SLICK TIRE W/FOAM,26mm

天線零件包、黑

避震器上蓋

避震器空氣活門

活塞

差速器本體

前差速箱上下蓋組

後差速箱上下蓋組

傳動軸套

差速組齒輪

差速小傘齒(13T)

差速大傘齒(34T)

單向軸承座組

主齒輪組(43/38T)

兩段變速本體

甩片座組

兩段變速軸

中差座上蓋

中差座

剎車組

離合器罩

飛輪組

離合器齒輪

離合器甩塊組

引擎固定座

前防撞板

防撞泡綿

避震器支架

前擺臂組

後擺臂組

轉向臂

C型座組

前傳動軸

軸承針組

拉桿組

擺臂軸套

擺臂軸

前投影板（0度）

後投影板（2.5度）

轉向曲柄組

轉向軸

中央傳動軸

補強板組

後輪座

開關盒蓋&墊片組

接收機盒

車底盤

後傳動軸

油箱組

消音器

彎管接頭

排氣彎管

避震器組

避震器彈簧（2.5x1.8mm）藍

避震器軸

避震器配件

避震器球頭拉桿

球頭座，長

球頭座，短

油門煞車拉桿組

轉向拉桿緩衝組

中文名稱 PART# DESCRIPTION NOTE

油門拉桿緩衝組

車殼支柱

六角輪鼓轉換座組

5爪輪轂 ,26mm(電鍍紅)

10爪輪轂 ,26mm(黑)

8爪輪轂 ,26mm(黑)

空氣濾清器

完成車殼，Z-TUNE

透明車殼及貼紙，Z-TUNE

貼紙，Z-TUNE

完成車殼車殼，350Z

透明車殼及貼紙，350Z

貼紙，350Z

完成車殼車殼，XANAVI GT-R R34

透明車殼及貼紙，XANAVI GT-R R34

貼紙，XANAVI GT-R R34

半圓頭內六角螺絲(20), M3x10

半圓頭內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x25

滾珠軸承(4), d5xD10xW4

華司(20), 4mm

E型扣環(20), 4mm

彈簧墊圈(20)

固定束帶(20)

滾珠軸承(4), d5xD8xW2.5

平頭十字螺絲(20), M3x8

平頭十字螺絲(20), M3x10

止鬆螺帽(10), M3

內六角螺絲(20), M3x12

圓頭十字螺絲(20), M3x8

圓頭十字螺絲(20), M3x10

圓頭十字螺絲(20), M3x12

E型扣環(20), 2.5mm

滾珠軸承(2), d6xD12xW4

無頭內六角螺絲(20), M4x4

圓頭十字墊圈螺絲 , M3x10

圓頭十字螺絲(20), M3x18

內六角螺絲 (20), M3x6

平頭十字螺絲(20), M3x12

R型插銷(20)

滾珠軸承(4), d5xD14xW5

滾珠軸承(4), d8xD14xW4

滾珠軸承(10), d5xD11xW4

內六角螺絲(10), M4x12

內六角螺絲(10), M3x10

O型環(20)

圓頭十字螺絲(20), M3x6

內六角螺絲(20), M3x28

平頭十字螺絲(20), M25x12

平頭十字螺絲(20), M25x5

無頭內六角螺絲(20), M4x10

滾珠軸承(4), 10x15x4

滾珠軸承(4), 5x8x2.5mm

平頭墊圈十字螺絲(20), M26x10

平頭墊圈十字螺絲(20), M26x12

圓頭十字螺絲, M2x4

光頭胎, 26mm

中文名稱

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

PD9140 FLAME DECAL, BLUE

火焰貼紙,藍

PD9141

FLAME DECAL, YELLOW

火焰貼紙,黃

PD9142 FLAME DECAL, RED

火焰貼紙,紅

PD9143

CFRP BUMPER TOP PLATE

碳纖維前防撞上板 PD9144

CFRP FRONT SHOCK TOWER

碳纖維前避震器支架 PD9145

CFRP REAR SHOCK TOWER

碳纖維後避震器支架

PD9147

CFRP FR CHASSIS BRACE

碳纖維前補強板 PD9148

CFRP RR CHASSIS BRACE



碳纖維後補強板(配合PD9150)

PD9146

CFRP BULK LOWER COVER

碳纖維差速箱下蓋板

PD9149

ALUM. REAR TOE BLOCK

後投影板(2 /3 )

PD9150

LIGHTENED ENG. MOUNT

引擎固定座(非手拉引擎)

PD9151 FLYWHEEL( STR BOX)

飛輪組(適用起動台)

PD9159

SHOCK SPRING,YELLOW

避震器彈簧,黃 (適中)

PD9158

FIRE BLADE TIRE 26mm

高速火炎輪胎

PD9156 HEX WHL CAP SCREW

六角輪胎固定螺絲

PD9155

ALUMINUM SHOCK SET

避震器套筒組

PD9154

ALUMINUM UPPER ROD

上擺臂拉桿組

PD9153

ALUMINUM TURNBUCKLE SET

轉向調整拉桿組

PD9160 SHOCK SPRING,RED

避震器彈簧,紅 (中硬)

PD9161

SHOCK SPRING,BLACK

避震器彈簧,黑 (特硬)

PD9162

SHOCK SPRING,WHITE

避震器彈簧,白 (特軟)

TOMAHAWK VX OPTION PART LIST

PART# DESCRIPTION NOTE

PD7714

PD7722

PD7723

PD7724

PD7876

PD7968

PD7969

PD9140

PD9141

PD9142

PD9143

PD9144

PD9145

PD9146

PD9147

PD9148

PD9149

PD9150

PD9151

PD9153

PD9154

PD9155

PD9156

PD9159

PD9160

PD9161

PD9162

OP OUTDRIVE CUP

ALUM STEERING BLOCK SET

ALUM CASTER BLOCK SET

ALUM HUB CARRIER SET

ALUM HEX ADAPTER

ALUM STEERING BELLCRANK

ALUM STEERING SLIDER

FLAME DECAL, BLUE

FLAME DECAL, YELLOW

FLAME DECAL, RED

CFRP BUMPER TOP PLATE

CFRP FRONT SHOCK TOWER

CFRP REAR SHOCK TOWER

CFRP BULK LOWER COVER

CFRP FR CHASSIS BRACE

CFRP RR CHASSIS BRACE

ALUM REAR TOE PLATE,2 /3

LIGHTENED ENG. MOUNT(NON-PULL START)

FLYWHEEL( STR BOX)

ALUMINUM TURNBUCKLE SET

ALUMINUM UPPER ROD

ALUMINUM SHOCK SET

HEX WHL CAP SCREW

SHOCK SPRING(2.5x1.8mm),YELLOW

SHOCK SPRING(2.5x1.9mm),RED

SHOCK SPRING(2.5x2.0mm),BLACK

SHOCK SPRING(2.5x1.6mm),WHITE

鋼制傳動軸套

鋁合金改裝轉向臂

鋁合金改裝C型座組

鋁合金改裝後輪座

鋁合金改裝六角輪轂轉換器

鋁合金改裝轉向搖臂

鋁合金改裝轉向曲柄

火焰貼紙,藍

火焰貼紙,黃

火焰貼紙,紅

碳纖維前防撞上板

碳纖維前避震器支架

碳纖維後避震器支架

碳纖維差速箱下蓋板

碳纖維前補強板

碳纖維後補強板

碳纖維後投影板（2 /3 ）

引擎固定座（適用非手拉引擎）

飛輪組（適用起動台）

轉向調整拉桿組

上擺臂拉桿組

避震器套筒組

六角輪胎固定螺絲

避震器彈簧(2.5x1.8mm),黃

避震器彈簧(2.5x1.9mm),紅

避震器彈簧(2.5x2.0mm),黑

避震器彈簧(2.5x1.6mm),白

中文名稱

Marked "R"

標示 "R"

Antenna

天線

Hint

組裝提示

Use 6 mm preload spacer for front. Use 6 mm preload spacer for rear.

使用6mm避震器套筒調整夾片來調整避震器彈簧之鬆緊度

〈Front Shock Absorbers〉

〈將前避震器與前擺臂懸吊結合〉

〈Rear Shock Absorbers〉

〈將後避震器與後擺臂懸吊結合〉

Compress the spring

and install spring cup.

將下定位套固定于彈

簧下緣。

Marked "S-CM"

標示 "S-CM"

Steering Servo Type

轉向伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

TH/BK Servo Type

油門/煞車伺服機

Ace R/C S1903/ S2008MG

ACE R/C DS1015/DS0313

Airtronics / Sanwa

Futaba

Hitec

Servo Horn Mount

拉桿座

Body Clip

車殼R型插銷

Note direction

Cross with servo

注意安裝方向

與伺服機呈90°

10mm

Brake Disc

煞車片

Adjust the backlash

with the shims.

用來調整差速器本體

與齒輪箱之間距，減

少共振。

1mm 2mm

4mm 6mm

Back

背面

Back

背面

TH / BK

油門 /煞車伺服機

ACE R/C S1903/ S2008MG

ACE R/C DS1015/DS1313

Airtronics / Sanwa

Futaba

Hitec

Spacer

調整墊片

thin

thick + thin

See Note:

90°

Neutral

中立點

OFF

BATT

CH2

CH1

Black to Black

Red to Red

黑對黑、紅對紅

3x6mm

BT Philip Machine Screw

圓頭十字螺絲

Tube Clip

油管夾

Pressure Tube 回壓管

Fuel Tube 輸油管

Pressure Tube 回壓管

Adjust height to suit body.

調整車殼R型插銷來安裝車殼

Tire insert foam

輪胎海綿內襯 5.5mm

5.5mm

Antenna Hole

天線孔

Batteries not included in the kit

此套件不含電池

Check O-ring Inside

請先確認內部O型環已置入

PD9053 FRONT BULK SET

前差速箱上下蓋組

PD9052 REAR BULK SET

後差速箱上下蓋組

PD9054 OUTDRIVE CUP SET

傳動軸套

PD9051 DIFFERENTIAL CASE

差速器本體

PD9055

DIFFERENTIAL GEAR SET

差速組齒輪 PD9058 DIFF SPUR GEAR 34T

差速大傘齒(34T)

PD9057

DRIVE PINION SET 13T

差速小傘齒(13T)

PD8098 SHOCK PISTON SET

活塞

PD9059

ONE WAY BEARING SET

單向軸承座組

PD9060 1ST/2ND SPUR GEAR

主齒輪組

PD9061 2 SPD. CLUTCH HUB

兩段變速本體

PD9062 2 SPD. CLUTCH SET

甩片座組

PD9063 2 SPD. DRIVE SHAFT

兩段變速軸

PD9064 CTR DIFF. COVER

中差座上蓋

PD9065 CTR DIFF. MOUNT

中差座 PD9066 DISC BRAKE SET

剎車組 PD9067 2 SPD. CLUTCH BELL

離合器罩

PD9068 FLY WHEEL

飛輪組

PD9069 1ST/2ND PINION GEAR

離合器齒輪 PD9070 CLUTCH SHOE SET

離合器甩塊組 PD9071 ENGINE MOUNT

引擎固定座

PD9072 BUMPER SET

前防撞板 PD9073 URETHANE BUMPER

防撞泡綿

PD9074 SHOCK TOWER SET

避震器支架

PD9075 FRONT SUSP. ARMS

前擺臂組

PD9076 REAR SUSP. ARMS

後擺臂組

PD9077

STEERING BLOCK SET

轉向臂 PD9078 CASTER BLOCK SET

C型座組 PD9079 FRONT UNINI SHAFT

前傳動軸

PD9080

OUTER HINGE PIN SET

軸承針組

PD9082

SUSP. ARM MOUNT BUSHING

擺臂軸套

PD9081 UPPER LINK SET

拉桿組

PD9083 INNER HINGE PIN SET

擺臂軸

PD9084 FRONT TOE PLATE

前投影板(0)

PD9085 REAR TOE PLATE

後投影板(2.5)

PD9086 SWING RACK SET

轉向曲柄組

PD9092 RADIO TRAY

接收機盒

PD9091

SWITCH PLATE & SPACERS

開關盒蓋&墊片組

PD9090 HUB CARRIER SET

後輪座

PD9089 CHASSIS BRACE SET

補強板組

PD9088

CTR. DRIVE SHAFT SET

中央傳動軸

PD9087 SWING POST SCREW

轉向軸

PD9093 CHASSIS

車底盤

PD9094 REAR UNINI SHAFT

後傳動軸

PD9095 FUEL TANK

油箱組

PD9096 MUFFLER

消音器

PD9097 SILICONE TUBING

彎管接頭

PD9098 MANIFOLD

排氣彎管

(2)

(2) (4)

(8) (8) (8)

PD9099 SHOCK SET

避震器組

PD9100 SHOCK SPRING BLUE

避震器彈簧，藍(中軟)

PD9101 SHOCK SHAFT

避震器軸

PD9103 SHOCK EYELET

避震器球頭拉桿

PD9104 BALL STUD (L)

球頭座（長） PD9105 BALL STUD (S)

球頭座（短） PD9106 TH/BK LINKAGE SET

油門煞車拉桿組 PD9107

STEERING SERVO HORN SET

轉向拉桿緩衝組

PD9108

TH/BK SERVO HORN SET

油門拉桿緩衝組

PD9109 BODY POST SET

車殼支柱

PD9110 HEX ADAPTER SET

六角輪鼓轉換座組

PD6601-R

5-SPK WHEEL ,26mm(C/R)

5爪輪轂,26mm(電鍍紅)

PD9114 PAINTED BODY SET

完成車殼，SKYLINE Z-TUNE

PD9113

8-SPK WHL,26mm(BLACK)

8爪輪轂,26mm(黑)

PD9112

10-SPK WHL ,26mm(BLACK)

10爪輪轂,26mm(黑)

PD9117 PAINTED BODY SET

完成車殼，NISSAN 350Z

PD9120 PAINTED BODY SET

完成車殼，XANAVI GT-R (R34)

PD9115

CLEAR BODY W/DECAL

透明車殼及貼紙，SKYLINE Z-TUNE

PD9116 DECAL SET

貼紙，SKYLINE Z-TUNE

PD9118

CLEAR BODY W/DECAL

透明車殼及貼紙，NISSAN 350Z

PD9119 DECAL SET

貼紙，NISSAN 350Z

PD9121

CLEAR BODY W/DECAL XANAVI GT-R (R34)

透明車殼及貼紙

PD9122

DECAL SET XANAVI GT-R (R34)

貼紙

PD0668 M3x10 (20)

PD0669 M3x12 (20)

PD7193 HNLR5 (20)

PD1569 2.5mm(20)

PD0978 4mm(20)

PD1572 d6xD12xW4(2)

PD9129 d10xD15xW4(4)

PD7441 d8xD14xW4(4)

PD7419 d5xD14xW5(4)

PD1002 d5xD8xW2.5(4)

PD9130 d5xD8xW2.5(4)

PD7466 d5xD11xW4(4)

PD0874 d5xD10xW4(4)

PD6307 M3x6B (20)

PD1338 M3x12B (20)

PD7475 M3x10B (20)

PD9123 M3x28B (10)

PD7469 M4x12B (10)

PD2488 M3x18B (20)

PD0880 M3x25B (20)

PD1534 M3x12B (20)

PD1533 M3x10B (20)

PD1532 M3x8B (20)

PD8205 M3x6B (20)

PD1191 M3x8B (20)

PD1192 M3x10B (20)

PD7081 M3x12B (20)

PD9124 M25x12B (20)

PD9125 M25x5B (20)

PD9131 M2.6x 10(20)

PD9132 M2.6x12(20)

PD0982 SMALL(20)

PD1683 M3x10B (20)

PD9133 M2x4B(20)

PD1598 M4x4B (20)

PD9126 M4x10B (20)

PD0973 4 (20)

PD1199 3B (20)

PD0980 3mm

PD9134

1/10 SLICK TIRE W/FOAM

光頭胎26mm

BALL BEARING

滾珠軸承

SKH.M SCREW

內六角螺絲

BHP SCREW

圓頭十字螺絲 CT P.M.SCREW

平頭十字螺絲

CTP. TAP SCREW

平頭墊圈十字螺絲

SET SCREW

無頭內六角螺絲

BT P. TAP SCREW

圓頭十字墊圈螺絲

PD1244 3mm

LOCK NUT

止鬆螺帽

PD8178 2.9xW1.78(20)

O-RING

O型環

BT M. SCREW

半圓頭內六角螺絲

E-CLIP

E型扣環

SPRING WASHER

彈簧墊圈

WASHER

華司

BODY CLIPS

R型插銷

NYLON STRAP SMALL

固定束帶

PD8088-1 SHOCK CAP

避震器上蓋

PD8093 SHOCK BLADDER

避震器空氣活門

(4)

(10)

Round Tap Screw

圓頭十字螺絲

5.5mm

(4)(4)(4)

PD9102 SHOCK ACCESSORIES

避震器配件

(4) (4) (4)

1.2 1.3 1.4

(4)

SOFT 2.5x1.8mm

SOFT軟

2°

3°

FOR NON-PULL START ENGINE

FOR STARTER BOX

MEDIUM適中

HARD硬

EXTRA HARD中硬

EXTRA SOFT中軟

5-SPOKE WHEEL 5爪輪轂組

PD6601-L C/BLUE 雙色電鍍藍 , 26mm

PD6601-P C/PURPLE 雙色電鍍紫, 26mm

PD6601-Y C/YELLOW 雙色電鍍黃, 26mm

SPRINT DRIFT TIRE 疾速甩尾胎

PD7643 , 26mm

PD7644 , 30mm

2.8x1.9mm

O-Ring

O型環

Apply grease

使用潤滑油膏(黃油)

Always adjust the front and rear bushings

at the same time. You car may not run

stable if front and rear bushings are

unbalanced.

調整時請同時更換前後擺臂軸套。不平

衡的設定將增加車輛行駛的不穩定性。

By replacing the suspension arm mount

bushings (setup of roll center), you can

acquire different handling and steering

responses according to the different track

conditions. The kit included various spare

bushings for your further replacement.

藉由更換擺臂軸套來改變車子的滾動中

心之高低有助於穩定方向與控制轉向以

適應不同路面及操控之需求。

Roll Center Adjustment:

調整滾動中心

Roll

Center

Position

Low Speed Track High Speed Track

多彎高速路面

中間

(原廠設定)

Low

Mid. Low

High

Medium

(Factory Set-up)

Mid. High

滾動中心位置

最低偏低最高偏高

Track

路況

Top View

上視圖

Side View

側視圖

Neutral

中立點

90°

Manual Format 說明書使用方式

Symbols Used Throughout The Manual 符號說明

STEP1

Front Differential 前差速組 / Rear Differential 後差速組

STEP2 2-Speed Transmission Unit 2 段變速組

STEP3 Front Differential Unit前差速箱

STEP4 Front Suspension 前擺臂懸吊組

STEP5 Rear Differential Unit 後差速箱

STEP6 Rear Suspension 後擺臂懸吊組

STEP7 Shock Absorber 避震器組

STEP8 Steering Bellcrank 轉向曲柄組

STEP9

Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門 /煞車伺服機

STEP10 Radio Box 電池盒

STEP11 Installation of Rear End 結合後擺臂懸吊組

STEP12 Installation of Radio Box 結合電池盒

STEP13 Installation of Front End 結合前擺臂懸吊組

STEP14 Installation of 2-Speed Transmission Unit 結合2段變速組

STEP15 Installation of Fuel Tank 結合油箱

STEP16 Engine Set 引擎與離合器罩

STEP17 Muttler & Fuel Tube 消音器與油管

STEP18 Throttle/Brake Linkage 伺服機油門/煞車連桿

STEP19 Front Bumper 前防撞板 / Front Body Mounts 前車殼支柱

STEP20 Tire / Wheels 輪胎及輪轂

STEP21 Body Shell 車殼

TOMAHAWK EXPLODED VIEW 爆炸圖檢索

TOMAHAWK VX PART LIST 零件表及圖示

TOMAHAWK VX OPTION PART LIST 改裝零件表及圖示

WHEEL & TIRE OPTION PART LIST 輪轂和輪胎改裝零件表及圖示

P.2

P.3

P.5

P.7

P.8

P.10

P.12

P.13

P.14

P.16

P.17

P.18

P.19

P.20

P.21

P.22

P.23

P.27

P.33

P.34

28mm

STEP17 Muttler & Fuel Tube 消音器與油管

PART# DESCRIPTION NOTE

中文名稱

HIGH GRIP TIRE,高捉地力胎,26mm

PD1784,26mm

PULSE DRIFT TIRE 脈衝甩尾胎

PD7645 , 26mm

PD7646 , 30mm

Roll center adjustment refers to

Page 8

滾動中心的調整請參考第8頁之

說明

Factory Set-up

原廠設定

Assem ble Earlier

Refer to Page 5

參考第5頁

arm

mount

bushings

擺臂軸套

Rear

此面朝後

(2)

EXTRA SOFT 2.5x1.6mm

MEDIUM 2.5x1.8mm HARD 2.5x1.9mm EXTRA HARD 2.5x2.0mm

PD6601-L

PD6601-P

PD6601-Y

PD6681

PD6682

PD6682-B

PD7649

PD7650

PD7699

PD7700

PD1784

PD7643

PD7644

PD7645

PD7646

PD9158

5-SPOKE WHEEL(C/BLUE), 26mm (2)

5-SPOKE WHEEL(C/PURPLE), 26mm (2)

5-SPOKE WHEEL(C/YELLOW), 26mm (2)

5-SPOKE WHEEL(CHROME), 26mm (2)

5-SPOKE WHEEL(WHITE), 26mm (2)

5-SPOKE WHEEL(BLACK), 26mm (2)

RACING DISH WHEEL(WHITE), 26mm (2)

RACING DISH WHEEL(WHITE), 30mm (2)

10-SPK SPORT WHEEL(WHITE), 26mm (2)

10-SPK SPORT WHEEL(WHITE), 30mm (2)

HIGH GRIP TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 26mm

SPRINT DRIFT TIRE(2), 30mm

PULSE DRIFT TIRE(2), 26mm

PULSE DRIFT TIRE(2), 30mm

FIRE BLADE TIRE(2), 26mm

5爪輪轂組(2), 26mm(雙色電鍍藍)

5爪輪轂組(2), 26mm(雙色電鍍紫)

5爪輪轂組(2), 26mm(雙色電鍍黃)

5爪輪轂組(2), 26mm(電鍍銀)

5爪輪轂組(2), 26mm(白)

5爪輪轂組(2), 26mm(黑)

蝶式輪轂(2), 26mm(白)

蝶式輪轂(2), 30mm(白)

10爪輪轂(2), 26mm(白)

10爪輪轂(2), 30mm(白)

高捉地力胎(2), 26mm

疾速甩尾胎(2), 26mm

疾速甩尾胎(2), 30mm

脈衝甩尾胎(2), 26mm

脈衝甩尾胎(2), 30mm

高速火炎輪胎(2), 26mm

5-SPOKE WHEEL 5爪輪轂組

PD6681

CHROME 電鍍銀, 26mm

PD6682 WHITE 白色

, 26mm

PD6682-B BLACK 黑色

, 26mm

RACING DISH WHEEL 蝶式輪轂

PD7649 WHITE 白色 , 26mm

PD7650 WHITE 白色 , 30mm

10爪輪轂

PD7699 WHITE 白色, 26mm

PD7770 WHITE 白色, 30mm

(2)

WHEEL & TIRE OPTION PART LIST

NO.2705 LED LIGHTING KIT

LED改裝燈組

AQ0802

AQ0803 AQ0804

AQ0801

NO.1340

ROTATING CAR STAND

旋轉調車架

〈Rear Body Post〉

〈後車殼之註〉

Marked ". ."

Toe-in 2.5°

標示 ". ."內傾角2.5°

Marked "."

標示 "."

PD7712 SHOCK CAP

天線

9262

AIR CLEANER,DUAC FOAM

空氣濾清器

(2)

(2)(2)

(2) (2) (2) (2)

Insert Foam Included.

PD7714 OUTDRIVE CUP

鋼制傳動軸套

4x10mm

SET Screw

無頭內六角螺絲

FOR PD9150

Insert Foam Included.

TOMAHAWK VX PARTS LIST

PD7968

ALUM STEERING BELLCRANK

鋁合金改裝轉向搖臂

PD7969

ALUM STEERING SLIDER

鋁合金改裝轉向曲柄

PD7722

ALUM STEERING BLOCK SET

鋁合金改裝轉向臂

PD7723

ALUM CASTER BLOCK SET

鋁合金改裝C型座組

PD7724

ALUM HUB CARRIER SET

鋁合金改裝後輪座

PD7876 ALUM HEX ADAPTER

鋁合金改裝六角輪轂轉換器

TOMAHAWK VX OPTION PART LIST
